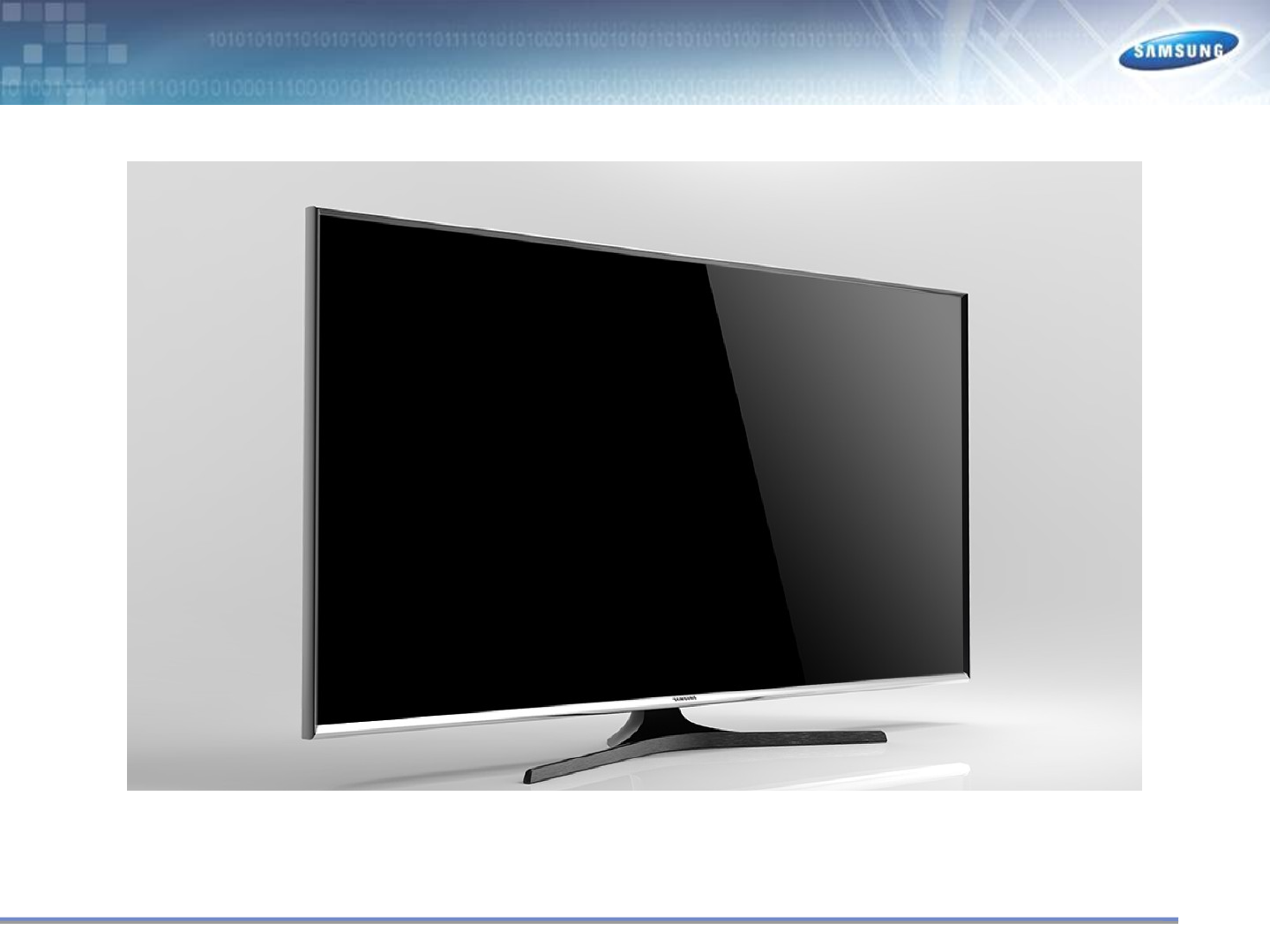

FHD TV
J5500
1
Table of Contents
 Product Introduction (Overview, Specifications)
 Key Features & Operation
 Front/Rear View (Component locations & Connections)
 Repair Preparations
 Layout
 Wiring Diagram
 Circuit Description (& testing)
 Factory Mode
 Troubleshooting (additional)
 Parts & Disassembly (& Reassembly)
 Table of Contents
1. Product Introduction: Overview
 1080P Panel , FHD , 60Hz refresh rate
 R-Chamfer + V Stand
 Micro Dimming Pro
 Smart, Convergence (Mobile – TV)
Hawk_MF main IC
FHD TV
J5500
3
	Items 		Specification
	 Model Name		UN40J5500A****
	General	Size (W*D*H) with Stand 	907.6 * 585.6 *288.1(mm)
		Weight with Stand	8.6 (kg)
		Panel Resolution 	1920*1080
		A/V	1AV
		S-Video	X
		DVD	1 component
480i/p,720p,1080i/p
		PC	No DSUB
		HDMI	2 HDMI
		Tuner	ATSC / Clear QAM
		Sound Output	6 ohm, R10W /L 10W
		PIP	O
		Sound option	DTS Premium Sound 5.1
		DNIe	O
		Headphone	X
		Response time	8ms
		Brightness	300
		C/R	5000:1
		Anynet+(hdmi cec)	O
		View Angle(H/V)	178/178 (V/H)
		Power Supply	AC 110~120V,60Hz
		DTV Sound System	Dolby
4
Product Introduction: TV Model Code Structure
Product
Type
U
N
3
2
J
5
5
0
F
X
Z
A
Size
(Inch)
Year
Code
Series
Optional
feature
Buyer
Code
0
Manuf.Type
	Product Type	1st and 2nd Code
	Slim LED TV 	UN**J****
	UHD LED TV	UN85S9AFXZA
	OLED TV 	KN**H****
	PDP TV	PN**H****
	PDP TV	PN**H****
	Year Code
	A = year 2008, B = 2009,
C = 2010, D = 2011,
E= 2012, F= 2 013/14 H = 2014
J = 2015
Z = 2029 (except I,O)
A
★ Exception
1. UN85S9AFXZA (11 Digit)
 Ultra HD S9 Series - Timeless Gallery concept with built-in frame.

14 Digits
The 14 digit model code structure is listed here for your reference. New is the “F” Year Code for 2013
5
Product Introduction: TV Serial No. Structure
	Year	2003	2004	2005	2006
Jan	2006
Feb-Dec	2007	2008	2009	2010	2011	2012	2013	2014	2015
	Symbol	W	X	Y	A	L	P	Q	S	Z	B	C	D	E	F
	Month	Jan.	Feb.	Mar.	Apr.	May	Jun.	Jul.	Aug.	Sep.	Oct.	Nov.	Dec.
	Symbol	1	2	3	4	5	6	7	8	9	A	B	C
 Production Month (9th digit of Serial No.)
 Production Year (8th digit of Serial No.)
	Z		6		N		B		3		C		A		F		2		0		0		0		0		2		D
15 Digits
Year
Month
Factory :
C Mexico

Consecutive
Number
Product
3 : TV
H : Mon

Model Code
(i.e. UN46F8000)
Production Line
 Serial No. on Menu: Support → Contact Samsung
Important Serial Number structure is listed:
Model Code, Product, Factory, Production Line, Year/Month… and “F” for 2015
6
2. Key Features
FHD TV
Key Features & Operation
7
Web browser
Videos contents
My contents
2015’ NEW UI
Key Features & Operation
My Apps
8
Unique Sales Point ( Playful UX )
 New Smart Hub UX
You can enjoy a wide range of content including free news, sports, weather and games by downloading and installing the corresponding apps on your TV.
①
②
① APPS - Select an app displayed on the screen or select a genre category
② RECENTLY USED - recently viewed Apps
9
 New Contact Samsung Info.
Wired & Wireless MAC Address, Software & Submicom Versions and Smart Hub Info.

More Information on Contact Samsung.
10
3. Front/Rear View
FHD TV
Front View
11
Front/Rear View & Connections
Rear Inlay
Side Inlay
12
Front Controls
Running Initial Setup
1. Point the remote control at the TV.
2. Press the button on the remote control to turn on the TV,
and then follow the directions on the screen
Using the TV Controller
You can use the TV Controller on the back of the TV instead of the remote control to control most of the
functions of your TV.
Move the Control Stick up, down, left, or right to move the cursor.
 Press the Control Stick to select or activate the item highlighted by the cursor.
Remote Sensor & Eco Sensor
Wifi module
13
Front Panel Control Locations
4.Repair Preparations
FHD TV
Repair Preparations
14
Disassembly – Repair Preparation
2. Remove Stand
Remove Rear Cover
Lay TV Face Down On Protective Table
 and remove 4 stand screws
3. Remove Rear Cover screws
15
Repair Preparation
Lay the TV Face Down On Protective Table
- TV cannot be re-attached to the stand for servicing
32”
16
5. Layout
FHD TV
Layout
17
UN48J5500
SMPS Board
T-CON
Speaker(R)
Speaker(L)
LVDS Cable
Main board
Jog Shuttle / IR
WIFI
Power Cable
The Layout for the UN48H6400 is shown and includes Main Board, LVDS Cable, SMPS Board, T-CON Board, Jog Shuttle, Wi-Fi Module, Bluetooth Module, & Speakers.
18
6.Wiring Diagram
FHD TV
Wiring Diagram
19
Wiring Diagram
Inside of UJ5H
CN1201
CN401
CN1401_FHD
CN201
Wiring Diagram includes Main cabling and connectors to SMPS. Main to Bluetooth and Wi-Fi Modules. Main to Speakers. Main to Jog Function ,Main to LVDS to T-CON Board, as well as SMPS to the Back Light Panel LEDs.
20
7. Circuit Description & Testing
FHD TV
Circuit Description & Testing
21
SAMSUNG
Jog Function Control
Circuit Description & Testing
Jog Shuttle
Testing
Check Jog Shuttle STBY Voltages (All at 3.3V except LED)
Check Jog Shuttle 5 SW Operation (Key1 & Key2) for each command change.
Check LED Indicator for STBY operation. (Check 1.8V Supply from Main Board)
 Jog Function Control
	P	CMD	Signal	DC Voltage
	1	IR Gnd		No connection
	2		LED	1.8V ( in STBY)
	3	Left	Key 2	3.3V to 1.6V DC
	3	Right	Key 2	3.3V to 2.5V DC
	3	Up	Key 2	3.3V to 0.0V DC
	3	Down	Key 2	3.3V to 0.8V DC
	4	Press	Key 1	3.3V to 0.0V DC
	5		SDA	3.3V
	6		SCL	3.3V
	7		VCC	3.3V
	8		GND
	9	IR	IR	3.3V to 2.5V DC
With Commands
3.
1. & 2.
TESTING
Check Jog Shuttle STBY Voltages (All at 3.3V except LED at 1.8V)
Check Jog Shuttle 5 SW Operation (Key1 & Key2) for each command change
Check LED Indicator for STBY operation. (Check 1.8V Supply from Main Board)
23
SAMSUNG
SMPS Board
Circuit Description & Testing
To Panel LEDS
 CNL802
SMPS Power On Sequence
A13V Standby to Main Board: varying from 7.5~12.7 Vdc
PS_ON: 3.3Vdc Power ON/OFF
A13V: to steady 12.7 Vdc
UD ( Under Drive) : 3.3Vdc also labeled “OD/UD”
BLU_PWM: .9V~3.3Vdc also labeled “BLU On/Off” Backlight On/Off & Backlight (PWM signal) Level Control.
Testing
To Main Board
 CNM803
NOTE: A13V for Standby & Operation
(no longer A5V & no “B” voltages)
25
Drive
To Panel
 LEDS
SMPS: Backlight
To Main Board
 CN803
Example of Models with Series Strings of LEDs (size related)
If one LED string goes out all are out, no backlight.
1
2
3 Sets of LED Strings in series 3
 - + - + - +
Fixed Supply
BL Control Voltage in
	CNL802 (to BLU)
	1	NC	9	NC
	2	3 +	10	1 +
	3	3 -	11	1 -
	4	NC	12	NC
	5	NC	13	NC
	6	2 +	14	NC
	7	2 -	15	IF2
	8	NC	16	IF1
Wired at SMPS CNL802 to determine Series or Parallel
26
27
230VDC
130V
(Effective DC)
230VDC
MORE VOLTAGE
LESS VOLTAGE
Min Backlight
MAX Backlight
Approximate DC Voltages are listed when measured with a Multi Meter
Back Light Operation: LED Drive
95V
(Effective DC)
Pins: 1+
Pins: 1+
Pins:
3-
Pins:
3-
BL Control Voltage
BL Control Voltage
Fixed Supply
Fixed Supply
27
CM803
 UN40J5500 SMPS / Backlight Test
	CNL802 (to BLU)
	1	NC	9	NC
	2	3 +	10	1 +
	3	3 -	11	1 -
	4	NC	12	NC
	5	NC	13	NC
	6	2 +	14	NC
	7	2 -	15	IF2
	8	NC	16	IF1
230Vdc (panel size dependent)
BL Supply measured at diode Stripe (cathode). This will raise to approx
280Vdc with an open string of LEDs.
CNL802
1
2
3 LED Strings 3
 - + - + - +
Fixed Supply
Control
	LED
Pins	Min
B/L	Max
 B/L	Full B/L
 Test	Panel Con.
Removed 	Sample
2- open
	3-	130Vdc	95Vdc	88Vdc	0	0
	3+	174Vdc	151Vdc	144Vdc	0	0
	2-	174Vdc	151Vdc	144Vdc	0	Opened
	2+	218Vdc	207Vdc	200Vdc	0	257Vdc
	1-	218Vdc	207Vdc	200Vdc	0	257Vdc
	1+	241Vdc	235Vdc	230Vdc	275Vdc	279Vdc
SimplifiedBACKLIGHTS Test
1. Activate Backlights – Disconnect Lead Cable from Main to Power Supply.
2. Measure BL Supply voltage at 1+ or at the supply diode cathode (stripe).
3. Remove Panel connector and measure again to compare.
4. If voltage is high and stays the same high reading a string of Panel LEDs are open. Replace the Panel.
If the voltage is low and remains low the SMPS is defective.
Series Strings of LEDs
SAMSUNG
MAIN
Main board
Main board LAYOUT
마스터 텍스트 스타일을 편집합니다
둘째 수준
셋째 수준
넷째 수준
다섯째 수준
30
Main board
Main board LAYOUT
마스터 텍스트 스타일을 편집합니다
둘째 수준
셋째 수준
넷째 수준
다섯째 수준
31
Main board: Pin Map
	1. CN1401_FHD
	1	NC	27	EVEN_TX0-
	2	GND	28	GND
	3	FRC_SDA	29	ODD_TX4+
	4	FRC_PWM1	30	ODD_TX4-
	5	FRC_SCL	31	ODD_TX3+
	6	FRC_PWM3	32	ODD_TX3-
	7	FRC_PWM2	33	GND
	8	TCON_SDA	34	ODD_TXCLK+
	9	PANEL_I2C_EN	35	ODD_TXCLK-
	10	BT_SYNC	36	GND
	11	UPDATE_CHK	37	ODD_TX2+
	12	TCON_SCL	38	ODD_TX2-
	13	GND	39	ODD_TX1+
	14	EVEN_TX4+	40	ODD_TX1-
	15	EVEN_TX4-	41	ODD_TX0+
	16	EVEN_TX3+	42	ODD_TX0-
	17	EVEN_TX3-	43	GND
	18	GND	44	GND
	19	EVEN_TXCLK-	45	GND
	20	EVEN_TXCLK+	46	FRC_PWM4
	21	GND	47	PANEL_13V_PW
	22	EVEN_TX2+	48	PANEL_13V_PW
	23	EVEN_TX2-	49	PANEL_13V_PW
	24	EVEN_TX1+	50	PANEL_13V_PW
	25	EVEN_TX1-	51	PANEL_13V_PW
	26	EVEN_TX0+	　	　
	2. CN201(to Power board)
	1	A13V_PW	11	SMPS_FET_FAIL_DETECT
	2	A13V_PW	12	ANA_DIMMING
	3	GND	　	　
	4	GND	　	　
	5	A13V_PW	　	　
	6	SW_POWER_OUT	　	　
	7	A13V_PW	　	　
	8	SW_INVERTER	　	　
	9	A13V_PW	　	　
	10	OVD_LEVEL	　	　
	3. CN1201(to Function/IR)
	1	IR	14	A5V
	2	GND	15	LED_STB
	3	GND	16	BT_WAKE
	4	FRAME_SYNC_IN	17	GND
	5	A3.3V	18	POWER_DET
	6	BT_SYNC	19	NC
	7	MSCL	20	BT_RESET
	8	GND	21	GND
	9	MSDA	22	WIFI_DP
	10	USB_BT_DP	23	WIFI_DM
	11	KEY_INPUT1	24	B5V_DC_PW
	12	USB_BT_DM	25	WIFI_WOL
	13	KEY_INPUT2	26	WIFI_RESET
	4. CN302(to Speaker)
	1	R+	3	L+
	2	R-	4	L-

	5. CN502(to Component & AV)
	1	GND	9	TEST_PR
	2	COMP2_Y_CVBS	10	GND
	3	INDENT_VIEDO2	11	COMP_AV_SL_IN
	4	GND	12	TEST_SL
	5	COMP_PB	13	GND
	6	IDENT_COMP	14	COMP_AV_SR_IN
	7	GND	15	TEST_SR
	8	COMP_PR
마스터 텍스트 스타일을 편집합니다
둘째 수준
셋째 수준
넷째 수준
다섯째 수준
Main board: Pin Map
	6. CN601(to HDMI3)
	1	HDMI1_RX2+	10	HDMI1_RXCLK+
	2	GND	11	GND
	3	HDMI1_RX2-	12	HDMI1_RXCLK-
	4	HDMI1_RX1+	13	CEC
	5	GND	14	NC
	6	HDMI1_RX1-	15	HDMI1_SCL_DDC
	7	HDMI1_RX0+	16	HDMI1_SDA_DDC
	8	GND	17	GND
	9	HDMI1_RX0-	18	HDMI1_5V
			19	HDMI1_HOT_PLUG
	7. CN602(to HDMI1)
	1	HDMI2_RX2+	10	HDMI2_RXCLK+
	2	GND	11	GND
	3	HDMI2_RX2-	12	HDMI2_RXCLK-
	4	HDMI2_RX1+	13	CEC
	5	GND	14	ARC2_SIGLE
	6	HDMI2_RX1-	15	HDMI2_SCL_DDC
	7	HDMI2_RX0+	16	HDMI2_SDA_DDC
	8	GND	17	GND
	9	HDMI2_RX0-	18	HDMI2_5V
			19	HDMI2_HOT_PLUG
	8. CN603(to HDMI2)
	1	HDMI3_RX2+	10	HDMI3_RXCLK+
	2	GND	11	GND
	3	HDMI3_RX2-	12	HDMI3_RXCLK-
	4	HDMI3_RX1+	13	CEC
	5	GND	14	NC
	6	HDMI3_RX1-	15	HDMI3_SCL_DDC
	7	HDMI3_RX0+	16	HDMI3_SDA_DDC
	8	GND	17	GND
	9	HDMI3_RX0-	18	HDMI3_5V
			19	HDMI3_HOT_PLUG

	11. CN1501(USB3)
	1	B5V_USB1_PW	3	USB1_DP
	2	USB1_DM	4	GND
	10. CN1502(USB2)
	1	B5V_USB2_PW	3	USB2_DP
	2	USB2_DM	4	GND

	9. CN1503(USB2)
	1	B5V_USB3_PW	3	USB3_DP
	2	USB3_DM	4	GND
마스터 텍스트 스타일을 편집합니다
둘째 수준
셋째 수준
넷째 수준
다섯째 수준
Main board: Pin Map
	12. CN1402_LAN
	1	LAN_TXD+	5	B2.5V
	2	B2.5V	6　	LAN_RXD-　
	3　	LAN_TXD-	7	NC
	4　	LAN_RXD+	8	GND

	13. OP301(to Optical Jack)
	1	SPDIF_OUT	3	GND
	2	B5V_DC_PW	　	　


	14.CN504_NRS
	1	GND	5	TEST_SR
	2	HP_AUD_SL_OUT	6	IDENT_HP
	3	HP_AUD_SR_OUT	7	GND
	4	TEST_SL	　	　
마스터 텍스트 스타일을 편집합니다
둘째 수준
셋째 수준
넷째 수준
다섯째 수준
Explanation of Main board
35
2015 LED Signal Path for Troubleshooting
T-con
Scaler Pattern
36
Troubleshooting: MAIN / T-CON / PANEL
ENTER: Factory mode -> SVC Info -> Test Pattern
X12
LVDS
Scaler Pattern
Main Board
Verify “Scaller Pattern”
Verify “US Post Pattern”
Also: Check “Mute 147 Mute Pattern”
There are No Test patterns for T-CON Board since there is no FRC Circuit. In this model.
CHECK TEST PATTERNS
1.
HAWK_MF
Tcon Board
T- Con (no FRC )
US Post Pattern
X14 Main Board sends important 10 Bit Video Processed Signal thru LVDS to FRC/T-CON Board than to the Panel.
To troubleshoot important Video Path:
Check Test Patterns Available in Service Mode:
Verify “Pattern Sel” (Main Board)
37
Troubleshooting
Scaler Pattern
CHESS
8Color Bar
White
256GRAY
WB1
3D
Test Patterns: Pattern Sel, FRC Pre, & FRC Post
38
On Screen Failures
39
PANEL
Use Factory Mode test patterns to verify Panel & not T-CON or LVDS
MAIN Board
Verify with other sources,
Picture Test & Patterns.
Source
No Display
Blocking Errors
LVDS Cable/
Connection
Sections of screen are darker
BACKLIGHT
Vertical Lines
present in all
 modes
Noise or lines in Screen
Losing Data Info
39
‘14 UHD TCON
‘14 LED TCON
‘14 LED Panel
‘14 UHD Panel
‘14 UHD/LED Panel
‘14 UHD/LED Panel
‘13 UHD TCON
 Screen Failures Observed:
Main Board F9000
‘14 LED Main
‘14 LED Main
T-CON Errors / Panel Errors / Main Board Errors Observed
40
Damaged Panels
Panels do not crack on their own
41
LCD panels use a flexible polarizer on the outside edge of the panel. If the unit is hit by a object the flexible polarizer may not show damage but the inside LCD glass will break. Panels showing a center point and cracks radiating from that point is impact damage. Corner cracks are usually the result of rough handling. Panels do not crack on their own.
41
SAMSUNG
T-CON
Testing
Check 3 LED Indicators for operation (All On when OK)
Measure 12V T-Con Supply at both sides of Fuse ref to ground. (If it’s missing on both sides check LVDS/Main Board feed; If Missing just on one side, check fuse/T-Con Board)
Check LVDS Connector
Check Panel Connectors
3.
TCON Three Status LEDs UN40J5500
4.
4.
3 LED Status Indicators
 3.3Vdc Reg. / 12Vdc Reg. / Panel DC/DC Drive
All three LEDs must be lit in order for the T-CON to operate correctly. They monitor DC regulator supplies on the T-CON Board. If all three LEDs are out then the fuse is likely open or there is no 12V supply voltage coming from the LVDS Cable/Main Board. The left LED is the 12V Supply Regulator and if its out no Video condition, the Middle is the 3.1V Regulator, if it’s out: Noisy Picture, the Right LED is the T-CON DC to DC Converter (approx 17 pending panel size) : If it’s out no Video.
43
Always Inspect & Properly
 connect Panel Ribbons
Examples with Left Ribbon disconnected or damaged effecting the right
Half of the video screen. Right ribbon effecting the left half.

TCON Panel Ribbons - Damage Prevention
Examples with Left Ribbon Disconnected or Damaged effecting right
Half of video. (Right ribbon would have effected left half).
Always Inspect & Properly
 connect Panel Ribbons
44
8. Factory Mode
FHD TV
Factory Mode
45
Enter Factory Mode
Factory Remote
Power TV ON
Info/Factory
Standard IR Remote
Power TV Off
Mute/182/Power
(Limited Factory Mode Operation)
Troubleshooting: Factory Mode
 Micom SW Version
 Sub Micom SW Ver.
BT SW Ver
E-Manual SW Ver.


Wired MAC (Status)
Wireless MAC (Wi-Fi Module)
 DRM Crt, CIP, NF, etc (Status)
Verify SW Versions
 Verify Wired MAC Addresses SUCCESS
Verify Wireless MAC Address “SUCCESS”
Verify DRM Crt, NF, etc Status is “O”
TESTING
The initial Factory Service Mode Screen is shown.
Factory Mode can be entered two ways but Must use a Factory Remote to get full operation and screens.
TESTING & OBSERVATION from this screen include:
Verify SW Versions
 Verify Wired MAC Addresses SUCCESS
Verify Wireless MAC Address “SUCCESS”
Verify DRM Crt, NF, etc Status is “O”
46
Troubleshooting: Option Bytes
Setting Option Bytes
Enter Factory Mode with Service Remote (required to change all settings) and select Option screen.
Check Option Byte Table settings located on GSPN (Fast Tracks or Tips) for latest exact model information. (Do not use the Service Manual)
Select each item needed to change (Type, Local Set, SW Model, BOM Model, Tuner, etc.)
Additional items are located in MRT Option such as Front Color, LVDS Format,Region, etc), if necessary to change.
1.
4.
2.
3.
	Type	32R6AF0V	40A6AF0V	48A6AF0V	50R6AF0V	55L6AF0VJ
	Local set	AFXZX_MEXICO
AFXZC_CANADA
AGXZD - BRA_DTV
AGXZS - CHILE_DTV
	SW Model	5500
	BOM Model	5500
	Tuner	S_TC(AF****) / S_ISDB(AG***)
	Ch table	-
	Country	-
	Front Color	U-S-C-55
Setting Option Bytes
Enter Factory Mode with Service Remote (required to change all settings) and select Option screen.
Check Option Byte Table settings located on GSPN (Fast Tracks or Tips) for latest exact model information. (Do not use the Service Manual)
Select each item needed to change (Type, Local Set, SW Model, BOM Model, Tuner, etc.)
Additional items are located in MRT Option such as Front Color, LVDS Format, Region, etc), if necessary to change.
47
ENTER: Factory mode -> SVC -> SVC Info
SVC Info
SVC Info
(Special Notes)
Serial Number is Missing “Fail” when Main Board is replaced
Pass/Fail : Should Pass
Currently Paired Items
Panel Hours
Main Micom SW Version
Troubleshooting : SVC Info
Important SVC Info screen shown can be selected from SVC/SVC INFO
Model, Serial Number, SW Versions, Panel Hours,
Important Customer Pairing info… Use to test what is currently paired…
Smart Hub & Important WD Count
48
ENTER: Factory mode -> SVC Info -> Self Diagnosis
TESTING
Select each item to test as in this an example “Loop Back”
Push enter. A sub screen may appear as shown.
Select and enter each sub item for a current status test.
Verify current Status
1.
2.
3.
4.
Loop Back Testing feature can be selected from the Self Diagnosis Screen:
Select each item to test as in this an example “Loop Back”
Push enter. A sub screen may appear as shown.
Select and enter each sub item for a current status test.
Verify current Status
49
Check Important WD Count (hardware failures), AR Count (Apps & software failures), Wi-Fi, BT, HDMI, Camera
EDID: Use for HDMI issues by removing all HDMI connectors, Turning EDID OFF to ON, then selecting EDID write .
Verify EDID Write Success status.
Check Important WD Count (hardware failures), AR Count (Apps & software failures), Wi-Fi, BT, HDMI, Camera
EDID: Use for HDMI issues by removing all HDMI connectors, Turning EDID OFF to ON, then Return
Verify EDID Write Success status.
50
9. Troubleshooting (Additional)
FHD TV
Troubleshooting
51
SAMSUNG
Contact Samsung
2015 Support Menu
Troubleshooting:
ENTER: Menu -> Support -> Contact Samsung
Model Code & Software Version
Wired Mac Address (Hex Code 0 thru 9 & A thru F) if missing or incorrect defective Main Board.
Wireless MAC Address
Bluetooth Address
Smart Hub Info: Verify Apps Version & Unique ID for correct operation.
Important Contact Samsung Info
Please Improved photos
2014 Contact Samsung Screens are shown and include:
Model Code & Software Version, Sub Micom Version & E-Manuel Version
Wired Mac Address (Hex Code 0 thru 9 & A thru F) if missing or incorrect defective Main Board.
Wireless MAC Address: Verifies Wi-Fi Module is OK.
Bluetooth Address: Verifies Bluetooth Module
Smart Hub Info: Verify Apps Version & Unique ID for correct operation.
53
SAMSUNG
Picture Test
2015 LED TVs
Self Diagnosis Menu
ENTER: Menu -> Support -> Self Diagnosis -> Picture Test
Enter Self Diagnosis/Picture Test
Observe Picture Test Photo which is generated from the Main Board.
 If it’s OK check input source and source cables.
If Picture Test fails use test patterns in Factory Mode to help determine specific failure.
Picture Test
Troubleshooting: MAIN / T-CON / PANEL
With Self Diagnosis Picture Test
1.
2.
SAMSUNG
Circuit Description & Testing
SAMSUNG
Wi-Fi /Bluetooth Module
2015 Network: Troubleshooting
Wired MAC Address
Wireless MAC Address
.
.
.
Check Wired MAC Address and Wireless MAC Address at “Contact Samsung”
 Check Wired MAC and Wireless MAC at Factory Mode Menu. (Success/Failure)
If Wired MAC errors exist the Main Board is defective.
If Wireless MAC errors exist:
Check Wi-Fi Module Connector Voltages. If OK replace Module.
. Wired
. Wireless
Wi-Fi Module
	P	1	2	3	4	5	6
	STBY	0	0	0	0	.8	0
	Power ON	0	.04VdcWi-Fi
Sig 	.04VdcWi-Fi
Sig 	5.3
Vdc	3.3
Vdc	3.3
Vdc
500mv P-P
Wi-Fi
Signal
.
To Troubleshoot the Network with 2015 informational screen advances
Check Wired MAC Address and Wireless MAC Address at “Contact Samsung”
 Check Wired MAC and Wireless MAC at Factory Mode Menu. (Success/Failure)
If Wired MAC errors the Main Board is defective.
If Wireless MAC errors exist:
Check Wi-Fi Module Connector Voltages. If OK replace the Wi-Fi Module.
If they are not OK check the Main Board and Cabling to the Wi-Fi Module
57
2015 Bluetooth Module Troubleshooting
BT Version
3.
Check Bluetooth Address at “Contact Samsung”
2. Check BT F/W Version at Factory Mode screen. Might require upgrade. Check GSPN
3. If errors exist than Check BT Connector Voltages. If DC voltages are missing check cable & Main Board feed.
If voltages OK but BT Sig. pins (DC Ref.) Voltages are missing, The BT Module is likely defective.
	Pins	1	2	3	4	5	6	7	8	9	10
	Standby 	0	3,3
Vdc	0	0	0V	0	5	3.3
VDC	0	3.3
Vdc
	Power ON	3.3
Vdc	3.3
Vdc	0	0	2V
BT Sig
4V P-P	1V
BT Sig.
4V P-P	5	3.3
Vdc	3.3
Vdc	3.3
Vdc
All Measurements in the Chart
are DC Volts with Multi Meter.
Bluetooth Sig. & Sync Pulse are effective DC Readings.
BT Module Connector Test
BT Address
2.
1.
4V P-P
10. Parts & Disassembly (& Reassembly)
Disassembly
And
Reassembly
59
Disassembly
2. Remove Stand
Remove Rear Cover
Lay TV Face Down On Protective Table
 and remove 4 stand screws
3. Remove Rear Cover screws
60
Disassembly (2)
6. Remove screws of
 Main PCB & IP board.
5. After removing rear cover
7. Remove Function Assy and cable.
61
Disassembly (3)
9. Completed disassembly.
8. Remove Speakers(L/R)
62
