Airbus A320 Flight Tutorial
Aerofly FS features a full cold and dark startup simulation of the Airbus A320-200 and also all
other airliners in the latest versions.
The term “cold and dark” refers to an aircraft which has been parked for a while and is prepared
for the first flight of the day. The engines are off and all systems are powered down.
To select the cold and dark setting first select the aircraft in the aircraft menu and then select a
parking position using the location menu. After selecting a parking position you will see options
for “ready for taxi”, “before engine start” and “cold and dark”. Select the latter to start with all
engines and systems off.
We’ll skip some processes to keep this tutorial short and needless to say this is not to be used
for real world flights.
Cockpit Preparation and Preflight
Power On
The A320 is normally powered by the two engine generators during flight. When the engines are not running an Auxiliary Power Unit (APU) in the
rear of the aircraft can be used to provide power. On the ground when the aircraft is parked we can also connect an external power generator to the
power inlet on the outside. If all generators fail during flight a ram air turbine (RAT) automatically deploys and is driven by the airstream to provide
essential power. Lastly the A320 has two batteries that provide DC power for APU start.
Upon entering the flight deck:
Check that the wipers and weather radar are turned off
Check that the landing gear lever is down, engine master switches are off and engine mode selector is normal
Check Battery Voltage greater than 25.5V
https://www.aerofly.com/
https://www.aerofly.com/aircraft-tutorials/a320/
https://www.aerofly.com/de/flugzeug-tutorials/a320/
https://www.aerofly.com/
https://www.aerofly.com/features/
https://www.aerofly.com/shop/
https://www.aerofly.com/tutorials/
https://www.aerofly.com/developers/
https://www.aerofly.com/support/
Start APU

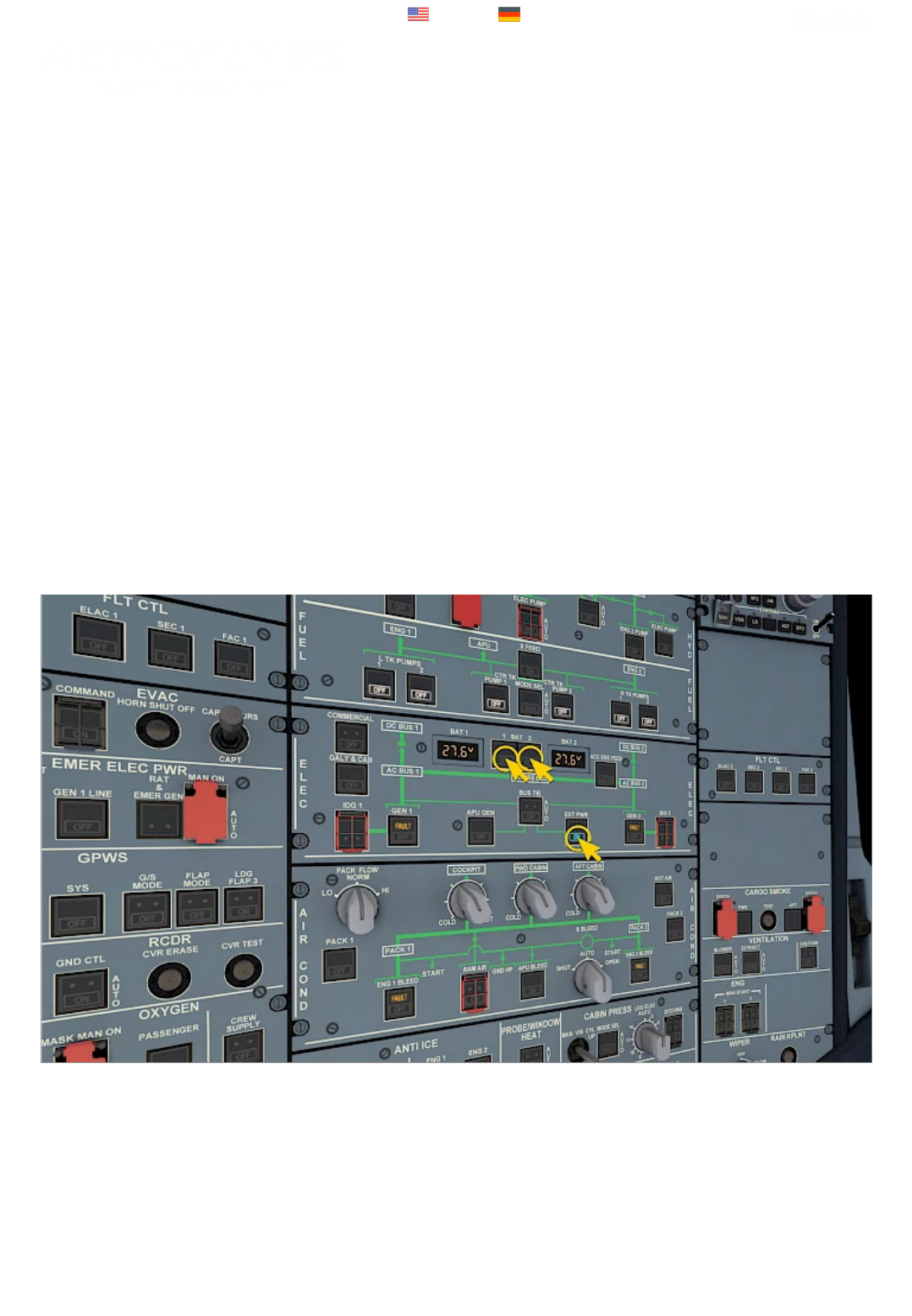

Push BAT 1 and BAT 2 pushbuttons to turn both batteries on which will give us basic DC power

When the EXT PWR pushbutton shows a green AVAIL text push it to use the external AC power for the flight deck screens
Push and hold the APU fire test pushbutton in the upper part of the overhead panel. This triggers the fire test which illuminates the APU fire
button, fire extinguisher button and show a red ECAM master warning and APU FIRE ECAM action. Release the button again
Push the APU MASTER SW pushbutton
Wait for a few seconds for the APU for the APU self test to complete and inlet door to open, which you can monitor on the APU page in the lower
ECAM
Push the APU START pushbutton to start the APU
When the APU has started the START button shows a green AVAIL light and the upper ECAM shows an APU AVAIL memo in the right column
Turn on the APU BLEED when the APU is available
Check that both air conditioning packs are turned on with the PACK 1 and PACK 2 buttons
Turn on all fuel pumps by pressing the L TK PUMP 1 and 2, CTR TK 1 and 2, and R TK PUMP 1 and 2 buttons
Check that no white lights are remaining in the overhead panel
ADIRS and Signs
In the real world this can take 10 minutes or more, we’ve sped this up for you to just one minute. The A320 comes with two sets of navigation lights
to allow continued line operation even when a single light bulb fails
In our A320 the company decided to keep the no smoking signs on at all times and instead the no smoking switch is used to signal the use of personal
electronic devices.
Additional Checks (optional)
Set all three ADIRS switches to the NAV position to start the alignment process
Turn on the first set of navigation light by placing the NAV & LOGO light switch to the “1” position.
Arm the passenger emergency exit lights by setting the EMER EXIT LT to the center ARM position
Set the SEAT BELTS and NO SMOKING switches to AUTO
We can perform an engine fire test for ENG 1 and then ENG 2 by pressing and holding the TEST button in the upper part of the overhead panel. You
should see the engine fire button light up red, the two fire extinguisher buttons illuminate and you should see and hear a red master warning, a red
engine fire message on the ECAM as well as a red FIRE text on the engine master switch
Before Start
We’re now entering the minimum necessary values into the MCDU.
If you want to you can preform a full MCDU preflight as described in our dedicated A320 MCDU tutorial
After MCDU preflight has been completed continue with before start checklist:
Press and hold the ENG 1 fire test button, then repeat for ENG 2
Check that the flap lever is at the indicated flap position
Check that the speed brake lever is retracted
Check that the parking brake is on
Check the brake accumulator pressure is sufficient to hold the parking brake on
Open the ECAM engine page and check the engine oil quantity
Check the ECAM hydraulic oil quantity
Check the ECAM oxygen pressure
Check the ECAM status page
Press the ECAM recall button to display any previously cautions and warnings
Set the ZWF and ZFWCG as well as the BLOCK FUEL mass on the INIT B page
On the performance takeoff page insert the V1, VR and V2 speeds and takeoff flaps
A320 MCDU Preflight
Set the BEACON light switch to on
Display the default ECAM page by pressing the manually selected ECAM page button or by pressing the CLR button if they are highlighted in
green
Check that all fuel pumps are on, that the APU is running and that APU BLEED is turned on
Check that all doors are closed. Open the ECAM DOORS page and click on any doors that are still open. After a while the label will change from
amber to white to show the door closed and slide armed
https://www.aerofly.com/tutorials/a320-mcdu-programming/
Engine Start and After Start Checks
Prepare Autopilot for Depature
The autopilot flight control unit (FCU) should now show a dot and three dashes for the airspeed and heading and dashes for the vertical speed. If the
speed or heading don’t show this you can normally push the knob to set the managed mode (*—).
The primary flight display (PFD) shows the active and armed thrust, lateral and vertical modes on the flight mode annunciator (FMA) section at the
top. The FMA columnds should now show
�� Blank
�� ALT or CLB in blue
�� Blank or NAV in blue
�� Blank
�� 1 FD 2
Turn the flight director on by pushing the F/D button on the captain and first officer side. The F/D buttons will show a green highlight when the
F/D is on
Set the initial climb altitude by rotating the autopilot selected altitude, we’ll already set the cruise altitude of 35000ft now
Engine Start
With the APU running and APU BLEED and all fuel pumps on, parking brake set and beacon light on we can now commence with the engine start.
Start sequence is right engine #2 first, then left engine #1.
The full authority digital engine controller (FADEC) now automatically starts the engine. The lower ECAM displays the engine page and we can see
the air starter valve open and ignition A or B being used for the engine start. The engine core N2 and engine fan N1 rotation speeds are rising and the
fuel flow (FF) and exhaust gas temperature (EGT) is increasing. When the engine is started successfully a green AVAIL text is displayed above the
engine N1 indication.
f
Set the engine mode selector to IGN/START
Move the ENG2 master switch from OFF to ON
Repeat the process for the engine #1
When engine #1 also displays a green AVAIL indication on the upper ECAM set the engine mode selector back to NORMAL
Taxi
After Start
Flight Control Check
Let’s perform the flight control check. As soon as you deflect any of the control inputs the lower ECAM page automatically displays the flight control
page for you.
The cross hair on the PFD should move down to the full down position, the flight control page should show both elevators at the full down position
when you push the stick and full up position when you pull up.PFD cross hair goes to full left, ECAM shows left aileron full up, right aileron full down. The four left roll spoilers should indicate their deflection with a
green arrow each. The image is mirrored image for the full right deflection.
The flight control page should show the rudder deflections.
Engine mode selector NORMAL
Arm the ground spoilers by pulling the speed brake lever forward until the white stripe appears. You can also tap the lever briefly for this
Set the flaps to the takeoff position, in our case flaps 1. The aircraft extends slats and flaps to the takeoff position and the ECAM displays 1+F
Center the rudder trim by pushing the button next to the rudder trim switch
Set the pitch trim to the takeoff setting. In our case UP 0.0 units
Turn on the predictive wind shear system (PWS) on the weather radar panel
Set the transponder to TA/RA
Turn the APU BLEED off by pushing the APU BLEED pushbutton
Turn the APU off by pushing the APU master switch. After a cooldown phase the APU will spool down
If the external power is still in use turn if off now
Push the ECAM recall (RCL) button and check the STATUS page
Push the side stick fully forward then full aft
Side stick full left, then full right
Rudder full left, full rudder right
If you are performing this test while rolling hold down the pedal disconnect button on the tiller to disable nose wheel steering during this test
Before Taxi And Brake Check
The aircraft is usually able to accelerate with idle thrust. If you are going uphill you might need to add a bit of thrust to start rolling.
ECAM Takeoff Checklist
Two minutes after the engine start the ECAM will show the takeoff checklist for us. You can also request it earlier by pushing the ECAM T.O CONFIG
pushbutton.
Set the nose light switch to TAXI
Turn on the runway turnoff lights
Release the parking brake
A low speed test the wheel brakes and check that the brake accumulator pressure gauge indicates zero pressure
After the brakes are tested arm the autobrake rejected takeoff function by pressing the AUTO BRK RTO pushbutton
Press the T.O CONFIG pushbutton to display the checklist
Takeoff
If the ECAM displays red warnings push the master caution button in the glareshield to cancel the warning. Check the error message and correct it or
press the ECAM CLR buttons to remove them.
Before Takeoff
When entering the runway
We are now ready for departure.
Note - You can return to this state or skip all of the steps above by just selecting the runway position in the location menu.
No remaining items should be visible. If the line T.O CONFIG is still highlighted in blue then push the T.O CONFIG pushbutton again
Turn on the strobe light
Turn on both landing light switches
Set the nose wheel light switch to T.O
Received CABIN READY memo on the ECAM
Set Takeoff Thrust
Initiate the takeoff by moving the thrust levers to the mid range 50% N1 position. After both engines have spooled up to this intermediate power
setting release the brakes and set the thrust levers to the FLX/MCT detent.
Takeoff Roll
The PFD flight mode annunciator (FMA) will now engage the speed reference system (SRS) takeoff mode and the thrust mode will change to MAN
FLX xx. The flight directors will turn on and will indicate pitch commands for after lift off. Ignore these until you reach rotation speed VR.
Move the thrust levers to about 28% of the range to set 50% N1 and let both engines stabilize at that value
Release brakes if you haven’t done so
Set flexible takeoff thrust (FLX) by moving the thrust levers to about 77%
Hold about 1/4 to 1/3 of nose down elevator input until you reach 100 knots. This improves directional stability until the rudder becomes effective
If needed more thrust you can move the thrust levers to the TO/GA position
After Takeoff
LVR CLB Flashing
At about 1000 feet above the runway a white “LVR CLB” (lever climb) text will start flashing on the
primary flight display in front of you. At this point the thrust should reduced for climb thrust because
the engines can only maintain the takeoff thrust for about 5 minutes before they are starting to
degrade and take damage from the heat and vibrations. In the Aerofly the engines won’t fail because
of this (not yet anyway) but the autopilot won’t be able to control engine thrust if you leave it like
this.
Reduce To Climb Thrust
Note - If the green text above says “THR LVR” and “LVR CLB” is flashing in white you have pulled
back to far. Advance the thrust lever again by a bit.
The green text in the top left corner of the display should now show “THR CLB”.
If you look at the thrust levers in the cockpit it is quite clear where you need to position your throttle
input. The levers should snap to the climb “CLB” detent and will remain there until we are literally
Takeoff Rotation
When the airspeed passes though our rotation speed, indicated by a small cyan circle on the airspeed tape, we can pitch up to lift off.
Maintain the runway centerline with rudder inputs
Aileron crosswind corrections are usually not needed because this is a full fly by wire aircraft and this is also simulated to full extent
Gently pull back on the stick with about 20% of nose up input indicated on the PFD
After lift off follow the flight director SRS commands and establish a pitch of about 15 to 18 degrees.
Retract the landing gear when the vertical speed indicator indicates a positive rate
Maintain an airspeed of about V2 + 20 knots
Engage the autopilot by pressing the AP1 button
Slowly move back your throttle input until the flashing LVR CLB message disappears.
seconds before touch down.
Flap Retraction
Once the airspeed is above the green -S (slat retraction) speed we can
safely retract the flaps and slats.
Now disarm the ground spoilers
Climb
When you climb through 10,000ft you can accelerate and
When you pass the transition altitude (18,000ft in USA):
Cruise
The autopilot will stop climbing at the selected altitude. The primary flight display should now show in
green: “SPEED”, “ALT CRZ” and “NAV” as seen on the screenshot. You can check the ECAM system pages
during flight to monitor the aircraft status.
Top of Descent
A white arrow comes into view on the navigation display of the A320.
This white arrow marks the point at which the descent starts, the so
called top of descent point.
Decrease Selected Altitude
For the upcoming descent we have to select a lower altitude for the
autopilot.
Either hold down the left mouse button and move the mouse to drag
the flap lever,
Or use your scroll wheel whilst pointing at the lever to retract set the
flap lever to the forward position,
Or you can also use the default key assignments for this (Shift + F) or
your assigned inputs.
Click the speed brake lever
Or drag the lever back a bit so that it drops into the down detent, but
not too much as to extend the speed brakes
Turn off the lights as needed
Turn off the seat belt signs when possible
Pull the pressure setting knob on the EFIS control panel on the pilot side and copilot side to set STD
pressure.
Press the pressure setting knob on the Integrated Standby Instrument System (ISIS) to set STD
pressure.
Move the mouse cursor over the altitude knob of the autopilot. Scroll
down to decrease the selected altitude value to e.g. 2000 ft.
Don’t click or press anything at this point.
Initiate Descent
When the white top-of-descent arrow comes really close to our aircraft
symbol you should initiate the descent. Unlike the Boeing 747 for
example the Airbus A320 won’t descent automatically.
Descent
The autopilot will command idle thrust in the descent and tries to match the magenta target speed range
and the green altitude target by just pitching up and down. When too high the autopilot flies a bit faster
and with the increased drag it can catch up to the profile.
When you descent through 10,000ft you need to slow below 250kt, the autopilot does that for us in
managed speed-mode.
When you passthe transition level (18,000ft in USA):
Push the altitude knob to start the descent in managed mode.
If you want to descent but have no route programmed you need to
pull the knob instead.
Set the landing lights on
Turn on the seat belt signs
Push the pressure setting knob on the EFIS control panel on the pilot side and copilot side to set QNH
pressure.
Press the pressure setting knob on the Integrated Standby Instrument System (ISIS) to set QNH
pressure.
Adjust the pressure setting as needed by rotating the knobs
Display the Landing System (LS)
Note - Depending on how far you are to the runway only the scale for the localizer and glide slope will show up but no magenta needles can be seen.
This is normal because the ILS ground stations only have limited range and we can’t receive them yet.
Approach
Let the aircraft descent until you reach 5000 to 4000 feet. We are now going to prepare the approach into San Francisco. Luckily for this there is
actually barely anything to do in the A320.
At this point the ILS should be automatically tuned if you have a route programmed and you can see magenta arrows for the ILS localizer and glide
slope deflections on the primary flight display in front of you as highlighted on the screenshot.
Click the “LS” button in the glare shield to display the ILS localizer and glide slope on the primary flight display.
Arm ILS Approach
On the autopilot panel click the approach button (“APPR”).
Arm Auto-Brake
Click the “LO” button on the AUTO BRK (auto-brake) panel.
Managed Approach Speed
When passing the magenta “D” point on the map the aircraft will start to decelerate to approach speed. In managed speed mode the speed will be
kept high until you select more flaps. Watch the speed target of the autopilot on the primary flight display. It switches to 135 knots on the display.
However the auto-thrust system will not allow you to fly slower than the green dot speed at this point. When you extend flaps further than the
speed minimum is reduced to -S, -F and finally the approach speed.
Flaps 1
Let the aircraft decelerate to this green dot speed. Make sure that the airspeed is below the two amber bars that mark the maximum airspeed for the
next flap. Then select Flaps 1.
Now the speed is allowed to drop to the -S speed (slat retraction speed). If you wanted to retract the flaps for some reason you could do so safely
because the speed is kept high enough.
Engage the second autopilot now
Localizer Capture
The autopilot will capture the localizer needle and steer us to the runway laterally. The primary flight display will show “LOC *” followed by “LOC” in
the top row. No action required.
Press the default key command “F” or any of your assigned control inputs for the flaps
Or drag the flap lever or use the scroll wheel of the mouse
Click the AP2 button
Glide Slope Capture
When the glide slope diamond moves towards the center of the scale the
autopilot will capture it because we armed the approach earlier. Now is a
good time to select the gear down and help us decrease the speed further
and get it to the -F, flap retraction speed in case of go-around.
Gear Down
Select Flaps 2
When your airspeed matches the -S speed you are slow enough for the
next flap setting.
Flaps 3, Flaps Full
When the airspeed dropped to the -F speed you can select the flaps from 2
to full.
Landing Checklist
Let’s quickly check that we didn’t forget anything. The A320 has a nice built in checklist for this. Check
that there are no blue items remaining on that list.
The aircraft is now prepared for a fully automatic landing.
Tip - If you want to return to this state you can exit to the main menu, then open the location dialog and
click the yellow aircraft symbol on the map approaching San Francisco Runway 28R.
Flare
The autopilot will start the flare at about 30 ft above the runway and will try to touch down gently. At
ten feet you should retard your throttle to idle.
Select the gear down by clicking the gear lever or by using an assigned
key (default ‘g’)
Select flaps 2 now to slow down to -F speed
Rollout, Disengage Autopilots
The auto-brake slows us down and we come to a complete stop on the runway.
Congratulations, you just completed your first A320 flight and landed in San Francisco!
Tutorials
Move the thrust levers to idle when the RETARD callout can be heard (at 10-20ft above the ground)
Press the autopilot disengage button if you have it assigned or click the red button on the side stick to
kick out the autopilot.
To be able to vacate the runway advance your throttle a bit, this should also disengage the auto-brake.
