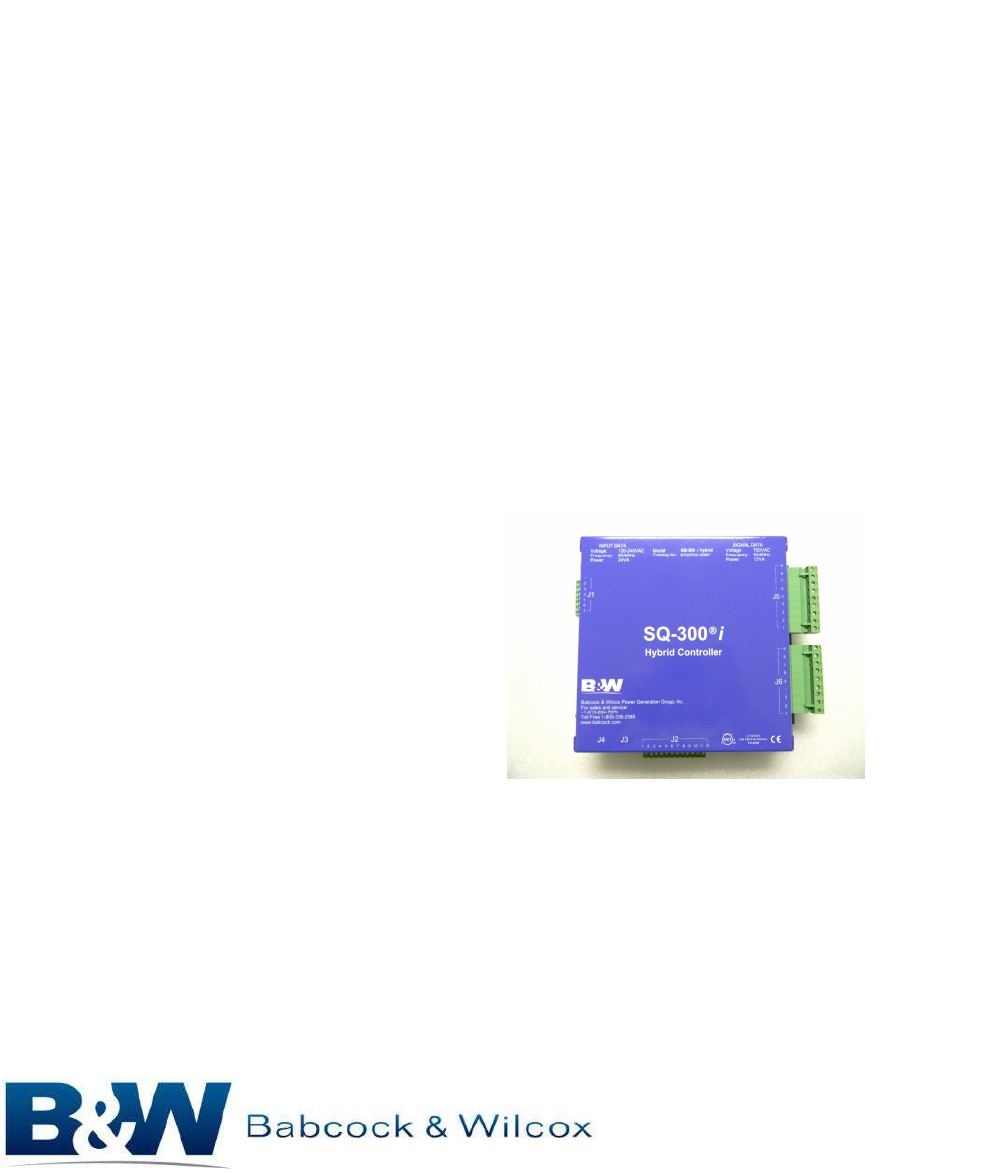

SQ-300i Hybrid Single-Phase
Automatic Voltage Control

Installation and Operation Manual
SQ300i_Hybrid1P Rev. C 6/19



Contents

Important Safety Notice ................................................................................................................... 5
Description of Symbols ................................................................................................................ 5
For Your Safety… ........................................................................................................................ 6
Critical Installation Notes ................................................................................................................. 9
Principles Of Operation ................................................................................................................. 11
Overview .................................................................................................................................... 11
Spark Detection ...................................................................................................................... 11
SQ-300i Operations with CLR Control ................................................................................... 12
Description Of Features ................................................................................................................. 13
Overview .................................................................................................................................... 13
Control System Design .............................................................................................................. 13
Control Connections .................................................................................................................. 16
SQ-300i Hybrid Controller Connections ................................................................................. 16
Transient Filter Board Connections ........................................................................................ 18
SQControl Software ................................................................................................................... 19
Associated Software .................................................................................................................. 20
System Configuration (Examples) ............................................................................................. 20
Installing the SQControl Software ................................................................................................. 24
Recommended System Specifications (for Laptop or PC) ........................................................ 24
Installing SQControl on a Laptop or PC ..................................................................................... 24
Installing SQControl on the Operator Interface .......................................................................... 26
Start the SQControl Software .................................................................................................... 28
Installing the SQ-300i Hybrid Controller ........................................................................................ 29
Overview .................................................................................................................................... 29
Installation Requirements .......................................................................................................... 29
Location Requirements .......................................................................................................... 29
Power and Environmental Requirements ............................................................................... 30
Installing the SQ-300i Hybrid Components ................................................................................ 30
Mounting the Components ..................................................................................................... 30
Configuring the SQ-300i Hybrid Controller and Operator Interface ........................................... 30
Setting the Date, Time and Time Zone .................................................................................. 31
Non-Network-Type Configuration ........................................................................................... 31
Network-Type Configuration................................................................................................... 32
Language Selection ................................................................................................................ 33
Navigating the SQ-300i ................................................................................................................. 35
Overview .................................................................................................................................... 35
The Operate Screens ................................................................................................................. 35
Functions Screens ..................................................................................................................... 37
SQ-300i Options Screen ........................................................................................................ 37
System Settings Screen ......................................................................................................... 39
Portrait Mode.............................................................................................................................. 40
Security ...................................................................................................................................... 44
Programming The SQ-300i Hybrid Single-Phase Controller ......................................................... 45
Overview .................................................................................................................................... 45
Transformer/Rectifier Set Sizing ................................................................................................ 47
Scaling Settings ......................................................................................................................... 51
Operating Limits ......................................................................................................................... 54
Alarm Limits ............................................................................................................................... 58
Spark Response ........................................................................................................................ 62
Back Corona Settings ................................................................................................................ 67
Pulse Blocking Settings ............................................................................................................. 71
Rapper Outputs (Optional) ......................................................................................................... 73
Communication Settings ............................................................................................................ 78
Digital Outputs ........................................................................................................................... 81

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

3
Digital Inputs .............................................................................................................................. 83
Analog Outputs .......................................................................................................................... 85
Analog Inputs .............................................................................................................................87
Heater/Horn Settings (Optional)................................................................................................. 89
Aux Contact Output .................................................................................................................... 92
Reduced-Power Rapping ........................................................................................................... 94
Operating the Hybrid Single-Phase Controller .............................................................................. 95
Overview .................................................................................................................................... 95
Operate Screen Displays ........................................................................................................... 95
Status And Alarm Messages.................................................................................................... 108
Table View ............................................................................................................................... 111
SQ-300i Hybrid Single-Phase Functions ..................................................................................... 113
Overview .................................................................................................................................. 113
Trending ................................................................................................................................... 114
Scope ....................................................................................................................................... 117
Sample Waveforms .............................................................................................................. 120
VI Curves ................................................................................................................................. 123
Energy Management ................................................................................................................ 125
System Functions ........................................................................................................................ 126
Overview .................................................................................................................................. 126
Alarms ...................................................................................................................................... 126
Manage Controls ...................................................................................................................... 128
Manage OPC I/O ..................................................................................................................... 132
Event Log ................................................................................................................................. 135
Communications .......................................................................................................................... 136
Overview .................................................................................................................................. 136
Communications Networks ...................................................................................................... 136
Recommended Network Communication Parts ................................................................... 136
Remote Diagnostics And Real Time Monitoring ...................................................................... 137
Memory Map ............................................................................................................................ 138
The Optional Operator Interface .................................................................................................. 160
Introduction .............................................................................................................................. 160
SQ-300i Operator Interface Features ...................................................................................... 160
Installing the SQ-300i Operator Interface ................................................................................ 160
Operator Interface Installation Requirements ...................................................................... 161
Parts/Tools Required for Installation .................................................................................... 162
Mounting Procedure (New installation) ................................................................................ 162
Mounting Procedure (Replacement for 8700700-001B) ...................................................... 164
Connection Procedure .......................................................................................................... 165
Configuration Procedure ...................................................................................................... 165
The Optional Auxiliary Display ..................................................................................................... 166
Introduction .............................................................................................................................. 166
Installing the Auxiliary Display ................................................................................................. 166
Location Requirements ........................................................................................................ 166
Communication Requirements ............................................................................................. 166
Power and Environmental Requirements ............................................................................. 166
Parts Required ..................................................................................................................... 167
Installation Diagram .............................................................................................................. 167
Mounting Procedure ............................................................................................................. 169
Connection Procedure .......................................................................................................... 171
Configuration Procedure ...................................................................................................... 171
Operating the SQ-300i Hybrid Auxiliary Display ...................................................................... 172
The Main Screen .................................................................................................................. 172
The Security and Languages Screen ................................................................................... 174
The Language Screen .......................................................................................................... 175
The Login Screen ................................................................................................................. 176

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

4
The Password Screen .......................................................................................................... 178
Auxiliary Display Status and Alarm Messages ..................................................................... 179
SQDiscover Software .................................................................................................................. 180
Introduction .............................................................................................................................. 180
About the Search and Identification Process ....................................................................... 180
About the Change Options ...................................................................................................180
Important Notes .................................................................................................................... 181
Configuring and Starting SQDiscover ...................................................................................... 182
Operating SQDiscover ............................................................................................................. 187
SQControl OPC Server ............................................................................................................... 190
Introduction .............................................................................................................................. 190
Critical System Notes ............................................................................................................... 190
About SQControl OPC Server Setup… ................................................................................ 190
About OPC Client Setup… ................................................................................................... 191
Before Starting the SQControl OPC Server… ..................................................................... 191
Working with SQControl OPC Server ...................................................................................... 192
SQControl OPC Server as a Service ................................................................................... 192
SQControl Tags .................................................................................................................... 193
Working with the B&W OPC Browser ...................................................................................... 198
Working with Your OPC Client ................................................................................................. 201
SQProgram Software .................................................................................................................. 202
Introduction .............................................................................................................................. 202
Working with SQProgram ........................................................................................................ 202
Specifications ............................................................................................................................... 206
Appendices .................................................................................................................................. 208
Notes & Acknowledgements .................................................................................................... 208
Product Recognition and Declaration of Conformity ................................................................ 208
Default Settings ........................................................................................................................ 210
Using the Reset Feature .......................................................................................................... 212
Reset Using SQDiscover...................................................................................................... 212
Reset Using the Reset Button .............................................................................................. 212
Service ..................................................................................................................................... 214
Quick Tips ................................................................................................................................ 215
Repairs ..................................................................................................................................... 219
License Conditions ................................................................................................................... 220


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

5
Important Safety Notice
Instruct all persons working on the products described in this booklet to read the entire booklet
before installing, operating, or maintaining those products.


Description of Symbols
We may use symbols throughout this manual to alert you to important warnings and helpful
information. When you see these symbols, please be sure to read the associated messages.

 This symbol is used to warn you about the risk of electric shock and dangerous
voltage.
Ce symbole est utilisé pour vous alerter sur le risque de choc électrique et de
tension dangereuse.
Este símbolo alerta a Ud. del riesgo de un choque eléctrico y voltaje peligroso.

This symbol is used to bring your attention to situations that may cause harm to
people or equipment.
Ce symbole est utilisé pour attirer votre attention sur les situations qui peuvent
nuire aux personnes ou aux équipements.
Este símbolo indica que debe prestar atención a situaciones que pueden causar
daño a las personas o al equipo.
�
This symbol is used to alert you to helpful notes and information.
Ce symbole est utilisé pour signaler des informations et des notes utiles.
Este símbolo se utiliza para que preste atención a notas o información útiles.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

6

For Your Safety…



• WARNING – RISK OF ELECTRIC SHOCK.
AVERTISSEMENT - RISQUE D'ÉLECTROCUTION.
ADVERTENCIA – RIESGO DE CHOQUE ELÉCTRICO.

• CAUTION – Disconnect all power before servicing.
ATTENTION – Coupez l'alimentation avant toute inter vention.
PRECAUCIÓN – ANTES DE REALIZAR TAREAS DE MANTENIMIE NTO,
DESCONECTE TODAS LAS FUENTES DE ENERGIA.

• CAUTION – Disconnection of the protective earth con ductor may
impair the protection provided by the system.
ATTENTION – débranchement du conducteur de terre. C ela peut
affecter la protection assurée par le système.
PRECAUCIÓN – Al desconectar el conductor de tierra, es posible que
el sistema deje de ofrecer protección.


• Failure to follow B&W's Operation and Installation Manuals for all products
described in this booklet voids all warranties and may result in malfunction of
the product, property damage, serious personal injury or death.
Pour tous les produits décrits dans ce livret, le non-respect des manuels
d'installation et d'utilisation de B&W annule toutes les garanties et peut
entraîner un mauvais fonctionnement du produit, des dommages matériels,
des blessures graves ou mortelles.

El hecho de no seguir las instrucciones de los manuales de instalación y
operación de Babcock & Wilcox's (B&W) de todos los productos descritos en
este manual, anulará cualquier garantía sobre dichos productos y podría
generar el mal funcionamiento del producto, provocar daños materiales,
lesiones personales graves e incluso la muerte.

• When power is applied to the control system, several of the terminals on the
SQ-300i Hybrid are energized. The ratings for each of these terminals are
detailed in the Control Connections section.
Lorsque le système de contrôle est alimenté, plusieurs bornes du SQ-300i
Hybrid sont sous tension. Les caractéristiques électriques de chaque borne
sont détaillées dans la section Raccordement des commandes.
Cuando se energiza el sistema muchos terminales del SQ-300i Hybrid
quedan energizados. Los niveles de voltaje de estos terminales se detallan
en la sección Conexiones del Control.

• To avoid serious personal injury or death, disconnect and lock out the power
supply to any product described in this booklet before opening the access
panel, working on or making electrical connections to the product.
Pour éviter des blessures graves ou mortelles, débranchez et verrouillez

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

7
l'alimentationdes produits décrits dans ce livret avant toute ouverture du
panneau d'accès, toute intervention ou tout raccordement des branchements
électriques des appareils.
Para evitar heridas graves e incluso la muerte, desconecte y bloquee la
alimentación eléctrica de cualquier producto descrito en este manual antes
de abrir el panel eléctrico, realizar conexiones eléctricas o trabajar en dichas
conexiones.

• If the control has the optional rapper outputs, DISABLE POWER TO THE
SQ-300i if anyone is going into the precipitator.
Si le système de contrôle dispose de sorties facultatives pour heurtoir,
DÉSACTIVEZ L'ALIMENTATION DU SQ-300i si quelqu'un entre dans le
dépoussiéreur.
Si el control tiene salidas opcionales para el golpeo y personal va a ingresar
al Electro-Filtro DESCONECTE primero LA ENERGIA DEL SQ-300i.

�

• Only qualified electricians or electrical instrument technicians should install
or service all products described in this booklet.
Seul un électricien qualifié ou des techniciens spécialisés dans les
instruments électriques peuvent installer ou entretenir les appareils décrits
dans ce livret.
Los productos descritos en este manual deben ser instalados o recibir
manteniemiento únicamente por electricistas o técnicos instrumentistas
calificados.

• Normal operation of the product described in this booklet does not require the
operator to open the electronics control box for any reason. There are no
serviceable parts on this device.
Le fonctionnement normal de l'appareil décrit dans ce manuel ne nécessite
jamais l'ouverture du boîtier de contrôle électronique par l'opérateur. Il
n'existe aucune pièce réparable sur cet appareil.
Para la operación normal del producto descrito en este manual no es
necesario que el operador abra la caja que contiene los componentes
electrónicos, puesto que este producto no posee ningún componente
reparable.

• If this component is to be installed inside or on any other system, equipment
or product, follow all Operations Manuals for that system, product or
equipment and your plant's safety rules and regulations when performing
installation.
Si ce composant doit être installé dans, ou sur, un autre système,
équipement ou produit, respectez les instructions de tous les manuels
d'utilisation de ce système, produit ou matériel ainsi que les règles et
règlements de sécurité de votre établissement lorsque vous effectuez
l'installation.
En caso de que desee instalar el SQ-300i dentro de o en cualquier otro
sistema, equipo o producto, siga todas las instrucciones de los manuales de
uso para tal sistema, equipo o producto, así como también las reglas y
normas de seguridad de su planta.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

8
• Be aware that in a precipitator, by design, all current flows through earth
ground.
Sachez que dans un dépoussiéreur, de par sa conception, le courant circule
à travers le conducteur de terre.
Recuerde que el diseño de los electro-filtros permite que toda la corriente
fluya a través de la tierra.

• There shall be no switches or disconnect devices in the earth conductor.
Il ne doit y avoir aucun commutateur ou dispositif de déconnexion installé sur
le conducteur de terre.
En el conductor de tierra no debe haber ni interruptores ni dispositivos de
desconexión.

• The SQ-300i Hybrid is installed in a cabinet that provides power for the
device. An approved disconnect device (breaker) with a minimum of 3.0 mm
contact separation is provided on the cabinet, within reach of the operator.
The rating of the disconnect device will vary and is based on the source
voltage and current at the installation site. This disconnect device is required
to provide over-current protection to the device.

In rare cases, the disconnect will be located some distance away from the
control cabinet. In these cases, it is the sites’ responsibility to ensure that the
location of the disconnect is clearly posted/visible for the operator.
Le SQ-300i Hybrid est installé dans une armoire qui assure l'alimentation de
l'appareil. Un dispositif de déconnexion approuvé (disjoncteur) avec une
séparation minimale de 3,0 mm entre les contacts est installé sur l'armoire, à
portée de l'opérateur. Les caractéristiques du dispositif de déconnexion
peuvent varier en fonction de la tension et du courant au site d'installation.
Ce dispositif de déconnexion est nécessaire pour assurer la protection de
l'appareil contre les surintensités.

Dans de rares cas, le dispositif de déconnexion se situera à une certaine
distance de l'armoire de commande. Dans ces cas, il est de la responsabilité
des sites de s'assurer que l'emplacement du sectionneur est clairement
affiché et est visible à l'opérateur.
El control SQ-300i Hybrid se encuentra instalado en un armario eléctrico que
le proporciona alimentación. Dentro del mismo armario, hay un dispositivo al
alcance del operador que es de desconexión (disyuntor) los contactos del
disyuntor están separados por una mínima de 3 mm. El valor nominal del
disyuntor variará según el voltaje y la corriente de la fuente del lugar de la
instalación. Se requiere este dispositivo de desconexión para proteger los
equipos en caso de que se produzca una sobrecarga de corriente.
En algunas ocasiones, el dispositivo de desconexión se encuentra situado a
cierta distancia del armario de control. Si tal es el caso, los responsables de
las instalaciones deben asegurarse de que el usuario pueda ver la ubicación
del dispositivo de desconexión con facilidad o que dicha ubicación esté
claramente indicada.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

9
Critical Installation Notes

• The electronic components in the SQ-300i Hybrid can be damaged if
continually operated in a hot environment. The specifications for this
control indicate a maximum operating temperature of 104°F (40°C). If
operating conditions will exceed this temperature, some additional
means of cooling must be installed. Failure to do so may void the
warranty.
Les composants électroniques du microcontrôleur SQ-300i Hybrid
peuvent être endommagés s'ils fonctionnent continuellement dans un
environnement chaud. Les spécifications de cette commande
indiquent une température de fonctionnement maximale de 104° F
(40° C). Si les conditions de fonctionnement dépas sent cette
température, des moyens de refroidissement supplémentaires
doivent être installés. Le non-respect de cette instruction peut annuler
la garantie.
Los componentes electrónicos en el microcontrolador pueden
dañarse si funcionan permanentemente en un medio caluroso. Las
especificaciones para este control indican una temperatura máxima
de funcionamiento de 104ºF (40ºC). Si las condiciones de
funcionamiento exceden esta temperatura, se debe instalar algún tipo
de enfriamiento extra. El hecho de no hacerlo puede anular la
garantía.

• Although the SQ-300i Hybrid hardware may be used to control a
single-phase or a 3-phase power supply, this unit is factory-set to
control a single-phase. If you are controlling a 3-phase power supply,
contact B&W support so this control can be reconfigured.
Connecting to the wrong power supply type may lead to catastrophic
failure of the control and related components.
Bien que le matériel SQ-300i Hybrid peut être utilisé pour contrôler
une seule phase ou une alimentation à 3 phases, cet appareil est
réglé en usine pour contrôler une seule phase. Si vous contrôlez une
alimentation à 3 phases, le contact B & W soutien ce contrôle ne peut
être reconfiguré. Connexion au type d'alimentation incorrect peut
conduire à l'échec catastrophique de la commande et des
composants connexes.
Aunque el hardware SQ-300i Hybrid se puede usar para controlar una
sola fase o una fuentede alimentación de 3 fases, esta unidad es
para controlar una sola fase ajustada en fábrica. Si está controlando
una fuente de alimentaciónde 3 fases, el contacto B & W apoyo por lo
que este control puede ser reconfigurado. Conexión con el tipo de
fuente de alimentación incorrecta puede conducir a una falla
catastrófica del control y los componentes relacionados.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

10

�

• In order for the SQ-300i Hybrid control to comply with CE
requirements, a ferrite bead must be installed. This part has been
shipped with your control. Please refer to the typical installation
drawings for details.
Afin que le contrôleur SQ-300i Hybrid soit conforme aux exigences de
la CE, une perle de ferrite doivent être installés. Ces pièces ont été
expédiées avec votre contrôleur. Veuillez consulter les dessins
d'installation types pour plus de détails.
Para que el control SQ-300i Hybrid cumpla con los requisitos de la
norma CE, se debe instalar un núcleo de ferrita. Estos componentes
han sido enviados junto con su control. Para más detalles, remítase a
los planos típicos de instalación.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

11
Principles Of Operation
Overview
The new SQ-300i Hybrid Controller is the first commercially available automatic voltage control
with the ability to manage different power supply types. This single-module controller is capable of
operating a conventional, single-phase power supply or a 3-phase power supply with a simple
firmware change. Though this controller boasts several major enhancements, it is based on the
trusted design of the SQ-300 and SQ-300i controls.

The SQ-300i Hybrid is designed to recognize a variety of user interface options. Each of the
options provides complete access to operator settings and device control.

Once all of the control settings are entered and the SQ-300i Hybrid is in operation, the control will
automatically maintain the precipitator field voltage at its highest practical level at all times under
any condition of load. To do this, the control uses technology pioneered by B&W.

When the SQ-300i Hybrid is started, its operation is fully automatic. The precipitator field power is
ramped up until any limit (i.e., primary current limit, KV limit, etc.) is reached or until a spark or arc
occurs. It is important to note that the control could be characterized as an "aggressive" control that
works to put the highest level of power possible into the precipitator field. If the SQ-300i Hybrid
reaches a limit, it will continue to run at that limit until a spark or arc occurs.

Once a spark occurs, spark response is a rapid quench. This means the SQ-300i Hybrid does not
allow the SCR to fire for one or more full cycles, depending on the programming. Quench is then
followed by a fast ramp return to the set back level which is a user-adjustable percentage of the
power level at the spark or arc. Once the control reaches that set back level, it begins a slow ramp
up to the next spark or limit. The slow ramp rate is automatically adjusted. The control will continue
the slow ramp to the last known limit it reached. If no spark, arc or limit is encountered at that level,
the control will continue at the slow ramp rate until the recovery ramp delay expires. If the control
still does not reach a limit or a spark, the control will use the recovery ramp rate (which is defined
internally).


Spark Detection
The SQ-300i Hybrid can detect sparks using either secondary current or secondary voltage. In
general (and by default), secondary current is used because there is less electrical noise on this
signal, providing more reliable spark detection.

When secondary current is used, the SQ-300i Hybrid detects a spark by a short, rapid rise of
secondary current in the precipitator field. When secondary voltage is used, the SQ-300i Hybrid
detects a spark by a short, rapid decrease in secondary voltage in the precipitator field.

Please note that the effect of a spark on the precipitator is a rapid increase in current and a rapid
decrease in voltage. This is analogous to briefly shorting the precipitator field. Therefore, the
SQ-300i Hybrid, when using either current or voltage for spark detection, is basically detecting this
brief short circuit condition.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

12
SQ-300i Operations with CLR Control
The SQ-300i Hybrid Single-Phase is programmed to measure and display the primary form factor
and secondary fractional conduction during control operation. Using these Operate screens
(described later) on a regular basis can be a tremendous aid in that you can verify the efficiency of
the entire electrical system and the correct sizing of the CLR and other electrical components.

Primary form factor and secondary fractional conduction are interdependent; the values of both
need to be at optimum levels in order to achieve full rated power from a TR Set. These values are
also affected by the adjustment of the size of the CLR or other electrical components.

Primary form factor is a measure of the shape of the primary current waveform. It is measured by
dividing the RMS primary current by the average primary current. The ideal theoretical value for
primary form factor is 1.11; however, this is rarely seen in precipitator operation. Generally, the
most optimum form factor that can be achieved in a precipitator is 1.2. Higher form factors provide
for less than full rated power to the TR Set.

Secondary fractional conduction is a measure of the shape and duration of the secondary current
pulse relative to the maximum time period possible. The ideal theoretical value of secondary
fractional conduction is 1; however, full rated power can be obtained from a TR Set with secondary
fractional conductions of approximately .86. Lower fractional conductions provide for less than full
rated power from the TR Set.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

13
Description Of Features
Overview
The SQ-300i Hybrid Automatic Voltage Control is destined to become the new industry standard.
Based on the original SQ-300 AVC, this reinvented control features a compact, less complicated
single-module design, fast communication speeds, and the unprecedented flexibility that many
customers are looking for.


Control System Design
The design of the SQ-300i Hybrid is the key to a more flexible precipitator voltage control system. A
single control module can now control either a single-phase or a 3-phase power supply with a
simple firmware change. An optional Operator Interface may be used to manage one or multiple
controls. (As previously mentioned, there are several interface options. See the Operator Interface
topic later in this section.)

Because this system is so adaptable, system configuration may vary widely. Connections between
the Microcontroller, the operator interface, remote computers, and other systems are made using
Ethernet cables. [See also, System Configuration (Examples).] All components have been
designed for easy removal and service by disengaging the field terminals and/or cable without
disturbing any field wiring in the electrical cabinet.

The SQ-300i Hybrid controller's design also provides protection from the harsh conditions of the
precipitator environment. Because of this, the Operator Interface is mounted on the electrical
cabinet door to create an additional shield from the temperature and interference present within the
electrical cabinet. In addition, the design provides sufficient heat sinking to allow for operationat
elevated temperatures.

The SQ-300i Hybrid design utilizes integrated circuitry with two parallel process CPUs; one for
control functions and one for communications. This design provides independence and speed of
all operations and communications. These process CPUs operate all control functions of the
precipitator system, including initiating action to fire the main line SCRs, and detection and control
of arcs, sparks, and fault conditions. By using a separate process CPU for communications, the
control can display operating conditions of the precipitator electrical system at the operator
interface (if applicable), retrieve, store and update data, and communicate to a local or remote
device - all at a high speed, simultaneously and with no degradation of performance.

All of the built-in analog inputs (volts, amps) are conditioned by the analog circuitry before being
measured by the microcontroller; this provides increased measurement accuracy (1%), proper
impedance matching, and reverse polarity and over voltage protection. This degree of accuracy is
obtained by design, not calibration, for ease of installation. No field calibration of inputs is
necessary.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

14
Control Compatibility
The SQ-300i Hybrid is completely compatible with all standard original equipment precipitator
voltage control systems, including any existing or new analog meters. In addition to providing its
own complete displays, the SQ-300i Hybrid is fully capable of operating with these standard meters
without the need for calibration:

• Primary Voltage (volts) • Secondary Voltage (kilovolts)
• Primary Current (amps) • Secondary Current (milliamps)

Silicon Controlled Rectifiers
The SQ-300i Hybrid will operate all conventional silicon controlled rectifiers (SCRs) regardless of
rating.

Saturable Core Reactors
The SQ-300i Hybrid Single-Phase can also work with all conventional saturable core reactors, with
the addition of an optional external DC Power Module. The normal SCR firing output of the
SQ-300i connects directly to this module.

Transformer/Rectifier Sets
The SQ-300i Hybrid is designed to work with all conventional, single-phase TR sets or 3-Phase TR
Sets (depending on the installed firmware), regardless of manufacturer or rating.

The SQ-300i Hybrid will measure, display, and operate with or without a secondary voltage input
from the TR. The control's primary and secondary current scale and display can be scaled to match
the current rating of any TR Set(s).

The SQ-300i Hybrid can also operate with aftermarket voltage dividers with no degradation in
performance.

Controller Assembly
The SQ-300i Hybrid Controller unit controls power to the precipitator system. This single assembly
handles all field connections and is mounted inside the electrical cabinet. Because removable
terminals are provided for all field wiring, the assembly can be removed easily without disturbing
any field wiring.

 Inputs/Outputs
The inputs and outputs for the SQ-300i Hybrid Controller are located on terminals J1 and J2. They
are described later and include the following:

• Control Power Input • Communications Inputs and Outputs
• Primary Current Input • Secondary Voltage Input
• Secondary Current Input • External Enable Input
• Analog Input for Remote Control • Alarm Relay Output
• Ground • Aux Relay Output
• 5 Volt Power Supply Output

 SCR Firing Inputs and Outputs
The inputs and outputs for SCR Firing are located on terminals J5 and J6.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

15
Transient Filter Board Inputs
The Transient Filter Board is a device used to protect the SQ-300i Hybrid AVC. Its purpose is to
stop transients from getting to the control from the Transformer/Rectifier (TR) Set. If left
unchecked, transient current could damage or destroy the control. The inputs are located on J1
and J2 of the transient filter board. They are described later and include the following:

• Secondary Voltage Input • Secondary Current Input

� For wiring instructions, it is important to follow the specific installation
schematic provided with the control.

Operator Interface
The primary man-machine interface for the control is the SQControl software which may be
installed on any of these devices: the optional Operator Interface Assembly or a Microsoft®
Windows®-compatible laptop, tablet computer, or PC. After initial setup, you may prefer to use the
Precipitator Manager software application, or a program that uses any Modbus® TCP/IP standard
protocol conforming to the control’s memory map. (This last option gives you the opportunity to use
software or systems that are already available and familiar, which can also reduce the cost of the
system.) One additional interface option is the Auxiliary Display. This mini display has limited
monitoring and control capabilities. Please refer to the Auxiliary Display section for more.

Throughout this manual, control operation will be described using the SQControl software (which
may be installed on the Operator Interface Assembly or on a laptop, tablet, or PC). If the
Precipitator Manager software has been selected as your operator interface, please refer to the
Precipitator Manager software manual. If the SQ-300i Hybrid Controller will be controlled via a
Modbus® TCP/IP application, please refer to the Memory Map section of this manual.

Remote Diagnostics
The SQ-300i Hybrid can be monitored from a remote location for trouble-shooting. An Ethernet
switch and an Ethernet cable are all that are required to access all control information over the
network.

With Remote Diagnostics, the SQ-300i Hybrid can be serviced without sending a field service
engineer to the site for trouble-shooting. In addition, each control setting can be adjusted remotely.

Construction
The SQ-300i Hybrid has been built with the highest grade of components available using superior
standards of quality control. Each control is carefully assembled and inspected for the highest
possible level of craftsmanship to help assure flawless operation and long-term reliability.

Conformal Coating
A protective conformal coating is applied to the printed circuit boards and component surfaces to
protect them from the adverse effects of extreme heat and cold, dust, moisture, and chemical
attack.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

16
Ethernet Communication (J4)
The SQ-300i Hybrid takes advantage of the faster communication speeds available with Ethernet.
Each Operator Interface and SQ-300i Hybrid Controller is equipped with a standard RJ-45 Ethernet
communications port. This port is used to connect these two components, or to connect either
component to an Ethernet switch. The Ethernet switch is used to connect multiple SQ-300i Hybrid
Controllers to one Operator Interface, or to connect Controllers to a remote computer and other
systems. Each Controller has a unique IP address (set using SQDiscover) that is used to identify
the control within the system; no port selection switches or address switches are necessary.
(Please refer to the Communications Networks section for important cable and connector
recommendations.)

Reset Button
The SQ-300i Hybrid Controller features a reset button that can be used if the control is unable to
recover from an error condition, or if the control profile becomes corrupt. (This button resets all of
the configuration settings including the IP address, subnet mask, and the control name.) Refer to
the Using the Reset Feature section for details and cautionary statement.



Control Connections
Connections to the SQ-300i Hybrid are describedbelow. Please refer to the drawings shipped with
the control for important notes, wire specifications, and installation instructions.

SQ-300i Hybrid Controller Connections
J1 Connector
The terminals on J1 provide control power and main power alarm signals.














Pin Function Ratings
J1-1 Control Power-Ground
J1-2 Control Power- Neutral 120-240VAC, 50/60Hz, 92VA
J1-3 Control Power- Hot 120-240VAC, 50/60Hz, 92VA
J1-4 Dry Alarm Contact
User-Selected Open/Closed
5A, 240VAC/30VDC
J1-5 5A, 240VAC/30VDC
J1-6 Dry Aux Contact

5A, 240VAC/30VDC
J1-7 5A, 240VAC/30VDC

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

17
J2 Connector
The terminals on J2 provide low voltage sensing.




















J3 Connector
The J3 connector is a standard USB port. This is reserved for future enhancements.


J4 Connector
The J4 connector is a standard, RJ45 Ethernet port. This port is used to connect the Controller to
either an Operator Interface or an Ethernet switch.


J5 Connector
The terminals on J5 provide the links to SCR-1.






















Pin Function Ratings
J2-1 RS485 Signal A +/- 15VDC
J2-2 RS485 Signal B +/- 15VDC
J2-3 Chassis Ground
J2-4 5VDC Power Output 5VDC
J2-5
External Enable (User
Defined Function)
0-5VDC
J2-6 Primary Current 0-10VAC
J2-7 Not Used
J2-8 Not Used
J2-9 Secondary Voltage Input 0-(-10VDC)
J2-10 Analog Input 0-5VDC
J2-11 Secondary Current Input 0-10VDC
J2-12 Signal Ground
Pin Function Ratings
J5-1 SCR 1 Gate 630VAC, 250uA
J5-2 SCR 1 Cathode 630VAC, 250uA
J5-3 Chassis Ground
J5-4 Not Used
J5-5 Not Used
J5-6 Not Used
J5-7 Not Used
J5-8 Voltage Return
J5-9 Not Used

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

18
J6 Connector
The terminals on J6 provide the links to SCR-2.

















Transient Filter Board Connections
J1 Connector
The terminals on J1 carry the signals from the scaling resistors to the Filter Board.








J2 Connector
The terminals on J2 carry the filtered signals from the Filter Board to the SQ-300i Hybrid Controller.























Pin Function Ratings
J6-1 SCR 2 Gate 630VAC, 250uA
J6-2 SCR 2 Cathode 630VAC, 250uA
J6-3 Chassis Ground
J6-4 Not Used
J6-5 Primary Voltage TR Set Input 630VAC, 250uA
J6-6 Not Used
J6-7 Not Used
J6-8 Voltage Return
J6-9 Not Used
Pin Function
J1-1 Not Used
J1-2 Secondary Voltage Input
J1-3 Secondary Current Input
Pin Function
J2-1 Secondary Current Input
J2-2 Secondary Voltage Input
J2-3 Not Used
J2-4 Ground

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

19
SQControl Software
Each shipment of SQ-300i Hybrid controllers will include at least one copy of the SQControl
software. This software provides all of the basic setup for the control, as well as many advanced
features useful for data analysis and troubleshooting. SQControl software screenshots are
displayed throughout this manual.

This software may be used on the optional Operator Interface (on the control cabinet), or on a
laptop or pc connected to the control network.

Real Time Data Display
Several of the key real time analog values are displayed both as a real time digital display and as a
virtual meter. The meter provides a very user-friendly display that illustrates rapidly changing data
better than the conventional digital display. In addition, some of the data is displayed using a real
time trend that illustrates gradual changes better than the digital display alone.

On-Board Trending
The SQControl software includes a real time trending option which records and displays various
data parameters. You may select up to 6 parameters to display on the graph at a time, and data
may be viewed in 6-minute or 6-hour increments.

On-Board Scope
The on-board Scope feature supplies you with a safer way to capture and view waveforms. The
on-board Scope comes with scaling options, waveform navigation, the ability to save and load
waveforms, and a trigger menu (just like an oscilloscope). Once the waveforms have been
captured, they can be used for verifying proper operation and troubleshooting.

Security
The SQControl software has a built-in security feature that provides two separate levels of
protection designed to prevent unauthorized changes to the control. Security features a User and
an Administrator password. The User password will be required to access many basic features; the
Administrator password will be required to access more critical features (such as TR Set Sizing).

Programmable Alarms
The SQControl software provides five alarms, the trip points of which can be individually set.
Different trip points can be set in each SQ-300i Hybrid controller. Each alarm will be displayed
on-screen, on the status line. The five alarms are as follows: Primary Overcurrent Alarm, Primary
Undervoltage Alarm, Secondary Overcurrent Alarm, Secondary Undervoltage Alarm, and
Imbalance Alarm.

Rapper Control (Optional)
The SQ-300i Hybrid model (with optional output modules) may be a voltage control and a rapper
control! The rapper control version has four outputs for rapper control. The SQ-300i Hybrid will
automatically control the tumbling hammer type rappers based on individual settings for On and Off
Time, and Reduced Power Rapp. The Rapper Halt Delay setting assures that rapping will continue
for a selected period if the control is halted. These rapper outputs may also be controlled using the
Precipitator Manager software.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

20
Analog and Digital I/O (Optional)
The SQ-300i Hybrid, combined with optional add-on hardware, has the ability to access analog and
digital inputs and outputs. The SQ-300i Hybrid will be able to control the digital outputs. For
example, using the optional digital output assembly, the SQ-300i Hybrid may be used to control 4
tumbling hammer rappers, based on individual settings for on and off times, halt delay and rapper
reduced power off.

NWL Control Support
Using SQControl software, you can monitor the operation of the NWL PowerPlus™ control, and
have limited control capabilities. You will be able to start, stop, and reduce the power level, set
selected parameters, run V-I Curves, and monitor alarms and events. For detailed information on
the NWL PowerPlus™, please refer to NWL documentation.


Associated Software
The following programs are shipped with the SQControl software as part of the Master Installer.

SQDiscover
The SQDiscover software is used to identify any SQ-300i control on the network by IP address and
MAC address. It is also used for initial configuration of the SQ-300i Hybrid controller. You may run
the program from the hard drive of a computer that is connected to the control network.

SQControl OPC Server
The SQControl software now has its own OPC Server that supports a set of SQControl tags that
you can subscribe to with an external OPC client. This provides a means for external systems
(such as DCS or plant historian systems) to monitor the data generated by the B&W SQ-300i
Hybrid and NWL PowerPlus™ controls and, to a limited extent, manage the operation of the
controls (such as running/halting a control). The SQControl OPC Server also ships with the B&W
OPC Browser that may be installed on a remote machine for monitoring and controlling tags.

SQProgram
The SQProgram software is a simple utility used to update the firmware on the SQ-300i Hybrid
controller. You mayrun the program from the hard drive of a computer that is connected to the
control network.


System Configuration (Examples)
Configuring your precipitator control system will depend on many factors. For example:

• Do you want the ability to monitor and edit settings locally?
• Do you want the ability to monitor and edit settings at each control?
• Do you want to connect the controls to a remote computer?
• Do you need these controls to interface with other systems?

The SQ-300i Hybrid provides the flexibility to satisfy each of these system requirements. Here are
some examples.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

21


One Operator Interface for Each Control



One Auxiliary Display for Each Control



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

22


One Operator Interface for Multiple Controls



Operator Interface (via the SQ Control software) on Remote Computer


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

23



Multiple Operator Interfaces, Each Monitoring Multiple Controls



Portable Interface Capability with SQControl Software on a Tablet Computer


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

24
Installing the SQControl Software
The SQControl software is the default interface option for the SQ-300i Hybrid Controller. This
software will be used to perform initial configuration for the microcontroller, and may be used for
monitoring and control. SQControl software provides access to all of the basic operational settings
and run/halt control. It also offers special features not previously available with the SQ-300® AVC.

The SQControl software may be installed on the optional Operator Interface, a laptop, a control
room computer, or a remote computer for communication with one or more SQ-300i Hybrid
Controllers. If the Operator Interface was not purchased, the SQControl software (or Precipitator
Manager software) is required to perform initial setup of the Microcontroller.

This section describes what you need to run the SQControl software, and it explains how to:

• Install the software on a laptop or pc
• Install the software on an Operator Interface
• Confirm the system date and time
• Start the software


Recommended System Specifications (for Laptop or PC)
If you are using your own laptop or pc to run the SQControl software, be sure to familiarize yourself
with the program’s system requirements. You can read about them in the B&W Computer/Software
Supplement Owner’s Manual.

The SQControl software also requires the following:

1. Category 6 Ethernet cable and connectors (to provide communication to one or more devices)
2. Commercial or industrial grade Ethernet switches and routers (to provide network
communication for multiple devices)

Please refer to the Communications Networks section for recommended network
communication parts.

If you are unsure if your system meets these specifications, call your B&W Account Representative.
(See also, Service.) If B&W has supplied the computer system to run this version of software, it will
meet the recommended system specifications, and will have the SQControl software already
installed.


Installing SQControl on a Laptop or PC
B&W distributes the SQControl software on a thumb drive (flash drive), email, the Web, or a
network location. The setup program used to install the program is called SQControl_setup.exe .
Each installation program:
• Installs the SQControl software in the C:\Program Files\BW PGG or the C:\Program
Files(x86)\BW PGG directory§
• Installs associated software
• Creates a shortcut in the Windows® program list for starting the software

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

25


To install the SQControl software
• If necessary, start the Microsoft® Windows® operating system and sign on as the administrator.
• Back up your system and close any running Windows®-based programs.
• Obtain and start the setup program.
From thumb drive

• Place the thumb drive in an available USB port.
• Use My Computer or Windows® Explorer to find the thumb
drive (removable storage device) and the setup program
(SQControl_Setup.exe ).
• Copy the setup file to any location on the computer hard drive.
• Double-click on the setup file to start it.
•
From email

• Open the email, and save the SQControl_Setup.exe to any
location on the computer hard drive.
• Go to the saved file and open it.
From a Web or
network location

• Locate the SQControl_Setup.exe file on the Web or network
and save it to any location on the computer hard drive.
• Go to the saved file and open it.

• If a message prompts you for permission to make changes to the computer, click the Yes
button.
• In the Welcome dialog, click Next .
• Please read the License Agreement.
• Click the I Agree check box and then click Next ; otherwise, click Cancel to stop the installation.
• Select the PC installation option. (Only select one.) Click Next to continue.
•
• Review the installation details, then click Next to install the software.
• During the installation, the OPC installation will appear. Read the license agreement, then
select “I Agree” and click Next .
• Review the installation folder details. Click Browse to select another location, if needed.
• Select the Everyone radio button, then click Next .

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

26
• Click Next again to proceed with the OPC installation. When the installation is complete, click
Close to exit.
• Click Finish to complete the installation process.
• When the installation is complete, restart the computer.
Installing SQControl on the Operator Interface
The SQ-300i Operator Interface is shipped with the SQControl software already installed. If it
becomes necessary to update the software on the Operator Interface, please use this procedure.
�
Note : If you are mixing older operator interfaces (with SQControl versions 1.14.0.6
and earlier) with new SQ-300i controls (with firmware versions 26.2 and later), be
sure to update the SQControl software on all of the operator interfaces.

B&W typically distributes the Operator Interface software on a thumb drive (or flash drive). This
thumb drive will contain the Basic setup program SQControl_setup.exe . This program:
• Installs the SQControl software in the C:\Program Files\BW PGG or the C:\Program
Files(x86)\BW PGG directory§
• Installs associated software
• Creates a shortcut in the Windows® program list for starting the software

To install the SQControl software
• Although B&W typically distributes this software on a thumb drive, it may be distributed via
email or a web or network location. If necessary, access and copy the software update as
instructed here, then prepare to access the Operator Interface.
From email
(Basic Install)
• Using your laptop or pc, open the email, and copy the
SQControl_Setup.exe to a thumb drive.
From a Web or
network location
(Basic Install)
• Using your laptop or pc, locate the setup file on the Web or
network, and copy the SQControl_Setup.exe to a thumb
drive.


• Prepare to access the Operator Interface.



• WARNING – Follow safety instructions and disconnect all power
before opening the cabinet!
AVERTISSEMENT - Suivez les instructions de sécurité et débrancher
avant d'ouvrir l'armoire!
ADVERTENCIA - Siga las instrucciones de seguridad y desconectar
la alimentación antes de abrir lacaja!


• Disconnect all power and open the AVC cabinet.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

27
• Locate an available USB port on the Operator Interface and insert the thumb drive. Make sure
the thumb drive is secure.
• Carefully close and lock the cabinet door.
• Reapply power to the AVC cabinet.
• If necessary, start the Microsoft® Windows® operating system on the Operator Interface and
sign on as the administrator.
• Close any running Windows®-based programs. (The SQControl application should start
automatically when the cabinet powers up; shut this program down and exit to Windows.)
• Start the setup program.
From a Thumb
Drive

• Use My Computer or Windows® Explorer to find the thumb
drive (removable storage device) and the setup program
(SQControl_Setup.exe ).
• Copy the setup file to any location on the computer hard
drive.
• Double-click on the setup file to start it.
•
• If a message prompts you for permission to make changes to the computer, press or click the
Yes button.
• In the Welcome dialog, press or click Next .
• Please read the License Agreement.
• Click the I Agree check box and then press or click Next ; otherwise, click Cancel to stop the
installation.
• Select the Operator Interface option (Only select one.). Press or click Next to continue.
•
• Review the installation details, then press or click Next to install the software.
• During the installation, the OPC installation will appear. Read the license agreement, then
select I Agree and press Next .
• Review the installation folder details. Press Browse to select another location, if needed.
• Select the Everyone radio button, then press Next .
• Press Next again to proceed with the OPC installation. When the installation is complete,
press Close to exit.
• Press or click Finish to complete the installation process.
• Prepare to access the Operator Interface again.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

28



• WARNING – Follow safety instructions and disconnect all power
before opening the cabinet!
AVERTISSEMENT - Suivez les instructions de sécurité et débrancher
avant d'ouvrir l'armoire!
ADVERTENCIA - Siga las instrucciones de seguridad y desconectar
la alimentación antes de abrir la caja!

• Disconnect all power and open the AVC cabinet.
• Locate and remove the thumb drive.
• Close and lock the cabinet door.
• Reapply power to the AVC cabinet.
• The SQControl application should start automatically when the cabinet powers up.



Start the SQControl Software
After the SQControl software files have been installed and the computer has been restarted, the
program is ready to run.

�
Note : On the optional Operator Interface, the SQControl software should start
automatically when the device is restarted. If it does not start automatically, follow
the steps below.

• On the Windows® taskbar, click Start .
• Point to Programs or All Programs , and then point to SQControl .
• Click SQControl .



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

29
Installing the SQ-300i Hybrid Controller
Overview
SQ-300i Hybrid Controller and Transient Filter Board installation is typically performed by trained,
B&W Field Service Technicians. However, in some cases, the plant may choose to install the
control. Component installation should proceed in the order it is presented in this manual. If you
have any questions concerning the installation, please contact your B&W representative.

If you need to install the optional SQ-300i Operator Interface, an Auxiliary Display, or the SQControl
Software, please refer to the appropriate section for instructions.

 • Use care when wiring the SQ-300i Hybrid control. Improper wiring
may result in malfunction of the product or damage to property or
equipment.
Soyez prudent lors du câblage du contrôleur SQ-300i. Un câblage
incorrect peut entraîner un mauvais fonctionnement de l'appareil ou
des dommages pour le matériel ou les équipements.
Tenga mucho cuidado cuando cablea el SQ-300i. Errores en el
cableado pueden causar mal funcionamiento del control y/o daño del
equipo o propiedad.
�
• Please review the Important Safety Notice and the Critical Installation
Notes in the front of this manual before beginning any installation.

• DO NOT connect an Ethernet device to the SQ-300i Hybrid Controller
until instructed to do so.


Installation Requirements
Location Requirements
The SQ-300i Hybrid Controller and the Transient Filter Board should be installed inside the AVC
cabinet. Typically, in a single AVC cabinet, the Controller is installed at the top of the back panel.
In a dual AVC cabinet, it is installed on the left side of the cabinet. The transient filter board should
be mounted to the panel on the back wall of the cabinet.

�
• Avoid installing these components…
…near the primary voltage cabling.
…near a heat source (CLR, space heater).
…near the SCR stack.
• When installing these components…
…ensure the terminal blocks are accessible.
…ensure that nothing interferes with the wiring/wiring harness.
• The SQ-300i Hybrid must be located within 50 feet of the SCR stack.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

30
Power and Environmental Requirements
For Power and Environmental requirements, please refer to the Specifications section of this
manual.


Installing the SQ-300i Hybrid Components
Mounting the Components
Mount the SQ-300i Hybrid Controller and Transient Filter Board only after the appropriate locations
have been determined.

1. Use the mounting template (7993452) provided to prepare for drilling.

�

• If you are mounting the components to an existing back panel, you
should use self-tapping screws (because you will not be able to add a
nut to secure each screw).

• If you are not using self-tapping screws, you must tap these holes.


2. Drill holes, then mount and secure components.
(a) Drill and tap 4 holes (for #10 hardware) to mount the Controller.
(b) Secure the Controller to the mounting surface using 4 screws (#10-32 x 1/2”), 4 flat
washers (#10), and 4 lock washers (#10).
(c) Drill and tap 4 holes (for #6 hardware) to mount the Filter Board.
(d) Secure the Filter Board to the mounting surface using 4 screws (#6-32 x 1”), 4 flat washers
(#6), and 4 lock washers (#6).
(e) Drill and tap 2 holes (for #4 hardware) for each resistor to be mounted.
(f) Secure each resistor to the mounting surface using 2 screws (#4-40 x 3/8”), and a lock
washer (#4).
(g) Drill and tap 4 holes (for #10 hardware) for the CT to be mounted.
(h) Secure the CT to the mounting surface using 4 screws (#10-32 x 1/2”), 4 flat washers (#10),
and 4 lock washers (#10).

For specific wiring instructions for the SQ-300i Hybrid Controller, Resistors, and the Transient Filter
Board, please refer to the typical installation drawings shipped with the product.


Configuring the SQ-300i Hybrid Controller and Operator Interface
The next step in the installation process is to connect and configure the SQ-300i Hybrid Controller
and operator interface. This process will be different depending on what type of interface is being
used and how the system will be configured. This section of the manual will describe both
non-network and network configurations. These instructions will cover the following interface
types: the Operator Interface Assembly and the laptop, tablet, or PC with SQControl software.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

31
�• The following instructions assume that the SQ-300i Hybrid Controller
has already been installed and connected to power.
• Each SQ-300i Hybrid Controller is shipped with a default/safe IP
address of 192.168.1.2.
• The Operator Interface is shipped with a default IP address of
192.168.1.254



Setting the Date, Time and Time Zone
Prior to any other input, the date, time and time zone must be set or confirmed on the Operator
Interface, laptop, tablet, or PC.

• When the Operator Interface is powered on, it will automatically open the SQControl
software application. Exit the application and Exit to Windows. Set the current date, time
and time zone for your locale.
• Reboot the system or click on the application icon to start the application.

• For PC, tablet, and laptop users, verify that the current date, time and time zone settings
are accurate for your locale.

If these settings are not accurate, all data utilizing date and time will also be inaccurate.


Non-Network-Type Configuration
If the SQ-300i Hybrid Controller and the operator interface will not be connected to a network then
they can function as a stand-alone system and the IP address configuration does not need to be
changed for either. The Operator Interface and the Controller will be able to communicate with
each other using the factory settings.

To configure one SQ-300i Hybrid Controller to one Operator Interface (Touch Screen or PC) for
stand-alone operation:

1. If a laptop, tablet, or PC is being used as the operator interface, set the computer network
interface parameters to Fixed IP Address with an IP address of 192.168.1.254, and a
subnet mask of 255.255.255.0.
2. Remove power from the Controller and the operator interface.
3. Install the recommended CAT 6 cable between the Controller and the operator interface.
4. Apply power to the Controller and the operator interface.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

32
Network-Type Configuration
If the SQ-300i Hybrid Controller and operator interface will be connected to a network, new IP
addresses and subnets must be set. The Controller must have a unique and fixed IP address. The
operator interface must have a unique IP address, and the subnet mask must be the same as the
subnet mask on the Controller. B&W also recommends that the AVC control system be assigned
its own subnet. Consult your IT Department or Network Administrator for guidance on selecting IP
addresses and subnet mask information.

At the appropriate steps in this procedure, the new IP addresses and subnets will need to be set.
You must use the SQDiscover software to do this. Refer to Microsoft Windows Network
Hardware Configuration documentation for guidance on changing the IP address of the Operator
Interface.

To configure the SQ-300i Hybrid Controller and the operator interface (Touch Screen or PC):

1. If a laptop, tablet, or PC is being used as the operator interface, remove it from the network.
Set the computer network interface parameters to Fixed IP Address with an IP address of
192.168.1.254, and a subnet mask of 255.255.255.0.
2. Remove power from the Controller and the operator interface.
3. Install the recommended CAT 6 cable between the Controller and the operator interface.
4. Apply power to the Controller and the operator interface.
5. Use SQDiscover to change the IP address of the Controller to a fixed, unique IP address.
(Refer to the SQDiscover section for more details.)
6. Remove power from the Controller.
7. Repeat steps 2-6 for each Controller that will be connected to the network, giving each a
fixed, unique IP address.
8. Change the IP address of the operator interface to a unique IP address.
a. Click Start then select Control Panel .
b. Click on the Network and Sharing Center link.
c. Click on the Local Area Connection link and then click the Properties button. (If the
computer requests permission to make changes, select Yes.)
d. Double-click on the appropriate version Internet Protocol (TCP/IP) selection.
(1) On the General tab, select Use the following IP address: and then enter your
new IP address and subnet mask.
(2) Click OK to exit the Internet Protocol dialog, then OK to exit the Local Area
Connection Properties dialog. Click Close to exit the Local Area Connection
Status dialog.
(3) Click on the “X” in the top-right corner to exit the Control Panel screen.
9. Remove power from the operator interface.
10. Connect the Operator Interface and the Controller(s) to the network using the
recommended Ethernet cable and switches. The quantity of cable and switches necessary
will vary depending upon the number of Controllers and Operator Interfaces that are
connected to the network.
11. Apply power to the Controller and operator interface.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

33
Language Selection
The SQControl software released on February 11, 2008 includes a new Operating System that
supports the following languages: English, Spanish, Chinese, French, German, Portuguese, and
Russian. The SQControl software application itself is available in English, and will be available in
other languages as they are completed.

The SQControl software will automatically detect the language that the operating system is
configured for; if SQControl is available in that language, it will use that language automatically. If
you want SQControl to display in a different language, you can use a command line switch to do
that. (If you want to change the language for the entire system, please contact your system
Administrator for assistance.)

Select a Different Language Using a Command Line Switch
• If the SQControl application is running, close the application. (Go to the System Settings
screen and press or click
the Shutdown button.
Enter the password and
then press or click OK.
Then press or click the
Exit to Windows
button.)
• If you are running
SQControl on a
computer with a
keyboard, do the
following:
o At the Desktop,
right-click on the
SQControl icon,
then select
Properties .
o In order to change
the language, you’re
going to add a
command line switch
on the Shortcut tab.
o Go to the Target
field. At the end of
the line, after the
quotation marks,
add a space and
then the following
text: /lang:es
(where es
represents the new
language, Spanish).
This example shows the
command line switch to
Spanish

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

34
Language switches that may be supported include:
en=English
es=Spanish
zh=Chinese
de=German
fr=French

o Press Apply , and then OK.
o Restart SQControl.

• If you are running SQControl on the optional Operator Interface (without a keyboard), do the
following:
o At the Desktop, open the On-Screen Keyboard.
o Press the SQControl icon to highlight it.
o Press the Right Click Menu button on the on-screen keyboard (to access the menu
for SQControl).
o Then select Properties .
o From here, follow the instructions that correspond to the SQControl Properties dialog
on page 33.

Right Click
Menu Button

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

35
Navigating the SQ-300i
Overview
This section will describe the screens available on the optional Operator Interface or through the
SQControl software on a remote computer, which should help you locate and access desired
control features. Several display screens have been reproduced to help you become familiar with
navigating the control. For additional information on any of these features, refer to the
Programming and Operation sections ofthe manual.

Keep in mind that the SQControl software and Operator Interface may be used with the SQ-300i,
SQ-300i 3-Phase, and the SQ-300i Hybrid, so you may see all three control types listed.


The Operate Screens
When the control software initiates, the first Operate screen will appear. There are seven Operate
screens; each have the same basic format but provide a different set of data.





























The SQControl software now includes an expanded display (shown above) that is available when
you run the SQControl software on a computer using a wide-screen format (with an aspect ratio of
greater than 4:3). This expanded display provides the controls area on the left of the screen for
easy, one-click selection. This controls area is not visible on the optional Operator Interface.
Controls area
Operational area
Status area
Navigation area

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

36
To switch to another control using the Operator Interface (without the expanded display), you will
use the navigation buttons in the bottom-right section of the display.




Working With the Operate Screens

Controls area
(Expanded
display)

All of the connected controls are listed at the left of the window.

• To move up or down through the controls list, use the up and down
arrow buttons at the bottom of the list.
• To view a different control, touch or click on any listed control.


Operational area

Each of the operate screens contain an operating/functional area which
displays real time data in the form of meters, digital displays and/or
trends.

• To move from one Operate screen to the next, simply touch or click
anywhere in this area of the screen. Once the control displays the
seventh Operate screen, another tap will return you to the first
Operate screen.


Status area

Each operate screen also contains a status area which displays the
name of the currently selected control, as well as its status.


Navigation area


This area contains buttons used for navigation to other screens and
controls.

• The Functions/Operate button toggles the display between
Functions mode and Operate mode. (While the display is in Operate
mode, the button will read Functions which will return you to the
SQ-300i Options screen.)
• The Table View button allows you to view all of the controls in a list
that includes key operating parameters for each.


Navigation area
(Operator
Interface)

• The Back and Next buttons will send the display to the previous or
next control connected to this Interface (or computer, if applicable).
• The Jump To button allows you to select a specific control. This is
especially useful when there are many connected controls.


 For a detailed look at the Operate screens, please refer to the Operation section.


Additional navigation
for the Operator
Interface

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

37

Functions Screens
The Functions screens include the Options screen (below), and the System Settings screen.
These screens provide access to control programming, special features, and system configuration
options.

SQ-300i Options Screen
The SQ-300i Options screen may be used to access settings and select special features for the
SQ-300i Hybrid control that is named at the top of the screen. This screen also includes the Run
and Halt buttons.








Most of the options that are available on this screen are specific to the named control only.

Working With the Options Screen

Controls area
(Expanded
display)

All of the connected controls are listed at the left of the window.

• To move up or down through the controls list, use the up and down
arrow buttons at the bottom of the list.
• To view a different control, touch or click on any listed control.


Controls area
Options area
Status area
Navigation area
Navigation buttons for the Operator Interface


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

38

Working With the Options Screen

Options area

• Press or click the RUN button to start SQ-300i Hybrid operation if the
control is halted. If the control is already operating, this button will
restart ramping.
• Press or click the HALT button to stop SQ-300i Hybrid operation by
halting the firing of the SCRs. If the control is already halted due to
an alarm, press or click this button to clear the alarm and then press
or click RUN to restart the control.
• Press or click the Trending , Scope , VI Curves or Energy
Management button to access features for the control listed at the
top of the screen. (See the Control Functions section for more
information on these features.)
• Press or click the Set SQ-300i Parameters button to access
programming for the control listed at the top of the screen. (See the
Programming section for more information.)
• Press or click the System Settings button to access additional
options.


Status area

• The Options screen also contains a status area which displays the
name of the currently selected control, as well as its status.


Navigation area

This area contains buttons used for navigation to other screens and
controls.

• The Functions/Operate button toggles the display between
Functions mode and Operate mode. (While the display is in
Functions mode, the button will read Operate. Press or click
Operate to return to the first Operate screen.)
• Press or click the Table View button to view all of the controls in a list
that includes key operating parameters for each.


Navigation area
(Operator
interface)

• The Back and Next buttons will send the display to the previous or
next control connected to this Interface (or computer, if applicable).
• The Jump To button allows you to select a specific control. This is
especially useful when there are many connected controls.






© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

39
System Settings Screen
The System Settings screen provides access to system information and configuration features.







Working With the System Settings Screen

Controls area
(Expanded
display)


All of the connected controls are listed at the left of the window.
• To move up or down through the controls list, use the up and down
arrow buttons at the bottom of the list.
• To view a different control, touch or click on any listed control.

Settings area • Press or click the Manage Controls button to add, delete, connect or
disconnect controls. This screen also provides access to the
Security feature. (See the System Functions section for more
information.)
• Press or click the Manage OPC I/O button to view, add, edit or delete
I/O items. (See the System Functions section for more information.)
• Press or click the Alarms or Events button to access status and data
tools for all of the controls in the system. (See the System Functions
section for more information on these features.)
• Press or click the About button to view software identification
information.
• Press or click the Log Out button to secure the control and require a
password entry from the next operator who attempts to access a
password protected area.

Controls area
Settings area
Status area
Navigation area
Navigation buttons for the Operator Interface

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

40

Working With the System Settings Screen

Settings area

• Press or click the Shutdownbutton to shut down the Operator
Interface and return to the Windows® operating system, or shut down
the Operator Interface and perform a Windows® operating system
shut down. (Note: No control functions or editing can be performed
from the desktop screen.)
• Press or click the Control Settings button to return to the Options
screen.


Status area

• The System Settings screen also contains a status area which
displays the name of the currently selected control, as well as its
status.


Navigation area

This area contains buttons used for navigation to other screens and
controls.

• The Functions/Operate button toggles the display between
Functions mode and Operate mode. (While the display is in
Functions mode, the button will read Operate. Press or click
Operate to return to the first Operate screen.)
• Press or click the Table View button to view all of the controls in a list
that includes key operating parameters for each.


Navigation area
(Operator
interface)

• The Back and Next buttons will send the display to the previous or
next control connected to this Interface (or computer, if applicable).
• The Jump To button allows you to select a specific control. This is
especially useful when there are many connected controls.




Portrait Mode
Some AVC cabinet installations, especially retrofits, may require that the optional Operator
Interface be installed vertically to fit in the available space on the cabinet door. To account for this,
the Operator Interface can now run the SQControl software in Portrait Mode.

To work in Portrait Mode, you won’t have to change any settings in SQControl, but the following
requirements must be met:
• The optional Operator Interface must be running the Microsoft® Windows® 7 operating
system
• The Microsoft® Windows® display settings must be set to Portrait (as opposed to the
standard Landscape)
Working in Portrait Mode, some of the screens will look a lot different than the standard Landscape
mode, but you won’t lose any of the functionality. Here are some samples of screens in Portrait
Mode:

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

41

The first Operate screen in Portrait Mode.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

42

The SQ-300i Options screen in Portrait Mode.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

43


The Scope screen in Portrait Mode.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

44

Security
The SQ-300i Hybrid has two levels of password protection to help prevent unauthorized changes to
any of the operating and alarm limits, TR Set Sizing values, Scaling and other protected features.

The two security levels require entry of either a User password or an Administrator password. The
User password is required for many of the basic features and setting groups. The Administrator
password is required for some of the more critical features, such as TR Set Sizing, and may also be
used as a substitute for the User password. Once a password is successfully entered, the
password is stored and active while you work at the control.

The table below identifies the password associated with specific protected features/settings:

Features Protected by the
Administrator Password
Features Prot ected by the
User Password
Operating Limits Energy Management
Alarm Limits Running a V-I Curve
TR Set Sizing Spark Response
Scaling Settings Rapper Outputs
Communications Settings Pulse Blocking Settings
Manage Controls (and Security) Digital Outputs
Manage OPC I/O Digital Inputs
Any NWL Control Configuration Analog Outputs
Back Corona Settings Analog Inputs
Shutdown Control Heater/Horn Settings

Default passwords are preset at the factory and are listed in the Default Settings section of the
manual. For a higher level of security, B&W recommends that you customize the User and the
Administrator passwords. (Please refer to the Manage Controls feature.)

�

• To maintain the security of the system, manually log out before
leaving the control.

• No security code is necessary to initiate either the Run or Halt
functions while the control is operating.


To manually log out
• Press or click the System Settings button on the SQ-300i Options screen, then press or click
the Log Out button. (The next time you attempt to access a function that is password
protected, you will be prompted to enter the User password or Administrator password,
depending on the function.)









© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

45

Programming The SQ-300i Hybrid Single-Phase
Controller
Overview
Setting the operating parameters of the SQ-300i Hybrid Single-Phase is easy and requires only
minutes to accomplish. The SQ-300i Hybrid utilizes a "fill-in-the-blank" method in which you simply
input the value and press or click the OK button to save the changes. The control prompts this
action on most set-up screens.

The SQ-300i Hybrid settings are divided into categories that we refer to as Configuration Groups.
The Programming section describes how to set each parameter in each of these groups. In order to
program a specific parameter, you’ll do the following:

• Access the Configuration Groups screen
• Select a configuration group
• Select a parameter from the selected group

To access the Configuration Groups screen
• Go to the Options screen. (If you’re currently on the Operate screens, press or click the
Functions button.)
• Check to make sure the SQ-300i Hybrid Single-Phase listed on the screen is the control you
wish to modify. (If not, use the controls list to select that control.)
• Then press or click the Set SQ-300i Parameters button. The Select Configuration Group
screen will appear. It lists all of the setting categories that are available to review or edit.

This screen provides
access to all of the
parameter categories for
the selected control.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

46

Working With the Configuration Groups Screen (Hybrid Single -Phase)

Navigation

• Press or click any category name, or press or click the Up Arrow or
Down Arrow button at the bottom of the Configuration Group screen
to scroll through the list of available categories to highlight/select an
item.
• Press or click the Edit button to open the selected category.
• Press or click the Back button to return to the Options screen.
• Press or click the Save Profile button to save the current profile so it
can be copied to a different control. The software will pull all of the
setup parameters for the selected control and write them to a file.
The file should be saved in the standard program data directory§.
Note: The software will only store one profile. If you save
another profile, the existing .pfl file will be overwritten.
• Press or click the Restore Profile button to copy a saved profile to a
control.


To select a configuration group
• Press or click any category name, or press or click the Up Arrow or Down Arrow button at the
bottom of the Configuration Group screen to scroll through the list of available categories to
highlight/select an item.
• Press the Edit button to open the selected category.


To select a parameter
• Press or click any parameter name, or press or click the Up Arrow or Down Arrow button at
the bottom of the open category screen to scroll through the list of available parametersto
highlight/select an item.
• Press the Edit button to open the selected parameter.

�

• Although the SQ-300i Operator Interface and SQControl Software can
monitor multiple controls, all operating parameter modifications apply
only to the current control. If modifications need to be made to a
control other than the current one, then you must access that control
first.


For specific information on the configuration groups and parameters, please refer to the
configuration group sections that follow.












© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

47
Transformer/Rectifier Set Sizing
This version of the SQ-300i is compatible with all conventional, single-phase TR Set brands and
was designed so that most of the operating parameters of the control are based on the nameplate
ratings of the TR Sets and the scaling resistors supplied with the control. As a result, it is critical to
the operation of the TR Set, the control, and the collection efficiency of the precipitator that these
screens have accurate data entered into them. The transformer/rectifier nameplate ratings are
essential when entering information into these screens.

These settings should be entered upon initial control setup and should be left alone thereafter. For
this reason, these settings are protected by the Administrator password.

 • If these settings are changed, and no longer reflect the actual
nameplate ratings and scaling of a particular TR Set, precipitator and
control performance could be seriously affected, and equipment
damage may result.

Si ces paramètres sont modifiés et ne reflètent plus les caractéristiques
réelles indiquées sur la plaque signalétique et celles des ensembles de
TR, les performances du dépoussiéreur ou du contrôleur pourraient être
sérieusement affectées entrainant éventuellement un endommagement
des équipements.

Importante : en caso de que la configuración se modifique y no coincida
con los valores nominales de placa y valores de escala del
transformadore rectificado, el rendimiento del electro-filtro puede verse
afectado seriamente y el equipo del sistema puede resultar dañado.

To edit the TR set sizing parameters
Data must be entered into each of the TR Set Sizing screens, with the exception of the TR Primary
Voltage Rating and the Line Voltage Rating screens.
• From the Configuration Groups screen, press or click the TR Set Sizing option and then press
or click the Edit button.
• If the system has been logged out, you will be required to input the Administrator Password and
press or click the OK button.
• The Edit screen for TR Set Sizing will appear.

















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

48


• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll up through the list of available parameters to highlight/select an
item.
• Press or click the Edit button to edit the parameter.



Backspace Key
Use the keypad to
enter a new setting.
Use the Back button to
return to the Configuration
Groups screen
You may edit any of the TR Sizing
parameters except TR Set Primary
Type and Hyrid Board Type
These settings must reflect the
actual nameplate ratings and
scaling of the TR Set

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

49
• Use the keypad to enter a new setting. (The screen provides the valid range of values that may
be entered here. If you attempt to enter a number outside of this range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the TR Set Sizing parameters.

TR Set Primary Voltage Rating
This setting allows you to enter the TR nameplate rating for primary voltage . The default/safe
value is 480.

• Press or click the TR Set Primary Voltage Rating option and then press or click the Edit
button.
• Input a new value between 0 and 800 which represents the TR Primary Voltage Rating.
• Press or click the OK button to save the changes.

TR Set Primary Current Rating
This setting allows you to enter the TR nameplate rating for primary current . The default/safe
value is 180.

• Press or click the TR Set Primary Current Rating option and then press or click the Edit
button.
• Input a new value between 0 and 900 which represents the actual TR Set nameplate
rating for primary current .
• Press or click the OK button to save the changes.
TR Set Secondary Current Rating
This screen allows you to enter the secondary current nameplate rating of the TR Set. In
conjunction with the spark sensitivity edit screen, the SQ-300i Hybrid automatically sets the spark
and arc sensitivity range based on this setting. The default/safe value is 1600.

• Press or click the TR Set Secondary Current Rating option and then press or click the
Edit button.
• Input a new value between 0 and 9000 which represents the secondary current nameplate
rating.
• Press or click the OK button to save the changes.

TR Set Secondary Average Voltage Rating
This screen allows you to enter the secondary average KV rating of the TR Set. The default/safe
value is 45.

• Press or click the TR Set Secondary Average Voltage Rating option and then press or
click the Edit button.
• Input a new value between 0 and 160.
• Press or click the OK button to save the changes.

TR Set Secondary Peak Voltage Rating
This screen allows you to enter the secondary peak KV rating of the TR Set. The default/safe
value is 80.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

50
• Press or click the TR Set Secondary Peak Voltage Rating option and then press or click
the Edit button.
• Input a new value between 0 and 320.
• Press or click the OK button to save the changes.

TR Set Form Factor Rating
Each TR Set has a form factor rating . This rating is an indication of the primary circuit's ability to
maintain a near sinusoidal waveform on the primary. As the form factor rating decreases, the
primary circuit's ability to maintain this waveform increases.

The SQ-300i will measure the form factor in the circuit and display this on one of the Operate
Screens. The control default/safe value is 1.2.

• Press or click the TR Set Form Factor Rating option and then press or click the Edit
button.
• Input a value between 1.20 and 3.00. Enter any digits to the right of the decimal point.
• Press or click the OK button to save the changes.

Minimum Secondary Current for Remote Limits
This screen allows you to enter the minimum secondary current of the TR Set. This is the
minimum amount of secondary current that the control will allow any remote limit. The default/safe
value is 0.

• Press or click the Min Secondary Current option and then press or click the Edit button.
• Input a new value between 0 and 9000.
• Press or click the OK button to save the changes.

Line Voltage Rating
This screen allows you to enter the incoming line voltage used at installation. The default/safe
value is 480.

• Press or click the Line Voltage Rating option and then press or click the Edit button.
• Input a new value between 0 and 750.
• Press or click the OK button to save the changes.

HZ Rating
Line frequency is displayed in Hertz, and is updated every half second. The default/safe value is
60.

• Press or click the Line Frequency optionand then press or click the Edit button.
• Press or click either 50 or 60 to set the desired line frequency.
• Press or click the OK button to save the changes.

TR Set Primary Type
This read-only TR set sizing item simply shows you the TR set type . The type may be any of the
following: Single (which is the standard), 3-phase, or 750V Primary.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

51
Hybrid Board Type
This read-only TR set sizing item simply shows you the Hybrid board type . The type may be either
Single (which is the standard) or 3-phase.

• Press or click the up or down arrows to scroll through the TR Set Sizing settings, or press or
click the Back button to return to the Configuration Groups page.


Scaling Settings
This screen allows you to set the maximum scale for Primary Current, Secondary Current and
Secondary Voltage, and enter KV Feedback (if applicable). These settings should be entered upon
initial setup and should be left alone thereafter. For this reason, these settings are protected by the
Administrator password.

This screen also includes a few settings that are intended for Field Service use only. These
adjustments are only needed in specific situations and will be handled by Field Service.

�

• If you enter an odd number as one of your scaling values, the system
may round it up to the next even magnitude for display purposes. This
helps standardize the scales used in display objects (like meters).


To edit the scaling settings
• Press or click the Scaling Settings option from the Configuration Groups screen and then
press or click the Edit button.
• If the system has been logged out, you will be required to input the Administrator Password and
press or click the OK button. The Edit screen for Scaling Settings will appear.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

52

• Press or click any parameter or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available options parameters and
highlight/select an item.
• Press or click the Edit button to edit the parameter.

• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Scaling parameters.

Secondary Voltage Feedback
This screen allows you to select whether or not KV Feedback will be available. If No is selected, the
readings relating to secondary voltage will not be displayed. The default/safe value is Yes.

• Press or click the Secondary Voltage Feedback option and then press or click the Edit
button.
• Press or click No to indicate KV Feedback is not available, or Yes to indicate that KV
Feedback is available.
• Press or click the OK button to save the changes.

You may edit
any of these
scaling settings
Use the Back button to
return to the Configuration
Groups screen.
Deadband % -
Deadband Ramp
Ratesettings are
for Field Service

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

53
Primary Current Scale
The data entered in this screen will determine the full scale primary current range of the SQ-300i
Hybrid, measured in amps AC. The full scale range of displays, both digital and bar graph are set
by this value. This scaling feature allows the maximum measurement resolution for different size
TR Sets, even when on the same precipitator. The default/safe value is 200.

• Press or click the Primary Current Scale option and then press or click the Edit button.
• Input a new value between 0 and 900.
• Press or click the OK button to save the changes.

Secondary Current Scale
The data entered in this screen will determine the full scale secondary current range of the
SQ-300i Hybrid. This value sets the full scale range of displays. This provides maximum
measurement resolution for different size TR Sets. The default/safe value is 2000.

• Press or click the Secondary Current Scale and then press or click the Edit button.
• Input a new value between 0 and 9000.
• Press or click the OK button to save the changes.

�

• IMPORTANT: The primary current scale and secondary current scale
must be set to match the selection of resistors (supplied with the
SQ-300i Hybrid) used in the installation. These resistors are selected
to give a scale that is greater than or equal to 125% of the TR rating.
The chart below illustrates several examples of standard resistors.
Please refer to "Table 1 - Hardware and Software Calibration" on the
installation drawing for additional, important details.



TR Rating TR Rating x 1.25 Resistors Scale
500 mA 625 mA 6 and 30 Ohms 1000 mA
800 mA 1000 mA 6 and 30 Ohms 1000 mA
850 mA 1062 mA 3.3 and 10 Ohms 2000 mA
150 A 187 A 25 Ohms 200 A
175 A 219 A 50 Ohms and 25 Ohms 300 A

Secondary Voltage Scale
The setting entered here will determine the full scale secondary voltage range of the SQ-300i
Hybrid. This value sets the full scale range of displays. (The minimum setting is 0, the default/safe
setting is 80, and the maximum setting is 160.)

The secondary voltage can be scaled from 0-60 KV to a maximum of 0-160 KV. The scaling used
will be dependent on the KV ratings of the TR Set. A scale should be chosen that provides the
ability to read the average and peak secondary voltages. (The peak secondary voltage is scaled
automatically by doubling the secondary voltage scale.)

At the high end of the scale, a 5 VDC signal will be provided at the input to the SQ-300i Hybrid. This
5 VDC signal is developed through a sizing resistor (that must be calculated), and it is dependent
upon the voltage divider size.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

54
�

• Note: If an analog meter will be installed, make sure to take this into
account when calculating the sizing resistor.


• Press or click the Secondary Voltage Scale option and then press or click the Edit button.
• Input a new value between 0 and 160.
• Press or click the OK button to save the changes.

• Press or click the up or down arrows to scroll through the Scaling Settings, or press or click
the Back button to return to the Configuration Groups page.

Primary Voltage Input Source
This allows the selection of the Primary Voltage Reading to be SCR Output, or TR Set Input. The
efault is SCR Output, in order to measure the voltage at the TR Set Input, a wire will have to be run
from the TR Set Input (Node between the CLR and TR Set) to J6-Pin 5.

• Press or click the Primary Voltage Input Source option and then press or click the Edit
button.
• Press or click SCR Output or TR Set Input
• Press or click the OK button to save the changes.

Field Service Settings
The Deadband %, Limit Ramp Rate, and Deadband Ramp Rate are used in combination to expand
the range around certain control limits, and to slow the ramp rate so that the control operates within
these limits for a longer period of time. (These settings should only be used by Field Service.)













Operating Limits
It is important to note that even though the SQ-300i Hybrid is scaled based on TR Set nameplate
ratings, and those ratings are entered in the TR sizing screens, you still need to "tell" the controlat
what limit to operate. Data must be entered for each of the eight settings associated with the
Operating Limits.

To edit the operating limits

• From the Configuration Groups screen, press or click the Operating Limits option and then
press or click the Edit button.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

55
• If the system has been logged out, you will be required to input the Administrator password and
press or click the OK button.
• The Edit screen for Operating Limits will appear.




• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item.
• Press or click the Edit button to edit the parameter.
• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Operating Limits parameters.

Primary Current Limit
This screen provides for the selection of the nameplate RMS primary current limit of the TR Set.
The default/safe value is 10.

• Press or click the Primary Current Limit option and then press or click the Edit button.
• Enter a new value between 0 and 900.
• Press or click the OK button to save the changes.

Primary Voltage Limit
You may edit
any of these
settings.

Use the Back button to
return to the Configuration
Groups screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

56
This screen allows you to select the nameplate RMS primary voltage limit of the TR Set. The
maximum setting allowed is 750 volts AC; the control default/safe value is 10.

• Press or click the Primary Voltage Limit option and then press or click the Edit button.
• Input a new value between 0 and 750.
• Press or click the OK button to save the changes.

Secondary Current Limit
This screen allows you to enter the nameplate average secondary current limit of the TR Set.
The control default/safe value is 100.

• Press or click the Secondary Current Limit option and then press or click the Edit button.
• Input a new value between 0 and 9000.
• Press or click the OK button to save the changes.

Secondary Average Voltage Limit
This screen allows you to enter the nameplate average secondary voltage limit of the TR Set. (If
KV Average is selected as the Secondary Voltage Limit Type, the control will be limited by this
setting. See also, Secondary Voltage Limit Type.) The default/safe value is 10.

• Press or click the Secondary Average Voltage Limit option and then press or click the
Edit button.
• Input a new value between 0 and 160.
• Press or click the OK button to save the changes.

Secondary Peak Voltage Limit
This screen allows you to enter the nameplate secondary peak voltage limit of the TR Set. (If KV
Peak is selected as the Secondary Voltage Limit Type, the control will be limited by this setting.
See also, Secondary Voltage Limit Type.) The default/safe value is 10.

• Press or click the Secondary Peak Voltage Limit option and then press or click the Edit
button.
• Input a new value between 0 and 320.
• Press or click the OK button to save the changes.



Secondary Voltage Limit Type
This screen allows you to select either KV Average or KV Peak as the secondary voltage limit
type . If KV Average is selected, the control will be limited by the secondary voltage limit setting. If
KV Peak is selected, the control will be limited by the secondary peak voltage limit setting. The
default/safe value is Average.

• Press or click the Secondary Voltage Limit Type option and then press or click the Edit
button.
• Press or click either Average or Peak.
• Press or click the OK button to save the changes.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

57
SCR Firing Angle Limit
This screen allows you to program the SCR firing angle limit . This will provide proper operation
of the SCRs when there is a low SCR firing angle and a corresponding high conduction angle. The
SQ-300i Hybrid Single-Phase AVC automatically provides an SCR firing angle limit at 16°.


�

• The SQ-300i Hybrid Single-Phase operates the SCR firing with 180°
as full off and 16° full on. The SQ-300 i Hybrid Single-Phase will never
operate the SCRs at less than 16° because the SCRs need a period of
time to commutate (where SCR 1 turns off, and SCR 2 can be turned
on). This 16° allows the SCRs time to do this.







B&W generally recommends that the SCR firing angle limit be set to 45°. The default/safe value is
35.

• Press or click the SCR Firing Angle Limit option and then press or click the Edit button.
• Enter a number between 16 and 180, which will represent the SCR firing angle limit.
• Press or click the OK button to save the changes.

Juice Can Installed
Use this screen to indicate if a JuiceCan is installed on this field. The SQ-300i Hybrid
Single-Phase is programmed to use different limits when a JuiceCan is installed, so this setting is
very important. If this setting changes from “Not Installed” to “Installed,” and associated settings
are outside of programmed limits for JuiceCan use, the control will automatically correct these
settings. (For more details, see the Spark Response settings for spark rate and search ramp rate.)
In addition, if this setting changes from “Not Installed” to “Installed,” Pulse Blocking and the Back
Corona routine will be disabled. The default/safe value is No.

• Press or click the JuiceCan Installed option and then press or click the Edit button.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

58
• Press or click the No option if a JuiceCan is not installed. Press or click the Yes option if a
JuiceCan is installed.
• Press or click the OK button to save the changes.

Minimum Pri Current Allowed in Manual Mode
This screen allows you to select the minimum primary current at the manual pot (manual control).
This is used to override the user-programmed primary current limit setting to a lower setting, and
thereby, provide remote or manual control.

A setting equal to, or greater than, the primary current limit, will disable this input. The default/safe
value is 0.

• Press or click the minimum pri current option and then press or click the Edit button.
• Input a new value between 0 and 900.
• Press or click the OK button to save the changes.

Conduction Limit
This screen allows you to select the conduction limit . The conduction limit is used to control the
amount of time the primary current is on, and thereby, provide enough time for the SCRs to turn off.

A setting of 60 sets the primary current conduction time to 60% of the time. A setting of 100% will
turn this feature off (meaning there is no limit on primary current conduction). The default/safe
value is 86.

• Press or click the conduction limit option and then press or click the Edit button.
• Input a new value between 60 and 100.
• Press or click the OK button to save the changes.

• Press or click the up or down arrow buttons to scroll through the Operating Limits settings,
or press or click the Back button to return to the Configuration Groups screen.Alarm Limits
The SQ-300i Hybrid provides six alarms to alert you to abnormal operating conditions, plus two
additional alarm-related settings. All of these can be individually set in the same manner as the
Operating Limits.

To determine the alarm limits
Each of the overcurrent alarm limits should typically be set at 25% above each of the operating
limits. To determine the percentages, do the following:

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

59

• Multiply the limit setting entered in the Operating Limit screen, by 1.25.
Example: If the primary current limit is set at 200 AAC, multiply 200 x 1.25. The resulting
primary overcurrent alarm limit is 250.

B&W recommends that the primary undervoltage alarm is set at 50 VAC, and the secondary
undervoltage alarm is set at 10 KV.

Disabling alarms
Although the SQ-300i Hybrid allows for the disabling of alarms for trouble-shooting, it is usually not
required. Sometimes it becomes necessary when the control trips on an alarm before any readings
or tests can be made.

Disabling alarms can be very dangerous . The decision to disable an
alarm should only be made by a qualified electrical technician
experienced with precipitator operations and the SQ-300i Hybrid.

Désactiver les alarmes peut s'avérer très dangereux. La décision de
désactiver une alarme doit être prise par un technicien qualifié ayant de
l'expérience dans le fonctionnement des dépoussiéreurs et des
contrôleurs SQ-300i.

Desactivar alarmas puede ser muy peligroso . La decisión de deactivar
una alarma puede ser tomada solamente por un técnico en electricista
calificado y con experiencia tanto en electro-filtros como en el SQ-300i.

To edit the alarm limits
• Press or click the Alarm Limits option from the Configuration Groups screen and then press or
click the Edit button.
• If the system has been logged off, you will be required to input the Administrator Password and
press or click the OK button.
• The Edit screen for Alarm Limits will appear.










© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

60


• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item. Press or click the Edit button to edit the parameter.
• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Alarm Limits parameters.

Primary Over Current Alarm
This screen allows you to select the RMS primary over current alarm . This alarm will occur if the
measured primary current has exceeded this setting for 2 seconds. A setting of 0 disables the
alarm for trouble-shooting. The default/safe value is 200.

• Press or click the primary over current alarm option and then press or click Edit to modify
the value.
• Input a value between 0 and 900.
• Press or click the OK button to save the changes.

Primary Under Voltage Alarm
This screen allows you to select the RMS primary under voltage alarm . The maximum setting
allowed is 750 volts AC. This alarm will occur if the measured primary voltage is below this setting
for 30 seconds and primary current is at least 20% of TR Set Rating. A setting of 0 disables the
alarm for trouble-shooting. The default/safe setting is 0.

Use the Back button to
return to the Configuration
Groups screen.
You may edit
any of these
parameters.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

61
• Press or click the primary under voltage alarm option then press or click Edit to modify
the value.
• Input a new value between 0 and 750.
• Press or click the OK button to save the changes.

 Secondary Over Current Alarm
This screen allows you to select the average secondary over current alarm . The Secondary over
current alarm occurs if the measured secondary current has exceeded this setting for 2 seconds. A
setting of 0 disables the alarm for trouble-shooting. The default/safe value is 1990.

• Press or click the secondary over current alarm option and then press or click Edit to
modify the value.
• Input a new value between 0 and 9000.
• Press or click the OK button to save the changes.

Secondary Under Voltage Alarm
This screen allows you to set a secondary under voltage alarm limit for the KV input. The
secondary under voltage alarm occurs if the measured secondary voltage at the KV input is below
this setting for 30 seconds and secondary current is at least 20% of TR Set Rating. A setting of 0
disables the alarm for trouble-shooting. The default/safe value is 0.

• Press or click the secondary under voltage alarm option and then press or click the Edit
button.
• Input a value between 0 and 160.
• Press or click the OK button to save the changes.

Under Voltage Alarm Time Delay
This screen allows you to set an under voltage alarm delay . This setting determines how long the
alarm conditions must be favorable before the under voltage alarm will trip. For example, if the
measured secondary voltage at the KV input is below its alarm setting, and secondary current is at
least 20% of TR Set Rating, and both of these conditions remain true for the length of this delay
setting, then a secondary under voltage alarm will occur. Valid settings range from 1 to 99
seconds. If a value is entered outside of this range, the control will use the default/safe value of 30.

• Press or click the under voltage alarm time delay option and then press or click the Edit
button.
• Input a value between 1 and 99.
• Press or click the OK button to save the changes.

Imbalance Alarm
This screen allows you to enable or disable the imbalance alarm . If enabled, the imbalance alarm
will occur when there are missing or abnormal half cycles in the secondary current waveform. This
is normally caused by an open main line SCR. The imbalance alarm can be disabled for
trouble-shooting. The default/safe value is On.

• Press or click the imbalance alarm option and then press or click the Edit button.
• Press or click the Off option to disable or On to enable the alarm.
• Press or click the OK button to save the changes.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

62
Alarm Contact Type
The data entered in this screen will determine whether the alarm relay output on the SQ-300i
Hybrid will be Normally Open (NO), or Normally Closed (NC).

Generally, the alarm relay output is tied to an interposing relay that can interrupt the power to the
coil of the main contactor. If this relay uses a NC contact, then the alarm output should be set to NO
so that when the relay is energized, it opens its NC contacts in the event of an alarm. If the relay
uses a NO contact, then the alarm output should be set to NC. B&W recommends circuits that use
a NC interposing relay contact should have the alarm relay output set to NO. The default/safe
value is Normally Closed.

• Press or click the Alarm Contact Type option and then press or click the Edit button.
• Press or click the Normally Open option to choose a Normally Open alarm relay output, or
the Normally Closed option to choosea Normally Closed alarm relay output.
• Press or click the OK button to save the changes.

Hz Mismatch Alarm
This screen allows you to enable or disable the Hz Mismatch Alarm . If enabled, the control will
perform a check to determine if the Hz rating (under TR Set Sizing) matches the detected line
frequency. The alarm will occur when these do not match. (This check will only occur when the
control is halted or within 1 second of the control detecting main power on.) The default/safe value
is On.

• Press or click the Hz Mismatch option and then press or click the Edit button.
• Press or click the Off option to disable or On to enable the alarm.
• Press or click the OK button to save the changes.

• Press or click the up or down arrow button to scroll through the Alarm Limits settings, or
press or click the Back button to return to the Configuration Groups screen.


Spark Response
The SQ-300i Hybrid responds to high intensity sparks (excursions in the secondary current
waveform) by completely quenching them to fully extinguish them. After the quench occurs, the
SQ-300i Hybrid quickly returns the power to the set back level by a fast ramp.
To edit the spark response
• Press or click the Spark Response option from the Configuration Groups screen and then
press or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Spark Response will appear.











© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

63



• Press or click any parameter or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item.
• Press or click the Edit button to edit the parameter.
• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Spark Response parameters.


Use the Back button to
return to the Configuration
Groups screen.
You may edit
any of these
parameters.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

64
Graphic representation of spark response

Spark Rate
This screen allows you to enter the desired spark rate . Available values range from 1 to 99 sparks
per minute. The slow ramp rate is automatically adjusted based on the spark rate setting, as are
the Spark Set Back and SCR Firing Angle Limit when a spark or arc occurs. The control
default/safe setting is 30 sparks per minute.

• Press or click the Spark Rate option to select it and then press or click the Edit button.
• Input a new value between 1 and 99 which will represent the spark rate (per minute).
• Press or click the OK button to save the changes.

Spark Sensitivity
Although the SQ-300i Hybrid can automatically adjust spark sensitivity based on the secondary
current rating as described before, internal precipitator conditions, such as plate-to-wire clearances
and dust resistivity, affect spark intensity. To help further fine tune ESP operations, the SQ-300i
Hybrid provides this additional sensitivity setting.

This screen allows settings between 0 (most sensitive) and 9 (least sensitive); this permits up to a
45% change in the spark detection level. The control default/safe setting is 3.

• Press or click Spark Sensitivity to select it and then press or click the Edit button to
modify the value.
• Input a new value between 0 and 9.
• Press or click the OK button to save the changes.

T/R Limit, spark or arc Recovery Ramp
(If slow ramp does not
Spark or arc reach a limit or spark.)
P Recovery Ramp Delay
O
W Setback Slow
E Ramp
R (To limit or spark)

 Fast Ramp



 Quench
(Response to Spark)
T I M E

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

65
Spark Quench
The Spark Quench screen allows you to select the quench period that will follow the detection of a
spark. This selection may range from 1 to 9 full cycles. (Half cycles are not used in order to prevent
applying pulsating DC to the TR Set.) The control default/safe setting is 1.

• Press or click the Spark Quench option and then press or click the Edit button.
• Input a new value between 1 and 9, which represents the spark quench period.
• Press or click the OK button to save the changes.

Arc Quench
The Arc Quench screen allows you to select the quench period that will follow the detection of an
arc. This selection may range from 1 to 9 full cycles. (Half cycles are not used in order to prevent
applying pulsating DC to the TR Set.) The control default/safe setting is 3.

• Press or click the Arc Quench option and then press or click the Edit button.
• Input a new value between 1 and 9, which will represent the arc quench period.
• Press or click the OK button to save the changes.

Fast Ramp
This screen allows you to set the duration of the fast ramp back to a selected set back level after a
spark. The settings range from 1 half cycle to 9 half cycles. This ramp function begins at zero
power after a spark, and provides for greater control of current recharge in the precipitator field.
The default/safe setting is 6 half cycles.

• Press or click the Fast Ramp option and then press or click the Edit button
• Input a new value between 1 and 9, which will represent the fast ramp duration.
• Press or click the OK button to save the changes.

Spark Set Back
This screen allows you to set the spark set back , or the percentage of the power level that the
SQ-300i Hybrid will fast ramp to following the detection of a spark or arc, and the subsequent
quench period. Once the control reaches the set back level, it will continue to ramp slowly until it
reaches the level of the last spark or limit. Settings may range from 1% to 99% of the power level
measured at the last spark or arc. The control default/safe setting is 25%.

• Press or click the Spark Set Back option and then press or click the Edit button.
• Input a new value between 1 and 99, which will represent the spark set back percentage.
• Press or click the OK button to save the changes.

Spark Reaction
This screen allows you to set the spark reaction , or how the control will react to sparks. Settings
include quench and spit. The control default/safe setting is quench. If you select quench, the
control will quench all sparks. If you select spit, the control will not perform a full quench on spit
sparks; instead, the control will power down to the spit spark set back level.

• Press or click the Spark Reaction option and then press or click the Edit button.
• Press or click the Quench option to quench all sparks, or the Spit option to treat spit sparks
differently.
• Press or click the OK button to save the changes.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

66
Spit Spark Set Back
This screen allows you to program the Set Back percentage for a spit spark, when a quench period
is not used. Valid settings range from 1% to 99% of the power level at spit spark. Following the
detection of spit spark, the power level is immediately returned to the Spit Spark Set Back level.

If the Spit Spark mode is on,the SQ-300i Hybrid Single-Phase does not quench after a spit spark.
Instead, it immediately lowers the power level and ramps up to the set back (selected in this
screen), in 2 half cycles. If a spark re-strike occurs before reaching set back, a normal spark
quench occurs. The control default/safe value is 25.

• Press or click the Spit Spark Set Back option and then press or click the Edit button.
• Enter a number from 1 to 99, which represents the spit spark set back level.
• Press or click the OK button to save the changes.

Spark Mode
This screen allows you to select either voltage or current for spark detection. The default/safe
value is mA (secondary current). (See also, Principles of Operation, Overview.)

• Press or click the Spark Mode option and then press or click the Edit button.
• Press or click the KV option for secondary voltage or press or click the mA option for
secondary current.
• Press or click the OK button to save the changes.

OverSpark Alarm
This screen allows you to turn the OverSpark Alarm on and off. When this setting is On, and the
number of sparks per minute is equal to or greater than the OverSpark alarm setting, the SQ-300i
Hybrid will generate an OverSpark alarm. The default/safe value is Off.

• Press or click the OverSpark Alarm option and then press or click the Edit button.
• Press or click the Off option to turn the overspark alarm off, or press or click the On option
to turn the overspark alarm on.
• Press or click the OK button to save the changes.

OverSpark Alarm Limit
This screen allows you to set the OverSpark Alarm Limit . When the OverSpark Alarm is on, an
overspark alarm will occur if the number of sparks per minute is equal to or exceeds this setting
This setting may range from 1 to 99 sparks per minute. The default/safe value is 30.

• Press or click the OverSpark Alarm Setting option and then press or click the Edit button.
• Input a new value between 1 and 99.
• Press or click the OK button to save the changes.

Recovery Ramp Rate (No setting is required for this.)
The recovery ramp rate is a built-in ramp rate that the control will initiate if other ramping does not
result in a spark, arc, or limit. If the SQ-300i Hybrid reaches the level of the last spark without
reaching a limit or a spark, the control will continue ramping at the slow ramp rate for the duration of
the recovery ramp delay. At the end of this delay, if the control still has not encountered a limit or a
spark, the SQ-300i Hybrid will switch to the recovery ramp rate. The recovery ramp rate increases
the SCR firing angle at 0.15° per half cycle until a limit, spark, or arc occurs.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

67
Recovery Ramp Delay
This screen allows you to set the duration of the recovery ramp delay that will occur if the slow
ramp does not result in a limit or a spark. This setting may range from 0 (no delay) to 9 (the longest
delay). The default/safe value is 5.

The recovery ramp delay is determined by the spark rate setting and the setting you enter here. If
you enter 0, there will be no delay. If you enter 5, and your spark rate setting is 30 sparks per
minute, the delay will be 1 second. If you enter 9, and your spark rate setting is 30 sparks per
minute, the delay will be 2 seconds.

• Press or click the Recovery Ramp Delay Setting option and then press or click the Edit
button.
• Input a new value between 0 and 9.
• Press or click the OK button to save the changes.

Smart Spark
This setting is on allows the slow ramp rate to automaticly adjust if the previous spark occurs
quicker than expected. For example, if the spark rate is set to 30 sparks per minute, a spark is
expected to occur once every 2 seconds. The slow ramp rate is designed to go to spark level in 2
seconds. If the spark occurs at 1.5 seconds instead of 2 seconds and Smart Spark is on. Then the
slow ramp rate is designed to go to spark level in 2.5 seconds.

Press or click the Smart Spark option and then press or click the Edit button.
• Select OFF or ON
• Press or click the OK button to save the changes.

• Press or click the up or down arrow buttons to scroll through the Spark Response settings,
or press or click the Back button to return to the Configuration Groups screen.


Back Corona Settings
�

• If the JuiceCan Installed setting changes from “Not Installed” to
“Installed,” the Back Corona Search feature will be disabled. You may
still be able to change the back corona settings, but they will have no
bearing on operation.


The SQ-300i Hybrid Single-Phase has five Back Corona Search settings at which you can adjust
the Back Corona Search feature for each precipitator system. This feature is not active if Pulse
Blocking is selected on, if KV feedback is unavailable, or if the search interval is set at zero. If the
system has WinDAC, it can disable or hold the back corona search for a period of time, but the back
corona settings will still be valid.

How the Back Corona Search Works
The SQ-300i Hybrid Single-Phase measures the minimum, peak, and average value of the
secondary voltage waveform. The minimum value is used to detect the presence of back corona,
while the peak value is used in conjunction with the average secondary current to determine the
most efficient operating point. The Back Corona Search feature is used to automatically find the
most efficient operating setting, and to determine whether intermittent energization will improve
operation, and if so, at what setting.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

68

The SQ-300i Hybrid Single-Phase detects Back Corona on a V-I curve when the minimum value of
the secondary voltage decreases while secondary current increases. The SQ-300i Hybrid
Single-Phase finds back corona by following a series of steps that test the operation of the
precipitator; the control repeats these steps until the optimal operational setting is found. You can
customize this series of steps by programming settings at each of the five Back Corona Search
screens.

The first back corona search begins at a point in time defined by the first Back Corona Search
screen. The SQ-300i Hybrid Single-Phase will run a series of partial V-I curves using the remaining
Back Corona Search settings. For example, using the programmed setting for "starting full cycles
off," the control begins to apply power. (Note that any "starting full cycles off" setting greater than
zero is intermittent energization.) While ramping up, if the control detects a decrease in the
minimum value of the secondary voltage and a corresponding increase in secondary current, the
control has detected back corona. The control records the following data at this point: the SCR
firing angle, pulse ratio, and the product of E2I, or [(KV Peak)2 x Average mA]. To continue the test,
the control adds "1 full cycle off" to the previous "starting full cycles off" setting. Using the new
setting, the control continues the V-I curve, ramping power up until it detects back corona again.

This time, the control will record the same data as before, but it will then compare this back corona
onset point to the first one. For each back corona onset point, the E2I formula produces a number
that is proportional to the migration velocity (the speed at which particulate move toward the
collecting plate). These results will form a trend; as the trend increases, (or as migration velocity
increases), collection efficiency also increases.

The SQ-300i Hybrid Single-Phase will continue to perform the Back Corona Search until the E2I
formula produces a change in the increasing trend. At this point, the control will return to the last
"good" setting(the last setting that produced an increase in collection efficiency); the control will
continue to run at this setting, and will end the Back Corona Search until the next scheduled interval
arrives.

To edit the back corona search
• Press or click the Back Corona Settings option and then press or click the Edit button.
• If the system has been logged off, you will be required to input the Administrator Password and
press or click the OK button. The Edit screen for Back Corona will appear.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

69


• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item.
• Press or click the Edit button to edit the parameter.
• Use the keypad to enter a new setting. (The screen may provide the valid range of values that
may be entered here. If you attempt to enter a number outside of this range, it will not be
accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Back Corona parameters.

Back Corona Search Time Interval
This screen allows you to tell the control how often to perform the Back Corona Search. If the
interval entered is 15 minutes, the search will begin every 15 minutes; if the interval entered is 1440
minutes, the search will begin once every 24 hours. Typically, lower intervals are used for unstable
processes, and higher intervals are used for stable processes. If any non-zero number is chosen,
the Back Corona Search will start immediately after saving this setting. Be aware that when the
control ramps down to the starting secondary current setting, opacity spikes may occur. The
default/safe value is 0 (which disables the Back Corona Search).

• Press or click the Back Corona Search Time Interval option and then press or click the
Edit button.
• To disable the search, enter 0.
• To enable the search and set the search interval, input a new value between 5 and 1440.
(If you enter a number between 1 and 5, the setting will be forced up to 5 minutes.)
• Press or click the OK button to save the changes.

You may edit
any of these
parameters
Use the Back button to
return to the Configuration
Groups screen

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

70
Back Corona Starting Pulse Ratio
This screen allows you to enter the value which represents the number of full cycles off (of incoming
line frequency), at which the SQ-300i Hybrid Single-Phase will begin the back corona search.

Available settings at this screen are 0 to 100. If 0 is chosen, power will be applied at every half
cycle (full power). If any number from 1 to 100 is chosen, power will be off from 1 to 100 full cycles
at a time (intermittent energization). The default/safe value is 0.

�

• To prevent the application of pulsating DC current to the TR Set, all
"on" cycles are half cycles, and all "off" cycles are full cycles. This
way, positive and negative energy are applied equally.


• Press or click the Back Corona Starting Pulse Ratio option and then press or click the
Edit button.
• Input a number from 0 to 100 to set the Starting Full Cycles Off.
• Press or click the OK button to save the changes.

Back Corona Ending Pulse Ratio
This screen allows you to set a limit on the Back Corona Search. Unless told otherwise, the control
will continue to search until it reaches back corona onset, or until it has tested at an intermittent
energization level of 100 full cycles off. This ending pulse ratio setting enables you to avoid
unwanted power off cycles.

Available settings at this screen are 0 to 100. For example, if 6 is selected, the control will continue
to search until it reaches 6 full cycles off, and then it will stop. The control default/safe setting is 1.

• Press or click the Back Corona Ending Pulse Ratio option and then press or click the
Edit button.
• Input a new value between 0 and 100 to set the maximum full cycles off.
• Press or click the OK button to save the changes.

BC Search Minimum Sec Current
This screen allows you to manually set the minimum current level at which the back corona
algorithm will operate. For example, if the optimum operating point for the back corona search is 75
mA, and this screen is programmed for 0100 mA, the control will operate at 100 mA. As a result of
this setting, the control will operate the field at a higher power level than the back corona algorithm
suggests.

B&W recommends a minimum secondary current setting of 0025 mA. Be sure that the starting
secondary current is always less than or equal to minimum secondary current. The default/safe
setting is 25.

• Press or click the BC Search Minimum Sec Current option and then press or click the
Edit button.
• Input a new value between 0 and 9999 representing the minimum secondary current level
at which the back corona search will operate.
• Press or click the OK button to save the changes.

BC Search Starting Sec Current

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

71
This screen allows you to set an arbitrary ramp down level. If for any reason you do not want the
control to ramp down to zero at the beginning of each search, this setting will assure that. [If a
remote limit is set to zero, then the starting secondary current setting is ignored and the SQ-300i
Hybrid Single-Phase will operate at zero power (and it will not fire the SCRs).]

B&W recommends a starting secondary current setting of no more than 0025 mA. The default/safe
setting is 25.

• Press or click the BC Search Starting Sec Current option and then press or click the Edit
button.
• Input a new value between 0 and 9999 which represents the secondary current level to
which the control will ramp down at the beginning of each back corona search.
• Press or click the OK button to save the changes.

• Press or click the up and down arrow buttons to scroll through all of the Back Corona
Search settings, or press or click the Back button to return to the Configuration Groups
screen.












Pulse Blocking Settings
�

• If the Operating Limits screen for the JuiceCan changes from “Not
Installed” to “Installed,” the Pulse Blocking feature will be disabled.
You may still be able to change the pulse blocking settings, but they
will have no bearing on operation.


The SQ-300i has three settings for operating the Pulse Blocking (or intermittent energization)
feature. This feature is used to stop the development of back corona and for energy savings.

How Pulse Blocking Works
The Pulse Blocking feature prevents pulsating DC from being applied to the TR Set, or the
application of currents per half cycle in excess of the TR Set ratings. For example, if the precipitator
system is operating at a current limit and Pulse blocking is selected on, the current feedback from
the precipitator will decrease. This is because operation in this mode causes a decrease in the
effective power levels in the precipitator. Due to the lower current feedback, conventional control
systems would attempt to ramp up to current limit and apply too much current per half cycle, and
this would damage the TR Set.

The SQ-300i Hybrid Single-Phase control's Pulse Blocking operation prevents the application of
currents per half cycle in excess of the TR Set ratings by utilizing an SCR firing angle limit. During© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

72
operation with Pulse Blocking selected off, the SCR firing angle at primary current limit is read from
the Main Status Display. This value is entered as the Pulse Blocking SCR firing angle limit.

The preferred method to obtain the pulse blocking SCR firing angle limit is to short the secondary of
the TR Set. This procedure provides the lowest possible secondary impedance the TR Set will ever
see. Therefore, the SCR firing angle limit obtained will prevent the application of current per half
cycle in excess of TR Set ratings.

To prevent the application from pulsating DC current to the TR Set, all "on" cycles are half cycles,
and all "off" cycles are full cycles. This way, positive and negative energy are applied equally.

To edit the pulse blocking settings
• Press or click the Pulse Blocking Settings option and then press or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Pulse Blocking will appear.




• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters to highlight/select an item.
• Press or click the Edit button to edit the parameter.
• Use the keypad to enter a new setting. (The screen may provide the valid range of values that
may be entered here. If you attempt to enter a number outside of this range, it will not be
accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Pulse Blocking parameters.

You may edit
any of these
parameters
Use the Back button to
return to the Configuration
Groups screen

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

73
Firing Angle Limit in Pulse Blocking Mode
This screen allows you to set the SCR firing angle limit to prevent the application of current per half
cycle in excess of the TR Set ratings while operating in this mode. This is an additional limit, and all
other limits remain active. Available settings range from 016 degrees to 180 degrees. The control
default/safe setting is 90 degrees.

• Press or click the SCR Firing Angle Limit option and then press or click the Edit button.
• Input a value between 016° and 180° which represen ts the SCR Firing Angle Limit.
• Press or click the OK button to save the changes.

PB Mode Full Cycles at Reduced Level
This screen allows you to set the number of "full cycles at reduced power." Available settings range
from 0 to 100. The control default/safe setting is 0. Pulse Blocking is turned on when any number
other than 0 is entered under full cycles at reduced power.

• Press or click the PB Mode Full Cycles @ Reduced Level option and then press or click
the Edit button.
• Input a value between 0 and 100 to set the number of full cycles at reduced power.
• Press or click the OK button to save the changes.

Pulse Blocking Reduced Power Level
This screen allows you to set the number for "pulse blocked reduced power." Available settings
range from 0 to 100. The control default/safe setting is 0. Pulse Blocking is turned on when any
number other than 0 is entered under PB Reduced Power. An entry other than 0 represents the
percentage of power reduction of full power.

• Press or click the Pulse Blocking Reduced Power Level option and then press or click
the Edit button.
• Input a value between 0 and 100 to set the pulse block reduced power.
• Press or click the OK button to save the changes.

• Press or click the up or down arrows to scroll through the Pulse Blocking settings, or press
or click the Back button to return to the Configuration Groups page.


Rapper Outputs (Optional)
The SQ-300i Hybrid Control incorporates a Rapper Outputs feature that can be used with tumbling
hammer type rappers. The rapper control feature requires additional hardware that is not included
with the standard SQ-300i Hybrid. These optional modules can be ordered with the SQ-300i
Hybrid, or may be used to upgrade your current control.

The settings for the rapper control feature will determine when the rapper outputs will energize, how
far the SQ-300i Hybrid will power down, and how long rapping will continue if the control is halted.
Remember, at any time, control of the rapper outputs may be overridden by a remote computer.

To rapp, the SQ-300i Hybrid will connect to four outputs. (Refer to your hardware documentation
for specifications and capabilities.) The four rapper outputs operate independently of each other,
and each SQ-300i Hybrid (with rapper outputs) controls rapping independently of other SQ-300i’s.
The on and off settings at each output determine when and how long the output will rapp. When the
SQ-300i Hybrid is started, each rapper output will delay rapping until the Off Period has expired. At

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

74
that time, the output starts rapping and continues until the On Period expires. This cycle repeats as
long as the SQ-300i Hybrid is controlling rapping locally.

Changes to the Rapper On and Off settings may be made at any time, however the changes will not
take effect until the current active period expires. For example, Rapper 1 On period is the current
active on period and is set to expire in 10 minutes. During this period, the On setting is modified to
expire in 3 minutes. The change will not be implemented until the original setting expires, therefore
it will take effect during the next cycle.

If the SQ-300i Hybrid is configured with digital inputs, one of these digital inputs may be used as an
external rapper input. (See also, Digital Inputs Usage Assignments.) This allows an external
system (such as a PLC) to actually control rapping. In this case, two additional rapper control
settings are available to establish limits that will be used during rapping: External Rapping
Percentage and External Rapping Type.

To edit the rapper outputs settings
• Press or click the Rapper Outputs option from the Configuration Groups screen, and then
press or click the Edit button.
• If the system has been logged, you will be required to input the User Password and press or
click the OK button. The Edit screen for Rapper Outputs will appear.



• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll up through the list of available parameters to highlight/select an
item.
• Press or click the Edit button to edit the parameter.

• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
Use the Back button to
return to the Configuration
Groups screen.
You may edit
any of these
parameters.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

75
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Rapper Outputs parameters.
Rapper OFF Period (For Rapper Outputs 1-4)
There are four Rapper OFF Time settings, one for each rapper output.This screen allows you to set the duration of the off time for the associated rapper output. During
this off time, the rapper output remains de-energized. Valid entries range from 0 to 9999 minutes.
If the off time is set to 0 minutes (and the on time is set to a non-zero number), this rapper output is
manually turned on for continuous operation.

• Press or click the Rapper OFF Period (for the desired output) and then press or click the
Edit button.
• Enter a setting from 0 to 9999 that will represent the Rapper OFF Period for the selected
output.
• Press or click the OK button to save the changes.

Rapper ON Period (For Rapper Outputs 1-4)
There are four Rapper ON Time settings, one for each rapper output.

This screen allows you to set the duration of the on time for the associated rapper output. During
this on time, the rapper output is energized and will run the rapper. Valid entries range from 0 to
9999 seconds. If the on time is set to 0 seconds, this rapper output is manually turned off and will
not run the rapper.

• Press or click the Rapper ON Period (for the desired output) and then press or click the
Edit button.
• Enter a setting from 0 to 9999 that will represent the Rapper ON Period for the selected
output.
• Press or click the OK button to save the changes.

Rapper Reduced Level (For Rapper Outputs 1-4)
There are four Reduced Level settings, one for each rapper output.

This screen allows you to set a power level limit for the SQ-300i Hybrid during locally-controlled
rapping. This setting represents a percentage of the primary current limit and may range from 0 to
100%.

• Press or click the Rapper Reduced Level (for the desired output) and then press or click
the Edit button.
• Enter a setting from 0 to 100 that will represent the Reduced Power Rapp.
• Press or click the OK button to save the changes.


Rapper Run Time After SQ-300i is Halted
This screen allows you to extend rapping for a defined period after the SQ-300i Hybrid is halted
(manually, remotely, or from an alarm condition). Once the control is halted, the system will begin
counting the defined period to extend the rapping. The system will continue rapping until the

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

76
Rapper Run Time extension period expires or the Rapper On period expires. Valid entries range
from 0 to 9999 seconds. If this is set to 9999 seconds, the rapper outputs on this control will
continue indefinitely. This setting applies to all four rapper outputs on this control.

• Press or click the Rapper Run Time After SQ-300 i is Halted option and then press or
click the Edit button.
• Enter a setting from 0 to 9999 that will represent the Rapper Run Time extension period.
• Press or click the OK button to save the changes.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

77
External Reduced-Power Rapping Percentage
This screen allows you to set a power level limit for the SQ-300i Hybrid during remote controlled
rapping. This setting represents a percentage of the selected limit, and may range from 0 to 100%.
(The “selected limit” is determined using the next Rapper Outputs setting.)

• Press or click the External Reduced-Power Rapping Percentage option and then press
or click the Edit button.
• Enter a setting from 0 to 100 that will represent the level at which the selected parameter
will be limited.
• Press or click the OK button to save the changes.

External Reduced-Power Rapping Type
This screen allows you to select the SQ-300i Hybrid parameter that will be limited during remote
controlled rapping. Available selections are as follows: Rapping Disabled, Primary Current,
Primary Voltage, Secondary Current, Secondary Peak KV Limit, Secondary Average KV Limit, KW
Limit, and SCR Firing Angle Limit. (The actual limit is determined using the previous Rapper
Outputs setting.)

• Press or click the External Reduced-Power Rapping Type option and then press or click
the Edit button.
• Select the parameter that the control will limit on during remote controlled rapping.
o To disable remote controlled rapping on this control, select Rapping Disabled.
o To establish a limit, select any of the parameters (primary current, primary voltage,
etc.).
• Press or click the OK button to save the changes.






























© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

78
Communication Settings
The Communication Settings screen allows you to set the communications information for the
SQ-300i Hybrid Microcontroller.

�

Although the Communications Settings screen displays the IP
Address and Subnet Mask, you must use the SQDiscover program to
change these. Please refer to the SQDiscover section for details.


Edit Communication Settings
• Press or click the Communication Settings option from the Configuration Groups screen and
then press or click the Edit button.
• If the system has been logged off, you will be required to input the Administrator Password and
press or click the OK button. The Edit screen for Communication Settings will appear.



• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item.
• Press or click the Edit button to edit the parameter.
• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.
Use the Back button to
return to the Configuration
Groups screen.
Most of these values are
read-only. You may edit the
SQ-300i Name, Expansion I/O
Type, and Aux. Display Type.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

79

Use this method to enter settings for each of the Communications parameters.

�

• The IP Address should be set last , because once it is set you are no
longer communicating with the current SQ Control and will not be able
to make additional changes to this control.
• B&W recommends that you consult with the plant IT department or
network administrator before connecting any new device to the plant
network.
• The IT department or network administrator will need to assign any
new IP addresses.


IP Address
(This field is Read-Only. You must use SQDiscover to change the IP Address.) To use the
communications capabilities of the SQ-300i Hybrid, each SQ-300i Hybrid Microcontroller must
have a unique IP address. Each SQ-300i Hybrid Microcontroller is shipped with a default/safe IP
address of 192.168.1.2. If more than one Microcontroller will be connected to one Operator
Interface, or if the Microcontroller will be connected to a network, this factory-set IP address must
be changed.

�

• Use the SQDiscover program to change the IP Address. Please refer
to the SQDiscover section for details.
• When setting the IP address on the SQ-300i Hybrid Microcontroller for
the first time, please refer to the Operator Interface section for
important instructions on how to connect to the Microcontroller.


• Each 3-digit numerical segment may range between 0 and 255, with the following restrictions.
o The first 3-digit segment can’t have a value of 0 or 255.
o The last 3-digit segment can’t have a value of 0, 127,128 or 255.
o The newly entered IP address can’t currently exist on the network.

Subnet Mask
(This field is Read-Only. You must use SQDiscover to change the Subnet Mask.) The Subnet
Mask identifies the network that the controls are installed on. Each 3-digit numerical segment may
range between 0 and 255. Consult with the plant IT department or network administrator for this
code. B&W recommends that the SQ-300i Hybrid Microcontrollers and Operator Interfaces be
given their own subnet mask.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

80
SQ-300i Name
The SQ-300i Name listed here is the ID assigned to the SQ-300i Hybrid Microcontroller. This ID is
stored in the Microcontroller. This is the default control name and will be used for display purposes
unless it is changed. To edit or change the SQ-300i Name:

• Press or click the SQ-300i Name option and then press or click the Edit button.
• Enter the new Control ID.
• Press or click the OK button to save the changes.

Interface and Control Version Numbers
The Interface and Control version numbers are read-only fields. These values are provided so that
you can confirm which firmware version is installed and may be needed for troubleshooting.

The Interface and Control version numbers should always match. If they do not match, this may be
an indication that the firmware did not install properly. Contact Support.

Expansion I/O Type
The SQ-300i Hybrid may be configured to work with several different types of I/O. These I/O types
are optional hardware packages that allow the SQ-300i Hybrid to connect various analog and
digital inputs and outputs for monitoring and control. Available I/O packages include Beckhoff,
B&W, and Adam. (For information on how you can use these inputs and outputs, see Digital
Inputs/Outputs and Analog Inputs/Outputs.)

• Press or click the Expansion I/O Type option and then press or click the Edit button.
• Select the I/O Type.
• Press or click the OK button to save the changes.
Auxiliary Display Type
As an option to the full-size Operator Interface, a small Auxiliary Display may be used for basic
monitoring and control at the cabinet. This setting tells the control whether the Auxiliary Display is
installed. (Please refer to the Auxiliary Display section for details.)

• Press or click the Aux. Display Type option and then press or click the Edit button.
• Select either the None or the Maple setting.
• Press or click the OK button to save the changes.

















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

81
Digital Outputs
The Digital Outputs screen is used to identify the digital output signals made available through
optional add-on hardware for the SQ-300i Hybrid. The assignments made here must correspond to
the way the outputs are wired. (See hardware documentation for additional information.)

To edit digital output settings
• Press or click the Digital Outputs option from the Configuration Groups screen and then press
or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Digital Outputs will appear.




• Press or click any parameter or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters to highlight/select an item.
• Press or click the Edit button to edit the parameter.
• Press or click the setting which indicates how the output will be used. Possible assignments are
as follows:
Use the Back button to
return to the Configuration
Groups screen.
You may
assign a
specific usage
to any of the
available digital
outputs. (This
must match the
way the output
is wired.)

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

82

Digital Output Assignments
Not Used
Rapper Output 1
Rapper Output 2
Rapper Output 3
Rapper Output 4
Alarm Output
Run Output
Software Controlled
Horn Output 1
Horn Output 2
Horn Output 3
Horn Output 4
Heater Output 1
Heater Output 2
Heater Output 3
Heater Output 4
Standby
Contactor Control

o Make sure that this assignment matches what the output is wired to.
o If the output is not being used, select Not Used.
o Use the Rapper Output assignments to control rapper outputs.
o Use the Alarm Output assignment to send an "alarm" signal to an external device.
o Use the Run Output assignment to send a "run" signal to an external device.
o Use the Software Controlled assignment to add the output to the precipitator layout for
manual control.
o Use the Horn Output assignments to control horn outputs. (See also, Heater/Horn
Settings.)
o Use the Heater Output assignments to control heater outputs. (See also, Heater/Horn
Settings.)
o Use the Standby assignment to alert an external device that the Hybrid is in a halted
condition (but main power is on and there is no alarm condition). This indicates that it
is OK to turn the control on.
o Contactor Control allow the SQ to directly control the main contactor. When the SQ is
in a Run state the contactor will close, in a halted state the contactor will open

• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Digital Outputs.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

83

Digital Inputs
The Digital Inputs screen is used to identify the digital input signals made available through optional
add-on hardware for the SQ-300i Hybrid. The assignments made here must correspond to the way
the inputs are wired. (See hardware documentation for additional information.)

To edit digital input settings
• Press or click the Digital Inputs option from the Configuration Groups screen and then press or
click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Digital Inputs will appear.



•
• Digital Inputs 1 – 12 are defined as the external digital inputs
• External Enable is defined as the function for what use to be the fixed digirtal input for External
Enable Open
• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters to highlight/select an item.
• Press or click the Edit button to edit the parameter.
• Press or click the setting which indicates how the input will be used. Possible assignments are
as follows:
You may assign
a specific usage
to any of the
available digital
inputs. (This
must match the
way the input is
wired.)
Use the Back button to
return to the Configuration
Groups screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

84

Digital Input Assignments
Not Used Breaker Trip*
Rapper 1 Feedback Run/Halt Input*
Rapper 2 Feedback Remote Trip Input*
Rapper 3 Feedback Software Monitored Input
Rapper 4 Feedback Remote Limit Input 1
SCR Over Temperature* Remote Limit Input 2
TR Over Temperature* Remote Limit Input 3
TR Vacuum Pressure* Heater 1 Feedback
Emergency Stop* Heater 2 Feedback
TR Low Oil* Heater 3 Feedback
Cubical Over Temperature* Heater 4 Feedback
Boiler Trip* TR OverTemp Warning
Hopper High* TR Vacuum Warning
 Local Run/Halt Disable

o Make sure that this assignment matches what the input is wired to.
o If the input is not being used, select Not Used.o Use the Rapper Feedback assignments to obtain feedback from each of the
corresponding rapper outputs.
o Use the parameter assignments (SCR Over Temperature, TR Over Temperature, etc.)
to program the SQ-300i Hybrid to respond to any of these special alarm conditions.
o If a digital command is issued to the Run/Halt input, the command will be
placed in the Run/Halt queue.
o Use the Software Monitored Input assignment to add the input to the precipitator layout
screen for display.
o Use the Remote Limits Input 1-3 assignment if remote controlled input (from an
external system such as a PLC, for example to be used for Power Off Rapping ) is
needed.
o Use the Heater Feedback assignments to monitor the operation of the heaters. (See
also Heater/Horn Settings.)
o Use either of the TR Warning assignments if you want a warning message to appear in
Precipitator Manager or SQControl when the input turns on.
o Use the Local Run/Halt Disable assignment if you want to prevent Run/Halt control at
the Operator Interface. (If a communications loss or an alarm occurs, Run/Halt control
at the Operator Interface will be enabled automatically.)
o Use External Enable Input to use the inputas an external enable. If input is open then
SCRs will ot fire.
o
• Press or click the OK button to save the changes.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Digital Inputs.

* Each of the marked inputs has been assigned a Level 1 communications loss status. This means
that if the SQ-300i Hybrid loses communication to the input, the control will halt, toggle the alarm
relay, and display a Remote I/O Comm Alarm message.

All of the remaining (unmarked) inputs and outputs are assigned a Level 2 communications loss
status. In the event of a communications loss, the control will display a Remote I/O Comm Error
message, but the control will continue to operate.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

85

Analog Outputs
The Analog Outputs screen is used to identify the up to 16 analog output signals made available
through optional add-on hardware for the SQ-300i Hybrid. The assignments made here must
correspond to the way the outputs are wired. (See hardware documentation for additional
information.)

To edit analog outputs settings
• Press or click the Analog Outputs option from the Configuration Groups screen and then press
or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Analog Outputs will appear.




• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters to highlight/select an item.
• Press or click the Edit button to edit the parameter.
• Press or click the setting which indicates how the output will be used. Possible assignments are
as follows:
You may assign
a specific usage
to any of the
available analog
outputs. (This
must match the
way the output is
wired.)
Use the Back button to
return to the Configuration
Groups screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

86

Analog Output Assignments
Not Used
Primary Current
Primary Voltage
Secondary Current
Peak Secondary Current
Minimum Secondary Current
Secondary Voltage
Peak Secondary Voltage
Minimum Secondary Voltage
Input Power
Output Power
Spark Rate
Firing Angle
Software Controlled

o Make sure that this assignment matches what the output is wired to.
o If the output is not being used, select Not Used.
o Use the Parameter assignments (primary current, primary voltage, etc.) if you want to
feed these values to an external system.
o Use the Software Controlled Output assignment to add the output to the precipitator
layout for manual control. (This functionality has not yet been implemented.)
• Press or click the OK button to save the changes.
• Press or click Cancel to go back to the previous screen without saving any changes.

Use this method to enter settings for each of the Analog Outputs.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

87

Analog Inputs
The Analog Inputs screen is used to identify the up to 8 analog input signals made available
through optional add-on hardware for the SQ-300i Hybrid. The assignments made here must
correspond to the way the inputs are wired. (See hardware documentation for additional
information.)

To edit analog inputs settings
• Press or click the Analog Inputs option from the Configuration Groups screen and then press or
click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Analog Inputs will appear.



• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters to highlight/select an item.
• Press or click the Edit button to edit the parameter.
• Press or click the setting which indicates how the input will be used. Possible assignments are
as follows:









You may assign a
specific usage to
any of the
available analog
inputs. (This
must match the
way the input is
wired.)
Use the Back button to
return to the Configuration
Groups screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

88

Analog Input Assignments
Not Used
Opacity
Remote Pri. Current
Remote Pri. Voltage
Remote Sec. Current
Remote Peak Sec. Current
Remote Min. Sec. Current
Remote Sec. Voltage
Remote Peak Sec. Voltage
Remote Min. Sec. Voltage
Remote Input Power
Remote Output Power
Remote Spark Rate
Remote Firing Angle
Software Monitored
TC 1 Feedback
TC 2 Feedback
TC 3 Feedback
TC 4 Feedback

o Make sure that this assignment matches what the input is wired to.
o If the input is not being used, select Not Used. This is the default.
o Use the Opacity assignment to pull the opacity value into the system.
o Use the Rmt. assignments if you want an external system to control the parameter
(primary current, primary voltage, etc.).
o Use the Software Monitored Input assignment to add the input to the precipitator layout
screen for display.
o Use the TC Feedback assignments to monitor the thermocouple inputs that will control
the heaters, if applicable. (See also, Heater/Horn Settings.)
• Press or click the OK button to save the changes.
• Press or click Cancel to go back to the previous screen without saving any changes.

Use this method to enter settings for each of the Analog Inputs.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

89

Heater/Horn Settings (Optional)
The SQ-300i Hybrid Control incorporates additional control features that can be used with acoustic
horns and heaters. These control features require additional hardware that is not included with the
standard SQ-300i Hybrid. These optional modules may be used to upgrade your current control.

The following Heater/Horn settings will determine how the horns and heaters will operate.

To edit heater/horn settings
• Press or click the Heater/Horn Settings option from the Configuration Groups screen and then
press or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Heater/Horn Settings will appear.• Press or click any parameter, or press or click the Up Arrow or Down Arrow button at the
bottom of the screen to scroll through the list of available parameters and highlight/select an
item.
• Press or click the Edit button to edit the parameter.
• Select a listed value or use the keypad to enter a new setting. (The screen may provide the
valid range of values that may be entered here. If you attempt to enter a number outside of this
range, it will not be accepted.)
• Press or click Backspace to remove a number, 1 digit at a time.
You may edit
any of these
parameters.
Use the Back button to
return to the Configuration
Groups screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

90
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.

Use this method to enter settings for each of the Heater/Horn parameters.

External Reduced-Remote Limit Percentage (For Remote Limirts 2 and 3)
There are two External Reduced-Remote Limit Percentage settings, one for Remote Limit 2 and
one for Remote Limit 3.

This setting allows you to set a reduced limit for a user-selected parameter. This reduced limit will
activate when the associated Remote Limit is active. This setting may range from 0-100%. (To
select the parameter that will be limited, edit the External Reduced-Remote Limit Type setting.)

• Press or click the External Reduced-Remote Limit Percentage (2 or 3) option and then
press or click the Edit button.
• Input the percent value in the spaces provided. This setting may range between 0 and 100.
• Press or click the OK button to save the changes.

External Reduced-Remote Limit Type (For Remote Limits 2 and 3)
There are two External Reduced-Remote Limit Type settings, one for Remote Limit 2 and one for
Remote Limit 3.

This setting allows you to define which parameter will be limited when the associated Remote Limit
becomes active. Available selections include Disabled, Primary Current, Primary Voltage,
Secondary Current, Secondary Peak Voltage, Secondary Avg. Voltage, KW Limit, and Firing Angle
Limit. (To select the limit for this parameter, edit the External Reduced-Remote Limit Percentage
setting.)

• Press or click the External Reduced-Remote Limit Type (2 or 3) option and then press or
click the Edit buttonPress or click the Up Arrow or Down Arrow button to scroll through the list
of available parameters and highlight/select an item.
• Press or click the OK button to make the selection.

Heater OFF Level (For Heater Outputs 1 through 4)
There are four Heater OFF Level settings, one for each of the four heater outputs.

This setting allows you to set the point at which the heater will turn off. If the associated TC
Feedback input is assigned, and the system indicates that the thermocouple reading is above the
OFF setting, the heater will turn off. The OFF level setting may range from 0 to 100%. (If you enter
an invalid setting, such as a setting less than or equal to the Heater ON Level, the heater will turn off
or remain off.)

• Press or click the Heater OFF Level (1, 2, 3 or 4) option and then press or click the Edit
button.
• Input the percent value in the space provided. This setting may range between 0 and 100.
• Press or click the OK button to make the selection.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

91
Heater ON Level (For Heater Outputs 1 through 4)
There are four Heater ON Level settings, one for each of the four heater outputs.

This setting allows you to set the point at which the heater will turn on. If the associated TC
Feedback input is assigned, and the system indicates that the thermocouple reading is below the
ON setting, the heater will turn on. The ON level setting may range from 0 to 100%. (If you enter an
invalid setting, such as a setting greater than or equal to the Heater OFF Level, the heater will turn
off or remain off.)

• Press or click the Heater ON Level (1, 2, 3 or 4) option and then press or click the Edit button.
• Input the percent value in the space provided. This setting may range between 0 and 100.
• Press or click the OK button to make the selection.

Horn OFF Period (For Horn Outputs 1 through 4)
There are four Horn OFF Period settings, one for each of the four horn outputs.

This setting allows you to set the duration of the off time for horn output. During this off time, the
horn output remains de-energized. Valid entries range from 0 to 9999 minutes. If the off time is set
to 0 minutes (and the on time is set to a non-zero number), this horn output will operate
continuously.

• Press or click the Horn OFF Period (1, 2, 3 or 4) option and then press or click the Edit button.
• Enter the number of minutes you want the horn to remain off. This setting may range between
0 and 9999 minutes.
• Press or click the OK button to make the selection.

Horn ON Period (For Horn Outputs 1 through 4)
There are four Horn ON Period settings, one for each of the four horn outputs.

This setting allows you to set the duration of the on time for the horn output. During this on time, the
horn output is energized and will sound the horn. Valid entries range from 0 to 9999 seconds. If the
on time is set to 0 seconds, this horn output is turned off and will not sound the horn.

• Press or click the Horn ON Period (1, 2, 3 or 4) option and then press or click the Edit button.
• Enter the number of seconds you want the horn to remain on. This setting may range between
0 and 9999 seconds.
• Press or click the OK button to make the selection.

Horn Reduced Level (For Horn Outputs 1 through 4)
There are four Horn Reduced Level settings, one for each of the four horn outputs.

This setting allows you to set a power level limit for the horn output. This setting represents a
percentage of the primary current limit and may range from 00 to 100%. [If set to less than 100%,
when the horn output switches to the ON state, a fixed timeout of 5 seconds will occur to give the
control a chance to power down to this level. When the Horn ON Time ends, the control returns to
normal operation (full power) immediately.]

• Press or click the Horn Reduced Level (1, 2, 3, or 4) option and then press or click the Edit
button.
• Input the percent value in the space provided. This setting may range between 00 and 100.
• Press or click the OK button to save the changes.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

92
Horn Run Time After SQ-300i is Halted
This setting allows you to set the number of seconds that the horn outputs will remain on after the
SQ-300i Hybrid is halted. This setting may range from 0 to 9999 seconds. A setting of zero will
disable the horns when the control is halted.

• Press or click the Horn Run Time After SQ-300 i is Halted option and then press or click the
Edit button.
• Enter the number of seconds you want the horn to remain on after the associated control is
halted. This setting may range between 0 and 9999 seconds.
• Press or click the OK button to make the selection.


Aux Contact Output
The Aux Contact Output screen is used to define the signal being used on the Auxiliary Output.
The assignment made here must correspond to the way the output is wired. (See also, Control
Connections and Digital Outputs.)
To edit the definition
• Press or click the Aux Contact Output option from the Configuration Groups screen and then
press or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Aux Contact Output will appear.• Press or click the Aux Contact Definition parameter, then press or click the Edit button to edit
the parameter.


Use the Back button to
return to the Configuration
Groups screen

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

93

• Press or click the setting which indicates how the output will be used. Possible definitions are
as follows:

Aux Contact Definitions
Not Used
Rapper Output 1
Rapper Output 2
Rapper Output 3
Rapper Output 4
Alarm Output
Run Output
Software Controlled
Horn Output 1
Horn Output 2
Horn Output 3
Horn Output 4
Heater Output 1
Heater Output 2
Heater Output 3
Heater Output 4
Standby Mode
Contractor Control

o Make sure that this definition matches what the output is wired to.
o If the output is not being used, select Not Used.
o Use the Rapper Output definitions to control rapper outputs.
o Use the Alarm Output definition to send an "alarm" signal to an external device.
o Use the Run Output definition to send a "run" signal to an external device.
o Use the Software Controlled definition to add the output to the precipitator layout for
manual control.
o Use the Horn Output definitions to control horn outputs. (See also, Heater/Horn
Settings.)
o Use the Heater Output definitions to control heater outputs. (See also, Heater/Horn
Settings.)
o Use the Standby assignment to alert an external device that the Hybrid is in a halted
condition (but main power is on and there is no alarm condition). This indicates that it
is OK to turn the control on.
o Contactor Control allow the SQ to directly control the main contactor. When the SQ is
in a Run state the contactor will close, in a halted state the contactor will open
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.














© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

94



Reduced-Power Rapping
The SQ-300i Hybrid and NWL PowerPlus™ controls may now be powered down via OPC and
SQControl OPC Server during Power Off Rapping (POR). The external system determines when
the control needs to power down, instructs an SQControl OPC Server tag to turn POR on, and
SQControl determines how far the control will power down. (SQControl OPC Server’s POR tag is
only available with SQControl versions 2.10.0.1 and later.)
To edit the power down setting
• Press or click the Reduced-Power Rapping option from the Configuration Groups screen and
then press or click the Edit button.
• If the system has been logged off, you will be required to input the User Password and press or
click the OK button. The Edit screen for Reduced Power Rapping will appear.



(This setting is only used when POR is turned on using an external OPC tag. This setting does not
apply to the SQ-300i’s optional rapper outputs.)

• Press or click the Reduced-Power Rapping parameter, then press or click the Edit button to
edit the parameter.
• Use the keypad to enter a new setting. This sets the percentage that the control will power
down to during POR when it is turned on via OPC. (The software displays a range of values
that may be entered here. If you attempt to enter a number outside of this range, it will not be
accepted.)
o B&W controls may be set to power down between 0 to 100% of primary current limit.
o NWL controls may be set to power down between 10 to 110% of output current limit.
Use the Back button to
return to the Configuration
Groups screen

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

95
• Press or click Backspace to remove a number, 1 digit at a time.
• Press or click OK to save a newly entered or modified value.
• Press or click Cancel to go back to the previous screen without saving any modifications.



Operating the Hybrid Single-Phase Controller
Overview
This section provides an overview of the operating screens and the status and alarm messages
that may appear on the control. The display screens have been reproduced to help you become
familiar with operating the control.

Operate Screen Displays
The SQ-300i Hybrid Single-Phase includes seven operating screens from which you can view the
operation and check the status of the entire precipitator electrical system. Most of these display
screens show the information numerically and graphically.

When the control software initiates, the Operate screens are the first to appear. (If you are at one of
the Functions screens, press or click the Operate button to access these screens.) Each Operate
screen contains a Controls area, an Operational area, a Status area, and a Navigation area.

The first operate screen is the main display. This screen displays the key precipitator operating
values, as well as any limit or alarm messages. (For more information on these messages, refer to
the Status and Alarm Messages section.)



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

96



Contents of the First Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded display
only – See page 35)


Lists all of the connected controls that you may select for viewing.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

97

Operational area



































Four virtual meters provide SQ-300i Hybrid Single-Phase operation
information at a glance. Each meter shows the activity of one parameter.
The meter needle advances and regresses as the parameter changes.
The current value of the parameter, which is constantly changing, is
displayed underneath the meter, the limit is displayed in the upper-right
corner of the meter, and the alarm is displayed in the upper-left corner of
the meter. (Limits for NWL PowerPlus™ controls are expressed as
percentages.) The scale, on which the meter is based, is established
when you enter Scaling settings. (See also, Programming the SQ-300i
Hybrid Single-Phase.)

• Primary Voltage: True RMS primary voltage is displayed as Volts AC,
and is updated continuously.
• Primary Current: True RMS primary current is displayed as Amps
AC, and is updated continuously.
• KV Average: Average secondary voltage is displayed as KV DC, and
is updated continuously.
• Secondary Current: Secondary current is displayed as mA DC, and is
updated continuously.

Beneath the meters, there are six other parameter readings:

• Sparks Per Minute: The actual spark rate, in sparks per minute,
updated once every minute.
• SCR Firing Angle: The SCR firing angle is displayed in degrees, and
is constantly updated.
• Average Form Factor: The form factor is simply displayed as a
number. The SQ-300i measures and displays Form Factor for
troubleshooting, improvement of precipitator performance, and
accurate sizing of the CLR.
• KV Maximum: KV Max (KV Peak) is displayed in KV DC. This value
is actively used with the Back Corona feature to detect the back
corona onset point for each pulse blocking ratio, and to select the
best pulse blocking ratio to eliminate back corona and provide peak
collection. It is also actively used when secondary peak KV limit
(listed under operating limits) is selected.
• KV Minimum: KV Min is displayed in KV DC. This value is only
actively used with the Back Corona feature to detect the back corona
onset point for each pulse blocking ratio, and to select the best pulse
blocking ratio to eliminate back corona and provide peak collection.






Contents of the First Operate Screen (Hybrid Single -Phase)

Operationalarea

• Average Line Frequency: Average line frequency is displayed in
Hertz, and is updated every half second.

The line voltage source is used not only for power, but also for critical
timing in firing the SCRs. An accurate determination of time relative
to the line voltage supply is made to synchronize the firing of the

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

98
SCRs to this supply. In order to obtain this synchronization, the
SQ-300i Hybrid Single-Phase produces a pulse each time the line
voltage source crosses zero.

Some equipment, such as adjustable speed drives, can distort the
line voltage source and cause false zero crossings. This can create
interference with the proper zero crossing detection. These problems
are often intermittent and difficult to detect. Although the SQ-300i
Hybrid Single-Phase has internal filtering to prevent this interference,
this screen provides an additional troubleshooting tool to detect these
problems which may be affecting other plant equipment.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.


Status area




The Status area of the screen displays the name of the current SQ-300i
Hybrid Single-Phase control, the control status, and any status, limit, or
alarm messages.


Navigation area

This area contains buttons used for navigation to other screens and
controls.

• The Functions/Operate button toggles the display between
Functions mode and Operate mode. (While the display is in Operate
mode, the button will read Functions which will return you to the
SQ-300i Options screen.)
• The Table View button allows you to view all of the controls in a list
that includes key operating parameters for each.


Navigation area
(Operator interface
– Not shown)

• The Back and Next buttons will send the display to the previous or
next control connected to this Interface (or computer, if applicable).
• The Jump To button allows you to select a specific control. This is
especially useful when there are many connected controls.












© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

99


Contents of the Second Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded display)

Lists all of the connected controls that you may select for viewing.


Operational area










Two virtual meters provide SQ-300i Hybrid Single-Phase operation
information at a glance.
• Input Power: Input power is displayed in KVA, and is updated
continuously.
• Output Power: The real time rate of power usage is displayed in KW,
and is updated continuously.
Beneath the meters is a real time trend of SCR Firing Angle. This 3.5
minute trend updates continuously, providing insight to any trends that
may be developing. The y-scale displayed on the trend is determined by
the control type. The Single-Phase scale is16-180. (The control will use
this real time data to create the 6-minute averages used by the Trending
feature.)
• SCR Firing Angle: The SCR firing angle is displayed in degrees, and
is constantly updated.
• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.
Status area Displays the current control and any status, limit, or alarm messages.
Navigation area Displays buttons used to select other control features (or controls).


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

100



Contents of the Third Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded display)


Lists all of the connected controls that you may select for viewing.


Operational area







Two real time trends provide SQ-300i Hybrid Single-Phase operation
information at a glance.

• Secondary Current: Secondary current is displayed as mA DC, and is
updated continuously.
• KV Average: Average secondary voltage is displayed as KV DC, and
is updated continuously.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.

Status area Displays the current control and any status, limit, or alarm messages.
Navigation area Displays buttons used to select other control features (or controls).









© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

101




Conten ts of the Fourth Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded display)


Lists all of the connected controls that you may select for viewing.


Operational area







Three real time trends provide SQ-300i Hybrid Single-Phase operation
information at a glance.

• KV Maximum: KV Max (KV Peak) is displayed in KV DC.
• KV Average: Average secondary voltage is displayed as KV DC.
• KV Minimum: KV Min is displayed in KV DC.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.

Status area Displays the current control and any status, limit, or alarm messages.
Navigation area Displays buttons used to select other control features (or controls).




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

102




Contents of the Fifth Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded
display)


Lists all of the connected controls that you may select for viewing.


Operational area
(Spark, Arc or
Limit Values)






This screen captures a snapshot of key measurements each time a
Spark, Arc or Limit occurs. This information may be useful in trouble
shooting.

• Primary Current: Represents the measurement when a Spark, Arc or
Limit occurs.
• Primary Voltage: Represents the measurement when a Spark, Arc or
Limit occurs.
• Secondary Current: Represents the measurement when a Spark, Arc
or Limit occurs.
• KV Average: Represents the measurement when a Spark, Arc or
Limit occurs.
• SCR Firing Angle: Represents the measurement when a Spark, Arc
or Limit occurs.
• Output Power: Real time rate of power usage in kilowatts.
• Sparks Per Minute: Represents the actual spark rate. Updates occur
once every minute.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

103


Contents of the Fifth Operate Screen (Hybrid Single -Phase)

Operational area
(Spark, Arc or
Limit Values)

• Peak/Average KV: Measure of secondary KV Peak to secondary KV
Average (max divided by average)
• Average/Minimum KV: Measure of secondary KV Average to
secondary KV Minimum (average divided by minimum)
• Manual Pot Input: The manual pot input is used to override the
user-programmed primary current limit setting to a lower setting, and
thereby, provide remote or manual control.
• Avg. Line Frequency: Represents the measurement over the past
quarter of a second.
• Max. Line Frequency: Represents the measurement over the past
quarter of a second.
• Min. Line Frequency: Represents the measurement over the past
quarter of a second.
• Waveform Distortion mA Loss: Represents the percentage of
secondary current lost due to the shape of the secondary wave form.
• TR Set Rated Form Factor: This rating is an indication of the primary
circuit's ability to maintain a near sinusoidal waveform on the
primary.
• Actual Average Form Factor: The form factor measurement is used
for troubleshooting, improvement of precipitator performance, and
accurate sizing of the CLR.
• TR Set Rated Fractional Conduction: Represents the fractional
conduction expected for the rated form factor.
• Actual Fractional Conduction: Representsthe measurement of the
shape and duration of the secondary current pulse relative to the
maximum time period possible.
• Conduction Percentage: Represents a percentage calculation based
on firing angle. (100% conduction is reached at a firing angle of 16°.
0% conduction will register at a firing angle of 180°.)
• Back Corona (BC) Search Mode: Displays the current mode (BC
search is not active, BC search is pending, or BC search is in
progress).
• BC Minutes Until Search: Number of minutes until the next BC
search begins
• BC Pulse Blocking Ratio: Represents the number of full cycles off.
• BC Firing Angle: Represents the measurement for optimum
collection.
• BC Limit: A value of 1 will indicate the control is at a back corona limit.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

104

Contents of the Fifth Operate Screen (Hybrid Single -Phase)

Operational area
(Other Values)


• Line Voltage RMS: Represents the measurement taken each time
the control is read.
• Sec. Impedance: Represents the calculated impedance on the
secondary side of the transformer.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.


Operational area
(Operating Times)







The Operating Times area provides specific elapsed times for the
SQ-300i Hybrid Single-Phase and the TR set.

• Since AVC Reset: The amount of time since power was applied to
the control this time. This may be reset upon power up or a full reset.
• Total Power-On: The amount of time the control has been powered
up since install.
• Since TR Set Run: The amount of time since the Run button was
pushed.
• Total TR Set On: The total amount of time the TR set has had power
applied to it.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.

Operational area
(Firmware
Information)

• Control Type: This represents the type of control in use which may
include Standard 600V, 3-phase 600V, Single-phase 750V, SQi
Hybrid 3-Phase, SQi Hybrid Single-Phase Conventional, and
Simulator.
• Interface/Control Versions: The Interface and Control version
numbers are provided so that you can confirm which firmware
version is installed (which may be needed for troubleshooting).

The Interface and Control version numbers should always match. If
they do not match, this may be an indication that the firmware did not
install properly. You may use the SQProgram.exe to remedy this.
The SQProgram.exe file is shipped with the Master Installer (which
will typically install it in the following folder: C:\Program Files\BW
PGG\Utils).

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.

Status area Displays the current control and any status, limit, or alarm messages.
Navigation area Displays buttons used to select other control features (or controls).




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

105



If no inputs or outputs have been defined, the control will not display this screen.

Contents of the Sixth Operate Screen (Hybrid Single -Phase)

Controls area
(Expanded display)


Lists all of the connected controls that you may select for viewing.


Operational area







• Digital Outputs: Displays the On/Off status for each of the digital
outputs in use.
• Digital Inputs: Displays the On/Off status for each of the digital inputs
in use.
• Analog Outputs: Displays the readings for each of the analog outputs
in use. (Provides percent of scale and maximum scale.)
• Analog Inputs: Displays the readings for each of the analog inputs in
use.
• Aux Contactor: Displays the On/Off status for the Aux Contactor (if in
use).

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.


Status area

Displays the current control and any status, limit, or alarm messages.

Navigation area

Displays buttons used to select other control features (or controls).


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

106



• Be aware that the SQ-300i Hybrid Single-Phase honors the last digital
input command (whether it is sent by the control itself or from a remote
system or computer).

If you are controlling the digital inputs from a remote system like a
PLC, the digital input on your end may not reflect the current status.
(In other words, while a PLC may display the last command that it
sent, the SQ-300i Hybrid Single-Phase may have received a more
recent, alternate command.)

Sachez que le SQ-300i dispose de la dernière commande d'entrée
numérique (qu'elle soit envoyée par le contrôleur lui-même, par un
système à distance ou un ordinateur).

Si vous commandez les entrées numériques avec un système distant
comme un automate (PLC), l'entrée numérique de votre côté ne
reflète pas l'état actuel. (En d'autres termes, même si un PLC peut
afficher la dernière commande qu'il a envoyé, le SQ-300i peut avoir
reçu une commande alternative plus récente.)

Recuerde que el SQ-300i obedece el último comando de entrada
digital, ya sea que se envíe desde el control mismo o desde un
sistema u ordenador remoto.

Si usted está controlando las entradas digitales desde un sistema
remoto como un PLC, es posible que la entrada digital que usted vea
no refleje el estado actual. (En otras palabras, aunque un PLC pueda
mostrar el último comando que envió, el SQ-300i puede haber
recibido un comando alternativo más reciente).



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

107



If no rapper, heater or horn outputs have been defined, the control will not display this screen.

Contents of the Seventh Operate Screen (Hybrid Single -phase)

Controls area
(Expanded display)


Lists all of the connected controls that you may select for viewing.


Operational area







• Rapper Outputs: Displays the status (On/Off) of the rapper outputs,
as well as the countdown timer for each. (These timers indicate how
much time remains before the output changes states.)
• Horn Outputs: Displays the status (On/Off) of the horn outputs, as
well as the countdown timer for each. (These timers indicate how
much time remains before the output changes states.)
• Heater Outputs: Displays the status (On/Off) of the heater outputs
and the status of the feedback for each of the heaters.
• Line Voltage Pulse Length (Pos): Displays the time in useconds of
the length of the positive side of the Line Voltage
• Line Voltage Pulse Length (Neg): Displays the time in useconds of
the length of the negative side of the Line Voltage
• Line Voltage Pulse Span (Pos): Displays the time in useconds
between two positive sides of the line voltage
• Line Voltage Pulse Span (Neg): Displays the time in usconds
between two negative sides of the line voltage

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

108
• Line Voltage Jitter: Displays the difference between the length of the
positive and negative pulse of the line voltage in useconds
• Line Voltage Jitter Side: Displays the side with the shortest pulse
length.

• Touch the screen anywhere in the Operational area to advance to the
next Operate screen.


Status area

Displays the current control and any status, limit, or alarm messages.

Navigation area

Displays buttons used to select other control features (or controls).




Status And Alarm Messages
The status area of each Operatescreen includes a message field that will display one of over 20
status and alarm messages.

Messages will appear according to the following priority list:
1. Alarms
2. Sparks/Arcs
3. Operating Limits (i.e., Secondary Current Limit, etc.)

Each message remains on the screen until its condition is cleared or it is overridden by a higher
priority message. For example, status messages such as Spark or Arc appear at their occurrence
and stay on, unless overridden by an Alarm. Either of these messages would override a limit
message (such as Primary Current Limit). Alarm messages remain on the display until the alarm is
cleared.

• To clear an alarm, press or click the red Halt button on the Options (Function) screen and then
press or click the green Run button to restart the control.
• For a detailed look at alarm history, please refer to the Alarms section.

Status and Alarm List
The following is a list of messages that may appear on the SQ-300i Hybrid Single-Phase Operate
screens. (The Main Power Off alarm is explained in detail following this roster.)

Message Message Description
Arc Shown during arcs through the quench period.
Arc Quench Shown during arcs through the quench period.
(The message may appear briefly and not be
seen.)
Commutation Limit Displayed when the SQ-300i Hybrid does not
provide enough off time for the SCRs.
External Enable Open Displayed if the external enable input is open which
disables SCR firing and control operation. This
message remains displayed until 5 volts are
applied to this input.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

109
Firing Angle Limit Displayed when this limit is reached. An SCR firing
angle limit of 30 degrees is preset in the SQ-300i
Hybrid controller.
Firing Angle Limit (Pulse-Block) Displayed when this limit is reached. When
operating in the Pulse Blocking Mode, a higher
SCR firing angle limit can be set.
Halt Indicates main power is on, but control operation
has been stopped.
Hz Mismatch Displayed when the measured and defined
frequency differ.
Imbalance Alarm Indicates one of two things: (1) an SCR has been
lost or (2) a phase has been lost.
 Main Power Off Displayed to alert you to the loss of main line power
due to an open contactor or blown SCR fuse.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

110

Message Message Description
Manual Limit Displayed if the analog input has overridden the
primary current limit to a lower value.
OverSpark Alarm Displayed if the OverSpark alarm feature is on and
the number of sparks per minute exceeds the
OverSpark alarm setting.
Internal Hardware Error Displayed when the control detects a fault in the
hardware that can cause the timing of the SCRs to
be incorrect. Can also displayed is there is too
much noise or faulting connections on the Power
Lines
Primary Current Limit Displayed when this limit is reached.
Primary Overcurrent Alarm Displayed if the measured primary current exceeds
its set limit.
Primary Undervoltage Alarm Displayed if the measured primary voltage falls
below its set limit.
Primary Voltage Limit Displayed when this limit is reached.
Pulse Block Displayed when Pulse Blocking is active.
Remote Firing Angle Limit Displayed when this limit is reached.
Remote I/O Comm Alarm Displayed when the control cannot communicate to
I/O that is both defined and is assigned a Level 1
Comm Loss status. (Control will alarm and halt.)
Remote I/O Comm Error Displayed when the control cannot communicate to
I/O that is both defined and is assigned a Level 2
Comm Loss status. (Control will continue to run.)
Remote KW Limit Displayed when this limit is reached.
Remote Primary Current Limit Displayed when this limit is reached.
Remote Primary Voltage Limit Displayed when this limit is reached.
Remote Secondary Current Limit Displayed when this limit is reached.
Remote Secondary Voltage Average
Limit
Displayed when this limit is reached.
Remote Secondary Voltage Peak Limit Displayed when this limit is reached.
Secondary Current Limit Displayed when this limit is reached.
Secondary Overcurrent Alarm Displayed if the measured secondary current
exceeds its set limit.
Secondary Undervoltage Alarm Displayed if KV feedback is selected, and
secondary voltage falls below its set limit.
Secondary Voltage Average Limit Shown only when KV feedback is selected and this
limit is reached.
Secondary Voltage Peak Limit Shown only when this limit type is selected, when
KV feedback is selected and this limit is reached.
Spark Displayed at every spark.
Spark Quench Displayed during the spark quench period. (The
message may appear briefly and not be seen.)
Spit Spark Displayed at every spit spark.

Main Power Off Alarm
This feature detects the loss of main line power due to an open contactor or blown SCR fuse.
When the main line power is not detected, the SQ-300i Hybrid Single-Phase will halt all operation,
and the *Main Power Off* message is displayed.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

111
When main line power is restored, SQ-300i Hybrid Single-Phase operation is enabled and will
return to normal operation based on the control's settings. It is not necessary to re-enter any of the
operating, alarm, or TR Set sizing values. These settings are stored in a non-volatile random
access memory (NOVRAM) and cannot be erased due to loss of control power.

In the event of a Main Power Off Alarm, there will be no change of state of the solid state alarm
relay outputs. In addition, this feature also provides for the standard interfacing of the SQ-300i
Hybrid Single-Phase to standard electrical systems that can use a contactor to start and stop
control operation.


Table View
The status area of each Operate screen includes a button that allows you to switch to the Table
View. The B&W Conv. tab allows you to view all of the B&W Single-phase controls in a list (rather
than one control at a time). This list will update the status and readings for each SQ-300i Hybrid
Single-Phase controller about once every two seconds. Additional Table View tabs will appear if
you have added SQ-300i 3-phase controls, NWL controls or OPC I/O.

To access the Table View
• Press or click the Table View button on any Operate screen, the Options screen, or the System
Settings screen.









© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

112
Contents of the Table View (Hybrid Single -phase)

Table • Name: Lists all of the connected controls.
• Status: Displays the status of the control. If the SQ-300i Hybrid
Single-Phase control is halted, has an alarm, or is not
communicating, the Status column will be red. (Otherwise, the
Status will be green.)
• Parameters: Displays all of the key operating parameters.

Navigation area

• Use the arrow buttons to scroll up and down through the list of
controls, and right and left through all of the available parameters.
• Press the Hold Display button to freeze the table display for 30
seconds (giving you a chance to record readings, if needed.) Press
the Display Held button to extend the freeze for another 30 seconds.
• Press or click the Back button to return to the previous screen.

Save Table • Press or click the Save To File button to save the contents of the
Table View to a .CSV file. You can then open this file in another
application (like a spreadsheet program).

To change the order of the controls in the list
• Go to Manage Controls and Re-order the controls.

To access the other control tabs
• Press or click the B&W Conv. Tab to view the SQ-300i conventional (single-phase)controls.
• Press or click the B&W 3-Phase tab to view the SQ-300i 3-Phase controls. This tab is generally
the same as the B&W Conv. tab, but will display some different parameters.
• Press or click the NWL PowerPlus tab to view NWL PowerPlus™ controls. This tab is generally
the same as the B&W Conv. tab, but will display different control information.

To access the External I/O Table View tab
• Press or click the External I/O tab.



Conte nts of the External I/O Table View Tab

Table • Item: Lists the entry name of each of the I/O items.
• Tag: List the tag name of the I/O item.
• Value: Displays the value being read for the input or output.
• Quality: Displays an indication (good or bad) of how much you can
depend on the information being provided.
• Last Update: Displays last time the item was read.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

113
SQ-300i Hybrid Single-Phase Functions
Overview
There are several tools that are available at each control which help with troubleshooting and data
analysis. All of these are accessed using the Options screen.

To access the Options screen
• Press or click the Functions button from any of the Operate screens.
• Or, press or click the Control Settings button from the System Settings screen.



For details on working with the Options screen, please refer back to the SQ-300i Options Screen
section earlier in the manual.









© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

114

Trending
The Trending function allows the SQ-300i Hybrid to graph various parameters and display them.

To access the Trending function
• First, select a control (from the Controls Area of any Operate screen, the Options screen, or the
System Settings screen).
• Press or click the Trending button on the Options screen. The Trending screen will appear.

Buttons allow
you to add or
remove trends
There is a scale
for each trend
displayed
A movable
cursor line
pinpoints values
These buttons
shift the display
by days
These buttons
move the cursor
line

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

115
Initially, when the Trending screen appears, trending for the current day will display (whether there
is any captured data or not). There will be no data values displaying with the buttons across the top
of the screen. Once you have captured data and you attempt to move the blue cursor line, the
corresponding data values for each of the variables will display with the buttons across the top of
the screen.

The control will store up to 1 year of data. Once the control accumulates 1 year of data, it will purge
old data each day.


Working With the Trending Screen

Select parameters

• Press or click any button at the top of the graph to display (or remove)
the parameter, its measurement, and its trend from the screen.
• If you need to select other parameters, use the Setup feature.


Navigate trending
data







The trend screen will always display one day of trending data.

• Press or click the leftmost set of single arrow buttons to shift the
entire viewing area of the graph forward or backward by one day. (If
you click and hold the arrow, the viewing area will shift quickly.)
• Use the double arrow buttons to shift the entire viewing area of the
graph forward or backward by 5 days. (If you click and hold the
arrow, the viewing area will shift quickly.)
• Press or click the Back button to return to the SQ-300i Settings
screen.

Vertical cursor
line
• Press or click the rightmost set of single arrow buttons to shift the
blue cursor line forward or backward in 6 minute intervals. (If you
click and hold the arrow or the cursor line, the cursor line will move
quickly.)
The position of the cursor line determines which data points will be
displayed with the buttons at the top of the screen. If you want to
examine a specific portion of the trend, move the cursor line to that
position.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

116
To access the trend setup feature
• Press or click the Setup button at the
bottom of the screen.


• Press or click any of the six drop-down lists
to select a new parameter for the trend
display.
• Press the OK button to save changes and
return to the trend screen.
• Press the Cancel button to return to the
trend screen without saving changes.








To access the snapshot feature
• Press or click the Snapshot button at the bottom of the screen. The software will take a picture
of the trend screen and prompt you to save it as a .BMP file.


• The software will automatically select a file location and a filename for the snapshot. You may
use these recommended settings or use the keyboard to enter your own.
• Press the OK button to save the snapshot, or press the Cancel button to return to the trend
screen without saving.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

117
Scope
The on-board Scope feature supplies you with a safer way to capture and view waveforms. The
on-board Scope comes with scaling options, waveform navigation, the ability to save and load
waveforms, and a trigger menu (just like an oscilloscope). Once the waveforms have been
captured, they can be used for verifying proper operation and troubleshooting.

To access the Scope function
• First, select a control (from the Controls Area of any Operate screen, the Options screen, or the
System Settings screen).
• Press or click the Scope button on the Options screen. The Scope screen will appear.



Working With the Scope Screen

Load and Save
Scope Traces

• To capture a new waveform, first press or click the Trigger button to
open the Trigger window.
• Select the appropriate trigger to determine when, and at what event,
the control will capture a waveform for the display. Available triggers
include the following:
o Free Run (which is an immediate capture)
o Zero Crossing (when line voltage crosses zero)
o Spark (when a spark occurs)
o Fire SCR (when the SQ is instructed to fire the SCR)





Select waveforms for
display.
Vertical cursor line
Highlighted waveform
Load and save
scope traces.
Capture info
Adjust scaling
and cursor line.
Use trigger and
traces to set
your capture

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

118

Working With the Scope Screen


Load and Save
Scope Traces

• Next, select the Offset; this sets the number of half cycles before
(negative trigger value) or after (positive trigger value) the trigger
event that the control will start reporting data back. For example, to
display the curve 2 half cycles before a spark, select "Spark” as the
trigger and “-2” as the offset. The resulting waveform will show 2 half
cycles before and 8 half cycles after the spark. (All waveforms
display 5 full cycles.) Press or click OK to enter the trigger settings.

• Then press or click the Capture From Control button to populate the
graph based on your settings.
• To load a previously saved waveform, press or click the Load From
File button.

• To save the waveform to a file, press or click the Save To File button.
• To save the waveform to memory, press or click the Save To
Memory button.
• To alternate between the captured waveform and one saved to
memory, press or click the Swap Capture/Memory button.


Display and
Highlight






• The X axis represents the mSec measurement(located across the
bottom of the graph). It identifies the point that the blue vertical
cursor line crosses the active parameter.
• The Y axis represents the parameter measurement associated with
the active waveform.

The buttons that display down the right side of the graph, allow you to
specify which traces (up to 5) will appear in the graph and which one will
be the active line. (Remember: You can only display the traces that have
been captured.) The font color on the Display button corresponds to the
data line of the same color.

• Press or click any of the Display buttons to add (or remove) the
waveform from the display.
• Press or click one of the Highlight buttons to designate one of the
displayed waveforms as the active waveform.
o The active waveform will appear bolded.
o The scale on the Y-axis will follow the active waveform.
o The cursor line will pinpoint values for the active waveform.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

119

Scaling and
Cursor Line

The Scope feature includes some tools that allow you to manipulate the
display and focus on the data that is important to you.

• Press or click the mV or V Range button to adjust the scale of the
y-axis for the active waveform. (As you press mV, the range of the
scale gets smaller, and the waveform gets larger. As you press V,
the range of the scale gets larger, and the waveform gets smaller.)
• Press or click the mS or nS Time buttons to move the active line
towards milliseconds or nano seconds. (As you press mS, the length
of the waveform compresses. As you press nS, the waveform
expands lengthwise.)
• Press or click and drag the Y-axis scale to move it up and down.
(This allows you to adjust your view of the active waveform, while not
moving the other waveforms.)

The Scope also features a blue, vertical cursor line that you may use to
pinpoint the data values that correspond to the active waveform. As you
move the cursor line from left to right, the software will display the x and y
data values for the point at which the waveform and the cursor line
intersect.

• Press or click the Move Left or Move Right Arrows to move the
cursor line to the left or right.
• You may also press or click and drag the cursor line to move it back
and forth.


Exit

• Press or click the Back button to return to the Options screen.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

120
Sample Waveforms
The following waveforms were obtained from an original SQ-300® AVC control using an
oscilloscope. These are representative of the type of data you will be able to obtain using the
Scope feature on the new SQ-300i Hybrid Single-Phase control. Reference these waveforms
when troubleshooting.

Primary Current and Secondary Current
Using a Two-channel Oscilloscope:








































The primary current AC waveform is rectified to DC current on the secondary with no missing or
abnormal half-cycles.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

121
Waveform Indicating Spark Response:


























Proper spark response indicated on the secondary current waveform.
























Normal secondary current and voltage waveforms.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

122

























Normal spark response - secondary current and secondary voltage waveforms.


























Spit spark response - secondary current and secondary voltage waveforms.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

123
VI Curves
The VI Curves screen is a troubleshooting tool that is used to diagnose the “health” of a precipitator
field for the selected control. It allows you to graphically display the relationship between
precipitator voltage (KV) and precipitator current (mA). The secondary voltage is plotted along the
horizontal axis, and the secondary current, along the vertical axis.

To access the V-I Curves feature
• First, select a control (from the Controls Area of any Operate screen, the Options screen, or the
System Settings screen).
• Press or click the V-I Curves button on the Options screen. If the system has been logged off,
you will be required to input the User Password and press or click the OK button.
• The V-I Curves dialog will appear.



Working With the V-I Curves Screen

Run V-I Curve

• Press or click the Start Angle field; when the edit screen displays,
enter a new value between 16 and 180. (This represents the SCR
Firing Angle at which the curve will start.) Then press or click OK.
• Press or click the End Angle field; when the edit screen displays,
enter a new value between 16 and 180. (This number represents the
point at which the curve will end, unless it is stopped by a spark, arc,
limit, or a timeout.) Then press or click the OK button. (Note: The
Start Angle must be greater than the End Angle.)
A movable
cursor line
pinpoints values
Curve
generation info
These
buttons
move the
cursor
These buttons
add and remove
portions of the
curve for display.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

124

Working With the V-I Curves Screen

Run V-I Curve

• Press or click the Step field; when the edit screen displays, enter a
new value between 2 and 10. (Steps represent the degree changes
in the firing angle which occur between data points.) Then press or
click the OK button.
• Press or click the Start button and the application will begin
populating the graph based on the input.

The control will begin to run the VI Curve after a short delay. As each
data point is evaluated, it will display on the graph. The curve will
continue to generate until it reaches the End Angle, or until a spark,
arc, limit, or timeout occurs.

Saving and
Loading Curves
• Press or click the Snapshot button to save a .BMP of the V-I curve
display. (This works the same as the Trending snapshot.)
• Press or click the Save To File Button to save the V-I curve to a file.
(The software will save the file in both VIC and CSV file types.)
• Press or click the Load From File button to open a previously saved
V-I curve.

RC Test The RC Test is a tool that you may need to use at some point to easily
produce calculated resistance and capacitance values for your control.

• Press or click the Run RC Test button to start the test.

When selected, the control will run an internal test (which should only
take a couple of seconds). When the test is complete, SQControl will
display a popup window that provides calculated resistance and
capacitance values.

You may want to run this test before and after making mechanical repairs
to see if there is a significant change in these parameters (which may
indicate a problem such as a close clearance, broken electrode, bad
ground, etc.).

View Options Each of the three buttons located at the bottom of the screen (KV
Minimum, KV Average and KV Maximum), correspond to the line of the
same color that has been drawn on the graph.

• Press or click any of those three buttons to remove or re-add that
particular curve to the display.

The V-I Curves screen also features a blue, horizontal cursor line that
you may use to pinpoint the data values that correspond to all three parts
of the curve. As you move the cursor lineup and down, the software will
display all of the x and y data values for the points at which the curves
and the cursor line intersect.

• Use the up and down arrow buttons to move the cursor line up the
curve to the next data point, or down the curve to the next data point.
• You may also click and drag the cursor line to move it back and forth.

Exit • Press or click the Back button to return to the Options screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

125

Energy Management
The Energy Management feature allows you to enable or disable Energy Management at each
SQ-300i Hybrid control and permits an Energy Management setting for each. This setting
represents a limit at which the control will supply power. This allows for more conservative power
use when operating conditions permit it.

To access the Energy Management feature
• First, select a control (from the Controls Area of any Operate screen, the Options screen, or the
System Settings screen).
• Press or click the Energy Management button on the Options screen. If the system has been
logged off, you will be required to input the User password and press or click the OK button.
The Energy Management dialog will appear.

Working With the Energy Management (EM) Screen

Setting Energy
Management

There are two available modes: Manual and Automatic. In Manual
mode, you may set an EM limit. In Automatic mode, the control will not
be limited for energy management, and will operate at the highest level
possible.
• Press or click the switch to alternate between Manual and Automatic
mode.
• In Manual mode, type in or use the right and left arrow buttons to
select an Energy Management low limit for the control. Note: If the
EM limit is set to 0%, the selected control will operate at zero power,
and will not fire the SCRs.

Exit
• Press the Back button to save your current EM setting and return to
the Options screen.
Energy
Management
limit setting
Use the arrow
buttons or the
slider to select
an EM setting
Use the switch to
alternate between
Manual and Automatic

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

126
System Functions

Overview
There are several system tools that help manage and provide data for all of the SQ-300i Hybrid
controls in the system. All of these are accessed using the System Settings screen.

To access the System Settings screen
• From the Operate screens, press or click the Functions button. The first Functions screen (the
SQ-300i Options screen) will appear. Press or click the System Settings button.


Alarms
The Alarms function provides alarm reporting for all of the SQ-300i Hybrid controls in the system.

To access the Alarms function
• From the System Settings screen, press or click the Alarms button to access this function.





Lists up to the last
1000 alarm entries.
The most recent alarm
is displayed at the top.
Use these
buttons to
scroll through
the alarm list.
Use these
buttons to
perform
specific tasks.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

127
Working With the Alarms Screen

Alarm List

• To see control data for any alarm occurrence, first use the up and
down arrow buttons to highlight the alarm, then press or click the
Details button to see details. (See image below.)
• To delete an individual alarm, first use the up and down arrow
buttons to highlight the alarm, then press or click the Delete button to
delete it.
• To save the alarm details for a specific alarm, first use the up and
down arrow buttons to highlight the alarm, then press or click the
Save To File button.


Exit

• Press the Back button to return to the System Settings screen.





Working With the Alarm Details Screen

Alarm Details

• Use the up and down arrow buttons to scroll through the operating
data for the control.
• To save these alarm details, press or click the Save To File button.


Exit • Press the Back button to return to the Alarms screen.
Alarm
generation
info
This screen provides
all of the SQ-300i
operating data at the
time of the alarm.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

128
Manage Controls
The Manage Controls function allows you to view the connection status of all controls, as well as
add, delete, enable and disable controls from the system. All of the SQ-300i Hybrid
Microcontrollers must be added here before they will appear as available controls in the system.
This process should be done upon initial control setup and will likely be left alone thereafter. For
this reason, these settings are protected by the Administrator password.

NOTE: If you are running SQControl on the Windows® 7 operating system, you must be logged in
as an Administrator to add controls. Contact your network administrator for help.

To access the Manage Control function

• Press or click the Manage Controls button on the System Settings screen. If the system has
been logged off, you will be required to input the Administrator Password and press or click the
OK button.

Working With the Manage Controls Screen

Navigation

• Use the up and down arrow buttons to scroll through the list of
controls.
• Highlight one of the controls and press or click the Move Up or Move
Down button. (This will change the order in which the control
appears in the Table View as well as the Operate screens.)
• Press the Back button to return to the System Settings screen.


Add Control

• Use this option to add a control to the system. See Add Control.

Lists all of the controls currently
associated with the operator
interface or PC. Control types
include:
 SQi: SQ-300i Conventional
 SQiH: SQ-300i Hybrid Conv
 3PhL: SQ-300i 3-Phase
 3PhH: SQ-300i Hybrid 3-Ph
Get detailed
information
for any control
selected.
Save and load
control
profiles.
Change the
display order
of the
controls.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

129

Working With the Manage Controls Screen

Control Options

• Highlight one of the controls in the list, then do any of the following:
o Press or click the Edit button to change the plate area or spacing
or verify the IP Address.
o Press or click the Delete button to remove the control from the
list.
o Press or click the Enable/Disable button to change the control
status to enabled or disabled. (If you disable a control, it will
remain disabled until you go back and enable it, even if
SQControl is restarted.)


Detailed
Information

• Highlight one of the controls, then do either of the following:
o Press or click the Control Information button to access a
detailed summary of the control configuration.

This information is only
available when the control is
connected.

o Press or click the Done
button to close this
dialog.


o Press or click the
Command History
button to access a list of up to the last 1000 commands received by
the control.

This information is only available when the control is connected.



o Press or click the Refresh button to update the history.
o Press or click the Back button to return to the Manage Controls
main screen.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

130


Working With the Manage Controls Screen

Profiles

• Press or click the Write Profile button to save the current profile so it
can be copied to a different control. The software will pull all of the
setup parametersfor the selected control and write them to a file.
The file should be saved in the standard program data directory§.
Note: The software will only store one profile. If you save
another profile, the existing .pfl file will be overwritten.
 Note: The Profile options are not available for NWL
PowerPlus™ controls.
• Press or click the Read Profile button to copy a saved profile to a
control. (The software will perform some checks before it writes the
profile to the control.)
• Press or click the Export Control List button to save the list of
controls to a .CSV file.
• Press or click the Import Control List button to obtain a list of
controls from a .CSV file.


Security

• Press the Security button to access the Change Passwords screen.
(See Change Passwords.)


To add an SQ-300 i Hybrid to the system
• Press the Add button. The Input screen will appear.

• Select the Control Type.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

131
o When you select the Babcock & Wilcox SQ-300i control, the software and the control
must communicate before the software will report back specifically which type it is.
Once the control is successfully added, the Type column on the Manage Controls
screen will display SQiH for the Hybrid Single-Phase control.
o When you select the NWL PowerPlus DSP control, you will have limited control of the
NWL device through SQControl. You will be able to start, stop, and reduce the power
level, set selected parameters, run V-I Curves, and monitor alarms and events.
• Use the keypad to enter the IP address for the SQ-300i Hybrid Microcontroller. Press the
Verify button to check for a response from the address.
• Enter the plate area and plate spacing for the field
• Press or click the OK button to save the new control and return to the Manage Controls screen.
• Press or click the Cancel button to return to the previous screen without saving changes.

To change passwords
• Press the Security button. The Change Passwords screen will appear.

• To change the Administrator password, enter the current password in the first field of the
Change Administrator Password section. (If you’re working without a keyboard, press the
button to the right of the field.)
• Enter the new password in the second and third fields (to confirm it).
• Press the Update button to save the new password.
• To change the User password, follow the same process in the Change User Password section.
• To disable Security, mark the Security is Disabled field. Keep in mind that if security is
disabled, all of the control features are accessible to any user.
• Press the Back button to return to the Manage Controls screen.

Access a
keyboard
so you can
type in
your new
password.
This will disable
the Security
feature.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

132


Manage OPC I/O
OPC is the standard for data exchange between devices and systems, regardless of platform or
manufacturer. OPC requires two components: a server and a client. A server acts as a hub for
data collection from one or more clients (systems). A client can send its data to a server, and it can
retrieve data from other systems (clients) via a server.

The addition of OPC functionality to SQControl software makes it easier for you to integrate all of
your plant systems. The Manage OPC I/O feature performs the role of OPC client. It allows you to
create OPC client entries that you can use to monitor (and in some cases, change) tag values on
external OPC servers. This makes it possible for you to view the values from external systems,
such as an opacity value or the state of a digital control signal. You can monitor the client entries
that you create in the External I/O Table View tab.

�
• SQControl is delivered with a separate OPC Server module. This
OPC Server will be used as the hub for data collection from SQControl
only; it will make this data available to external systems. While it is
possible to define an OPC client I/O item in SQControl that monitors a
tag on the SQControl OPC Server, doing so is not recommended.
Since the SQControl OPC Server will only house data from
SQControl, creating an OPC client I/O item in SQControl that monitors
a tag on the SQControl OPC Server can create a “loopback” condition
that can slow down the program’s operation or cause errors.
• If you are running SQControl on the Windows® 7 operating system,
you must be logged in as an Administrator to add OPC I/O items.
Contact your network administrator for help.


To access the Manage OPC I/O function
• Press or click the Manage OPC I/O button on the System Settings screen.
• If the system has been logged off, you will be required to input the Administrator Password and
press or click the OK button.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

133





Working With the Manage OPC I/O Screen

Navigation

• Use the up and down arrow buttons to scroll through the list of I/O
items.
• Press the Back button to return to the System Settings screen.


Add Item

• Use this option to add an I/O item to the system. See Add I/O item.


Editing Items

• Highlight one of the items in the list, then do any of the following:
o Press or click the Properties button to edit the item settings.
o Press or click the Delete button to remove the item from the list.
o Press or click the Value button to change the value of a
read/write item (which is especially useful for turning an item on
or off).






Use these
buttons to
Add, Edit, and
Delete OPC
items.
Use the Value
button to
change the
value of any
read/write item.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

134
To add an OPC I/O item to the system
• Press the Add button. The Add I/O Item screen will appear.



• Enter a name for the input or output item in the first field.
• Use the next field for the Host name. (You may leave this as <Local> if the OPC Server is on
the same computer as SQControl.)
• At the Server field, search for and select the appropriate external server. (Reminder: B&W
does not recommend creating an OPC I/O item from the SQControl OPC Server.)
• At the Tag field, search for and select the appropriate tag.
• Press or click the OK button to save the new I/O and return to the Manage OPC I/O screen.
• Press or click the Cancel button to return to the previous screen without saving changes.



















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

135
Event Log
The Event Log function provides event and error reporting for all of the SQ-300i Hybrid controls in
the system. This information may be helpful when troubleshooting.

To access the Event Log function
• Press or click the Event button on the System Settings screen. The Events list will appear.



Working With the Events Screen

Event List

The most recent event or error will display at the top of the list. It will
display all events and all errors in its memory (as long as both are
selected for display). The system saves events for up to the last 30 days.
• Use the up and down arrow buttons to scroll through the list.
• Check the Events box to display all event messages.
• Check the Errors box to display all error messages.
• Press or click the Save button to save the listed events in a text file.
The file is stored in the standard program data directory§.


Exit
• Press or click the Back button to return to the System Settings
screen.
Lists selectedevents for up
to the past 30
days.
Use these check
boxes to determine
what will display.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

136
Communications
Overview
The SQ-300i Hybrid is fully capable of communicating with a remote or local device, or operating in
a communications network through a standard Ethernet connection. The communications circuitry
is located on both the SQ-300i Hybrid Microcontroller and on the optional Operator Interface, and
operates independently of control operations.

To use the communications capabilities of the SQ-300i Hybrid components, each SQ-300i Hybrid
Microcontroller and Operator Interface must have a unique address. The IP address for the
Microcontroller is set using the SQDiscover software. Please consult the Microsoft Windows
Network Hardware Configuration documentation for setting the IP address of the Operator
Interface.


Communications Networks
The SQ-300i Hybrid is configured to work using Modbus® TCP/IP (Ethernet) communication. This
method of communications is becoming more standard in industrial environments because it
provides faster communication, and because it allows the control systems to become a part of the
normal computer network/intranet. The SQ-300i Hybrid Microcontroller, operator interface, remote
computers, and other systems will be connected using Ethernet cabling, switches and/or routers
appropriate for the environment.

To implement a communications network, each of the SQ-300i Hybrid Microcontroller (and
Operator Interfaces, if applicable) is connected to an Ethernet switch. This switch may then be
connected to a remote computer (running the SQControl or Precipitator Manager software) for
remote control and display. The number of controls that may be connected to this network is
technically limited to the number of fixed IP addresses available on the network, though other
factors may apply. Any of these controls may be removed from the network without rewiring or
adversely affecting other SQ-300i Hybrid controls in the network.

Short cable runs for distances up to 10 feet should use a patch cable assembly. Long cable runs
for distances from 10 feet to 300 feet should use a riser cable assembly. Recommended parts and
tools for each of these cable types are included in the tables below. Using parts other than the
recommended parts may have a negative impact on communication and operation.












Recommended Network Communication Parts

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

137

Description Manufacturer Manufacturer Part Number
CAT 6 Patch Cable L-Com TFC6101
CAT 6 Shielded Connectors Bomar Interconnect 300668SEZ
CAT 6 Snagless Boot Bomar Interconnect CXB600EZ
CAT 6 Crimp Tool Platinum Tools EZ-RJPRO HD
Stripper Platinum Tools 15015
Patch Cable Assy (Up To 10')


Description Manufacturer Manufacturer Part Number
CAT 6 Riser Cable L-Com TFC5946
CAT 6 Shielded Connectors L-Com TSP8048C5S
Boot - (Use Heat Shrink)
CAT 6 Crimp Tool Platinum Tools EZ-RJPRO HD
Stripper Platinum Tools 15015
Ground Crimper Platinum Tools 12360C
Riser Cable Assy (10' - 300')


Description Manufacturer Manufacturer Part Number
6-port (DIN-rail) N-TRON 306TX
24-port (Rackmount or panel mount) N-TRON 524TX
16-port (DIN-rail ) N-TRON 716TX*
6-port (DIN-rail)
 (4 standard ports, 2 fiber ports) N-TRON 106FX2
26-port (Rackmount or panel mount)
 (24 standard ports, 2 fiber ports) N-TRON 526FX2
8-port (DIN-rail)
 (6 standard ports, 2 fiber ports) N-TRON 708FX2*
16-port (DIN-rail)
 (14 standard ports, 2 fiber ports) N-TRON 716FX2*
Industrial Ethernet Switches

*The 700-series switches are “managed” switches that may require configuration. Please refer to the switch
documentation shipped on CD for details.


Remote Diagnostics And Real Time Monitoring
The SQ-300i Hybrid, with or without the optional Precipitator Manager software package, is fully
capable of being monitored from a remote location for trouble-shooting. All that is required is an
Ethernet switch and an Ethernet cable. For more information on this service, please contact your
B&W account or service representative.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

138
Memory Map
The Memory Map lists the memory locations that are set aside for SQ-300i Hybrid monitoring and
control. The contents of some locations can be changed from a remote location (if you have the
appropriate equipment to do so). This means that you may control the SQ-300i Hybrid remotely,
with a program that uses any Modbus® TCP/IP standard protocol that conforms to the memory
map.

� • Controlling the SQ-300i Hybrid using the memory locations should
only be performed by an experienced, knowledgeable user.


Any of the memory locations marked as “Write” locations may be changed by the operator.


Notes: Any input entered into memory locations other than those “Write” locations may cause
failure of the SQ-300i Hybrid.


Location Type Variable Notes
40001 Read Limit Status (Low Word) See Limit Table 1
40002 Read Alarm Status (Low Word) See Alarm Table 1
40003 Read Primary Current Amps
40004 Read Primary Voltage Volts
40005 Read Secondary Current mA
40006 Read Min Secondary Voltage 0.1 KV
40007 Read Avg Secondary Voltage 0.1 KV
40008 Read Max Secondary Voltage 0.1 KV
40009 Read Firing Angle 0.1 Degrees
40010 Read Primary Current at Spark, Arc, or Limit Amps
40011 Read Primary Voltage at Spark, Arc, or Limit Volts
40012 Read Secondary Current at Spark, Arc, or Limit mA
40013 Read Min Sec Voltage at Spark, Arc, or Limit 0.1 KV
40014 Read Avg Sec Voltage at Spark, Arc, or Limit 0.1 KV
40015 Read Max Sec Voltage at Spark, Arc, or Limit 0.1 KV
40016 Read Firing Angle at Spark, Arc, or Limit 0.1 Degrees
40017 Read Spark Rate SPM
40018 Read Input Power (KVA) 0.1 KVA
40019 Read Output Power (KW) 0.1 KW
40020 Read Form Factor (Single Phase Only) 0.01
40021 Read Pulse Blocking Full Cycles Off (Single Phase Only) Full Cycles
40022 Read Limit Status (High Word) See Limit Table 2
40023 Read SCR Status (Why SCR not firing) See SCR Table
40024 Read Program Version
40025 Read Manual Pot Input
40026 Read Measured HZ reading minimum 0.1 Hz
40027 Read Measured HZ reading avg 0.1 Hz
40028 Read Measured HZ reading maximum 0.1 Hz

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

139

Location Type Variable Notes
40029 Read Fast Ramp Rate (High Word)
0.0001 Deg/half
Cycle
40030 Read Fast Ramp Rate (Low Word)
0.0001 Deg/half
Cycle
40031 Read Slow Ramp Rate (High Word)
0.0001 Deg/half
Cycle
40032 Read Slow Ramp Rate (Low Word)
0.0001 Deg/half
Cycle
40033 Read
Secondary Current Waveform Distortion (Single Phase
Only) %
40034 Read Fractional Conduction Rated Value (Single Phase Only) 0.01
40035 Read Fractional Conduction Value (Single Phase Only) 0.01
40036 Read Peak to Average Voltage Ratio 0.01
40037 Read Output to VI Control Winding (Single Phase Only) %
40038 Read
BC Search (0 = none; 1 = Allow 2 = Active - Single Phase
Only)
40039 Read BC Search Minutes Left Until Search (Single Phase Only) Minutes
40040 Read BC PB Ratio (Single Phase Only) Full Cycles
40041 Read BC Firing Angle (Single Phase Only) 0.1 Degrees
40042 Read BC Limit (Single Phase Only) 1 = Limit
40043 Read Secondary Current Reading (RC Test) mA
40044 Read Secondary Voltage Reading (RC Test) 0.1 KV
40045 Read Secondary Time Constant (RC Test) 1/400 of HC
40046 Read State of Precip RC Test See RC Test Table
40047 Read Seconds On Since SQ300i Reset (High Word)
40048 Read Seconds On Since SQ300i Reset (Low Word)
40049 Read Days On SinceSQ300i Reset
40050 Read Hours On Since SQ300i Reset
40051 Read Minutes On Since SQ300i Reset
40052 Read Seconds On Since SQ300i Reset
40053 Read Total Seconds SQ300i On (High Word)
40054 Read Total Seconds SQ300i On (Low Word)
40055 Read Total Days SQ300i On
40056 Read Total Hours SQ300i On
40057 Read Total Minutes SQ300i On
40058 Read Total Seconds SQ300i On
40059 Read Seconds On Since TR Start (High Word)
40060 Read Seconds On Since TR Start (Low Word)
40061 Read Days On Since TR Start
40062 Read Hours On Since TR Start
40063 Read Minutes On Since TR Start
40064 Read Seconds On Since TR Start
40065 Read Total Seconds TR On (High Word)
40066 Read Total Seconds TR On (Low Word)
40067 Read Total Days TR On
40068 Read Total Hours TR On
40069 Read Total Minutes TR On
40070 Read Total Seconds TR On

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

140
Location Type Variable Notes
40071 Read Line Voltage Average Volts
40072 Read Line Voltage RMS Volts
40073 Read Line Voltage Cal (High Word) (Float)
40074 Read Line Voltage Cal (2nd Word) (Float)
40075 Read Line Voltage Cal (3rd Word) (Float)
40076 Read Line Voltage Cal (Low Word) (Float)
40077 Read Line Voltage Scale (11100 or 7160 for Hybrid) 0.1 Volts
40078 Read Conduction Value (Single Phase Only) %
40079 Read
Onboard Back Corona Search Request (Single Phase
Only) Aah = Request
40080 Read Primary Current L B (3 Phase Only) Amps
40081 Read Primary Current L C (3 Phase Only) Amps
40082 Read Primary Voltage L BC (3 Phase Only) Volts
40083 Read Primary Voltage L CA (3 Phase Only) Volts
40084 Read NOVRAM_LINE_VOLT_CAL_SETTING VOLTS
40085 Read NOVRAM_LINE_VOLT_CAL_RMS_READING_COUNTS COUNTS
40086 Read LINE_VOLTAGE_RMS_READING_COUNTS COUNTS
40087 Read LINE_VOLTAGE_READ_DIF_FROM_CAL_COUNTS COUNTS
40088 Read Maximum Voltage Read on RC Test (C Part) COUNTS
40089 Read Target Voltage for one time constant on RC Test COUNTS
40090 Read Last Voltage Reading above Target on RC Test COUNTS
40091 Read First Voltage Reading below Target on RC Test COUNTS
40092 Read Primary Current L A (3 Phase Only) Amps
40093 Read Primary Voltage L AB (3 Phase Only) Volts
40094 Read Line Voltage L AB (3 Phase Only) Volts
40095 Read Line Voltage L BC (3 Phase Only) Volts
40096 Read Line Voltage L CA (3 Phase Only) Volts
40097 Read Input Power LA 0.1 KVA
40098 Read Input Power LB 0.1 KVA
40099 Read Input Power LC 0.1 KVA
40100 Read Alarm Status (High Word) See Alarm Table 2
40101 Read Rapper Status Bit wide
40102 Read Rapper Feedback Bit wide
40103 Read Digital Output Data Bit wide
40104 Read Digital Input Data Bit wide
40105 Read Analog Output 1 Raw (0-32767)
40106 Read Analog Output 2 Raw (0-32767)
40107 Read Analog Output 3 Raw (0-32767)
40108 Read Analog Output 4 Raw (0-32767)
40109 Read Analog Output 5 Raw (0-32767)
40110 Read Analog Output 6 Raw (0-32767)
40111 Read Analog Output 7 Raw (0-32767)
40112 Read Analog Output 8 Raw (0-32767)
40113 Read Analog Output 9 Raw (0-32767)
40114 Read Analog Output 10 Raw (0-32767)
40115 Read Analog Output 11 Raw (0-32767)
40116 Read Analog Output 12 Raw (0-32767)
40117 Read Analog Output 13 Raw (0-32767)

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

141
Location Type Variable Notes
40118 Read Analog Output 14 Raw (0-32767)
40119 Read Analog Output 15 Raw (0-32767)
40120 Read Analog Output 16 Raw (0-32767)
40121 Read Analog Input 1 Raw (0-32767)
40122 Read Analog Input 2 Raw (0-32767)
40123 Read Analog Input 3 Raw (0-32767)
40124 Read Analog Input 4 Raw (0-32767)
40125 Read Rapper 1 Time Left (High Word) 0.1 Sec
40126 Read Rapper 1 Time Left (Low Word) 0.1 Sec
40127 Read Rapper 2 Time Left (High Word) 0.1 Sec
40128 Read Rapper 2 Time Left (Low Word) 0.1 Sec
40129 Read Rapper 3 Time Left (High Word) 0.1 Sec
40130 Read Rapper 3 Time Left (Low Word) 0.1 Sec
40131 Read Rapper 4 Time Left (High Word) 0.1 Sec
40132 Read Rapper 4 Time Left (Low Word) 0.1 Sec
40133 Read Normal Digital Input
40134 Read Heater Status Bit wide
40135 Read Horn Status Bit wide
40136 Read Horn 1 Time Left (High Word) 0.1 Sec
40137 Read Horn 1 Time Left (Low Word) 0.1 Sec
40138 Read Horn 2 Time Left (High Word) 0.1 Sec
40139 Read Horn 2 Time Left (Low Word) 0.1 Sec
40140 Read Horn 3 Time Left (High Word) 0.1 Sec
40141 Read Horn 3 Time Left (Low Word) 0.1 Sec
40142 Read Horn 4 Time Left (High Word) 0.1 Sec
40143 Read Horn 4 Time Left (Low Word) 0.1 Sec
40144 Read Analog Input 5 Raw (0-32767)
40145 Read Analog Input 6 Raw (0-32767)
40146 Read Analog Input 7 Raw (0-32767)
40147 Read Analog Input 8 Raw (0-32767)
40148 Read Heater Feedback Status Bit Wide
40149 Read Aux Contact State 0 = Off/1 = On
40150 Read Vbus Voltage (Mid Frequency Only) Volts
40151 Read Length of Positive Line Voltage Pulse uSeconds
40152 Read Length of Negative Line Voltage Pulse uSeconds
40153 Read Time between 2 Posistive Pulses uSeconds
40154 Read Time between 2 Negative Pulses uSeconds
40155 Read Jitter (Time Difference between Pos and Neg Pulse) uSeconds
40156 Read Jitter Side (0 = Pos/ 1 = Neg)
40251 Read Primary Current Limit Amps
40252 Read Primary Voltage Limit Volts
40253 Read Secondary Current Limit mA
40254 Read Secondary Average Voltage Limit 0.1 KV
40255 Read Secondary Peak Voltage Limit 0.1 KV
40256 Read Secondary Voltage Limit Type See KV Limit Table
40257 Read Spark Rate SPM
40258 Read Firing Angle Limit 0.1 Degrees

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

142
Location Type Variable Notes
40259 Read Spark Sense
40260 Read Spark Quench FC
40261 Read Arc Quench FC
40262 Read Fast Ramp HC
40263 Read Set Back (Spark) %
40264 Read Spark Reaction (Single Phase Only) 0=Quench/1=Spit
40265 Read Spit Spark Set Back (Single Phase Only) %
40266 Read Back Corona Search Time Interval (Single Phase Only) Minutes
40267 Read Back Corona Starting Pulse Ratio (Single Phase Only) FC
40268 Read Back Corona Ending Pulse Ratio (Single Phase Only) FC
40269 Read
B C Search Minimum Secondary Current (Single Phase
Only) mA
40270 Read
B C Search Starting Secondary Current (Single Phase
Only) mA
40271 Read
Firing Angle Limit in Pulse Blocking Mode (Single Phase
Only) 0.1 Degrees
40272 Read Pulse Blocking Mode Full Cycles Off (Single Phase Only) FC
40273 Read VI-CLR Manual/Automatic Setting (Single Phase Only) 0=Man/1=Auto
40274 Read VI-CLR Manual Setting (Single Phase Only)
40275 Read VI-CLR Delay between changes (Single Phase Only) 0.1 Sec
40276 Read VI-CLR Resistive Dust Routine (Single Phase Only) 0=Off/1=On
40277 Read Rapper 1 Off Period Minutes
40278 Read Rapper 1 On Period Seconds
40279 Read Rapper 2 Off Period Minutes
40280 Read Rapper 2 On Period Seconds
40281 Read Rapper 3 Off Period Minutes
40282 Read Rapper 3 On Period Seconds
40283 Read Rapper 4 Off Period Minutes
40284 Read Rapper 4 On Period Seconds
40285 Read Rapper 1 Reduced Level % Pri Cur Limit
40286 Read Rapper 2 Reduced Level % Pri Cur Limit
40287 Read Rapper 3 Reduced Level % Pri Cur Limit
40288 Read Rapper 4 Reduced Level % Pri Cur Limit
40289 Read Rapper Running Time After SQ300i is Halted Seconds
40290 Read Primary Over Current Alarm Amps
40291 Read Primary Under Voltage Alarm Volts
40292 Read Secondary Over Current Alarm mA
40293 Read Secondary Under Voltage Alarm KV
40294 Read Imbalance Alarm 0=Off/1=On
40295 Read Alarm Contact Type 0=NO/1=NC
40296 Read TR Set Primary Voltage Rating Volts
40297 Read TR Set Primary Current Rating Amps
40298 Read TR Set Secondary Current Rating mA
40299 Read TR Set Secondary Average Voltage Rating 0.1 KV
40300 Read TR Set Secondary Peak Voltage Rating 0.1 KV
40301 Read TR Set Form Factor Rating (Single Phase Only) 0.01
40302 Read Secondary Voltage Feedback0=NO/1=Yes
40303 Read Primary Current Scale Amps

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

143
Location Type Variable Notes
40304 Read Secondary Current Scale mA
40305 Read Secondary Voltage Scale 0.1 KV
40306 Read Juice Can Installed (Single Phase Only) 0=NO/1=Yes
40307 Read Plate Area
40308 Read Plate Spacing
40309 Read IP1
40310 Read IP2
40311 Read IP3
40312 Read IP4
40313 Read Sub Mask 1
40314 Read Sub Mask 2
40315 Read Sub Mask 3
40316 Read Sub Mask 4
40317 Read SQ300i Name Character 1
40318 Read SQ300i Name Character 2
40319 Read SQ300i Name Character 3
40320 Read SQ300i Name Character 4
40321 Read SQ300i Name Character 5
40322 Read SQ300i Name Character 6
40323 Read SQ300i Name Character 7
40324 Read SQ300i Name Character 8
40325 Read SQ300i Name Character 9
40326 Read SQ300i Name Character 10
40327 Read Spark Flag Set if Spark Occurred
40328 Read Trigger Type Used in Scope
40329 Read Trigger Delay Used in Scope
40330 Read Pulse Blocking Reduced Power Level (Single Phase Only) % Power
40331 Read Minimum Secondary Current for Remote Limits mA
40332 Read Line Voltage Rating
40333 Read Minimum Primary Current Allowed in Manual Mode Amps
40334 Read Spark Mode 0=KV/1=MA
40335 Read Search Ramp Rate 1 - 9
40336 Read HZ Rating
500=50 Hz /
600=60 Hz
40337 Read Interface Version Number
40338 Read Control Version Number
40339 Read External Reduced-Power Rapping Percentage 0 - 100%
40340 Read External Reduced-Power Rapping Type See Table
40341 Read External Reduced-CO Input 1 Percentage 0 - 100%
40342 Read External Reduced-CO Input 1 Type See Table
40343 Read External Reduced-CO Input 2 Percentage 0 - 100%
40344 Read External Reduced-CO Input 2 Type See Table
40345 Read Heater 1 On Level 0 - 100%
40346 Read Heater 1 Off Level 0 - 100%
40347 Read Heater 2 On Level 0 - 100%
40348 Read Heater 2 Off Level 0 - 100%
40349 Read Heater 3 On Level 0 - 100%
40350 Read Heater 3 Off Level 0 - 100%

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

144
Location Type Variable Notes
40351 Read Heater 4 On Level 0 - 100%
40352 Read Heater 4 Off Level 0 - 100%
40353 Read Horn 1 Off Period Minutes
40354 Read Horn 1 On Period Seconds
40355 Read Horn 2 Off Period Minutes
40356 Read Horn 2 On Period Seconds
40357 Read Horn 3 Off Period Minutes
40358 Read Horn 3 On Period Seconds
40359 Read Horn 4 Off Period Minutes
40360 Read Horn 4 On Period Seconds
40361 Read Horn 1 Reduced Level % Pri Cur Limit
40362 Read Horn 2 Reduced Level % Pri Cur Limit
40363 Read Horn 3 Reduced Level % Pri Cur Limit
40364 Read Horn 4 Reduced Level % Pri Cur Limit
40365 Read Horn Running Time After SQ300i is Halted Seconds
40366 Read Spark Alarm 0 = Off/1 = On
40367 Read Spark Alarm Level SPM
40368 Read Expansion IO Type See Expansion Table
40369 Read Conduction Limit %
40370 Read Display Type 0=None/1=Aux
40371 Read Recovery Ramp Delay 0-9 (5 Default)
40372 Read Custom Flash See Custom Table
40373 Read Under Voltage Time Delay 1-99 Seconds
40374 Read Hybrid Board Type
See Table Hybrid
Board
40375 Read Hz Mismatch Alarm (0=Off/1=On) 0=Off/1=On
40376 Read Interface Build Number
40377 Read Control Build Number
40378 Read SCR1 Delay
40379 Read SCR2 Delay
40380 Read SCR3 Delay
40381 Read SCR4 Delay
40382 Read SCR5 Delay
40383 Read SCR6 Delay
40384 Read Dead Band Percent 2-50 %
40385 Read Limit Ramp Rate
100-1000 (0.0001
Deg/HC)
40386 Read Dead Band Ramp Rate
11-110 (0.0001
Deg/HC)
40387 Read Number Pulses on Pulse Blocking (3 Phase Only) 1 or 2
40388 Read Power Restore State
See Power Restore
Table
40389 Read VI-CLR Output Enabled (Hybrid Single Phase Only)
0 = Disabled/ 1
Enabled
40390 Read Primary Voltage Input
0 = SCR Output/1 TR
Input
40391 Read Adaptive Spark Adjustment 0 = Off/1 = On
40401 Read Digital Output 1 Def
See Dig Out Def
Table

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

145
Location Type Variable Notes
40402 Read Digital Output 2 Def
See Dig Out Def
Table
40403 Read Digital Output 3 Def
See Dig Out Def
Table
40404 Read Digital Output 4 Def
See Dig Out Def
Table
40405 Read Digital Output 5 Def
See Dig Out Def
Table
40406 Read Digital Output 6 Def
See Dig Out Def
Table
40407 Read Digital Output 7 Def
See Dig Out Def
Table
40408 Read Digital Output 8 Def
See Dig Out Def
Table
40409 Read Digital Input 1 Def See Dig In Def Table
40410 Read Digital Input 2 Def See Dig In Def Table
40411 Read Digital Input 3 Def See Dig In Def Table
40412 Read Digital Input 4 Def See Dig In Def Table
40413 Read Digital Input 5 Def See Dig In Def Table
40414 Read Digital Input 6 Def See Dig In Def Table
40415 Read Digital Input 7 Def See Dig In Def Table
40416 Read Digital Input 8 Def See Dig In Def Table
40417 Read Digital Input 9 Def See Dig In Def Table
40418 Read Digital Input 10 Def See Dig In Def Table
40419 Read Digital Input 11 Def See Dig In Def Table
40420 Read Digital Input 12 Def See Dig In Def Table
40421 Read Analog Output 1 Def
See Ana Out Def
Table
40422 Read Analog Output 2 Def
See Ana Out Def
Table
40423 Read Analog Output 3 Def
See Ana Out Def
Table
40424 Read Analog Output 4 Def
See Ana Out Def
Table
40425 Read Analog Output 5 Def
See Ana Out Def
Table
40426 Read Analog Output 6 Def
See Ana Out Def
Table
40427 Read Analog Output 7 Def
See Ana Out Def
Table
40428 Read Analog Output 8 Def
See Ana Out Def
Table
40429 Read Analog Output 9 Def
See Ana Out Def
Table
40430 Read Analog Output 10 Def
See Ana Out Def
Table
40431 Read Analog Output 11 Def
See Ana Out Def
Table
40432 Read Analog Output 12 Def
See Ana Out Def
Table
40433 Read Analog Output 13 Def
See Ana Out Def
Table

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

146
Location Type Variable Notes
40434 Read Analog Output 14 Def
See Ana Out Def
Table
40435 Read Analog Output 15 Def
See Ana Out Def
Table
40436 Read Analog Output 16 Def
See Ana Out Def
Table
40437 Read Analog Input 1 Def See Ana In Def Table
40438 Read Analog Input 2 Def See Ana In Def Table
40439 Read Analog Input 3 Def See Ana In Def Table
40440 Read Analog Input 4 Def See Ana In Def Table
40441 Read Analog Input 5 Def See Ana In Def Table
40442 Read Analog Input 6 Def See Ana In Def Table
40443 Read Analog Input 7 Def See Ana In Def Table
40444 Read Analog Input 8 Def See Ana In Def Table
40445 Read Aux Contact Def Aux Contract Table
40446 Read Internal Digital Input Def See Dig In Def Table
40501 Write Primary Current Limit Amps
40502 Write Primary Voltage Limit Volts
40503 Write Secondary Current Limit mA
40504 Write Secondary Average Voltage Limit 0.1 KV
40505 Write Secondary Peak Voltage Limit 0.1 KV
40506 Write Secondary Voltage Limit Type See KV Limit Table
40507 Write Spark Rate SPM
40508 Write Firing Angle Limit 0.1 Degrees
40509 Write Spark Sense
40510 Write Spark Quench FC
40511 Write Arc Quench FC
40512 Write Fast Ramp HC
40513 Write Set Back (Spark) %
40514 Write Spark Reaction (Single Phase Only) 0=Quench/1=Spit
40515 Write Spit Spark Set Back (Single Phase Only) %
40516 Write Back Corona Search Time Interval (Single Phase Only) Minutes
40517 Write Back Corona Starting Pulse Ratio (Single Phase Only) FC
40518 Write Back Corona Ending Pulse Ratio (Single Phase Only) FC
40519 Write
B C Search Minimum Secondary Current (Single Phase
Only) mA
40520 Write
B C Search Starting Secondary Current (Single Phase
Only) mA
40521 Write
Firing Angle Limit in Pulse Blocking Mode (Single Phase
Only) 0.1 Degrees
40522 Write PulseBlocking Mode Full Cycles Off (Single Phase Only) FC
40523 Write VI-CLR Manual/Automatic Setting (Single Phase Only) 0=Man/1=Auto
40524 Write VI-CLR Manual Setting (Single Phase Only)
40525 Write VI-CLR Delay between changes (Single Phase Only) Seconds
40526 Write VI-CLR Resistive Dust Routine (Single Phase Only) 0=Off/1=On
40527 Write Rapper 1 Off Period Minutes
40528 Write Rapper 1 On Period Seconds
40529 Write Rapper 2 Off Period Minutes
40530 Write Rapper 2 On Period Seconds

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

147
Location Type Variable Notes
40531 Write Rapper 3 Off Period Minutes
40532 Write Rapper 3 On Period Seconds
40533 Write Rapper 4 Off Period Minutes
40534 Write Rapper 4 On Period Seconds
40535 Write Rapper 1 Reduced Level % Pri Cur Limit
40536 Write Rapper 2 Reduced Level % Pri Cur Limit
40537 Write Rapper 3 Reduced Level % Pri Cur Limit
40538 Write Rapper 4 Reduced Level % Pri Cur Limit
40539 Write Rapper Running Time After SQ300i is Halted Seconds
40540 Write Primary Over Current Alarm Amps
40541 Write Primary Under Voltage Alarm Volts
40542 Write Secondary Over Current Alarm mA
40543 Write Secondary Under Voltage Alarm KV
40544 Write Imbalance Alarm 0=Off/1=On
40545 Write Alarm Contact Type 0=NO/1=NC
40546 Write TR Set Primary Voltage Rating Volts
40547 Write TR Set Primary Current Rating Amps
40548 Write TR Set Secondary Current Rating mA
40549 Write TR Set Secondary Average Voltage Rating 0.1 KV
40550 Write TR Set Secondary Peak Voltage Rating 0.1 KV
40551 Write TR Set Form Factor Rating (Single Phase Only) 0.01
40552 Write Secondary Voltage Feedback 0=NO/1=Yes
40553 Write Primary Current Scale Amps
40554 Write Secondary Current Scale mA
40555 Write Secondary Voltage Scale 0.1 KV
40556 Write Juice Can Installed (Single Phase Only) 0=NO/1=Yes
40557 Write Plate Area
40558 Write Plate Spacing
40559 Write IP1
40560 Write IP2
40561 Write IP3
40562 Write IP4
40563 Write Sub Mask 1
40564 Write Sub Mask 2
40565 Write Sub Mask 3
40566 Write Sub Mask 4
40567 Write SQ300i Name Character 1
40568 Write SQ300i Name Character 2
40569 Write SQ300i Name Character 3
40570 Write SQ300i Name Character 4
40571 Write SQ300i Name Character 5
40572 Write SQ300i Name Character 6
40573 Write SQ300i Name Character 7
40574 Write SQ300i Name Character 8
40575 Write SQ300i Name Character 9
40576 Write SQ300i Name Character 10
40577 Write Spark Flag Set if Spark Occurred

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

148
Location Type Variable Notes
40578 Write Trigger Type Used in Scope
40579 Write Trigger Delay Used in Scope
40580 Write Pulse Blocking Reduced Power Level (Single Phase Only) % Power
40581 Write Minimum Secondary Current for Remote Limits mA
40582 Write Line Voltage Rating
40583 Write Minimum Primary Current Allowed in Manual Mode Amps
40584 Write Spark Mode 0=KV/1=MA
40585 Write Search Ramp Rate 1 - 9
40586 Write HZ Rating
500=50 hz/600=60
Hz
40587 Write Interface Version Number
40588 Write Control Version Number
40589 Write External Reduced-Power Rapping Percentage 0 - 100%
40590 Write External Reduced-Power Rapping Type See Table
40591 Write External Reduced-CO Input 1 Percentage 0 - 100%
40592 Write External Reduced-CO Input 1 Type See Table
40593 Write External Reduced-CO Input 2 Percentage 0 - 100%
40594 Write External Reduced-CO Input 2 Type See Table
40595 Write Heater 1 On Level 0 - 100%
40596 Write Heater 1 Off Level 0 - 100%
40597 Write Heater 2 On Level 0 - 100%
40598 Write Heater 2 Off Level 0 - 100%
40599 Write Heater 3 On Level 0 - 100%
40600 Write Heater 3 Off Level 0 - 100%
40601 Write Heater 4 On Level 0 - 100%
40602 Write Heater 4 Off Level 0 - 100%
40603 Write Horn 1 Off Period Minutes
40604 Write Horn 1 On Period Seconds
40605 Write Horn 2 Off Period Minutes
40606 Write Horn 2 On Period Seconds
40607 Write Horn 3 Off Period Minutes
40608 Write Horn 3 On Period Seconds
40609 Write Horn 4 Off Period Minutes
40610 Write Horn 4 On Period Seconds
40611 Write Horn 1 Reduced Level % Pri Cur Limit
40612 Write Horn 2 Reduced Level % Pri Cur Limit
40613 Write Horn 3 Reduced Level % Pri Cur Limit
40614 Write Horn 4 Reduced Level % Pri Cur Limit
40615 Write Horn Running Time After SQ300i is Halted Seconds
40616 Write Spark Alarm 0 = Off/1 = On
40617 Write Spark Alarm Level SPM
40618 Write Expansion IO Type See Expansion Table
40619 Write Conduction Limit % (60-100)
40620 Write Display Type 0=None/1=Aux
40621 Write Recovery Ramp Delay 0-9 (5 Default)
40622 Write Custom Flash See Custom Table
40623 Write Under Voltage Time Delay 1-99 Seconds


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

149
Location Type Variable Notes
40624 Write Hybrid Board Type (note:Default to be 1 - Single Phase)
See Table Hybrid
Board
40625 Write Hz Mismatch Alarm (0=Off/1=On) 0=Off/1=On
40626 Write Interface Build Number
40627 Write Control Build Number
40628 Write SCR1 Delay
40629 Write SCR2 Delay
40630 Write SCR3 Delay
40631 Write SCR4 Delay
40632 Write SCR5 Delay
40633 Write SCR6 Delay
40634 Write Dead Band Percent 2-50 %
40635 Write Limit Ramp Rate
100-1000 (0.0001
Deg/HC)
40636 Write Dead Band Ramp Rate
11-110 (0.0001
Deg/HC)
40637 Write Number Pulses on Pulse Blocking (3 Phase Only) 1 or 2
40638 Write Power Restore State
See Power Restore
Table
40639 Write VI-CLR Output Enabled (Hybrid Single Phase Only)
0 = Disabled/ 1
Enabled
40640 Write Primary Voltage Input
0 = SCR Output/1 TR
Input
40641 Write Adaptive Spark Adjustment 0 = Off/1 = On
40651 Write Digital Output 1 Def
See Dig Out Def
Table
40652 Write Digital Output 2 Def
See Dig Out Def
Table
40653 Write Digital Output 3 Def
See Dig Out Def
Table
40654 Write Digital Output 4 Def
See Dig Out Def
Table
40655 Write Digital Output 5 Def
See Dig Out Def
Table
40656 Write Digital Output 6 Def
See Dig Out Def
Table
40657 Write Digital Output 7 Def
See Dig Out Def
Table
40658 Write Digital Output 8 Def
See Dig Out Def
Table
40659 Write Digital Input 1 Def See Dig In Def Table
40660 Write Digital Input 2 Def See Dig In Def Table
40661 Write Digital Input 3 Def See Dig In Def Table
40662 Write Digital Input 4 Def See Dig In Def Table
40663 Write Digital Input 5 Def See Dig In Def Table
40664 Write Digital Input 6 Def See Dig In Def Table
40665 Write Digital Input 7 Def See Dig In Def Table
40666 Write Digital Input 8 Def See Dig In Def Table
40667 Write Digital Input 9 Def See Dig In Def Table
40668 Write Digital Input 10 Def See Dig In Def Table
40669 Write Digital Input 11 Def See Dig In Def Table

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

150
Location Type Variable Notes
40670 Write Digital Input 12 Def See Dig In Def Table
40671 Write Analog Output 1 Def
See Ana Out Def
Table
40672 Write Analog Output 2 Def
See Ana Out Def
Table
40673 Write Analog Output 3 Def
See Ana Out Def
Table
40674 Write Analog Output 4 Def
See Ana Out Def
Table
40675 Write Analog Output 5 Def
See Ana Out Def
Table
40676 Write Analog Output 6 Def
See Ana Out Def
Table
40677 Write Analog Output 7 Def
See Ana Out Def
Table
40678 Write Analog Output 8 Def
See Ana Out Def
Table
40679 Write Analog Output 9 Def
See Ana Out Def
Table
40680 Write Analog Output 10 Def
See Ana Out Def
Table
40681 Write Analog Output 11 Def
See Ana Out Def
Table
40682 Write Analog Output 12 Def
See Ana Out Def
Table40683 Write Analog Output 13 Def
See Ana Out Def
Table
40684 Write Analog Output 14 Def
See Ana Out Def
Table
40685 Write Analog Output 15 Def
See Ana Out Def
Table
40686 Write Analog Output 16 Def
See Ana Out Def
Table
40687 Write Analog Input 1 Def See Ana In Def Table
40688 Write Analog Input 2 Def See Ana In Def Table
40689 Write Analog Input 3 Def See Ana In Def Table
40690 Write Analog Input 4 Def See Ana In Def Table
40691 Write Analog Input 5 Def See Ana In Def Table
40692 Write Analog Input 6 Def See Ana In Def Table
40693 Write Analog Input 7 Def See Ana In Def Table
40694 Write Analog Input 8 Def See Ana In Def Table
40695 Write Aux Contact Def Aux Contract Table
40696 Write Internal Digital Input Def See Dig In Def Table
40752 Write Remote Run/Halt Command (AAh Halt/ 55H Run)
40753 Write
Remote Primary Current Limit AAXXh is active
EMLIMIT!!!!!! XX = Percent of Limit
40754 Write Remote Primary Voltage Limit AAXXh is active XX = Percent of Limit
40755 Write Remote Secondary Current Limit AAXXh is active XX = Percent of Limit
40756 Write Remote Peak Secondary Voltage Limit AAXXh is active XX = Percent of Limit
40757 Write Remote Average Secondary Voltage Limit AAXXh is active XX = Percent of Limit
40758 Write Remote KW Limit AXXXh is active in 0.1 KW XXX = Actual 0.1 KW

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

151
Loca tion Type Variable Notes
40759 Write Remote Firing Angle Limit AXXXh is Active in 0.1 Deg; XXX = Actual 0.1 Deg
40760 Write VI-Curve Start/Stop (AAh Start/55h Stop)
40761 Write Change Socket timeout AAXXh Valid XX = Minutes
40762 Write
Software Digital Output On/Off (55h Turn On/AAh Turn
Off)
40763 Write Software Analog Output (AXXXH) XXX = 0-1000d
40764 Write Software Rapper Control (AAXXH) XX = 0-Fh
40765 Write
Digital Input Normal Status (AAH Sets but only if SQ300i is
halted)
40766 Write Start Precip RC Test (AAh Starts 00h test is complete)
40767 Write
Reset On Clock (XXAAH - Time Since Reset AAXXh -
Total Time)
40768 Write Line Voltage Cal (AXXXh XXX = Voltage)
40769 Write Software Horn Control (AAXXH) XX = 0-Fh
40770 Write Onboard Back Corona Search Disabled AAh = Disabled
41002 Read Remote Run/Halt Command (AAh Halt/ 55H Run)
41003 Read
Remote Primary Current Limit AAXXh is active
EMLIMIT!!!!!! XX = Percent of Limit
41004 Read Remote Primary Voltage Limit AAXXh is active XX = Percent of Limit
41005 Read Remote Secondary Current Limit AAXXh is active XX = Percent of Limit
41006 Read Remote Peak Secondary Voltage Limit AAXXh is active XX = Percent of Limit
41007 Read Remote Average Secondary Voltage Limit AAXXh is active XX = Percent of Limit
41008 Read Remote KW Limit AXXXh is active in 0.1 KW XXX = Actual 0.1 KW
41009 Read Remote Firing Angle Limit AXXXh is Active in 0.1 Deg; XXX = Actual 0.1 Deg
41010 Read VI-Curve Start/Stop (AAh Start/55h Stop)
41011 Read Change Socket timeout AAXXh Valid XX = Minutes
41012 Read
Software Digital Output On/Off (55h Turn On/AAh Turn
Off)
41013 Read Software Analog Output (AXXXH) XXX = 0-1000d
41014 Read Software Rapper Control (AAXXH) XX = 0-Fh
41015 Read
Digital Input Normal Status (AAH Sets but only if SQ300i is
halted)
41016 Read Start Precip RC Test (AAh Starts 00h test is complete)
41017 Read
Reset On Clock (XXAAH - Time Since Reset AAXXh -
Total Time)
41018 Read Line Voltage Cal (AXXXh XXX = Voltage)
41019 Read Software Horn Control (AAXXH) XX = 0-Fh
41020 Read Onboard Back Corona Search Disabled AAh = Disabled
41100 Read Time of Event 1 (High Word)
41101 Read Time of Event 1 (Low Word)
41102 Read IP Address of Event 1 (High Word)
41103 Read IP Address of Event 1 (Low Word)
41104 Read Modbus Address of Event 1
41105 Read Modbus Value of Event 1
41106 Read Time of Event 2 (High Word)
41107 Read Time of Event 2 (Low Word)
41108 Read IP Address of Event 2 (High Word)
41109 Read IP Address of Event 2 (Low Word)
41110 Read Modbus Address of Event 2

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

152
Location Type Variable Notes
41111 Read Modbus Value of Event 2
41694 Read Time of Event 100 (High Word)
41695 Read Time of Event 100 (Low Word)
41696 Read IP Address of Event 100 (High Word)
41697 Read IP Address of Event 100 (Low Word)
41698 Read Modbus Address of Event 100
41699 Read Modbus Value of Event 100
41700 Read All Events used (0 = No, non zero = Yes)
41701 Read Next Event





40001 Limit Table
Bit Meaning
0 Primary Current Limit
1 Primary Voltage Limit
2 Secondary Current Limit
3 Secondary Average Voltage Limit
4 Secondary Peak Voltage Limit
5 Firing Angle Limit
6 Pulse Blocking Firing Angle Limit
7 Manual Input Limit
8 Remote Firing Angle Limit
9 Remote KW Limit
10 Remote Primary Current Limit (Standard EM)
11 Remote Primary Voltage Limit
12 Remote Secondary Current Limit
13 Remote Secondary Average Voltage Limit
14 Remote Secondary Peak Voltage Limit
15 Spark/Arc/Alarm


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

153

40022 Limit Table 2
Bit Meaning
0 MA Spark Delay (Used for Display)
1 KV Spark Delay (Used for Display)
2 MA Spit Spark Delay (Used for Display)
3 KV Spit Spark Delay (Used for Display)
4 Arc Delay (Used for Display)
5 Reduced Power Rapping
6 Reduced Power Horn
7 TR Vacuum Pressure Warning
8 Scope Mode
9 VI-Curve Mode
10 Conduction Limit
11 TR Over Temp Warning
12 Remote I/O Comm Error
13 Remote Run/Halt Disabled
14 Reserved
15 Reserved


40002 Alarm Table
Bit Meaning
0 Primary Over Current Alarm
1 Primary Under Voltage Alarm
2 Secondary Over Current Alarm
3 Secondary Under Voltage Alarm
4 Hz Mismatch Alarm
5 Imbalance Alarm
6 SCR Over Temperature
7 TR Over Temperature
8 TR Vacuum Pressure
9 Emergency Stop
10 TR Low Oil
11 Cubical Over Temperature
12 Boiler Trip
13 Hopper High
14 Over Spark Alarm
15 Remote I/O Comm Alarm


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

154


40100 Alarm Table 2
Bit Meaning
0 Missing Phase Alarm
1 Internal Hardware Error
2 Reserved
3 Reserved
4 Reserved
5 Reserved
6 Reserved
7 Reserved
8 Reserved
9 Reserved
10 Reserved
11 Reserved
12 Reserved
13 Reserved
14 Reserved
15 Reserved

40023 SCR Not Firing
Bit Meaning
0 Main Power Off
1 Hz Mismatch
2 External Enable Open
3 Pulse Blocking Off
4 Spark Quench
5 Arc Quench
6 Halted
7 Breaker Trip
8 Remote Trip Input
9 Reserved
10 Reserved
11 Reserved
12 Reserved
13 Reserved
14 Reserved
15 Reserved


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

155

 Digital Output
Value Meaning
0 Not Used
1 Rapper Output 1
2 Rapper Output 2
3 Rapper Output 3
4 Rapper Output 4
5 Alarm Output
6 Run Output
7 Software Controlled
8 Horn Output 1
9 Horn Output 2
10 Horn Output 3
11 Horn Output 4
12 Heater Output 1
13 Heater Output 2
14 Heater Output 3
15 Heater Output 4
16 Standby Mode
17 Contractor Control


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

156


 Digital Input
Value Meaning
0 Not Used
1 Rapper 1 Feedback
2 Rapper 2 Feedback
3 Rapper 3 Feedback
4 Rapper 4 Feedback
5 SCR Over Temperature
6 TR Over Temperature
7 TR Vacuum Pressure
8 Emergency Stop
9 TR Low Oil
10 Cubical Over Temperature
11 Boiler Trip
12 Hopper High
13 Breaker Trip
14 Run/Halt Input
15 Remote Trip Input
16 Software monitored Input
17 Remote Limit Input 1
18 Remote Limit Input2
19 Remote Limit Input 3
20 Heater 1 Feedback
21 Heater 2 Feedback
22 Heater 3 Feedback
23 Heater 4 Feedback
24 TR Vacuum Pressure Warning
25 TR Over Temp Warning
26 Run/Halt Disabled
27 External Enable Input


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

157


 Analog Output
Value Meaning
0 Not Used
1 Primary Current
2 Primary Voltage
3 Secondary Current
4 Peak Secondary Current
5 Minimum Secondary Current
6 Secondary Voltage
7 Peak Secondary Voltage
8 Minimum Secondary Voltage
9 Input Power
10 Output Power
11 Spark Rate
12 Firing Angle
13 Software Controlled



 Analog Input
Value Meaning
0 Not Used
1 Opacity
2 Primary Current - Remote Control
3 Primary Voltage - Remote Control
4 Secondary Current- Remote Control
5 Peak Secondary Current - Remote Control
6 Minimum Secondary Current - Remote Control
7 Secondary Voltage - Remote Control
8 Peak Secondary Voltage - Remote Control
9 Minimum Secondary Voltage - Remote Control
10 Input Power - Remote Control
11 Output Power - Remote Control
12 Spark Rate - Remote Control
13 Firing Angle - Remote Control
14 Software Monitored
15 TC 1 Feedback
16 TC 2 Feedback
17 TC 3 Feedback
18 TC 4 Feedback


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

158


 Remote Limit Input Type
Value Meaning
0 External Remote Power Rapping Disabled
1 Primary Current
2 Primary Voltage
3 Secondary Current
4 Secondary Peak Voltage
5 Secondary Avg. Voltage
6 KW Limit
7 Firing Angle Limit


 RC Test Values
Value Meaning
0 Test Complete
1 Resistive Test
2 Capacitive Test
-1 Low Secondary Voltage Error
-2 SQ300 Halted


 Trigger Type
Value Meaning
0 Free Run
1 Zero Cross
2 Spark
3 SCR Fire
4 Reserved


 Custom Flash Type
Value Meaning
0 Standard
1 3 Phase
2 750 Primary Voltage Scale
3 Hybrid Board 3 Phase
4 Hybrid Board Single Phase
5 400 Hz Inverter


 KV Limit Type
Value Meaning
0 Average
1 Peak
2 Both Average and Peak


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

159


Value Expansion IO Type
< 0 None
0 Beckhoff
1 B&W Remote I/O
2 Adam


 Power Restore State
Value Meaning
0 Last Known Good State
1 Halted


 Aux Contact
Value Meaning
0 OFF
1 Rapper Output 1
2 Rapper Output 2
3 Rapper Output 3
4 Rapper Output 4
5 Alarm Output
6 Run Output
7 Software Controlled
8 Horn Output 1
9 Horn Output 2
10 Horn Output 3
11 Horn Output 4
12 Heater Output 1
13 Heater Output 2
14 Heater Output 3
15 Heater Output 4
16 Standby Mode
17 Contactor Control


 Hybrid Board Type
Value Meaning
0 Hybrid Board 3 Phase
1 Hybrid Board Single Phase





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

160
The Optional Operator Interface
Introduction
The SQ-300®i Operator Interface is an optional component of the SQ-300i Hybrid control system.
For this reason, the Operator Interface is shipped in a separate package, instead of shipping with
the SQ-300i Hybrid Controller.


SQ-300i Operator Interface Features
Communication between the SQ-300i Hybrid Controller and the operator may occur at the optional
Operator Interface. This unit runs Microsoft® Windows® 7 (SP1) Embedded operating system, and
a proprietary software application (SQControl) that allows one interface to manage and display the
operation for up to 20 SQ-300i Microcontrollers.

B&W’s touch-screen Operator Interface component offers a large, color display, with ample room
for displaying data, trending, waveforms and the navigation controls necessary to view and edit all
of the required settings for the SQ-300i Hybrid Controller. The Operator Interface has a 12-inch
display that provides 800 x 600 resolution. This panel is generally mounted in a cutout on the
outside of the electrical cabinet door. If B&W has installed the Operator Interface on the AVC
cabinet, no further installation/wiring is required.

If the Operator Interface does not ship as part of an AVC cabinet, it will be shipped with an optional
power supply. This power supply is required to energize the display.


Installing the SQ-300i Operator Interface
SQ-300i Operator Interface installation is typically performed by trained B&W Field Service
Technicians. However, in some cases, the plant may choose to install the SQ-300i Operator
Interface. This section will provide instructions on how to install the SQ-300i Operator Interface. If
you have questions concerning the installation, please contact your B&W representative.

Before installing the SQ-300i Operator Interface:

• Refer to the safety notices located in the front of this manual.
• Consult with your company’s IT or Network Administration before making any
modifications to the corporate network or ordering any parts to connect to the network.

The SQ-300i is fully capable of communicating with a remote or local device, or operating in a
communications network through a standard Ethernet connection using Modbus TCP/IP
(Ethernet) communication.


If you connect the Operator Interface to a switch or router that provides
power over Ethernet (POE), make sure that the switch or router is 802.3af
compliant. Failure to use a compliant device may result in damage to the
Operator Interface.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

161
Si vous connectez l'interface opérateur à un commutateur ou routeur qui
fournit Power over Ethernet (POE), assurez-vous que le commutateur ou
routeur est 802.3af. Ne pas utiliser un périphérique compatible peut
entraîner des dommages à l'interface opérateur.
Si conecta la interfaz de operador a un switch o router que proporciona
alimentación a través de Ethernet (POE), asegúrese de que el switch o
router es compatible con 802.3af. Si no se utiliza un dispositivo
compatible puede provocar daños a la interfaz del operador.

Operator Interface Installation Requirements
Location Requirements
The SQ-300i Operator Interface is intended for indoor use primarily to provide a degree of
protection against contact with its enclosed circuitry and against a limited amount of falling dirt. The
Operator Interface is typically mounted in a cutout on the outside of the electrical cabinet door.

Communication Requirements
The Operator Interface will be connected using Ethernet cabling, switches and/or routers
appropriate for the environment. If a short cable run (of less than 10 feet) will connect the Operator
Interface to a network switch, a patch cable assembly should be used. If a long cable run is
required (for distances from 10 feet to 300 feet) you should use a riser cable assembly.
Recommended parts and tools for each of these cable types are included in Communications
Networks section. Using parts other than the recommended parts may have a negative impact on
communication and operation.

Please consult your local IT department for plant specific network wiring requirements.

The Operator Interface is shipped with the following default IP address:

IP address: 192.168.1.254
Subnet mask: 255.255.255.0

Power and Environmental Requirements
For Power and Environmental requirements, please refer to the Specifications section of this
manual.



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

162
Parts/Tools Required for Installation
Before you begin, check to make sure you have the proper parts and tools.






















* The bezels will be required only if you are replacing the 8700700-001B Operator Interface.The
cabinet cutout that was made for that operator interface is too large for this model (8700700-001C)
to fit securely.


Mounting Procedure (New installation)
As discussed previously, the best location for the Operator Interface is in a cutout on the outside of
the electrical cabinet door.

1. Install the green power connector to the bottom of the operator interface.
a. Slide the male end of the connector into the green power input receptacle on the Operator
Interface.
b. Tighten the two captive screws to secure the adapter.

2. Using the mounting cutout provided (7993411), follow these steps:
a. Make sure that you have enough room for the cutout and for the required front and rear
clearances (noted on the template).
b. Cut a 12.280” (W) x 9.820” (H) opening in the cabinet door to mount the Operator Interface.

3. Mount the Operator Interface as follows:
a. Slide the Operator Interface (back-first) into the opening from the outside. (Maintain a
secure hold on the front of the Operator Interface, or have someone else hold the Operator
Interface in place before proceeding.)
b. Working from the back of the Operator Interface, install and secure each of the six
mounting anchors as follows:
(1) Partially thread one of the 1¼” screws provided into each of the mounting anchors.
(This will make it easier to install and secure the anchors.) Refer to Figure 1.



Parts
Qty Description
1 Operator Interface
1 Operator Interface power supply
1 Inner Bezel*
1 Outer Bezel*
1 Green power connector
6 Mounting anchors
6 1 ¼“ mounting anchor screws

Tools
Qty Description
1 Phillips-head screwdriver
1 Small flat-head screwdriver

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

163










(2) Starting with one of the anchors on the top of the interface, slide the anchor into the
slots as shown in Figure 2. Then rotate the anchor back toward you until the anchor is
in position and the head of the screw is perpendicular to the back of the interface.
(3) Hold the anchor in place and tighten the screw securely to the metal cabinet facing.
(4) Repeat steps 2 and 3 to install the next anchor on the top of the interface.
(5) Repeat steps 2 and 3 to install the remaining four anchors on the sides of the interface.

























Figure 2
Figure 1
Slots for
mounting
anchor
Top
mounting
anchor
Top
mounting
anchor

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

164
Mounting Procedure (Replacement for 8700700-001B)
As discussed previously, the best location for the Operator Interface is in a cutout on the outside of
the electrical cabinet door. For this installation, you will need to use the supplied bezels.

1. Remove the protective covering from the front side of the outer bezel.

2. Install the green power connector to the bottom of the Operator Interface.
a. Slide the male end of the connector into the green power input receptacle on the Operator
Interface.
b. Tighten the two captive screws to secure the adapter.

3. Refer to Figure 3 and mount the Operator Interface as follows:
a. Slide the outer bezel (the piece with rounded corners) onto the back of the Operator
Interface.
b. Slide the Operator Interface and bezel (back-first) into the cabinet (panel) opening from the
outside. (Have someone else hold the Operator Interface in place before proceeding.)

Figure 3

c. Working from the back of the Operator Interface, slide the inner bezel (the piece with the
square corners) onto the back of the Operator Interface.
d. Again working from the back of the Operator Interface, install and secure each of the six
mounting anchors as follows:
i. Partially thread one of the 1¼” screws provided into each of the mounting anchors.
(This will make it easier to install and secure the anchors.) Refer to Figure 1.
ii. Starting with one of the anchors on the top of the interface, slide the anchor into the
slots as shown in Figure 2. Then rotate the anchor back toward you until the
anchor is in position and the head of the screw is perpendicular to the back of the
interface.
iii. Hold the anchor in place and tighten the screw securely to the metal cabinet facing.
iv. Repeat steps 2 and 3 to install the next anchor on the top of the interface.
v. Repeat steps 2 and 3 to install the remaining four anchors on the sides of the
interface.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

165
Connection Procedure
Once the Operator Interface has been mounted, refer to the installation drawings and follow the
procedure below to connect the interface to the power supply and the network.




• WARNING – Do not apply power until all installation and wiring is
complete!
AVERTISSEMENT - Ne pas appliquer la puissance jusqu'à ce que
toute l'installation et le câblage est terminé!
ADVERTENCIA - No aplicar energía hasta que todo la instalación y el
cableado está completo!

1. Select the proper voltage range on the power supply.
2. Mount the power supply to a rail inside the cabinet.
3. Use customer-supplied wire (as specified) to run plant power to the power supply.
4. Use customer-supplied wire (as specified) to connect the power supply to the green power
connector on the Operator Interface. Refer to Figure 4.







Configuration Procedure
Once the Operator Interface has been fully installed, you will need to configure it to work with the
SQ-300i Hybrid controller. Please refer to the Configuring the SQ-300i Hybrid Controller and
Operator Interface section.



+24V
24V Return
G

Figure 4

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

166
The Optional Auxiliary Display
Introduction
The SQ-300®i Auxiliary Display is an optional component of the SQ-300i Hybrid control system.
For this reason, the Auxiliary Display is shipped in a separate package, instead of shipping with the
SQ-300i Hybrid Controller.

The optional Auxiliary Display is a simple, low-cost alternative for local monitoring and control of the
SQ-300i Hybrid. This display may be the best solution for your plant, particularly if you do most of
your work with the SQ-300i Hybrid remotely (via SQControl and Precipitator Manager), but still
need some basic control at the local level. With the Auxiliary Display, you’ll be able to view the
basic operating parameters and halt and run the control right at the AVC cabinet.

B&W’s Auxiliary Display component is a compact, color touch-screen display, with ample room for
essential data readings, navigation controls, and Halt/Run controls. The Auxiliary Display has a
4.3-inch screen that provides 480 x 272 resolution. Special features include password protection
(to prevent unauthorized Halt/Run control), and a language selection screen.


Installing the Auxiliary Display
SQ-300i Auxiliary Display installation is typically performed by trained B&W Field Service
Technicians. However, in some cases, the plant may choose to install the SQ-300i Auxiliary
Display. This manual will provide instructions on how to install the SQ-300i Auxiliary Display. If you
have questions concerning the installation, please contact your B&W representative.

Before installing the SQ-300i Auxiliary Display:

• Refer to the safety notices located in the front of this manual.

Location Requirements
The SQ-300i Auxiliary Display is intended for indoor use primarily to provide a degree of protection
against contact with its enclosed circuitry and against a limited amount of falling dirt. The Auxiliary
Display is typically mounted in a cutout on the electrical cabinet door. The power supplyfor the
display is typically mounted on a din rail inside the cabinet.

Communication Requirements
Since the Auxiliary Display will be connected directly to the SQ-300i Hybrid, it can simply be
connected using two wires. (B&W recommends using Omni Cable #G12202 or equivalent.)

Power and Environmental Requirements
For Power and Environmental requirements, please refer to the Specifications section of this
manual.





© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

167
Parts Required
Before you begin, check to make sure you received the proper parts.

























Parts
Qty Description
1 Auxiliary Display
1 Serial termination adapter
1 3-position terminal block
1 Auxiliary Display power supply (with din rail and 2 end caps)
Serial termination adapter for
communication
Gasket
Slots for
mounting
clamp
Slots for
mounting
clamp
Auxiliary Display
Terminal block for
power connection
Power Supply with din
rail and end caps

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

168
Installation Diagram







© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

169
Mounting Procedure
Please refer to the installation diagram on the previous page before beginning the installation
process. As discussed previously, the best location for the Auxiliary Display is in a cutout on the
outside of the electrical cabinet door.




• WARNING – Disconnect and lock out all power before opening
the cabinet to begin the installation.
AVERTISSEMENT – Débranchez et verrouillez toutes les
alimentations avant d'ouvrir l'armoire et commencer l'installation.
ADVERTENCIA – Desconecte todas las fuentes de energía antes de
abrir el armario y empezar la instalación.



1. Install the green 3-position terminal block on the back of the Auxiliary Display.
a. Slide the female end of the terminal block onto the green power connector on the Auxiliary
Display.
b. Tighten the two captive screws to secure the terminal block.

2. Mount the power supply in the cabinet.




• WARNING – Use only the power supply that was suppli ed with
the Auxiliary Display. Using a different type of p ower supply
could cause permanent damage to the display.
AVERTISSEMENT – Utilisez uniquement les adaptateurs
d'alimentation fournis avec l'écran auxiliaire. Utiliser un autre type
d'alimentation pourrait causer des dommages permanents à l'écran.
ADVERTENCIA – Use solamente la fuente de poder suministrada con
la pantalla (HMI). Si usa una fuente de poder de diferent tipo puede
causar un daño permanente a la pantalla (HMI).

a. You may mount the power supply on existing din rail, if available. Otherwise, install the
supplied din rail.
(1) Find an appropriate location on the panel, and then hold the din rail in place to mark the
holes for drilling.
(2) Drill holes.
(3) Re-position the din rail and mount it using appropriate hardware.
b. Pull the top din rail latch out and attach the top of the power supply to the rail.
c. Pull the bottom din rail latch out and attach the bottom of the power supply to the rail.
d. Install an end cap on either side of the power supply to secure it in place.

3. Using the Auxiliary Display cutout template provided (7993418), follow these steps:
a. Select a location on the cabinet. Make sure that you have enough room for the cutout plus
at least one inch of clearance on each side of the display for mounting hardware.
(Consider the clearance needed for cable connections on the rear of the display as well.)
b. Cut a 4.69” (W) x 3.66” (H) opening in the cabinet door to mount the Auxiliary Display.

4. Prepare the mounting clamps for use.
a. Partially thread one of the 1¼” screws provided into each of the mounting clamps. Make
sure that the end of the screw does not extend beyond the hole. (Refer to Figure 1.)

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

170










5. Mount the Auxiliary Display as follows:
a. Make sure that the gasket is installed on the display.
b. Working from the outside of the cabinet, slide the Auxiliary Display (back-first) into the
cabinet opening. (Maintain a secure hold on the front of the Auxiliary Display, or have
someone else hold the Auxiliary Display in place before proceeding.)
c. Working from the back of the Auxiliary Display, install and secure each of the four mounting
clamps:
(1) Starting with one of the clamps on the top of the display, slide the clamp into the
slots. Then rotate the clamp back toward you until the clamp is in position and the
head of the screw is parallel to the back of the interface as shown in Figure 2.



(2) Hold the clamp in place and tighten the screw securely to the metal cabinet facing.




• WARNING – The screws should be snug, but do not ove r-tighten.
Over tightening could damage the display.
AVERTISSEMENT – les vis doivent être bien serrées, mais sans trop
les serrer. Un serrage excessif pourrait endommager l'écran.
ADVERTENCIA – Los tornillos deben quedar bien seguros pero no
los ajuste demasiado. Si los ajusta demasiado pueden dañar la
pantalla (HMI).


(3) Repeat steps 1 and 2 to install the next clamp on the top of the display.
(4) Repeat steps 1 and 2 to install the remaining two clamps on the bottom of the display.

The screw is flush
with the edge of the
clamp.
Figure 1
Figure 2

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

171
6. Install the green serial termination adapter on the bottom of the Auxiliary Display.
a. Slide the female end of the adapter into the silver serial port on the Auxiliary Display.
b. Tighten the two captive screws to secure the adapter.


Connection Procedure
Once the Auxiliary Display has been mounted, refer to the installation diagram and follow the
procedure below to connect the display to the power supply and to the SQ-300i Hybrid.




• WARNING – Do not apply power until all installation and wiring is
complete!
AVERTISSEMENT – ne branchez pas l'alimentation avant la fin
complète de l'installation et du câblage !
ADVERTENCIA – No aplique energía hasta que todo el cableado se
haya terminado.

5. Create a power cable using customer-supplied wire (as specified).
6. Connect the power cable to the terminal block on the Auxiliary Display.
7. Connect the other end of the power cable to the power supply.
8. Use customer-supplied wire to run plant power to the power supply.
9. Use customer-supplied serial cable to connect the serial termination adapter on the Auxiliary
Display to the SQ-300i Hybrid.

After all of the connections are complete, you should be ready to close the cabinet and apply
power.


Configuration Procedure
In order for the Auxiliary Display to operate properly, you must select it using the SQControl or
Precipitator Manager software. (This is a simple Yes or No setting in the software.) For more
details, please refer to the Communications Settings section in this manual, or the Setup
SQ-300i/Communication Settings section of the Precipitator Manager Manual.





















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

172
Operating the SQ-300i Hybrid Auxiliary Display
This section provides an overview of the screens, navigation controls, Halt/Run controls, and the
messages that may appear on the display. The display screens have been reproduced to help you
become familiar with them.




• WARNING – If you remove power from the display,wai t ten
seconds before re-applying power (to prevent possib le damage
to the display).
AVERTISSEMENT : Si vous débranchez l'alimentation de l'écran,
attendez dix secondes avant de rebrancher (pour éviter
d'endommager l'écran).
ADVERTENCIA – SI remueve la energía de la pantalla (HMI) espere
10 segundos antes de volver a aplicarle energía. Esto previene de
posibles daños a la pantalla.


The Main Screen
When the Auxiliary Display initiates, the Main screen is the first to appear. This screen displays the
key electrical operating values and limit values for the SQ-300i Hybrid, as well as any limit or alarm
messages.


Key operating
values
Navigation
controls
Halt/Run
controls
Status and
alarm
messages
Field A

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

173
The key electrical operating values are as follows:

Parameter Description
Primary Voltage: True RMS primary voltage is displayed as Volts AC, and is updated at
spark, arc, or limit.
Primary Current: True RMS primary current is displayed as Amps AC, and is updated at
spark, arc, or limit.
KV Average: Average secondary voltage is displayed as KV DC, and is updated at
spark, arc, or limit.
Secondary Current: Secondary current is displayed as mA DC, and is updated at spark,
arc, or limit.
SCR Firing Angle: The SCR firing angle is displayed in degrees, and is updated at spark,
arc, or limit.
Output Power The real time rate of power usage is displayed in KW, and is updated
continuously.
Spark Rate: The actual spark rate, in sparks per minute, updated once every
minute.

For navigation and control
• Press the Next button to move to the next Operation screen (the Security and Languages
screen).
• Press the Back button to move to the previous Operation screen (the Password screen, if
available, or the Security and Languages screen).
• Press the Halt button to halt the SQ-300i Hybrid.
• Press the Run button to start the SQ-300i Hybrid. (This button will appear if Security is turned
off, or if Security is turned on, and someone is logged in. If Security is on and no one is logged
in, the screen will prompt you to Enter Correct Password. See the Login screen for more
details.)
























© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

174
The Security and Languages Screen
The Security and Languages screen allows you to turn these features on and off.


To change the status of security and language featu res
• Press the Yes/No field to change the status of these features.
o When Yes is displayed, security and languages are on. Some actions (including
changing this setting and running the control) will require a valid login, and
language selection will be available.
o When No is displayed, security and languages are off. The following screens will
no longer be available: Language screen, Login screen, and Password screen.
You will not be able to change the display language, and you will not be required to
log in.

For navigation and control
• Press the Next button to move to the next Operation screen (the Language screen, if available,
or the Main screen).
• Press the Back button to move to the previous Operation screen (the Main screen).
• Press the Halt button to halt the SQ-300i Hybrid.
• Press the Run button to start the SQ-300i Hybrid. (This button will appear if Security is turned
off, or if Security is turned on, and someone is logged in. If Security is on and no one is logged
in, the screen will prompt you to Enter Correct Password. See the Login screen for more
details.)


On/off control

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

175
The Language Screen
The Language screen gives you the option of selecting another language for the display. The
Auxiliary Display supports the following languages: English, Spanish, French, German,
Portuguese, Russian, and Chinese.



To change the display language
• If the Language screen is not currently visible, turn the Security and Languages feature on.
(See Security and Languages screen.)
• Press any one of the flag images to select a new language for the display.

For navigation and control
• Press the Next button to move to the next Operation screen (the Login screen).
• Press the Back button to move to the previous Operation screen (the Security and Languages
screen).
• Press the Halt button to halt the SQ-300i Hybrid.
• Press the Run button to start the SQ-300i Hybrid. (This button will appear if Security is turned
off, or if Security is turned on, and someone is logged in. If Security is on and no one is logged
in, the screen will prompt you to Enter Correct Password. See the Login screen for more
details.)














Press any flag to
select a new
language

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

176
The Login Screen
The Login screen allows you to sign onto the display (which will give you access to the Run
function). You may also log out (which will secure the display from unauthorized changes).



The Auxiliary Display is pre-programmed with a User login and password. This security measure
provides access to Run the control. The default/safe password will be given to the operator at the
time of installation.

The Auxiliary display now includes a timeout feature. After 10 minutes, the display will
automatically log off.

To log in to the display
• If the Login screen is not currently visible, turn the Security and Languages feature on. (See
Security and Languages screen.)
• Press the User field to select a User level.
• A keypad screen will appear. Press the number 1 and then press Enter .
• Press the Password field to enter a password.
• A keypad screen will appear. Enter the User 1 password and then press Enter .

If you entered a valid User level and Password, you will now have permission to Run the control.
You will also be allowed to enter the password administration screen. (See the Password screen.)
If your entry is invalid, you will not have permission to run the control from the Auxiliary Display.

�

• As long as you are logged in, Run control will remain available. To
maintain the security of the system, manually log out before leaving
the Auxiliary Display. (See Log Off.)




Enter a valid
User level and
password for
the ability to
Run the control.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

177
To log off of the display
• Press the User field to select a User level.
• A keypad screen will appear. Press the number 1 and then press Enter .
• Press the Password field to enter a password.
• A keypad screen will appear. Enter an incorrect password and then press Enter .

Run control at the display will now be locked. You may still view the readings on the Main screen or
change languages (if available), but you will not be allowed to Run the AVC from the Auxiliary
Display until a new, valid login is entered.


For navigation and control
• Press the Next button to move to the next Operation screen (the Password screen).
• Press the Back button to move to the previous Operation screen (the Language screen).
• Press the Halt button to halt the SQ-300i Hybrid.
• Press the Run button to start the SQ-300i Hybrid. (This button will appear if Security is turned
off, or if Security is turned on, and someone is logged in. If Security is on and no one is logged
in, the screen will prompt you to Enter Correct Password. See the Login screen for more
details.)© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

178

The Password Screen
The Password screen allows you to edit the User password if you are logged in.




















When the Password screen appears, you may edit the password if the User password field is
highlighted. (If the User password field is not highlighted, you are not logged in and you may not
change the password.)

To change a password
• If the Password screen is not currently visible, turn the Security and Languages feature on.
(See Security and Languages screen.)
• You may need to log in. (See the Login screen.)
• Press the highlighted User field to edit the password.
• A keypad screen will appear. Enter a new password and then press Enter .

For navigation and control
• Press the Next button to move to the next Operation screen (the Main screen).
• Press the Back button to move to the previous Operation screen (the Login screen).
• Press the Halt button to halt the SQ-300i Hybrid.
• Press the Run button to start the SQ-300i Hybrid. (This button will appear if Security is turned
off, or if Security is turned on, and someone is logged in. If Security is on and no one is logged
in, the screen will prompt you to Enter Correct Password. See the Login screen for more
details.)









This
highlighted
field may be
edited.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

179
Auxiliary Display Status and Alarm Messages
Each of the screens on the Auxiliary Display includes a message field that will display one of over
20 status and alarm messages.

• To clear an alarm using the Auxiliary Display, press the Halt button on the display screen, and
then press the Run button to restart the control.

Please refer to the main Status and Alarm Messages section for complete details and a list of
possible messages.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

180
SQDiscover Software
Introduction
The SQDiscover software is a utility that ships with SQControl. It is used to identify any SQ-300i
control on the network by IP address and MAC address. It is also used for initial configuration of the
SQ-300i Hybrid controller.

In order to use SQDiscover software, you will also need the following:

• Desktop or laptop computer with the Microsoft Windows operating system (version XP or
later) or an Operator Interface
• Ethernet connection to the control network


About the Search and Identification Process
When SQDiscover is started, it performs as follows:

• SQDiscover sends a broadcast message out over the network.
• Any Ethernet-connected SQ-300i Hybrid Controller that can receive the message will respond
with its MAC address, IP address, subnet mask, control type, and control name.
• If there are multiple controls on the network with the same IP address, SQDiscover will display
them all.
This can be a valuable trouble-shooting tool. Each of the controls on the network must have a
unique IP address for the system to operate properly. SQDiscover will indicate if this is not the
case, giving you the opportunity to fix the problem.


About the Change Options
SQDiscover provides the ability to make several changes to new SQ-300i Hybrid controls:

• Use the Change Control Name feature to simply change the name of the control.
• Use the Re-program IP Address/Subnet Mask feature if you need to change the IP address and
subnet mask. For example, if you are adding a new control to the system, you may install the
control on the network (using its default address and subnet), then use SQDiscover to find it.
Once you find the control, use the Re-program feature to enter the network-compatible IP
address and subnet.
• Use the Reset Control to Factory Defaults option only in critical situations. For example, if the
control is unable to recover from an error condition, or if the control profile is corrupt, you may
decide to use this feature.
The Reset feature does several things. It resets all of the settings and configuration options,
including all TR set parameters on SQ-300i Hybrid controls. It also resets the IP address,
subnet mask, and the control name, as follows:



© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

181
Reset Values
IP Address 192.168.1.2
Subnet Mask 255.255.255.0
Name (SQi) SQi-xxxx (where xxxx is the last 4 digits of the MAC address)

If you use the Reset feature, you may initially lose communication with the control. Once you
find the control again, you must re-program the IP address and subnet mask, and re-enter all of
the control settings (as needed).
• The Set Line Voltage Calibration option is useful on the original 2-piece SQ-300i controls. (This
setting is not needed for Hybrid controls because the control reads the voltage directly.).
• Use the Lock Digital Input feature to tell the SQ-300i Hybrid control what the “normal” operating
states are for each of the inputs. You should use this feature if (1) you are using optional digital
input hardware to trigger alarms and (2) some of your inputs are on or high during normal
operation. Once you lock the normal status for the inputs, any status change at one of the
inputs will trigger an alarm and halt the control.


Important Notes
Please be aware of the following:

• SQDiscover will not run on the Microsoft Windows 2000 operating system (or on earlier
operating systems).
• If you are using the Microsoft Windows 7 operating system, you must make sure that the
program is running as an administrator for all users in order for the program to work properly.
(Please refer to the instructions for Configuring SQDiscover.)
• SQDiscover cannot search through a gateway to another network. If your system has multiple
control networks, the search and identification process must be conducted on each network.
• In order to function properly, your network must allow UDP communications between the
computer and the controls. If your network or firewall selectively (or totally) blocks UDP
communications, you must set your firewall to allow UDP communications on ports 11864 and
11865.
• The Reset Control to Factory Defaults option can cause additional complications and should
only be used as a last resort.














© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

182
Configuring and Starting SQDiscover
In most cases, running SQDiscover is a very quick and easy task. You can run SQDiscover directly
from the computer hard drive or Operator Interface (if it has already been installed). There are a
couple of situations that will require some additional work:

• If the software isn’t already on the hard drive, you can do this in a few simple steps.
• If you are using the Microsoft Windows 7 operating system, you will need to check/edit
the program properties.
To transfer the software to the computer hard drive
1. Insert the thumb drive (containing your software or master installer) into an available USB port.
2. Find the SQDiscover.exe file.
3. Right-click on the file and select Copy .
4. If you are using Precipitator Manager, navigate to the following location:
[C:\Program Files (x86)\Babcock & Wilcox\B&W Precipitator\Utilities]

If you are using one of the older programs like WinDAC or WinRAP, navigate to the following
location:
[C:\Program Files (x86)\BW PGG\ Utilities]

�
• If you are running an older, 32-bit version of the operating system, the
file paths above will start with the Program Files folder as opposed to
the Program Files (x86)folder.

5. Right-click and select Paste from the menu.


To transfer the software to an Operator Interface
1. Prepare to access the Operator Interface.


• WARNING – Follow safety instructions and disconnect all power
before opening the cabinet!

2. Disconnect all power and open the AVC cabinet.
3. Locate an available USB port on the Operator Interface and insert the thumb drive. Make sure
the thumb drive is secure.
4. Carefully close and lock the cabinet door.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

183
5. Reapply power to the AVC cabinet.
6. Find the SQDiscover.exe file in the drive representing the thumb drive.
7. Right-click on the file and select Copy .
8. Navigate to the following location:
[C:\Program Files (x86)\BW PGG\Utilities]§
9. Right-click and select Paste .
10. Prepare to access the Operator Interface again.

• WARNING – Follow safety instructions and disconnect all power
before opening the cabinet!

11. Disconnect all power and open the AVC cabinet.
12. Locate and remove the thumb drive.
13. Close and lock the cabinet door.
14. Reapply power to the AVC cabinet.
To configure the program to function on a computer with the Microsoft  Windows  7
operating system
1. Find the SQDiscover.exe file on the hard drive in one of the following locations.
If you are using Precipitator Manager, navigate to:
[C:\Program Files (x86)\Babcock & Wilcox\B&W Precipitator\Utilities]

If you are using one of the older programs like WinDAC or WinRAP, navigate to:
[C:\Program Files (x86)\BW PGG\ Utilities]

2. Right-click on the file and select Properties , then select the Compatibility tab.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

184
3. Press the Change
settings for all users
button (near the bottom
of the dialog).








4.
5. In the Privilege level section, put a
check mark in the box.
6. When you’re finished, press the
Apply button, then the OK button
(and then OK again).

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

185
To run the software from a computer
1. Make sure the computer is connected to the control network via Ethernet.
2. Start the Microsoft Windows operating system.
3. Find and double-click SQDiscover.exe .
If you are using Precipitator Manager, navigate to:
[C:\Program Files (x86)\Babcock & Wilcox\B&W Precipitator\Utilities]§
If you are using one of the older programs like WinDAC or WinRAP, navigate to:
[C:\Program Files (x86)\BW PGG\Utilities]§

4. The first time you run SQDiscover, you will be asked to input a new password.
Passwords must be between 6 and 16
characters in length, must include
both upper- and lower-case letters,
and must include at least one numeric
character and at least one punctuation
symbol.
• Enter your password in the New
Password field, then enter it again
in the Confirm field.

• Press OK to save the password and continue, or press Cancel to exit program startup.
5. The next time you run SQDiscover, you will be asked to enter your current password.
• Enter your password in the
Current Password field.
• Press OK to save the password
and continue, or press Cancel to
exit program startup.















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

186
To run the software from an Operator Interface
1. Make sure the Operator Interface is connected to the control network via Ethernet.
2. If the SQControl software is running, shut it down (and select Exit to Windows).
3. Find and double-click SQDiscover.exe . (To explore, use the Start menu, a desktop icon, or
your toolbar.)
Navigate to:
[C:\Program Files (x86)\Babcock & Wilcox\B&W Precipitator\Utilities]§
4. The first time you run SQDiscover, you will be asked to input a new password.
Passwords must be between 6 and 16
characters in length, must include
both upper- and lower-case letters,
and must include at least one numeric
character and at least one punctuation
symbol.
• To access a keypad, touch the
field where you need to enter text
and hold until you see a circle
appear. When you remove your
finger, the keypad icon should
appear. Click that to open the keypad.
• Enter your password in the New Password field, then enter it again in the Confirm field.
• Press OK to save the password and continue, or press Cancel to exit program startup.
5. The next time you run SQDiscover, you will be asked to enter your current password.
• Enter your password in the
Current Password field.
• Press OK to save the password
and continue, or press Cancel to
exit program startup.



















© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

187
Operating SQDiscover
After starting SQDiscover, the software should automatically begin displaying the controls it has
found on the network. For each SQ-300i Hybrid control, the program should display all of the
identifiers shown in the image below.




�
• If you are about to add an SQ-300®i Hybrid AVC to the system,
ensure that the correct type is listed in the Sub-Type column. The
sub-type indicates if the AVC has the firmware to control a
single-phase or a 3-phase T/R set. It is critical that the Sub-Type
matches your application. If you think the Sub-Type is incorrect,
please contact B&W for support.

SQDiscover lists all of the
Ethernet-connected controls
it can find on the network.
The Refresh button
starts a new search.
A right-click menu provides
additional options for your
controls.
Double-check the
Sub-Type for
Hybrid controls

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

188
To start a new search
1. Press the Refresh button.
SQDiscover will start a new search on the control network the computer is connected to.

To access the right-click menu on an Operator Inter face
1. Touch the line that represents the control you need to work with and hold until you see a circle
appear. When you remove your finger, the right-click menu should appear.
2. Touch the option you wish to select.

To re-program the IP address or subnet mask
1. Right-click on the control, then select Re-program IP Address/Subnet Mask .

2. Enter new identifiers in the IP Address and
Subnet Mask fields as needed.
3. Press the OK button to save changes and
exit this dialog.
4. Press the Cancel button to exit without
saving.


To change the control name
1. Right-click on the control, then select Change Control Name .

2. Enter a new name for the control.
3. Press the OK button to save changes and
exit this dialog.
4. Press the Cancel button to exit without
saving.


To reset the control to factory defaults
1. Right-click on the control, then select Reset Control to Factory Defaults .
You will receive the following warning:

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

189

2. Read the entire warning message. If you still want to reset the control, click the I have read the
warning and understand the risks involved check box and then press Continue .
3. Press the Cancel button to exit without resetting control.

To lock the digital input normal status
1. Make sure that you are signed in as the Administrator and the control is halted.
2. Make sure that all of your digital inputs are in their normalstates for your application. (After all
of the inputs have been properly wired and assigned, you may check the sixth Operate screen
in SQControl, or the Digital Inputs/Outputs tab on the Remote screen in Precipitator Manager to
review the Off or On status of each of the digital inputs. If all of the inputs are in their normal
state, you may proceed.)
3. Right-click on the control, then select Lock Digital Input Normal State . You will receive a
confirmation message.
4. Press OK when done.





To exit SQDiscover
1. Click on the “X” in the top right corner of the main dialog.




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

190
SQControl OPC Server
Introduction
OPC is a set of standards for industrial automation and enterprise systems. The SQControl OPC
Server is an add-on program that ships with SQControl software. This software module enables an
external OPC client to obtain real-time process data from our SQControl software and to push data
or commands back to our controls.

The SQControl OPC Server, acting as a middleman, enables the following to occur:
• SQControl can send data from each SQ-300i Hybrid to an external OPC client.
• SQControl can send data from an NWL PowerPlus™ control to an external OPC client.
• The external OPC client can send commands through SQControl to the SQ-300i Hybrid or
NWL PowerPlus™ control.

The data and commands transferred between the OPC client and the OPC server are called tags.
When SQControl OPC Server is running, any OPC client can connect to the SQControl OPC server
and subscribe to, or access, the tags through the Windows operating system. For more
information on tags, please refer to the SQControl Tags and the B&W OPC Browser sections.

�

• The SQControl OPC Server is available with SQControl software
versions 2.8.0.3 and later.


Critical System Notes
Every plant computer system and network is different. This section includes information that is
critical to proper operation. Please review this section carefully.

About SQControl OPC Server Setup…
To implement this functionality, the following conditions must be met:
• The computer running SQControl and the SQControl OPC Server must be part of a domain.
Any computer with an OPC client that connects to the SQControl OPC server module must be
a part of the same domain. (If the domain configuration is unacceptable, a third-party tunneling
software will be required.)
• SQControl must be running in order for SQControl OPC Server to send data to or receive
commands from an external client.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

191
About OPC Client Setup…
To implement this functionality, the following OPC client conditions must be met:
• The computer running SQControl and the SQControl OPC Server must be part of a domain.
Any computer with an OPC client that connects to the SQControl OPC server module must be
a part of the same domain. (If the domain configuration is unacceptable, a third-party tunneling
software will be required.)
• Your OPC client must be configured with one of the following Microsoft® Windows® operating
system-level services for inter-process communications:
• COM (Component Object Model) – used when both OPC client and server are on the same
computer
• DCOM (Distributed COM) – used when an OPC server and client(s) are on different
computers
Consult with your in-house network support personnel for help setting up inter-process
communications or network security.
For more information on how DCOM works and how to configure it, please refer to the following
resource on the subject: http://www.opcconnect.com/dcomcnfg.php
• Your OPC client must be connected to the SQControl OPC Server, and you must subscribe to
the SQControl OPC server tags with your OPC client system. Refer to your OPC client vendor
documentation for instructions.
Before Starting the SQControl OPC Server…
Before configuring the OPC server module, please be aware of the following:
• In order for B&W software to operate properly, the logged-in account must have the standard
permissions defined by Microsoft for "User" level access. The program data directory (where
our programs will store file-based settings and private data) and ALL of its subdirectories must
have both Read and Write privileges. (The program data directory location will vary based on
operating system. See our Notes section for specific details.)
Corporate network security policies may impose more restrictive limits on "User" level access
for these directory trees. If this is the case for your network, you may see "Access denied" error
messages or the programs may fail at startup. If you see these errors, you must either log into
the computer with an "Administrator" level login, or you must have your network administrator
adjust the network policies for your computer to give Read/Write access to User level logins for
these directory trees.

• Before you run the SQControl OPC Server, you need to install and configure the SQControl
software, test all of the SQ-300i Hybrid controls, and test all of your analog and digital I/O. (If
you make any configuration changes to SQControl after installing the SQControl OPC Server,
you must reboot the computer in order for the OPC server module to recognize these changes.)










© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

192
Working with SQControl OPC Server
The SQControl OPC Server is different than a stand-alone program. Since the program is not
intended to operate independently, there aren’t many operation details. In this section, however,
we will explain how this program is installed, how to view and change the status of the SQControl
OPC Server service, and which tags are supported. We will also describe how to change a tag
from an OPC client.
SQControl OPC Server as a Service
When you install the SQControl software (version 2.8.0.3 and later), the SQControl OPC Server will
be installed automatically. SQControl OPC Server, installed as a Microsoft® Windows® system
service, communicates with SQControl to provide a means for external systems such as DCS or
plant historian systems to monitor the data generated by the B&W SQ-300i and NWL PowerPlus™
controls and, to a limited extent, manage the operation of the controls, such as running/halting a
control.

The SQControl OPC Server service is installed with a manual start type, meaning that the program
will open any time you try to connect to it using an external OPC client. (If you have no need for the
SQControl OPC Server, it will never open or consume computer resources.) However, you may
also enable and disable SQControl OPC Server via the Services applet under Administrative Tools
in Control Panel (requires being logged in as an Administrator). When enabled, the OPC Server
can be running even when SQControl itself is not; when this is the case, all of the control-specific
tags will display a Bad quality value and the server-level STATUS tag will indicate No Response.

To check the status of SQControl OPC Server
• On the Windows® taskbar, click Start.
• Point to the Services shortcut (if available), or to Control Panel , then Administrative Tools ,
and then Services .
• If you receive a security warning, click Yes to open the Services window.
• In the Local Services list, look for the SQControl OPC Server. The Status column will tell you if
the service is Started or blank (Stopped).

To change the status of SQControl OPC Server
• Once you access the Local Services list (above), right-click on the SQControl OPC Server
listing.
• Select Start to run the service or Stop to shut down the service.© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

193
SQControl Tags
SQControl OPC Server supports a set of SQControl tags that you can subscribe to with an external
OPC client (like a DCS). So for each SQ-300i Hybrid or NWL PowerPlus™ control you have
configured in SQControl, there is a pre-defined list of data points that can be made available to
other systems. (You have the ability to select which data points will be available to external clients
using the B&W OPC Browser.)

Each of the pre-defined data points is called a tag. Each two-part tag name consists of a control
name and a data element name. For example, the tag SQControl.1A1.SPARK_RATE returns the
Spark Rate value for the SQ-300i Hybrid Control or NWL PowerPlus™ control named 1A1.

Tag values may be writeable or readable.
• Values for writeable SQControl tags are sent from an external OPC client to the SQControl
OPC Server to the SQ-300i Hybrid or NWL PowerPlus™ control. These data element names
begin with SET. The values are user-provided at the OPC client.
• Values for readable tags are sent from the SQControl OPC Server to an external OPC client.
These values are system-generated. In accordance with the OPC Data Access specification,
the OPC server also returns the quality of the value and a timestamp to the OPC client.

The OPC server supports the following writeable tags for the SQ-300i Hybrid.
OPC Server Writeable Tags (SQControl)
Data Element Name Description User-Provided Value
SET_RUN_HALT Run/halt the control
1=Halt, 2=Run,
Status returns to 0 after
halt or run command
SET_EM_LIMIT Set Energy Management limit 0-100, EM must be on
SET_KW_LIMIT Set KW limit KW for limit or 0=Disable
SET_FANGLE_LIMIT Set firing angle limit
SET_PRIVOLT_LIMIT Set primary voltage limit
SET_SECCUR_LIMIT Set secondary current limit
SET_SECKVPEAK_LIMIT Set peak KV limit
SET_SECKVAVG_LIMIT Set average KV limit
SET_RAPPER_1_ON_OFF Turn on/off rapper output 1 1=Turn on, 0=Turn off
SET_RAPPER_2_ON_OFF Turn on/off rapper output 2 1=Turn on, 0=Turn off
SET_RAPPER_3_ON_OFF Turn on/off rapper output 3 1=Turn on, 0=Turn off
SET_RAPPER_4_ON_OFF Turn on/off rapper output 4 1=Turn on, 0=Turn off
SET_POR_ON_OFF Turn on/off Power Off Rapping 1=On, 0=Off

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

194
The OPC server supports the following writeable tags for the NWL PowerPlus™ control.
OPC Server Writeable Tags (SQControl)
Data Element Name Description User-Provided Value
SET_RUN_HALT Run/halt the control
1=Halt, 2=Run,
Status returns to 0 after
halt or run command
SET_CTRL_MODE Sets one of four control modes
1=Set Point, 2=Manual,
3=AutoTune,
4=AutoSelect
SET_DUTY_CYCLE Sets duty cycle 0-100 (in manual mode),
50-100 (in set point mode)
SET_MAX_DUTY_CYCLE Sets maximum duty cycle
0-100 (in manual mode),
50-100 (in set point mode)
SET_POR_ON_OFF Turn on/off Power Off Rapping 1=On, 0=Off


The OPC server supports the following readable server status tags.
OPC Server Readable Tags (SQControl)
Data Element Name Description System-Provided Value
Running Status of the server T=running, F=not running
Heartbeat Status of the server (alternate)
Increments
0-300=running, Steady
value=not running
ServerStarted Last time server was started
ServerTime Time (for timestamps)
IPAddress
IP address of the computer running
SQControl

Status
Status of SQControl relative to the
server
OK=communicating,
No Response=no
communication,
Error=internal server error


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

195
The OPC server supports the following readable tags for the SQ-300i Hybrid.
OPC Server Readable Tags (SQControl)
Data Element Name Description System-Provided
Value
AvcName Control name
IPAddress IP address of control
AvcType Control type (See Cntrol Type table)
Plate Area Plate area (per control config)
Plate Spacing Plate spacing (per control config)
STATUS Status of the control (See SQ Status table)
PRI_CURRENT Primary current (amps)
PRI_VOLTAGE Primary voltage (volts)
SEC_CURRENT Secondary current (milliamps)
SEC_AVG_KV Secondary average voltage (KV)
SEC_MIN_KV Secondary minimum voltage (KV)
SEC_MAX_KV Secondary maximum voltage (KV)
INPUT_PWR Sum of all input power readings (KVA)
OUTPUT_PWR Output power (KW)
FIRING_ANGLE Firing angle (degrees)
SPARK_RATE Spark rate (sparks per minute)
WAVEFORM_DISTORTION
% of secondary current lost due to shape of
secondary waveform

FRACTIONAL_COND Fractional conduction
PEAK_TO_AVG_KV_RATIO Peak to average sec voltage ratio
AVG_TO MIN_KV RATIO Average to min sec voltage ratio
BCSEARCH_STATE Back corona search status
0=No search, 1=Allow
search, 2=Active
search
BCSEARCH_MINUTES Minutes left until BC search Minutes
BCSEARCH_PBRATIO Back corona search pulse blocking ratio Full cycles
BCSEARCH_FANGLE Back corona search firing angle 0.1 degrees
BCSEARCH_LIMIT Back corona search limit 1=Limit
EM_LIMIT Energy Management (EM) limit 0-100
PB_FULLCYCLESOFF Pulse blocking full cycles off Full cycles off
CURRENT_DENSITY Current density
FIELD_STRENGTH Field strength
MIGRATION_VELOCITY Migration velocity
COV_VOLT Last corona onset voltage reading
0 if option is turned off
or no previous reading
AVG_LINE_HZ Average line frequency (Hertz)
MIN_LINE_HZ Minimum line frequency (Hertz)
MAX_LINE_HZ Maximum line frequency (Hertz)
LINE_VOLTS_AVG Line voltage average(volts)
LINE_VOLTS_RMS Line voltage RMS (volts)
RAPPER_STATUS Status of rapper outputs Bitmask for 4 outputs
RAPPER_FEEDBACK Feedback from rapper outputs Bitmask for 4 outputs
HEATER_STATUS Status of heater outputs Bitmask for 4 outputs
HEATER_FEEDBACK Feedback from heater outputs Bitmask for 4 outputs
HORN_STATUS Status of horn outputs Bitmask for 4 outputs

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

196
SQ Status Table
Status
Value
Definition Status
Value
Definition
0 Normal 18 SCR Over Temperature Alarm
1 Lost Connection 19 TR Over Temperature Alarm
2 Paused 20 TR Vacuum Pressure Alarm
3 Port Closed 21 Emergency Stop
4 Illegal Port 22 TR Low Oil Alarm
5 Invalid Response 23 Cubical Over Temperature Alarm
10 Primary Overcurrent Alarm 24 Boiler Trip Alarm
11 Primary Undervoltage Alarm 25 Hopper High Alarm
12 Secondary Overcurrent Alarm 26 Unknown Alarm
13 Secondary Undervoltage Alarm 30 Power Off
14 Imbalance Alarm 31 Enable Open
15 Data Error Alarm 32 No Response
16 Secondary Undervoltage Alarm KV2 33 Halted
17 Secondary Undervoltage Alarm KV1
Note: Status values 18 through 25 are only available if the following conditions are true: (1) an external I/O module is
connected to the SQ-300i, and (2) the associated parameter has been assigned as a digital input for that control.

Control Type Table
Status
Value
Definition
1 Legacy, conventional single-phase SQ-300i
2 Legacy, 3-phase SQ-300i
3 Legacy, 750V primary SQ-300i
4 Hybrid, 3-phase SQ-300i
5 Hybrid, conventional single-phase SQ-300i
11 NWL control


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

197
The OPC server supports the following readable tags for the NWL PowerPlus™ control.

OPC Server Readable Tags (SQControl)
Data Element Name Description System-Provided
Value
AvcName Control name
IPAddress IP address of control
AvcType Control type
(See Control Type
table)
PlateArea Plate area (per control config)
PlateSpacing Plate spacing (per control config)
STATUS Status of the control (See NWL Status table)
LINE_CURRENT Incoming line current(amps)
LINE_VOLTAGE Incoming line voltage (volts)
BUS_CURRENT Bus current (amps)
BUS_VOLTAGE Bus voltage (volts)
SEC_CURRENT Secondary current (amps)
SEC_AVG_KV Secondary average voltage (KV)
SEC_MAX_KV Secondary maximum voltage (KV)
SEC_PRODUCT KVaverage x KVpeak 0-9999
INPUT_PWR Input power (KVA)
OUTPUT_PWR Output power (KW)
DUTY_CYCLE Duty cycle 0-100%
SPARK_RATE Spark rate (sparks per minute)
ARC_RATE Arc rate (arcs per minute)
FAN_AMPS Fan current (amps)
HEATSINK_TEMP Heatsink temperature
Note: The system may or may not provide meaningful data for the FAN_AMPS and the HEATSINK_TEMP tags (depending
on what is installed).

NWL Status Table
Status
Value
Definition Status
Value
Definition
0 Normal 6 Bad Device or Driver Error
1 Lost Connection / No Response 7 Retry
2 Paused 8 Not Available
3 Port Closed 9 Alarm
4 Illegal Port 31 Remote Disabled
5 Invalid Response 33 Contactor Open












© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

198
Working with the B&W OPC Browser
You may use the B&W OPC Browser as a viewer on a remote client machine to monitor and edit
tag activity. You may also be able to see other OPC servers that are installed on the same
computer as the SQControl OPC Server.

To start the B&W OPC Browser
• On the Windows® taskbar, click Start .
o Click Programs or All Programs , then click BW PGG, then click OPC Server ,
and then click OPC Browser . The B&W Browser main screen will appear.

Working With the Main Screen

Server list


All of the connected OPC servers are listed at the left of the window.
• Double-click on any server to view all of the selected tags associated
with that server.
• The B&W SQControl OPC Server has a sub-element called Group0.
Double-click on this group to access the Select Tags dialog.
(SQControl OPC Server only has one group.)
• Server information will appear in the bottom-left corner of the screen
for the selected server.
This list includes
all of the
SQControl tags
that you have
elected to monitor
These are all of
the available OPC
servers

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

199
Working With the Main Screen

Tag list


All of the selected OPC tags are listed at the right of the window.
• By right-clicking on any of the selected tags, you can:
o Remove the tag from the list of tags you will monitor
o Write a value to the tag
o Check tag properties
o Set the timestamp type

To write a new value to a tag from the browser
• Right-click on one of the read/write tags.
• Select Write Value .
• Enter a new value and press OK. (Refer to the SQControl Tags section for information on valid
values for each tag.)

To select tags for display in the browser
• Double-click on Group0 listed under B&W SQControl OPC Server. The Select Tags dialog will
appear. You will use the left side of the dialog to select tags.




This side of the dialog lists
all of the pre-defined tags
for SQControl software
and the controls that are
currently configured.
These are the tags
that you have
selected to monitor
with the browser.
Any item with an
arrow next to it
can be
expanded by
double-clicking
it.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

200
• To add a single tag:
o Double-click on the tag. It will appear in the Selected Tags list on the right.
o Right-click on a tag and select Add Selected .
• To add multiple tags:
o Press the Add All button. This will add all of the pre-defined tags for the system
and for all of the configured controls.
o Right-click on SQControl (the top-most entry) and select Add All Below This
Level . This will add all of the pre-defined tags for the system and for all of the
configured controls.
o Right-click on any control name and select Add All Below This Level . This will
add all of the pre-defined tags for that control.
• Once you have selected all of the tags that you want, press the OK button. You will return to
the main browser window.

To remove tags from the browser display
• If you are in the Select Tags dialog, right-click on any of the tags in the Selected Tags list (on
the right). Select Remove Selected .
• If you are in the main browser window, right-click on any of the tags displayed under the
SQControl.OPCServer.1 tab and select Remove Selected .
To view tag properties
• If you are in the Select Tags dialog, right-click on any of the tags in the Selected Tags list (on
the right). Select Properties .
• If you are in the main browser window, right-click on any of the tags displayed under the
SQControl.OPCServer.1 tab and select Properties .

How to work with the selected tag list
• Select File/Save Config from the menu on the browser’s main screen. The browser will save
your selected tags list.
• Select File/Load Config from the menu on the browser’s main screen. The browser will open
a previously saved selected tags list.
• Select File/Forget Config from the menu on the browser’s main screen. The browser will
delete your selected tags list.
• Select Options/Load Last Config at Startup from the menu on the browser’s main screen.
When this is selected, each time you open the browser, it will display the last tag list that you
used (as long as it was saved).
To close the B&W OPC Browser
• Select File/Exit from the menu on the browser’s main screen or click on the “X” in the top-right
corner.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

201
Working with Your OPC Client
An external OPC client system may be used to view readable tags and change writable tags.
(Revised tag data is sent back to the SQControl OPC server and then to SQControl and the
associated control.) While these functions are beyond the scope of our product, we can provide
some general instructions. Please refer to your OPC client vendor documentation for specific
instructions.

To view a tag using the OPC client
• Go to your OPC client application.
• Open the tag viewer or tag list.
• Select the tag you want, and review all of the information available for that tag.

To change a tag using the OPC client
• Go to your OPC client application.
• Open the tag viewer or tag list.
• Select the tag you would like to change.
• Select the VALUE you would like to change and enter a new value. (Refer to the SQControl
Tags section for information on valid values for each tag.)
• Enter or apply this new information.
You should be able to view the result of the change in SQControl.























© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

202
SQProgram Software
Introduction
The SQProgram software is a utility that ships with SQControl. This program is used to load an
updated version of firmware to the SQ-300i Hybrid Single-Phase microcontroller. Updating the
firmware may be necessary if a major problem is discovered, or if you decide to purchase an
upgrade, but this is not a routine activity.

If a firmware update becomes necessary, the update will likely happen in one of two ways:

• An on-site B&W technician will use the SQProgram software to update the firmware
• B&W will send you the firmware via thumb drive, email, or web site, and you will use
SQProgram to update the controls


Working with SQProgram
SQProgram may be used to perform a firmware update from a computer or the optional Operator
Interface as long as it is connected to the control network. If you have the SQControl software
installed on either device, the SQProgram software is already installed.(If you have a stand-alone
control and you need to install SQControl on a laptop, please refer to the installation section.)

To start SQProgram on the Operator Interface
• If SQControl is running, you will need to shut it down.
o From the SQ-300i Options screen, press or click the System Settings button, then
the Shutdown button, and then Exit to Windows .
• On the desktop, double-click on My Computer , or from the Start menu, point to My Computer .
• Go to the following folder: C:\Program Files\BW PGG\SQControl.
• Double-click on the SQProgram.exe file.

To start SQProgram on a laptop or pc
• On the Windows® taskbar, press or click Start .
• Press or click Programs or All Programs , and then BW PGG.
• Press or click SQProgram .








© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

203


This is the main screen for
the SQProgram software.
From here, you can search
for the SQ-300i Hybrid
Single-Phase controls on
the network, change the IP
address for a control, and
update firmware for a
control.






























To search for SQ-300 i controls
• Press or click the SQ-300i control type check box.
• Press or click the Locate controls on the network check box.
• Enter the IP address range that you want to search.
• Press or click the Search button.




To work with SQ-300i
Hybrid Single-Phase
controls, select the
SQ-300i control type
Select the action you
want to perform
The Test function is
used just to test the
network
You may need to
change the Search
Type if your SQ-300i
controls are addressed
in different ranges.

The Query Only search
type uses UDP
protocol which will
search across IP
address ranges.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

204
Results of the search will
appear within the main screen.
For each SQ-300i found, the
system will provide the IP
address, the control name, the
control type, and the firmware
version.

This information may help you
determine which controls need
to be re-addressed or updated.

• Press or click the Back
button to return to the main
screen.




To change the IP address for
an SQ-300i control
• At the main screen, press or
click Change a control’s IP
Address check box.
• Enter the control’s current IP
address, then press the
Next button. The Program
Control IP Address screen
will appear.
• Enter the new IP address in
the field provided, then
press the Update button.
• You will receive a message
to indicate the status of the
change.
•
• Press or click the Back
button to return to the main
screen.






© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

205
To update the firmware on an SQ-300 i control
• Press or click the SQ-300i control type check box.
• Press or click the Program a specific control check box.
• Enter the IP address of the
control that you want to
update.
• Press or click the Next
button. The Program
SQ-300i Firmware screen
will appear.
• Press or click the Browse
button to find the new
firmware file (a .BIN file).
Select the file and press or
click Open .
• Press or click the Validate
button. The software will
run a quick check of the
control and the file. Details
of this check will appear in
the lower half of the screen.
• If the file is valid, you may
press or click the Process
button to update the control.
• You will receive a message
to indicate the status of the
update.
• Press or click the Back
button to return to the main
screen.







To close the SQProgram software
• Press or click the Close button.


Browse
button

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

206
Specifications
SQ-300i Hybrid Controller:
Dimensions .................................... 8” x 9-1/4” x 1-7/8” (203.2 mm x 234.95 mm x 47.625 mm)
Weight .................................................................................................................. 2.5 lb. (1.2 kg)
Input Voltage .......................................................................................................... 120-240 VAC
Input Frequency ............................................................................................................ 47-63 Hz
Input Current .................................................. 0.40 Amps @ 240 VAC / 0.80 Amps @ 120 VAC
Required Overcurrent Protection ................................................................... 10 Amps Max. AC


Transient Filter Board:
Dimensions ............................................................... 1.75 in. x 3.25 in. (44.45 mm x 82.55 mm)
Weight .............................................................................................................. 0.13 lb. (0.06 kg)
Input Voltage Range ...................................................................................................... 0-5 VDC
Input Frequency ..................................................................................................................... DC
Input Current
J1-1 ............................................................................................................................ 320 uA
J1-2 ............................................................................................................................ 320 uA
J1-3 ............................................................................................................................ 370 uA
Maximum Current
J1-1 ............................................................................................................................ 960 uA
J1-2 ............................................................................................................................ 960 uA
J1-3 .......................................................................................................................... 1.11 mA


General:
Operating Temperature Maximum ......................................................................... 104°F (40°C)
Operating Humidity Maximum ..................................... 90% Relative Humidity, non-condensing
Operating Altitude Range ........................................................................... 0-9842 ft. (0-3000 m)
Storage Temperature Range ..................................................... -68°F to 122°F (-20°C to 50°C)
Storage Humidity Range ........................................ 20-50% Relative Humidity, non-condensing
Storage Altitude Range .............................................................................. 0-9842 ft. (0-3000 m)


Operator Interface (Optional):
Dimensions ................................................... 12.9” x 10.3” x 2.1” (328 mm x 262 mm x 52 mm)
Weight .............................................................................................................. 5.46 lb. (2.48 kg)
Operation Temperature ................................................................... 32°F to 113° F (0°C to 45°C)
Relative Humidity (Operation or Storage) .......................10% to 90% @ 40°C, non-condensing
Vibration ......................................................................... 5 to 500 Hz, 2.0 G random for CF card
Power Input ............................................................. 10~30 V DC with phoenix power connector
Outer Bezel Dimensions ........................ 13.9” x 11.4” x 0.0625” (353 mm x 290 mm x 1.6 mm)
Outer Bezel Weight ......................................................................................... 0.23 lbs. (0.10 kg)
Inner Bezel Dimensions ........................... 13.9” x 11.4” x 0.125” (353 mm x 290 mm x 3.2 mm)Inner Bezel Weight .......................................................................................... 0.46 lbs. (0.21 kg)
Optional Power Supply:
Input Voltage (Selectable) ...................................................... 100-120 VAC / 200-240 VAC
Input Current .............................................................................................. 3 Amps / 2 Amps
Input Frequency .................................................................................................. 50 or 60 Hz
Output Voltage .................................................................................. 24 VDC (22 – 30 VDC)
Output Current .......................................................................................................... 5 Amps
Power Consumption .................................................................................. Approx. 59 Watts

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

207

Auxiliary Display (Optional):
Dimensions ................................................. 5.04” x 4.02” x 1.50” (128 mm x 102 mm x 38 mm)
Weight .................................................................................................................. 0.7 lb. (0.3 kg)
Operating Temperature ............................................................................ 32 ~ 122°F (0 ~ 50°C)
Relative Humidity ............................................................ 10 to 90% rH@40°C, non- condensing
Shock ........................................................................ 10 to 25 Hz (X, Y, Z direction 2G, 30 min)
Power Requirements ........................................................................ 24 VDC, 250 mA maximum
Nominal Input Voltage ............................................................................................ 100-240 VAC
Nominal Input Current ...................................................... 1.1 A @ 115 VAC, 0.7 A @ 230 VAC
Input Frequency ............................................................................. 47-63 Hz (0 Hz @ DC input)
Nominal Output Voltage / Adjustment Range ....................... 24 VDC ±2% / 22-28 VDC (≤60W)
Nominal Output Current ............................................................................................... 2.5 Amps
Output Power ................................................................................................................ 60 Watts


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

208
Appendices
Notes & Acknowledgements
All sales of B&W's products or services are subject to B&W's standard terms and conditions. Those
terms and conditions provide our customers with certain express warranties for our products and
services. Nothing in this booklet should be considered an express or implied warranty. B&W's
products, designs and specifications are subject to change without notice.

§ Each Microsoft® operating system defines a directory in which program data will be stored. The
standard locations are listed below. Depending on your system configuration, the directory trees
referred to in this manual may reside on some other drive.

For Microsoft® Windows® 7 operating systems:

(SQControl) C:\Users\Public\Public Documents\BW PGG
(Precipitator Manager) C:\Program Data\Babcock & Wilcox\B&W Precipitator

SQ-300 and JuiceCan are trademarks of The Babcock & Wilcox Company.

All other trademarks referenced herein are property of their respective owners.

© 2016 The Babcock & Wilcox Company All rights reserved.


 Product Recognition and Declaration of Conformity















UL 61010-1
CSA C22.2 No. 61010-1
E112836

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

209









© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

210
Default Settings
The Set SQ Parameters button allows access to the Configuration Group which enables you to set
the SQ-300i Hybrid parameters. The following groups are configured by accessing the Set SQ
Parameters section: Operating Limits, Alarm Limits, Spark Response, TR Set Sizing, Scaling
Settings and Communication Settings.

Each unit is shipped with default/safe settings installed which will prevent system operation. After
installation, many settings must be changed based on the customers individual TR set.

Please refer to the Programming the SQ-300i Hybrid Controller section of this manual for detailed
information on each parameter. The following is a list of all parameters, the range and the
default/safe setting for each. (This list also includes the default security passwords. Please refer to
the Security section of the manual for more information about these passwords.)

 Single -Phase
Operating Limits Value Range Default/Safe
Setting
Primary Current Limit Varies 0
Primary Voltage Limit 0 – 800 0
Secondary Current Limit Varies 0
Secondary Average KV Limit Varies 0
Secondary Peak KV Limit Varies 0
Secondary Voltage Limit Type Average, Peak,
or Both
Average
SCR Firing Angle Limit 16 - 180 35
Juice Can Installed Yes or No No
Min. Pri. Current Allowed in
Manual Mode
0 – 200 0
Conduction Limit 60-100 86
Alarm Limits
Primary Over Current Alm Varies 0
Primary Under Voltage Alm 0 - 700 0
Secondary Over Current Alm 0 - 9000 0
Secondary Under Voltage Alm 0 – 200 0
Under Volt Alm Time Delay 1-99 30
Imbalance Alm Off or On On
Alarm Contact Type Norm Open /
Norm Closed
Normally Open
Hz Mismatch Alarm Off or On On
TR Set
TR Set Pri Voltage Rating 0 – 800 0
TR Set Pri Current Rating 0 – 900 0
TR Set Sec Current Rating 0 – 9000 0
TR Set Sec Avg KV Rating 0 – 150 0
TR Set Sec Peak KV Rating 0 – 300 0
TR Set Form Factor Rating 1.20 – 3.00 1.2
Min Secondary Current for
Remote Limits
0 – 9000 200
Line Voltage Rating 0 – 600 600
Hz Rating 50 or 60 60

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

211

 Single -Phase
Spark Response Value Range Default/Safe
Spark Rate 1–30 w/Juice
Can, 1–99 w/o
JuiceCan

30
Spark Sensitivity 0 - 9 3
Spark Quench 1 - 9 1
Arc Quench 1 - 9 3
Fast Ramp Time 1 - 9 6
Spark Set Back 1 – 99 25
Spark Reaction Quench or Spit Quench
Spit Spark Set Back 1 – 99 25
Spark Mode KV or mA mA
OverSpark Alarm Off or On Off
OverSpark Alarm Limit 1 – 99 99
Recovery Ramp Delay 0 - 9 5
Smart Spark Off or On Off
Back Corona
BC Search Time Interval 0 – 1440 0
BC Starting Pulse Ratio 0 – 100 0
BC Ending Pulse Ratio 0 – 100 1
BC Minimum Sec Current 0 – 9999 25
BC Starting Sec Current 0 – 9999 25
Pulse Blocking
PB SCR Firing Angle Limit in
Pulse Blocking Mode
16 – 180 90
PB Full Cyc @ Reduced Level 0 – 100 0
PB Reduced Power Level 0 – 100 0
Scaling Settings
Secondary Voltage Feedback Yes or No Yes
Primary Current Scale 10 - 900 100
Secondary Current Scale 10 - 9000 1000
Secondary Voltage Scale 60 - 150 80
Primary Voltage Input Source SCR Output or
TR Set Input
SCR Output
Security
User Password Varies User
Administrator Password Varies Superuser
Communication
IP Address
Set by
Customer’s
Network
Administrator
192.168.1.2
Subnet Mask 255.255.255.0
Control Name SQi-XXXX
(XXXX = Last 4
digits of MAC)
Expansion I/O Type Beckhoff,
B&W, Adam
Beckhoff
Aux. Display Type None, Maple None
Power Restore Run/Halt State Last Known
Good State,
Haled
Last Known
Good State




© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

212
Using the Reset Feature
If the SQ-300i Hybrid is unable to recover from an error condition, or if the control profile becomes
corrupt, there are a coupleof options for restoring operation. Both of these options will reset all of
the configuration options (including TR set parameters) to defaults, as well as the IP address,
subnet mask, and the control name.


Use the Reset features with caution . Once you reset, you may initially
lose communication with the control. You will need to find the control
again, then re-program the IP address and subnet mask, then re-enter all
of the SQ-300i Hybrid control settings.
Utilisez les fonctions de réinitialisation avec prudence. Une fois que vous
réinitialisez, vous risquez, au départ, de perdre la communication avec le
contrôleur. Vous aurez besoin de rechercher à nouveau le contrôleur,
reprogrammer l'adresse IP et le masque sous-réseau, puis ré-entrer tous
les paramètres du contrôleur SQ-300i.
Use la opción de re-ajuste con mucho cuidado. Una vez que se re-ajusta
Ud. puede perder la comunicación con el control. Si esto sucede Ud.
Tiene que reprogramar la dirección IP y la “sub-net mask” del control
usando el programa SQDiscover. Luego ponga nuevamente los ajustes
del SQ-300i.


Reset Using SQDiscover
The easiest and safest way to reset the control is to use SQDiscover. The SQDiscover software
may already be installed on your system. Please refer to the SQDiscover manual and the Reset
Control to Factory Defaults section for more details.


Reset Using the Reset Button
If there is no way to reset the control using SQDiscover, the Reset button on the SQ-300i Hybrid
Controller may be used.


 • WARNING – RISK OF ELECTRIC SHOCK.
AVERTISSEMENT - RISQUE D'ÉLECTROCUTION.
ADVERTENCIA – RIESGO DE CHOQUE ELÉCTRICO.
• Only qualified electricians or electrical instrumen t technicians
should perform the reset function using the Reset b utton.
Seul un électricien qualifié ou des techniciens spécialisés dans les
instruments électriques peuvent exécuter la fonction de réinitialisation
à l'aide de la touche Reset.
Solamente electricistas o Instrumentistas calificados deben ejecutar
la función de re-ajuste. El re-ajuste se hace a travez del botón de
re-ajuste.


© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

213


 • Follow your plant's safety rules and regulations an d take
appropriate electrical safety precautions when perf orming this
reset.
Suivez les consignes de sécurité et les règlements de votre
établissement et respectez les précautions appropriées relatives à la
sécurité électrique lorsque vous effectuez cette réinitialisation.
Cuando ejecuta el re-ajuste del control siga las regulationes de
seguridad de la planta y también las seguridades/precauciones
eléctricas del caso.




• Remove and lock out power to the SQ-300i Hybrid AVC cabinet.
• Remove the SQ-300i Hybrid Controller unit.
• Remove the cover from the Controller.
• Temporarily wire and apply 120 or 240 VAC to the Controller.
o J1-1 (Control Power-Ground)
o J1-2 (Control Power-Neutral)
o J1-3 (Control Power-Hot)
• When the green LED illuminates, press and hold the reset button for 3 to 5 seconds.
• Remove power and remove the temporary wires.
• Reattach the cover, then reinstall the Controller in the AVC cabinet.
• Close and secure the AVC cabinet, then reapply power to the cabinet.
• Once the control powers back up, you must enter all of your control settings again.



























Reset button
J1
Green LED

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

214

Service
If you need product support, additional parts, or service, please contact Babcock & Wilcox using
any of the following:

Toll-Free in the U.S.: 1-800-354-4400
 1-800-336-2585



Fax: 330-860-9350


Email: tsr@babcock.com
 preciptech@babcock.com

On the web: www.babcock.com



































© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

215

Quick Tips
To Add an SQ-300 i to the System…




























1. At the Options screen,
press the red HALT
button to clear the alarm.
2. Press the green RUN
button to restart.
(If you see a Main Power Off
message, you need to engage
the main contactor. Press the
green Start button on the front
of the cabinet, then press
RUN.)
1. To access the Manage Controls
screen:
• From any of the Operate screens,
press the Functions button.
• From the Options screen, press
System Settings .
• From the System Settings
screen, press Manage Controls .
2. At the Manage Controls screen, press
the Add button.
3. Select the Control Type from the
drop-down list.
4. Enter the IP Address of the
control and press Verify . If the
IP address is verified, press OK
to add the control to the list.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

216

To Run or Halt an AVC Using SQControl…



































To Clear an Alarm Using SQControl…

















1. At the Options screen,
press the red HALT
button to clear the alarm.
2. Press the green RUN
button to restart.
(If you see a Main Power Off
message, you need to engage
the main contactor. Press the
green Start button on the front
of the cabinet, then press
RUN.)
1. To access the Options
screen:
From any of the Operate
screens, press the
Functions button
OR, from the System
Settings screen, press
Control Settings .
2. When the Options screen
appears, press the green
RUN button or the red HALT
button.
(If you see a Main Power Off
message, you need to engage
the main contactor. Press the
green Start button on the front
of the cabinet, then press RUN.)

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

217

To Clear an Alarm Using the Aux Display…
















To Assign a New Control Name or Address…




































1. Open the SQDiscover utility. (Can’t find
it? It should be in the Program Files/BW
PGG/Utilities folder.)
SQDiscover will immediately display all
of the controls it finds on the network.
2. Right-click on the row that represents the
control you want to change.
3. Select Re-program IP Address/Subnet
Mask or Change Control Name .
4. Enter new information, as needed, and
press OK to save.
1. At any available screen,
press the red HALT
button to clear the alarm.
2. Press the green RUN
button to restart.
(If you see a Main Power Off
message, you need to engage
the main contactor. Press the
green Start button on the front
of the cabinet, then press
RUN.)

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

218

To Update Firmware on One or More AVCs…

6. Use the check boxes, All ,
and None buttons to
select one or more SQs
for the update.
7. Press Browse to find and
select the firmware file.
8. Press Validate to run
a check on the
firmware file.
9. If the file is valid,
press the Process
button to run the
update on the
selected SQs.
1. Open the SQProgram utility. (Can’t find it? It should
be in the Program Files/BW PGG/Utilities folder.)
2. Select the SQ-300i control type.
3. Select Locate controls on the network and enter the IP
address range that you want to search.
4. Press the Search button.
5. When the search is done, press the Next button.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19219

Repairs
If your product needs repair, please follow the instructions below.




• WARNING – Follow safety instructions and disconnect all power
before removing or servicing the control!
AVERTISSEMENT – Suivez les consignes de sécurité et coupez
l'alimentation avant d'enlever ou d'intervenir sur le contrôleur !
ADVERTENCIA- ¡Antes de quitar o reparar el control , siga las
instrucciones de seguridad y desconecte la energía !

• Contact your B&W representative for a Return Material Authorization (RMA) number and
instructions.
• Clean any loose dirt and dust from the inside and the outside of the control before packaging.
• Package the product securely. Use the original packaging and anti-static bags whenever
possible. Fill empty spaces with packing material to help minimize shifting during shipment.
• Please include a brief description of the problem.
• Label the outside of the package with the RMA number for quicker processing.
• Unless otherwise directed by your B&W representative, send your package back to the
manufacturing site at the following address:

B&W
11864 Canon Blvd.
Suite 105
Newport News, VA 23606-4223



























© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

220


License Conditions
The Babcock & Wilcox Company (B&W) supplies you with software and permits you to use this
software according to the conditions of the license.

You may:

• use the program on a single computer or network and it may only be used by one person at
present.
• make a back up copy of the program.
• transfer the usage of the program to another person only when you renounce all rights
under the license, do not make further use of the program and delete all copies of the
program.

You may not:

• copy or use the program in a manner not permitted by this license.
• rent, loan or transfer the program to a third party except under the conditions specified
above.
• change the program or incorporate the program partially or totally in other programs.

Duration:

This license is valid for the total time for which you use this program. The license is invalid when
you fail to abide by the conditions of the license. The guarantee and liability conditions below
remain valid even when you fail to abide by the conditions of the license.

Guarantee:

We guarantee that the software is free from material and service defects for 90 days after the date
of delivery.

Guarantee and Liability Conditions:

The program is supplied on the basis of its present state. Apart from the guarantee given above
there are no other explicit or implicit guarantees or conditions of any kind. For example, there are
no guarantee claims in respect of the sales quality, saleability and suitability for particular purposes
or those originating from legal requirements, regulations, business practice or trade. The total risk
in respect of the results and performance of the program is yours. You or third parties have no
claim against B&W for direct, indirect, accidental, consequential, particular damages or subsequent
damages. This applies also to damages as reduced profit, lost or corrupted data or for other
commercial or business losses.

© 2016 The Babcock & Wilcox Company. All rights reserved. SQ300i_Hybrid1P Rev. C 6/19

221
Index
Add
OPC I/O, 129
Alarm contact type, 61
Alarm limits, 58
Alarm List, 105
Alarms function, 122
Analog Inputs/Outputs, 83, 85
Appendices, 201
Arc quench, 64
Aux display
installation, 161
installation requirements,
161
operation, 167
overview, 161
Aux Display, 161
B&W PrecipTech Legacy OPC
Server
about, 183
startup, 184
Back corona search
how it works, 66
maximum full cycles off, 68
minimum secondary
current, 69
search interval, 68
starting full cycles off, 68
starting secondary current,
69
Client program, 191, 194, 195
CLR control, 12
Communication Settings, 76
Communications, 132, 183,
184, 185
Conduction limit, 57
Conformal coating, 15
Construction, 15
Control Name, 78
Default Settings, 203, 205
Delete
OPC I/O, 129
Determine alarm limits, 58
Digital inputs, 72
comm loss alarms, 82
Digital Inputs/Outputs, 79, 81
Disabling alarms, 58
Display option, 161
Edit
back corona search
settings, 67
heater/horn settings, 87,
90, 92
OPC I/O, 129
pulse blocking settings, 70
Edit alarm limits, 58
Edit operating limits
3-Phase, 54
Edit rapper control settings, 73
Edit spit spark response, 61
Edit TR sizing screens
3-Phase, 47
Energy Management, 121
Ethernet, 132, 156
Ethernet Communication, 16
Event Log, 131
Expanded display, 35
External rapping percentage
set, 75
External rapping type
set, 75
Fast ramp time, 64
Field wiring, 14, 15
Form factor
optimum value, 12
using this data, 12
Fractional conduction
optimum value, 12
using this data, 12
Function screens, 37
Halt key, 38
Heater off level, 88
Heater on level, 89
Heater/horn settings, 87, 90, 92
Horn off period, 89
Horn on period, 89
Horn reduced level, 89
Horn run time (after control halt),
90
How to
change a tag using the
client, 194
check/change the status of
the Legacy OPC
Server, 185
view a tag using the client,
191, 192, 193, 194,
195, 196, 197, 198
Imbalance alarm, 60, 61
Important notes, 183, 185
Incoming line voltage tap, 30
Installation
location requirements, 29
overview, 29
power requirements, 30
Installing components, 30
IP address, 132
IP addresses, 30
JuiceCan (yes/no), 57
KV Feedback Available
3-Phase, 52
Language selection
on/off, 169
License Conditions, 209
