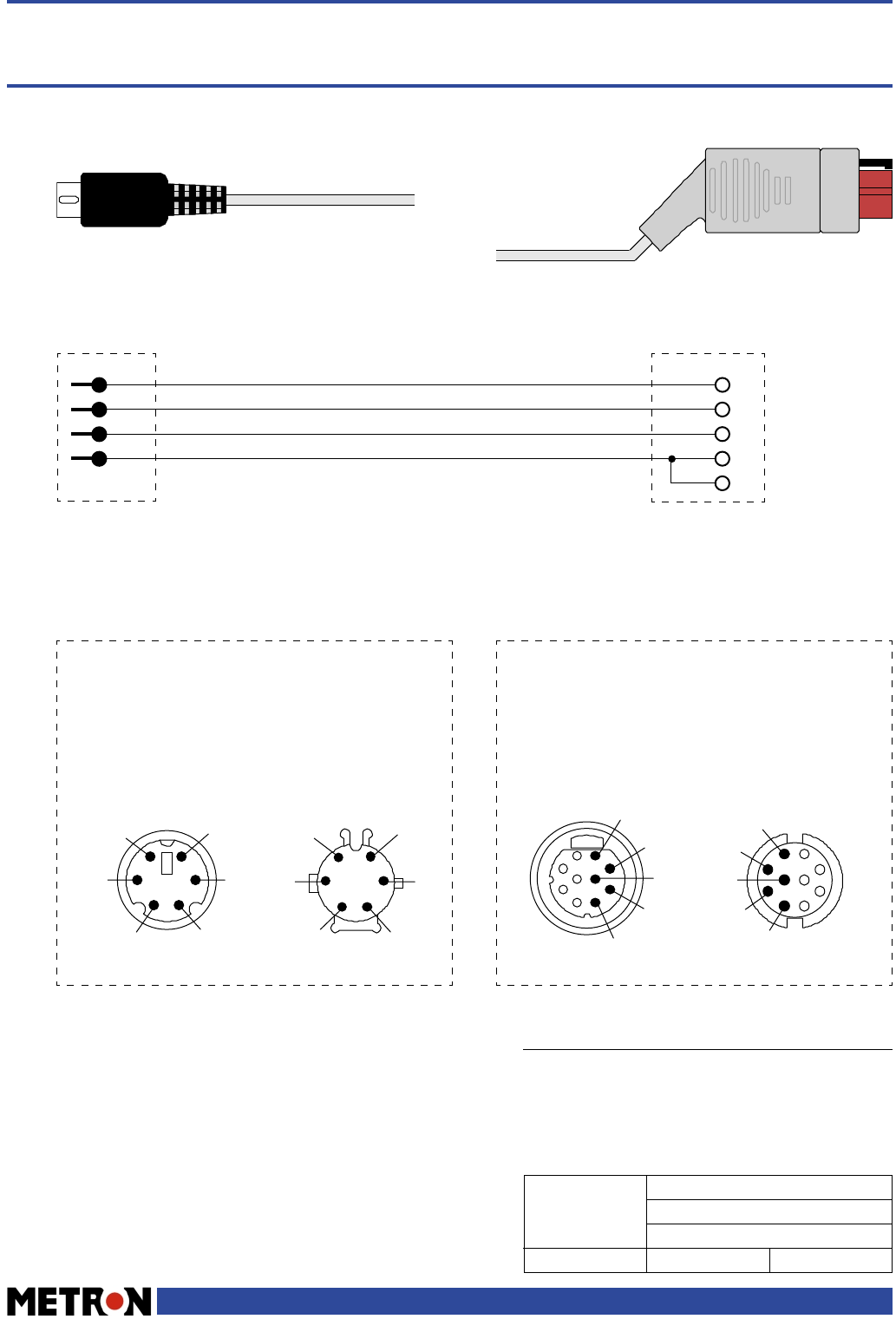

<p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>BP cable</p><p>.</p><p>Schematic diagram</p><p>25.01.2003 1 of 1</p><p>PS-420/440 - Artema (S&W) BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: Artema (S&W)</p><p>Order no.: 17399</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: Nicolay 117800.2</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>Artema</p><p>Monitor Connector</p><p>1</p><p>2</p><p>4</p><p>3</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>4</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>Artema Connector</p><p>1. White</p><p>2. Yellow</p><p>4. Green</p><p>3. Brown + Jumper</p><p>5. Jumper</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder side</p><p>5</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>PS-420/440</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - HP-4 BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-4</p><p>Hewlett Packard – 78-300, -500, -800, Merlin (12 pin 40 µV)</p><p>Order no.: 17403</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: ITT Cannon 1251-4953 dark red</p><p>Cable sleeve: 120600 Skindicht - SNR 7/5</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>HP-4</p><p>Monitor Connector</p><p>B</p><p>D</p><p>C</p><p>A</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>4</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>HP-4 Monitor Connector</p><p>A. Brown</p><p>B. White</p><p>C. Green</p><p>D. Yellow</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - SM-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: SM-1</p><p>Siemens – Sirecust Series</p><p>mini-DIN</p><p>Connector</p><p>SM-1</p><p>Monitor Connector</p><p>Order no.: 17406</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-032A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>6</p><p>1</p><p>4</p><p>6</p><p>5</p><p>1</p><p>3</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>4</p><p>8</p><p>SM-1 Connector 1. Green</p><p>3. Brown</p><p>4. Jumper</p><p>5. Yellow</p><p>6. White</p><p>8. Jumper</p><p>�</p><p>�</p><p>��</p><p>�</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>�</p><p>�</p><p>� �</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>PS-420/440</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 of 1</p><p>PS-420/440 - HP-3 BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-3</p><p>Hewlett Packard – 78-300, -500, -800 Merlin (12 pin 5 µV)</p><p>Order no.: 17417</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: ITT Cannon 1251-4953 dark red</p><p>Cable sleeve: 120600 Skindicht - SNR 7/5</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>HP-3</p><p>Monitor Connector</p><p>B</p><p>D</p><p>C</p><p>A</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>4</p><p>5</p><p>8</p><p>A. Brown</p><p>B. White</p><p>C. Green</p><p>D. Yellow</p><p>5. Jumper</p><p>8. Jumper</p><p>HP-3 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - NK-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: NK-1</p><p>Nihon Kohden – All</p><p>2</p><p>5</p><p>3</p><p>4</p><p>NK-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17429</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: Audio, 5 pole, type 454-003</p><p>Lev.: JH</p><p>Cable boot: for audio connector</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>2. White</p><p>3. Green</p><p>4. Brown</p><p>5. Yellow</p><p>NK-1 Connector</p><p>��</p><p>�</p><p>��</p><p>� �</p><p>�</p><p>� �</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>10.09.2001 1 of 1</p><p>PS-420/440 - PC-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: PC-1</p><p>Medical Data Electronics – Escort Series</p><p>PC-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17432</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector:</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 300 kohm 1%</p><p>30</p><p>0</p><p>ko</p><p>hm</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>PC-1 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - HP-2 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-2</p><p>Hewlett Packard – 7809 (5 pin)</p><p>3</p><p>6</p><p>1</p><p>4</p><p>A</p><p>C</p><p>D</p><p>B</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>HP-2</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17433</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: M85049/41-6A (KT-005A)</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>�</p><p>�</p><p>�</p><p>A. White</p><p>B. Brown</p><p>C. Yellow</p><p>D. Green</p><p>E. N.C.</p><p>HP-2 Connector</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>�</p><p>�</p><p>� �</p><p>�</p><p>�</p><p>�</p><p>� �</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>13.10.2001 1 of 1</p><p>PS-420/440 - PB-2 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: PB-2</p><p>Datex – Cardiocap</p><p>Puritan Bennett – PB-240</p><p>3</p><p>6</p><p>1</p><p>4</p><p>1</p><p>2</p><p>4</p><p>3</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>PB-2</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>PB-2 Connector</p><p>Order no.: 17434</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-012B</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>5</p><p>9</p><p>10</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector 1. White</p><p>2. Yellow</p><p>3. Brown/Jumper</p><p>4. Green</p><p>5. Jumper</p><p>9. Jumper</p><p>10. Jumper</p><p>Solder side</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>23.11.2001 1 of 1</p><p>PS-420/440 BP cable unterminated</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 Universal Blood Pressure cable</p><p>Unterminated</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>Grey</p><p>Rose</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17440</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Front side</p><p>1. Green</p><p>2. Grey</p><p>3. White</p><p>4. Brown</p><p>5. Rose</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>2</p><p>5</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - HP-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-1</p><p>Hewlett Packard – 78200 (Twinax)</p><p>3</p><p>6</p><p>1</p><p>4</p><p>A</p><p>B</p><p>E</p><p>D</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>HP-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>C</p><p>Order no.: 17456</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: female, 5 pole</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>��</p><p>��</p><p>��</p><p>��</p><p>A. White</p><p>B. Yellow</p><p>C. N.C.</p><p>D. Brown</p><p>E. Green</p><p>HP-1 Connector</p><p>� �</p><p>�</p><p>�</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>� �</p><p>�</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - HP-8 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-8</p><p>Hewlett Packard – 8040A, M1350A (12 pin 40 µV) (IUP)</p><p>Order no.: 17457</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: ITT Cannon 1251-6887 brown</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Cable sleeve: 120600 Skindicht - SNR 7/5</p><p>Resistor: 2k32 1%</p><p>3</p><p>6</p><p>1</p><p>4</p><p>B</p><p>D</p><p>C</p><p>A</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>HP-8</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>6</p><p>A. Brown</p><p>B. White</p><p>C. Green</p><p>D. Yellow</p><p>1. Resistor</p><p>6. Resistor</p><p>HP-8 Connector</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder side</p><p>2k32</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 of 1</p><p>PS-420/440 - LT-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: LT-1</p><p>Advanced Medical Systems – FM 660, FM 670 (IUP)</p><p>Airshields – Fetascan 1400 (IUP)</p><p>1</p><p>2</p><p>6</p><p>7</p><p>LT-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17459</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector:</p><p>Spiral cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>1. White</p><p>2. Yellow</p><p>6. Green</p><p>7. Brown</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>LT-1 Connector</p><p>�</p><p>�</p><p>�</p><p>��</p><p>�</p><p>Front side Solder side</p><p>Sheild</p><p>if used</p><p>Keyway</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>21.01.2002 1 of 1</p><p>PS-420/440 - TK-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: TK-1</p><p>Criticare Systems, Inc. - 1100 / Criticon - 8700 / Invivo Researsch - Omni-Trak / Ivy Biomedical - All /</p><p>North American Dräger - Vitalert 2000 / Protocol Series - Propaq Series 100 / Spacelabs - 400/5008600PCMS /</p><p>90-300, -600, -700, PC-Express</p><p>Order no.: 17460</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-002A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 243 kohm 1%</p><p>Resistor: 499 kohm 1%</p><p>3</p><p>6</p><p>1</p><p>4</p><p>C</p><p>A</p><p>B</p><p>D</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>TK-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>F</p><p>49</p><p>9</p><p>ko</p><p>hm</p><p>24</p><p>3</p><p>ko</p><p>hm</p><p>TK-1 Connector</p><p>A. Yellow</p><p>B. Green + Resistors</p><p>C. White</p><p>D. Brown</p><p>F. Resistors</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - HP-9 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: HP-9</p><p>Hewlett Packard – 8040A, M1350A (12 pin 5 µV) (IUP)</p><p>Order no.: 17461</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: ITT Cannon 1251-6887 brown</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Cable sleeve: 120600 Skindicht - SNR 7/5</p><p>Resistor: 7k68 1%</p><p>3</p><p>6</p><p>1</p><p>4</p><p>B</p><p>D</p><p>C</p><p>A</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>HP-9</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>6</p><p>A. Brown</p><p>B. White</p><p>C. Green</p><p>D. Yellow</p><p>1. Resistor</p><p>6. Resistor</p><p>HP-9 Connector</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>Front side Solder side</p><p>7k68</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>10.09.2001 1 of 1</p><p>PS-420/440 - KT-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: KT-1</p><p>Kontron Medical – Micromon, Minimon, Supermon, Kolormon Series</p><p>KT-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17462</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-014B</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>KT-1 Connector</p><p>Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 of 1</p><p>PS-420/440 - GE-2 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: GE-2</p><p>Marquette Medical (GE) – PDS-3100</p><p>2</p><p>3</p><p>1</p><p>4</p><p>GE-2</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17463</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector:</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 301 ohm 1%</p><p>301 ohm</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>GE-2 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 of 1</p><p>PS-420/440 - GE-3 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: GE-3</p><p>Marquette Medical (GE) – PDS-3000</p><p>Order no.: 17464</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector:</p><p>Spiral cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 301 ohm 1%</p><p>2</p><p>3</p><p>1</p><p>4</p><p>GE-3</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>301 ohm</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>GE-3 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 of 1</p><p>PS-420/440 - MQ-2 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: MQ-2</p><p>Marquette Medical – 7000/TRAM</p><p>4</p><p>5</p><p>3</p><p>6</p><p>MQ-2</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17465</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector:</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>7</p><p>8</p><p>3</p><p>6</p><p>1</p><p>4</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>MQ-2 Connector</p><p>Front side Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>31.10.2002 1 of 1</p><p>PS-420/440 - MQ-3 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: MQ-3</p><p>Marquette Medical – Eagle series (rectangular) TRAM Scope</p><p>3</p><p>6</p><p>1</p><p>4</p><p>2</p><p>10</p><p>1</p><p>11</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>MQ-3</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17466</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-062A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>4</p><p>8</p><p>MQ-3 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>1. Green</p><p>2. White</p><p>4. Jumper</p><p>8. Jumper</p><p>10. Yellow</p><p>11. Brown</p><p>Solder side Front side Solder side</p><p>� �</p><p>��</p><p>� �</p><p>��</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 of 1</p><p>PS-420/440 - MM-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: MM-1</p><p>Mennen Medical – All</p><p>Order no.: 17467</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-080A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>6</p><p>1</p><p>4</p><p>3</p><p>5</p><p>2</p><p>10</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>MM-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>3. White</p><p>5. Yellow</p><p>2. Green</p><p>10. Brown</p><p>MM-1 Connector</p><p>��</p><p>� �</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 of 1</p><p>PS-420/440 - SM-3 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: SM-3</p><p>Siemens – Micor/Mingo (15 pin)</p><p>Order no.: 17468</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: male, 15 pole D-sub</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 200 ohm 1%</p><p>3</p><p>6</p><p>1</p><p>4</p><p>2</p><p>3</p><p>7</p><p>13</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>SM-3</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>9</p><p>200 ohm</p><p>SM-3 Connector</p><p>��</p><p>���</p><p>��</p><p>���</p><p>Front side Solder side</p><p>2. White</p><p>3. Yellow</p><p>7. Green</p><p>13. Brown</p><p>1. Resistor</p><p>9. Resistor</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>06.09.2001 1 of 1</p><p>PS-420/440 - SL-1 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: SL-1</p><p>Spacelabs – ALPHA 9/703R</p><p>3</p><p>6</p><p>1</p><p>4</p><p>C</p><p>A</p><p>B</p><p>D</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>SL-1</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17469</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT-005A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>SL-1 Connector</p><p>Front side Solder side</p><p>A. Yellow</p><p>B. Green</p><p>C. White</p><p>D. Brown</p><p>�</p><p>�</p><p>� �</p><p>�</p><p>�</p><p>�</p><p>� �</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>BP cable</p><p>J.Luc Leneindre</p><p>Schematic diagram</p><p>24.08.2001 1 of 1</p><p>PS-420/440 - DS-1 BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: DS-1</p><p>Datascope (A11) - COLIN (BP-308, BP-408)</p><p>Order no.: 17472</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: ITT Cannon plug, female, 6 pin</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Resistor: 331 ohm 1%</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>ITT Cannon Connector</p><p>2</p><p>3</p><p>11</p><p>4</p><p>5</p><p>DS-1 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>1. Green + Resistor</p><p>2. White</p><p>3. Yellow</p><p>4. Brown + Resistor</p><p>5. Shield</p><p>Solder side Front side Solder side</p><p>4</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Shield</p><p>33</p><p>1</p><p>oh</p><p>m</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>30.06.2003 1 of 1</p><p>PS-420/440 - FD-2 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: FD-2</p><p>mini-DIN</p><p>Connector</p><p>FD-2</p><p>Monitor Connector</p><p>Order no.: 17474</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: FD-2</p><p>Cable:</p><p>3</p><p>6</p><p>1</p><p>4</p><p>6</p><p>2</p><p>8</p><p>4</p><p>Yellow</p><p>Orange</p><p>Green</p><p>Red</p><p>11</p><p>12</p><p>FD-2 Connector 2. Orange</p><p>4. Red</p><p>6. Yellow</p><p>8. Green</p><p>11. Jumper</p><p>12. Jumper</p><p>�</p><p>��</p><p>� ��</p><p>�</p><p>�</p><p>Front side Solder sideFront side</p><p>1. Green</p><p>3. Yellow</p><p>4. Red</p><p>6. Orange</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>�</p><p>��</p><p>�</p><p>�</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>PS-420/440</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 of 1</p><p>Hellige BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor Connector: Hellige</p><p>GEMS - Hellige</p><p>Order no.: 17480</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: From the Manufacturer</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>Hellige</p><p>Monitor Connector</p><p>D</p><p>E</p><p>C</p><p>F</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>4</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>Hellige Connector</p><p>Front side Solder side</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>C. Green</p><p>D. White</p><p>E. Yellow</p><p>F. Brown</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>BP cable</p><p>.</p><p>Schematic diagram</p><p>17.02.2004 1 of 1</p><p>PS-420/440 - Siemens BP cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: Siemens</p><p>Siemens SC 6000/ 7000/ 9000 with hemopod</p><p>Order no.: 17496</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: Siemens</p><p>Cable sleeve:</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>3</p><p>6</p><p>Siemens</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>1</p><p>4</p><p>Siemens Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>�</p><p>�</p><p>��</p><p>�</p><p>� �</p><p>�</p><p>��</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>5</p><p>6</p><p>1</p><p>2</p><p>1. Green</p><p>2. Brown</p><p>5. White</p><p>6. Yellow</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 av 1</p><p>PS-420/440 Temp. cable YSI 400</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 (UT1) Temperature cable</p><p>YSI 400 Series</p><p>Order no.: 17401</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Phone Jack: mono, 1/4”, black</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>2</p><p>7</p><p>PS-420/440</p><p>mini-DIN Connector</p><p>Brown</p><p>Blue</p><p>Phone Jack</p><p>Phone Jack</p><p>Front side</p><p>2. Brown</p><p>7. Blue</p><p>8</p><p>5</p><p>21</p><p>3</p><p>6</p><p>4</p><p>7</p><p>6</p><p>3</p><p>12</p><p>5</p><p>8</p><p>4</p><p>7</p><p>mini-DIN Connector</p><p>Solder side</p><p>Brown</p><p>Blue</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>27.08.2001 1 av 1</p><p>PS-420/440 temp. cable unterminated</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Universal temperature cable</p><p>Unterminated</p><p>Order no.: 17445</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>1</p><p>2</p><p>5</p><p>mini-DIN</p><p>Connector</p><p>Yellow (GND)</p><p>Brown</p><p>White</p><p>Green</p><p>Grey</p><p>7</p><p>DIN conn TEMP 1 TEMP 1 TEMP 2</p><p>Pin no.: Color 400 Series 700 Series 700 Series</p><p>1 Yellow No conn. No conn. No conn.</p><p>2 Brown Tip No conn. No conn.</p><p>5 White No conn. No conn. Ring</p><p>7 Green Barrel Barrel Barrel</p><p>8 Grey No conn. Tip No conn.</p><p>CABLE CONNECTION MATRIX:</p><p>UNIVERSAL TEMPERATURE CABLES</p><p>8</p><p>1. Yellow (GND)</p><p>2. Brown</p><p>5. White</p><p>7. Green</p><p>8. Grey UT1 400 Series</p><p>Tip</p><p>Barrel</p><p>UT2 700 Series</p><p>Ring</p><p>TipBarrel</p><p>Phone Jacks</p><p>Front side</p><p>8</p><p>5</p><p>21</p><p>3</p><p>6</p><p>4</p><p>7</p><p>6</p><p>3</p><p>12</p><p>5</p><p>8</p><p>4</p><p>7</p><p>mini-DIN Connector</p><p>Solder side</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>20.05.2001 1 av 1</p><p>PS-420/440 - MQ-3 BP cable</p><p>PRODUCT</p><p>BP cable</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 BP cable</p><p>Monitor type: MQ-3</p><p>Marquette Medical – Eagle series (rectangular) TRAM Scope</p><p>3</p><p>6</p><p>1</p><p>4</p><p>2</p><p>10</p><p>1</p><p>11</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Yellow</p><p>Green</p><p>Brown</p><p>MQ-3</p><p>Monitor Connector</p><p>Output (+)</p><p>Output (-)</p><p>Excitation (+)</p><p>Excitation (–)</p><p>Order no.: 17466</p><p>Component list:</p><p>mini-DIN Connector: male, 6 pole, black</p><p>Monitor Connector: KT 062A</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>4</p><p>8</p><p>MQ-3 Connector</p><p>Front side</p><p>1. Green</p><p>3. White</p><p>4. Brown</p><p>6. Yellow</p><p>6</p><p>4</p><p>21</p><p>3</p><p>5 5</p><p>3</p><p>12</p><p>4</p><p>6</p><p>mini-DIN Connector</p><p>1. Green</p><p>2. White</p><p>4. Jumper</p><p>8. Jumper</p><p>10. Yellow</p><p>11. Brown</p><p>Solder side Front side Solder side</p><p>1 6</p><p>711 1 6</p><p>711</p><p>Printet Circuit Board</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>26.10.2004 1 of 1</p><p>PS-420/440 - Marquette CO cable</p><p>PRODUCT</p><p>Cardiac cable</p><p>PS-420/440 CO cable</p><p>Monitor type: Marquette</p><p>Marquette Medical – Eagle series (rectangular) TRAM Scope</p><p>4</p><p>1</p><p>3</p><p>6</p><p>1</p><p>3</p><p>10</p><p>White</p><p>Brown</p><p>Marquette</p><p>Monitor Connector</p><p>Order no.: 17485</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Monitor Connector: KT-063</p><p>Cable: LIYY 6 x 0.14 mm2, 1.10 m, grey</p><p>Resistor: 9k79 1% 1/8W</p><p>Resistor: 11k0 1% 1/8W</p><p>Resistor: 16k2 1% 1/8W</p><p>Resistor: 24k42 1% 1/8W</p><p>Resistor: 51k6 1% 1/8W</p><p>Resistor: 604k0 1% 1/8W</p><p>Switch: On/On</p><p>9</p><p>7</p><p>16k2</p><p>51k6</p><p>24k42</p><p>2</p><p>11</p><p>6</p><p>60</p><p>4k</p><p>0</p><p>11k0</p><p>9k79</p><p>Shield</p><p>mini-DIN</p><p>Connector</p><p>Front side</p><p>4. White</p><p>6. Brown</p><p>1. Jumper</p><p>3. Jumper</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>MQ-3 Connector 1. White</p><p>2. Resistors</p><p>3. Resistor</p><p>6. Shield</p><p>Front side Solder side</p><p>7. Jumper</p><p>9. Jumper</p><p>10. Resistors</p><p>11. Resistors</p><p>� �</p><p>���</p><p>������</p><p>� �</p><p>���</p><p>�����������</p><p>�����</p><p>��</p><p>Temp/CO</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>04.03.1999 1 of 1</p><p>COA-G Cardiac Output Adapter</p><p>PRODUCT</p><p>Cardiac</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>COA-G Cardiac Output Adapter</p><p>Simulator: PS-420, PS-440</p><p>All Connectors seen from solder side</p><p>R1</p><p>R2</p><p>R3</p><p>J1</p><p>P1</p><p>J3</p><p>J4 J5</p><p>Printed circuit board</p><p>J2</p><p>Order no.: 17290</p><p>Component list:</p><p>1 ea. Box</p><p>1 ea. Resistor 9k3 0.25W 5% R1</p><p>1 ea. Potm. trim. 1k 10% R2</p><p>1 ea. Potm. multit. 100k 5% R3</p><p>1 ea. Connector, male 2 pin P1</p><p>1 ea. Connector, female 2 pin J1</p><p>1 ea. Connector, male 4 pin J2</p><p>1 ea. CO Connector, male 4 pin J3</p><p>1 ea. mini-DIN Connector, female 8 pin J5</p><p>1 ea. mini-DIN Connector, male 8 pin J4</p><p>Cable, 8 leads</p><p>1</p><p>2</p><p>3</p><p>4</p><p>R2</p><p>4</p><p>3 2</p><p>1</p><p>12</p><p>3</p><p>4</p><p>5</p><p>6</p><p>7</p><p>8</p><p>21</p><p>5</p><p>4</p><p>3</p><p>8</p><p>7</p><p>6</p><p>Box</p><p>mini-DIN Connector</p><p>male</p><p>mini-DIN Connector</p><p>female</p><p>CO-Adapter</p><p>CO-simulator</p><p>P S 4 2 0 / 4 4 0</p><p>T e m p . 1 & 2</p><p>B l o o d t e m p .</p><p>I n j e c . t e m p .</p><p>I n j e c . t e m p .</p><p>SPECTROL</p><p>MOD 534</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Cardiac cable</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 of 1</p><p>COA-1 Cardiac Output cable YSI 400</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>COA-1 Cardiac Output cable</p><p>YSI 400 Series</p><p>Simulator: PS-420, PS-440</p><p>Order no.: 17452</p><p>Component list:</p><p>CO-Connector: female, 4 pole</p><p>Jack Connector: mono, 1/4”, black</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>1</p><p>CO Connector</p><p>Black</p><p>Red</p><p>Phone Jack</p><p>��</p><p>� �</p><p>Front side</p><p>1. Red</p><p>3. Black</p><p>CO Connector</p><p>Solder side</p><p>Black</p><p>Red</p><p>Phone Jack</p><p>��</p><p>� �</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Cardiac cable</p><p>.</p><p>Schematic diagram</p><p>05.09.2001 1 of 1</p><p>COA-2 Cardiac Output cable YSI 700</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>COA-2 Cardiac Output cable</p><p>YSI 700 Series</p><p>Simulator: PS-420, PS-440</p><p>Order no.: 17453</p><p>Component list:</p><p>CO-Connector: female, 4 pole</p><p>Jack Connector: stereo, 1/4”, black</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>3</p><p>4</p><p>CO Connector</p><p>White</p><p>Blue</p><p>Red</p><p>Phone Jack</p><p>2</p><p>Red</p><p>WhiteBlue</p><p>Front side</p><p>2. Red</p><p>3. White</p><p>4. Blue</p><p>CO Connector</p><p>Solder side</p><p>Phone Jack</p><p>��</p><p>� �</p><p>��</p><p>� �</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Cardiac cable</p><p>.</p><p>Schematic diagram</p><p>06.09.2001 1 of 1</p><p>COA-HP Cardiac Output cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>COA-HP Cardiac Output cable</p><p>Monitor type: Hewlett Packard</p><p>Simulator: PS-420, PS-440</p><p>Order no.: 17454</p><p>Component list:</p><p>CO-Connector: female, 4 pole</p><p>Monitor Connector: 21082A w/cable</p><p>Cable cutting: 180 cm</p><p>3</p><p>1</p><p>CO Connector</p><p>Black</p><p>Red</p><p>21082 A/B</p><p>Connector</p><p>2</p><p>1</p><p>1. Red</p><p>2. Black</p><p>21082 A/B Connector</p><p>Front side Solder side</p><p>� �</p><p>Front side</p><p>1. Red</p><p>3. Black</p><p>CO Connector</p><p>Solder side</p><p>��</p><p>� �</p><p>��</p><p>� �</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>28.07.2004 1 of 1</p><p>PS-420/440 - Cardiac Output cable</p><p>PRODUCT</p><p>Cardiac cable</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>PS-420/440 Cardiac Output cable</p><p>Monitor type: Hewlett Packard</p><p>6</p><p>4</p><p>3</p><p>6</p><p>5</p><p>4</p><p>3</p><p>mini-DIN</p><p>Connector</p><p>Black</p><p>Brown</p><p>HP</p><p>Monitor Connector</p><p>Order no.: 17455</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Monitor Connector: ITT Cannon 1251-4116, orange</p><p>Cable: LIYY 6 x 0.14 mm2, 1.75 m, grey</p><p>Cable sleeve: 120600 Skindicht - SNR 7/5</p><p>Resistor: 6k645 0.01% Type: HR103</p><p>Resistor: 9k787 0.1% Type: HR103</p><p>21</p><p>9k787</p><p>6k645</p><p>HP Connector</p><p>Front side</p><p>1. Jumper</p><p>3. Jumper</p><p>4. Brown</p><p>6. Black</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side Front side Solder side</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>2. Resistor 6k645</p><p>3. Resistor 6k645</p><p>4. Brown</p><p>5. Resistor 9k787</p><p>+ Black</p><p>6. Resistor 9k787</p><p>Metron AS</p><p>Vegamot 8</p><p>N-7048 Trondheim, NORWAY</p><p>Phone: +47 73 95 47 00</p><p>Fax: +47 73 95 47 01</p><p>E-mail: support@metron.no</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGE</p><p>.</p><p>Schematic diagram</p><p>04.10.2002 1 of 1</p><p>PS-420/440 - Marquette CO cable</p><p>PRODUCT</p><p>Cardiac cable</p><p>PS-420/440 CO cable</p><p>Monitor type: Marquette</p><p>Marquette Medical – Eagle series (rectangular) TRAM Scope</p><p>4</p><p>1</p><p>3</p><p>6</p><p>1</p><p>3</p><p>8</p><p>White</p><p>Brown</p><p>Marquette</p><p>Monitor Connector</p><p>Order no.: 17485</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Monitor Connector: KT-063</p><p>Cable: LIYY 6 x 0.14 mm2, 1.10 m, grey</p><p>Resistor: 9k79 1% 1/8W</p><p>Resistor: 11k0 1% 1/8W</p><p>Resistor: 16k2 1% 1/8W</p><p>Resistor: 24k42 1% 1/8W</p><p>Resistor: 51k6 1% 1/8W</p><p>Resistor: 604k0 1% 1/8W</p><p>Switch: On/On</p><p>9</p><p>11</p><p>16k2</p><p>51k6</p><p>24k42</p><p>2</p><p>7</p><p>6</p><p>60</p><p>4k</p><p>0</p><p>11k0</p><p>9k79</p><p>Shield</p><p>mini-DIN</p><p>Connector</p><p>Front side</p><p>4. White</p><p>6. Brown</p><p>1. Jumper</p><p>3. Jumper</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>�</p><p>��</p><p>�</p><p>�</p><p>�</p><p>�</p><p>mini-DIN Connector</p><p>Solder side</p><p>MQ-3 Connector 1. White</p><p>2. Resistors</p><p>3. Resistor</p><p>6. Shield</p><p>Front side Solder side</p><p>7. Resistors</p><p>8. Resistors</p><p>9. Jumper</p><p>11. Jumper</p><p>� �</p><p>���</p><p>������</p><p>� �</p><p>���</p><p>�����������</p><p>�����</p><p>��</p><p>Temp/CO</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>25.01.1999 1 av 1</p><p>PS-420/440 Temp. cable YSI 400</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Temperature cable</p><p>YSI 400 Series</p><p>Order no.: 17401</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Phone Jack: mono, 1/4�, black</p><p>Cable: Unitronic 100,</p><p>5 x 0.14 mm2, 1.75 m, grey</p><p>2</p><p>7</p><p>PS-420/440</p><p>mini-DIN Connector</p><p>Brown</p><p>Blue</p><p>Phone Jack</p><p>mini-DIN Connector (seen from solder side)</p><p>2. Brown</p><p>7. Blue</p><p>Phone Jack</p><p>Brown</p><p>Blue</p><p>3</p><p>6</p><p>2</p><p>5</p><p>1</p><p>8</p><p>4</p><p>7</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>11.08.1999 1 av 1</p><p>PS-420/440 Temp. cable HP-YSI 400</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Temperature cable</p><p>Monitor type: HP - YSI 400</p><p>Hewlett Packard</p><p>Order no.: 17444</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Monitor Connector: brown, 21082-60010 w/cable</p><p>Cable cutting: 180 cm</p><p>Heat shrunk joint: Transparent id: 3/16" l: 40 mm</p><p>2</p><p>7</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Schield</p><p>mini-DIN Connector (seen from solder side)</p><p>Monitor</p><p>Connector</p><p>Monitor Connector (seen from front side)</p><p>7. Schield</p><p>2. White3</p><p>6</p><p>2</p><p>5</p><p>1</p><p>8</p><p>4</p><p>7</p><p>1. Schield</p><p>2. White1 2</p><p>2</p><p>1</p><p>Temp 1</p><p>Heat shrunk joint</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>25.01.1999 1 av 1</p><p>PS-420/440 Temp.cable YSI 700</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Temperature cable</p><p>YSI 700 Series</p><p>Order no.: 17442</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Phone Jack: stereo, 1/4�, black</p><p>Cable: Unitronic 100,</p><p>5 x 0.14 mm2, 1.75 m, grey</p><p>7</p><p>PS-420/440</p><p>mini-DIN Connector</p><p>Blue</p><p>White</p><p>Black</p><p>Phone Jack</p><p>mini-DIN Connector (seen from solder side) Phone Jack</p><p>5</p><p>Blue</p><p>Black</p><p>5. White Temp 2</p><p>7. Blue</p><p>8. Black Temp 13</p><p>6</p><p>2</p><p>5</p><p>1</p><p>8</p><p>4</p><p>7</p><p>8</p><p>White</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>04.06.1999 1 av 1</p><p>PS-420/440 Temp. cable HP-YSI 700</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Temperature cable</p><p>Monitor type: HP - YSI 700</p><p>Hewlett Packard</p><p>Order no.: 17444</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Monitor Connector: brown, 21082-60010 w/cable</p><p>Cable cutting: 180 cm</p><p>Heat shrunk joint: Transparent id: 3/16" l: 40 mm</p><p>8</p><p>7</p><p>mini-DIN</p><p>Connector</p><p>White</p><p>Schield</p><p>mini-DIN Connector (seen from solder side)</p><p>HP</p><p>Connector</p><p>HP Connector (seen from solder side)</p><p>7. Schield</p><p>8. White3</p><p>6</p><p>2</p><p>5</p><p>1</p><p>8</p><p>4</p><p>7</p><p>1. Schield</p><p>2. White1 2</p><p>2</p><p>1</p><p>Temp 1</p><p>Heat shrunk joint</p><p>METRON AS</p><p>Norway</p><p>DESCRIPTION</p><p>DRAW NO.</p><p>DRAW CAT.</p><p>DATE PAGEPRODUCT</p><p>Temp. cable</p><p>.</p><p>Schematic diagram</p><p>25.01.1999 1 av 1</p><p>PS-420/440 temp. cable unterminated</p><p>Metron AS</p><p>Travbaneveien 1</p><p>N-7044 Trondheim, NORWAY</p><p>Phone: +47 73 82 85 00</p><p>Fax: +47 73 91 70 09</p><p>E-mail: support@metron.no</p><p>PS-420/440 Universal temperature cable</p><p>Unterminated</p><p>Order no.: 17443</p><p>Component list:</p><p>mini-DIN Connector: male, 8 pole, black</p><p>Cable: Unitronic 100,</p><p>5 x 0.14 mm2, 1.75 m, grey</p><p>1</p><p>2</p><p>5</p><p>mini-DIN</p><p>Connector</p><p>Yellow/green (GND)</p><p>Brown</p><p>White</p><p>Blue</p><p>Black</p><p>7</p><p>DIN conn TEMP 1 TEMP 1 TEMP 2</p><p>Pin no.: Color 400 Series 700 Series 700 Series</p><p>1 Yellow No conn. No conn. No conn.</p><p>2 Brown Tip No conn. No conn.</p><p>5 White No conn. No conn. Ring</p><p>7 Blue Barrel Barrel Barrel</p><p>8 Black No conn. Tip No conn.</p><p>CABLE CONNECTION MATRIX:</p><p>UNIVERSAL TEMPERATURE CABLES</p><p>Phone Jack UT1 400 Series</p><p>Tip</p><p>Barrel</p><p>Phone Jack UT2 700 Series</p><p>Ring</p><p>TipBarrel</p><p>mini-DIN Connector (seen from solder side)</p><p>1. Yellow/green (GND)</p><p>2. Brown</p><p>5. White</p><p>7. Blue</p><p>8. Black</p><p>3</p><p>6</p><p>2</p><p>5</p><p>1</p><p>8</p><p>4</p><p>7</p><p>8</p>
