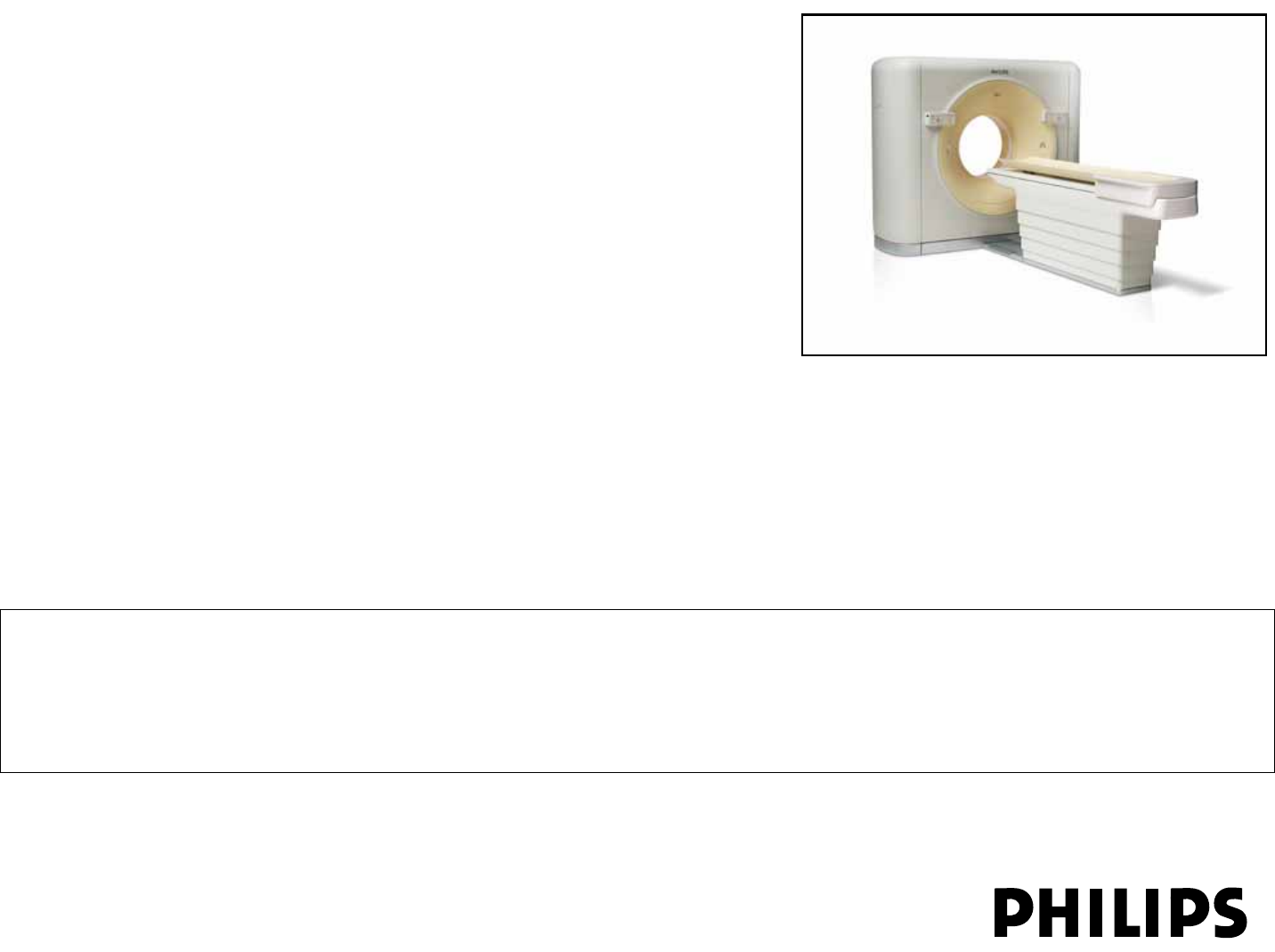

<p>BrillianceTM CT</p><p>6 - s l i c e , 1 0 - s l i c e , 1 6 - s l i c e a n d 1 6 P o w e r c o n f i g u r a t i o n s</p><p>Versions 1.2.5, 2.0, and 2.0.2</p><p>Model: 4535 670 73191 4535 670 73181, 4535 670 78851, 4535 670 05721</p><p>O - L e v e l C I R S S e r v i c e M a n u a l</p><p>4535 671 33851</p><p>Revision E</p><p>© 2006 Philips Medical Systems</p><p>This document and the information contained in it is proprietary and confidential information of Philips Medical Systems (“Philips”) and may not be</p><p>reproduced, copied in whole or in part, adapted, modified, disclosed to others, or disseminated without the prior written permission of the Philips Legal</p><p>Department. Use of this document and the information contained in it is strictly reserved for current Philips personnel and Philips customers who have a</p><p>current and valid license from Philips for use by the customer’s designated in-house service employee on equipment located at the customer’s designated site.</p><p>Use of this document by unauthorized persons is strictly prohibited. Report violation of these requirements to the Philips Legal Department. This document</p><p>must be returned to Philips when the user is no longer licensed and in any event upon Philips’ first written request.</p><p>Philips Medical Systems</p><p>© 2006 KONINKLIJKE PHILIPS ELECTRONICS N. V. ALL RIGHTS RESERVED.</p><p>Warranty Disclaimer</p><p>PHILIPS PROVIDES THIS DOCUMENT WITHOUT WARRANTY OF ANY KIND, EITHER OR EXPRESSED,</p><p>INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A</p><p>PARTICULAR PURPOSE.</p><p>Limitation of Liability</p><p>PHILIPS HAS TAKEN CARE TO ENSURE THE ACCURACY OF THIS DOCUMENT. HOWEVER, PHILIPS ASSUMES</p><p>NO LIABILITY FOR ERRORS OR OMISSIONS AND RESERVES THE RIGHT TO MAKE CHANGES WITHOUT</p><p>FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. PHILIPS</p><p>MAY MAKE IMPROVEMENTS OR CHANGES IN THE PRODUCT(S) OR PROGRAM(S) DESCRIBED IN THIS</p><p>DOCUMENT AT ANY TIME.</p><p>Symbol Descriptions</p><p>Attention symbol Radiation warning symbol</p><p>Laser warning symbol Biohazard warning symbol</p><p>Magnetism warning symbol Projectile warning symbol</p><p>Electrical warning symbol Do not touch</p><p>Revision History</p><p>ECO # Revision Date Comments</p><p>A February 2005 New Release for 1.2</p><p>B March 2005 Clarify document.</p><p>C May 2005 Release for 1.2.5</p><p>D September 2005 Release for 2.0</p><p>E February 2006 Release for 2.0.2</p><p>Safety Information</p><p>To the User of This Manual</p><p>The user of this manual is directed to read and carefully review the instructions, warnings and cautions contained herein prior to</p><p>beginning installation or service activities. While you may have previously installed or serviced equipment similar to that described in this</p><p>manual, changes in design, manufacture or procedure may have occurred which significantly affect the present installation or service.</p><p>Installation and Environment</p><p>Except for installations requiring certification by the manufacturer per federal standards, see that a radiation protection survey is made</p><p>by a qualified expert in accordance with NCRP 102, section 7, as revised or replaced in the future. Perform a survey after every change</p><p>in equipment, workload, or operating conditions which might significantly increase the probability of persons receiving more than the</p><p>maximum permissible dose equivalent.</p><p>Diagnostic Imaging Systems - Mechanical-electrical Warning</p><p>All of the moveable assemblies and parts of this equipment should be operated with care and routinely inspected in accordance with the</p><p>manufacturer’s recommendations contained in the equipment manuals.</p><p>Only properly trained and qualified personnel should be permitted access to any internal parts. Live electrical terminals are deadly; be</p><p>sure line disconnects are opened and other appropriate precautions are taken before opening access doors, removing enclosure panels,</p><p>or attaching accessories.</p><p>Do not under any circumstances, remove the flexible high tension cables from the x-ray tube housing or high tension generator and/or the</p><p>access covers from the generator until the main and auxiliary power supplies have been disconnected. Failure to comply with the above</p><p>may result in serious or fatal bodily injuries to the operator or those in the area.</p><p>Electrical-grounding Instructions</p><p>The equipment must be grounded to an earth ground by a separate conductor. The neutral side of the line is not to be considered the</p><p>earth ground. On equipment provided with a line cord, the equipment must be connected to properly grounded, three-pin receptacle. Do</p><p>not use a three-to-two pin adapter.</p><p>Diagnostic Imaging Systems - Radiation Warning</p><p>X-ray and Gamma-rays are dangerous to both operator and others in the vicinity unless established safe exposure procedures are strictly</p><p>observed.</p><p>The useful and scattered beams can produce serious or fatal bodily injuries to any persons in the surrounding area if used by an unskilled</p><p>operator. Adequate precautions must always be taken to avoid exposure to the useful beam, as well as to leakage radiation from within</p><p>the source housing or to scattered radiation resulting from the passage of radiation through matter.</p><p>Those authorized to operate, participate in or supervise the operation of the equipment must be thoroughly familiar and comply</p><p>completely with the current established safe exposure factors and procedures described in publications, such as: Subchapter J of Title 21</p><p>of the Code of Federal Regulations, "Diagnostic X-ray Systems and Their Major Components", and the national council on radiation</p><p>protection (NCRP) no. 102, "Medical X-ray And Gamma-ray Protection For Energies Up To 10 Mev-equipment Design and Use", as</p><p>revised or replaced in the future.</p><p>Those responsible for planning of x-ray and gamma-ray equipment installations must be thoroughly familiar and comply completely with</p><p>NCRP no. 49, "Structural Shielding Design and Evaluation For Medical Of X-rays and Gamma-rays of Energies Up to 10 Mev", as revised</p><p>and replaced in the future. Failure to observe these warnings may cause serious or fatal bodily injuries to the operator or those in the</p><p>area.</p><p>Add additional safety information as needed</p><p>Only qualified and system trained Philips service staff is allowed to perform service (installation, maintenance, quality assurance) on the</p><p>BrillianceTM CT systems. Make sure that the latest version of the service instructions are available. Read the corresponding instructions</p><p>carefully prior to working on the system. For your own safety and for more detailed safety information, refer only to the current version of</p><p>the documents.</p><p>Use only specified tools and auxiliary materials. After finishing any service activity, ensure that all covers of the BrillianceTM CT, including</p><p>the mylar gasket, are closed</p><p>Precautionary Measures Regarding Electrical Voltage</p><p>Before you start the procedure outlined in this manual, make sure that you read and understand the warnings listed below.</p><p>WARNING PRIOR TO ANY SERVICE AND MAINTENANCE ACTIVITIES INSIDE COMPONENTS:</p><p>SWITCH OFF THE SYSTEM AT THE MAIN POWER SUPPLY, (USING THE ON-SITE ON-OFF SWITCH)</p><p>AND THE INTERNAL/EXTERNAL UNINTERRUPTIBLE POWER SUPPLY (UPS).</p><p>MAKE SURE THAT NO OTHER PERSON CAN SWITCH ON POWER OR SWITCH OFF THE SECURITY</p><p>MEASURES, WHEN INSTALLATION, MAINTENANCE OR SERVICE WORK ON THE SYSTEM IS</p><p>PERFORMED.</p><p>WARNING IN ADDITION TO THE WARNINGS LISTED ABOVE, MAKE SURE TO FOLLOW ALL SAFETY</p><p>GUIDELINES AS DESCRIBED IN THE SAFETY CHAPTER OF THIS MANUAL. FAILURE TO DO SO</p><p>CAN RESULT IN SEVERE PERSONAL INJURY.</p><p>CAUTION Always use an ESD protection wrist strap when servicing any component in the system.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. i</p><p>Contents</p><p>Firmware Installation for Acquisitor and 3DBP ................................................................................. 1-1</p><p>Extract JTAG files from CIRS servers to Laptop...................................................................................................... 1-1</p><p>Extract files .........................................................................................................................................................</p><p>1-1</p><p>Convert 3DBP Svf file to xsvf file ........................................................................................................................ 1-2</p><p>Acquisitor (EEPROM Re-programming from JTAG Connector) .............................................................................. 1-3</p><p>3DBP (EEPROM Re-programming from JTAG Connector)..................................................................................... 1-10</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 1</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>Firmware Installation for Acquisitor and 3DBP</p><p>This section allows you to manually download firmware to the Acquisitor and 3DBP boards. You will need to download</p><p>and install the Xilinx programming software on to a laptop. Free "Webpack" programming software is available from the</p><p>Xilinx web-site (www.xilinx.com/support/download.htm).</p><p>NOTE For the latest Xilinx 6.2 release, the only supported platforms are Windows XP and Windows 2000 with</p><p>Service Pack 2 or greater.</p><p>Extract JTAG files from CIRS servers to Laptop</p><p>Extract files</p><p>� 1 On the Host, log on as olevel_service.</p><p>� 2 On the O-level Diagnostics Panel, click the Remote Desktop button.</p><p>� 3 On the Remote Desktop Connection window, enter 192.168.0.200 to connect to S1.</p><p>� 4 At the log on prompt, log on as olevel_service.</p><p>� 5 Right-click on the S1 Desktop, and select New > Folder. Name the folder Acq.</p><p>� 6 Right-click on the S1 Desktop, and select New > Folder. Name the folder 3DBP.</p><p>� 7 Right-click on the Start button, and select Explore.</p><p>� 8 Use Windows Explorer to navigate to C:\Program Files\Philips\CIRS\AcqGem.</p><p>� 9 In the AcqGem directory, right-click on ACQ16_*_1.exo, and select Copy.</p><p>� 10 On the Desktop, right-click on the ACQ folder, and select Paste.</p><p>� 11 Return to the AcqGem directory in Windows Explorer, right-click on ACQ16_*_0.exo, and select Copy.</p><p>� 12 On the Desktop, right-click on the ACQ folder, and select Paste.</p><p>� 13 Use Windows Explorer to navigate to C:\Program Files\Philips\CIRS\3DBP.</p><p>� 14 Right-click on 3DBP_vxxxx_.svf, and select Copy.</p><p>� 15 On the Desktop, right-click on the 3DBP folder, and select Paste.</p><p>� 16 Insert a USB "Jump Drive" memory device into the USB port on the rear of the S1 server. When the drive connects,</p><p>Windows Explorer will show "Removable Disk" listed under My Computer.</p><p>� 17 On the S1 Desktop, right-click on the Acq folder and select Send to... > Removable Disk.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 2</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 18 On the S1 Desktop, right-click on the 3DBP folder and select Send to... > Removable Disk.</p><p>� 19 In Windows Explorer, click on Removable Disk, and verify the Acq and 3DBP folders are there.</p><p>� 20 Double-click the Safely Remove Hardware icon on the System Tray.</p><p>� 21 On the Safely Remove Hardware window, click on USB Mass Storage Device to highlight it. Then click Stop.</p><p>� 22 On the Stop Hardware Device window, click on USB Mass Storage Device to highlight it. Then click OK.</p><p>� 23 On the Safely Remove Hardware window, click Close.</p><p>� 24 Remove the USB “Jump Drive” from the rear of the server.</p><p>� 25 Close the Remote Desktop Connection to CIRS.</p><p>� 26 Install the jump drive containing the programming files to the laptop. After connection is complete. Using Windows</p><p>Explorer, copy and paste those folders from the jump drive to the C:\ directory.</p><p>Convert 3DBP Svf file to xsvf file</p><p>� 1 Create a folder on the C:\ directory called SVF.</p><p>� 2 Copy the 3DBP_vxxxx_.svf from the 3DBP folder to the SVF folder</p><p>� 3 Go to www.xilinx.com. In the search field at the top of the page, enter XAPP058.pdf, then click Search.</p><p>� 4 Click on the Xilinx XAPP058 Xilinx In-System Programming Using an Embedded ... link to view the .pdf.</p><p>� 5 At the bottom of the first page of the .pdf, click on the ftp://ftp.xilinx.com/pub/swhelp/cpld/eisp_pc.zip link.</p><p>� 6 On the File Download window, click Save.</p><p>� 7 On the Save As window, navigate to the C:\SVF folder, then click Save.</p><p>� 8 Open the SVF folder and double click on the zip file.</p><p>� 9 Click the Extract button, and the Extract window, navigate to the SVF folder. Then click the Extract button on the</p><p>window. The SVF folder should now contain a folder named xapp058_v5.01.</p><p>� 10 In that folder, navigate to bin > nt, and verify that svf2xsvf502.exe is there.</p><p>� 11 Click Start > Run, type cmd in the field, and click OK.</p><p>� 12 At the Command Prompt (needs to be C:\ >), enter the following string:</p><p>SVF\xapp058_v5.01\bin\nt\svf2xsvf502.exe -i C:\SVF\3DBP_v0010.svf -o C:\SVF\3DBP_v0010.xsvf</p><p>NOTE -i is the input file path command and -o is the output file path command.</p><p>� 13 The 3DBP_v0010.xsvf should now be in the SVF file and ready to be used.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 3</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>Acquisitor (EEPROM Re-programming from JTAG Connector)</p><p>The EEPROM's for configuring the FPGA are reprogrammable using Xilinx programming software and connector J4.</p><p>� 1 The Acquisitor board should be installed in a PCI slot and power applied.</p><p>� 2 Connect one end of the JTAG programming cable to the DB-25 parallel port on the PC containing the Xilinx</p><p>programming software.</p><p>� 3 Connect the flying leads of the JTAG programming cable to the 0.025 square posts on the Acquisitor JTAG</p><p>connector (see table and diagram below).</p><p>� 4 On your laptop, click the shortcut named "IMPACT"</p><p>Table 1 - 1: Brilliance 16 Power Acquisitor: JTAG Connector, J3</p><p>NC 10 9 GND</p><p>NC 8 7 TDI</p><p>NC 6 5 TCK</p><p>VCC 4 3 TMS</p><p>NC 2 1 TDO</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 4</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 5 On the Operation Mode Selection window, select Configure Devices. Then click the Next button</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 5</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 6 On the Configure Devices window, select Boundary Scan Mode.</p><p>Then click the Next button.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 6</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 7 On the Boundary-Scan Mode Selection Window, select Automatically</p><p>connect to cable and identify Boundary-Scan chain. Then click the</p><p>Finish button.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 7</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 8 Verify the following message displays, then click OK.</p><p>� 9 Verify the proper devices are shown in the JTAG chain.</p><p>1st = xc18v04 (EEPROM)</p><p>2nd= xc18v04 (EEPROM)</p><p>3rd= xc2v1500 (FPGA)</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 8</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 10 Right-click on the first device in the chain (xc18v04), and select Assign New Configuration File. Browse to C:\Acq,</p><p>and click on ACQ16_*_1.exo. Then click Open.</p><p>� 11 Right-click on the second device in the chain (xc18v04), and select Assign New Configuration File. Browse to</p><p>C:\Acq, and click on ACQ16_*_0.exo. Then click Open.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 9</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 12 Select the first xc18v04 device in JTAG chain.</p><p>� 13 Right-click on the device and select operations/</p><p>program from the menu.</p><p>� 14 Verify settings are as shown in Program Options</p><p>popup, then click OK.</p><p>� 15 Verify "Programming Succeeded" message is</p><p>displayed.</p><p>� 16 Select second xc18v04 device.</p><p>� 17 Right-click on the device and select operations/</p><p>program from the menu.</p><p>� 18 Verify settings are as shown in Program Options</p><p>popup, then click OK.</p><p>� 19 Verify "Programming Succeeded" message is</p><p>displayed.</p><p>� 20 Close the Impact Programmer tool.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 10</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>3DBP (EEPROM Re-programming from JTAG Connector)</p><p>Prior to using the 3DBP board, you must program the EEPROM that configures the FPGA.</p><p>� 1 Install the 3DBP into a PCI slot and connect it to the Power Board.</p><p>� 2 Connect the JTAG download cable to connector J28. The pin assignment for J28 is shown below.</p><p>Table 1 - 2: FPGA JTAG Header Pinout</p><p>Function Pin Pin Function</p><p>TCK 1 2 GND</p><p>TDO 3 4 +3.3V</p><p>TMS 5 6 No Connect</p><p>No Connect 7 8 No Connect</p><p>TDI 9 10 GND</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 11</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 3 Apply power to the system in which the 3DBP and Power boards are installed.</p><p>� 4 Launch the Xilinx iMPACT tool.</p><p>� 5 On the Operation Mode Selection window, click Cancel.</p><p>� 6 In the area that says "Right click to Add device or initialize JTAG chain", right-click and select Add Xilinx Device</p><p>from the menu.</p><p>� 7 Navigate to C:\SVF folder and select the 3DBP_vXXXX.xsvf file you had created earlier. Then click Open.</p><p>CSIP Level 0 © 2006 Koninklijke Philips Electronics N.V. All Rights Reserved. Refer to Front Cover. 12</p><p>Firmware Installation for Acquisitor and 3DBPO-Level CIRS Service Manual</p><p>� 8 Right click on the device, and from the popup menu select Execute xsvf. The operations status window will show</p><p>the command executing.</p><p>� 9 A "Succeeded" pop-up will appear when the download is complete. Also, there will be a message in the in the lower</p><p>screen of the programming window that says the operation completed successfully.</p><p>� 10 On the menu bar, select File > Exit. Answer No when prompted to save changes.</p><p>� 11 Power down the system.</p><p>� 12 Remove the Xilinx programming cable from the 3DBP board.</p><p>� 13 Power up the system.</p><p>Firmware Installation for Acquisitor and 3DBP</p><p>Extract JTAG files from CIRS servers to Laptop</p><p>Extract files</p><p>Convert 3DBP Svf file to xsvf file</p><p>Acquisitor (EEPROM Re-programming from JTAG Connector)</p><p>3DBP (EEPROM Re-programming from JTAG Connector)</p><p>2006-02-24T08:40:37-0500</p><p>Cleveland, Ohio 44143 U.S.A.</p><p>Rebecca Nemenz</p><p>I am approving this document</p>
