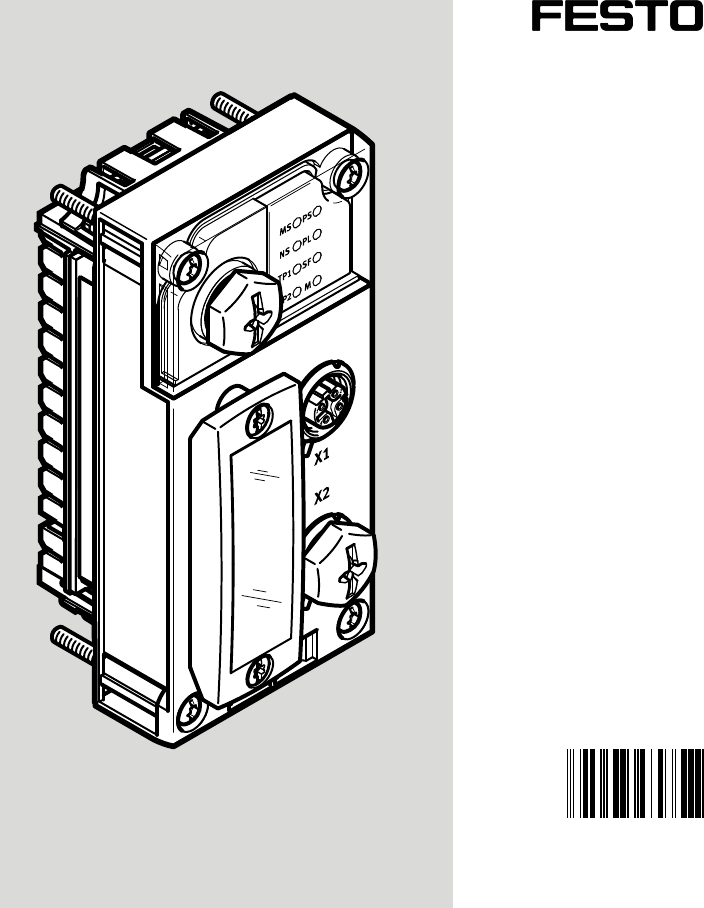

Bus node
8024075
2019-07b
[8090481]
Description | Commis-
sioning
Translation of the original instructions
ALLEN-BRADLEY®, CODESYS®, EtherNet/IP®, HART®, MODBUS®, ODVA CONFORMANT®, ODVA®,
ROCKWELL AUTOMATION®, SPEEDCON®, STUDIO 5000® are registered trademarks of the respective
trademark owners in certain countries.
2 Festo — CPX-FB36 — 2019-07b
3Festo — CPX-FB36 — 2019-07b
1 Safety........................................................................................................................... 7
1.1 Intended Use................................................................................................................ 7
1.2 Safety Instructions....................................................................................................... 7
1.3 Qualifications of specialised personnel (target group).................................................. 8
1.4 Service...........................................................................................................................8
1.5 Information regarding this description......................................................................... 8
1.6 Terms and abbreviations.............................................................................................. 8
1.7 Data types.................................................................................................................... 11
2 Installation.................................................................................................................. 12
2.1 General information about installation......................................................................... 12
2.1.1 Connection and display components...................................................................... 12
2.1.2 Dismantling and mounting......................................................................................13
2.2 Settings of the DIL switches.......................................................................................... 13
2.2.1 Removing and attaching cover................................................................................14
2.2.2 Arrangement of the DIL switches............................................................................ 14
2.2.3 Setting DIL switches................................................................................................14
2.2.4 Setting operating mode and network protocol........................................................15
2.2.5 Setting diagnostic mode or data field size.............................................................. 15
2.2.6 Setting IP addressing..............................................................................................16
2.3 Connecting to the network............................................................................................ 17
2.3.1 General information................................................................................................ 17
2.3.2 Overview of connection technology and network plug connectors..........................18
2.3.3 Cable specification..................................................................................................18
2.3.4 Network connections.............................................................................................. 19
2.3.5 Setting IP addressing..............................................................................................20
2.3.6 Extended network settings..................................................................................... 22
2.4 Ensuring the degree of protection................................................................................ 22
2.5 Power supply of the CPX terminal................................................................................. 22
3 Preparing for commissioning...................................................................................... 23
3.1 EtherNet/IP protocol.................................................................................................... 23
3.1.1 IP-Multicast telegram..............................................................................................23
3.1.2 "QuickConnect"......................................................................................................24
3.1.3 Device-Level-Ring protocol (DLR)............................................................................26
3.2 Modbus TCP protocol................................................................................................... 26
3.3 Notes on commissioning the CPX-FB36........................................................................ 27
3.3.1 Requirements for commissioning............................................................................27
3.3.2 Switching on the power supply............................................................................... 28
3.3.3 Normal operating status......................................................................................... 28
3.4 Stations in the network................................................................................................ 30
3.4.1 Station properties (Electronic Data Sheet, EDS file)................................................30
Table of contents
4 Commissioning.............................................................................................................31
4.1 Configuration.................................................................................................................31
4.1.1 Configuration with EDS file.................................................................................... 31
4.1.2 Configuration with "Generic Ethernet Module"..................................................... 37
4.1.3 Configuration with CPX-FMT................................................................................... 42
4.1.4 Configuration in Remote Controller operating mode.............................................. 45
4.1.5 "Listen-only" Set up connection............................................................................ 46
4.2 Parameterisation........................................................................................................... 46
4.2.1 Parameterisation during switch-on [system start].................................................. 47
4.2.2 Methods of parameterisation................................................................................. 48
4.2.3 Parameterisation via configuration data................................................................ 49
4.2.4 Parameterisation with the CPX-MMI operator unit................................................. 50
4.2.5 Parameterisation in the PLC user program............................................................. 50
4.2.6 Parameterisation using CPX-FMT and system start with saved parameters............ 50
4.3 Behaviour of the outputs in the "Fail safe mode" or " "Idle mode" mode.................... 50
4.4 Web server.................................................................................................................... 50
4.5 Check list for commissioning a CPX terminal................................................................. 51
4.6 Replacing bus node....................................................................................................... 51
5 Diagnostics...................................................................................................................52
5.1 Diagnostics options.......................................................................................................52
5.2 Diagnostics via LED displays......................................................................................... 53
5.2.1 CPX-specific LED displays...................................................................................... 54
5.2.2 Network-specific LED displays...............................................................................""Ethernet"".
Commissioning
47Festo — CPX-FB36 — 2019-07b
1 ""Assembly Instance"" connection paramet-
er for ""Configuration""
Fig. 20 Dialogue ""Module Properties""
3. In the ""Connection Parameters"" range for ""Configuration"" enter the value ""Assembly
Instance"" = 0.
4. Close dialogue ""Module Properties"" with the ""Finish" >>" button.
If the Modifiy (M) LED on the bus node is on permanently after system start-up, [System start with
saved parameters] is set.
4.2.2 Methods of parameterisation
Method Description Advantages Disadvantages
Parameterisation
via configuration
data (Configuration
Assembly)
Export of CPX ter-
minal parameterisa-
tion by using CPX-
FMT.
Import of the set-
tings in the "Stu-
dio 5000" software.
Convenient transfer of the
complete configuration for
a CPX terminal.
–
è 4.2.3 Parameterisation via configuration data
Commissioning
48 Festo — CPX-FB36 — 2019-07b
Method Description Advantages Disadvantages
Parameterisation
with the CPX-MMI
operator unit
Parameterisation
via menu-driven
entries.
Convenient parameterisa-
tion via the menu naviga-
tion (plain text).
Parameterisation of the
CPX terminal is saved loc-
ally in the bus node and is
lost if the node is
replaced.1)
è 4.2.4 Parameterisation with the CPX-MMI operator unit
Parameterisation in
the PLC user pro-
gram
Parameterisation
via Explicit Mes-
saging. Parameters
are saved in the
PLC.
Parameters are reloaded
after every restart and are
therefore also retained if
the device is replaced.
User program required
è 4.2.5 Parameterisation in the PLC user program
Parameterisation
using CPX-FMT and
system start with
saved parameters
Parameterisation
via menu-driven
entries.
Parameters are
saved directly in the
bus node.
Start with saved
parameters neces-
sary.
Fast, simple parameterisa-
tion during commissioning
for testing the parameters.
Parameterisation of the
CPX terminal is saved loc-
ally in the bus node and is
lost when replaced.1)
è 4.2.6 Parameterisation using CPX-FMT and system start with saved parameters
1) The current parameterisation can be copied with the CPX-MMI operator unit.
Tab. 27 Methods of parameterisation
Further information about parameterisation can be found in the CPX system description (CPX-SYS).
NOTICE!
The last parameterisation transferred in the CPX terminal is always valid.
4.2.3 Parameterisation via configuration data
The parameterisation via configuration data (Configuration Assembly) corresponds to the method for
configuration with CPX-FMT and transfer of all parameters to the "Studio 5000" software
è 4.1.3 Configuration with CPX-FMT.
Commissioning
49Festo — CPX-FB36 — 2019-07b
4.2.4 Parameterisation with the CPX-MMI operator unit
The CPX-MMI operator unit offers menu-driven access to the parameterisation. It does not require any
additional configuration software.
Information about using the operator unit can be found in the corresponding description.
4.2.5 Parameterisation in the PLC user program
Program-controlled access to parameters is via Explicit Messaging. The addresses of the EtherNet/IP
object model required for this can be found in the appendix è 6.3.1 Overview of EtherNet/IP objects.
Further information on programming this data data transfer can be found in the manual for the control-
ler.
4.2.6 Parameterisation using CPX-FMT and system start with saved parameters
The parameterisation corresponds to the method for configuration with CPX-FMT and transfer of all
parameters to the "Studio 5000" software è 4.1.3 Configuration with CPX-FMT.
The parameterisation of the CPX terminal is saved directly in the bus node. To use this parameterisa-
tion, the “System start” parameter needs to be set to “Saved parameters”
è 4.2.1 Parameterisation during switch-on [system start].
4.3 Behaviour of the outputs in the "Fail safe mode" or " "Idle mode" mode
“Idle mode” ("Idle mode") is assumed by the participants after a request by the master.
The error state ("Fail safe mode", also called "Fault mode") defines the state of the respective chan-
nel in case of network communication errors.
This applies for this status:
– Inputs are transmitted
– Output channels of the stations are no longer updated
In the "Fail safe mode" or "Idle mode" outputs can have one of the following states:
Digital outputs/valves Analogue outputs
Freeze current status Freeze current status
Reset the output
Setting the output
Desired analogue value
Tab. 28 Possible states in the "Fail safe mode"/"Idle mode"
The status to be assumed for each output channel (output or solenoid coil) can be determined separ-
ately. The standard setting is "Reset of the output channel".
Additional information can be found in the CPX system description (CPX-SYS).
4.4 Web server
A web server is integrated in the CPX-FB36 bus node. The web server provides the most important
parameters and diagnostic functions.
Commissioning
50 Festo — CPX-FB36 — 2019-07b
Fig. 21 Web server of the CPX-FB36
Procedure
– Enter the IP address of the bus node in the address line of an internet browser as follows :
http://192.168.1.xxx
4.5 Check list for commissioning a CPX terminal
– Observe the general instructions for commissioning in the CPX system description (CPX-SYS).
– Check the DIL switch settings and network configuration before using and replacing the CPX ter-
minal.
– Check the configured address range and test the inputs and outputs, if necessary.
– Check the address assignment of the inputs and outputs on the CPX terminal, e.g. with the
"Force" function.
– Make sure that the desired parameterisation of the CPX terminal in the start-up phase or after net-
work interruptions is restored by the interface module.
This ensures that, if the CPX terminal is replaced, the new terminal will also be operated with the
desired parameter settings.
– If necessary, check parameterisation with configuration software (e.g. "Studio 5000") or an oper-
ator unit (e.g. CPX-MMI).
4.6 Replacing bus node
CAUTION!
For CPX terminals with a steady or flashing "Modify" LED (M), the parameterisation is not automatic-
ally created by the higher-level system when the CPX terminal is replaced during servicing.
• Make a note of the settings required before replacement and restore them after replacement.
Commissioning
51Festo — CPX-FB36 — 2019-07b
When replacing a bus node with the setting [System start with saved parameters], the CPX terminal is
not automatically parameterised by the higher-order controller.
The CPX-FB36 bus node is compatible with the CPX-FB32 bus node:
In existing applications, a CPX-FB32 bus node can be replaced by a CPX-FB36 bus node (from Revision
13) without changing the configuration of the host system.
Exchange with the Festo Maintenance Tool (CPX-FMT):
1. Before replacing the bus node, save the parameterisation of the CPX terminal in a CPX-FMT file.
2. After replacing the bus node, transfer the parameterisation to the new bus node.
["CPX"] > ["Download Settings..."]
3. Activate all settings to be loaded in the dialogue ""Download"".
4. Start the transfer to the bus node by pressing the ""OK"" button.
5 Diagnostics
5.1 Diagnostics options
Diagnostics option Brief description Advantages
LED display Display of configuration, hardware,
network errors, etc. directly at the
bus node.
Fast error detection "on-site"
è 5.2 Diagnostics via LED displays
Status bits Internal inputs that supply coded
common diagnostic messages.
Fast access to error messages, inde-
pendent of the interface and higher-
order controller.
è 5.3 Diagnostics via status bits and CPX system description (CPX-SYS)
I/O diagnostics inter-
face
Bus-independent diagnostic inter-
face at I/O level, which enables
access to the internal data of the
CPX terminal
(16 inputs and 16 outputs)
Detailed error detection and further
processing of diagnostic data, e.g.
by a PLC user program.
è 5.4 Diagnostics via the I/O diagnostics interface and CPX system description (CPX-SYS)
Operator unit CPX-MMI Menu-driven display of diagnosticinformation on the operator unit.
Fast error detection "on site"
without programming in plain text.
è Description of operator unit (CPX-MMI)
Diagnostics
52 Festo — CPX-FB36 — 2019-07b
Diagnostics option Brief description Advantages
Diagnostics via Ether-
Net/IP
Access to all system data of the CPX
terminal over the network.
Detailed error detection as well as
access to the diagnostic memory in
the online mode of the controller
software and in the PLC user pro-
gram.
è 6.3.1 Overview of EtherNet/IP objects
Tab. 29 Diagnostics options
The available diagnostic information is dependent on the DIL switch settings on the bus node and the
parameterisation of the CPX terminal.
5.2 Diagnostics via LED displays
The following LED displays for diagnosis of errors are available on the bus node:
1 CPX-specific LED displays:
– PS: Power System (green)
– PL: Power Load (green)
– SF: System Failure (red)
– M: Modifiy (yellow)
2 Network-specific LED displays
- MS: Module Status (green, red)
- NS: (greenNetwork Status, red)
– TP1: Link/Traffic Port 1 (green)
– TP2: Link/Traffic Port 2 (green)
Fig. 22 LED displays
In the following sections, the different statuses of the LED displays are shown as follows:
lights up
flashing
off
Tab. 30 Status of the LED displays
Diagnostics
53Festo — CPX-FB36 — 2019-07b
Normal operating status
In the normal operating status the following LEDs are green è Tab. 31 Normal operating status.
The SF-LED is not on. The M-LED is only on with the "System start with stored parameterisation and
stored CPX extension" setting (function number 4402
è Tab. 73 Attributes of the system object for Remote I/O operating mode).
LED display Operating status
These LEDs are green:
– MS
– NS
– TP1/TP21)
– PS
– PL
The red LED (SF) is not on.
The yellow LED (M) is on.2)
normal
1) Steady light: ready for data transfer; flashing: data being transmitted
2) On only if "System start with stored parameterisation and stored CPX extension" is activated.
Tab. 31 Normal operating status
5.2.1 CPX-specific LED displays
PS (Power System) – power supply
LED status Meaning Error handling
lights up green
No error. Operating voltage
applied.
–
flashes green
(fast flashing)
Operating voltage outside the
tolerance range.
– Rectify undervoltage.
flashes green
Internal fuse has tripped. 1. Rectify short circuit/overload.
2. Depending on the parameterisation:
– The power supply will be switched
on again automatically after the
short circuit has been eliminated
(factory setting).
– Switch the power supply off and
then on again.
Diagnostics
54 Festo — CPX-FB36 — 2019-07b
PS (Power System) – power supply
LED status Meaning Error handling
off
Operating voltage not present. – Check connection of the operating
voltage.
Tab. 32 LED display PS (power supply)
PL (Power Load) – load voltage supply
LED status Meaning Error handling
lights up green
No error. Load voltage present. –
flashes green
Load voltage outside the toler-
ance range.
– Rectify undervoltage.
Tab. 33 LED display PL (load voltage supply)
SF (System Failure) – system error
LED status1) Meaning Error handling
flashes red 1x
minor error/information
(fault class 1) 2)
flashes red 2x
Error
(fault class 2) 3)
flashes red 3x
serious error
(fault class 3) 4)
è CPX system description (CPX-SYS)
off
No error. –
1) The LED display SF flashes depending on the error class that has occurred.
2) Fault class 1 (minor faults): 1x flashing, pause time
3) Fault class 2 (faults): 2x flashing, pause time
4) Fault class 3 (serious faults): 3x flashing, pause time
Tab. 34 LED display SF (system error)
Diagnostics
55Festo — CPX-FB36 — 2019-07b
M (Modify) – parameterisation modified or forcing active
LED status Meaning
on yellow
System start with saved parameterisation and saved CPX expansion has
been set:
– Parameters and CPX configuration are stored retentively
– external parameterisation is blocked1)
Caution when replacing CPX valve terminals with saved parameterisation.
For these CPX terminals, parameterisation is not carried out automatically
by the higher-order controller when the terminal is replaced.
– Before replacing, determine the necessary settings and restore them if
necessary.
flashing yellow
Forcing active1)
The Force function is enabled or the IP address was changed via the DIL
switch (restart required).
off
System start with default parameterisation and current CPX structure (fact-
ory setting)
– external parameterisation is possible
1) The display of the Force function (LED flashes) has priority over the display of the system start setting (LED on).
Tab. 35 LED display M (parameterisation modified or forcing active)
5.2.2 Network-specific LED displays
MS (Module Status) – Module status1)
LED status Meaning Error handling
Network protocol EtherNet/IP
lights up green
normal operating status -
flashes green
Configuration of the CPX terminal
not complete or not correct.
– Complete or correct configura-
tion of the CPX terminal.
lights red
error cannot be rectified – Contact Festo Service
(è www.festo.com).
flashes red
error can be rectified – Check configuration of the CPX
terminal.
Diagnostics
56 Festo — CPX-FB36 — 2019-07b
http://www.festo.com
MS (Module Status) – Module status1)
LED status Meaning Error handling
flashes red/green
The CPX terminal is in self-test. –
off
No logic power supply to the net-
work interface.
– Check logic power supply.
Network protocol Modbus TCP
lights up green
Ready for Modbus connections –
off
Not ready for Modbus connections –
1) The behaviour of the LED display depends on the network protocol used.
Tab. 36 LED display MS (Module Status)
NS (Network Status) – Network Status1)
LED status Meaning Error handling
Network protocol EtherNet/IP
lights up green
Normal operating status. The CPX
terminal is online and has a net-
work connection.
–
flashes green
The CPX terminal is online and has
received an IP address but does
not have a configured network con-
nection.
– Check configuration of the CPX
terminal; it is possible that the
CPX terminal has not been
allocated to a Master/Scanner.
lights red
Communication has failed. Non-
permitted IP address set that is
already used in the network.
– Correct IP address.
flashes red
One or more "I/O Connections"
are in the "Time-out status".
– Check physical connection to
the Master/Scanner.
Diagnostics
57Festo — CPX-FB36 — 2019-07b
NS (Network Status) – Network Status1)
LED status Meaning Error handling
flashes red/green
The CPX terminal is in self-test. –
off
The CPX terminal is offline. – Check network connection.
Network protocol Modbus TCP
lights up green
At least one Modbus connection
active.
–
off
No Modbus connection active. –
1) The behaviour of the LED display depends on the network protocol used.
Tab. 37 LED display NS (Network Status)
TP1, TP2 (Link/Traffic) – connection/data traffic
LED status Meaning Error handling
lights up
Network connection OK –
flashing
Data traffic activity (Traffic)
Flashing frequency depends on the
traffic.
–
off
No network connection – Check network connection.
Tab. 38 LED display TP1, TP2 (connection/data traffic)
5.3 Diagnostics via status bits
Status bits are internal inputs that serve to display common diagnostic messages (global error mes-
sages). If all status bits return a logic 0, no error is reported. If at least one status bit returns a logic 1,
there is a fault è Tab. 39 Overview of status bits.
Diagnostics
58 Festo — CPX-FB36 — 2019-07b
If the status bits are to be transmitted via a "Polled" or "Change of state" connection, the DIL
switches on the bus node must be set accordingly è Tab. 6 Setting diagnostic mode or data field size.
Bit Diagnostic information with logic 1 Description
0 Error at valve
1 Error at output
2 Error at input
Module type in which an error has
occurred
3 Error at analogue module/technology module Module type in which an error has
occurred
4 Undervoltage Type of error5 Short circuit/overload Type of error
6 Cable break Type of error
7 Other error Type of error
Tab. 39 Overview of status bits
Detailed information on the status bits can be found in the CPX system description (CPX-SYS ).
5.4 Diagnostics via the I/O diagnostics interface
Detailed diagnostic information about the CPX terminal can be accessed via the I/O diagnostic inter-
face. As a result, it can be determined exactly on which module and channel an error has occurred, for
example. Available to access this information are 16 input bits and 16 output bits, through which all
diagnostic data can be read.
To use the I/O diagnostics interface, it must be activated via DIL switches on the bus node
è Tab. 6 Setting diagnostic mode or data field size. When the I/O diagnostic interface is activated, the
first 16 inputs and outputs in the address range are occupied è Tab. 50 Sequence of addressing.
Diagnostic data Description
Global diagnostic data General overview of errors
Module diagnostic data Detailed diagnostics per module
Status of diagnostic memory Number of entries in the diagnostic memory and operating
mode
Diagnostic memory data Long-term memory, detailed diagnostics and relative time
stamp per error event
Tab. 40 Diagnostic data
Diagnostics
59Festo — CPX-FB36 — 2019-07b
Detailed information on the I/O diagnostic interface and the available diagnostic information and the
corresponding function numbers can be found in the CPX system description (CPX-SYS).
Accessing EtherNet/IP objects via Explicit-Messaging programming is more useful for the CPX-FB36
bus node than using the I/O diagnostics interface è 6.3.1 Overview of EtherNet/IP objects.
5.5 Diagnostics via EtherNet/IP
The CPX system permits diagnostics through the network. The following options are supported here:
– Explicit Messaging via EtherNet/IP-Master
– Diagnostics via user program The I/O diagnostic interface can also be read out here.
Overview of diagnostic data for Explicit Messaging
The following EtherNet/IP objects offer detailed diagnostic information:
Object classes Name Diagnostic data
101d Generic Module Parameter
Object
– Faulty channel type
– Number of the faulty channel
– Module error number
133d Status and Diagnostics Object – Number of the module in which an error has
occurred
– Diagnostic status (specifies whether dia-
gnostic data are present)
– System error number
134d Diagnostics Trace Object – Long-term memory
(max. 40 entries)
– Detailed diagnostics and relative time stamp
per error event
135d Diagnostics Trace Status Object – Number of entries in the diagnostic memory
– Trace status
Tab. 41 Diagnostic data with Explicit Messaging
Possible sequence of diagnostics
Possible sequence of dia-
gnostics
Diagnostic data Object that supplies the dia-
gnostic data
1. Check whether diagnostic
data are present
Diagnostic status Status and Diagnostics Object
(133d)
Diagnostics
60 Festo — CPX-FB36 — 2019-07b
Possible sequence of dia-
gnostics
Diagnostic data Object that supplies the dia-
gnostic data
2. Determine the number of the
module in which an error has
occurred
Number of the module Status and Diagnostics Object
(133d)
3. Determine relevant module
diagnostic data
Error number, channel type and
number of the faulty channel
Generic Module Parameter
Object (101d)
Tab. 42 Possible sequence of diagnostics
5.6 Diagnostics via Modbus TCP
The CPX system enables diagnostics via the protocol Modbus TCP è Description CPX-CEC/CPX-FEC:
– Diagnostics via CPX status register, CPX diagnostic memory and I/O diagnostics interface
5.7 Error handling ("Fail safe")
The behaviour of the CPX terminal with the following malfunctions is dependent on the parameterisa-
tion of the higher-order controller and the setting of the "Fail safe" parameter:
– Telegram failure
– Stop the higher-order controller
– Break in the network cable.
Depending on the parameterisation, the outputs (valves and electric outputs) will be switched off
(factory setting), switched on or retain their status.
“Reset outputs” means the following:
• Monostable valves move to the initial position.
• Bistable valves remain in the current position.
• Mid-position valves go into mid-position (pressurised, exhausted or blocked, depending on valve
type).
WARNING!
Undesired status of valves and outputs with communication errors
Injury to people, damage to the machine and system
An incorrect status of valves and outputs can lead to dangerous situations.
• Ensure that valves and outputs relating to the aforementioned malfunctions are placed in a safe
condition.
The Modbus connection for the controller is monitored by default with a timeout of 10 seconds. This
time can be adjusted via Modbus address 46100 è Tab. 118 Modbus connection timeout.
If no telegrams are received by the controller during the set time, the outputs are set to the set values
of the "Fail safe" parameter.
Diagnostics
61Festo — CPX-FB36 — 2019-07b
6 Technical appendix
6.1 Technical Data
General technical data
Technical data of the CPX terminal è CPX system description (CPX-SYS)
Degree of protection through housing
in accordance with IEC 60529, completely moun-
ted, plug connector in plugged-in status or
equipped with cover caps
IP65/IP671)
Protection against electric shock
Protection against direct and indirect contact in
accordance with IEC 60204-1/EN 60204-1
by the use of PELV-circuits
Module code (CPX-specific)
Remote I/O 224
Remote Controller 171
Module identifier (operator unit)
EtherNet/IP
Remote I/O FB36 EtherNet/IP Remote‑IO V2
Remote Controller FB36‑RC EtherNet/IP Node
Modbus TCP
Remote I/O FB36‑MB Modbus TCP Remote‑IO
Remote Controller FB36‑MB‑RC Modbus TCP Node
1) Connected products may only satisfy a lower degree of protection.
Tab. 43 Technical data – general
Power supply
Operating power supply UEL/SEN [V DC] 24 ± 25 %
Intrinsic current consumption
at nominal operating voltage 24 V from
operating voltage supply UEL/SEN
[mA] Typ. 100 (internal electronics)
Network interface separation
Operating power supply UEL/SEN
Galvanic
Load voltage supplyVAL/OUT [V DC] 24 ± 10 %
Mains buffering time [ms] 10
Tab. 44 Technical data – power supply
Technical appendix
62 Festo — CPX-FB36 — 2019-07b
Network-specific technical data
Connection technology 2× socket, M12, D-coded, 4-pin
Protocol EtherNet/IP or Modbus TCP1)
Specification IEEE 802.3u (100Base-TX)
Transmission rate [Mbit/s] 10/100 (full duplex/half duplex)
Minimum cycle time (RPI) [ms] 1
Maximum data field size (Input/Output Size)
Remote I/O [Bytes] 64 I/64 O
Remote Controller [Bytes] 8 I/8 O, 16 I/16 O, 32 I/32 O or 64 I/64 O2)
Crossover detection Auto MDI/MDI-X
Cable type Ethernet-TwistedPair cable, shielded
Transmission class Category Cat 5/Cat 5e
Max. cable length [m] 100
1) based on the Ethernet protocol IEEE 802.3
2) depending on the setting of DIL switch 2 and the revision of the bus node
Tab. 45 Technical data – network-specific
6.2 Address assignment of the CPX terminal
6.2.1 Address assignment
A CPX terminal consists of a different number of inputs and outputs, depending on the order and the
configuration of the bus node.
The inputs and outputs are assigned automatically within the CPX terminal.
– Determine the address assignment (number of allocated inputs and outputs) on the CPX terminal
prior to commissioning.
NOTICE!
• The address space of a CPX terminal is limited. The bus node provides the CPX terminal a maxim-
um address space of 64 bytes for inputs and 64 bytes for outputs.
• An activated diagnostic mode reduces the number of available I/O bytes.
The number of assigned inputs and outputs for modules can be found in the following tables:
• Bus node è Tab. 46 Address assignment of bus nodes
• Digital modules è Tab. 47 Address assignment for digital modules
• Analogue modules è Tab. 48 Address assignment of analogue modules
• Technology modules è Tab. 49 Address assignment for technology modules
Technical appendix
63Festo — CPX-FB36 — 2019-07b6.2.1.1 Bus node
Allocated address spaceBus node CPX-M-FB36
in operating mode
Module identi-
fier1)
Inputs Outputs
Remote I/O
Without diagnostics mode FB-36-RIO... - -
With status bits FB-36-RIO... 1x 16 Bit2) -
with I/O diagnostics interface FB-36-RIO... 1x 16 bits 1x 16 bits
Remote Controller
FB-36-RC... 8x 8 bit …
64x 8 bit3)
8x 8 bit …
64x 8 bit3)
1) In the operator unit or in the hardware configuration of the programming software.
2) Diagnostics mode status bits assigned 2 bytes of address space (8 bits remain unused).
3) depending on the setting of DIL switch 2 and the revision of the bus node
Tab. 46 Address assignment of bus nodes
6.2.1.2 Digital modules
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Input module
CPX-4DE 4DI 4x 1 bit2) -
CPX-4DE 8DI 8x 1 bits -
CPX-8NDE (n-switching) 8NDI 8x 1 bits -
CPX-8DE-D (with channel diagnostics) 8DI-D 8x 1 bits -
CPX-16DE 16DI 16x 1 bits -
CPX-M-16DE-D (with channel diagnostics) 16DI-D 16x 1 bits -
CPX-L-16DE-16-KL-…  (with terminal strip) L-16DI-PI 16x 1 bits -
CPX-P-8DE-N P8-DI-N 2x 8 bits 1x 8 bits
CPX-P-8DE-N-X P8-DI-N-X 10x 8 bits 2x 8 bits
CPX-P-8DE-N-IS (intrinsically safe inputs) P8-DI-N-IS 2x 8 bits 1x 8 bits
CPX-P-8DE-N-IS-X (intrinsically safe inputs) P8-DI-N-IS-X 10x 8 bits 2x 8 bits
Output module
CPX-4DO 4DO - 4x 1 bits
CPX-8DO 8DO - 8x 1 bits
CPX-8DO-H (high current) 8DO-H - 8x 1 bits
Technical appendix
64 Festo — CPX-FB36 — 2019-07b
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Input/output module
CPX-8DI-8DO 8DI/8DO 8x 1 bits 8x 1 bits
CPX-L-8DI-8DO-16-KL- …  (with terminal strip) L-8DI8DO-PI 8x 1 bits 8x 1 bits
Electronics module
VMPA1-FB-EMS-8 for pneumatic module MPA1
(1 … 8 valves)
MPA1S - 8x 1 bit3)
VMPA2-FB-EMS-4 for pneumatic module MPA2
(1 … 4 valves)
MPA2S - 8x 1 bit4)
Electronics module (electrically isolated)
VMPA1-FB-EMG-8 for pneumatic module MPA1
(1 … 8 valves)
MPA1G - 8x 1 bits
VMPA2-FB-EMG-4 for pneumatic module MPA2
(1 … 4 valves)
MPA2G - 8x 1 bits
Electrical module with diagnostic function
VMPA1-FB-EMS-D2-8 for pneumatic module
MPA1 (1 … 8 valves)
MPA1S-D - 8x 1 bits
VMPA2-FB-EMS-D2-4 for pneumatic module
MPA2 (1 … 4 valves)
MPA2S-D - 8x 1 bits
Electrical module with diagnostic function (electrically isolated)
VMPA1-FB-EMG-D2-8 for pneumatic module
MPA1 (1 … 8 valves)
MPA1G-D - 8x 1 bits
VMPA2-FB-EMG-D2-4 for pneumatic module
MPA2 (1 … 4 valves)
MPA2G-D - 8x 1 bits
Electrical manifold module VMPAL-EVAP-10-... (for pneumatic module MPA-L)
VMPAL-EVAP-10-1 (1 valve, 1 coil) MPAL - 1 bit
VMPAL-EVAP-10-2 (1 valve, 2 coils) MPAL - 2 bit
VMPAL-EVAP-10-1-4 (4 valves, 4 coils) MPAL - 4 bit
VMPAL-EVAP-10-2-8 (4 valves, 8 coils) MPAL - 8 bit
End plate (pneumatic interface) VMPA…
VMPA-FB-EPL-… for valve terminal MPA-S - - -
VMPAF-FB-EPL-… for valve terminal MPA-F - - -
VMPAL-FB-EPL-… for valve terminal MPA-L
Technical appendix
65Festo — CPX-FB36 — 2019-07b
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
   1 … 4 valve coils - - 8x 1 bits
   1 … 8 valve coils - - 8x 1 bits
   1 … 16 valve coils - - 16x 1 bits
   1 … 24 valve coils - - 24x 1 bits
   1 … 32 valve coils - - 32x 1 bits
Pneumatic interface
VABA-... for valve terminal VTSA-/VTSA-F with
setting:5)
VTSA or
Type44/456)
   1 … 8 valve coils - 8x 1 bits
   1 … 16 valve coils - 16x 1 bits
   1 … 24 valve coils - 24x 1 bits
   1 … 32 valve coils - 32x 1 bits
1) In the operator unit or in the hardware configuration of the programming software.
2) Digital 4x modules (CPX-4DE and CPX-4DA) always occupy 8 inputs or 8 outputs.
3) VMPA1 modules always occupy 8 outputs regardless of the number of valves attached.
4) VMPA2 modules always occupy 8 outputs although only 4 bits are used.
5) Setting via DIL switch of the pneumatic interface (pneumatic interface).
6) depending on the version of the operator unit
Tab. 47 Address assignment for digital modules
Additional information:
• The address assignment in the CPX digital I/O modules can be found in the CPX-EA-... and
CPX-4AE-4AA-H descriptions (analogue I/O modules with HART communication).
• Information on CPX I/O modules with intrinsically safe inputs can be found in the description CPX-
P-EA-...
• Information on pneumatic interfaces and pneumatic modules can be found in the corresponding
descriptions of pneumatics.
• From the technical point of view, the individual pneumatic modules each represent an electric
module for controlling the attached valves.
• An overview of the “Descriptions of the CPX terminal” documentation can be found in the CPX sys-
tem description (CPX-SYS).
6.2.1.3 Analogue modules
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Pressure sensor VMPA-FB-PS-... MPA-P 1x 16 bits -
Technical appendix
66 Festo — CPX-FB36 — 2019-07b
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Proportional pressure regulator VPPM-...TA-
L-1-F...
VPPM 1x 16 bits 1x 16 bits
Analogue module
CPX-2AE-U-I 2AI 2x 16 bits -
CPX-4AE-U-I 4AI 4x 16 bits -
CPX-4AE-I 4AI-I 4x 16 bits -
CPX-4AE-T (temperature module for RTD sensors) 4AI-T 2x 16 bits
or
4x 16 bit2)
-
CPX-4AE-TC (temperature module for TC sensors) 4AI-TC 4x 16 bits -
CPX-4AE-P-D10 (pressure sensor module 0 … 10
bar)
4AI-P-D10 4x 16 bits -
CPX-4AE-P-B2 (pressure sensor module -1 … 1
bar)
4AI-P-B2 4x 16 bits -
CPX-2AA-U-I 2AA - 2x 16 bits
Analogue module CPX-4AE-4AA-H (with HART communication, HART variables in process image3)
4AI (HART) + 4 HART variables 4AI-H 4HV 12x 16 bits -
3AI, 1AO (HART) + 4 HARTvariables 3AI1AO-H 4HV 11x 16 bits 1x 16 bits
2AI, 2AO (HART) + 4 HARTvariables 2AI2AO-H 4HV 10x 16 bits 2x 16 bits
1AI, 3AO (HART) + 4 HARTvariables 1AI3AO-H 4HV 9x 16 bits 3x 16 bits
4AO (HART) + 4 HART variables 4AO-H 4HV 8x 16 bits 4x 16 bits
Analogue module CPX-4AE-4AA-H (with HART communication)3)
4AI (HART) 4AI-H 4x 16 bits -
3AI, 1AO (HART) 3AI1AO-H 3x 16 bits 1x 16 bits
2AI, 2AO (HART) 2AI2AO-H 2x 16 bits 2x 16 bits
1AI, 3AO (HART) 1AI3AO-H 1x 16 bits 3x 16 bits
4AO (HART) 4AO-H - 4x 16 bits
1) In the operator unit or in the hardware configuration of the programming software.
2) depending on the configuration
3) HART = Highway Addressable Remote Transducer)
Tab. 48 Address assignment of analogue modules
Technical appendix
67Festo — CPX-FB36 — 2019-07b
The address assignment in the CPX analogue I/O modules can be found in the CPX-EA-... and
CPX-4AE-4AA-H descriptions (analogue I/O modules with HART communication).
6.2.1.4 Technology modules
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Electrical interface connection CPX-CP-4-FB (CP
interface)
CPI maximum
16x 8 bit2)
maximum
16x 8 bits2)
Axis controller CPX-CMAX-C1-1 CMAX-C1-1 8x 8 bits 8x 8 bits
Control block CPX-CMXX (multi-axis interface) CMXX 8x 16 bits 8x 16 bits
End-position controller CPX-CMPX-C-1-H1 CMPX-C-1 6x 8 bits 6x 8 bits
Control block CPX-CM-HPP (FHPP interface) CM-HPP 32x 8 bits 32x 8 bits
Measuring module CPX-CMIX-M1-1 CMIX 3x 16 bits 3x 16 bits
Input/output module CPX-2ZE2DA (counter mod-
ule)
2CI2DO 3x 32 bits 3x 32 bits
Control block CPX-CEC (CODESYS embedded
Controller)
CEC 16x 8 bits 16x 8 bits
Control block CPX-FEC (front-end controller) FEC 8x 8 bits 8x 8 bits
Electrical interface CPX-CTEL-4-M12-5POL
with setting
CTEL
0E/0A - -
0E/8A - 8x 8 bits
0E/16A - 16x 8 bits
0E/24A - 24x 8 bits
0E/32A - 32x 8 bits
8E/0A 8x 8 bits -
16E/0A 16x 8 bits -
24E/0A 24x 8 bits -
32E/0A 32x 8 bits -
8E/8A 8x 8 bits 8x 8 bits
16E/16A 16x 8 bits 16x 8 bits
24E/24A 24x 8 bits 24x 8 bits
32E/32A 32x 8 bits 32x 8 bits
Technical appendix
68 Festo — CPX-FB36 — 2019-07b
Allocated address spaceModule designation Module identi-
fier1)
Inputs Outputs
Electrical interface CPX-CTEL-2-M12-5POL-LK
with setting
CTEL-2-LK
I-Port LK Master
8E/8A 8x 8 bits 8x 8 bits
16E/16A16x 8 bits 16x 8 bits
24E/24A 24x 8 bits 24x 8 bits
1) In the operator unit or in the hardware configuration of the programming software.
2) Maximum assigned address space depends on the string allocation.
Tab. 49 Address assignment for technology modules
Details on the technology modules can be found in the corresponding descriptions è CPX-...
6.2.2 Addressing
6.2.2.1 Basic rules for addressing
– The address assignment of the inputs does not depend on the address assignment of the outputs.
– Counting from left to right, addressing byte by byte:
Modules with fewer than 8 bits occupy 8 bits of address space, but do not make full use of it.
– The bus node counts as a module with 0 inputs and 0 outputs when the status bits and the I/O
diagnostic interface are deactivated.
– The inputs/outputs of different module types are occupied separately from one other.
The sequence in the following table applies:
Sequence of addressing Description
1. I/O diagnostics interface The I/O diagnostic interface can be activated via the
DIL switch. If it is activated, it will occupy the first 16
inputs and outputs in the address range.
Depending on the setting, this address range can also
be occupied by status
bitsè Tab. 6 Setting diagnostic mode or data field
size.
2. Analogue modules Modules with analogue inputs/outputs
3. Technology modules e.g. CP interface, control block CPX-CEC or CPX-FEC
4. Digital modules Modules with digital I/O
Tab. 50 Sequence of addressing
Technical appendix
69Festo — CPX-FB36 — 2019-07b
6.2.2.2 Data formats
In the "Studio 5000" software the inputs and outputs of the bus node are configured in the SINT or
INT formats.
Using the SINT format
If the SINT format is used, the data length of the Assembly Instances corresponds to the precise byte
of the current CPX terminal configuration.
The following Assembly instances are used for the SINT format.
– Inputs: Assembly instance 101
– Outputs: Assembly instance 100
Using the INT format
If the INT format is to be used, then the size of the process data must be a multiple of 16 bits.
If the total size of process data for the CPX terminal is not a multiple of 16 bits, the process data will
be rounded to the nearest 16-bit limit at the end with dummy I/Os.
Depending on the configuration of the CPX terminal, two CPX modules share a 16 bit-Tag in the "Stu-
dio 5000" software.
The following Assembly instances are used for the INT format:
– Inputs: Assembly instance 111
– Outputs: Assembly instance 110
NOTICE!
• Ensure that the outputs (100 and 110) are not accessed simultaneously on the Assembly
instances.
Technical appendix
70 Festo — CPX-FB36 — 2019-07b
6.2.2.3 Examples of addressing
Example 1: CPX terminal with MPA pneumatics
The following diagram shows as an example a CPX terminal with MPA pneumatics and the following
setting:
– Status bits and I/O diagnostics interface deactivated
1 Bus node CPX-M-FB36
2 MPA: pneumatic interface
3 MPA1 pneumatic modules (8 DO)
4 MPA2 pneumatic modules (4 DO)
Fig. 23 Example 1 – CPX terminal with MPA pneumatics
The following table shows the address assignment for the CPX terminal shown in example 1:
Module
number
Module type I address O address
0 Bus node CPX-M-FB36 - -
1 Digital input module CPX-8DI E0 … E7 -
2 Digital output module CPX-4DO - A0 … A71)
3 Pneumatic module MPA1 (8 DO) - A8 … A15
4 Pneumatic module MPA1 (8 DO) - A16 … A23
5 Pneumatic module MPA2 (4DA) - A24 … A311)
6 Pneumatic module MPA2 (4DA) - A32 … A391)
1) 8 bits occupied, 4 bits used.
Tab. 51 Address assignment example 1
Technical appendix
71Festo — CPX-FB36 — 2019-07b
Example 2: CPX terminal with electrical interface
The following graphic shows a CPX terminal with electrical interface and the following setting:
– Status bits and I/O diagnostics interface deactivated
1 Bus node CPX-M-FB36
2 CPV valve terminal (16 DO) on string 1 of the
electrical interface
3 CP input module (16 DI)
4 Sensor
5 Cylinder
6 CP output module (16 DO) on string 4 of the
electrical interface
Fig. 24 Example 2 – CPX terminal with electrical interface (CP interface)
The following table shows the address assignment for the CPX terminal shown in Example 2:
Module
number
Module type I address O address
0 Bus node CPX-M-FB36 - -
1 Digital input module CPX-8DI I32 … I39 -
2 Digital output module CPX-4DO - I128 … I1351)
3 Electrical interface (CP interface) CPX-CP-4-FB
(4 bytes I, 16 bytes O)
I0 … I31 O0 … O127
Technical appendix
72 Festo — CPX-FB36 — 2019-07b
Module
number
Module type I address O address
4 Digital input/output module CPX-8DI-8DO I40 … I47 O136 … O143
5 Pneumatic module MPA1 (8 DO) - O144 … O151
6 Pneumatic module MPA1 (8 DO) - O152 … O159
1) 8 bits occupied, 4 bits used
Tab. 52 Address assignment example 2
Technical appendix
73Festo — CPX-FB36 — 2019-07b
Example 3: CPX terminal with analogue module and VTSA pneumatics
The address assignment for this CPX terminal can be found in the following table
è Tab. 53 Address assignment example 3. The settings are:
– Status bits activated
– I/O diagnostic interface deactivated
– Pneumatic interface set with DIL switch to 1 … 8 solenoid coils
1 Bus node CPX-FB36 (status bits activated)
2 Pneumatic interface VABA set with DIL
switch to 1 ... 8 solenoid coils
3 VTSA pneumatics
Fig. 25 Example 3 – CPX terminal with analogue module and VTSA pneumatics
Module
number
Module type I address O address
0 Bus node CPX-FB36 (status bits activated) I0 … I151) -
1 Digital input module CPX-8DI I16 … I23 -
2 Digital input module CPX-8DI I24 … I31 -
3 Digital output module CPX-4DO - I32 … I392)
4 Digital input/output module CPX-8DI-8DO I32 … I39 O40 … O47
5 Analogue output module CPX-2AA - O0 … O31
6 Pneumatic interface VABA set with DIL switch to
1 … 8 solenoid coils
- O48 … O55
1) 16 bits occupied, 8 bits used
2) 8 bits occupied, 4 bits used
Tab. 53 Address assignment example 3
6.2.3 Address assignment after extension/conversion
A special feature of the CPX terminal is its flexibility. If the requirements of the machine are changed,
the equipment of the CPX terminal can also be changed.
Technical appendix
74 Festo — CPX-FB36 — 2019-07b
CAUTION!
If the CPX terminal is extended or converted at a later stage, input/output addresses may be shifted.
This applies in the following cases:
• Additional modules are inserted between existing modules.
• Existing modules are removed or replaced by other modules with fewer or more input/output
addresses.
• Interlinking blocks (VTSA) or pneumatic connection blocks (MPA-L) for monostable valves are
replaced by interlinking blocks/connection blocks for bistable valves – or vice versa (è Pneumat-
ics description).
• Additional interlinking blocks (VTSA) or connection blocks (MPA-L) are inserted between existing
ones.
• Status bits or the I/O diagnostics interface are activated/deactivated.
Addressing example 3 after extension/conversion
The following diagram shows the effects of changes on the address assignment based on addressing
example 3 (è Fig.25).
The following has been changed:
– The status bits were deactivated.
– The digital input module CPX-8DI (module no. 1) has been replaced by a digital input module
CPX-16DI.
– The pneumatic interface VABA has been set to 1 … 16 solenoid coils in order to reserve addresses
for an extension to the pneumatics.
1 Changed: status bits deactivated
2 Changed: digital input module CPX-8DI
replaced by digital input module CPX-16DI
3 Changed: pneumatic interface (pneumatic
interface) VABA now set to 1 ... 16 valve coils
via DIL switch
Fig. 26 Addressing example 3 after extension/conversion
Technical appendix
75Festo — CPX-FB36 — 2019-07b
Module
number
Module I address O address
0 Bus node CPX-FB36 (status bits deactivated) - -
1 Digital input module CPX-16DI I0 … I15 -
2 Digital input module CPX-8DI I16 … I23 -
3 Digital output module CPX-4DO - I32 … I391)
4 Digital input/output module CPX-8DI-8DO I24 … I31 O40 … O47
5 Analogue output moduleCPX-2AA - O0 … O31
6 Pneumatic interface VABA set with DIL switch to
1 … 16 solenoid coils
- O48 … O63
bold = changes
1) 8 bits occupied, 4 bits used
Tab. 54 Addressing example 3 after extension/conversion
6.3 EtherNet/IP-Objects of the CPX-FB36
6.3.1 Overview of EtherNet/IP objects
This chapter describes the representation of the CPX terminal within the EtherNet/IP object model.
Some information is in English so that the original terms of the EtherNet/IP specification can be used
unambiguously.
"EtherNet/IP Class Services"
The CPX terminal supports various services, depending on the object:
Service Code Service name
05 (05h) Reset
01 (01h) Get Attribute All
14 (0Eh) Get Attribute Single
16 (10h) Set Attribute Single
Tab. 55 Class Services and Instance Services
Technical appendix
76 Festo — CPX-FB36 — 2019-07b
EtherNet/IP object classes
The following objects are supported:
Object class Instances
(dec.)
Name Comments
1d 1 Identity Object
2d 1 Message Router Object
4d 100 … 102,
110, 111
Assembly Object
6d 1 … 10 Connection Manager Object
244d 1 Port Object
General CIP objects
245d 1 TCP/IP Interface Object
71d 1 Device Level Ring Object
72d 1 QoS Object
EtherNet/IP-specific
objects
132d 1 Global System Object
133d 1 Status and Diagnosis Object
134d 1 … 40 Diagnosis Trace Object
135d 1 Diagnosis Trace Status Object
199d 1 Configuration Array Object
108d … 111d,
116d … 119d,
124d … 127d
1 … 48 Force Parameter
112d, 113d,
120d, 121d,
128d, 129d
1 … 48 Fail safe Parameter
CPX-specific objects for
parameterisation and dia-
gnostics
114d … 115d
122d, 123d
130d, 131d
1 … 48 Idle Parameter
101d 1 … 48 Generic Parameter Object
CPX-specific objects for
parameterisation
102d 1 … 48 Discrete Input Object
104d 1 … 48 Analog Input Object
105d 1 … 48 Analog Output Object
106d 1 … 48 Function Input Object
107d 1 … 48 Function Output Object
CPX-specific objects for
parameterisation of inputs
and outputs
Technical appendix
77Festo — CPX-FB36 — 2019-07b
Object class Instances
(dec.)
Name Comments
108d 1 … 48 Discrete Input Force State Object
109d 1 … 48 Discrete Input Force Mode Object
110d 1 … 48 Discrete Output Force State Object
111d 1 … 48 Discrete Output Force Mode Object
112d 1 … 48 Discrete Output Fail safe State Object
113d 1 … 48 Discrete Output Fail safe Mode Object
114d 1 … 48 Discrete Output Idle State Object
115d 1 … 48 Discrete Output Idle Mode Object
CPX-specific objects for
the parameterisation of
Force, Fail safe and Idle
Mode
116d 1 … 48 Analog Input Force State Object
117d 1 … 48 Analog Input Force Mode Object
118d 1 … 48 Analog Output Force State Object
119d 1 … 48 Analog Output Force Mode Object
120d 1 … 48 Analog Output Fail safe State Object
121d 1 … 48 Analog Output Fail safe Mode Object
122d 1 … 48 Analog Output Idle State Object
123d 1 … 48 Analog Output Idle Mode Object
124d 1 … 48 Function Input Force State Object
125d 1 … 48 Function Input Force Mode Object
126d 1 … 48 Function Output Force State Object
127d 1 … 48 Function Output Force Mode Object
128d 1 … 48 Function Output Fail safe State Object
129d 1 … 48 Function Output Fail safe Mode Object
130d 1 … 48 Function Output Idle State Object
131d 1 … 48 Function Output Idle Mode Object
CPX-specific objects for
parameterisation of Force,
Fail safe and Idle mode
Tab. 56 Overview of EtherNet/IP objects
Object class Instances
(dec.)
Name Comments
136d 1 Slave Size Object CPX-specific object
Tab. 57 Special EtherNet/IP object for operating mode Remote Controller
Technical appendix
78 Festo — CPX-FB36 — 2019-07b
Counting mode
The following applies to module-oriented objects:
– Instance number = module number + 1
Explanation:
– The counting of the modules starts with 0 at the bus node.
– The counting of instances starts with 1 at the bus node.
An overview of the available data and parameters, their function numbers as well as their assignment
to the objects can be found in the following sections.
The description and mode of operation of the individual parameters and data as well as fundamentals
on parameterisation can be found in the CPX system description (CPX-SYS).
6.3.2 Objects for network settings
6.3.2.1 "Device Level Ring Object"
Object class: 71d
Instances: 1
Attr. No. Access Description Type
1 Get Current Network Topology Mode
0: Linear
1: Ring
USINT
2 Get Current Status of Network
0: Normal
1: Ring fault
2: Unexpected loop detected
3: Partial network fault
4: Rapid fault / restore cycle
USINT
10 Get Active Supervisor Address
– Supervisor IP address
– Supervisor MAC address
STRUCT of
UDINT
ARRAY of 6
USINT
12 Get Capability Flags
Bit 0:
Announce-based ring node1)
Bit 1: Beacon-based ring node1)
Bit 2 … 4: Reserved, shall be set to zero
Bit 5: Supervisor capable
Bit 6 … 31: Reserved, shall be set to zero
Bits 0 and 1 are mutually exclusive
DWORD
1) è EtherNet/IP specification, chapter 9.5.4
Tab. 58 Network settings with Device-Level-Ring object
Technical appendix
79Festo — CPX-FB36 — 2019-07b
6.3.2.2 "QoS Object"
Object class: 72d
Instances: 1
The IEEE 802.1D/Q describes Ethernet Frames that contain an additional 32-bit header. This header
contains, among other things, a VLAN ID and a prioritisation field.
Attr. No. Access Description Type
1 Set 802.1Q Tag Enable
Enables or disables sending 802.1Q frames on
CIP and IEEE 1588 messages
Default = 0
USINT
4 Set DSCP Urgent1)
Default = 55
USINT
5 Set DSCP Scheduled1)
Default = 47
USINT
6 Set DSCP High1)
Default = 43
USINT
7 Set DSCP Low
Default = 31
USINT
8 Set DSCP Explicit
Default = 27
USINT
1) These attributes describe the IP header priority of various EtherNet/IP frames: Urgent = CIP Motion; Scheduled = CIP Safety;
High = I/O
Tab. 59 Network settings with QoS object
6.3.2.3 "TCP/IP Interface Object"
Object class: 245d
Instances: 1
The TCP/IP-Interface object is used to configure the network settings of a device.
Attr. No. Access Description Type
1 Get Status (Interface Status) DWORD
2 Get Configuration Capability
Bit 5: hardware configurable
Bit 6: interface configuration change requires
reset
Bit 7: ACD capable
DWORD
3 Get/Set Configuration Control DWORD
Technical appendix
80 Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
4 Get Physical Link Object
– Path Size
– Path
STRUCT of
UINT +
Padded
EPATH
5 Get/Set Interface Configuration
– Interface Configuration
– Network Mask
– Gateway Addres
– Name Server
– Name Server 2
– Domain Name
STRUCT of
UDINT
UDINT
UDINT
UDINT
UDINT
STRING
6 Get/Set Host Name STRING
8 Get/Set TTL Value
for EtherNet/IP Multicast Packets
USINT
9 Get/Set IP Multicast Address Configuration
– Alloc Control
– Reserved
– Num Mcast
– Mcast Start Addr
STRUCT of
USINT
USINT
UINT
UDINT
10 Set Select ACD
0: Disable
1: Enable (default)
BOOL
11 Get/Set Last Conflict Detected:
– ACD activity
– Remote MAC
– Address Resolution Protocol Protocol Data
Unit (ARP PDU)
STRUCT of
USINT
ARRAY of 6
USINT
ARRAY of 28
USINT
12 Set QuickConnect
0: Disable (default)
1: Enable
BOOL
13 Get/Set Encapsulation Inactivity Timeout
0: Disable
1 … 3600: Timeout in seconds
UINT
16 Get Active TCP Connection UINT
17 Get Non-CIP Encapsulation Messages per Second UDINT
Tab. 60 Network settings with TCP/IP Interface object
Technical appendix
81Festo — CPX-FB36 — 2019-07b
6.3.2.4 "Ethernet Link Object"
Object class: 246d
Instances: 2
One instance per Ethernet port:
– Instance 1 corresponds to Ethernet port X1
– Instance 2 corresponds to Ethernet port X2
– Instance 3 corresponds to the internal port
Via the Ethernet Link object extended settings for the Ethernet connection can be made
è 2.3.6 Extended network settings.
Attr. No. Access Description Type
1 Get Interface Speed UDINT
2 Get Interface Status Flags DWORD
3 Get Physical MAC address ARRAY of 6
USINT
6 Get/Set Interface Control
– Control Bits
– Forced Interface Speed
STRUCT of
WORD,
UINT
Tab. 61 Network settings with Ethernet-Link object
Examples:
To permanentlyset port X1 to 100 Mbit/s, full duplex (Auto-Negotiation off), the following values
must be written in attribute 6, instance 1: [0002h][0064h].
To activate Auto-Negotiation, the following values must be written in attribute 6, instance 1:
[0001h][0000h].
Further details can be found in the EtherNet/IP specification.
6.3.3 Objects for the I/O connection
6.3.3.1 "Assembly Object"
Object class: 4d
Instances: 6
The Assembly object bundles attributes of various objects to enable exchange of data with the objects
via one connection.
The following instances are created in the Assembly object:
Instance Description
100 Output data (Output Data)
101 Input data (Input Data)
102 Configuration data (Configuration Data)
103 Diagnostic data (Diagnosis Data)
Technical appendix
82 Festo — CPX-FB36 — 2019-07b
Instance Description
110 Output data in the INT format (Output Data with Padding)
111 Input data in the INT format (Input Data with Padding)
254 HeartBeat
255 ListenOnly
Tab. 62 Instances for Assembly object
Mode of operation Remote I/O
Each data area begins at the least significant bit (Least Significant Bit, LSB) of a word.
Instance 101: Input
Within the instance "Input" of the Assembly object, all inputs of the CPX system are transmitted cyclic-
ally over the network by means of a communication connection.
The following sequence applies:
Sequence of transmission
1. I/O diagnostic interface, if active (16-bit oriented)
2. Object instances of the analogue channels (16-bit oriented)
3. Instances of the technology modules (16- or 8-bit oriented)
4. Object instances of the digital inputs (8-bit oriented)
Tab. 63 Sequence of transmission for Instance 101
Instance 101 (Input) has the following member list in the Remote I/O operating mode:
Obj. Instances (=
module no.
+ 1)
Attributes
(channel)
Entries in member list Type
102 1 … 48 1 … 64 Digital data BOOL
104 1 … 48 1 … 32 Analogue data WORD
106 1 … 48 1 … 64/
65 … 96
Technology module BYTE/
WORD
133 1 0/1 I/O diagnostic interface data, if active WORD
Tab. 64 Member list of instance 101 in the Remote I/O operating mode
Instance 100: Output
Within the "Output" instance in the Assembly object all outputs of the CPX system will be transmitted
over the network by one communication connection.
The following sequence applies:
Technical appendix
83Festo — CPX-FB36 — 2019-07b
Sequence of transmission
1. I/O diagnostic interface/status byte, if active (16-bit oriented)
2. Object instances of the analogue channels (16-bit oriented)
3. Instances of the technology modules (16- or 8-bit oriented)
4. Object instances of the digital outputs (8-bit oriented)
Tab. 65 Sequence of transmission for Instance 100
Instance 100 (Output) has the following member list in Remote I/O operating mode:
Obj. Instances
(= module
no. + 1)
Attributes
(channel)
Entries in member list Type
103 1 … 48 1 … 64 Digital data BOOL
105 1 … 48 1 … 32 Analogue data WORD
107 1 … 48 1 … 64/
65 … 96
Technology module BYTE/
WORD
133 1 … 48 0/1 I/O diagnostic interface data, if active WORD
Tab. 66 Member list of instance 100 in operation mode Remote I/O
Instance 102: Configuration
Instance 102 (Configuration) has the following member list:
Obj. Number Entries in member list Type
199 1 Configuration-Array data ARRAY
Tab. 67 Instance 102 member list
The I/O objects 102 … 107 also have the following attributes:
Attribute Entries Type
100 Number of data of the module in
BYTE or WORD
BYTE
101 Data type:
– D1h : BYTE
– D2h : WORD
BYTE
102 All data values ARRAY
Tab. 68 Attributes of the I/O objects 102 … 107
Technical appendix
84 Festo — CPX-FB36 — 2019-07b
Instance 103: Diagnosis Data
Instance 103 (Diagnosis Data) consists of the following data:
Byte Description Type
0 ST status byte è 5.3 Diagnostics via status bits USINT
1 Number of the first module in which an error has occurred USINT
2 Channel USINT
3 Error number USINT
Tab. 69 Data of the instance 103
Operating mode Remote Controller
Each data area begins at the least significant bit (Least Significant Bit, LSB) of a word.
Instance 100: Output
Instance 100 (Output) has the following member list in Remote Controller operating mode:
Obj. Attributes Entries in member list Type
107 1 … 64/
65 … 96
Technology module BYTE/
WORD
Tab. 70 Instance 100 member list
Instance 101: Input
Instance 101 (Input) has the following member list:
Obj. Attributes Entries in member list Type
106 1 … 64/
65 … 96
Technology module BYTE/
WORD
Tab. 71 Instance 101 member list
Transmission through the communication types "Polled Communication" or "Change of State/Cyclic
Communication".
Instance 102: Configuration
Instance 102 (Configuration) must have the value "0" in the operating modeRemote Controller.
6.3.4 Objects for system data and diagnostics
6.3.4.1 "Identity Object"
Object class: 1d
Instances: 1
The Identity object contains the identification and general information about the bus node CPX-FB36.
Service code 5d:
Reset
– Parameter 0 emulates a Power Cycle
– Parameter 1 resets the device to factory settings and then emulates a Power Cycle.
Technical appendix
85Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
1 Get Vendor ID: 1Ah UINT
2 Get Device Type: 0Ch UINT
3 Get Product Code
– Remote I/O36CAh
– Remote Controller36CBh
UINT
6 Get Revision STRUCT
5 Get Status
Bit 0: Owned
Bit 1: Reserved, shall be 0
Bit 2: Configured
Bit 3: Reserved, shall be 0
Bit 4-7: Extended device status
Bit 8: Minor recoverable fault
Bit 9: Minor unrecoverable fault
Bit 10: Major recoverable fault
Bit 11: Major unrecoverable fault
Bit 12-15: Reserved, shall be 0
WORD
6 Get Serial Number UDINT
7 Get Product Name
– CPX-FB36 Remote-I/O
– CPX-FB36 Remote Controller
SHORT_S
TRING
14 Get/Set Semaphore STRUCT
100 Get Operating Mode
– Remote Controller: TRUE
– Remote I/O: FALSE
BOOL
101 Get External Module Identifiers ARRAY
Tab. 72 Attributes of the Identity object
6.3.4.2 "Global System Object" for operating mode Remote I/O
Object class: 132d
Instances: 1
This object is only available in the operating mode Remote I/O.
Technical appendix
86 Festo — CPX-FB36 — 2019-07b
Attr.
No.
Access Description Type Function no.
CPX operating mode (Bit 0 … 3)
0: Remote I/Owithout FEC or CEC
1: Remote I/Owith FEC or CEC
2: Remote Controllerwithout bus node
3: Remote Controllerwith bus node
0 (bit 0 … 3)
CPX expansion (bit 4)
Specifies whether the current CPX expansion cor-
responds to the saved CPX expansion.
0: equal
1: unequal
0 (bit 4)
Operator unit (bit 5)
Specifies whether or not an operator unit is con-
nected.
0: operator unit not connected
1: operator unit connected
0 (bit 5)
Force Mode (bit 6)
Specifies whether Force is blocked or enabled.
0: blocked
1: enabled
0 (bit 6)
1 Get
Bit 7: reserved
BYTE
0 (bit 7)
Fail safe Mode
Indicates whether Fail safe Mode is active or
inactive.
0: inactive
1: active
1 (bit 0, 1)2 Get
System Idle Mode
Indicates whether Idle Mode is active or inactive.
0: inactive
1: active
BYTE
1 (bit 2, 3)
3 Get Monitoring CPX terminal (bit 0 … 7)
Specifies whether the monitoring of short cir-
cuit/overload and undervoltage is active or inact-
ive.
Bit 0: monitoring KZS (short circuit/overload
sensor supply)
Bit 1: monitoring KZA (short circuit/overload out-
puts)
Bit 2: monitoring UOUT (undervoltage outputs)
BYTE 2 (bit 0 … 7)
Technical appendix
87Festo — CPX-FB36 — 2019-07b
Attr.
No.
Access Description Type Function no.
Bit 3: monitoring UVAL (undervoltage of valves)
Bit 4: monitoring KZV (short circuit valves)
Bit 5 … 7: reserved
0: inactive
1: active
4 Get Number of input bytes (Rx Size)
Specifies the number of input bytes of the CPX
terminal.
BYTE -
5 Get Number of output bytes (Tx Size)
Specifies the number of output bytes of the CPX
terminal.
BYTE -
9 Get/Set Monitoring (bit 0 … 7)
Bit 0: monitoring KZS (short circuit/overload
sensor supply)
Bit 1: monitoring KZA (short circuit/overload out-
puts)
Bit 2: monitoring UOUT (undervoltage outputs)Bit 3: monitoring UVAL (undervoltage of valves)
Bit 4: monitoring KZV (short circuit valves)
Bit 5 … 7: reserved
1 = active (default)
0: inactive
BYTE 4401 (bit
0 … 7)
10 Get/Set Fail safe Mode
0: reset all outputs (default)
1: retain signal status (Hold last state)
2: assume Fail safe Mode
BYTE 4402 (bit 0, 1)
11 Get/Set Force Mode
0: blocked
1: enabled
BYTE 4402 (bit 2, 3)
12 Get/Set System Idle Mode
0: reset all outputs (default)
1: hold last state (retain signal status)
2: assume idle mode
BYTE 4402 (bit 4, 5)
13 Get/Set System start
0: system start with standard parameters (factory
setting) and current CPX expansion; external
parameterisation possible (presetting)
BYTE 4402 (bit 6)
Technical appendix
88 Festo — CPX-FB36 — 2019-07b
Attr.
No.
Access Description Type Function no.
1: system start with saved parameters and saved
CPX expansion; parameters and CPX expansion
are saved retentively; external parameterisation
is blocked; the "Modify" LED on the bus node is
on
Tab. 73 Attributes of the system object for Remote I/O operating mode
6.3.4.3 "Status and Diagnosis Object"
Object class: 133d
Instances: 1
The status bits and the I/O diagnostic interface are mapped here.
Attr.
No.
Access Description Type Function no.
1 Get Status bits (8 bit)
Source of error:
Bit 0: valve
Bit 1: output
Bit 2: input
Bit 3: analogue/technology module
Type of error:
Bit 4: undervoltage
Bit 5: short circuit/overload
Bit 6: wire break
Bit 7: other error
BYTE 1936
2 Get Number of the first module in which an error
has occurred
BYTE
3 Get Diagnostic status BYTE
1937
4 Get Error number BYTE 1938
5 Get/Set Address of I/O diagnostic interface
16 output bits (order data) of the I/O dia-
gnostic interface
WORD
6 Get Data for I/O diagnostic interface
16 input bits (response data) of the I/O dia-
gnostic interface
WORD
Tab. 74 Attributes of the status and diagnostics object
6.3.4.4 "Diagnosis Trace Object"
Object class: 134d
Technical appendix
89Festo — CPX-FB36 — 2019-07b
Instances: 1 … 40
An instance is created for every diagnostic entry.
Attr.
No.
Access Designation Description Type Function no.
3488 + n1)
1 Get Mark first entry after Power
On Returns 1 if it is the first
entry after a Power ON.
BYTE n = 10 × d + 4
(Bit 7)
2 Get Days Number of days2) BYTE n = 10 × d + 0
3 Get Hours Number of hours2) BYTE n = 10 × d + 1
4 Get Minutes Number of minutes2) BYTE n = 10 × d + 2
5 Get Seconds Number of seconds2) BYTE n = 10 × d + 3
6 Get Milliseconds Number of 10 ms2) BYTE n = 10 × d + 4
(Bit 0 … 6)
7 Get Module code3) Module code of the module
that reported the error
BYTE n = 10 × d + 5
8 Get Module num-
ber
Module position of the mod-
ule that reported the error;
63 = error not module-
related
BYTE n = 10 × d + 6
(Bit 6, 7)
9 Get Channel num-
ber3)
Number of the first faulty
channel
BYTE n = 10 × d + 7
(Bit 0 … 5)
10 Get Error number Possible fault messages
è CPX system description
BYTE n = 10 × d + 8
11 Get Subsequent
channels
Number of subsequent
channels with the same
error
BYTE n = 10 × d + 9
1) d (diagnostic event) = 0 … 39; current diagnostic event = 0;
2) measured from the moment the power supply is switched on
3) It is the error number = 0, if the content is also 0. If the error number is between 128 … 199 (error class 3), the content is not relevant
(service required).
Tab. 75 Attributes of the Diagnosis Trace Object
6.3.4.5 "Diagnosis Trace Status Object"
Object class: 135d
Instances: 1
Attr.
No.
Access Name Type Function no.
1 Get Number of trace entries in the diagnostic memory BYTE 3482
(Bit 0 … 7)
Technical appendix
90 Festo — CPX-FB36 — 2019-07b
Attr.
No.
Access Name Type Function no.
2 Get Status of diagnostic memory
0: recording active
1: recording inactive
BYTE 3483
(Bit 0, 1)
3 Get/Set Clear_trace1, access via EDS BYTE -
4 Get/Set Clear_trace2, access via explicit messaging;
Confirmation of execution by reset (0) of the
attribute value
BYTE -
5 Get/Set Entries saved retentively with Power On
0 = active (default)
1: inactive
BYTE 3480
(Bit 0)
6 Get/Set Run/stop filter 1
0: stop after 40 entries (save the first 40 entries)
1: overwrite old entries (save the last 40 entries),
(default)
BYTE 3480
(Bit 1)
7 Get/Set Run/stop filter 2
0: run/stop filter 2 inactive (default)
1: record to defined FN
2: record to defined FN + MN
3: record to defined FN + MN + KN
4: record from defined FN
5: record from defined FN + MN
6: record from defined FN + MN + KN
7: reserved
BYTE 3484
(Bit 0 … 2)
8 Get/Set Error end filter
0: record outgoing errors (end of error); (filter
inactive, default)
1: do not record outgoing errors (end of error);
(filter active)
BYTE 3484
(Bit 3)
9 Get/Set Error number filter
FN = error number
0: error number filter inactive (default)
1: record only defined FN
2: do not record defined FN
3: reserved
BYTE 3484
(Bit 4, 5)
Technical appendix
91Festo — CPX-FB36 — 2019-07b
Attr.
No.
Access Name Type Function no.
10 Get/Set Module/channel filter
With this diagnostic memory filter, the recording
of errors of other modules or channels can be
suppressed so that errors in a particular module
or channel can be analysed.
FN = error number
0: module/channel filter inactive (default)
1: record only FN of one module
2: record only FN of one channel
3: reserved
BYTE 3484
(Bit 6, 7)
11 Get/Set Module number
Module number for diagnostic memory filter
BYTE 3485
(Bit 0 … 7)
12 Get/Set Channel number
Channel number for diagnostic memory filter
BYTE 3486
(Bit 0 … 7)
13 Get/Set Error number
Error number for diagnostic memory filter
BYTE 3487
(Bit 0 … 7)
Tab. 76 Attributes of the diagnostics trace status object
6.3.4.6 "Generic Parameter Object"
Object class: 101d
Instances: 1 … 48
The rule is: instance number = module number + 1
This object enables general access to the module parameters of all existing and future CPX modules.
– Use this object to parameterise modules with word or double word parameters.
Examples of modules with word or double-word parameters:
– Analogue input module CPX-E-4AE-I
– Temperature module CPX-4AE-T
– CPX-CP interface
Three parameter types can be accessed via the attributes of the general module parameter object:
– to byte parameters:
via attributes 1 … 64
– to word parameters:
using the attributes 65 … 127
– to double word parameters:
via the attributes 129 … 189
Procedure for parameterisation
1. Take the function number of the parameter to be set from the description for the module.
Technical appendix
92 Festo — CPX-FB36 — 2019-07b
2. Search for function number:
– byte/word parameters
è Tab. 77 General module parameter object: assignment of the attributes for word
parameters to the function numbers
– double word parameter
è Tab. 78 General module parameter object: assignment of the attributes for double-word
parameters to the function numbers
3. Read the corresponding attribute number from the relevant table.
Examples for parameterisation with the general module parameter object
è 6.3.5.2 Parameterisation with “Generic Parameter Object”
Attribute no.
Byte Word Word
Parameter Function no.
1 - 4828 + m × 64 + 0
2
65
4828 + m × 64 + 1
3
66
4828 + m × 64 + 2
4
67
4828 + m × 64 + 3
5
68
4828 + m × 64 + 4
6
69
4828 + m × 64 + 5
7
70
4828 + m × 64 + 6
8
71
4828 + m × 64 + 7
9
72
4828 + m × 64 + 8
10
73
4828 + m × 64 + 9
11
74
4828 + m × 64 + 10
12
75
4828 + m × 64 + 11
…
76
4828 + m × 64 + …
…
…
4828 + m × 64 + …
…
…
4828 + m × 64 + …
…
…
4828 + m × 64 + 59
61
124
4828 + m × 64 + 60
62
125
4828 + m × 64 + 61
63
126
4828 + m × 64 + 62
64
127
-
è Description of the module
4828 + m × 64 + 63
Tab. 77 General module parameter object: assignment of the attributes for word parameters to the
function numbers
Technical appendix
93Festo — CPX-FB36 — 2019-07b
Attribute no.
Byte DWor-
d
DWor-
d
DWor-
d
DWor-
d
Parameter Function no.
1 - 4828 + m × 64 + 0
2
-
4828 + m × 64 + 1
3
-
4828 + m × 64 + 2
4
129
4828 + m ×64 + 3
5
130
4828 + m × 64 + 4
6
131
4828 + m × 64 + 5
7
132
4828 + m × 64 + 6
8
133
4828 + m × 64 + 7
9
134
4828 + m × 64 + 8
10
135
4828 + m × 64 + 9
11
136
4828 + m × 64 + 10
12
…
4828 + m × 64 + 11
…
…
4828 + m × 64 + …
…
…
4828 + m × 64 + …
…
…
4828 + m × 64 + …
…
185
4828 + m × 64 + 59
61
186
4828 + m × 64 + 60
62
187
4828 + m × 64 + 61
63
188
4828 + m × 64 + 62
64
189
-
-
-
è Description of the module
4828 + m × 64 + 63
Tab. 78 General module parameter object: assignment of the attributes for double-word parameters to
the function numbers
6.3.4.7 "Force Parameter"
The first word receives the lowest instance number of the relevant object. The second word receives
the second lowest instance number, etc.
Technical appendix
94 Festo — CPX-FB36 — 2019-07b
Object Description
108 Force state digital inputs
109 Force mode digital inputs
110 Force state digital outputs
111 Force mode digital outputs
Tab. 79 Objects for force parameter of digital I/O modules
Object Description
116 Force state analogue inputs
117 Force mode analogue inputs
118 Force state analogue outputs
119 Force mode analogue outputs
Tab. 80 Objects for force parameter of analogue I/O modules
Object Description
124 Force state inputs technology module
125 Force mode inputs technology module
126 Force state outputs technology module
127 Force mode outputs technology module
Tab. 81 Objects for force parameter for technology modules
Structure of the objects for “Force mode”
Objects Force mode: 109d, 111d, 117d, 119d, 125d, 127d
è Tab. 79 Objects for force parameter of digital I/O modules …
è Tab. 81 Objects for force parameter for technology modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Value for Force mode:
Channel 0:
0: force blocked
1: force enabled
BOOL
2 Get/Set Channel 1:
0: force blocked
1: force enabled
BOOL
… … … …
Technical appendix
95Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
64 Get/Set Channel 63:
0: force blocked
1: force enabled
BOOL
100 Get Number of channels BYTE
101 Get All channels: values for Force mode ARRAY
Tab. 82 Basic Structure of the objects for Force mode
Structure of the objects for “Force state” for digital I/O modules
Objects Force state: 108d, 110d è Tab. 79 Objects for force parameter of digital I/O modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Value for Force state:
Channel 0:
0: reset signal
1: set signal
BOOL
2 Get/Set Channel 1:
0: reset signal
1: set signal
BOOL
… … … …
64 Get/Set Channel 63:
0: reset signal
1: set signal
BOOL
100 Get Number of channels BYTE
101 Get All channels: values for Force state ARRAY
Tab. 83 Structure of the objects for “Force state” for digital I/O modules
Structure of the Objects for “Force state” for analogue I/O modules
Objects Force state: 116d, 118d è Tab. 80 Objects for force parameter of analogue I/O modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0:
Value for Force
WORD
2 Get/Set Channel 1:
Value for Force
WORD
… … … …
Technical appendix
96 Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
32 Get/Set Channel 31:
Value for Force
WORD
Tab. 84 Structure of the Objects for “Force state” for analogue I/O modules
Structure of the objects for “Force state” for technology modules
Objects Force state: 124d, 126d è Tab. 81 Objects for force parameter for technology modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0:
Value for Force
BYTE
2 Get/Set Channel 1:
Value for Force
BYTE
… … … …
64 Get/Set Channel 63:
Value for Force
BYTE
65 Get/Set Channel 0:
Value for Force
WORD
... ... ... ...
96 Get/Set Channel 31:
Value for Force
WORD
100 Get Number of channels BYTE
101 Get Data type:
– D1h : BYTE
– D2h : WORD
BYTE
102 Get/Set All channels: values for Force state ARRAY
Tab. 85 Structure of the objects for Force state technology modules
6.3.4.8 Fail safe and Idle parameters
The first word receives the lowest instance number of the relevant object. The second word receives
the second lowest instance number, etc.
Object Description
112 Fail safe state digital outputs
113 Fail safe mode digital outputs
114 Idle state digital outputs
Technical appendix
97Festo — CPX-FB36 — 2019-07b
Object Description
115 Idle mode digital outputs
Tab. 86 Objects for Fail safe and Idle parameters of digital output modules
Object Description
120 Fail safe state analogue outputs
121 Fail safe mode analogue outputs
122 Idle state analogue outputs
123 Idle mode analogue outputs
Tab. 87 Objects for Fail safe and Idle parameters of analogue output modules
Object Description
128 Fail safe state outputs technology module
129 Fail safe mode outputs technology module
130 Idle state outputs technology module
131 Idle mode outputs technology module
Tab. 88 Objects for the Fail safe and Idle parameters for technology modules
Structure of the objects for Fail safe mode and Idle mode
Objects "Fail safe mode": 113d, 121d, 129d
Objects "Idle mode": 115d, 123d, 131d
è Tab. 86 Objects for Fail safe and Idle parameters of digital output modules …
è Tab. 88 Objects for the Fail safe and Idle parameters for technology modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
2 Get/Set Channel 1:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
… … … …
64 Get/Set Channel 63:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
100 Get Number of channels BYTE
Technical appendix
98 Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
101 Get All channels: values for Fail safe mode and Idle
mode
ARRAY
Tab. 89 Structure of the objects for Fail safe mode and Idle mode
Structure of the objects for “Fail safe state” and “Idle state” for digital output modules
Object "Fail safe state": 112d
Object "Idle state": 114d
è Tab. 86 Objects for Fail safe and Idle parameters of digital output modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
2 Get/Set Channel 1:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
… … … …
64 Get/Set Channel 63:
0: Hold last state
1: Fail safe/"Idle state"
BOOL
100 Get Number of channels BYTE
101 Get All channels: values for Fail safe state and Idle
state
ARRAY
Tab. 90 Structure of the objects for “Fail safe state” and “Idle state” for digital output modules
Structure of the objects for “Fail safe state” and “Idle state” for analogue output modules
Object "Fail safe state": 120d
Object "Idle state": 122d
è Tab. 87 Objects for Fail safe and Idle parameters of analogue output modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0:
Value for Fail safe state and Idle state
WORD
2 Get/Set Channel 1:
Value for Fail safe state and Idle state
WORD
… … … …
Technical appendix
99Festo — CPX-FB36 — 2019-07b
Attr. No. Access Description Type
32 Get/Set Channel 31:
Value for Fail safe state and Idle state
WORD
Tab. 91 Structure of the objects for “Fail safe state” and “Idle state” for analogue output modules and
technology modules
Structure of the Objects for “Fail safe state” and “Idle state” for technology modules
Object "Fail safe state": 128d
Object "Idle state": 130d
è Tab. 88 Objects for the Fail safe and Idle parameters for technology modules
Instances: 1 … 48
Attr. No. Access Description Type
1 Get/Set Channel 0: value for "Fail safe state" and "Idle
state"
BYTE
2 Get/Set Channel 1: value for "Fail safe state" and "Idle
state"
BYTE
… … … …
64 Get/Set Channel 63: value for "Fail safe state" and "Idle
state"
BYTE
65 Get/Set Channel 0: value for "Fail safe state" and "Idle
state"
WORD
... ... … …
96 Get/Set Channel 31: value for "Fail safe state" and "Idle
state"
WORD
100 Get Number of channels BYTE
101 Get Data type:
– D1h : BYTE
– D2h : WORD
BYTE
102 Get/Set All channels:values for Fail safe state and Idle
state
ARRAY
Tab. 92 Structure of the objects for “Fail safe state” and “Idle state” for analogue output modules and
technology modules
6.3.4.9 "Configuration Array Object"
The Configuration Array Object is available only for revision statuses later than Rev. 1.2. Further
information about this object can be found at www.festo.com/sp.
Object class: 199d
Technical appendix
100 Festo — CPX-FB36 — 2019-07b
http://www.festo.com/sp
Attr.
No.
Access Description Type Function
no.
1 Get/Set Data field with all system and module parameters. ARRAY -
Tab. 93 "Configuration Array Object"
6.3.4.10 “Slave Size Object” for “Remote Controller” operating mode
Object class: 136d
Instances: 1
This object is only available in the Remote Controller operating mode.
The slave size object contains the number of I/O bytes for communication of the bus node CPX-FB36
with a control block (e.g. CPX-FEC). The setting is made via DIL switches on the bus node CPX-FB36
è Tab. 6 Setting diagnostic mode or data field size.
Attr.
No.
Access Description Type
1 Get Number of input bytes for the Remote Controller operating
mode
SINT
2 Get Number of output bytes for the Remote Controller operating
mode
SINT
Tab. 94 “Slave Size Object” for “Remote Controller” operating mode
6.3.4.11 "Condition Counter Object"
Object class: 141d
Instances: 1
Attribute no. Access Name Type Description Value
Class Attributes
1 Get Revision UINT Revision of the
object
1
2 Get Max instances UINT Maximum
number of
instances of
the CIP object
48
3 Get Num instances UINT Number of
instances that
are currently
generated by
the CIP object
≤ 48
6 Get Max Class
Attribute
UINT 7
Technical appendix
101Festo — CPX-FB36 — 2019-07b
Attribute no. Access Name Type Description Value
7 Get Max Instance
Attribute
UINT Channel of
Modules + 1
Instance Attributes
1 Get Channel count USINT
2 … + Channel
Count
Get/Set Condition
Counter of
Channel1)
UDINT
1) Reset of the "Counter of Channel" counter: set value to 0.
Tab. 95 "Condition Counter Object"
6.3.4.12 "HART Access Object"
Object class: 861d
Instances: 1
Attribute no. Access Name Type Description Value
Class Attributes
1 Get Revision UINT Revision of the
object
1
2 Get Max instances UINT Maximum
number of
instances of
the CIP object
48
3 Get Num instances UINT Number of
instances that
are currently
generated by
the CIP object
≤ 48
6 Get Max Class
Attribute
UINT 100
7 Get Max Instance
Attribute
UINT Channel of
Modules + 1
100 Get/Set HART Status
Polling Interval
in Seconds
UINT 120
Instance Attributes
No Instance Attributes
Tab. 96 "HART Access Object"
Technical appendix
102 Festo — CPX-FB36 — 2019-07b
"Read Additional Device Status"
Request Service Code Instance Attribute
Read Additional Device
Status Request1)
0x4C
(76d)
Channel Module
1) Repeat for all modules and channels: set the Channel instance to 0.
Tab. 97 Query (Request) "Read Additional Device Status"
Offset Field Description
Request not successful (Request failed)
0 Status 34: Running
Device handles requests, fur-
ther requests not possible
35: Dead
Device not connected or com-
munication not possible
1 Padding 0
Request successful (Request successful)
0 Status 0: Success
1 Number of Status Bytes 0 … 25 bytes
2 … 26 Additional Status Bytes Response data of HART com-
mand 48 ("CMD#48")1))
27 Padding 02)
1) Within instance 0 the offset bytes are filled with zeros if not in use.
2) This offset byte is only available if all 25 bytes are in use or the corresponding instance is set to zero.
Tab. 98 "Read Additional Device Status"
"Get HART Device Information"
Request Service Code Instance Attribute
Get HART Device
Information Request
0x4D
(77d)
Channel Module
Tab. 99 Query (Request) "Get HART Device Information"
Technical appendix
103Festo — CPX-FB36 — 2019-07b
Offset Field Size Description
Request not successful (Request failed)
0 Status 1 byte 34: Running
Device handles
requests, further
requests not possible
35: Dead
Device not connected
or communication not
possible
1 Padding 1 byte 0
Request successful (Request successful)
0 Status 1 byte 0: Success
1 Manufacture ID 1 byte CMD#0, Byte 1
2 Device Type 1 byte CMD#0, Byte 2
3 HART preamble 1 byte CMD#0, Byte 3
4 HART Univ Cmd Code 1 byte CMD#0, Byte 4
5 HART Trans Spec Rev 1 byte CMD#0, Byte 5
6 Software Revision 1 byte CMD#0, Byte 6
7 Hardware Revision 1 byte CMD#0, Byte 7
8 HART flags 1 byte CMD#0, byte 8
9 Pad_1 for 32 bit align-
ment
1 byte
10 … 11 HART Manufacturer ID 16 bit CMD#0, byte 1, if HART
revision56
5.3 Diagnostics via status bits.............................................................................................58
5.4 Diagnostics via the I/O diagnostics interface.................................................................59
5.5 Diagnostics via EtherNet/IP...........................................................................................60
5.6 Diagnostics via Modbus TCP......................................................................................... 61
5.7 Error handling ("Fail safe")............................................................................................61
6 Technical appendix...................................................................................................... 62
6.1 Technical Data............................................................................................................... 62
6.2 Address assignment of the CPX terminal....................................................................... 63
6.2.1 Address assignment.............................................................................................. 63
6.2.1.1 Bus node................................................................................................................ 64
6.2.1.2 Digital modules...................................................................................................... 64
6.2.1.3 Analogue modules................................................................................................. 66
6.2.1.4 Technology modules.............................................................................................. 68
6.2.2 Addressing............................................................................................................. 69
6.2.2.1 Basic rules for addressing...................................................................................... 69
6.2.2.2 Data formats.......................................................................................................... 70
6.2.2.3 Examples of addressing......................................................................................... 71
4 Festo — CPX-FB36 — 2019-07b
6.2.3 Address assignment after extension/conversion.................................................... 74
6.3 EtherNet/IP-Objects of the CPX-FB36........................................................................... 76
6.3.1 Overview of EtherNet/IP objects............................................................................. 76
6.3.2 Objects for network settings................................................................................... 79
6.3.2.1 "Device Level Ring Object".....................................................................................79
6.3.2.2 "QoS Object"..........................................................................................................80
6.3.2.3 "TCP/IP Interface Object"...................................................................................... 80
6.3.2.4 "Ethernet Link Object"............................................................................................82
6.3.3 Objects for the I/O connection................................................................................ 82
6.3.3.1 "Assembly Object"................................................................................................. 82
6.3.4 Objects for system data and diagnostics................................................................ 85
6.3.4.1 "Identity Object".................................................................................................... 85
6.3.4.2 "Global System Object" for operating mode Remote I/O........................................86
6.3.4.3 "Status and Diagnosis Object"............................................................................... 89
6.3.4.4 "Diagnosis Trace Object"....................................................................................... 89
6.3.4.5 "Diagnosis Trace Status Object"............................................................................ 90
6.3.4.6 "Generic Parameter Object"................................................................................... 92
6.3.4.7 "Force Parameter"..................................................................................................94
6.3.4.8 Fail safe and Idle parameters.................................................................................. 97
6.3.4.9 "Configuration Array Object"..................................................................................100
6.3.4.10 “Slave Size Object” for “Remote Controller” operating mode.................................101
6.3.4.11 "Condition Counter Object"....................................................................................101
6.3.4.12 "HART Access Object"............................................................................................ 102
6.3.4.13 "ISDU Access Object".............................................................................................108
6.3.5 Examples................................................................................................................ 109
6.3.5.1 Forcing inputs......................................................................................................... 109
6.3.5.2 Parameterisation with “Generic Parameter Object”................................................ 111
6.4 Modbus TCP-Objects of the CPX-FB36.......................................................................... 112
6.4.1 Overview of Modbus TCP objects........................................................................... 112
6.4.2 Commands and addresses......................................................................................112
6.4.3 CPX status information (Group A)........................................................................... 113
6.4.4 Process data (Group B and D)................................................................................. 114
6.4.4.1 Bus node CPX-M-FB36............................................................................................ 115
6.4.4.2 Electric modules..................................................................................................... 115
6.4.4.3 Pneumatic modules................................................................................................ 117
6.4.4.4 Electrical interface (CP interface) CPX-CP-4-FB........................................................119
6.4.4.5 Structure of diagnostic data (diagnostic word)....................................................... 122
6.4.4.6 Structure of the data of the I/O diagnostics interface............................................. 122
6.4.5 Diagnostic memory (Groups C and E)......................................................................123
6.4.6 Modbus TCP-Objects (Group F)...............................................................................124
5Festo — CPX-FB36 — 2019-07b
6.4.6.1 Examples of addressing for Modbus TCP............................................................... 125
6 Festo — CPX-FB36 — 2019-07b
7Festo — CPX-FB36 — 2019-07b
1 Safety
1.1 Intended Use
The bus node described in this description is intended exclusively for use in Festo CPX terminals for
installation in a machine or automation system.
In conjunction with a CPX terminal, the bus node is used for communication as a station in networks
with the EtherNet/IP or Modbus TCP protocols.
The CPX terminal may only be used as follows:
– as intended in industrial environments; outside industrial environments, e.g. in commercial and
mixed-residential areas, actions to suppress interference may be required
– in its original state without unauthorised modifications; only the conversions or modifications
described in the documentation supplied with the product are permitted.
– In perfect technical condition
– Only in combination with approved components
– Observe the specifiedresponse status
regarding byte 1
3 HART FieldDeviceStatus HART response status
regarding byte 2
or
Error Reason Code, if
status = 35
Technical appendix
107Festo — CPX-FB36 — 2019-07b
Offset Field Value Description
4 Data size 1 byte Number of data bytes
(data size) in the
response to the HART
command
5 … 257 Data Data bytes in the data
field of the response to
the HART command
Tab. 104 "Pass Through Query"
"Pass Through Error Reason Codes"
Code Description
0x81 No response from device
0x82 Invalid, too long Frame address
0x83 Invalid HART-Message check sum
0x84 HART command (CMD … ) not allowed
0x85 Invalid channel (Channel)
0x86 Channel (Channel) not enabled for HART
0x87 No device connected
0x89 Invalid size of the CIP Message (too small)
0x8A Invalid data Handle
0x8B Invalid delimiter/field separator (Delimiter)
0x8F Invalid data volume (too large)
Tab. 105 Pass Through Error Reason Codes
6.3.4.13 "ISDU Access Object"
Object class: 768d
Instances: 1
Attr.
No.
Access Description Type Function
no.
1 Get List with instance numbers of CBUS modules with
ISDU function (ISDU = Indexed Service Data Unit)
ARRAY OF
SINT
-
Tab. 106 "ISDU Access Object"
The object also offers the following services:
Technical appendix
108 Festo — CPX-FB36 — 2019-07b
Request Service
Code
Instance1) Attribute2) Data [0 … 1] Data [2] Data [3 … n]
Read 0x32
(50d)
Channel CBUS mod-
ule number
Index Subindex -
Write 0x33
(51d)
Channel CBUS mod-
ule number
Index Subindex Data to write
1) The instance can have the following values: 1= Port 1; 2 = Port 2
2) The attribute contains the CBUS module number starting with 0
Tab. 107 Services of the object “ISDU Access Object”
The answer for the services 0x32 and 0x33 is:
Data [0] Data [1 … n]
Response Status è Tab. 109 Response Status Data from ISDU
(only for service 0x32 = Read)
Tab. 108 Answer for the services 0x32 and 0x33
Response Status Description
0 Success
E1h Write data length too long
E2h Port unknown
E3h Device busy
E4h Write failed
E5h Read failed
E6h Read answer too long
E7h State unknown
E8h Port on master not support
E9h Port in invalid state
FFh Timeout
Tab. 109 Response Status
6.3.5 Examples
6.3.5.1 Forcing inputs
In this example, the Force mode of an analogue input module is parameterised.
Technical appendix
109Festo — CPX-FB36 — 2019-07b
1 Parameterisation: module CPX-4AE-I,
Force mode setting for channel 2:
Object class 117
(è Tab. 80 Objects for force parameter of
analogue I/O modules),
Instance 3 (= module number + 1),
Attribute 3 (for channel 2
è Tab. 82 Basic Structure of the objects for
Force mode,
è Tab. 110 Example: set Force state for
module no. 2)
Fig. 27 Example of Forcing (sequence: see text)
1. Enable Force mode
Enable the Force mode for the CPX terminal with system object 132
è Tab. 56 Overview of EtherNet/IP objects,
è 6.3.4.2 "Global System Object" for operating mode Remote I/O:
System object: 132
Instance: 1
Attribute 11 (Force mode)
2. Define value for Force state for channel 2:
Objects Force state: 116
(è Tab. 84 Structure of the Objects for “Force state” for analogue I/O modules)
Instance: 3
Attr. No. Access Parameter Type
... ... ... ...
3 Get/Set Channel 2:
Value for Force
WORD
... ... ... ...
100 Get Number of channels BYTE
101 Get All channels: values for Force mode ARRAY
Tab. 110 Example: set Force state for module no. 2
Technical appendix
110 Festo — CPX-FB36 — 2019-07b
3. Define Force mode for channel
Objects Force state: 117 (è Tab. 82 Basic Structure of the objects for Force mode)
Instance: 3
Attr. No. Access Parameter Type
... ... ... ...
3 Get/Set Value for Force mode, channel 2:
0 = force blocked
1 = force enabled
BOOL
... ... ... ...
100 Get Number of channels BYTE
101 Get All channels: values for Force mode ARRAY
Tab. 111 Example: set Force state for module no. 2
6.3.5.2 Parameterisation with “Generic Parameter Object”
In this example, a signal extension time with a digital input module and a lower limit value with an
analogue input module are parameterised.
1 Parameterisation module CPX-8DE:
Enable signal extension channel 5:
Object class 101
(è 6.3.4.6 "Generic Parameter Object"),
Instance 1 (= module number),
Attribute 7
(è Tab. 112 Example: parameterisation of
signal extension for module no. 1)
2 Parameterisation module CPX-4AE-I:
Lower limit value of channel 2:
Object class 101
(è 6.3.4.6 "Generic Parameter Object"),
Instance 2 (= module number),
Attribute 82
(è Tab. 113 Example: parameterisation of
the lower limit value (module no. 2, channel
2))
Fig. 28 Examples for parameterisation with the general Module Parameter Object
The following tables show you how to determine the attributes for the parameterisation. The paramet-
ers of the relevant modules are entered in the tables.
Technical appendix
111Festo — CPX-FB36 — 2019-07b
Information on the parameters can be found in the description for the relevant module.
Attribute no.
Byte Word Word
Parameter (module no. 1 è Fig.28) Function no.
1 - Monitoring CPX module 4828 + m * 64 + 0
2
65
Bit 0: behaviour after short circuit/overload
Bit 4, 5: input debounce time
Bit 6, 7: signal extension time
4828 + m * 64 + 1
3
66
- 4828 + m * 64 + 2
4
67
- 4828 + m * 64 + 3
5
68
- 4828 + m * 64 + 4
6
69
- 4828 + m * 64 + 5
7
70
Signal extension channel x 4828 + m * 64 + 6
8
71
... - 4828 + m * 64 + 7
Tab. 112 Example: parameterisation of signal extension for module no. 1
Attribute no.
Byte Word Word
Parameter (module no. 2 è Fig.28) Function no.
1 - Monitoring CPX module 4828 + m * 64 + 0
2
65
Bit 0: behaviour after short circuit/overload 4828 + m * 64 + 1
...
66
... 4828 + m * 64 + ...
...
...
... 4828 + m * 64 + ...
15
...
Lower limit value of channel 1 4828 + m * 64 + 14
16
80
Lower limit value of channel 1 4828 + m * 64 + 15
17
81
Lower limit value of channel 2 4828 + m * 64 + 16
18
82
Lower limit value of channel 2 4828 + m * 64 + 17
... ...
83
... 4828 + m * 64 + ...
Tab. 113 Example: parameterisation of the lower limit value (module no. 2, channel 2)
6.4 Modbus TCP-Objects of the CPX-FB36
6.4.1 Overview of Modbus TCP objects
This chapter describes the representation of the CPX terminal within the Modbus TCP object model.
Some information is in English so that the original terms of the protocol specification can be used
unambiguously.
Technical appendix
112 Festo — CPX-FB36 — 2019-07b
6.4.2 Commands and addresses
The table below shows the connection between the Modbus address and data or parameters of the
CPX terminal. The data are assigned to various groups.
Modbus command Func-
tion
code
Modbus address Meaning Remote-
 I/O
16-bit
access
Group
read
4x registers
3 45357 … 45391
45392 … 45647
45648 … 45655
45656 … 46055
46100
CPX status information
Process data inputs
Diagnostic memory paramet-
ers
Diagnostic memory data
Modbus connection timeout
read
read
read
read
read
O
B
C
C
O
write
4x registers
6, 16 40001 … 40256
40257 … 40264
46100
Process data outputs
Diagnostic memory paramet-
ers
Modbus connection timeout
write
write
write
D
I
O
read/write
4x registers
23 45357 … 45391
45392 … 45647
45648 … 45655
45656 … 46055
40001 … 40256
40257 … 40264
CPX status information
Process data inputs
Diagnostic memory paramet-
ers
Diagnostic memory data
Process data outputs
Diagnostic memory paramet-
ers
read
read
read
read
write
write
O
B
C
C
D
I
read device identi-
fication
43 Objects Objects ID0, 1, 2, 3, 4, 5 read F
Tab. 114 Overview of the Modbus function codes for the bus node CPX-FB36 in operating mode
Remote I/O
6.4.3 CPX status information (Group A)
The status information provides information on the configuration and the fault status of the CPX ter-
minal. It is in the Modbus address range 45367 … 45391.
Modbus
address
CPX terminal configuration
Process data inputs
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
45367 Module 0 … 15
45368 Module 16 … 31
Technical appendix
113Festo — CPX-FB36 — 2019-07bModbus
address
CPX terminal configuration
45369 Module 32 … 47
Bit n = 0: module does not exist
Bit n = 1: module exists
Tab. 115 Configuration information on the modules of the CPX terminal
Modbus
address
Fault detection
Process data inputs
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
45383 Module 0 … 15
45384 Module 16 … 31
45385 Module 32 … 47
Bit n = 0: no error
Bit n = 1: error in module n
Tab. 116 Detection of which module reports a fault
Modbus
address
Status register
Process data inputs
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
45391 Bit 4 = 1: operator unit connected; 0: not connected
Bit 11 = 1: parameter write-protected; 0: no write protection
Bit 15 = 1: force active; 0: force inactive
Tab. 117 Further status information (extracts from the system data)
Modbus
address
Modbus connection timeout
Monitoring of the Modbus connection in milliseconds [ms]
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
46100 0 = deactivated
Value range: 10 … 65535
Default setting: 10000 (10 s)
Tab. 118 Modbus connection timeout
Technical appendix
114 Festo — CPX-FB36 — 2019-07b
6.4.4 Process data (Group B and D)
The process image of the input data (Group B) and of the output data (Group D) is composed seam-
lessly of the data of the modules as mounted from left to right in the CPX terminal.
The Modbus addresses depend accordingly on the modules mounted on the CPX terminal. They are
arranged seamlessly in ascending order (n, n +1, n +2, ... ; n corresponds to the first Modbus address
of the module).
Examples of addressing è Fig.29
6.4.4.1 Bus node CPX-M-FB36
Modbus
address1)
Bus node CPX-FB36 Remote I/O
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Result of access to the I/O diagnostic
interface1)
Access to the I/O diagnostic interface 2)
n+1 Data from the system table (read access)
è Tab. 141 I/O diagnostics interface –
read access
Data for the system table
è Tab. 140 I/O diagnostics interface –
write access2)
(write access )
n+2 Module diagnostic data
è Tab. 139 Module diagnostic data
-
1) n corresponds to the first Modbus address of the module.
2) Structure of the I/O diagnostic interface
Tab. 119 Bus node CPX-FB36 Remote I/O
6.4.4.2 Electric modules
Modbus
address1)
Digital input module (CPX-4DI)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n 0 Inputs -
n+1 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 120 Digital input module (CPX-4DI)
Modbus
address1)
Digital input module (CPX-8DI)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
Technical appendix
115Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Digital input module (CPX-8DI)
n 0 Inputs -
n+1 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 121 Digital input module (CPX-8DI)
Modbus
address1)
Digital output module (CPX-4DO)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n x Echo
outputs
x Outputs
n+1 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 122 Digital output module (CPX-4DO)
Modbus
address1)
Digital input/output module (CPX-8DI-8DO)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n 0 Inputs x Outputs
n+1 x Echo outputs -
n+2 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 123 Digital input/output module (CPX-8DI-8DO)
Modbus
address1)
Analogue input module (CPX-2OI)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Analogue inputs channel 0 -
n+1 Analogue inputs channel 1 -
n+2 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 124 Analogue input module (CPX-2OI)
Technical appendix
116 Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Analogue output module (CPX-2AO)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Echo analogue outputs channel 0 Analogue outputs channel 0
n+1 Echo analogue outputs channel 1 Analogue outputs channel 1
n+2 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 125 Analogue output module (CPX-2AO)
6.4.4.3 Pneumatic modules
Modbus
address1)
MPA1 pneumatic module (1 … 8 valves)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n x Echo outputs x Outputs
n+1 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 126 MPA1 pneumatic module
Modbus
address1)
MPA2 pneumatic module (1 … 4 valves)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n x Echo
outputs
x Outputs
n+1 Module diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 127 MPA2 pneumatic module
Modbus
address1)
Pneumatic interface for CPA pneumatic set to 1 … 8 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n x Echo outputs x Echo outputs
Technical appendix
117Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Pneumatic interface for CPA pneumatic set to 1 … 8 valves
n+1 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 128 Pneumatic interface for CPA pneumatic (1 ... 8 valves)
Modbus
address1)
Pneumatic interface for CPA pneumatic set to 1 … 16 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Echo outputs Outputs
n+1 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 129 Pneumatic interface for CPA pneumatic (1 ... 16 valves)
Modbus
address1)
Pneumatic interface for CPA pneumatic set to 1 … 22 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Echo outputs 0 … 15 Outputs 0 … 15
n+1 x Echo outputs
16 … 22
x Outputs 16 … 22
n+2 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 130 Pneumatic interface for CPA pneumatic (1 ... 22 valves)
Modbus
address1)
Pneumatic interface for midi/maxi pneumatic set to 1 … 8 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n x Echo outputs x Outputs
n+1 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 131 Pneumatic interface for midi/maxi pneumatic (1 ... 8 valves)
Technical appendix
118 Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Pneumatic interface for midi/maxi pneumatic set to 1 … 16 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Echo outputs Outputs
n+1 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 132 Pneumatic interface for midi/maxi pneumatic (1 ... 16 valves)
Modbus
address1)
Pneumatic interface for midi/maxi pneumatic set to 1 … 24 valves
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Echo outputs 0 … 15 Outputs 0 … 15
n+1 x Echo outputs
16 … 24
x Outputs 16 … 24
n+2 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 133 Pneumatic interface for midi/maxi pneumatic (1 ... 24 valves)
Modbus
address1)
Pneumatic interface for pneumatic Midi/Maxi set to 1 … 32 valves2)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n+1 Echo outputs 0 … 15 Outputs 0 … 15
n+2 x Echo outputs
16 … 26
x Outputs 16 … 26
n+3 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
2) Only 26 valves usable.
Tab. 134 Pneumatic interface for midi/maxi pneumatic (1 ... 32 valves)
6.4.4.4 Electrical interface (CP interface) CPX-CP-4-FB
The electrical interface (CP interface) CPX-CP-4-FB has connections for 4 strings to each of which max-
imum 4 CP modules can be connected.
The last used string is decisive for the number of assigned bytes, even if numericallylower strings are
not assigned physically.
Technical appendix
119Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Electrical interface (CP interface) CPX-CP-4-FB used string: 1 (line 1)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Data byte 1 Data byte 0 Data byte 1 Data byte 0
n+1 Data byte 3 Data byte 2 Data byte 3 Data byte 2
n+2 Echo
Output data 1
Echo
Output data 0
-
n+3 Echo
Output data 3
Echo
Output data 2
-
n+4 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 135 Electrical interface (CP interface) CPX-CP-4-FB - used string 1
Modbus
address1)
Electrical interface (CP interface) CPX-CP-4-FB Used strings: 1, 2 (line 1 … 2)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Data byte 1 Data byte 0 Data byte 1 Data byte 0
n+1 Data byte 3 Data byte 2 Data byte 3 Data byte 2
n+2 Data byte 5 Data byte 4 Data byte 5 Data byte 4
n+3 Data byte 7 Data byte 6 Data byte 7
n+4 Echo
Output data 1
Echo
Output data 0
-
n+5 Echo
Output data 3
Echo
Output data 2
-
n+6 Echo
Output data 5
Echo
Output data 4
-
n+7 Echo
Output data 7
Echo
Output data 6
-
n+8 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 136 Electrical interface (CP interface) CPX-CP-4-FB - used strings 1, 2
Technical appendix
120 Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Electrical interface (CP interface) CPX-CP-4-FB Used strings: 1, 2, 3 (line 1 … 3)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Data byte 1 Data byte 0 Data byte 1 Data byte 0
n+1 Data byte 3 Data byte 2 Data byte 3 Data byte 2
n+2 Data byte 5 Data byte 4 Data byte 5 Data byte 4
n+3 Data byte 7 Data byte 6 Data byte 7 Data byte 6
n+4 Data byte 9 Data byte 8 Data byte 9 Data byte 8
n+5 Data byte 11 Data byte 10 Data byte 11 Data byte 10
n+6 Echo
Output data 1
Echo
Output data 0
-
n+7 Echo
Output data 3
Echo
Output data 2
-
n+8 Echo
Output data 5
Echo
Output data 4
-
n+9 Echo
Output data 7
Echo
Output data 6
-
n+10 Echo
Output data 9
Echo
Output data 8
-
n+11 Echo
Output data 11
Echo
Output data 10
-
n+12 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 137 Electrical interface (CP interface) CPX-CP-4-FB - used strings 1, 2, 3
Modbus
address1)
Electrical interface (CP interface) CPX-CP-4-FB Used strings 1, 2, 3, 4 (line 1 … 4)
Process data inputs Process data outputs
Bit 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
n Data byte 1 Data byte 0 Data byte 1 Data byte 0
n+1 Data byte 3 Data byte 2 Data byte 3 Data byte 2
n+2 Data byte 5 Data byte 4 Data byte 5 Data byte 4
n+3 Data byte 7 Data byte 6 Data byte 7 Data byte 6
n+4 Data byte 9 Data byte 8 Data byte 9 Data byte 8
Technical appendix
121Festo — CPX-FB36 — 2019-07b
Modbus
address1)
Electrical interface (CP interface) CPX-CP-4-FB Used strings 1, 2, 3, 4 (line 1 … 4)
n+5 Data byte 11 Data byte 10 Data byte 11 Data byte 10
n+6 Data byte 13 Data byte 12 Data byte 13 Data byte 12
n+7 Data byte 15 Data byte 14 Data byte 15 Data byte 14
n+8 Echo
Output data 1
Echo
Output data 0
-
n+9 Echo output data 3 Echo output data 2 -
n+10 Echo output data 5 Echo output data 4 -
n+11 Echo output data 7 Echo output data 6 -
n+12 Echo output data 9 Echo output data 8 -
n+13 Echo output data
11
Echo output data
10
-
n+14 Echo output data
13
Echo output data
12
-
n+15 Echo output data
15
Echo output data
14
-
n+16 Diagnostic data -
1) n corresponds to the first Modbus address of the module.
Tab. 138 Electrical interface (CP interface) CPX-CP-4-FB - used strings 1, 2, 3, 4
6.4.4.5 Structure of diagnostic data (diagnostic word)
Module diagnostic data
Input data
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0/1 0/1 Channel number (0 … 63) Error number (0 … 255)
Bit 15 and 14:
0 0: number of the first faulty O-channel
1 0: number of the first faulty I-channel
0 1: there is a module fault
1 1: reserved
Tab. 139 Module diagnostic data
Technical appendix
122 Festo — CPX-FB36 — 2019-07b
6.4.4.6 Structure of the data of the I/O diagnostics interface
I/O diagnostics interface
Write access
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
x x x CPX function number
Data from the system table
Bit 15 (control bit): write access to the I/O diagnostics interface takes place with positive edge (0
è 1)
Bit 14 = 0: byte value, 1: word value
Bit 13 = 0: read request, 1: write request
Tab. 140 I/O diagnostics interface – write access
I/O diagnostics interface
Read access
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Result of last request
Data from the system table
Result of last request:
= 0: waiting
= 8000h: request successful
> 8000h: error
  8001h: write protection or operator unit has write access
  8002h: write not allowed, reserved range
  8003h: internal error
Tab. 141 I/O diagnostics interface – read access
Information on the I/O diagnostics interface and examples of its use can be found in the CPX system
description (CPX-SYS).
6.4.5 Diagnostic memory (Groups C and E)
Modbus
address
Diagnostic memory parameters and data
Read access
Input data
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
45648 Run/stop filter 1 (CPX function number 3480)
45652 Run/stop filter 2 (CPX function number 3484)
Technical appendix
123Festo — CPX-FB36 — 2019-07b
Modbus
address
Diagnostic memory parameters and data
Read access
45652 Error end filter (CPX function number 3484)
45652 Error number filter (CPX function number 3484)
45652 Module/channel filter (CPX function number 3484)
45653 Module number MN (CPX function number 3485)
45654 Channel number CN (CPX function number 3486)
45655 Fault number FN (CPX function number 3487)
45650 Diagnostic memory data – number of entries (CPX function number 3482)
45651 Diagnostic memory data – overflow (CPX function number 3483)
45651 Diagnostic memory data – status (CPX function number 3483)
45656 Diagnostic memory data (CPX function number 3488 + n1))
… …
1) è CPX system description (CPX-SYS)
Tab. 142 Read access to diagnostic memory parameters and data
Modbus
address
Diagnostic memory parameters
Write access
Output data – write and modify
Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
40257 Run/stop filter 1 (CPX function number 3480)
40261 Run/stop filter 2 (CPX function number 3484)
40261 Error end filter (CPX function number 3484)
40261 Error number filter (CPX function number 3484)
40261 Module/channel filter (CPX function number 3484)
40262 Module number MN (CPX function number 3485)
40263 Channel number CN (CPX function number 3486)
40264 Fault number FN (CPX function number 3487)
Tab. 143 Write access to diagnostic memory parameters
Information about the diagnostic memory can be found in the CPX system description (CPX-SYS).
Technical appendix
124 Festo — CPX-FB36 — 2019-07b
6.4.6 Modbus TCP-Objects (Group F)
Object ID Object name Contents
0 Vendor name "Festo SE & Co. KG"
1 Product code "CPX-FB36"
2 MajorMinorRevision "x.y"1)
3 VendorURL "http://www.festo.com"
4 Product name "Modbus TCP"
5 Model name "CPX terminal"
1) x: version Modbus driver, y: revision code CPX terminal
Tab. 144 Modbus TCP objects
6.4.6.1 Examples of addressing for Modbus TCP
CPX terminal with digital I/O modules and MPA pneumatics
1 CPX-FB36
2 Digital I/O modules
3 MPA pneumatics
Fig. 29 Example 1: CPX terminal with digital I/O modules and MPA pneumatics
Module Loca-
tion
Modbus
address
Input data
Bit 15 8 7 4 3 0
45392 Result of access to the I/O diagnostic interface
45393
CPX-FB36
Remote I/O
0
45394 Diagnostic data
45395 0 Input dataDigital input module
(CPX-8DI)
1
45396 Diagnostic data
Technical appendix
125Festo — CPX-FB36 — 2019-07b
http://www.festo.com
Module Loca-
tion
Modbus
address
Input data
45397 x Echo output
data
Digital output module
(CPX-4DO)
2
45398 Diagnostic data
45399 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
3
45400 Diagnostic data45401 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
4
45402 Diagnostic data
45403 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
5
45404 Diagnostic data
45405 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
6
45406 Diagnostic data
Tab. 145 Input data Addressing example 1
Module Loca-
tion
Modbus
address
Input data
Bit 15 8 7 4 3 0
40001 Result of access to the I/O diagnostic interfaceCPX-FB36
Remote I/O
0
40002 Data for the system table (write access)
Digital output module
(CPX-4DO)
2 40003 x Output data
MPA pneumatic module
with diagnostic func-
tion
3 40004 x Output data
MPA pneumatic module
with diagnostic func-
tion
4 40005 x Output data
MPA pneumatic module
with diagnostic func-
tion
5 40006 x Output data
Technical appendix
126 Festo — CPX-FB36 — 2019-07b
Module Loca-
tion
Modbus
address
Input data
MPA pneumatic module
with diagnostic func-
tion
6 40007 x Output data
Tab. 146 Output data Addressing example 1
CPX terminal with digital and analogue I/O modules and also MPA pneumatics
1 CPX-FB36
2 Digital I/O modules
4 MPA pneumatics
3 Analogue I/O modules
Fig. 30 Example 2: CPX terminal with digital and analogue I/O modules and also MPA pneumatics
Module Loca-
tion
Modbus
address
Input data
Bit 15 8 7 4 3 0
45392 Result of access to the I/O diagnostic interface
45393 Data from the system table (read access)
CPX-FB36
Remote I/O
0
45394 Diagnostic data
45395 0 Input dataDigital input module
(CPX-8DI)
1
45396 Module diagnostic data
45397 Analogue inputs channel 0
45398 Analogue inputs channel 1
Analogue input module
(CPX-2OI)
2
45399 Module diagnostic data
45400 Echo analogue outputs channel 03
45401 Echo analogue outputs channel 1
Analogue output mod-
ule (CPX-2AO)
45402 Module diagnostic data
Technical appendix
127Festo — CPX-FB36 — 2019-07b
Module Loca-
tion
Modbus
address
Input data
45403 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
4
45404 Module diagnostic data
45405 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
5
45406 Module diagnostic data
45407 x Echo output dataMPA pneumatic module
with diagnostic func-
tion
6
45408 Module diagnostic data
Tab. 147 Input data Addressing example 2
Module Loca-
tion
Modbus
address
Input data
Bit 15 8 7 4 3 0
40001 Result of access to the I/O diagnostic interfaceCPX-FB36
Remote I/O
0
40002 Data for the system table (write access)
40003 Analogue outputs channel 0Analogue output mod-
ule (2AO)
3
40004 Analogue outputs channel 1
MPA pneumatic module
with diagnostic func-
tion
4 40005 x Output data
MPA pneumatic module
with diagnostic func-
tion
5 40006 x Output data
MPA pneumatic module
with diagnostic func-
tion
6 40007 x Output data
Tab. 148 Output data Addressing example 2
Technical appendix
128 Festo — CPX-FB36 — 2019-07b
© 2019 all rights reserved to Festo SE & Co. KG
Copyright:
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Internet:
Phone:
	Safety
	Intended Use
	Safety Instructions
	Qualifications of specialised personnel (target group)
	Service
	Information regarding this description
	Terms and abbreviations
	Data types
	Installation
	General information about installation
	Connection and display components
	Dismantling and mounting
	Settings of the DIL switches
	Removing and attaching cover
	Arrangement of the DIL switches
	Setting DIL switches
	Setting operating mode and network protocol
	Setting diagnostic mode or data field size
	Setting IP addressing
	Connecting to the network
	General information
	Overview of connection technology and network plug connectors
	Cable specification
	Network connections
	Setting IP addressing
	Extended network settings
	Ensuring the degree of protection
	Power supply of the CPX terminal
	Preparing for commissioning
	EtherNet/IP protocol
	IP-Multicast telegram
	"QuickConnect"
	Device-Level-Ring protocol (DLR)
	Modbus TCP protocol
	Notes on commissioning the CPX-FB36
	Requirements for commissioning
	Switching on the power supply
	Normal operating status
	Stations in the network
	Station properties (Electronic Data Sheet, EDS file)
	Commissioning
	Configuration
	Configuration with EDS file
	Configuration with "Generic Ethernet Module"
	Configuration with CPX-FMT
	Configuration in Remote Controller operating mode
	"Listen-only" Set up connection
	Parameterisation
	Parameterisation during switch-on [system start]
	Methods of parameterisation
	Parameterisation via configuration data
	Parameterisation with the CPX-MMI operator unit
	Parameterisation in the PLC user program
	Parameterisation using CPX-FMT and system start with saved parameters
	Behaviour of the outputs in the "Fail safe mode" or " "Idle mode" mode
	Web server
	Check list for commissioning a CPX terminal
	Replacing bus node
	Diagnostics
	Diagnostics options
	Diagnostics via LED displays
	CPX-specific LED displays
	Network-specific LED displays
	Diagnostics via status bits
	Diagnostics via the I/O diagnostics interface
	Diagnostics via EtherNet/IP
	Diagnostics via Modbus TCP
	Error handling ("Fail safe")
	Technical appendix
	Technical Data
	Address assignment of the CPX terminal
	Address assignment
	Bus node
	Digital modules
	Analogue modules
	Technology modules
	Addressing
	Basic rules for addressing
	Data formats
	Examples of addressing
	Address assignment after extension/conversion
	EtherNet/IP-Objects of the CPX-FB36
	Overview of EtherNet/IP objects
	Objects for network settings
	"Device Level Ring Object"
	"QoS Object"
	"TCP/IP Interface Object"
	"Ethernet Link Object"
	Objects for the I/O connection
	"Assembly Object"
	Objects for system data and diagnostics
	"Identity Object"
	"Global System Object" for operating mode Remote I/O
	"Status and Diagnosis Object"
	"Diagnosis Trace Object"
	"Diagnosis Trace Status Object"
	"Generic Parameter Object"
	"Force Parameter"
	Fail safe and Idle parameters
	"Configuration Array Object"
	“Slave Size Object” for “Remote Controller” operating mode
	"Condition Counter Object"
	"HART Access Object"
	"Read Additional Device Status"
	"Get HART Device Information"
	"Pass Through Init"
	"Pass Through Query"
	"Pass Through Error Reason Codes"
	"ISDU Access Object"
	Examples
	Forcing inputs
	Parameterisation with “Generic Parameter Object”
	Modbus TCP-Objects of the CPX-FB36
	Overview of Modbus TCP objects
	Commands and addresses
	CPX status information (Group A)
	Process data (Group B and D)
	Bus node CPX-M-FB36
	Electric modules
	Pneumatic modules
	Electrical interface (CP interface) CPX-CP-4-FB
	Structure of diagnostic data (diagnostic word)
	Structure of the data of the I/O diagnostics interface
	Diagnostic memory (Groups C and E)
	Modbus TCP-Objects (Group F)
	Examples of addressing for Modbus TCPlimit values.
– Take into consideration the applicable regulations for the intended destination as well as instruc-
tions and standards, regulations of the inspection organisations, insurance companies and
national regulations.
1.2 Safety Instructions
– Before assembly or installation work, switch off the power supply, switch off the compressed air
supply, exhaust any pneumatic components.
– Use exclusively PELV circuits in accordance with IEC 60204-1/EN 60204-1 for the electrical power
supply.
– Observe the notes on installation and power supply as well as on equipotential bonding (earthing
measures) in the CPX system description (CPX-SYS).
– Observe the handling specifications for electrostatically sensitive devices.
– Seal unused connections with cover caps to achieve the required degree of protection.
– Use connection hardware with the required degree of protection.
– Observe the specifications in the CPX system description, in the descriptions of the valve terminal
used as well as in the assembly instructions for the individual components.
– Observe the instructions for correctly mounting the CPX terminal.
– Place only a completely mounted and wired CPX terminal into operation.
– Only switch on the compressed air and load voltage if the system has been professionally
installed, configured and parameterised.
– Make sure that nobody enters the positioning range of the actuators.
Switching off the compressed air or load voltage is not a suitable interlocking mechanism. Uninten-
tional movement of actuators may occur in the event of a malfunction.
Safety
1.3 Qualifications of specialised personnel (target group)
The product may only be commissioned by trained, qualified control and automation technology tech-
nicians who are familiar with:
– mounting, installation, operation and diagnostics of control systems, networks and fieldbus sys-
tems
– the applicable regulations for accident prevention and occupational safety
– the documentation for the product
1.4 Service
If you have technical problems contact your local Festo service è www.festo.com.
1.5 Information regarding this description
This description contains specific information about installation, configuration, parameterisation,
commissioning, programming and diagnostics with the bus node CPX-FB36 for EtherNet/IP and Mod-
bus TCP.
An overview of the user documentation structure for the CPX terminal can be found in the CPX system
description (CPX-SYS).
Further information on EtherNet/IP can be found here:
è www.odva.org
Further information on Modbus TCP can be found here:
è www.modbus.org
The bus node was certified by Open Device Vendor Association(ODVA):
ODVA CONFORMANT
EtherNet/IP
Modbus TCP
Tab. 1 ODVA certifications
General basic information about mode of operation, assembling, installing and commissioning CPX
terminals can be found in the CPX system description (CPX-SYS).
Information about additional CPX modules can be found in the description for the specific module.
All available documents for the product è www.festo.com/pk.
1.6 Terms and abbreviations
The following product-specific terms and abbreviations are used in this description:
Term/abbreviation Meaning
160d Decimal numbers are marked in part by a subscript "d".
Safety
8 Festo — CPX-FB36 — 2019-07b
http://www.festo.com
http://www.odva.org
http://www.modbus.org
https://www.festo.com/pk
Term/abbreviation Meaning
A0h Hexadecimal numbers are marked by a subscript "h".
O digital output
AO analogue output
AI analogue input
BOOTP Dynamic protocol for the automatic allocation of IP addresses (Bootstrap
Protocol, predecessor of DHCP).
Bus node Establishes the connection to specific fieldbuses. It transmits control sig-
nals to the connected modules and monitors their ability to function.
CEC CODESYS Embedded Controller, e.g. CPX-CEC, can be used for control, con-
figuration and commissioning of CPX terminals.
CODESYS Controller Development System
CP Compact Performance
CP module Collective term for the various modules that can be integrated into the CP
system (decentralised installation system).
CPX-CP interface Interface for connecting decentrally arranged CP modules to a CPX termin-
al.
CPX-FMT Festo Maintenance Tool for configuration and parameterisation of CPX ter-
minals.
CPX modules Collective term for electric modules that can be incorporated into a CPX ter-
minal: bus nodes, I/O modules and function modules (technology mod-
ules).
CPX modules provide, among other things, electrical inputs and outputs for
connecting sensors and actuators.
CPX modules form the electrical side of the CPX terminal.
CPX terminal Complete system consisting of various CPX modules with or without pneu-
matics modules.
DO digital output
DI digital input
DHCP Dynamic protocol for automatic allocation of IP addresses (Dynamic Host
Configuration Protocol).
DIL switch Dual-In-Line switch with several switch elements with which settings can
be made.
I digital input
I/O diagnostics inter-
face
Network-independent diagnostic interface at I/O level that enables access
to internal data of the CPX terminal.
Safety
9Festo — CPX-FB36 — 2019-07b
Term/abbreviation Meaning
I/O modules Collective term for the CPX modules that provide digital or analogue inputs
and outputs.
I/O signal Input/output signal of an I/O module; also referred to as a process signal.
I/Os Analogue or digital inputs and outputs.
EtherNet/IP Communication protocol for connecting various devices in a network.
FEC Control block, e.g. CPX-FEC, can be used as:
– stand-alone system controller (SPS, Stand Alone operating mode)
– system controller (SPS, Remote Controller operating mode)
– fieldbus Slave (Remote I/O operating mode)
Function module Collective term for modules with additional functions, e.g. CPX-CP inter-
face, control block CPX-CEC or CPX-FEC. Function modules are also referred
to as technology modules.
CPX-MMI Operator unit for commissioning and service purposes.
Modbus TCP Communication protocol via TCP/IP in automation technology.
Pneumatic interface Interface between CPX modules and pneumatic modules within a CPX ter-
minal.
The pneumatic interface is functionally on the electrical side of the CPX ter-
minal.
Pneumatic modules Collective term for the pneumatics modules that can be integrated into a
CPX terminal.
They provide outputs (working ports) for connecting actuators, e.g. cylin-
ders. They form the pneumatic side of the CPX terminal.
Status bits Internal inputs that supply coded common diagnostic messages.
Technology module è Function module
Tab. 2 Terms and abbreviations
Safety
10 Festo — CPX-FB36 — 2019-07b
1.7 Data types
Data type Size Value range Description
ARRAY –1) – Structure with identical
data types
BOOL 1 bit 0 “false” and 1 “true” Logical data type
BYTE 8 bit 00h … FFh Bit field
DWORD 32 bit 00000000h … FFFFFFFFh Bit field
DINT 32 bit –2147483648 …
2147483647
Signed Double Integer
INT 16 bit –32,768 … 32,767 Signed Integer
Padded EPATH max. 12 bytes Logical segments of a
path specification
SINT 8 bit –128 … 127 Signed Short Integer
STRING 8 bit/character – String
SHORT_STRING 8 bit/character +
8 bit length spe-
cification
– String with
max. 255 characters
STRUCT –1) – Structure of any data
types
UDINT 32 bit 0 … 4294967296 Unsigned Double Integer
UINT 16 bit 0 … 65,536 Unsigned Integer
USINT 8 bit 0 … 256 Unsigned Short Integer
WORD 16 bit 0000h … FFFFh Bit field
1) depends on the data types in use
Tab. 3 Data types
Safety
11Festo — CPX-FB36 — 2019-07b
2 Installation
2.1 General information about installation
WARNING!
Uncontrolled movements of the actuators and loose tubing lines, undefined switching states of the
electronics
Injury caused by moving parts, damage to machine and to system
Before mounting and installation work:
• Switch off the power supply
• Switch off the compressed air supply
• Exhaust pneumatics.
NOTICE!
Electrostatically sensitive devices
• Do not touch any components.
• Observe the handling specificationsfor electrostatically sensitive devices.
NOTICE!
Ensuring the required degree of protection
• Use cover caps to seal unused connections è 2.4 Ensuring the degree of protection.
Information about mounting of the CPX terminal can be found in the CPX system description (CPX-
SYS).
2.1.1 Connection and display components
1 Network-specific and CPX-specific LED displays
2 Network connections [X1], [X2]
(2 x socket, M12, D-coded, 4-pin)
3 DIL switch
4 Service interface for operator unit CPX-MMI or Festo
Maintenance Tool CPX-FMT
(socket, M12, A-coded, 5-pin)
Fig. 1 Connection and display components
Installation
12 Festo — CPX-FB36 — 2019-07b
2.1.2 Dismantling and mounting
The bus node is installed in an interlinking block of the CPX terminal è Fig.2.
1 Screws
2 Interlinking block
3 Bus node CPX-M-FB36
Fig. 2 Dismantling/mounting
Dismantling bus node
1. Unscrew screws.
2. Pull the bus node out of the interlinking block without tilting it.
Mounting bus node
NOTICE!
Material damage due to incorrect mounting
• Select screws that are suitable for the material of the interlinking block:
– Polymer: thread-grooving screws
– Metal: screws with metric thread.
1. Check seal and sealing surface. Replace damaged parts.
2. Push the bus node carefully and without tilting into the interlinking block up to the stop.
3. Screw the screws into the existing thread.
4. Tighten the screws in diagonally opposite sequence.
Tightening torque: 1 Nm ± 10%.
2.2 Settings of the DIL switches
The following settings can be made with the DIL switches:
– Operating mode and network protocol
– Diagnostic mode or data field size
– IP addressing
The settings of the DIL switches become effective only after the power supply is switched on.
Installation
13Festo — CPX-FB36 — 2019-07b
2.2.1 Removing and attaching cover
The cover must be removed to set the DIL switches at the bus node.
Removing the DIL switch cover
1. Switch off power supply.
2. Unscrew screws.
3. Remove the DIL switch cover.
Attaching the DIL switch cover
1. Attach the DIL switch cover. Make sure that the seal is seated correctly.
2. Tighten screws. Tightening torque: max. 0.4 Nm.
2.2.2 Arrangement of the DIL switches
1 DIL switch 1:
Operating mode and network protocol
2 DIL switch 2:
Diagnostic mode or data field size
(depending on the set operating mode)
3 DIL switch 3:
IP addressing
Fig. 3 DIL switch
2.2.3 Setting DIL switches
Procedure
1. Switch off power supply.
2. Remove the DIL switch cover è 2.2.1 Removing and attaching cover.
3. Make the settings for the DIL switches è 2.2.4 Setting operating mode and network protocol …
è 2.2.6 Setting IP addressing.
4. Replace the cover of the DIL switches è 2.2.1 Removing and attaching cover.
Installation
14 Festo — CPX-FB36 — 2019-07b
2.2.4 Setting operating mode and network protocol
DIL switch 1.1 Mode of operation
DIL 1.1: OFF
(factory setting)
Remote I/O
All functions of the CPX terminal are controlled directly by
the higher-order controller (SPS). A control block integrated
into the CPX terminal (e.g. CPX-CEC or CPX-FEC) works as a
passive function module without controller.
DIL 1.1: ON Remote Controller
A control block integrated into the CPX terminal (e.g. CPX-
CEC or CPX-FEC) controls the I/O controller. This operating
mode is only useful if a control block is integrated into the
CPX terminal.
Tab. 4 Setting operating mode
DIL switch 1.2 Network protocol
DIL 1.2: OFF
(factory setting)
EtherNet/IP
The CPX terminal uses the EtherNet/IP network protocol.
DIL 1.2: ON Modbus TCP
The CPX terminal uses the EtherNet/IP network protocol.
Tab. 5 Setting network protocol
2.2.5 Setting diagnostic mode or data field size
The function of DIL switch 2 is dependent on the set operating mode of the CPX terminal
è Tab. 4 Setting operating mode.
DIL switch 2 Diagnostics mode
(Remote I/O)1)
Data field size
(Remote Controller)2)
2.1: OFF
2.2: OFF
(factory setting)
I/O diagnostics interface and
status bits switched off
8 byte I/8 byte O for communic-
ation of the bus node with a
control block (e.g. CPX-CEC)
2.1: ON
2.2: OFF
I/O diagnostics interface is
switched on
32 Byte I/32 Byte O for commu-
nication of the bus node with a
control block (e.g. CPX-CEC)3)
2.1: OFF
2.2: ON
Status bits switched on 16 byte I/16 byte O for commu-
nication of the bus node with a
control block (e.g. CPX-CEC)
Installation
15Festo — CPX-FB36 — 2019-07b
DIL switch 2 Diagnostics mode
(Remote I/O)1)
Data field size
(Remote Controller)2)
2.1: ON
2.2: ON
reserved 64 byte I/64 byte O for commu-
nication of the bus node with a
control block (e.g. CPX-CEC)4)
1) The diagnostic mode can only be set in the remote I/O operating mode.
2) The data field size can only be set in the remote controller operating mode.
3) as of revision 12
4) from revision 13
Tab. 6 Setting diagnostic mode or data field size
The CPX-internal I/O illustration or address allocation can be shifted during a subsequent activation of
the diagnostics mode (status bits or I/O diagnostics interface). The system controller carries out this
adjustment automatically. Manual manipulation, e.g. a reconfiguration of the CPX terminal or manual
adaptation of the hardware and network configuration, are not required.
2.2.6 Setting IP addressing
DIL switch 3 IP addressing
DIL 3.8:   27 =   128
DIL 3.7:   26 =   64
DIL 3.6:   25 =   32
DIL 3.5:   24 =   16
DIL 3.4:   23 =   8
DIL 3.3:   22 =   4
DIL 3.2:   21 =   2
DIL 3.1:   20 =   1
The type of addressing or the Host-ID of the IP address of
the bus node is set via the DIL switch elements 3.1 … 3.8.
Possible settings:
0 = dynamic addressing via DHCP/BOOTP
1 … 254 = permissible address range
255 = reset all IP parameters to factory setting
Factory setting: 0
Tab. 7 Setting IP addressing
Dynamic addressing is set in the factory via DHCP/BOOTP.
If all of the switch elements of the DIL switch 3 are set to the ON position when the bus node is
switched on, all IP parameters will be reset to factory settings.
Example – setting IP address of the bus node
DIL 3.8:   OFF
DIL 3.7:   OFF
DIL 3.6:   ON    25 = 32
DIL 3.5:   OFF
DIL 3.4:   OFF
Example:
21 + 22 + 25 = 2 + 4 + 32 = 38 (Host-ID)
Set IP address: 192.168.1.038
Installation
16 Festo — CPX-FB36 — 2019-07b
Example – setting IP address of the bus node
DIL 3.3:   ON    22 = 4
DIL 3.2:   ON    21 = 2
DIL 3.1:   OFF
Tab. 8 Example – IP addressing
2.3 Connecting to the network
2.3.1 General information
NOTICE!
Unauthorised access to the device can cause damage or malfunctions.
When connecting the device to a network, protect the network from unauthorised access.
Measures to protect the network include:
• Firewall
• Intrusion Prevention System (IPS)
• Network segmentation
• Virtual LAN (VLAN)
• Virtual Private Network (VPN)
• Security at physical access level (Port Security)
An access password only protects against unintentional modification.
For additional information è Guidelines and standards for security in information technology, e. g.
IEC 62443, ISO/IEC 27001.
NOTICE!
Modules with Ethernet interfaces should only be operated in networks if all connected network com-
ponents are supplied by PELV circuits or integrated power circuits with equivalent protection.
Installation guidelines
Installation guidelines can be sourced from the ODVA user organisation è www.odva.org.
Use of switches and routers
The switch integrated in the bus node enables division of the network into several segments.
Installation
17Festo — CPX-FB36 — 2019-07b
http://www.odva.org
The network can be divided into additional segments with the use of additional switches and routers.
This makes it possible to structure the network and achieve greater network expansion.
Regardless of the network structure, the expansion of a network segment must not exceed certain
connection lengths.
– Copper connecting cable
(Ethernet cable, Twisted Pair, 22 AWG):
max. 100 m between network stations
Switches and routers for Industrial Ethernet are available in the marketfrom various manufacturers
and in a variety of components in IP20, IP65 or IP67.
– Unmanaged Switches:
For small networks with low network load or minimum deterministic requirements
– Managed Switches:
For complex networks with diagnostic and monitoring functions
2.3.2 Overview of connection technology and network plug connectors
NOTICE!
If installation has not been carried out correctly and high transmission rates are used, data transmis-
sion errors may occur due to signal reflection and attenuation.
• Note cable specifications è Tab. 10 Cable specification.
Transmission errors can be caused by:
• incorrectly screened connection
• branches
• transmission over distances that are too long
• unsuitable cables.
Connection technology Network connectors
2× socket M12, D-coded, 4-pin, according to
IEC 61076-2, SPEEDCON-compatible
Plug NECU-M-S-D12G4-C2-ET
Tab. 9 Overview of connection technology and network plug connectors
RJ45 to M12 converter
For EtherNet/IP installations it may be necessary to switch between RJ45 and M12 connection techno-
logy.
Example: connections between devices in a control cabinet and IP65/IP67 devices.
2.3.3 Cable specification
– Use sheathed Industrial Ethernet wiring of Cat 5/Cat 5e category or better
è Tab. 10 Cable specification.
The CPX bus node supports the "Crossover detection" (Auto-MDI/MDI-X) function. Either Patch cables
or Crossover cables can be used for connecting the bus node with the network or a PC. The circuitry of
the network connections X1 and X2 is adjusted automatically.
Installation
18 Festo — CPX-FB36 — 2019-07b
Cable specification
Cable type Ethernet cable, Twisted Pair, shielded
Transmission class Category Cat 5/Cat 5e
Cable diameter1) 6 … 8 mm
Wire cross section 0.14 … 0.75 mm2; 22 AWG2)
Connection length3) maximum 100 m ("End-to-End Link")
1) when using NECU-M-S-D12G4-C2-ET plug
2) required for maximum connection length between the network stations
3) according to the specification for EtherNet/IP networks, following ISO/IEC 11801, ANSI/TIA/EIA-568
Tab. 10 Cable specification
NOTICE!
When mounting the CPX terminal on a moving part of a machine:
• Use network cables with strain relief.
• Observe corresponding instructions of IEC 60204/EN 60204.
2.3.4 Network connections
There are two 4-pin, D-coded M12 sockets on the bus node for the network connection. The sockets
are compatible with SPEEDCON plugs.
Both connections have Auto-Negotiation and Crossover detection (factory setting).
When Crossover detection is activated, the bus node automatically sets the pins for transmitted and
received data. If Crossover detection is deactivated, assignment of the pins for transmitted and
received data at the X2 connection is crossed. As a result, several bus nodes in a row can each be con-
nected with a Patch cable.
Socket1) Connection [X1]2) Connection [X2]2)
M12,
4-pin
Pin
Signal Explanation Signal Explanation
1
2
3
4
Housing
TD+
RD+
TD–
RD–
Shield
Transmitted data +
Received data +
Transmitted data –
Received data –
Functional earth
RD+
TD+
RD–
TD–
Shield
Received data +
Transmitted data +
Received data –
Transmitted data –
Functional earth
1) The functional earth is implemented via the housing
2) Pin allocation with deactivated crossover detection
Tab. 11 Pin allocation of network connections [X1] and [X2]
Installation
19Festo — CPX-FB36 — 2019-07b
If the "QuickConnect" function has been activated, Crossover detection is not available.
Further information on cabling with deactivated Crossover detection can be found in chapter
è 3.1.2 "QuickConnect".
Connection with Festo plug
The CPX terminal is connected to the network using NECU-M-S-D12G4-C2-ET plugs.
The plugs are designed for network lines with cable diameters of 6 … 8 mm.
To comply with degree of protection IP65/IP67:
– Use Festo plugs.
– Use cover caps to seal unused connections è 2.4 Ensuring the degree of protection.
2.3.5 Setting IP addressing
Alternatively the IP address for the bus node can be set via:
– dynamic addressing via DHCP/BOOTP (factory setting)
– saved addressing
– static addressing using DIL switches
NOTICE!
When the network settings are changed with DIL switches, the "Modify" LED (M) flashes yellow.
• Restart the bus node to activate the modified network settings.
Dynamic addressing via DHCP/BOOTP
– Make sure there is a DHCP/BOOTP server in the network.
To set the dynamic addressing:
1. Set all switch elements of DIL switch 3 to the OFF position è Tab. 7 Setting IP addressing.
2. Dynamic addressing via DHCP/BOOTP alternatively activate via:
– Operator unit (CPX-MMI)
– Software "Festo Maintenance Tool" (CPX-FMT)
– Software "BOOTP-DHCP Server" by ROCKWELL AUTOMATION
Saved network settings
The bus node offers the option of storing the network settings in a non-volatile memory. This will
deactivate DHCP/BOOTP.
1. Set all switch elements of DIL switch 3 to the OFF position è Tab. 7 Setting IP addressing.
2. Alternatively change network settings via:
– Operator unit (CPX-MMI)
– Software "Festo Maintenance Tool" (CPX-FMT)
– Software "BOOTP-DHCP Server" by ROCKWELL AUTOMATION
Use this setting to activate the storage of network settings in the non-volatile memory of the bus
node.
Installation
20 Festo — CPX-FB36 — 2019-07b
Addressing via DIL switches
When addressing via DIL switches, the bus node receives a fixed IP address. This setting is recommen-
ded for test purposes during commissioning or for small networks.
The IP address of the bus node consists of 4 octets:
– Octets 1 … 3: saved in the bus node
– Octet 4: setting via DIL switch 3
– Set a binary number between 1 and 254 with DIL switch element 3.1 … 3.8.
This number is then used as the 4th octet of the IP address when the bus node is switched on.
Example with IP address:
192.168.001.005
Example with IP address:
192.168.001.038
20 + 22 =
1 + 4 =
5
21 + 22 + 25 =
2 + 4 + 32 =
38
Tab. 12 Examples of fixed values for the 4th octet of the IP address (binary coded)
If all of the switch elements of DIL switch 3 are set to the ON position when the bus node is switched
on, all network parameters will be reset to the factory setting.
Factory settings of the CPX-FB36
IP address – octet 1 … 3 192.168.1
IP address – octet 4 01)
Network mask (Subnet Mask) 255.255.255.0
Gateway 0.0.0.0
1) dynamic addressing via DHCP/BOOTP
Tab. 13 Factory settings
– Alternatively, change the first 3 octets of the IP address with:
– Operator unit (CPX-MMI)
– Software "Festo Maintenance Tool" (CPX-FMT)
– Software "Festo Field Device Tool" (FFT)
– Access via EtherNet/IP-objects è 6.3.1 Overview of EtherNet/IP objects
Installation
21Festo — CPX-FB36 — 2019-07b
The network mask and Gateway are set by using the corresponding CPX parameters.
2.3.6 Extended network settings
The following settings for the network connection can be made via the Ethernet link object 0xF6 (246d)
è 6.3.2.4 "Ethernet Link Object".
In the factory setting, the bus node automatically detects the baud rate and duplex mode.
Baud rate
Setting via attribute 6 (Forced Interface Speed) of the Ethernet link object:
– 10 Mbit/s
– 100 Mbit/s
Duplex mode
Setting via attribute 6 (Control Bits, bit 1) of the Ethernet link object:
– Half duplex
– Full duplex
2.4 Ensuring the degree of protection
– Use connection hardware with the required degree of protection è www.festo.com/catalogue;
examples
è Tab. 14 Connection technology and cover caps for degree of protection IP65/IP67 (examples).
– Use cover caps to seal unused connections.
Connection Connecting hardware Cover cap
Network connection (M12) Plug NECU-M-S-D12G4-C2-ET ISK-M12
Service interface (M12) Connection cable KV-M12-M12-...1) ISK-M12
1) Connection cable for the operator unit (CPX-MMI)
Tab. 14 Connection technology and cover caps for degree of protection IP65/IP67 (examples)
2.5 Power supply of the CPX terminal
CPX terminals are supplied with operating and load voltage via interlinking blocks or end plates.
WARNING!
Risk of injury due to electric shock.
• For theelectric power supply, use PELV circuits that guarantee a reliable electric disconnection
from the mains network.
• Observe IEC 60204-1/EN 60204-1.
• Connect all circuits for the operating and load voltage supply.
The power consumption of a CPX terminal depends on the number and type of integrated modules and
components.
Installation
22 Festo — CPX-FB36 — 2019-07b
http://www.festo.com/catalogue
Observe the information on power supply (è electrical connection) as well as on the earthing meas-
ures to be carried out (è equipotential bonding) contained in the CPX system description.
3 Preparing for commissioning
3.1 EtherNet/IP protocol
EtherNet/IP is an industrial Ethernet protocol, which is predominantly used in automation technology.
The EtherNet/IP protocol is activated via DIL switch 1.2 in the OFF position
è Tab. 5 Setting network protocol.
The bus node then identifies itself with the designation "FB36 - EtherNet IP Remote‑IO".
After switching the protocol, the following unmodified parameters are available:
– IP address
– Diagnostics mode
– System parameters
The DIL switch function remains unchanged.
Retentive bus-specific parameters are only active if the relevant protocol is selected
è 2.2.4 Setting operating mode and network protocol.
Parameterisation examples can be found in the appendix è 6.3.5 Examples.
3.1.1 IP-Multicast telegram
EtherNet/IP uses IP-Multicast telegrams by default for process data transmission. The advantage of
"Multicast" over "Unicast" is that a telegram can be received by multiple stations.
However, simple switches cannot differentiate the stations to which a "Multicast" telegram is to be
forwarded. Therefore these switches send the "Multicast" telegrams to all stations in the network.
This results in a EtherNet/IP station receiving many unnecessary telegrams, which must then be dis-
carded in the device. This may reduce the reaction times of the participants. It also increases the net-
work bandwidth requirements.
This does not pose a problem for smaller networks; however, the performance for larger networks can
be improved with the following functions and/or protocols.
– Use of switches with "IGMP snooping"
– Segmentation of the network
Switches with "IGMP Snooping"
With the help of the Internet Group Management Protocol (IGMP) switches can decide to which
devices the various Multicast telegrams are forwarded. This avoids unnecessary data traffic through
Multicast.
– Activate this function in all switches/routers.
– Configure at least one switch so that cyclic "IGMP Queries" are sent. Without these "IGMP Quer-
ies" the "IGMP Snooping" function cannot work correctly.
Preparing for commissioning
23Festo — CPX-FB36 — 2019-07b
Segmentation of the network
– Split the machine into smaller network segments. For example, this can be implemented with the
aid of VLANs without having to modify the network wiring.
3.1.2 "QuickConnect"
The EtherNet/IP "QuickConnect" function enables the CPX terminal to be started more quickly and the
connection to the EtherNet/IP master to be established more quickly.
"QuickConnect" is commonly used for applications with a tool change, for which the downtime should
be minimised by the disconnection and connection of devices.
NOTICE!
"QuickConnect" only works if this function is supported by all participating devices.
• Make sure that intermediate switches and routers in your network support this function.
The "QuickConnect" function is deactivated in the bus node when delivered from the factory.
For the use of "QuickConnect":
1. "QuickConnect" via attribute 12 of the TCP/IP interface object
è 6.3.2.3 "TCP/IP Interface Object". This deactivates the "Crossover" detection in the bus node.
2. Restart the bus node to activate the modified network settings.
3. Use the same settings for baud rate and duplex mode at the counterpart station (e.g. switch) and
at the PLC as in the bus node.
For fast connection set-up:
– 100 Mbit/s
– Full duplex
4. "QuickConnect" in the PLC or in the control program.
Simplified configuration of "QuickConnect" at the bus node CPX-FB36:
• Set CPX parameter "IP configuration" to "with stored parameters and QuickConnect".
If "QuickConnect" is activated, "Crossover" detection is deactivated for both network connections.
This will operate terminal X1 in MDI mode and terminal X2 in MDI-X mode.
This allows a line topology to be constructed with patch cables:
1 SPS or Switch
2 Patch cable
3 I/O-Device (e.g. CPX-FB36)
Fig. 4 "QuickConnect" line topology with patch cables
Preparing for commissioning
24 Festo — CPX-FB36 — 2019-07b
According to EtherNet/IP specification the bus node corresponds to a "Class A Device". When
switched on, the bus node requires less than 350 ms to accept a TCP connection. Due to the fast
establishment of the TCP connection, the detection of IP addresses already in use ("IP Address Con-
flict Detection", ACD) is not fully executed. Multiple assigned IP addresses are only detected late. This
may cause interference in the network.
• If IP addresses are assigned correctly in the network, deactivate the ACD with attribute 10 of the
TCP/IP interface object è 6.3.2.3 "TCP/IP Interface Object".
"QuickConnect" is available for the following modules:
CPX modules Order code
Bus node CPX-FB36
Digital 4x input module CPX-4DE
Digital 8x input module CPX-8DE
Digital 8x input module with channel diagnostics CPX-8DE-D
Digital 8x input module, n-switching: CPX-8NDE
Digital 16x input module CPX-16DE
Digital 16x input module with channel diagnostics CPX-M-16DE-D
Digital 16x input module with terminal strip CPX-L-16DE-16-KL-3POL
Digital 4x output module CPX-4DO
Digital 8x output module CPX-8DO
Digital 8x output module, high-current variant CPX-8DA-H
Digital 8x input/output module CPX-8DI-8DO
Digital 16x input/output module, with terminal strip CPX-L-8DE-8DA-16-KL-3POL
Analogue 2-gang input module (voltage/current) CPX-2AE-U-I
Analogue 2x output module (voltage/current) CPX-2AA-U-I
Analogue 4x input module (current) CPX-4AE-I
Tab. 15 CPX modules that support "QuickConnect"
"QuickConnect" is available for the following pneumatic modules and pneumatic interfaces:
Pneumatic modules Type
MPA1 pneumatic module VMPA1-FB-EM...-8
MPA2 pneumatic module VMPA2-FB-EM...-4
MPA1 pneumatic module with diagnostic function VMPA1-FB-EM...-D2-8
MPA2 pneumatic module with diagnostic function VMPA2-FB-EM...-D2-8
Tab. 16 Pneumatic modules that "QuickConnect" support
Preparing for commissioning
25Festo — CPX-FB36 — 2019-07b
Pneumatic interfaces
(pneumatic interfaces)
Type
for VTSA or VTSA-F pneumatics VABA-10S6-X1
for MPA-S valves VMPA-FB-EPL-…
for MPA-F valves VMPAF-FB-EPL-...
for MPA-L valves VMPAL-FB-EPL-...
VMPAL-EPL-CPX
Tab. 17 Pneumatic interfaces that support "QuickConnect"
3.1.3 Device-Level-Ring protocol (DLR)
The Device-Level-Ring protocol (DLR) allows multiple devices to be operated in a ring topology.
Requirement
All DLR devices feature an integrated Ethernet switch with at least 2 external ports and they support
the DLR protocol.
Fig. 5 Device-Level-Ring topology, example
The availability of the network can be increased with the ring topology, as there are redundant com-
munication paths between two devices. A cable or communication error between two devices will
therefore not result in communication failure. Only two errors in a ring will lead to a malfunction.
A ring always consists of at least one Ring Supervisor and any number of Ring Nodes.
– Use only DLR-capable devices in a ring. Otherwise, the time required for automatic correction of
an error may be adversely affected.
– Operate the bus node as Ring Node either "Beacon-based" or "Announce-based".
Operation as Ring Supervisor is not possible. This function is usually performed by a EtherNet/IP
scanner.
The DLR protocol is configured via the DLR object (Class Code 47h).
3.2 Modbus TCP protocol
Modbus TCP is an open communication protocol based on the MasterSlave architecture. It is a stand-
ard forcommunication via TCP/IP in automation technology.
Preparing for commissioning
26 Festo — CPX-FB36 — 2019-07b
The Modbus TCP protocol is activated via the DIL switch 1.2 in the ON position
è Tab. 5 Setting network protocol.
The bus node then identifies itself with the designation "FB36‑MB - Modbus TCP Remote‑IO".
Parameterisation
After switching the protocol, the following unmodified parameters are available:
– IP address
– Diagnostics mode
– System parameters
The DIL switch function remains unchanged.
Retentive bus-specific parameters are only active if the relevant protocol is selected
è 2.2.4 Setting operating mode and network protocol.
The configuration options via Modbus TCP TCP correspond to those via EtherNet/IP.
Exception: Modbus TCP cannot be used to access EtherNet/IP objects.
To configure the CPX terminal for Modbus TCP, the Modbus addresses of the data and the inputs and
outputs of the CPX terminal are required è 6.4 Modbus TCP-Objects of the CPX-FB36.
Addressing examples can be found in the appendix
è 6.4.6.1 Examples of addressing for Modbus TCP.
3.3 Notes on commissioning the CPX-FB36
Configuration of the CPX terminal requires an exact procedure, because different configuration spe-
cifications are sometimes necessary for each station in the network, due to the modular structure.
Detailed instructions and further information can be found in the documentation or the online help for
the controller or control program.
NOTICE!
The bus node CPX-FB36 can always be used on all EtherNet/IP or Modbus TCPcontrollers.
In the following, the configuration and commissioning of a ALLEN-BRADLEY controller using the "Stu-
dio 5000" software from ROCKWELL AUTOMATION is described as an example.
3.3.1 Requirements for commissioning
– Installation of the bus node is complete.
– The DIL switches of the bus node are set correctly.
– All connecting cables are connected and tested.
Preparing for commissioning
27Festo — CPX-FB36 — 2019-07b
3.3.2 Switching on the power supply
WARNING!
Uncontrolled movements of the actuators, undefined switching statuses.
Injury to people, damage to the machine and system.
Before switching on:
• Make sure that the requirements for commissioning are met.
• Check settings of the DIL switches.
During operation:
• Leave switch elements of the DIL switches unchanged during operation.
NOTICE!
• Observe the instructions for switching on in the controller manual.
3.3.3 Normal operating status
After the CPX terminal is switched on, the status LEDs (è Fig.22) indicate the operating status and
correct function of the bus node and network communications dependent on the configuration.
– Bus node not configured (è Tab. 18 Status LEDs after switch-on – bus node not configured)
– Bus node configured and higher-order controller (PLC) is in stop mode
(è Tab. 19 Status LEDs after switch-on – bus node configured, PLC in the Stop mode)
– Bus node configured and higher-order controller (PLC) is in run mode
(è Tab. 20 Status LEDs after switch-on – bus node configured, PLC in the run mode)
Information on diagnostics using the LED displays can be found in section
è 5.2 Diagnostics via LED displays.
Bus node not configured
LED display Status and meaning
[MS] – Device ready for operation
lights up green
[PS] – Power supply (Power System, PS) OK
– Operating voltage applied
(in the approved range)
lights up green
[NS] – Network communication available, but not configured (operating
status "online"). This state is correct in this case because the bus
node is not configured.
flashes green
Preparing for commissioning
28 Festo — CPX-FB36 — 2019-07b
LED display Status and meaning
[PL] – Load voltage (Power Load, PL) is applied
(in the approved range)1)
lights up green
[TP1],
[TP2]
– Device correctly connected to the bus node
– internal communication between bus node and device 1 and/or
device 2 is error-free
– Operating voltage and load voltage present
(in the approved range)1)
lights up green
1) Display depends on monitoring and message by the connected device.
Tab. 18 Status LEDs after switch-on – bus node not configured
Bus node configured – PLC in the stop mode
LED display Status and meaning
[MS] – Module status (Module Status, MS) error-free
lights up green
[PS] – Power supply (Power System, PS) OK
– Operating voltage applied
(in the approved range)
lights up green
[NS] – Network status (Network Status, NS) error-free (operating status
"online")
– Communication with the network and PLC OK
lights up green
[PL] – Load voltage (Power Load, PL) is applied
(in the approved range)1)
lights up green
[TP1],
[TP2]
– Device correctly connected to the bus node
– internal communication between bus node and device 1 and/or
device 2 is error-free
– Operating voltage and load voltage present
(in the approved range)1)
Preparing for commissioning
29Festo — CPX-FB36 — 2019-07b
LED display Status and meaning
lights up green
1) Display depends on monitoring and message by the connected device.
Tab. 19 Status LEDs after switch-on – bus node configured, PLC in the Stop mode
Bus node configured – PLC in the run mode
LED display Status and meaning
[MS] – Module status (Module Status, MS) error-free
lights up green
[PS] – Power supply (Power System, PS) OK
– Operating voltage applied
(in the approved range)
lights up green
[NS] – Network status (Network Status, NS) error-free (operating status
"online")
– Communication with the network and PLC OK
lights up green
[PL] – Load voltage (Power Load, PL) is applied
(in the approved range)1)
lights up green
[TP1],
[TP2]
– Device correctly connected to the bus node
– internal communication between bus node and device 1 and/or
device 2 is error-free
– Operating voltage and load voltage present
(in the approved range)1)
lights up green
1) Display depends on monitoring and message by the connected device.
Tab. 20 Status LEDs after switch-on – bus node configured, PLC in the run mode
3.4 Stations in the network
When using the CPX terminal as a new network station for the first time, the configuration program
must be informed of certain network properties.
These network properties are integrated into the station properties.
3.4.1 Station properties (Electronic Data Sheet, EDS file)
The station properties are managed by the configuration program in a list or library, e.g. in an EDS file.
The following options are available for extending an EDS library:
Preparing for commissioning
30 Festo — CPX-FB36 — 2019-07b
– Install EDS files
– Enter station properties manually
– Import import properties
As soon as the CPX terminal has been registered as a potential network station, it can be added to a
network.
4 Commissioning
4.1 Configuration
A CPX terminal with bus node CPX-FB36 can be configured using various methods.
Method Description Advantages Disadvantages
Configuration
with EDS file
Installation of station
properties for the CPX
terminal in the "Stu-
dio 5000" configura-
tion program.
With the exception of the I/O
data length, the entire config-
uration is taken over from the
EDS file.
Not available with all Ether-
Net/IP masters. Paramet-
erisation is saved locally in
the CPX terminal and is lost if
the terminal is replaced.
è 4.1.1 Configuration with EDS file
Configuration
with "Generic
Ethernet
Module"
Creation of a new sta-
tion and manual con-
figuration in the "Stu-
dio 5000" configura-
tion program.
Works with all versions All settings must be entered
manually.
è 4.1.2 Configuration with "Generic Ethernet Module"
Configuration
with CPX-FMT
Export of the settings
of the CPX terminal
CPX-FMT and import
of the settings in the
configuration pro-
gram "Studio 5000".
Transfer of the existing con-
figuration of the station and
parameterisation of the CPX
terminal.
è 4.1.3 Configuration with CPX-FMT
Tab. 21 Configuration methods
4.1.1 Configuration with EDS file
This section describes the configuration of the bus node as a station in an ALLEN-BRADLEY controller
with the aid ofthe "Studio 5000" software (V 26.01.00) from ROCKWELL AUTOMATION using an
equipment description file (EDS file) from Festo.
The fundamental aspects of this description also apply for other control systems.
Commissioning
31Festo — CPX-FB36 — 2019-07b
Obtaining EDS files
– Use one of the following EDS files for the CPX terminal with CPX-FB36.
File type File name Language Description
cpx_FB36.eds English Provides the communication adapter in
the configuration program.
EDS
cpx_FB36RC.eds English File with information for the operating
mode Remote Controller.
ICO cpx_FB36.ico - Symbol file for representing the CPX ter-
minal or module in the configuration pro-
gram.
Tab. 22 Device description files for CPX-FB36
The device description file is available from the Festo support portal è www.festo.com/sp.
Registering the EDS file
1. Start "Studio 5000" software.
2. Start EDS wizard:
["Tools"] > ["EDS Hardware Installation Tool"]
Fig. 6 Start EDS wizard
3. In the ""ROCKWELL AUTOMATION's EDS Wizard"" dialogue box select the ""Register an EDS
file(s)"" option and confirm the selection with the ""Next >"" button.
Commissioning
32 Festo — CPX-FB36 — 2019-07b
http://www.festo.com/sp
Fig. 7 EDS wizard – options
4. Select one of the following options:
– ""Register a single file""
– ""Register a directory of EDS files""
5. Press the ""Browse…"" button and select the EDS file from the corresponding directory.
Fig. 8 EDS wizard with selected EDS file
6. Confirm selection with the ""Next >"" button.
Ä The procedure for registering the bus node is complete.
Commissioning
33Festo — CPX-FB36 — 2019-07b
Integrate and configure stations in the project
Configuration of the bus node can only take place if there is no online connection to the controller.
1. Abort an existing online connection to the higher-level controller:
["Communications"] > "Go Offline"
2. Open the ""Select Module Type"" dialogue:
In the ""Controller Organizer"" window in the ""I/O Configuration"" directory right click on
""Ethernet"" and select ""New Module…"" from the context menu.
Fig. 9 Context menu for “New Module…”
3. In the register ""Catalog"" select from the table the module with the description "CPX‑FB36 Eth-
erNet/IP 2‑Port Remote I/O".
Commissioning
34 Festo — CPX-FB36 — 2019-07b
Fig. 10 Integrating bus node in the project as a station
4. Confirm selection with the ""Create"" button.
Ä This opens the ""New Module"" dialogue for configuring the new stationè Fig.11.
Fig. 11 Configuring station
5. Enter a name for the bus node.
6. Enter IP address of the bus node.
7. Open the ""Module Definition"" dialogue:
Click on the ""Change"" button.
Commissioning
35Festo — CPX-FB36 — 2019-07b
Fig. 12 Enter I/O data length
8. Enter the I/O data length (number of inputs and outputs) of the CPX terminal.
This value can either be calculated or read out with the aid of CPX-FMT or web server.
9. Confirm inputs with the ""OK"" button.
10. Exit ""Module Definition"" dialogue.
Ä The bus node appears as a newly integrated station in the ""Controller Organizer"" window
in the ""I/O Configuration/Ethernet"" directory.
Commissioning
36 Festo — CPX-FB36 — 2019-07b
Changing configuration of the station
Configuration of the bus node can only take place if there is no online connection to the controller.
1. Abort an existing online connection to the higher-level controller:
["Communications"] > ["Go Offline"]
2. Open the ""Module Properties"" dialogue:
In the ""Controller Organizer"" window in the ""I/O Configuration/Ethernet"" directory right-
click on the corresponding module and select ""Properties"" from the context menu.
Fig. 13 Context menu for “Properties”
3. Change configuration of the station with the input fields and confirm with the “"OK"” button.
4.1.2 Configuration with "Generic Ethernet Module"
In this section, the manual configuration of the bus node as a station in a ALLEN-BRADLEY controller
described using the "Studio 5000" software (V 26.01.00) from ROCKWELL AUTOMATION.
The fundamental aspects of this description also apply for other control systems.
Integrate and configure stations in the project
Configuration of the bus node can only take place if there is no online connection to the controller.
Commissioning
37Festo — CPX-FB36 — 2019-07b
1. Abort an existing online connection to the higher-level controller:
["Communications"] > ["Go Offline"]
2. Open the ""Select Module Type"" dialogue:
In the ""Controller Organizer"" window in the ""I/O Configuration"" directory right click on
""Ethernet"" and select "New Module…" from the context menu è Fig.9.
3. In the register ""Catalog"" select from the table the module with the description ""Generic Ether-
net-Module"".
Fig. 14 Integrate bus node as Generic Ethernet Module
4. Confirm selection with the ""Create"" button.
Ä This opens the ""Module Properties"" dialogue for configuring the module as a
participantè Fig.15.
Commissioning
38 Festo — CPX-FB36 — 2019-07b
Fig. 15 Configuring station
5. Enter a name for the bus node.
6. Select the (Data - SINT or Data - INT) data format in the ""Comm Format"" list box.
7. Enter IP address of the bus node.
8. Enter values for ""Assembly Instance"" depending on the selected data format
è Tab. 23 Input values for ""Assembly Instance"
".
Data format Data – SINT Data – INT
""Input"" 101 111
""Output"" 100 110
""Configuration"" 102 102
Tab. 23 Input values for ""Assembly Instance""
Commissioning
39Festo — CPX-FB36 — 2019-07b
9. Input values for ""Size"" depending on the selected operating mode
è Tab. 24 Input values for ""Size"
".
Mode of operation Values
""Input"" and ""Output"":
Number of assigned inputs and outputs of the CPX terminal:
– for data format SINT: in bytes
– for data format INT: in words
The input ""Size"" = 0 for inputs and outputs is not permitted in the
Remote I/O operating mode.
Remote I/O
""Configuration"":
– Number of memory slots occupied by CPX parameters
or
– 0 (default setting)1)
""Input"" and ""Output"":
Set data field size
(è Tab. 6 Setting diagnostic mode or data field size):
– for data format SINT: in bytes
– for data format INT: in words
Remote Controller
""Configuration"":
– 0 (default setting)1)
1) "Configuration Assembly" not used
Tab. 24 Input values for ""Size""
When using a CPX terminal without inputs:
• Activate status bits via DIL switch 2 è Tab. 6 Setting diagnostic mode or data field size.
The following settings then apply for the input data (""Input""):
• for format SINT: "Size" = 2
• for format INT: "Size" = 1
10. Confirm inputs with the ""OK"" button.
11. Exit ""Module Properties"" dialogue.
Ä The bus node appears as a newly integrated station in the ""Controller Organizer"" window
in the ""I/O Configuration/Ethernet"" directory.
Commissioning
40 Festo — CPX-FB36 — 2019-07b
Using station properties
– Use the following data in the higher-order controller è Tab. 25 Station features.
Characteristic Description
"Vendor Name" Festo Corporation
"Vendor ID" 26 = 1Ah
"Device Type" 12 = 0Ch
"Product Code"
(depending on the operating mode)
– "Remote I/O"
– "Remote Controller"
14026
14027
= 36CAh
= 36CBh
"Major Revision" 1
"Input size"/"Output size" depending on the CPX configuration
"Assembly Instance"
– "Input"
– "Output"
– "Configuration"
– "Diagnosis"
SINT format
101
100
102
103
INT format
111
110
102
103
"Product Name" CPX-FB36 Remote IO
CPX-FB36 Remote Controller
Advanced EtherNet/IP station features
Min. bus cycle time ("Request Packet
Interval", RPI)
1 ms
Connections
– Total of all connections
– "Exclusive Owner"
– "Input only"
– "Listen only"
max. 32
max. 1
max. 32
max. 311)
1) only with simultaneous "Exclusive Owner" or "Input only" connection
Tab. 25 Station features
Changing configuration of the station
Configuration of the bus node can only take place if there is no online connection to the controller.
1. Abort an existing online connection to the higher-level controller:
["Communications"] > ["Go Offline"]2. Open the ""Module Properties"" dialogue:
In the ""Controller Organizer"" window in the ""I/O Configuration/Ethernet"" directory right-
click on the corresponding module and select ""Properties"" from the context menu.
Commissioning
41Festo — CPX-FB36 — 2019-07b
Fig. 16 Context menu for ""Properties"" (Generic)
3. Change configuration of the station with the input fields and confirm with the “"OK"” button.
4.1.3 Configuration with CPX-FMT
It is possible to export the configuration and complete parameterisation of a CPX terminal to a file and
then import the file into the controller as a project with the “Festo Maintenance Tool” software
(CPX-FMT).
This section describes the transfer of the configuration file to a controller from ALLEN-BRADLEY with
the help of the software "Studio 5000" (V 26.01.00) from ROCKWELL AUTOMATION.
The fundamental aspects of this description also apply for other control systems.
Exporting a configuration from CPX-FMT
The "Festo Maintenance Tool" software (CPX-FMT) is available on the Festo support portal
è www.festo.com/sp.
1. Start CPX-FMT software.
2. Make sure that there is an Ethernet connection between CPX-FMT and the CPX terminal.
3. Activate the online function to transfer the current configuration of the bus node to the PC.
4. Change the configuration and parameterisation for the CPX terminal with CPX-FB36, if necessary.
The CPX terminal can also be configured offline. Changes can also be made after importing the
project in the "Studio 5000" software.
5. Open the dialogue for exporting the configuration:
["File"] > ["Export"] > ["RSLogix (.L5K)"].
Commissioning
42 Festo — CPX-FB36 — 2019-07b
http://www.festo.com/sp
Fig. 17 Configuration for "Studio 5000" export
6. Select and save a directory and name to save the L5K file.
Importing configuration
1. Start "Studio 5000" software.
2. Open saved L5K file:
["File"] > ["Open"] and select the saved L5K file.
3. Confirm selection with the ""Open"" button.
4. Select the directory and name for the imported file.
5. Confirm selection with the ""Import"" button.
Ä The L5K file is imported into a new project (.ACD) as an Ethernet module.
Commissioning
43Festo — CPX-FB36 — 2019-07b
Integrating the CPX terminal into an existing project
The CPX terminal configured and parameterised with the Festo Maintenance Tool software appears in
the "Studio 5000" software as an Ethernet module.
To integrate this module into an existing project:
1. In the window ""Controller Organizer"" in the directory ""I/O Configuration"" right click on the
Ethernet module and select ""Copy"" in the context menu.
Fig. 18 Copying Ethernet module
2. Open the project to which the imported Ethernet module is to be added.
3. In the ""Controller Organizer"" window in the ""I/O Configuration"" directory right-click on
""Ethernet"" and select ""Paste"" from the context menu.
Commissioning
44 Festo — CPX-FB36 — 2019-07b
Fig. 19 Inserting Ethernet module
The project has now imported all required settings of the CPX terminal. This includes,
among other things, I/O data lengths, the IP configuration and all module and system parameters.
Configuration and parameterisation are hereby completed. Changes to the parameterisation of the
modules and valve terminals used in the CPX terminal are made with the “Studio 5000” software.
4.1.4 Configuration in Remote Controller operating mode
When using a control block CPX-FEC or CPX-CEC in the CPX terminal, the bus node must be used in the
Remote Controller operating mode.
In principle, the bus node is configured in the same manner as in the Remote I/O operating mode, but
with different I/O data lengths.
The bus node then occupies 8 or 16 byte inputs and 8 or 16 byte outputs depending on the setting of
DIL switch 2.2 è Tab. 6 Setting diagnostic mode or data field size. These inputs and outputs are avail-
able to the control program of the control block.
To use the Remote Controller operating mode:
1. Set Remote Controller operating mode with DIL switch 1.1 è Tab. 4 Setting operating mode.
2. Set the network protocol with DIL switch 1.2 è Tab. 5 Setting network protocol.
3. Set the required data field size with DIL switch 2.1
è Tab. 6 Setting diagnostic mode or data field size.
The bus node is now configured in the Remote Controller operating mode.
Commissioning
45Festo — CPX-FB36 — 2019-07b
4.1.5 "Listen-only" Set up connection
When the station properties have been configured (e.g. by installation of an EDS file), the following
steps are required for configuration.
1. Install CPX terminal and set IP addressing è 2.3.5 Setting IP addressing.
2. Establish connection to bus node.
To do this, in the "Studio 5000" software use the ""Generic Ethernet Device"" profile
è 4.1.2 Configuration with "Generic Ethernet Module".
3. Open the ""Module Properties"" dialogue.
4. Select "Data ‑ SINT" data format from the ""Comm Format"" list field è Fig.15.
5. Enter the following values in the ""Connection Parameters"" area:
"Connection Parameters" "Assembly Instance" "Size"
"Input" 101 Number of inputs set
on the bus node
"Output" 254 0
"Configuration" 102 ("Configuration Assembly") 0
Tab. 26 Properties for “Connection parameters”
6. Enter IP address of the bus node.
4.2 Parameterisation
WARNING!
Uncontrolled movement of the actuators, undefined switching statuses
Injury to people, damage to the machine and system
• During the parameterisation process, make sure that nobody is within the danger zone of moving
parts of your system.
The CPX terminal is supplied from the factory with preset parameters. These parameters are saved in
the bus node.
These parameters can be used to generally adapt the behaviour of the CPX terminal to the relevant
application.
A distinction is made between the following variants:
– System parameters, e.g. setting reaction times, switching off error messages
– Module parameters (module- and channel-specific), e.g. diagnostic settings, settings for error
handling, settings for debounce times of inputs, settings for forcing
– Parameters of the diagnostic memory
A detailed description of the individual parameters as well as basic principles of application can be
found in the CPX system description (CPX-SYS).
Commissioning
46 Festo — CPX-FB36 — 2019-07b
The module parameters can be found in the descriptions for the modules, e.g. description of the CPX
pneumatic interfaces and CPX I/O modules (CPX-EA).
4.2.1 Parameterisation during switch-on [system start]
The parameterisation of the CPX terminal is initially dependent on the setting of the [system start]
parameter. This parameter establishes whether the default parameters or the parameters saved by
the user in the bus node are used when switching on the CPX terminal.
The parameterisation is loaded again after every interruption of the power supply or the network con-
nection. For example, this enables exchange of individual CPX modules without the need for re-para-
meterisation.
Sequence of parameterisation when the CPX terminal is switched on
System start with default parameters ("Default parameters")
1. The controller transmits the parameterisation that is saved in the controller to the bus node.
2. The bus node distributes this parameterisation to the individual modules.
System start with stored parameters ("Saved parameters")
• The bus node distributes the parameterisation that is saved in the bus node to the individual
modules.
The parameterisation saved in the bus node can be overwritten accidentally by the controller.
• Prevent unintentional overwriting of the stored parameterisation by changing the "Configura-
tion" connection parameter using the "Studio 5000" software.
To change the "Configuration" connection parameter with the "Studio 5000" software:
1. Abort an existing online connection to the higher-level controller:
["Communications"] > ["Go Offline"]
2. Open the ""Module Properties"" dialogue:
In the window ""Controller Organizer"" in the directory ""I/O Configuration"" double click on
