CHAPTER 4 129

same for conformers A and B, then conformer B should
be the lowest-energy staggered conformation for this
isomer of 2,3-butanediol.

4.76.

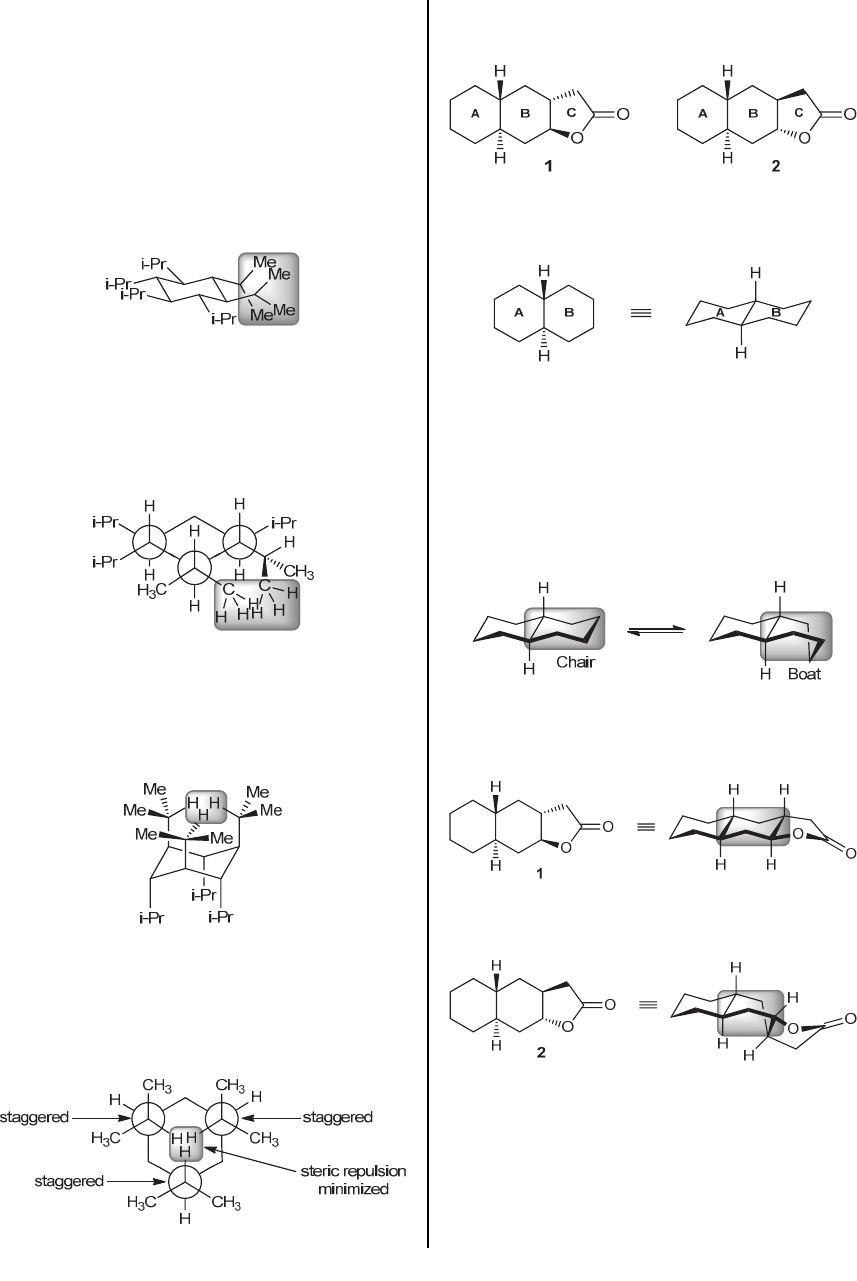

(a) The all-equatorial chair conformation of compound 2
experiences severe steric repulsion due to the nearby
isopropyl groups as evident in the following drawing, in
which we focus on the interactions between a pair of
neighboring isopropyl groups. These interactions,
highlighted below, occur for each pair of neighboring
isopropyl groups.


A Newman projection of 2, viewed down one of the C-C
bonds connecting an equatorial isopropyl group to the
cyclohexane ring, shows how crowded the equatorial
groups are as the methyl groups are in constant contact
with each other. These interactions, highlighted below,
occur for each pair of neighboring isopropyl groups.



(b) In the all axial chair conformation for 2, the C-H
bond of each isopropyl group can all point towards each
other (highlighted below) such that steric repulsion can
be minimized. For clarity, this is shown only for the top
face of the cyclohexane ring in the following structure.



Furthermore, this results in a staggered conformation
along each C-C bond between a ring carbon atom and an
isopropyl carbon atom, which also helps to lower the
energy of this conformation. For clarity, this is shown
only on one face of the cyclohexane ring in the following
structure.


4.77.
Each compound has three rings, labeled A, B, and C.



In each compound, the A-B fusion represents a trans-
decalin system:



The trans fusion imposes a severe restriction on the
conformational flexibility of the system. Specifically, in
a trans-decalin system, neither ring can undergo a ring-
flip to give a different chair conformation. For each ring,
the chair conformation shown above is the only chair
conformation that is achievable. However, both rings are
still free to adopt a higher energy boat conformation.
For example, the B ring of trans-decalin can adopt the
following boat conformation:



In compound 1, the C ring imposes a further
conformational restriction, by locking the B ring into a
chair conformation:



In contrast, the C ring in compound 2 imposes the
restriction of locking the B ring in a boat conformation:



The boat conformation of compound 2 is expected to be
higher in energy than the chair conformation of
compound 1. Therefore, compound 2 is expected to
have the higher heat of combustion. In fact, the
investigators prepared compounds 1 and 2 for the
purpose of measuring the difference in energy between
chair and boat conformations.
