A DUAL GRAPHIC REPRESENTATION OF THE BLAST FURNACE MASS AND HEAT BALANCES RIST

Prévia do material em texto

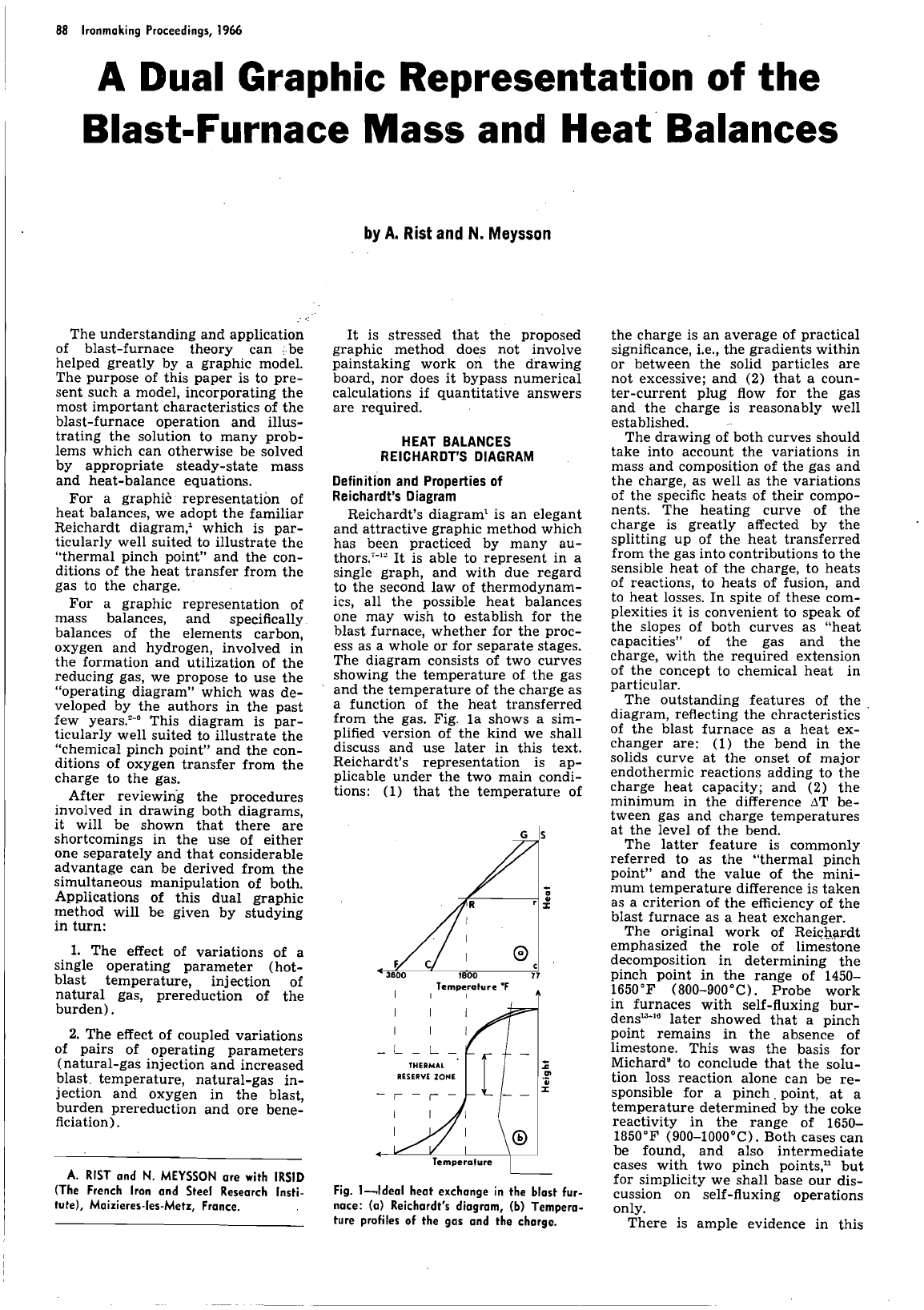

1 88 lronmaking Proceedings, 1966
A Dual Graphic Representation of the
Blast=Furnace Mass and Heat' Balances
by A. Rist and N. Meysson
- .
The understanding and application
of blast-furnace theory can be
helped greatly by a graphic model.
The purpose of this paper is to pre-
sent such a model, incorporating the
most important characteristics of the
blast-furnace operation and illus-
trating the solution to many prob-
lems which can otherwise be solved
by appropriate steady-state mass
and heat-balance equations.
For a graphic representation of
heat balances, we adopt the familiar
Reichardt diagram: which is par-
ticularly well suited to illustrate the
"thermal pinch point" and the con-
ditions of the heat transfer from the
gas to the charge.
For a graphic representation of
mass balances, and specifically
balances of the elements carbon,
oxygen and hydrogen, involved in
the formation and utilization of the
reducing gas, we propose to use the
"operating diagram" which was de-
veloped by the authors in the past
few years.'-"This diagram is par-
ticularly well suited to illustrate the
"chemical pinch point" and the con-
ditions of oxygen transfer from the
charge to the gas.
After reviewing the procedures
involved in drawing both diagrams,
it will be shown that there are
shortcomings in the use of either
one separately and that considerable
advantage can be derived from the
simultaneous manipulation of both.
Applications of this dual graphic
method will be given by studying
in turn:
1. The effect of variations of a
single operating parameter (hot-
blast temperature, injection of
natural gas, prereduction of the
burden).
2. The effect of coupled variations
of pairs of operating parameters
(natural-gas injection and increased
blast, temperature, natural-gas in-
jection and oxygen in the blast,
burden prereduction and ore bene-
ficiation) .
A. RlST and N. MEYSSON are with IRSlD
(The French Iron and Steel Research Insti-
tute), Maizieres-les-Metz, France.
It is stressed that the proposed the charge is an average of practical
graphic method does not involve significance, i.e., the gradients within
painstaking work on the drawing or between the solid particles are
board, nor does it bypass numerical not excessive; and (2) that a coun-
calculations if quantitative answers ter-current plug flow for the gas
are required. and the charge is reasonably well
established.
HEAT BALANCES
REICHARDT'S DIAGRAM
Definition and Properties of
Reichardt's Diagram
Reichardt's diagram1 is an elegant
and attractive graphic method which
has been practiced by many au-
thors.'-" It is able to represent in a
single graph, and with due regard
to the second law of thermodynam-
ics, all the possible heat balances
one may wish to establish for the
blast furnace, whether for the proc-
ess as a whole or for separate stages.
The diagram consists of two curves
showing the temperature of the gas
and the temperature of the charge as
a function of the heat transferred
from the gas. Fig. l a shows a sim-
plified version of the kind we shall
discuss and use later in this text.
Reichardt's representation is ap-
plicable under the two main condl-
tions: (1) that the temperature of
Temperature 'F
I I I t
Fig. 1-Ideal heat exchange in the blast fur-
nace: (a) Reichardt's diagram, (b) Tempera-
ture profiles of the gas and the charge.
The drawing of both curves should
take into account the variations in
mass and composition of the gas and
the charge, as well as the variations
of the specific heats of their compo-
nents. The heating curve of the
charge is greatly affected by the
splitting up of the heat transferred
from the gas into contributions to the
sensible heat of the charge, to heats
of reactions, to heats of fusion, and
to heat losses. In spite of these com-
plexities it is convenient to speak of
the slopes of both curves as "heat
capacities" of the gas and the
charge, with the required extension
of the concept to chemical heat in
particular.
The outstanding features of the
diagram, reflecting the chracteristics
of the blast furnace as a heat ex-
changer are: (1) the bend in the
solids curve at the onset of major
endothermic reactions adding to the
charge heat capacity; and (2) the
minimum in the difference AT be-
tween gas and charge temperatures
at the level of the bend.
The latter feature is commonly
referred to as the "thermal pinch
point" and the value of the mini-
munl temperature difference is taken
as a criterion of the efficiency of the
blast furnace as a heat exchanger.
The original work of Reichardt
emphasized the role of limestone
decomposition in determining the
pinch point in the range of 1450-
1650°F (800-900°C). Probe work
in furnaces with self-fluxing bur-
d e n ~ ~ - ' ~ later showed that a pinch
point remains in the absence of
limestone. This was the basis for
Michards to conclude that the solu-
tion loss reaction alone can be re-
sponsible for a pinch. point, a t a
temperature determined by the coke
reactivity in the range of 1650-
1850°F (900-1000°C). Both cases can
be found, and also intermediate
cases with two pinch point^,^ but
for simplicity we shall base our dis-
cussion on self-fluxing operations
only.
There is ample evidence in this
Blast Furnace Theory 89
case that the ideal heat exchange,
with zero difference in gas and
charge temperatures (Fig. l a ) , is a
good approximation to reality. The
temperature profiles (Fig. lb ) then
show an isothermal reserve zone at
TR between two curved portions,
concave in opposite directions. The
slopes of these profiles, measuring
the rate of heat transfer, vary in di-
rect proportion to the separation be-
tween Reichardt's curves.
The zones of heat exchange in the
blast furnace are represented in Fig.
2 (left-hand side). The isothermal
zone is suitable to divide the blast
elaboration zone include the sensible
heat of the charge, the heats of fu-
sion, a major part of the total heat
losses, and the heats of the endo-
thermic reactions of solution loss
and' direct reduction of the nonfer-
rous elements. All items but the
first in this list usually make the
slope of RC so markedly greater
than the slope of SR that point R
is exposed to become the thermal
pinch point.
The cooling curve of the gas. The
simplified cooling curve for the gas
in Fig. l a i s made of the two seg-
ments FR and RG. Segment FR
PREPARATION EXCHAN I -45
1
CHEMICAL RESERVE
ZONE( F a )
INDIRECT
REDUCllON 11
I T I 1 ............,, EXCHANGER I
REDUCTION -rl
Fig. 2-Distribution of thermal and chemical zones in the blast furnace.
furnace by a plane a t TR into a prep- represents the cooling of the gas
aration zone (T < TR) and an elab- down to TR from a "virtual flame
oration zone (T > TR), according to temperature," TF. This latter tem-
the suggestion by Mi~hard.~," The perature is calculated, assuming that
advantage of this procedure will the CO generated by solution loss
later be fully explained. and direct reductions is incorporated
A Simplified Version of
Reichardt's Diagram
In drawing Reichardt's diagram
for our purpose, we adopt a simpli-
fied procedure, already used by
others,"," which saves time without
giving up any of the essential in-
formation. The cooling of the gas
and the heating of the charge are
both represented by a pair of
straight segments joining a t the
thermal pinch point, R, with a more
or less pronounced angle.
The. heating curve of the charge.
In Fig. la, segment SR represents
the heating of the charge, assumed
to be self-fluxing and dry, from
room temperature (77"F, 25°C) up
to the temperature of the reserve
zone Tn (1800°F, 980°C). The cor-
responding heat requirements per-
taining to the preparation zone in-
clude the sensible heat of the charge,
a minor part of the total heat losses,
and a small term of indirectreduc-
tion of the initial oxides to wustite.
Segment RC represents the heat-
ing of the charge from TR up to a
mean casting temperature Tc
(270OoF, 1480°C) which is interme-
diate between metal and slag casting
' temperatures. The corresponding
heat requirements pertaining to the
in the combustion gases formed at
the tuyeres. I t is therefore lower
than the adiabatic flame tempera-
ture. The difference, which is rn-ainly
a function of the amount of solution
loss, is usually less than 300°F
(166°C).
Segment RG represents the cool-
ing of the gas between TR and the
top gas temperature To, assuming
that the indirect reduction of wus-
tite takes place mainly a t Tn and
that the gas, as it cools, has the very
composition of the top gas.
In most cases segments FR and
RG have about equal slopes, in
agreement with the findings of Kle-
mantaski7 and K i t a i e ~ . ~ The de-
crease in molar specific heat of the
component gases between the high
and the low temperature ranges is
closely balanced by the oxygen
pickup of the gas, forming C03 and
H20 which have higher molar spe-
cific heats than CO and H,.
In all the following applications of
Reichardt's diagram, segments FR
and RG of the gas-cooling curve will
be assumed to be borne by one and
the same straight line, defined by
FR. Segment RG will thus be an ap-
proximation, leading to a top gas
temperature in slight excess' of the
exact value. For the highest and the
lowest degrees of oxidation encoun-
tered for top gases in self-fluxing
practice, the errors are respectively
9 and 90°F (5 and 50°C).
Applications and Shortcomings of
Reichardt's Diagram Alone
If an actual blast-furnace opera-
tion were given with sufficient in-
formation to define it unambigu-
ously, and if the data were ex-
tremely accurate, Reichardt's dia-
gram could be drawn often with
more details than we have chosen to
put in, and it could be used for
what it was originally meant for,
i.e., the assessment of the blast-fur-
nace thermal efficiency, by means of
the minimum separation between
the two curves. In practice, the data
are always too rough for this pur-
pose and the diagram is rather to be
used as n check on the consistency
of the data and of the incorporated
assumptions (particularly on the
distribution of heat losses and on
the temperature range of chemical
reactions:). As illustrated by the
work of Gerstenberg and Kootz,=
one can be lead to intersecting
curves, which is beyond question a
sign of inconsistency.
In planning a blast-furnace oper-
ation wj.th a given burden, one
would of course make a reasonable
assumption regarding the pinch
point, such as ideality, with AT = 0
in the reserve zone. But even in the
simple case of a self-fluxing burden,
one will remain short of a method
to determine, a priori, the amounts
of solution loss and indirect reduc-
tion. These do not follow from heat
balances and if an assumption is
made, no heat balance can be used
as a justification for it. The gap can
be filled only through consideration
of the counter-current reduction in
the shaft. This is the primary object
of the operating diagram.
BALANCES FOR CARBON, OXYGEN,
AND HYDROGEN-THE OPERATING
DIAGRAM
Mass balances can be established
for any element and they must be
established for iron in the first place
when assessing blast-furnace data.
In blast-furnace theory, however,
the ba1a:nces of carbon, oxygen, and
hydrogen come first and foremost in
view of the participation of these
elements (1)in the formation of the
reducing gas, via reactions of high
heat effects : exothermic combus-
tion, endothermic solution loss and
direct reductioi~s; and (2) in the
utilization of the reducing gas in the
indirect reduction of the iron ox-
ides.
The operating diagram which is
presented here illustrates both as-
pects.
Definition of the Operating Line
Formation of the reducing gas in
the absence of hydrogen. If, for sim-
plicity, we first consider a blast-
furnace operation without hydrogen,
the contributions to the reducing gas
90 lronmaking Proceedings, 1966
can be organized according to the
sources of oxygen-producing CO.
The associated CO balance is writ-
ten below in two ways:
1. with reference to the formation
of 1 mole of reducing gas (Eq. [ I ] )
2. with reference to the formation
of the number of moles of reducing
gas necessary to produce 1 atom of
Fe (Eq. 121).
Xb + X r + X S I =
1 mole reducing. gas [I]
yb + yf + Y.1 =
p moles reducing gas/at. Fe [2]
p is the specific consumption of re-
ducing gas or the ratio of the flow-
rate of gas to the flowrate of iron.
The x and y terms are the CO con-
tributions in each reference system,
respectively, with subscripts relat-
ing to the various sources of oxy-
gen: b, blast; sl, solution loss; and
f, other sources giving a fked
amount of gas per unit Fe for a
given hot metal composition (e.g.,
reduction of SiO,, MnO, etc.).
The corresponding terms of both
equations form sets of proportional
numbers and, as such, they can be
read on two rectangular axes as the
projections of segments of one and
the, same straight line, with the
slope p.
Fig. 3, with coordinates labeled X
= O/C and Y = O/Fe, shows the
straight line thus obtained, called
Fig. 3-The operating line.
the operating line. The segments
showing the formation of the reduc-
ing gas, BC, CD, and DE are con-
fined in the interval 0 < X < 1.
The various contributions appear in
their relative proportions, whether
as the segments themselves or as
their projections on the axes.
Formation of the reducing gas
with hydrogen contributions. If
water vapor or hydrocarbons enter
the blast furnace through the
tuyeres and if account is taken of
the coke hydrogen, there may be
several hydrogen contributions to
the reducing gas. Instead of noting
them and representing them sep-
arately, we lump them with one or
the other CO contribution. Thus Eqs.
[I] and [21 are unchanged, but the
interpretation of the symbols is ex-
tended in the following way:
XC, yb are numbers of moles of re-
ducing gas, CO and Hz, pro-
duced in amounts proportional
to the .blast rate,
xr, yf are numbers of moles of re-
ducing gas, CO and H, pro-
duced in fixed amounts per
unit of Fe.
Hydrogen from natural blast hu-
midity will normally participate in
xb and yb. Hydrogen from a hydro-
carbon injection can participate in
either (xb, yb) or (xr, y f ) , depend-
ing on whether the rate of injection
is given as a weight or volume per
unit volume of blast or as a weight
or volume per unit iron produced.
The coke hydrogen does not strictly
belong to one class or the other, but
since it is a small contribution it is
a convenient approximation to lump
it with (xf , y ~ ) .
Utilization of the reducing -gas.
Following. the same principle, it is
simple to represent the utilization of
the reducing gas by means of a seg-
ment representing the oxygen re-
moved from the iron oxides by in-
direct reduction and partially con-
verting CO to COa and H, to KO.
The number of atoms of oxygen in-
volved is X I when referred to 1 mole
of gas and y l when referred to 1
atom of Fe. The two values are in
the same ratio as the other x and y
pairs, since the oxidation of the gas
takes place without change in the
total number of moles of gas, and
therefore they can also be read as
projections of a segment of the same
straight line of slope p. Segment AB
in Fig. 3 thus represents the in-
direct-reduction oxygen. It is con-
fined in the interval 1 < X < 2. *
The origin on the Y axis of the
operating diagram is arbitrary. For
convenience, it is chosen so that the
oxygen originally combined to iron
(y.1 + yi) appears on the positive
side, whereas other sources of oxy-
gen and sources of hydrogen appear
on the negative side.
The interpretation of various
points and segments is summed up
later, afterthe study of the proper-
ties of the operating line.
Properties of the Operating Line
The operating line has two im-
portant groups of properties respec-
tively associated with the indirect
reduction in the shaft and with the
heat balance of the elaboration zone.
Properties of the operating line
associated with indirect reduction.
The chemical pinch point. If one as-
sumes true counter-current plug
flow for the gas and the solids in the
shaft, in addition to a carbonate-free
burden, the X and Y coordinates of
any point on segment AB (Fig. 3)
can be interpreted as measuring the
degrees of oxidation of the gas and
solids respectively, at a particular
level. The steady-state oxygen bal-
ance for an infinitesimal volume be-
tween two horizontal planes at that
level can be written:
where n, and nr. are the flow rates
of reducing gas and iron respectively
(in moles and atoms per unit time).
Eq. [3] is precisely the differential
equation of the operating line.
Since the gas can never become
oxidizing with respect to the solids,
the points of segment AB must nec-
essarily remain on the left of an
equilibrium ' contour showing the
equilibrium values of X as a func-
tion of Y. The drawing of this con-
tour is greatly simplified if one re-
calls the results of probing cam-
paigns,","-'" which revealed the char-
acteristics of the blast furnace as an
oxygen exchanger. Most of the in-
direct reduction takes place in or
near the thermal reserve zone and
equilibrium at the wustite-iron
stage is closely approached a t TR, SO
that a chemical reserve zone of pure
wustite can be formed under favor-
able circumstances. The resulting
distribution of chemical and thermal
zones is shown in Fig. 2. It follows
that the limit to the oxidation of the
gas is usually given by the isother-
mal equilibrium contour at TR. Fig.
4 illustrates the situation for pure
CO, TR being 1800°F.
Fig. kConstruction of the operating line
under conditions of ideal heat exchange
(point P) and ideal oxygen exchange (point
W).
It can be shown simplp that for
parallel operating lines with a slope
in the blast-furnace range (2 to 3
moles of reducing gas/at. Fe) the
oxygen exchange reaches a maxi-
Blost Furnace Theory 91
mum when the operating line
touches the pure wustite corner W.
The operating diagram thus pro-
vides a "chemical pinch point" as the
explanation for the chemical reserve
zone observed in practice or in the
laborat~ry.'~,'~
The coordinates of point W can be
obtained from the work of Darken
and GurryS:
YW is the atomic O/Fe ratio of
wustite in equilibrium with iron,
which is practically independent of
temperature and equal 1.05 at.
O/at. Fe.
Xw is a function of TR and of the
mole fraction of hydrogen in the re-
ducing gas? It is available in the
form tables, formulae, or Chaudron
diagrams.
Illustration of the part played by
point W in the determination of the
minimum coke rate must await the
derivation of other properties of the
operating line.
Properties of the operating line
associated with the heat balance of
the elaboration zone. It is not possi-
ble to express in Reichardt's dia-
gram the condition of chemical equi-
librium just discussed, but it is pos-
sible to express in the operating dia-
gram the condition of thermal equi-
librium and the heat balance of the
elaboration zone, already illustrated
in Reichardt's diagram. If the blast
furnace is divided, as proposed by
Michard,Bnn by a plane cutting across
the thermal reserve zone at TR and
across the chemical reserve zone
when it is present (Fig. 21, and if
TR is used as the reference temper-
ature, the balance equation is re-
markably simple to write. The rea-
son is that the heat input by the
charge and the heat output by the
gas are both equal to zero. The fol-
lowing equation is obtained after
lumping terms together for the
needs of the graphic representation:
ybqb = yslqsl + Q 141
which brings out:
1. A single heat input term on the
left hand side, which is proportional
to the blast volume through yb, and in
which the coefficient qb (kcal/mole
reducing gas) takes into account the
heat of combustion of coke at TR,
the sensible heat of the blast be-
tween TI, and TR, the various endo-
thermic reactions associated with the
presence of hydrogen (if present in
fixed proportion with the blast), etc.
2. The heat requirement of solu-
tion loss: the product of y.1 (at. O/
at. Fe) by the endothermic heat ef-
fect of the solution loss reaction at
TR, qal (kcal/at. C gasified).
3. The whole of the heat require-
ments Q which are fixed per unit of
iron produced at steady state: heat-
ing and melting of the charge, direct
reduction of nonferrous oxides, in-
direct reduction of wustite, heat
losses, and the various endothermic
reactions associated with the pres-
ence of hydrogen (if present in fixed
proportion to the iron produced).
Eq. [4], a linear relationship be-,
tween the two variables yb and y.~,
expresses that the operating line
goes through a fixed P in
Fig. 4. The easiest way to place P
consists in writing Eq. [4] in the
form of a proportion:
which translates graphically as:
In Fig. 4, UE can be interpreted as
a measure of the heat input in units
of combustion, qb, and VB as a mea-
sure of the total heat requirements
in units of solution loss, q.~. Ac-
cording to simple geometry, Eq. [ 6 ]
implies that the operating line inter-
sects segment UV at a point P which
divides distance UV in the ratio
qal/qb, and has the abscissa:
It is worthy of note that the coordi-
nates of point P are practically in-
dependent of the amount of solution
loss to be performed in the elabora-
tion zone. XP is a function of the
blast characteristics only (tempera-
ture and composition), Yp is a func-
tion of the hot metal composition
and of all the heat requirements of
the elaboration zone given per unit
of iron.
Point P can be placed with good
accuracy for a planned operation.
The operating line will be PW for
the ideal shaft performance leading
to the minimum coke rate. But if
the operation is not chemically ideal,
the operating line still goes through
P, although it does not go through
W. It hinges on point P at variable
shaft performance.
Index of the Points and Segments
of Significance in the Operating
Diagram
To help the reader in becoming
familiar with the operating diagram,
a list is given below of the most
important points and segments with
their interpretation. The letters re-
fer to Figs. 3 or 4, and are given in
alphabetical order. Atomic and mo-
lecular units are used in the operat-
ing diagram to take advantage of
the equivalence of 1 at. 0 , 1 at. C,
1 mole CO and 1 mole H, in the re-
ducing gas balances. Table I gives
the conversion factors required to
revert to industrial units.
Point A.
XA - 1 = degree of oxidation of
the top gas, at. O/mole
gas
Y r = initial degree of oxida-
tion of the iron in the
burden, at. O/at. Fe, Ya
= y.1 + yl
Point B.
XB := 1, by construction
Ye := ~ O I , amount of solution
loss (and direct reduc-
tion) of iron, at. O/at.
Fe
Point D.
, XU = xr, the fraction of each
mole of reducing gas
originating from the
blast, and thereby bear-
ing a fixed ratio to the
nitrogen. XI, is propor-
tional to the ratio (%
N2/% reducing gas) in
the total gas mixture
Yu = Yu, see U
Point
YP
P.
= qal/(qb + q,,).
P is the point dividing
segment UV in the ratio
PU/PV = qsl/qb
The operating line hinges
around P under the in-
fluence of factors affect-
ing the amount of solu-
tion loss without chang-
ing the other thermal
requirements of the elab-
oration zone
A chart of XP as a function of blast
temperature and humidity is given
in ref. 5.
Point U.
XU = 0, by construction
IYnJ = y,, number of moles or
reducing gas/at. Fe, pro-
duced jointly by: (1) the
direct reduction of SiO-,
MnO,PnO;, and desul-
Table I. Conversion Factors from Atomic to Industrial Units
To convert to Y ~ ~ l t l p l y by
at. O/at. Fe
at. C/at. Fe
Ib O/short ton Fe 573
kg O/metric ton Fe 286
cu ft dry blast air/short ton l'e 306.000
m3 dry blast air/metric ton Fe 955
Ib C/short ton Fe 430
kg C/metric ton Fe 215
cu f t CO/short ton Fe 128.500
ma CO/metric ton Fe 401
solution loss thermal units (at. 0, Btu/g at. Fe
at. C, or mole CO) per at. Fe Btu/short ton Fe
kcal/g at. Fe
th/metric ton Fe
92 Ironmaking Proceedings, 1966
furization, (2) the coke
hydrogen, and (3 ) the
injection hydrogen (and
oxygen), when the rate
of injection is defined
per unit Fe
Segment UE.
UE = yb, number of moles of
reducing gas/at. Fe,
originating from the
blast and including the
injection hydrogen (and
oxygen). when the rate
of injection is defined
per unit volume of blast
air. At constant blowing
rate, UE is inversely
proportional to the pro-
duction of iron and pro-
portional to the retention
time of the charge. Seg-
ment UE is under all
circumstances propor-
tional to the total heat
input into the elabora-
tion zone per at. Fe .
Point V.
X, = 1, by construction
lYvl = Q/qBl, heat requirements
of the elaboration zone
1 exclusive of solution loss,
measured in solution loss
units, at. O/at. Fe
I
Segment VB.
VB = Q/q., + ye,, total heat
requirements of the elab-
oration zone, measured
in solution loss units, at.
O/at. Fe
Point W.
X1v - 1 = degree of oxidation of
the gas in equilibrium
with wustite and iron at
Ta, at. O/mole reducing
gas.
XlV is a function of Tn
and of the hydrogen
mole fraction in the re-
ducing gas
YK = overall degree of oxida-
tion of iron in the
charge after reduction
of . the initial oxides to
wustite in equilibrium
with Fe, at. O/at. Fe.
Y, = 1.05 at. O/at. Fe
in the absence of metal-
lic iron in the burden
p, slope of the operating line: num-
ber of moles of reduc-
ing gas (CO, Hz) re-
quired for the produc-
tion of 1 at. Fe, moles/
at. Fe. The total carbon
consumption is equal to
the CO fraction of plus
the hot metal carbon
Applications and Shortcomings of the
Operating Diagram
If an actual blast-furnace opera-
tion is given with sufficient informa-
tion to define it unambiguously, the
operating line can be drawn by two
points or by one point and the
slope. In blast-furnace control, for
instance, the complete gas analysis
can be used to place points A and D.
In the assessment of blast-furnace
data, the operating diagram offers a
check of consistency and, when
there is consistency, a means of
evaluating the chemical efficiency of
the shaft, by the separation between
the operating line and point W.
In planning new operations, .an
assumption must be made on ther-
mal and chemical efficiencies. If
ideality is assumed for both, any
chosen set of operating variables
(type of burden, blast characteris-
tics, hot metal composition, nature
and rate of injection, etc.) leads to
an operating line PW and to a prac-
tical minimum coke rate.
Although a solution is obtained
by the operating diagram alone, a
doubt remains as to whether it is
compatible with the assumption of
ideality, from the point of view of
the rates of oxygen and heat trans-
fer. A qualitative but valuable check
can be provided by Reichardt's dia-
gram. A combined reference to both
diagrams is thus necessary in most
cases. It can be vital in particular to
predict the inhence of an operating
parameter beyond its common range
of variation. The advantage of the
dual graphic representation is illus-
trated below.
is a linear combination of the vol-
umes of the three gases CO, Hz, and
N,, associated to the production of
the same unit of iron.
Another link is obtained if the
same scale is used in both diagrams
for quantities of heat: The heat re-
quirements of the elaboration zone
are then represented by segments of
equal length, VB in the operating
diagram and cr in Reichardt's dia-
gram (Fig. 5). For a base operation,
the two segments can be drawn to
face each other, but when variations
will be studied this match will not
be preserved since B and V may
move up and down, whereas r will
be fixed and c only will move to
satisfy the equation VB = cr (ex-
cept with injections, as shown be-
low).
The following examples will show
how the dual graphic representation
is used, first to illustrate the influ-
ence of single parameters varying
within and to the limits of the ideal
range, and second to illustrate cou-
pled variations of pairs of parame-
ters so chosen as to preserve ideality
over far more extensive ranges of
either parameter than would be per-
missible in single variations.
EFFECT OF INDIVIDUAL
PARAMETERS ON THE BLAST
FURNACE OPERATION
SIMULTANEOUS REPRESENTATION
OF THE OPERATING AND
The dual graphic representation
will be applied here to three indi-
REICHARDT'S DIAGRAMS vidual parameters of interest in
Before commenting on specific ap-
plications, it is necessary to present
the two diagrams side by side (Fig.
5) and to point out some of the
graphic links between them.
First, it should be noted that the
slopes of the operating line and of
Reichardt's gas line vary in the
same direction in most cases (pro-
vided of course the temperature axis
is oriented towards the left, as we
have chosen to do). The slope of the
operating line is proportional to the
volume of reducing gas (CO, H?)
generated to produce one atom of
iron, while the slope of the gas line
modern -blast-furnace technique to
save coke and/or to increase iron
production, namely hot-blast tem-
perature, natural gas injection, and
burden prereduction.
Graphic Study of the Effect of High
Blast Temperatures
An increase in blast temperature
amounts to an increase of the ther-
mal coefficient q,, the heat input in
kcal/mole of reducing gas originat-
ing from the blast. The abscissa of
point P (Fig. 6a), given by Eq. [7],
is thereby decreased.3,Tnder the
assumption that the coke rate is cor-
Fig. 54imultaneous representation of the operating diagram and Reichardt's diagram.
Blast Furnace Theory 93
serve tends to shrink and vanish. If
the increase in blast temperature
were too large, the assumption of
chemical ideality could not hold any
longer and the operating line would
have to be drawn away from point
W.
Reichardt's diagram thus brings
out the interaction between heat
transfer and reduction in the shaft
and thereby sets a limit of validity
to the assumption of chemical ideal-
ity. If chemical ideality had not been
assumed in the first place, it would
be necessary to associate a decreas-
ing shaft efficiency to any increase
of blast temperature. The coke sav-
ing would then be less than ideal.
The transition from ideal to non-
ideal behavior occurs at blast tem-
peratures which are the higher the
lower the weight of slag-making
materials is in the burden.
Fig. &Effect of an increase in blost temperature. Beyond the range of nonideality
for the reduction, one would find
rected so as to maintain the same zone: BB' = CC' = vertical compo- also a range of nonideality for the
hot metal composition, points U and nent of FF'; (3) an increase of the heat transfer involving separation of
V remain fixed. Segment UV is the virtual flame temperature equal to the gas and solicL lines at R. The
locus of point P, which is displaced the horizontal component of Fp; evolution of Relchardt's diagram
towards the left, to P . If the shaft (4 ) a small decrease in the heat re- from a pinch point at R to a pinch
reduction is assumed ideal initially quirements of the preparation zone point at the top has been clearly
and assumed to remain ideal, the equal to SS' or to the vertical com- illustrated by Zischkale, Heynert,
operating line hinges on point W ponent of GG', and related to the and Beer.-
and changes from PW to P'W. loweringof the coke rate; (5) a de-
The resulting modifications ap- crease in the top gas temperature Graphic Study of the Effect of a
pearing on the diagram are the fol- equal to the horizontal component Natural-Gas Injection
lowing: (1) a decrease in the slope of GG'. The injection of natural gas will
of the operating line, corresponding In Reichardt's diagram, the de- be studied here in the absence of
to the decrease in coke rate; (2) an crease in the slope of the gas line any other variation of operating
increase, BB', in the amount of solu- is the major effect, the vertical dis- parameters and in particular at con-
tion loss, both as gas generated and placements of the end points C, F, stant blast temperature. The injec-
as heat required; (3 ) a decrease of S, and G being small compared to tion affect!; both mass and heat bal-
the blast consumption, proportional the horizontal displacements of ances of the blast furnace. For sim-
to EE'; (4) an increase AA' of the points F and G. As a consequence, plicity, it is assumed that the rate
degree of oxidation of the top gas; the new angle GRS' is smaller than of injection is given as a volume of
(5) a decrease of the NJreducing the initial one, GRS. This indicates CH, per unit of metal produced. The
gas ratio, proportional to DD'. that the difference in temperature injection hydrogen can thus be
The increase in solution loss BB' between gas and solids at all levels treated in the operating diagram as
cannot be mistaken for nonideal in the shaft is decreased and that a part of the reducing gas bearing a
shaft reduction. As is evidenced by the transfer of heat is slower. The fixed ratio to the iron (yr). Point U
the corresponding increase in top- new temperature profile is thus less in Fig. 7a is displaced vertically to
gas oxidation, it is merely the effect favorable to fast reduction than the Up, segment UU' representing the
of the operating line hinging on original one and the chemical re- number of moles of H, injected per
point W.
The decrease in blast consumption
EE' can be interpreted more spe-
cifically under either one of two as-
sumptions:
1. If production is to be main-
tained constant, the blowing rate
must be decreased in the ratio of
WE' to UE.
2. If the blowing rate is main-
tained constant, production will in-
crease in the ratio of UE to UE'.
The modifications observed on the
operating diagram involve corre-
sponding modifications in Reichardt's
diagram. Under the assumptions of
ideality for the heat exchange, the
gas straight line and the segments
of the solids curve all hinge on point
R, which is kept fixed. One notes
the following changes (Fig. 6b) : (1)
a decrease in slope for the gas line,
due to the decrease in total volume
of gas (both reducing gas and nitro-
gen); (2) an increase in the heat
requirements of the elaboration Fig. 7-Effect of o natural gas injection.
94 lronmoking Proceedings, 1966
at. Fe. The carbon need not be rep-
resented, since it is taken care of
by blast oxygen which is already
represented in yb.
From the heat-balance point of
view, the thermal requirements of
the elaboration zone independent of
solution loss are increased by an
amount VV', representing the crack-
ing and heating of the injected ma-
terials to T,, UU' and VV' are both
proportional to the amount of na-
tural gas injected and, as a result,
the line U'V' hinges around a fixed
point J. The abscissa X, is a charac-
teristic of the injected material and
is equal to 2.27 for methane.6 The
blast temperature being constant,
point P is displaced vertically (X, =
cst) to P' on U'V'.
If the operation is assumed to be
ideal initially, the base operating
line goes through point W. Follow-
ing the introduction of hydrogen in
the reducing gas, this point is
slightly displaced towards the right,
and if the operation is assumed to
remain ideal, the new operating line
is P'W'. It may be shown6 that the
two operating lines intersect at a
point I, at a fixed abscissa X, which
depends mainly upon the nature of
the injection and slightly upon the
blast temperature. For methane and
T, = 1800°F, XI = 1, 41.
Other modifications of the operat-
ing diagram of Fig. 7a are (1) an in-
crease in slope of the operating line,
~ p ; (2) an increase in the blast con-
sumption EEf-UU'; (3) a decrease
BB' in the amount of solution loss.
The increase in slope of the oper-
ating line A p is an important factor
in the evaluation of the replacement
ratio. If the reducing gas made from
1 mole of methane were strictly
equivalent to the CO made from the
coke, the operating line would re-
main unchanged and the replace-
ment ratio would be equal to 3 at. C
coke/mole CH,. In fact, with an in-
crease in slope A p for the injection of
i moles of methane/at Fe, the re-
placement ratio, p, is only:
p = 3 - Ap/i at. C coke/mole CHI
i.e., about 1.2 at. C/mole CHI or 0.04
lb C/cu ft CHI.
The increase in blast consumption
is the reason for a decrease in pro-
duction when the blowing rate is
constant.
The decrease in solution loss ob-
served on Fig. 7a cannot be a sign of
improved shaft efficiency, since
ideality is assumed. Yet in practice,
when the base line is not ideal, im-
portant improvements in shaft effi-
ciency are obtained by injection.
The explanation for this effect is
best brought out by Reichardt's
diagram.
Fig. 7b shows the modification of
Reichardt's diagram by an injection
of methane. The line of the gas and
the segments of the solids hinge on
point R, with the following charac-
teristics: (1) an increase in slope
of the gas line, due to the increase
in total volume of gas (reducing gas
and nitrogen) ; (2) a decrease of the
virtual flame temperature equal to
the horizontal component of FF';
(3) a decrease in the amount of heat
to be transferred from the gas in
the elaboration zone: BB' = CC' =
vertical component of FF' (the in-
crease VV' is not included here be-
cause it represents heat consumed on
the site of combustion with the effect
of lowering the true flame tempera-
ture) ; (4) a small decrease in the
heat requirements of the preparation
zone related to the decrease in coke
rate; and (5) an increase in the top
gas temperature equal to the hori-
zontal component of GG'.
The increase in slope of the gas
line is the major effect. At the top
the horizontal displacement of G is
far greater than the vertical one and
the new angle G'RS' is greater thali
the initial one, GRS. This is a sign of
faster heat exchange and corre-
sponds to a temperature profile
%which is more favorable to fast re-
duction. Thus, if the chemical effi-
ciency is not unity to begin with, it
is improved by the injection, an
effect which is further accentuated
by faster reduction rates in hydro-
gen-bearing gases. -
When the shaft efficiency is im-
proved by the injection, the increase
in slope of the operating line ap is
less than in the ideal case and the
replacement ratio is higher. There is
a limit of course to the improvement
and as the injection rate is further
increased the replacement ratio re-
sumes a smaller value, closer to
ideality.' This effect is substantiated
by practiceg and often sets an eco-
nomic limit to the injection rate.
In studying very high injection
rates on the dual graphical repre-
sentation, one is able to visualize the
two phenomena which sooner or
later reverse the tendency to im-
prove shaft efficiency and invalidate
the assumptions of ideality:
1. One is the lowering of the flame
temperature apparent on Reichardt's
diagram. With the decreasing tem-
perature difference between gas and
solids in the elaboration zone, heat
transfer is slowed down and a longer
exchanger is required. The reserve
zones tend to shrink and vanish,
causing the shaft efficiency and the
replacement ratio to decrease.
2. The other is the increase of the
amount of indirect reduction ap-
parenton the operating diagram.
The more thorough the reduction,
the more time it requires, and it is
expected that operations with high
injection rates will not reach the
ideal degree of indirect reduction
aimed for in the ideal operation. The
shaft efficiency and replacement
ratio will therefore be simultane-
ously impaired.
It is not possible to tell which
limit would be met first, because of
interaction between the phenomena
involved. In addition, one must keep
in mind the possibility that incom-
plete combustion may cause low re-
placement ratios at high injection
rates."
Graphic Study of the Effect of
Burden Prereduction
With burden prereduction, the
amounts of reduction, both direct
and indirect, to be performed in the
blast furnace are markedly de-
creased, as is shown by the operat-
ing diagram of Fig. 8a. Provided
iron metal is present in the charge
and resists reoxidation, point W is
depressed. Its abscissa remains con-
stant and its ordinate decreases by
an amount proportional to the ratio
a of metallic to total iron:
WW' = a Y w
Point P is practically unchanged
and the operating line essentially
hinges around point P when W is
displaced. One observes the follow-
ing modifications on Fig. 8a: (1) a
decrease in the slope proportional to
the coke saving; (2) a decrease EE'
Fig. &Effect of bu rden prereduction.
Blast Furnace Theorv 95
in the blast consumption, allowing
a large increase in production at
constant blowing rate; (3) a de-
crease BB' in the amount of direct
reduction; and (4) a decrease in the
degree of oxidation of the top gas
equal to the horizontal component of
AA'.
It is worthy of note that prere-
duction is an example of a variable
which induces a high saving of coke
(and a correspondingly high in-
crease in production) due to the
coupled effects of lower carbon
gasification by solution loss and of
lower heat requirements in the
elaboration zone. A similar situation
is encountered with any variable
causing the operating line to hinge
around P instead of around W (not-
ably, improvements in shaft effi-
ciency).
The decrease in degree of oxida-
tion of the gas is very small in the
example of Fig. 8a, where the O/Fe
ratio of the oxidized fraction of the
iron charged is assumed to be
normal. But it would be more pro-
nounced if that ratio were low, for
instance, as low as 1.05 in wustite.
The study of prereduction by the
operating diagram alone would give
a wrong idea of the effect of high
degrees of metallization. It is par-
ticularly important in this case to
combine the two diagrams.
The displacements in Reichardt's
diagram are shown in Fig. 8b. The
gas line and the solids segments
hinge around point R as long as
thermal ideality can be assumed. The
following changes are observed:. (1)
a decrease in the slope of the gas
line, due to the decrease in total
volume of gas (reducing gas and
nitrogen) ; (2) a decrease in the heat
requirements of the elaboration
zone: BB' = CC' = vertical com-
ponent of FF'; (3) a slight increase
in the virtual flame temperature due
to the decrease in solution loss CO;
(4) a slight decrease in the heat re-
quirements of the preparation zone
due to the decrease in coke rate; (5)
a marked decrease in top gas tem-
perature measured by the horizontal
component of GG'.
For the preparation zone the ma-
jor effect is to close the angle G'RS'
to the point where neither chemical
nor thermal ideality can be claimed
for high degrees of metallization.
Beyond that point, the. effect of fur-
ther prereduction of the burden is
inevitably less than under ideal con-
ditions because of the separation be-
tween point W and the operating
line and also because of the depres-
sion of point P associated with an
imperfect thermal pinch in Reic-
hardt's diagram. A more complete
study of this subject has been given
elsewhere? Our purpose here is
merely to illustrate the ability of
Reichardt's diagram to point out the
limits assigned to the ideal assump-
tions by heat-transfer and tempera-
ture profiles, and to act as a safe-
guard against erroneous use of the
operating diagram.
EFFECT OF COUPLED VARIATIONS the key points, light arrows for the
OF TWO OPERATING PARAMETERS component variations. and heavv
Selection of Suitable Pairs of
Parameters for Coupled Variations
From the previous section, it is
clear that the range of validity of
the ideal blast-furnace model is in
most cases the range in which the
maximum benefit is drawn from a
unit variation on a given parameter.
Beyond that range, the lowering of
the chemical, and eventually the
thermal efficiency, considerably re-
duces the savings of coke and the
increases in production, although
they do not usually reverse the
trends. The examples chosen above
focused attention on the three major
limits to ideal behavior: ( I ) an
excessively low flame temperature
TP; (2) an excessively low top gas
temperature T,:; and (3) an exces-
sively low amount of solution loss
37.1.
Due to the fact that some variables
affect these characteristics in op-
posite directions when varied so as
to improve the coke rate, it seems
attractive to combine at least two
such cooperative variables and
thereby to preserve ideality and
benefit by the additive ideal effects
of both. "'." Table I1 lists the param-
eters of interest for their influence
on coke rate or production and indi-
cates by +, -, or 0 signs the direc-
tion of variation of the criteria TP,
Ti and ye,. This table suggests the
pairs: hydrocarbon injection with
increased blast temperature," hydro-
carbon injection with increased blast
oxygen," and burden prereduction
with burden beneficiati0n.O
These examples are studied below.
Graphical Study of the Effect of
Coupled Variations
In Figs. 9-11, the base operation is
referred to by letters without prime
or subscripts and is represented by
heavy full lines. The new operation
obtained after the coupled varia-
tions is referred to by primed letters
and represented by heavy broken
lines (except when the new line is
superimposed over the base line).
The two single-parameter variations
which must be added to obtain the
new operation are indicated in light
full line and are referred to by
letters with subscripts 1 and 2.
Arrows show the displacements of
ones for the resulting variatioi.
Vectorial composition is suggested
on the graphs, although this is only
an approximate solution.
Natural gas injection and increased
blast 'temperature. The two separate
parameters involved in this case
have been studied in the previous
section and in Figs. 6 and 7. In Figs.
9a and 9b, the combined variations
of injection rate and blast tempera-
ture are so adjusted as to maintain
the gas Pine fixed in Reichardt's
diagram, a case which is particularly
simple to interpret. Point F moves
slightly upwards to F' and point G
moves downwards to G' on the
initial and final gas line. Under those
circumstances, the blast temperature
increase and the rate of injection are
so adjusted as to balance the oppo-
site variations in total gas volume.
In view O F the resulting decrease in
nitrogen volume, the reducing gas
volume must be increased and the
slope of the operating line is cor-
respondingly increased.
In Fig. 9b the opening of angle
GRS to G'RS' and the relative sta-
bility of angle FRC are signs that
ideality in no less compatible with
the new operation than it was with
the base operation. Flame temper-
ature ren~ains nearly constant and
top-gas temperature moves away
from its limiting value. Other limits
will come into play, such as exces-
sively low solution loss, combustion
problems, maximum stove temper-
ature, or ultimately excessive coke
replacement with respect to bosh
permeability.
Natural gas and oxygen enricla-
ment of the blast. Of these two
parametelSs, only gas injection has
been studied above. But oxygen en-richment alone (subscripts 2 in Fig.
10) is very simple to represent: if,
as is assumed in Fig. 10a, the blast
temperature is equal to TR ( W
1800°F), the reference temperature
of the heat-balance yielding point
P, the operating line is strictly un-
changed (and it would otherwise
undergo only very minor changes).
Thus Ps and P are identical. In
Reichardt's diagram (Fig. lob), the
slope of the gas line decreases (from
FR to F,R) under the effect of the
equivalent nitrogen removal, the
Table II . Variations of Some Operating Characteristics Following Changes on
Selected Single Parameters
Variations
of
following an
increaae In
Flame Top gas
tempera- tempera- Amount of
Coke tnre, ture, solution loss,
rate Production TF To Y S I
Blast temperature
Hydrocarbon injection
Blast oxygen
Burden prereduction
Burden beneficiation
96 Ironmaking Proceedings, 1966
CONCLUSION
The dual graphic representation
proposed in this text combines the
operating diagram and a simplified
version of Reichardt's diagram. It
offers a means of materializing the
balance equations for heat and for
the elements carbon, oxygen, and
hydrogen which are involved in the
formation and the utilization of the
reducing gas.
The operating line and diagram
illustrate most of the chemical char-
acteristics of the operation: coke
rate, reducing-gas consumption, gas
and charge composition at various
stages, and approach to chemical
equilibrium. But they are also cap-
able of incorporating heat balances
as constraints on the operating line,
such as fixed points. Reichardt's
diagram illustrates most of the
thermal characteristics: heat capaci-
ties of the gas and the charge, tem-
peratures of the gas and the charge
Fig. 9-Coupled effects of natural gas injection (subscript 1) and increased blast temperature various stages, to ther-
(subscript 2). mal equilibrium.
In the interpretation of plant data,
heat requirements in both zones re- duction and beneficiation are cou- the dual graphic representation may
maining constant. Obviously, if pled, illustrate the fact that if a be used to guide and to illustrate
ideality is to be preserved, there is given degree of metallization is in- the balance calculations required
a limit to oxygen enrichment of the compatible with ideality at a given for a check of internal consistency
blast alone set by an excessive low- slag volume, ideality may be re- of the data and for the assessment
ering of the top-gas temperature. stored by beneficiation. This amounts of thermal and chemical efficiencies.
When natural-gas injection and to saying that the range in which In the planning of an entirely new
oxygen enrichment of the blast are maximum benefit can be drawn operation or of modifications to an
I combined, in a ratio so adjusted as from prereduction is the wider the existing operation, one starts from
to maintain the gas line fixed in lower the slag volume. A limit al- assumed or given initial diagrams
~ ~ i ~ h ~ ~ d t ! ~ diagram ( ~ i ~ . lob), ways remains, however, and devia- to be altered under the effect of one
angle GRS tends to open to GRS* tion from ideality can in no case be or several parameters. The calcula-
and angle FRC tends to close to avoided with high degrees of met- tions involved are based on the
FPRC?. ~ ~ ~ t h ~ ~ increases of the gas allization, even at zero slag weight. same principles as Michard's mathe-
and oxygen rates, in the same pro- The cupola with its thermal pinch matical model? but they can be
portion, would in this case even- point at the topa is ample evidence conducted as suggested or as needed
tually invalidate the ideal assump- this statement. by the diagram's geometry. In this
tions for the reason of an excessively The very mechanism, by which text, blast temperature, oxygen en-
low flame temperature. beneficiation is found favorable to richment of the blast, natural-gas
prereduction, could also be put for- injection, burden beneficiation, and
By combining the gas and Oxygen ward to show that it is likewise prereduction have been studied .rates with a greater proportion of favorable to the use of high blast alone or by pairs, at constant hot-
Oxygen per of injected temperatures and oxygen enrich- metal quality and under the as- natural gas, one can be lead to a merit of th'e blast (Table II). marked decrease of the slope of the sumption of ideality for heat and
gas line, thereby closing angle GRS
and opening angle FRC. Ideality
would then be impaired a t high gas
and oxygen rates for the reason of
an excessively low top-gas tempera-
ture. As found mathematically by
Michard and B o ~ d i e r , ~ the maxi-
mum rate of gas injection compati-
ble with ideality is obtained with
the particular proportion of gas and
oxygen leading to simultaneous
reaching of the two limits under
consideration.
Burden prereduction and burden
beneficiation. Burden beneficiation,
referred to on Fig. 11 by letters with
subscript 2, offers a means of open-
ing angle GRS in Reichardt's dia-
gram, mostly because the lowering
of the heat requirements is more
pronounced in the preparation zone
than in the elaboration zone under
the effect of a decrease in slag
volume.
Prereduction on the other hand
has been shown to close angle GRS. Fig. 10--Coupled effects of natural gas injection (subscript 1) and oxygen in the blast
Figs. l l a and l lb , in which prere- (subscript 2).
Blast Furnace Theory 97
Fig. 11--Coupled effects of burden prereduction (subscript 1) and burden beneficiation (sub-
script 2).
oxygen transfer. A similar applica-
tion was recently suggested for the
study of the effects of perturbations
and control actions on the thermal
state of the furnace and on the hot
metal quality."
Under the assumption of ideality,
the operating diagram always com-
pletely defines some solution to a
given problem. Reichardt's diagram
is used to decide whether this par-
ticular solution is valid or not, and
to calculate the limiting values of
the variables at conventional borders
of the ideality range set by flame
temperature, top gas temperature,
and solution loss.
Beyond those limits, variations in
chemical efficiency can no longer be
neglected. Their sign usually follows
from consideration of Reichardt's
diagram which indicates the modifi-
cations of temperature gradients and
The theory and logic the authors
have applied to the formulation of
the Rist and Reichardt diagram are
a significant contribution to the
technology of the blast furnace op-
eration.
The Rist diagram has proven itself
to be a valuable tool when used
to compare operating periods on a
R. E. KUSNER is with Republic Steel Corp.
Research Center, Cleveland, Ohio.
of the topography of the heat and
oxygen exchangers in the blast fur-
nace. Quantitative solutions to prob-
lems involving such variations on
efficiency are not available from
calculations. They must be obtained
from e~periments '~~" or from prac-
tice. A particular group of operating
variables which was not studied here
is inseparable from efficiency consid-
erations since their effects on the
diagrams appears only as efficiency
variations: they are blowing rate,
burden reducibility, and high top
pressure.
Even when limited to qualitative
answers, the dual graphic represen-
tation is, in the authors' belief, a
help to the student in becoming
familiar with the blast-furnace
process and a useful tool for the
full-fledged engineer in exerting
judgment in blast-furnace problems.
Discussion
by R. E. Kusner
blast furnace. However, since the
majority of the pertinent data avail-
able is a result of a computer-
calculated mass and heat balance
using a datum temperature of 77"F,
I find it easier to take a few liberties
with the established coordinates of
the Rist diagram. The abscissa is
kept the same, namely, ( 0 + Hz)/
(C + H,). For the ordinate, the
parameter ( 0 +H-)/ORFE is se-
lected rather than ( 0 + Hz)/Fe,
where ORFE is the oxygen removed
by direct and indirect reduction
from the burden. With this selection
REFERENCES
1 P. Reichardt, Arcla. Eisenhiittenzu., vol.
1. 1927 p. 77.
3A. kis t and G. Bonnivard, Rev. Met., vol.
60, 1963, p. 23; Ibid., vol. 63. 1966, p. 197;
Ibid., vol. 63, 1966, p. 296.
8A. Rist and N. Meysson. Rev. Met., vol.
61. 1964. D. 121: English translation, BISI . -
J . Weber. and A. Rist, Rev.
...-.
4 N. Meysson.
Met., vol. 61, 1964. p. 623.
6A. Rist and N. Meysson, Rev. Met.. vol.
62, 1965. p. 995; English translation, BISI
4497.
EN. Meysson. A. Maaref, and A. Rist, Rev.
Met., vol. 62. 1965, p. 1161. English transla-
tion, BISI 4786.
7s. Klemantaski, JISI, vol. 174. 1953, P.
mfi
8 J. Szczeniowski. Etrcde d u Halit Fournearc
I-Cahiers du CESSID. Metz. France, 1956
and 1964.
0 J. Michnrd. Etude dri Haat Forcrnea~c II-
Cahiers d u CESSID. Metz. France. 1959.
' 0 J. M. Ridgion, JISI, vol. 200, 1962, p. 389.
11 W. H. Ceckler. Quarterly Colo. School
Mines, vol. 59, 1964, p. 417.
*B. von Gerstenberg and T. Kootz, Stahl
Eisen, vol. 84, 1964, p. 1180.
UB. I. Kitaev, Ju . G. Jarosenko and B. L.
Lazarev. 3me Jotirnees Internationales de
Sidhrrtryie. Lu.retnbourg. Oct. 1962, p. 47.
14 A. Firket and J . Molderez. Reu. Univ.
Mines, vol. 15. 1959, p. 93.
16, E. Bonnaure. AIME BLAST FURNACE.
COKE OVENS AND RAW MATERIALS PROC., v01.
18. 1959. p. 75.
la J. Michard. P. Dancoisne, and G. Chanty,
BLAST FURNACE. COKE OVENS AND RAW
MATERIALS '?ROC.. v01.'20, 1961. p. 329.
17 J . Michard, 31ne Journees Internationales
de Sid0rurqie. Lzix~?mboziry, Oct. 1962. p.
346.
ISC. Bonn ~ivard and A. Rist. Rev. &let.. - . p - ~ ~ ~
vol. 59. 1962, p. 401.
'!'A. Rist, C. Offroy. C. Chartier, and M.
Roubs. Centre Doc. Sider. Circular, vol. 21.
- - - . ~ ~. .~
X'L. S. Darken and R. W. Gurrs9. J. Am.
Chem. Soc.. vol. 67. 1945. p. 1398.
3 W. Zist:hkale. G. Heynert, and H. Beer.
Stahl Eiset~, vol. 83. 1963. p. 1117; French
translation, IRSID 2336.
"P. Ischebeck. G. Heynert, and H. Beer.
3me JournGes Interi~ationales de Sidhrursie.
L~ i ren~bourq . Oct. 1962, p. 378.
3 P. Dancoisne and J. M~chard. Charleroi
Internationlil Coilgress. Sept. 19-22. 1966.
Preprint D. 1.
-"a J . Cordier. J. Met.. vol. 1961. no. 1, p.
91 - -.
LCJ. Michard and Y. Boudier. Rev. Met..
vol. 60, 1963. p. 513.
% A . Rist. P . Dancoisne, and R. Jon.
IRSID. RE 131. presented a t Assoc. Tech.
Siderurgie Francaise. Journee de la Fonte.
June 1. 1966 lpublished in Rev. Met.,
vol. 64, no. 2. 1967.
?'C. Staib. A. Rist. and J. Michard. IRSID,
RE 144. presented a t the I.S.I. Autumn Meet-
ing. London. Nov. 22-23. 1966 !to be pub-
lished as I.S.I. Special Report).
and with the computed values of
Reducing Gas Utilization (Rg) and
Fraction Carbon Reduction or Solu-
tion Loss (CR) , .the operating line is
easily fixed by points A and B in
Fig. 3. The coordinates are:
XA = 1 + Rg, YA = ORFE/ORFE
= 1 and XB = 1, YB = CR
If a computer calculation is not
available, the coordinates of points
A and B are calculated as follows,
assuming that the degree of hydro-
gen utilization equals the degree of
carbon monoxide utilization:
I 98 lronmaking Proceedings, 1966
I 1 ( 0 + H d T
ORFE
ORFE ORFE
and
(0 + H?)T
CR = (1 + Rg) -Rg
ORFE
02STN
-- - Oa in stone/O in burden
ORFE
(0 + Hz)T
= (0 + Hz)
ORFE
total/O in burden
If the wind is known to be accurate,
the factor
(0 + Hz)T
can be readily deter-
ORFE
mined as
If the wind must be calculated from
top gas analyses, etc.,
(0 + Hz)T - (K + -
ORFE
ORDM + OCOK + OFAD
ORFE
OSTN
+ K X -
ORFE
HZCOK + HzFAD
- ( K - 1) ( ORFE
- RTK
where: K =
N,CG + N,FAD
( ORFE
. , -,
ORFE OSTN = 0 from stone
(0 + H,)C + (0 + H2)W NXOK = Nz from coke
- 1 1 N I A D = N3 from fuel additions - - T
ORFE HBM = Hot blast moisture, gr/cf
(0 + Hz) W
= 0 in dry wind (in-
ORFE cluding injected 0.)
plus (0 + H?) in hot
blast moisture per
unit of 0 in burden.
\ '
= \i)RDM + OCOK
ORFE
+ OFAD -t HXOK
ORDM = 0 from reduction of met-
alloids and lime for S
removal
OCOK = 0 from coke
OFAD = 0 from fuel additions
H,FAD = Hz from fuel additions
' H,COK = H3 from coke
Dr. Kusner's suggestion to use a
different unit on the ordinate axis
does not change the properties of
the diagram in any respect. His com-
ments on how to place the operating
line, using mass balance data only,
appropriately stress the fact that the
operating line is in no way associated
to a theoretical model of the blast
furnace. Our reference-eals with
some of the aspects of limestone
decomposition in the operating dia-
gram.
HBO? = Pct O2 in hot blast, in-
cluding injected O3
HBN? = Pct N3 in hot blast, in-
cluding injected 01
In order to fix the operating point
P on the diagram, because of sim-
plicity, reference is made to heat
balance data based on 77°F rather
than the thermal pinch point tem-
perature of 1800°F selected by the
authors. The coordinates of point P
are:
co'+ H ~ C
Yi = (c;
ORFE
+ c.) /
(CI + C3)
If one wishes to establish Yr, graphi-
cally using the line UV, the coordi-
Aufhor's Reply
Once the line is drawn, it can
always be compared to the ideal
reference line, using a measured or
estimated value of the pinch point
temperature. Point W is easily
placed in the diagram, regardless
of the units used on the Y axis, and
can be used to assess the chemical
efficiency, if needed.
Point P, to be used in predicting
operating variations, is based on the
heat balance of a particular stage.
nates of U and V (Fig. 4) are:
Xu = 0 Yo = - (0 + H?) C/ORFE
xv = 1 Yv = -C?/C3
where: C1 = HEF X qw
HEF = Heat efficiency of stack
HLH
= 1-
TOTH - TGSH
HLH = Heat losses
TOTH = Total heat developed
above 77°F from wind,
including hot blast heat,
hot blast moisture heat,
heats of combustion of
coke and fuel
TGSH = Sensible heat of top gas
above 77°F
q!tr ' = (TOTH - TGSH) / (0
+ H2) W = Heat avail-
able per unit of ( 0 +
Ha) in wind
C 3 = (PRODH + RCOH +
HZH) /ORFE
PRODH = Hot metal heat + slag
heats + calcination heat
above 77°F
RCOH = Heat of reduction of all
0 in burden with CO at
77°F
H,H = Heat of hydrogen util-
ization, H2 + C02 a t
77" F
C3 = Solution loss heat, C +
COa at 77°F per unit of
C or 0
The above means of determining the
operating line and operating point
neglects the concept stressed by the
authors, namely, the approach to
chemical and thermal equilibrium.
This is unfortunate, since it would
be an advantage to know the chemi-
cal efficiency of the stack. However,
if this approach, because of the
availability of the data, permits one
to use more readily the Rist diagram
to indicate changes in blast furnace
performance, the advantage of the
Rist diagram will not have been
lost entirely.
Dr. Kusner suggests using an overall
heat balance instead, with a 77°F
temperature reference for conven-
ience. The point associated to such
an overall balance will unfortunately
depend on the unkown and variable
top gas temperature. By using the
heat balance of the elaboration zone,
one does away with this difficulty.
The associated point P then varies
in a manner which can be calculated
a priori from the proposed changes
on the operating variables.
