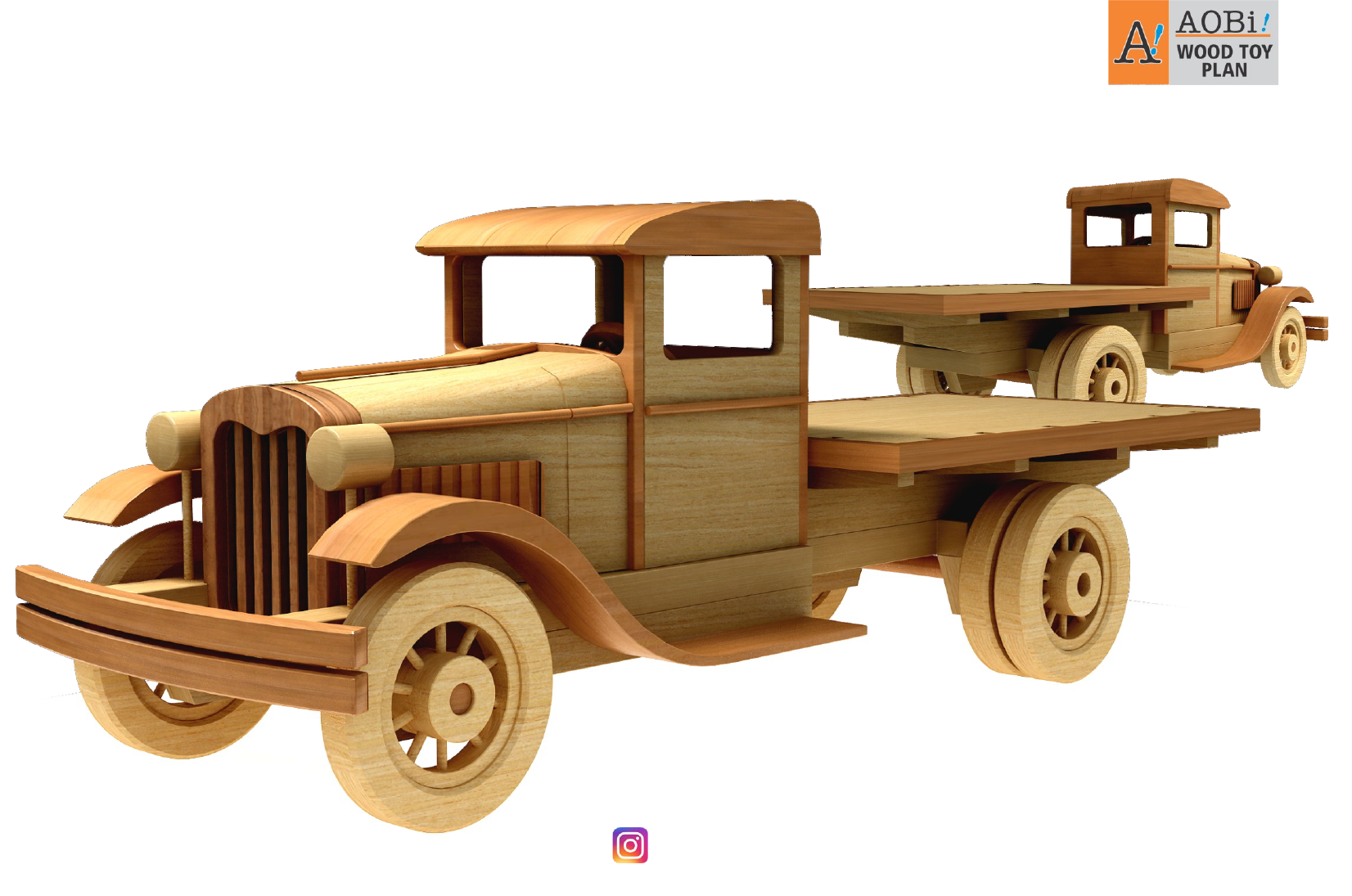

1929
Ford Stake Bed
Truck
READ BEFORE
Please “SAVE” the PDF ile
before you print pages. To
conserve printing ink we
recommend that you print only
the black and white precision
line pattern drawings pages in
the plan set.
It’s all quick and easy to make with
no fancy joints or cuts. Build it using
common tools and with easy to ind
materials and supplies.
FULL-SIZE
WOOD TOY
www.youtube.com/aobiworkshop
@2017
@danehsekali 1
PLAN SET
Finished Model is approximately
318mm L x 118mm H x 110mm W
Wood Toy Plan
1929 Ford Stake Bed
Truck
2
www.youtube.com/aobiworkshop
@2017
@danehsekali
This clear-coated wood toy can be built with danish plywood, hardwoods,
 softwoods or MDF. The inish is spray can Krylon or Rust-Oleum clear gloss. Spray 2
thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal
coats of clear, sanding with 400 sandpaper when dry. Apply inal coat without
sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
Warning: Read before copying.

Note to the Readers: Due to different conditions, tools, and
individual skills, I assumes no responsibility
for any damages, injuries suffered, or losses incurred as a result of
following the information published in this plan set. Before beginning
any project review instructions carefully. If any doubts or questions
remain consult local experts or authorities.
Copyright Information: Plans and patterns in this Plan Set
can be photo-copied for personal use when building the toys.
plans and patterns are cannot be distributed or shared for free or for
any other reason.
Make as many of each toy as you like!
this plan set are royalty-free. You have the right to build
any quantity of these toys for any reason.
Greeting From Indonesia
Dani Hadiyantara
1929
Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
FULL-SIZE WOOD TOY PLAN SET
Color & Natural Wood Pictorial Views .................................... 4 - 14
1929 Ford Stake Bed Truck Index, Parts List ......................... 15 - 17
1929 Ford Stake Bed Truck Patterns Index, and How-To’s..... 18 - 24
Full-Size Precision Line Patterns............................................ 25 - 33
Cartoning and Labels ............................................................. 34 - 35
3
This clear-coated wood toy can be built with danish plywood,
hardwoods, softwoods or MDF. The inish is spray can Krylon
or Rust-Oleum clear gloss. Spray 2 thin coats sanding each
coat with 220 sandpaper when dry. Then spray 3 light inal
coats of clear, sanding with 400 sandpaper when dry. Apply
inal coat without sanding. All Krylon and Rust-Oleum paints
and inishes are non-toxic when dry.
4
www.youtube.com/aobiworkshop
@2017
@danehsekali
Wood Toy Plan
1929 Ford Stake Bed
Truck
This clear-coated wood toy can be built with danish plywood,
hardwoods, softwoods or MDF. The inish is spray can Krylon or
Rust-Oleum clear gloss. Spray 2 thin coats sanding each coat with
220 sandpaper when dry. Then spray 3 light inal coats of clear,
sanding with 400 sandpaper when dry. Apply inal coat without
sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic
when dry.
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali 5
6
This clear-coated wood toy can be built with danish plywood, hardwoods, softwoods or MDF. The inish is spray can Krylon or Rust-
Oleum clear gloss. Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal coats of clear, sanding
with 400 sandpaper when dry. Apply inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
This clear-coated wood toy can be built with
danish plywood, hardwoods, softwoods or
MDF. The inish is spray can Krylon or Rust-
Oleum clear gloss. Spray 2 thin coats
sanding each coat with 220 sandpaper
when dry. Then spray 3 light inal coats of
clear, sanding with 400 sandpaper when
dry. Apply inal coat without sanding. All
Krylon and Rust-Oleum paints and inishes
are non-toxic when dry.
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali 7
This clear-coated wood toy can be built with danish plywood, hardwoods, softwoods or MDF. The inish is spray can Krylon or Rust-
Oleum clear gloss. Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal coats of clear,
sanding with 400 sandpaper when dry. Apply inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic
when dry.
www.youtube.com/aobiworkshop
@2017
@danehsekali8
Wood Toy Plan
1929 Ford Stake Bed
Truck
This clear-coated wood toy can be built with danish plywood, hardwoods,
softwoods or MDF. The inish is spray can Krylon or Rust-Oleum clear gloss. Spray
2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light
inal coats of clear, sanding with 400 sandpaper when dry. Apply inal coat without
sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali 9
This clear-coated wood toy can be built with danish plywood,
hardwoods, softwoods or MDF. The inish is spray can Krylon or
Rust-Oleum clear gloss. Spray 2 thin coats sanding each coat
with 220 sandpaper when dry. Then spray 3 light inal coats of
clear, sanding with 400 sandpaper when dry. Apply inal coat
without sanding. All Krylon and Rust-Oleum paints and inishes
are non-toxic when dry.
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali10
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali 11
To view page 11-12 as a two-page spread in Adobe Reader:
1. Select View/Page Display/Two Page Scrolling
2. Select View/Page Display/Show Cover Page in Two Page View
This clear-coated wood toy can be built with danish plywood, hardwoods, softwoods or MDF. The inish is spray can Krylon or Rust-Oleum
clear gloss. Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal coats of clear, sanding with 400
sandpaper when dry. Apply inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50 Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
To view page 13-14 as a two-page spread in
Adobe Reader:
1. Select View/Page Display/Two Page Scrolling
2. Select View/Page Display/Show Cover Page in
Two Page View
12
This clear-coated wood toy can be built with danish plywood, hardwoods, softwoods or MDF. The inish is spray can Krylon or Rust-Oleum
clear gloss. Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal coats of clear, sanding with 400
sandpaper when dry. Apply inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
To view page 13-14 as a two-page spread in
Adobe Reader:
1. Select View/Page Display/Two Page Scrolling
2. Select View/Page Display/Show Cover Page in
Two Page View
13
This clear-coated wood toy can be built with danish plywood, hardwoods, softwoods or MDF. The inish is spray can Krylon or Rust-Oleum
clear gloss. Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then spray 3 light inal coats of clear, sanding with 400
sandpaper when dry. Apply inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are non-toxic when dry.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50 Wood Toy Plan
1929 FordStake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
To view page 13-14 as a two-page spread in Adobe Reader:
1. Select View/Page Display/Two Page Scrolling
2. Select View/Page Display/Show Cover Page in Two Page View
14
This clear-coated wood toy can be built with danish plywood, hardwoods,
softwoods or MDF. The inish is spray can Krylon or Rust-Oleum clear gloss.
Spray 2 thin coats sanding each coat with 220 sandpaper when dry. Then
spray 3 light inal coats of clear, sanding with 400 sandpaper when dry. Apply
inal coat without sanding. All Krylon and Rust-Oleum paints and inishes are
non-toxic when dry.
1. 9mm x 266mm x 65mm make 1
2. 9mm x 100mm x 65mm make 1
3. 9mm x 34mm x 16mm make 4
4. 18mm x 46mm x 42mm make 3
5. 18mm x 16mm x 44mm make 2
5a. 20mm x 16mm x 44mm make 1
6. 18mm x 50mm x 44mm make 3
7. 3mm x 50mm x 70mm make 2
8. 3mm x 60mm x 70mm make 1
9. 3mm x 60mm x 70mm make 1
10. 2.5mm dia. x 30mm long make 1
www.youtube.com/aobiworkshop
@2017
@danehsekali
1
3 3 3 3
2
23
23
36
36
36 36 36 36
36 36 36 36
36
3636
36
36
28 28 28
28 28 28
37
37
37
36363636
35
35
35
30 30 30
30 30 30
1929 Ford Stake Bed Truck
Side Plan View
15
23
25
22
23
30
29
31
31
31 31
31
3
1
2
4
5
26 27
2726
16
17
13
7
11
10
6
20
8
9
28
33

 Wood Toy Plan
1929 Ford Stake Bed Truck
18
19
19
20 20
14
1421
21
21
21
16
29 29 29
29 29 29
8
9
7
17
13
11
22
13
35 35 35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
37
37
37
37
37
37
4 4 4
5 5
5a
12
12
12
33
34
26
27
32
25
24
10
6 6
6
15
15
31
1929 Ford Stake Bed Truck
Top Plan View
15
23
1 25
25
12
12
12
4
4
4
26 27
27
2622
22
5
5
5a 8
9
7
7
13
13
15
33
1929 Ford Stake Bed Truck
Side Plan View
14
21 21 21 21
19
3636 36 36 36 36 36 36
35
35
35
35 35
35 35
35 35
20
37
37
37
37
37
37
3
30
29
31
31
31 31
31
28
34
1929 Ford Stake Bed Truck
Top Plan View
34
19
19
20
20
21
212121 3
3
14
14
35 35 35
35 35 35
37
36
36
36
36 36 36 36 36
36 36 36 36 36 36
36
36
1837
1929 Ford Stake Bed Truck Parts List
11. 3mm x 25mm x 25mm make 1
12. 20mm x 63mm x 12mm make 3
13. 3mm x 63mm x 12mm make 2
14. 6mm x 150mm x 12mm make 2
15. 18mm x 141mm x 39mm make 2
16. 6mm x 40mm x 50mm make 1
17. 3mm x 40mm x 50mm make 1
18. 6mm x 150mm x 100mm make 1
19. 6mm x 162mm x 6mm make 2
20. 6mm x 100mm x 6mm make 2
21. 6mm x 100mm x 6mm make 4
22. 3mm x 22mm x 12mm make 2
23. 9mm x 110mm x 12mm make 2
24. 2.5mm dia. x 32mm long make 2
25. 10mm dia. x 12mm long make 2
26. 2.5mm dia. x 45mm long make 3
27. 2.5mm dia. x 16mm long make 3
28. 9mm x 16mm x 16mm make 6
29. 6mm x 35mm x 35mm make 6
30. 9mm x 50mm x 50mm make 6
31. 2.5mm dia. x 15mm long make 60
32. 2.5mm dia. x 50mm long make 2
33. 1/4”dia. x 95mm long make 1
34. 1/4”dia. x 100mm long make 1
35. 2mm x 50mm x 10mm make 18
36. 4mm x 4mm x 50mm make 16
37. 2mm x 104mm x 10mm make 6
Page 25 Page 26 Page 27 Page 28
Page 29 Page 30 Page 31 Page 32
Page 33
15
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
1
2
3
3
3
3
4
4
4
5
56
6
6
7
7
8
9
10
11
12
12
12
13
13
14
14
15
15
16
17
18
19
1920
20
21
21
21
21
22
22
23
23
24
24
25 25
26
26
26
32
27
27
28
28
29
29
3031
31
3
33
29
31
28
5a
30
30 32
32
16
www.youtube.com/aobiworkshop
@2017
@danehsekali
36
35
35
35
35
35
35
35
35
35
35
35
35
35
35
3535
35
35
37
36
36
36
36
36
36 36
36
36
36
36
36
36 36
36
37
37
37
37
37
17
Wood Toy Plan
1929 Ford Stake Bed
Truck
Step 1: Step 2:
Step 3: Step 4:

Using the Plan Views on pages 25-28 as
a guide, Glue and clamp Part 5s to the left side and the right side of
part 5a. Let assembly dry before proceeding.
Using the Plan Views on pages 25-28 as a guide, marked the
step 3 assembly (red area) cuts and make curved at the top
edge.
Wood Toy Plan
1929 Ford Stake Bed
Truck
Using the Plan Views on pages 25-28 as a guide, Glue and Clamp
Part 1 to part 2. Let assembly dry before proceeding.
Using the Plan Views on pages 25-28 as
a guide, Glue and clamp Parts 3s, to the the step 1 assembly . Let
assembly dry before proceeding.
www.youtube.com/aobiworkshop
@2017
@danehsekali
1
2
3
33
3
5
5a
5
Step 1
Assembly
Step 3
Assembly
18
Step 8: Step 9:
Step 10:

Step 11:
Using the Plan Views on pages 25-28 as
a guide, Glue and clamp all Part 4s. Let
assembly dry before proceeding.
Using the Plan Views on pages 25-28 as a guide,
marked the step 7 assembly (red area) cuts and
make curved at the top edge.
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp all part 6s. Let assembly dry
before proceeding.
Step 12:
Using the Plan Views on pages 25-28 as a guide,
insert and glue Part 11 to part 10 to the step 10
assembly. Let assembly dry before proceeding.
Using the Plan Views on pages 25-28 as
a guide, Glue and clamp part 7s to the left side
and the right side of the step 11 assembly. Let
assembly dry before proceeding.
Step 7:
Wood Toy Plan
1929 Ford Stake Bed Truck
Using the Plan Views on pages 25-28 as a guide,
glue and clamp parts 22s to the left side and the
right side of the step 8 assembly. Let assembly dry.
www.youtube.com/aobiworkshop
@2017
@danehsekali
4
4
4
22
22
6
6
6
10
11
7
7
Step 8
Assembly Step 9
Assembly
Step 10
Assembly
Step 11
Assembly
19
Using the Plan Views on pages 25-28 as a guide,
Glue and clam part 13s to the left side and the
right side of the step 15 assembly. Let assembly
dry
Step 16: Step 17: Step 18:
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp the step 17 assembly to the top
side of the step 2 assembly. Let assembly dry.
Wood Toy Plan
1929 Ford Stake Bed Truck

Using the Plan Views on pages 25-28 as a guide, Glue
and clamp part 8s to the front side and the back side
of the step 12 assembly. Let assembly dry before
proceeding.
Using the Plan Views on pages 25-28 as a
guide, Glue the step 14 assembly to the top
side of step 13 assembly. Let assembly dry
Step 15:
Using the Plan Views on pages 25-28 as a
guide, glue and clamp all part 12s. Let
assembly dry before proceeding.
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp the step 9 assembly to the step 4
assembly to the step 16 assembly. Let assembly dry
before proceeding.
www.youtube.com/aobiworkshop
@2017
@danehsekali
Step 13: Step 14:
8
9 12
12
12
13
13
Step 12
Assembly
Step 14
Assembly
Step 13
Assembly
Step 15
Assembly
Step 16
Assembly
Step 4
Assembly
Step 9
Assembly
Step 17
Assembly
Step 2
Assembly
20
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp parts 21a to the step 20
assembly. Let assembly dry
Step 22: Step 23: Step 24:
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp part 20s to the front side and the
back side of the step 23 assembly. Let assembly
dry before proceeding.
Using the Plan Views on pages 25-28 as a guide, Glue
and calmp parts 17 to part 16. Let assembly.
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp part 14s to the step 20 assembly.
Let assembly dry
Step 21:
Using the Plan Views on pages 25-28 as a
guide, Glue and clamp the step 19 assembly to
the front side of the step 18 assembly. Let
assembly dry before proceeding.
Using the Plan Views on pages 25-28 as a guide,
Glue and clamp part 19s to the left side and the
right side part 18. Let assembly dry before
proceeding.
www.youtube.com/aobiworkshop
@2017
@danehsekali
Step 19: Step 20:
17
16
14
14
21
21 21
21
18
19
19
20
20
Step 18
Assembly
Step 19
Assembly
Step 20
Assembly
Step 20
Assembly
Step 23
Assembly
Wood Toy Plan
1929Ford Stake Bed Truck
21
Using the Plan Views on pages 25-28 as a guide,
glue and clamp part 15s to the left side and the
right side of the step 26 assembly. Let assembly
dry
Step 28: Step 29:
Using the Plan Views on pages 25-28 as a guide, Glue and clamp
the step 24 assembly to the step 22 assembly. Let assembly dry
before proceeding.
Step 27:
Using the Plan Views on pages 25-28 as a guide, insert and glue
part 29s 25s to parts 24s to the step 25 assembly. Let assembly
dry before proceeding.
Using the Plan Views on pages 25-28 as a guide,
glue and clamp part 23s. Let assembly dry before
proceeding.
www.youtube.com/aobiworkshop
@2017
@danehsekali
Step 25: Step 26:
24
24
25
25
15
15
23
23
Step 24
Assembly
Step 22
Assembly
Step 25
Assembly
Step 26
Assembly
Step 27
Assembly
Step 28
Assembly
Wood Toy Plan
1929 Ford Stake Bed Truck
Using the Plan Views on pages 25-28 as a guide,
glue and clamp the step 28 assembly to the front
side of the step 27 assembly. Let assembly dry
before proceeding.
22
Step 33: Step 34: Step 35:
Step 32:
Using the Plan Views on pages 25-28 as a guide,
Glue parts 26s, 27s and 32s to the left side and the
right side of the step 33 assembly. Let assembly dry
.
www.youtube.com/aobiworkshop
@2017
@danehsekali
Step 30: Step 31:
Using the Plan Views on pages 25-28 as a guide,
insert one Part 33 and part 34 axle into the Step 29
Assembly. Glue the two Part the step 31s and 32s
assembly wheels to the one Part 33 and part 34
axles in a position that allows the wheels and
axles to rotate freely. Let assembly dry.
31
28
29
30
33
34
26
27
27
26
32
32
26
27
Step 30
Assembly
Step 31
Assembly
Step 31
Assembly
Step 31
Assembly
Step 31
Assembly
Step 32
Assembly
Step 32
Assembly
Step 29
Assembly
Step 33
Assembly
Step 34
Assembly
Wood Toy Plan
1929 Ford Stake Bed Truck
Using the Plan Views on pages 25-28 as a guide,
Insert and glue parts 31s to part 28 thru part 29. Let
assembly dry before proceeding.
Using the Plan Views on pages 25-28 as a guide,
Insert and glue the step 30 assembly to part 30. Let
assembly dry. do the step 30 and the step 31
assembly to the next three sets others
Using the Plan Views on pages 25-28 as a guide,
glue and clamp two the step 31 assembly side by
side. Let assembly dry. do the step 32 to the next
one sets others
Using the Plan Views on pages 25-28 as a guide,
Glue parts 26, 27 to the step 34 assembly. Let
assembly dry .
23
Step 38: Step39:
Using the Plan Views on pages 25-28 or 29 as a guide, Glue and clamp
parts 37s to parts 36s. Let assembly dry before proceeding. do the step
36 assembly to one set other
Using the Plan Views on pages 25-28 as a guide, insert the step
37 assembly to the step 35 assembly.
www.youtube.com/aobiworkshop
@2017
@danehsekali
Step 36: Step 37:
36
36
37
37
37
36
36
35
35
35
Step 35
Assembly
Step 37
Assembly
Step 37
Assembly
Step 38
Assembly
Step 36
Assembly
Wood Toy Plan
1929 Ford Stake Bed Truck
Using the Plan Views on pages 25-28 or 29 as a guide, Glue and clamp
parts 35s to parts 36s. Let assembly dry before proceeding. do the step
37 assembly to five sets others
Using the Plan Views on pages 25-28 as a guide, insert the step
36 assembly to the step 38 assembly.
24

ATTENTION:
THIS FULL-SIZE
PRECISION PLAN VIEW
IS FOR ASSEMBLY
REFERENCE.
IMPORTANT NOTE
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50Wood Toy Plan
1929 Ford Stake Bed Truck
1929 Ford Stake Bed Truck
Side Plan View
15
23
25
22
23
30
29
31
31
31 31
31
3
1
2
4
5
26 27
2726
16
17
13
7
11
10
6
20
8
9
28
33
Finished Model is approximately
318mm L x 118mm H x 110mm W
To print out enough paper patterns for the entire plan set from your
computer printer only print pages 25 through 33. The pages are all line
drawings in black to conserve printer ink. Check your printer printed
size accuracy by measuring the printer scale on each pattern with a
ruler. If printed size of pattern is not 100% adjust printer settings.
www.youtube.com/aobiworkshop
@2017
@danehsekali 25
26
Wood Toy Plan
1929 Ford Stake Bed Truck

ATTENTION:
THIS FULL-SIZE
PRECISION PLAN VIEW
IS FOR ASSEMBLY
REFERENCE.
To print out enough paper patterns for the entire plan set from your
computer printer only print pages 25 through 33 The pages are all line
drawings in black to conserve printer ink. Check your printer printed
size accuracy by measuring the printer scale on each pattern with a
ruler. If printed size of pattern is not 100% adjust printer settings.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50
1929 Ford Stake Bed Truck
Side Plan View
14
21 21 21 21
19
3636 36 36 36 36 36 36
35
35
35
35 35
35 35
35 35
20
37
37
37
37
37
37
3
30
29
31
31
31 31
31
28
34
Finished Model is approximately
318mm L x 118mm H x 110mm W
www.youtube.com/aobiworkshop
@2017
@danehsekali

ATTENTION:
THIS FULL-SIZE
PRECISION PLAN VIEW
IS FOR ASSEMBLY
REFERENCE.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50
IMPORTANT NOTE
To print out enough paper patterns for the entire plan
set from your computer printer only print pages 25
through 33. The pages are all line drawings in black to
conserve printer ink. Check your printer printed size
accuracy by measuring the printer scale on each
pattern with a ruler. If printed size of pattern is not
100% adjust printer settings.
Wood Toy Plan
1929 Ford Stake Bed Truck
1929 Ford Stake Bed Truck
Top Plan View
15
23
1 25
25
12
12
12
4
4
4
26 27
27
2622
22
5
5
5a 8
9
7
7
13
13
15
33
Finished Model is approximately
318mm L x 118mm H x 110mm W
www.youtube.com/aobiworkshop
@2017
@danehsekali 27
1929 Ford Stake Bed Truck
Top Plan View
34
19
19
20
20
21
212121 3
3
14
14
35 35 35
35 35 35
37
36
36
36
36 36 36 36 36
36 36 36 36 36 36
36
36
1837
28
Wood Toy Plan
1929 Ford Stake Bed Truck

ATTENTION:
THIS FULL-SIZE
PRECISION PLAN VIEW
IS FOR ASSEMBLY
REFERENCE.
To print out enough paper patterns for the
entire plan set from your computer printer
only print pages 25 through 33. The pages
are all line drawings in black to conserve
printer ink. Check your printer printed size
accuracy by measuring the printer scale on
each pattern with a ruler. If printed size of
pattern is not 100% adjust printer settings.
0 10 20 30
printer scale
ACTUAL SIZE(mm)
40 50
Finished Model is approximately
318mm L x 118mm H x 110mm W
www.youtube.com/aobiworkshop
@2017
@danehsekali
www.youtube.com/aobiworkshop
@2017
@danehsekali
Wood Toy Plan
1929 Ford Stake Bed
Truck
30
28 28 28
28 28 28
37
37
37
36363636
35
35
35
2.5mm dia.
5mm deep
1/4” dia.
Hole thru
1/4” dia.
Hole thru
2.5mm dia.
5mm deep
This parts use 9mm thick
30. 9mm x 50mm x 50mm make 6
28. 9mm x 16mm x 16mm make 6

ATTENTION:
THIS FULL-SIZE
PRECISION PLAN VIEW
IS FOR ASSEMBLY
REFERENCE.
30 30
30 30 30
Wood Toy
Plan
1929 Ford
Stake
Bed
Truck
29
www.youtube.com/aobiworkshop
@2017
@danehsekali
4. 18mm x 46mm x 42mm make 3
6. 18mm x 50mm x 44mm make 3
15. 18mm x 141mm x 39mm make 2
5. 18mm x 16mm x 44mm make 2
25. 10mm dia. x 12mm long make 2
24. 2.5mm dia. x 32mm long make 2
10. 2.5mm dia. x 30mm long make 1
33. 1/4”dia. x 95mm long make 1
34. 1/4”dia. x 100mm long make 1
32. 2.5mm dia. x 50mm long make 2
26. 2.5mm dia. x 45mm long make 3
27. 2.5mm dia. x 16mm long make 3
31. 2.5mm dia. x 15mm long make 60
4 4 4
5 5
5a
12
12
12
33
34
26
27
32
25
24
10
6 6
6
2.5mm dia.
hole thru
This parts use 18mm thick
This parts use 20mm thick
15
15
5a. 20mm x 16mm x 44mm make 1
12. 20mm x 63mm x 12mm make 3
31
Wood Toy Plan
1929 Ford Stake Bed
Truck
30
Wood Toy Plan
1929 Ford Stake Bed
18. 6mm x 150mm x 100mm make 1
19. 6mm x 162mm x 6mm make 2
20. 6mm x 100mm x 6mm make2
14. 6mm x 150mm x 12mm make 2
21. 6mm x 100mm x 6mm make 4
16. 6mm x 40mm x 50mm make 1
29. 6mm x 35mm x 35mm make 6
18
19
19
20 20
14
1421
21
21
21
16
29 29 29
29 29 29
This parts use 6mm thick
Wood Toy Plan
1929 Ford Stake Bed
Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali 31
www.youtube.com/aobiworkshop
@2017
@danehsekali
Wood Toy Plan
1929 Ford Stake Bed Truck 17. 3mm x 40mm x 50mm make 1
8. 3mm x 60mm x 70mm make 1
9. 3mm x 60mm x 70mm make 1
7. 3mm x 50mm x 70mm
make 2
12. 3mm x 63mm x 12mm make 2
22. 3mm x 22mm x 12mm
make 2
37. 2mm x 104mm x 10mm make 6
11. 3mm x 25mm x 25mm
make 1
35. 2mm x 50mm x 10mm make 18
8
9
7
17
13
11
22
13
35 35 35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
37
37
37
37
37
37
2.5mm dia.
hole thru
This parts use 3mm thick
This parts use 2mm thick
32
1. 9mm x 266mm x 65mm make 1
3. 9mm x 34mm x 16mm make 4
2. 9mm x 100mm x 65mm make 1
23. 9mm x 110mm x 12mm make 2
36. 4mm x 4mm x 50mm make 16
1
3 3 3 3
2
23
23
36
36
36 36 36 36
36 36 36 36
5/16” dia.
hole thru
5/16” dia.
hole thru
5/16” dia.
hole thru
5/16” dia.
hole thru
2.5mm dia.
5mm deep
2.5mm dia.
5mm deep
This parts use 9mm thick
This parts use 4mm thick
36
3636
36
36
Wood Toy Plan
1929 Ford Stake Bed Truck
www.youtube.com/aobiworkshop
@2017
@danehsekali
33
Wood Toy Plan
1929 Ford Stake Bed
www.youtube.com/aobiworkshop
@2017
@danehsekali34
Handmade
Wood Toy

BOX LABEL
www.youtube.com/aobiworkshop
@2017
www.youtube.com/aobiworkshop
@2017
Handmade
Wood Toy
1929 Ford Stake Bed Truck
1929 Ford Stake Bed Truck
Wood Toy Plan
1929 Ford Stake Bed Truck
35
	Page 1
	Page 2
	Page 3
	Page 4
	Page 5
	Page 6
	Page 7
	Page 8
	Page 9
	Page 10
	Page 11
	Page 12
	Page 13
	Page 14
	Page 15
	Page 16
	Page 17
	Page 18
	Page 19
	Page 20
	Page 21
	Page 22
	Page 23
	Page 24
	Page 25
	Page 26
	Page 27
	Page 28
	Page 29
	Page 30
	Page 31
	Page 32
	Page 33
	Page 34
	Page 35
