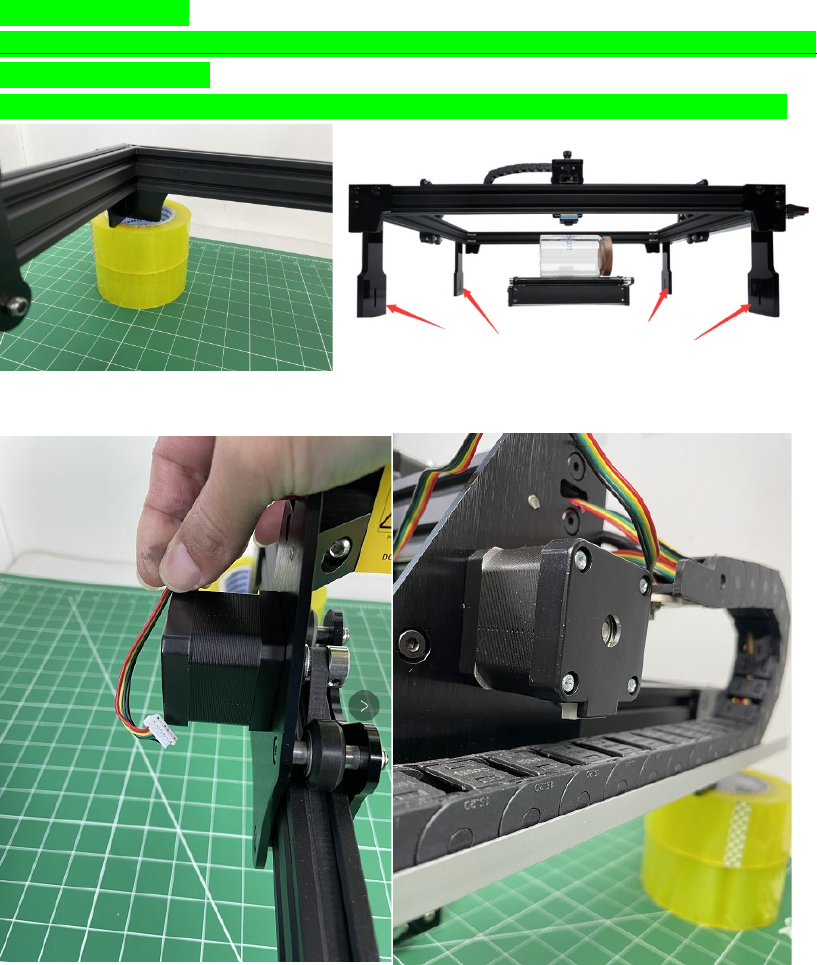

<p>Rotatory tutorial</p><p>1）.Increase the feet higher and Wiring.</p><p>support the feet higher over the rotatory, you can take other materials support it or buy our acrylic feet.</p><p>Video assist-operation</p><p>https://drive.google.com/file/d/1M59OmBPLWTAdjz6ejQPhzQFtwpIl5hvO/view?usp=share_link</p><p>Roratory assemble video</p><p>https://drive.google.com/file/d/1op3hv_1i78yRsZeuPZfFdvsvzrUAcwf2/view?usp=share_link</p><p>2).disconnect both Y axis cable on machine.</p><p>3).connect Y-R motor cable on rotatory, the rotatory motor should be at right sides.</p><p>4).change Y step grbl setting to 64, this is for rotatory work only, if you use machine pls set it back to 80.</p><p>5).after upload the file you can Frame to preview working area before engraving, keep engraving area on correct position.</p><p>6).set power and speed.</p><p>7).if engraving on glass the transparent, you should put a layer of black color on glass first,laser engrave on black color it canot engrave on transparent directly, you can use the erase pen or use nail polish. But if not transparent materials you not need do this step, just engrave on surface noproblem.</p><p>8).focus the laser, take the 27mm bar put under laser make distance about 27mm.</p><p>9).start engraving.</p><p>10).after engraved, clean the black color, you use use alcohol or water clean it. Finish</p><p>Rotatory After assembled pictures reference</p><p>image7.png</p><p>image8.png</p><p>image9.png</p><p>image10.png</p><p>image11.png</p><p>image12.png</p><p>image13.png</p><p>image14.png</p><p>image15.png</p><p>image16.png</p><p>image17.png</p><p>image18.png</p><p>image19.png</p><p>image1.png</p><p>image2.png</p><p>image3.png</p><p>image4.png</p><p>image5.png</p><p>image6.png</p>
