A New Design for Precision Clock Synchronization
Based on FPGA
Yang. Kong, Jie.Wu, MP. Xie, Zhuan.Yu
 Abstract–NTP and IEEE1588 are two widely used protocols
for clock synchronization in large distributed systems. NTP has
its limitation that the synchronization accuracy is normally no
better than 1 millisecond. The realization of the IEEE1588 system
needs expensive components such as high-end microcontrollers
or dedicated 1588 network hardware. This paper puts forward a
method based on FPGA and short broadcast frames to realize a
high level of synchronization accuracy between the master node
clock and slave node clocks. When the master starts to
synchronize, it sends a synchronous broadcast frame and
memorizes this starting time in master clock. Each FPGA of the
slave nodes, which needs to be synchronized, immediately returns
a local node information frame as soon as it received the
broadcast frame. FPGA in the Master measures and memorizes
the return moment of each node information frame precisely, and
then calculates the correct value for each node. According to
these correct values, slave nodes modify the local time to make it
consistent with the master clock. The experiment result, which is
done with LVDS data signal on shot wire 10cm and long wire
55m, shows that the synchronization accuracy is better than 200
nanoseconds, and the system can maintain the synchronization
accuracy for a long time. The measured values of clock offset
between master and slave node clock match well with the
theoretical values. Experiments show that this design based on
FPGA can save CPU resources and transmission bandwidth
effectively for a large distributed system.


I. INTRODUCTION
YNCHRONIZATION is very important for application
systems such as acquisition systems which are mostly built
on distributed environment. It is very hard to manage every
node to work properly as a whole net without a synchronized
clock. NTP and IEEE1588 are two widely used protocols for
clock synchronization in large distributed systems.
 The Precision Timing Protocol (PTP) or IEEE 1588 is an
emerging standard that addresses the weaknesses of current
NTP implementations and provides the ability to deliver

Manuscript received February 18, 2009. This work was supported in part
by the Ministry of Science and Technology of China under Grant
No.2008ZX05008-05A-004.
Yang. Yong is with the Department of Modern Physics, University of
Science and Technology of China, Hefei, CO 230026 China (telephone: 551-
3603654, e-mail: kongy@mail.ustc.edu.cn).
Jie. Wu is with the Department of Modern Physics, University of Science
and Technology of China, Hefei, CO 230026 China (telephone: 551-3606496,
e-mail: wujie@ ustc.edu.cn).
M.P. Xie is with the Department of Modern Physics, University of Science
and Technology of China, Hefei, CO 230026 China (telephone: 551-3603654,
e-mail: mpxie@mail.ustc.edu.cn).
Zhuan. Yu is with the Department of Modern Physics, University of
Science and Technology of China, Hefei, CO 230026 China (telephone: 551-
3606496, e-mail: yuzhuan@mail.ustc.edu.cn).
timing and synchronization over network. The basic difference
between PTP and NTP is that PTP time stamping is
implemented in hardware. Achieving a high level of
synchronization accuracy using IEEE 1588 requires dedicated
hardware to timestamp messages as close to the physical layer
as possible [1].
 IEEE provide a multicast protocol to achieve
synchronization for a large network system, but it: “Not scale
well as the number of clocks increases” [2][3].Nevertheless, it
was desirable to provide a new method to support time
synchronization protocol for large distributed systems with a
great number of nodes, without requiring Ethernet hardware.
This paper puts forward a method based on FPGA and short
broadcast frames to realize a high level of synchronization
accuracy between the master node clock and slave node clocks
for a large data acquisition system which based on LVDS
transceivers.
II. IEEE1588

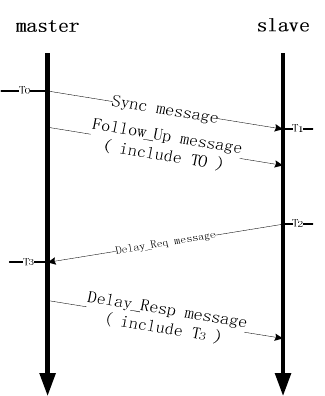

Fig. 1. IEEE1588 synchronization process.

IEEE 1588 is a master-slave synchronization protocol. The
main functions of IEEE 1588 protocol are establishing the
slave nodes clocks synchronized to the master clock and
making the necessary information available for slave clocks to
perform this synchronization [4]. Similar to other
synchronization protocols, IEEE 1588 employs stamping
certain messages. These special messages are defined as 5
types, which are called Sync message, Follow_Up message,
S
2009 16th IEEE-NPSS Real Time Conference TDAP-6
978-1-4244-4455-7/09/$25.00 ©2009 IEEE 411Authorized licensed use limited to: Pontificia Universidade Catolica do Rio Grande do Sul (PUC/RS). Downloaded on September 13,2024 at 01:11:34 UTC from IEEE Xplore. Restrictions apply.

Delay_Req message, Delay_Resp message and management
message.
For a given slave device, the offset O(t) at time t is defined by:
( ) ( ) ( )O t S t M t= − (1)
where S(t) represents the time measured on the slave device's
clock at physical time t, and M(t) represents the time measured
on the master device's clock at physical time t.
 Each message exchange begins with a multicast sync
message sent by the master clock to all the slaves listening on
the PTP multicast group. A slave receiving this message takes
note of the time T1 measured on its clock when it receives this
message. The master next sends a multicast time t1 message to
notify the slaves of time T0 when it sent the sync message.
Each slave now knows T0 and T1.
 If d is the transit time of this message, and is the constant
offset during this transaction, then
1 0T T O d− = + (2)
Each slave now sends a respond message back to the master.
For implementation reasons, this message is implemented as a
multicast message, but it is a directed multicast message in
that the packet containing this message includes information
about the master it is being sent to. The slave measures the
time T2 that it sends this message, and the master measures
the time T3 that it receives this message. The master then
sends a directed multicast time T3 message back to the slave
to notify the slave what time it received the respond message.
Note that
3 2T OT d− = − + (3)
 The slave now knows times T0, T1, T2, and T3. Combining
the above two equations, we find that
1 2 0 3TO =
2
T T T+ − −
 (4)
 The slave now knows the offset during this transaction.
While this offset will drift with time, it will be corrected the
next time this exchange of transactions is launched [5]. Most
papers related to IEEE 1588 assume that communication path
between the master clock and the slave clock is symmetric.
That’s the reason why one-way delay is calculated as in (3) [4],
[6], [7], [8].
 Slave nodes number is very important to a IEEE 1588 system.
The more nodes are synchronized the more communication
bandwidth is took. We take a 1000-nodes line for example (we
assume synchronization interval is 32ms, and packet length is
64 Bytes which is the shortest value in Ethernet):
( ) ( )2 1000 64 8 1000 / 32
32 /
Bitrate Byte ms ms
Mbit S
= × × × ×
=
 (5)
 Br is the theoretic bit rate of synchronization
communication. This value reaches 32Mbit/s which is
intolerable for this 64Mbit/s LVDS data line.
 Actually, multicast is used to solve this problem which will
reduce nearly half of synchronization communication
bandwidth, but even 16Mbit/s is unpractical. Furthermore, the
behavior of systems building multicast out of point-to-point
communications will not scale well as the number of clocks
increases [4]. It can be seen clearly in nodes line. The slave
nodes send Delay_Req messages at almost the same time, and
that result a message transmission delta time which is shown
in Fig 2.

Fig.2. Delta-T influence on synchronization precision.

 Local data timing in Fig 2 indicates the theoretic moment at
which Delay_Reqmessage should be send by local logic, and
line data indicates the actual data stream timing in different
line between each node. Delta-T equals to the time interval
between the theoretic Delay_Req message sending moment
and the actual Delay_Req message sending moment.
412Authorized licensed use limited to: Pontificia Universidade Catolica do Rio Grande do Sul (PUC/RS). Downloaded on September 13,2024 at 01:11:34 UTC from IEEE Xplore. Restrictions apply.

 When line1 of slave1 is busy, all the data of line2 must be
stored in local buffer and will be sent few clocks latter. Since
the instantaneous stream density is much greater than the
channel bandwidth, the more nodes there are in data line the
worse line accumulation time can be.
 Sync messages are broadcast messages and Delta-T delay
only exist on Delay_Req message transmissions, so the D
parameter in master-to-slave channel is not equal to what in
slave-to-master channel. Delta-T affects synchronization
precision by its half value multiply the number slave nodes,
and this affection can reach millisecond range.
 Conclusions above are carried out on the premise of all
nodes in a serial data line. If there is a ramose structure in the
zone to be synchronized by one broadcast sync message,
situations turn to be very complicated, and the data bandwidth
in each ramification is very important to synchronization
precision.

III. SHORT FRAME SOLUTION IN
This short frame solution is designed for a large distributed
data acquisition system. This system consists of a mass of data
unit (D-units) and some transmission units (T-units) which are
shown in Fig 3. T-units are the first level unit, and D-units are
the second level units.

Fig. 3. Large Distributed Data Acquisition System

D-unit to D-units and D-units to T-units data-lines are
based on LVDS transmission, and T-units to T-units are based
on Gigabit Ethernet technology. Synchronization precisions
are tested on LVDS unit’s transmission line. The transceivers
SN65LV1023/ SN65LV1024 produced by Texas Instruments
and FPGA XC3S100E produced by Xilinx are the main data-
line chips.
The short frame for this distributed system is much shorter
than IEEE 1588 Ethernet frame which has a minimal 64 Byte
length. Frame segment and exact frame length value which is
14 Byte in this application can be set as the designer like and
this design can save a lot of bandwidth. Fig 4 shows the short
frame segment.
(4 Bits)
TypeTarget address Target UnitSource address
Source address: slave node address
Type:
Target Unit:
(6 Byte) (6 Byte) (4 Bits)
Target address:
Short frame segment
0x1 Sync respond message
0x0 Sync broadcast message
0x0 T-unit
0xfffffffffffe
Checksum
(1 Byte)
Checksum: 1 Byte checksum
0x1 D-unit

Fig. 4. Short Frame Segment


Fig. 5. Unit Hardware Structure

Target address area is a 6-bytes 0xfffffffffffe address, this
apart a short frame message frame from other data frames. A
frame consists of Target address, Source address, Type, Target
Unit and Check sum only if the first six byte of the frame is
0xfffffffffffe. Source address area is a 6-bytes address to
identify the source of the frame. This address should be used
as a target address by slave units in a respond frame. Type and
Target Unit are two 4-bit symbols to indicate message type
(broadcast message or respond message) and target unit type
(D-unit or T-unit).
Sync broadcast messages and Sync respond messages
consist of short frames, and Delay Modify messages are
similar to Ethernet broadcast frames which are more complex
and contain more information.
Fig 6 shows these master slave communications. The
master send a Sync message and the slave returns a Delay
message to make sure they can register the exact time of t0, t1,
t2, and t3. This protocol does not contain a Follow_Up
message.
FPGA logic of slave nodes with special design is very
important to remove Delta T affection. The transmit logic of
slave nodes add a 16-Byte delay for each package. This delay
413Authorized licensed use limited to: Pontificia Universidade Catolica do Rio Grande do Sul (PUC/RS). Downloaded on September 13,2024 at 01:11:34 UTC from IEEE Xplore. Restrictions apply.

makes the point to point message transmission time almost a
fixed value.

Fig. 6. Short Frame synchronization process.
When the master starts to synchronize, it sends a Sync
broadcast message and memorizes this starting time (T0)
exactly in master clock register. When a salve node detect a
full frame of sync message, it register the receiving start time
(T1) by its local clock and start to send back a Sync respond
message a few clocks later after the sync message because
these are done in FPGA logic. Sync respond message have the
same segment of short frame segment .There is no CPU
participation in creating and sending Sync respond messages
and The exactly time (T2) of sending this Sync respond
message is also memorize by the slave nodes. As a result of
the Sync broadcast message, the master gets a large amount of
Sync respond messages of all salve nodes. As there is a source
address information in short frame segment, the master
memorize the exactly receiving time (T3) of each Sync
respond message and its source address in FPGA. The Master
will send T0 and T3 to the salve as soon as it gets T3.
The whole system can not get synchronization by a single
sync process because the system has a ramose structure. There
is a great synchronization accuracy losing at the data-line
cross points. The more D-units there are in a T-line the more
accuracy it loses. A two level synchronization solution must
be used to make T-units and D-units get synchronized
independently.
At first, T-units are synchronized to the control machine by
a T-unit broadcast (the Target Unit zone is filled with 0x0).
After that, T-units send D-unit broadcast (the Target Unit zone
is filled with 0x1) to control the D-units synchronize to them.
The whole system reach synchronization by this two-level
sync and the units of these two levels keep synchronization
separately.
IV. RESULTS AND CONCLUSION
 A lot of tests have been done on D-unit data lines. The D-
unit interval can be as far as 55 meters and synchronization
precision also be tested with 5 meters and 12 meters
transmission lines. Experiment on 12 meters D-unit data lines
shows that the synchronization accuracy is better than 200
nanoseconds with this new short frame protocol based on
FPGA. Experiments on data lines with other length such as 5
meters and 55 meters came out the same accuracy level.

Fig. 7. Synchronization Pulse.

 In conclusion, this new short frame solution can save data
line bandwidth effectively and make the system get rid of
dedicated synchronization hardware. FPGA based short frame
solution over LVDS transmission line can be used to
synchronize a network of distributed data acquisition system.
REFERENCES
[1] Rosselot David, “Simple, accurate time synchronization in an ethernet
physical layer device,” 2007 IEEE International Symposium on
Precision Clock Synchronization for Measurement, Control and
Communication, ISPCS 2007 Proceedings, pp. 123–127, 2007 IEEE
International Symposium on Precision Clock Synchronization for
Measurement, Control and Communication, ISPCS 2007 Proceedings.
[2] IEEE Instrumentation and Measurement Society, “IEEE 1588 Standard
for a Precision Clock Synchronization Protocol for Networked
Measurement and Control Systems (IEEE Std 1588-2002).”.
[3] IEEE Instrumentation and Measurement Society, “IEEE 1588 Standard
for a Precision Clock Synchronization Protocol for Networked
Measurement and Control Systems (IEEE Std 61588-2004).”.
[4] Lee Sungwon, “ An enhanced IEEE 1588 time synchronization
algorithm for asymmetric communication link using block burst
transmission,” IEEE Communications Letters, v 12, n 9, p 687-689,
2008.[5] Eidson, John C, Measurement, Control and Communication Using IEEE
1588,(April 2006).,ISBN 1-8462-8250-0.
[6] T. Cooklev, J. C. Eidson, and A. Pakdaman, “An implementation of
IEEE 1588 over IEEE 802.11b for synchronization of wireless LAN area
network nodes,” IEEE Trans. Instrumentation and Measurement, vol.
56, no. 5, pp. 1632–1639, Oct. 2007.
[7] P. Ferrari, A. Flammini, D. Marioli, and A. Taroni, “IEEE 1588 based
synchronization system for a displacement sensor network,” IEEE
Trans. Instrumentation and Measurement, vol. 57, no. 2, Feb. 20081992.
[8] A. Vallat and D. Scheuwly, “Clock synchronization in
telecommunications via PTP (IEEE 1588),” in Proc. IEEE International
Frequency Control Symposium Joint with the 21st European Frequency
and Time Forum, pp. 334–341, May 2007.
414Authorized licensed use limited to: Pontificia Universidade Catolica do Rio Grande do Sul (PUC/RS). Downloaded on September 13,2024 at 01:11:34 UTC from IEEE Xplore. Restrictions apply.
/CMSSQI8
 /CMSY10
 /CMSY5
 /CMSY6
 /CMSY7
 /CMSY8
 /CMSY9
 /CMTCSC10
 /CMTEX10
 /CMTEX8
 /CMTEX9
 /CMTI10
 /CMTI12
 /CMTI7
 /CMTI8
 /CMTI9
 /CMTT10
 /CMTT12
 /CMTT8
 /CMTT9
 /CMU10
 /CMVTT10
 /ColonnaMT
 /Colossalis-Bold
 /ComicSansMS
 /ComicSansMS-Bold
 /Consolas
 /Consolas-Bold
 /Consolas-BoldItalic
 /Consolas-Italic
 /Constantia
 /Constantia-Bold
 /Constantia-BoldItalic
 /Constantia-Italic
 /CooperBlack
 /CopperplateGothic-Bold
 /CopperplateGothic-Light
 /Copperplate-ThirtyThreeBC
 /Corbel
 /Corbel-Bold
 /Corbel-BoldItalic
 /Corbel-Italic
 /CordiaNew
 /CordiaNew-Bold
 /CordiaNew-BoldItalic
 /CordiaNew-Italic
 /CordiaUPC
 /CordiaUPC-Bold
 /CordiaUPC-BoldItalic
 /CordiaUPC-Italic
 /Courier
 /Courier-Bold
 /Courier-BoldOblique
 /CourierNewPS-BoldItalicMT
 /CourierNewPS-BoldMT
 /CourierNewPS-ItalicMT
 /CourierNewPSMT
 /Courier-Oblique
 /CourierStd
 /CourierStd-Bold
 /CourierStd-BoldOblique
 /CourierStd-Oblique
 /CourierX-Bold
 /CourierX-BoldOblique
 /CourierX-Oblique
 /CourierX-Regular
 /CreepyRegular
 /CurlzMT
 /David-Bold
 /David-Reg
 /DavidTransparent
 /Desdemona
 /DilleniaUPC
 /DilleniaUPCBold
 /DilleniaUPCBoldItalic
 /DilleniaUPCItalic
 /Dingbats
 /DomCasual
 /Dotum
 /DotumChe
 /EdwardianScriptITC
 /Elephant-Italic
 /Elephant-Regular
 /EngraversGothicBT-Regular
 /EngraversMT
 /EraserDust
 /ErasITC-Bold
 /ErasITC-Demi
 /ErasITC-Light
 /ErasITC-Medium
 /ErieBlackPSMT
 /ErieLightPSMT
 /EriePSMT
 /EstrangeloEdessa
 /Euclid
 /Euclid-Bold
 /Euclid-BoldItalic
 /EuclidExtra
 /EuclidExtra-Bold
 /EuclidFraktur
 /EuclidFraktur-Bold
 /Euclid-Italic
 /EuclidMathOne
 /EuclidMathOne-Bold
 /EuclidMathTwo
 /EuclidMathTwo-Bold
 /EuclidSymbol
 /EuclidSymbol-Bold
 /EuclidSymbol-BoldItalic
 /EuclidSymbol-Italic
 /EucrosiaUPC
 /EucrosiaUPCBold
 /EucrosiaUPCBoldItalic
 /EucrosiaUPCItalic
 /EUEX10
 /EUEX7
 /EUEX8
 /EUEX9
 /EUFB10
 /EUFB5
 /EUFB7
 /EUFM10
 /EUFM5
 /EUFM7
 /EURB10
 /EURB5
 /EURB7
 /EURM10
 /EURM5
 /EURM7
 /EuroMono-Bold
 /EuroMono-BoldItalic
 /EuroMono-Italic
 /EuroMono-Regular
 /EuroSans-Bold
 /EuroSans-BoldItalic
 /EuroSans-Italic
 /EuroSans-Regular
 /EuroSerif-Bold
 /EuroSerif-BoldItalic
 /EuroSerif-Italic
 /EuroSerif-Regular
 /EuroSig
 /EUSB10
 /EUSB5
 /EUSB7
 /EUSM10
 /EUSM5
 /EUSM7
 /FelixTitlingMT
 /Fences
 /FencesPlain
 /FigaroMT
 /FixedMiriamTransparent
 /FootlightMTLight
 /Formata-Italic
 /Formata-Medium
 /Formata-MediumItalic
 /Formata-Regular
 /ForteMT
 /FranklinGothic-Book
 /FranklinGothic-BookItalic
 /FranklinGothic-Demi
 /FranklinGothic-DemiCond
 /FranklinGothic-DemiItalic
 /FranklinGothic-Heavy
 /FranklinGothic-HeavyItalic
 /FranklinGothicITCbyBT-Book
 /FranklinGothicITCbyBT-BookItal
 /FranklinGothicITCbyBT-Demi
 /FranklinGothicITCbyBT-DemiItal
 /FranklinGothic-Medium
 /FranklinGothic-MediumCond
 /FranklinGothic-MediumItalic
 /FrankRuehl
 /FreesiaUPC
 /FreesiaUPCBold
 /FreesiaUPCBoldItalic
 /FreesiaUPCItalic
 /FreestyleScript-Regular
 /FrenchScriptMT
 /Frutiger-Black
 /Frutiger-BlackCn
 /Frutiger-BlackItalic
 /Frutiger-Bold
 /Frutiger-BoldCn
 /Frutiger-BoldItalic
 /Frutiger-Cn
 /Frutiger-ExtraBlackCn
 /Frutiger-Italic
 /Frutiger-Light
 /Frutiger-LightCn
 /Frutiger-LightItalic
 /Frutiger-Roman
 /Frutiger-UltraBlack
 /Futura-Bold
 /Futura-BoldOblique
 /Futura-Book
 /Futura-BookOblique
 /FuturaBT-Bold
 /FuturaBT-BoldItalic
 /FuturaBT-Book
 /FuturaBT-BookItalic
 /FuturaBT-Medium
 /FuturaBT-MediumItalic
 /Futura-Light
 /Futura-LightOblique
 /GalliardITCbyBT-Bold
 /GalliardITCbyBT-BoldItalic
 /GalliardITCbyBT-Italic
 /GalliardITCbyBT-Roman
 /Garamond
 /Garamond-Bold
 /Garamond-BoldCondensed
 /Garamond-BoldCondensedItalic
 /Garamond-BoldItalic
 /Garamond-BookCondensed
 /Garamond-BookCondensedItalic
 /Garamond-Italic
 /Garamond-LightCondensed
 /Garamond-LightCondensedItalic
 /Gautami
 /GeometricSlab703BT-Light
 /GeometricSlab703BT-LightItalic
 /Georgia
 /Georgia-Bold
 /Georgia-BoldItalic
 /Georgia-Italic
 /GeorgiaRef
 /Giddyup
 /Giddyup-Thangs
 /Gigi-Regular
 /GillSans
 /GillSans-Bold
 /GillSans-BoldItalic
 /GillSans-Condensed
 /GillSans-CondensedBold
 /GillSans-Italic
 /GillSans-Light
 /GillSans-LightItalic
 /GillSansMT
 /GillSansMT-Bold
 /GillSansMT-BoldItalic
 /GillSansMT-Condensed
 /GillSansMT-ExtraCondensedBold
 /GillSansMT-Italic
 /GillSans-UltraBold
 /GillSans-UltraBoldCondensed
 /GloucesterMT-ExtraCondensed
 /Gothic-Thirteen
 /GoudyOldStyleBT-Bold
 /GoudyOldStyleBT-BoldItalic
 /GoudyOldStyleBT-Italic
 /GoudyOldStyleBT-Roman
 /GoudyOldStyleT-Bold
 /GoudyOldStyleT-Italic
 /GoudyOldStyleT-Regular
 /GoudyStout
 /GoudyTextMT-LombardicCapitals
 /GSIDefaultSymbols
 /Gulim
 /GulimChe
 /Gungsuh
 /GungsuhChe
 /Haettenschweiler
 /HarlowSolid
 /Harrington
 /Helvetica
 /Helvetica-Black
 /Helvetica-BlackOblique
 /Helvetica-Bold
 /Helvetica-BoldOblique
 /Helvetica-Condensed
 /Helvetica-Condensed-Black
 /Helvetica-Condensed-BlackObl
 /Helvetica-Condensed-Bold
 /Helvetica-Condensed-BoldObl
 /Helvetica-Condensed-Light
 /Helvetica-Condensed-LightObl
 /Helvetica-Condensed-Oblique
 /Helvetica-Fraction
 /Helvetica-Narrow
 /Helvetica-Narrow-Bold
 /Helvetica-Narrow-BoldOblique
 /Helvetica-Narrow-Oblique
 /Helvetica-Oblique
 /HighTowerText-Italic
 /HighTowerText-Reg
 /Humanist521BT-BoldCondensed
 /Humanist521BT-Light
 /Humanist521BT-LightItalic
 /Humanist521BT-RomanCondensed
 /Imago-ExtraBold
 /Impact
 /ImprintMT-Shadow
 /InformalRoman-Regular
 /IrisUPC
 /IrisUPCBold
 /IrisUPCBoldItalic
 /IrisUPCItalic
 /Ironwood
 /ItcEras-Medium
 /ItcKabel-Bold
 /ItcKabel-Book
 /ItcKabel-Demi
 /ItcKabel-Medium
 /ItcKabel-Ultra
 /JasmineUPC
 /JasmineUPC-Bold
 /JasmineUPC-BoldItalic
 /JasmineUPC-Italic
 /JoannaMT
 /JoannaMT-Italic
 /Jokerman-Regular
 /JuiceITC-Regular
 /Kartika
 /Kaufmann
 /KaufmannBT-Bold
 /KaufmannBT-Regular
 /KidTYPEPaint
 /KinoMT
 /KodchiangUPC
 /KodchiangUPC-Bold
 /KodchiangUPC-BoldItalic
 /KodchiangUPC-Italic
 /KorinnaITCbyBT-Regular
 /KozGoProVI-Medium
 /KozMinProVI-Regular
 /KristenITC-Regular
 /KunstlerScript
 /Latha
 /LatinWide
 /LetterGothic
 /LetterGothic-Bold
 /LetterGothic-BoldOblique
 /LetterGothic-BoldSlanted
 /LetterGothicMT
 /LetterGothicMT-Bold
 /LetterGothicMT-BoldOblique
 /LetterGothicMT-Oblique
 /LetterGothic-Slanted
 /LetterGothicStd
 /LetterGothicStd-Bold
 /LetterGothicStd-BoldSlanted
 /LetterGothicStd-Slanted
 /LevenimMT
 /LevenimMTBold
 /LilyUPC
 /LilyUPCBold
 /LilyUPCBoldItalic
 /LilyUPCItalic
 /Lithos-Black
 /Lithos-Regular
 /LotusWPBox-Roman
 /LotusWPIcon-Roman
 /LotusWPIntA-Roman
 /LotusWPIntB-Roman
 /LotusWPType-Roman
 /LucidaBright
 /LucidaBright-Demi
 /LucidaBright-DemiItalic
 /LucidaBright-Italic
 /LucidaCalligraphy-Italic
 /LucidaConsole
 /LucidaFax
 /LucidaFax-Demi
 /LucidaFax-DemiItalic
 /LucidaFax-Italic
 /LucidaHandwriting-Italic
 /LucidaSans
 /LucidaSans-Demi
 /LucidaSans-DemiItalic
 /LucidaSans-Italic
 /LucidaSans-Typewriter
 /LucidaSans-TypewriterBold
 /LucidaSans-TypewriterBoldOblique
 /LucidaSans-TypewriterOblique
 /LucidaSansUnicode
 /Lydian
 /Magneto-Bold/MaiandraGD-Regular
 /Mangal-Regular
 /Map-Symbols
 /MathA
 /MathB
 /MathC
 /Mathematica1
 /Mathematica1-Bold
 /Mathematica1Mono
 /Mathematica1Mono-Bold
 /Mathematica2
 /Mathematica2-Bold
 /Mathematica2Mono
 /Mathematica2Mono-Bold
 /Mathematica3
 /Mathematica3-Bold
 /Mathematica3Mono
 /Mathematica3Mono-Bold
 /Mathematica4
 /Mathematica4-Bold
 /Mathematica4Mono
 /Mathematica4Mono-Bold
 /Mathematica5
 /Mathematica5-Bold
 /Mathematica5Mono
 /Mathematica5Mono-Bold
 /Mathematica6
 /Mathematica6Bold
 /Mathematica6Mono
 /Mathematica6MonoBold
 /Mathematica7
 /Mathematica7Bold
 /Mathematica7Mono
 /Mathematica7MonoBold
 /MatisseITC-Regular
 /MaturaMTScriptCapitals
 /Mesquite
 /Mezz-Black
 /Mezz-Regular
 /MICR
 /MicrosoftSansSerif
 /MingLiU
 /Minion-BoldCondensed
 /Minion-BoldCondensedItalic
 /Minion-Condensed
 /Minion-CondensedItalic
 /Minion-Ornaments
 /MinionPro-Bold
 /MinionPro-BoldIt
 /MinionPro-It
 /MinionPro-Regular
 /MinionPro-Semibold
 /MinionPro-SemiboldIt
 /Miriam
 /MiriamFixed
 /MiriamTransparent
 /Mistral
 /Modern-Regular
 /MonotypeCorsiva
 /MonotypeSorts
 /MSAM10
 /MSAM5
 /MSAM6
 /MSAM7
 /MSAM8
 /MSAM9
 /MSBM10
 /MSBM5
 /MSBM6
 /MSBM7
 /MSBM8
 /MSBM9
 /MS-Gothic
 /MSHei
 /MSLineDrawPSMT
 /MS-Mincho
 /MSOutlook
 /MS-PGothic
 /MS-PMincho
 /MSReference1
 /MSReference2
 /MSReferenceSansSerif
 /MSReferenceSansSerif-Bold
 /MSReferenceSansSerif-BoldItalic
 /MSReferenceSansSerif-Italic
 /MSReferenceSerif
 /MSReferenceSerif-Bold
 /MSReferenceSerif-BoldItalic
 /MSReferenceSerif-Italic
 /MSReferenceSpecialty
 /MSSong
 /MS-UIGothic
 /MT-Extra
 /MT-Symbol
 /MT-Symbol-Italic
 /MVBoli
 /Myriad-Bold
 /Myriad-BoldItalic
 /Myriad-Italic
 /MyriadPro-Black
 /MyriadPro-BlackIt
 /MyriadPro-Bold
 /MyriadPro-BoldIt
 /MyriadPro-It
 /MyriadPro-Light
 /MyriadPro-LightIt
 /MyriadPro-Regular
 /MyriadPro-Semibold
 /MyriadPro-SemiboldIt
 /Myriad-Roman
 /Narkisim
 /NewCenturySchlbk-Bold
 /NewCenturySchlbk-BoldItalic
 /NewCenturySchlbk-Italic
 /NewCenturySchlbk-Roman
 /NewMilleniumSchlbk-BoldItalicSH
 /NewsGothic
 /NewsGothic-Bold
 /NewsGothicBT-Bold
 /NewsGothicBT-BoldItalic
 /NewsGothicBT-Italic
 /NewsGothicBT-Roman
 /NewsGothic-Condensed
 /NewsGothic-Italic
 /NewsGothicMT
 /NewsGothicMT-Bold
 /NewsGothicMT-Italic
 /NiagaraEngraved-Reg
 /NiagaraSolid-Reg
 /NimbusMonL-Bold
 /NimbusMonL-BoldObli
 /NimbusMonL-Regu
 /NimbusMonL-ReguObli
 /NimbusRomNo9L-Medi
 /NimbusRomNo9L-MediItal
 /NimbusRomNo9L-Regu
 /NimbusRomNo9L-ReguItal
 /NimbusSanL-Bold
 /NimbusSanL-BoldCond
 /NimbusSanL-BoldCondItal
 /NimbusSanL-BoldItal
 /NimbusSanL-Regu
 /NimbusSanL-ReguCond
 /NimbusSanL-ReguCondItal
 /NimbusSanL-ReguItal
 /Nimrod
 /Nimrod-Bold
 /Nimrod-BoldItalic
 /Nimrod-Italic
 /NSimSun
 /Nueva-BoldExtended
 /Nueva-BoldExtendedItalic
 /Nueva-Italic
 /Nueva-Roman
 /NuptialScript
 /OCRA
 /OCRA-Alternate
 /OCRAExtended
 /OCRB
 /OCRB-Alternate
 /OfficinaSans-Bold
 /OfficinaSans-BoldItalic
 /OfficinaSans-Book
 /OfficinaSans-BookItalic
 /OfficinaSerif-Bold
 /OfficinaSerif-BoldItalic
 /OfficinaSerif-Book
 /OfficinaSerif-BookItalic
 /OldEnglishTextMT
 /Onyx
 /OnyxBT-Regular
 /OzHandicraftBT-Roman
 /PalaceScriptMT
 /Palatino-Bold
 /Palatino-BoldItalic
 /Palatino-Italic
 /PalatinoLinotype-Bold
 /PalatinoLinotype-BoldItalic
 /PalatinoLinotype-Italic
 /PalatinoLinotype-Roman
 /Palatino-Roman
 /PapyrusPlain
 /Papyrus-Regular
 /Parchment-Regular
 /Parisian
 /ParkAvenue
 /Penumbra-SemiboldFlare
 /Penumbra-SemiboldSans
 /Penumbra-SemiboldSerif
 /PepitaMT
 /Perpetua
 /Perpetua-Bold
 /Perpetua-BoldItalic
 /Perpetua-Italic
 /PerpetuaTitlingMT-Bold
 /PerpetuaTitlingMT-Light
 /PhotinaCasualBlack
 /Playbill
 /PMingLiU
 /Poetica-SuppOrnaments
 /PoorRichard-Regular
 /PopplLaudatio-Italic
 /PopplLaudatio-Medium
 /PopplLaudatio-MediumItalic
 /PopplLaudatio-Regular
 /PrestigeElite
 /Pristina-Regular
 /PTBarnumBT-Regular
 /Raavi
 /RageItalic
 /Ravie
 /RefSpecialty
 /Ribbon131BT-Bold
 /Rockwell
 /Rockwell-Bold
 /Rockwell-BoldItalic
 /Rockwell-Condensed
 /Rockwell-CondensedBold
 /Rockwell-ExtraBold
 /Rockwell-Italic
 /Rockwell-Light
 /Rockwell-LightItalic
 /Rod
 /RodTransparent
 /RunicMT-Condensed
 /Sanvito-Light
 /Sanvito-Roman
 /ScriptC
 /ScriptMTBold
 /SegoeUI
 /SegoeUI-Bold
 /SegoeUI-BoldItalic
 /SegoeUI-Italic
 /Serpentine-BoldOblique
 /ShelleyVolanteBT-Regular
 /ShowcardGothic-Reg
 /Shruti
 /SimHei
 /SimSun
 /SnapITC-Regular
 /StandardSymL
 /Stencil
 /StoneSans
 /StoneSans-Bold
 /StoneSans-BoldItalic
 /StoneSans-Italic
 /StoneSans-Semibold
 /StoneSans-SemiboldItalic
 /Stop
 /Swiss721BT-BlackExtended
 /Sylfaen
 /Symbol
 /SymbolMT
 /Tahoma
 /Tahoma-Bold
 /Tci1
 /Tci1Bold
 /Tci1BoldItalic
 /Tci1Italic
 /Tci2
 /Tci2Bold
 /Tci2BoldItalic
 /Tci2Italic
 /Tci3
 /Tci3Bold
 /Tci3BoldItalic
 /Tci3Italic
 /Tci4
 /Tci4Bold
 /Tci4BoldItalic
 /Tci4Italic
 /TechnicalItalic
 /TechnicalPlain
 /Tekton
 /Tekton-Bold
 /TektonMM
 /Tempo-HeavyCondensed
 /Tempo-HeavyCondensedItalic
 /TempusSansITC
 /Times-Bold
 /Times-BoldItalic
 /Times-BoldItalicOsF
 /Times-BoldSC
 /Times-ExtraBold
 /Times-Italic
 /Times-ItalicOsF
 /TimesNewRomanMT-ExtraBold
 /TimesNewRomanPS-BoldItalicMT
 /TimesNewRomanPS-BoldMT
 /TimesNewRomanPS-ItalicMT
 /TimesNewRomanPSMT
 /Times-Roman
 /Times-RomanSC
 /Trajan-Bold
 /Trebuchet-BoldItalic
 /TrebuchetMS
 /TrebuchetMS-Bold
 /TrebuchetMS-Italic
 /Tunga-Regular
 /TwCenMT-Bold
 /TwCenMT-BoldItalic
 /TwCenMT-Condensed
 /TwCenMT-CondensedBold
 /TwCenMT-CondensedExtraBold
 /TwCenMT-CondensedMedium
 /TwCenMT-Italic
 /TwCenMT-Regular
 /Univers-Bold
 /Univers-BoldItalic
 /UniversCondensed-Bold
 /UniversCondensed-BoldItalic
 /UniversCondensed-Medium
 /UniversCondensed-MediumItalic
 /Univers-Medium
 /Univers-MediumItalic
 /URWBookmanL-DemiBold
 /URWBookmanL-DemiBoldItal
 /URWBookmanL-Ligh
 /URWBookmanL-LighItal
 /URWChanceryL-MediItal
 /URWGothicL-Book
 /URWGothicL-BookObli
 /URWGothicL-Demi
 /URWGothicL-DemiObli
 /URWPalladioL-Bold
 /URWPalladioL-BoldItal
 /URWPalladioL-Ital
 /URWPalladioL-Roma
 /USPSBarCode
 /VAGRounded-Black
 /VAGRounded-Bold
 /VAGRounded-Light
 /VAGRounded-Thin
 /Verdana
 /Verdana-Bold
 /Verdana-BoldItalic
 /Verdana-Italic
 /VerdanaRef
 /VinerHandITC
 /Viva-BoldExtraExtended
 /Vivaldii
 /Viva-LightCondensed
 /Viva-Regular
 /VladimirScript
 /Vrinda
 /Webdings
 /Westminster
 /Willow
 /Wingdings2
 /Wingdings3
 /Wingdings-Regular
 /WNCYB10
 /WNCYI10
 /WNCYR10
 /WNCYSC10
 /WNCYSS10
 /WoodtypeOrnaments-One
 /WoodtypeOrnaments-Two
 /WP-ArabicScriptSihafa
 /WP-ArabicSihafa
 /WP-BoxDrawing
 /WP-CyrillicA
 /WP-CyrillicB
 /WP-GreekCentury
 /WP-GreekCourier
 /WP-GreekHelve
 /WP-HebrewDavid
 /WP-IconicSymbolsA
 /WP-IconicSymbolsB
 /WP-Japanese
 /WP-MathA
 /WP-MathB
 /WP-MathExtendedA
 /WP-MathExtendedB
 /WP-MultinationalAHelve
 /WP-MultinationalARoman
 /WP-MultinationalBCourier
 /WP-MultinationalBHelve
 /WP-MultinationalBRoman
 /WP-MultinationalCourier
 /WP-Phonetic
 /WPTypographicSymbols
 /XYATIP10
 /XYBSQL10
 /XYBTIP10
 /XYCIRC10
 /XYCMAT10/XYCMBT10
 /XYDASH10
 /XYEUAT10
 /XYEUBT10
 /ZapfChancery-MediumItalic
 /ZapfDingbats
 /ZapfHumanist601BT-Bold
 /ZapfHumanist601BT-BoldItalic
 /ZapfHumanist601BT-Demi
 /ZapfHumanist601BT-DemiItalic
 /ZapfHumanist601BT-Italic
 /ZapfHumanist601BT-Roman
 /ZWAdobeF
 ]
 /NeverEmbed [ true
 ]
 /AntiAliasColorImages false
 /CropColorImages true
 /ColorImageMinResolution 200
 /ColorImageMinResolutionPolicy /OK
 /DownsampleColorImages true
 /ColorImageDownsampleType /Bicubic
 /ColorImageResolution 300
 /ColorImageDepth -1
 /ColorImageMinDownsampleDepth 1
 /ColorImageDownsampleThreshold 2.00333
 /EncodeColorImages true
 /ColorImageFilter /DCTEncode
 /AutoFilterColorImages true
 /ColorImageAutoFilterStrategy /JPEG
 /ColorACSImageDict >
 /ColorImageDict >
 /JPEG2000ColorACSImageDict >
 /JPEG2000ColorImageDict >
 /AntiAliasGrayImages false
 /CropGrayImages true
 /GrayImageMinResolution 200
 /GrayImageMinResolutionPolicy /OK
 /DownsampleGrayImages true
 /GrayImageDownsampleType /Bicubic
 /GrayImageResolution 300
 /GrayImageDepth -1
 /GrayImageMinDownsampleDepth 2
 /GrayImageDownsampleThreshold 2.00333
 /EncodeGrayImages true
 /GrayImageFilter /DCTEncode
 /AutoFilterGrayImages true
 /GrayImageAutoFilterStrategy /JPEG
 /GrayACSImageDict >
 /GrayImageDict >
 /JPEG2000GrayACSImageDict >
 /JPEG2000GrayImageDict >
 /AntiAliasMonoImages false
 /CropMonoImages true
 /MonoImageMinResolution 400
 /MonoImageMinResolutionPolicy /OK
 /DownsampleMonoImages true
 /MonoImageDownsampleType /Bicubic
 /MonoImageResolution 600
 /MonoImageDepth -1
 /MonoImageDownsampleThreshold 1.00167
 /EncodeMonoImages true
 /MonoImageFilter /CCITTFaxEncode
 /MonoImageDict >
 /AllowPSXObjects false
 /CheckCompliance [
 /None
 ]
 /PDFX1aCheck false
 /PDFX3Check false
 /PDFXCompliantPDFOnly false
 /PDFXNoTrimBoxError true
 /PDFXTrimBoxToMediaBoxOffset [
 0.00000
 0.00000
 0.00000
 0.00000
 ]
 /PDFXSetBleedBoxToMediaBox true
 /PDFXBleedBoxToTrimBoxOffset [
 0.00000
 0.00000
 0.00000
 0.00000
 ]
 /PDFXOutputIntentProfile (None)
 /PDFXOutputConditionIdentifier ()
 /PDFXOutputCondition ()
 /PDFXRegistryName ()
 /PDFXTrapped /False
 /CreateJDFFile false
 /Description
 /BGR
 /CHS
 /CHT
 /CZE
 /DAN
 /DEU/ESP
 /ETI
 /FRA
 /GRE
 /HEB
 /HRV
 /HUN
 /ITA/JPN
 /KOR
 /LTH
 /LVI
 /NLD (Gebruik deze instellingen om Adobe PDF-documenten te maken die zijn geoptimaliseerd voor weergave op een beeldscherm, e-mail en internet. De gemaakte PDF-documenten kunnen worden geopend met Acrobat en Adobe Reader 5.0 en hoger.)
 /NOR
 /POL
 /PTB
 /RUM
 /RUS
 /SKY/SLV
 /SUO
 /SVE
 /TUR
 /UKR
 /ENU (Use these settings to create Adobe PDF documents best suited for on-screen display, e-mail, and the Internet. Created PDF documents can be opened with Acrobat and Adobe Reader 5.0 and later.)
 >>
 /Namespace [
 (Adobe)
 (Common)
 (1.0)
 ]
 /OtherNamespaces [
 >
 >
 /FormElements false
 /GenerateStructure false
 /IncludeBookmarks false
 /IncludeHyperlinks false
 /IncludeInteractive false
 /IncludeLayers false
 /IncludeProfiles true
 /MultimediaHandling /UseObjectSettings
 /Namespace [
 (Adobe)
 (CreativeSuite)
 (2.0)
 ]
 /PDFXOutputIntentProfileSelector /NA
 /PreserveEditing false
 /UntaggedCMYKHandling /UseDocumentProfile
 /UntaggedRGBHandling /UseDocumentProfile
 /UseDocumentBleed false
 >>
 ]
>> setdistillerparams
> setpagedevice
