Released Global Quality 2015 Harman Consumer Group, Inc. Rev 1.1
 8500 Balboa Boulevard
Northridge, California 91329
CONTENTS
Technical Specifications 2
Safety Instruction, Warning & Notes 3
Software Upgrade
Trouble Shooting Chart
6Set Block Diagram
Schematic Diagrams 7
Set Mechanical Exploded view
PCB Layout Diagrams
Packaging Exploded view
Spare Parts List
Revision List
May/2015
4
5
9
10
11
12

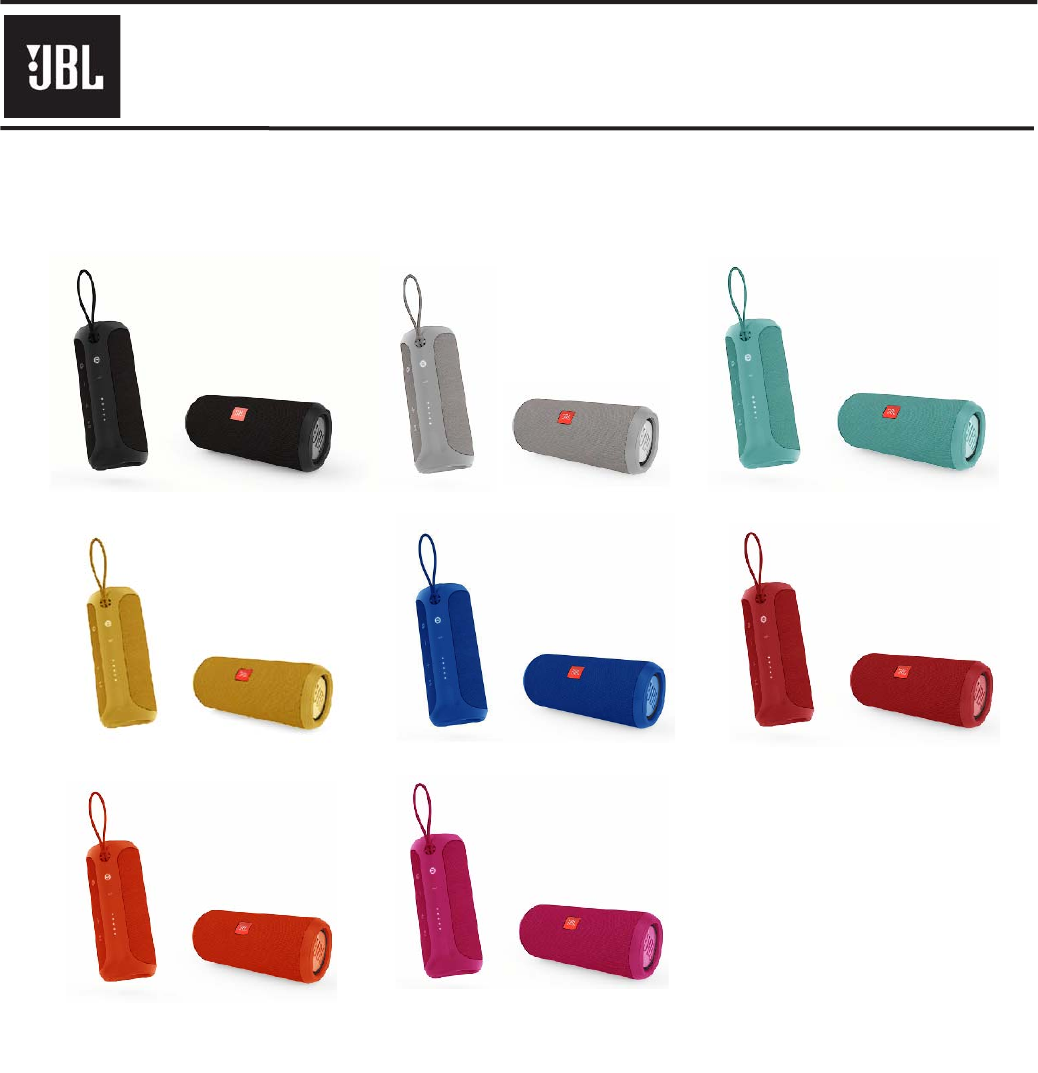

Service Manual
JBL FLIP 3 (S/N starting with TL)
Bluetooth Portable Speaker
Black Grey
Orange
Blue RedYellow
Teal
Pink
8
 Technical Specifications

1 Audio Section

1.1.1 Speaker Output
Description Specification
Rated Output Power 2 x 8W +-10% (Measure before power limiter at 1% THD).
Please refer to Acoustic Design Specification.
Input Sensitivity Aux : 370mV +/- 10%
Wireless input:-9dBfs +/-1dB
Input Overload Aux : 1V rms
BT: 0dBFS
Auto Turn On Input Sensitivity @1KHz, Typical : 2mV Limit : 4mV
@100Hz Typical : 10mV Limit :15mV
Frequency Response (Output Power) Aux_in : 40Hz to 20KHz +/- 1dB (EQ setting is disable)
BT: 20Hz to 19KHz +/- 1dB (EQ setting is disable)
Frequency Response (Output Power) with
EQ setting
TBC
THD+N at 1W =2dB
Initial Carrier Frequency Shift +/- 75KHz
Carrier Drift
- Drift Rate
- Drift (Single Slot Packet)
- Drift (Three Slot Packet)
- Drift (Five Slot Packet)

+/- 20KHz/50us
+/- 25KHz
+/- 40KHz
+/- 40KHz
Modulation Characteristic
- F1avg
- F2 Max Pass rate
- F1/F2 Ratio

140KHz – 175KHz
>=115KHz
>= 0.8

1.3.3 Receiver Performance

Description Specification
Single Slot Sensitivity @ = -20dBm
2-3

1.3.4 Transmitter Performance @EDR Mode
Description Specification
Relative transmit power @ antenna
connector
-2 to 1 dBm
EDR Carrier Frequency Stability and
Modulation Accuracy
|ɯ0|=99%

1.3.5 Antenna Performance

Description Specification
Antenna VSWR Typical : 1.5 Limit : 1.7
Antenna Return Loss Typical: -14dB Limit :-12dB
Antenna Radiation Efficiency >= 40%


1.4 Hands free section
1.4.1 Test equipment
1.4.2 Audio Performance
Description Specification
Send Loudness Rating (SLR) Typical : 13dB
Limit : +/- 4dB
Receive Loudness Rating (RLR),Max >-13dB
Receive Loudness Rating (RLR),Normal Typical : 2dB
Limit : +/- 4dB
Weighted Terminal Coupling Loss (TCLw),
volume is set at Max
40dB
Weighted Terminal Coupling Loss (TCLw),
volume is set at normal
 47dB

2-4
1.5 Battery Section
1.5.1 General Specification
Description Specification Standard and Method of
Measurement
Typical Capacity 3000mAH
Charge Voltage 4.2V
Output Voltage Typical : 3.7V Limit : 4.2V No Load Condition
Cut Off Voltage Typical : 3.0V Limit : 2.8V
Standard Charging
Method
0.5C Constant current charge to 4.2V
(+/- 0.05V), then constant voltage
4.2V charge till charge current decline
to 8 hours for Music Playback

Test Condition (Ambient Temperature 23 +/-5 degree)

1. Insert fresh and fully charged Li-Poly cells into the DUT. Connected a multi-meter at the battery
terminals to measure its voltage.
2. Set the DUT to Bluetooth Mode. Use iPhone as the music source.
3. Set the DUT to maximum volume and playback a 1 KHz 0dB music track through the iPhone. Record
the Rated Output Power (ROP).
4. Adjust the volume step of the iPhone until the audio output of the DUT is ¼ of ROP. Record the
volume step on the iPhone.
5. Set the iPhone’s volumeto the volume step as recorded in step 4. Playback 3 pre-selected MP3
track in repeat play mode. Record the start time.
6. Measure the battery voltage every 5 to 10 minutes interval. When audio is inaudible, record the end
time. Compute the battery playtime for 3 pre-selected MP3 track.

Note, please don’t adjust iPhone’s volume during set up and testing since that will change the DUT’s
volume by AVRCP.




2-6
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases,
are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
For Products That Transmit and
Receive RF Energy:
FCC Regulations (USA Only)
FCC Information For Users
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference; and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Radio and Television Interference
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio
or television reception, which can be determined by turning
the equipment off and then on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Increase the separation between the equipment and
receiver.
• Connect the equipment to a different outlet so that the
equipment and receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician
for help.
NOTE: Changes or modifications not expressly approved
by Harman could void the user’s authority to operate the
equipment.
IC Statement and Warning (Canada Only)
This Class B digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Canadian Model
This Class B digital apparatus complies with Canadian
ICES-003.
Modèle pour les Canadien
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Products with Radio Receivers
That Can Use an External Antenna:
CATV or Antenna Grounding
If an outside antenna or cable system is connected to this
product, be certain that it is grounded so as to provide some
protection against voltage surges and static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements of the grounding electrode.
Note to CATV System Installer:
This reminder is provided to call the CATV (cable TV) system
installer’s attention to article 820-40 of the NEC, which
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as possible.
For CD/DVD/Blu-ray Disc™ Players:
Caution:
This product uses a laser system. To prevent direct exposure
to the laser beam, do not open the cabinet enclosure or defeat
any of the safety mechanisms provided for your protection.
DO NOT STARE INTO THE LASER BEAM. To ensure proper use
of this product, please read the owner’s manual carefully and
retain it for future use. Should the unit require maintenance
or repair, please contact your local Harman Kardon service
center. Refer servicing to qualified personnel only.
For Products That Include Batteries:
Instructions for Users on Removal and Disposal of
Used Batteries.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Alkaline batteries are considered nonhazardous.
Rechargeable batteries (i.e., nickel cadmium, nickel metal-
hydride, lithium and lithium-ion) are considered hazardous
household materials and may pose an unnecessary health
and safety risk.
In the European Union and other locations, it is illegal to
dispose of any battery with household trash. All batteries
must be disposed of in an environmentally sound manner.
Contact your local waste management officials for information
regarding the environmentally sound collection, recycling and
disposal of used batteries.
To remove the batteries from your equipment or remote
control, reverse the procedure described for inserting
batteries in the owner’s manual.
For products with a built-in battery that lasts for the lifetime of
the product, removal may not be possible for the user. In this
case, recycling or recovery centers handle the dismantling of
the product and the removal of the battery. If, for any reason, it
becomes necessary to replace such a battery, this procedure
must be performed by authorized service centers.
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO
THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSETHIS APPARATUS TO RAIN OR
MOISTURE.
BDS 270 / BDS 570 harman/kardon
2 of 86
3-1
Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
CAUTION :
3-2
SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal
overlays, control shaft, etc.). Plug the AC line cord of the
appliance directly into a 120V AC 60Hz outlet and turn the
AC power switch on. Any current measured must not exceed
o.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A
POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground
3-3
 Trouble shooting Chart
Cannot charging
Cannot charging
Go
Yes
Replace U3 or change another
battery
No
Check U3 pin18 in main Board, whether
the voltage ≥0.6V
No
Replace R18 R19
Yes
No
Replace L6
Yes
Replace 24pin FFC Check 24pin FFC whether has it
breakage and connect well?
Check L6, whether has it breakage
and connect well?
5-1
 Trouble shooting Chart
keys do not work
Keys do not work
Go
No
Check 3.3v of U1 PIN5 in main board .
Yes
Replace the U3 in the main board.
Yes
No
Check Q1 Q11. whether has it
breakage or plug in well?
Check XP4 10PIN FFC in main board
whether has it breakage or plug in well?
Fix or replace the 10PIN FFC
Yes
Replace the Q1 Q11 in the main
board.
No
Replace the Key board.
5-2
 Trouble shooting Chart
AUX in does not work
AUX in does not
work
Go
No
Fix the connector
Yes
Replace Q12 in main board
No
Yes
Check the voltage, clock and data of
U7 and in main board
Replace U10 No
Yes
Check the connector between Aux-In board
and main board whether normal or not
Check voltage at U9 PIN3 and pin5 :REF in
main Board whether normal or not
Check the input signal of U10 in the
main board whether normal or not
Check voltage at U9 PIN8:12V in main
Board whether normal or not
Check the power supply and Replace
U4 L8,D34 in main board
Yes
No
5-3
 Trouble shooting Chart
BT does not work
BT does not work
Go
No Check U1 5PIN 3.3V
whether normal or not
No
Yes
Check theD4 C36 whether
normal or not
Check 3.3V of U5 voltage on main Board
whether normal or not
Check the Rest of U5 whether normal or
not
Yes
Check the clock and data of U5
Check the C43 C44 C45 C46 on main
board whether normal or not
No Replace U5
Yes
No Replace C43 C44 C45 C46
Yes
Yes
Check voltage at U8PIN8:12V in main
Board whether normal or not
Check the power supply and
Replace U4 L8,D34 in main board
No
Check voltage at U8 PIN3 and pin5 :REF in
main Board whether normal or not Replace Q12 in main board
Yes
No
Check the input signal of U10 in the main
board whether normal or not
Yes
Replace U10
No
Check the voltage, clock and data of U7
and in main board
Yes
5-4
Set Block Diagram
BT
Antenna
4ohm x2Aux_in
TI
Class D
TPA3130
BT Module(BM880) Power key and
Power Led
JBL Link LED
BT led
Mic1
OP
BA4510
8W x2
Audio
detect
Audio
switch
10V
5V
USB upgrade
D+/D-
I2C
Charge
status
Battery
detect
BT Module(BM880)
CSR8670
(BT and MCU)
Power key and
other keys
BT led
V+/V- key
Battery
LEDs
Micro USB
1.6A/0.5A/
1A
Battery
Charger
MP2637
Input
Voltage
Detect
On/off
switch
On/Off
switch3.7V
3000mAH
Boost
MPS
MP9428
LDO
SD35
3.3V
Control
chargingg
Audio Signal:
Power Signal:
Control Signal:
On/off
switch
10V for Amp /lm13700
16 bit I2C
I/O
Expander
6
Key Board Circuit Diagram:
7-1
AGND
BT_Key
V-
V+
phone
AGND
BT_rsset_in_1
AGND
10V
C154
1UF
100k
R167
100k
R168
100k
R169
NC
R191
NC
R192
NC
R195
NC
R196
1
2
3
4
5
6
J100
0.5S-CX-6PWB
TP50
TP51
TP52
TP53
TP54
TP55
LED Circuit Diagram:
7-2
JBL_Link_key
AGND
power
white power
BT blue LED
AGND
Battery >75% white
AGND AGND AGND AGND AGND AGND
Battery 60-75% white
Battery 45-60% white
Battery 30-45% white
Battery 15-30% white
BatteryVCC_AMP
VCC_AMP
OUT_1
OUT_2
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
+
16V
C736
220UF
+
16V
C737
220UF
AGND
VCC_AMP_10V
AGND
AMP_MUTE
O
U
T
1
1
N
IN
1
2
PI
N
1
3
V
C
C
-
4
PI
N
2
5
N
IN
2
6
O
U
T
2
7
V
C
C
+
8
A
B
U11
BA4560
A
M
P_
B
IA
S_
IN
1
1
D
_B
IA
S_
1
2
IN
1+
3
IN
1-
4
O
U
T
1
5
V
-
6
B
U
FF
ER
_I
N
1
7
B
U
FF
ER
_O
U
T1
8
B
U
FF
ER
_O
U
T2
9
B
U
FF
ER
_I
N
2
10
V
+
11
O
U
T
2
12
IN
2-
13
IN
2+
14
D
_B
IA
S_
2
15
A
M
P_
B
IA
S_
IN
2
16
U12
NJM13700
2
3
1+
-
U13A
lm393/nc
4.7UFC700BT_SPK_LP
4.7UFC701BT_SPK_LN
4.7UFC702
4.7UFC703
BT_SPK_RP
BT_SPK_RN
R70015K
R701 15K
15KR702
15KR703
5.1R704
AGND
10V
C765
10UF
VCC_BT_OP
VCC_BT_OP
AGND
R70522k
NC/0 ohm
R706
C707
47pF
R707
22k
NC/0 ohm
R708
C708
47pF
22k
R709
22k
R710
10V
C705
10UF
BT_OP_REF
BT_OP_REF
22k
R711
22k
R712 C709
47pF
C710
47pF
C711
1uF
C712
1uF
54.9k/NCR713
54.9k/NC
R714
VCC_AMP_10V
22k/NC
R715
22k/NC
R716
C713
NC
AGND C714
NC
4.7 OHM/NC
R717
AGND
C716
10UF/NC
OP_lim_10V OP_lim_ref
OP_lim_10V
AGND
OP_lim_10V
AGND
lim_ref
22k/NC
R719
6.3V
C719
22UF/NC22k/NC
R718
R720
56k/NC
R72156k/NC
OP_lim_ref
R722
56k/NC
R723
56k/NC
10V
C721
82pF/NC
10VC722 82pF/NC
C724
4.7UF/NC
C725
4.7UF/NC
1k/NC
R724
R725
1k/NC
OUT_1
OUT_2
AGND
AGND
R726
2.43k/NC
R727
2.43k/NC
R728
51/NC
R729
51/NC
R730
2.43k/NClim_ref
lim_ref
R731
2.43k/NC
R7326.8K/NC
R752
6.8K/NC
SA
TT
_B
IA
S
10V
C728
10UF/NC
AGND
AGND
OP_lim_10V
1%
R733
12K/NC
AGND
OP_lim_10V
1%
R734
100K/NC
AGND
1%
R735
91K/NC
OP_lim_10V
10v
C730
10UF/nc
AGND
AGND
2
3
1
Q19
2SA1162
OP_lim_10V
1%
R755
909K/nc
C764
10UF/nc
GVDD
1KR738
0 OHMR754
R739
R756
C742 1uF
100K
R757
10K
R758
25V
C760
220NF
25V
C757
220NF
1 2
L703
1 2
L704
1%
R743
22
R744
22 25V
C747
0.68UF
25V
C748
0.68UF
1%
R745
3.3 OHM
R746
3.3 OHM
25V
C758 220NF
25V
C759220NF
1 2
L705
1 2
L706
R747
22
R748
22 AGND
25V
C753
0.68UF
25V
C754
0.68UF
1%
R749
R750
3.3 OHM
2
3
1
BAT54C/NC
SP
K
R
N
SP
K
LN
10K/nc
1%
R751
SA
TT
_B
IA
S
OUT_1
OUT_2
47K
R170
VCC_AMP
AMP_SDZ
L701
100 @ 100MHz
+
16V
C761
220UF
C704
1NF
C762
1NF
C739
1NF
16V
C706
100NF
C715
100NF/NC
16V
C718
100NF/NC
C720
100NF/NC
C729
100NF/NC
16V
C731
100NF/nc
16V
C732
100NF/nc
16V
C735
100NF
16V
C738
100NF
16V
C763
100NF
C766
100NF
1
3
2
Q20
MMBT3904
1
2
3
A
8
4
V-
V+
U10A
NJM4580V
7
6
5
B
BA4510 SSOP8
U10B
C749
330PF
C750
330PF
C755 330PF
C756
330PF
C746
330PF
C745
330PF
C751 330PF
C752 330PF
C726
470PF/NC
C727
470PF/NC
C767 390PF/NC
C768 390PF/NC
C769 390PF/NC
C770 390PF/NC
NC
C734
NC
C733
NC
1%
R753
13k/NC
1
2
3
J3
B 3B-EH-A
AGND
1
2
3
J6
B 3B-EH-A
SPKRP
SPKRN
SPKLP
SPKLN
AGND
TP23
TP24
TP25
TP26
6.3V
C717
22UF/NC
6.3V
C780
22UF/NC
Main Board Circuit Diagram:
7-4
Harman Consumer Group
HARMAN INTERNATIONAL
Shenzhen, Guangdong, China
SIZE
TITLE
REV.
B
DRAWING NO.
CREATED
CHECKED
DATE
REVISION HISTORY
REV ECO CHECKED DATE
NAME
Cannot open file M:\02
Department\19
HCG_Engineering\Service\PC
B\Design_Template\Sch
template
Alan Sun
0.1 first release MC Lee 2014 Sep 4
2014 Sep 05
MC lee 2014 Sep 05
VCC_BT
VCC_switch_3V3
AGND
AGND
AGND
AGND C116
NC
C117
NC
RF 1GND 2GND 3GND 4
J1
ATOMMini RF CONN
AGND
AGND
COM13
IN14
G
N
D
6
V
+
1
N
O
1
2
NC15
N
C
2
7
IN2 8
COM1
IN1I
G
N
D
V
+
N
O
1
NC1
N
C
2 IN2II
COM2 9
NO2 10
SW1
SD20
AGND
5%
R100
0 OHM
10V
C118
10UF
10VC110 10UF
10V C115 10UF
10V C11410UF
AGND
AGND
5%
R135
10 ohm
10V
C113
10NF
AGND
5%
R112100k AGND
Microphone_in
AUX_IN_R
1uF
6.3V
C103
1uF
6.3V
C104
AGND
AGND
10V
C101
10NF
C100
1NF
6.3V
C102
10UF
33
R148
33
R106
AUX_R_CH
AUX_L_CH
2.2M
R153
2.2M
R110
12K
R111
12K
R114
150K
R120
1M
R121
1K
R122
VCC_BT
27K
R123
1
32
Q18
MTP3401N3
1
32 Q16
MTP3401N3
1
3
2
Q17
MMBT3904
2
3
1
D750
BAT54C
1
3
2
Q11
2SC2712
1
3
2
Q10
2SC2712
AGND AGND
1
3
2
Q12
2SC2712
AGND
25V
C121
3.3NF
AGND
47k
R141
10K
R149
AGND
220k
R142
100K
R143
VBAT_DCIN_DETECT
10V
C122
10NF
10V
C123
10NF
47k
R144
1
3
2
Q15
MMBT3904
10K
R150V
B
A
T_
D
C
IN
_D
ET
EC
T
470k
R145
100K
R146
10V
C127
10NF
10V
C128
10NF
DC_detect
1
2
J4
AGND
L103
15nH
25V
C125
15PF
AGND
25V
C126
39PF
2.2k
R109
16V
C124
100NF
Microphone_in
L105 1.5UH
VCC_switch_3V3
VCC_audio_3V3
BT_1V8
16V
C107100NF
AGND
100k
R180
VCC_BT
AGND
10K
R188
Boost_EN
1k
R115MIC_BIAS_A
C156
10UF
AGND
25V
C155
10nF
AGND
VCC_audio_3V3
NC
R184
0 ohm
R185
1
3
2
Q8
FDV301N
470k
R130
47k
R131
470k
R132
VREG_EN
VCC_BT
AGND AGND
AGND
AGND
16V
C183
100NF
6.3V
C108
220nF
C109
1uF
1
2
3
4
J5
B 4B-PH-K-S
5%
0805
R133
0 OHM
5%
0805
R134
0 OHM
C129
1NF
AGND
AGND
C130
10UF
C131
47pF
C132
47pF
USB+5V
USB_D+
USB_D-
VCC_BT
AGND
22R101
22R102
4.7k R103
4.7kR104
33 OHMR137
33 OHMR126
I2C_CLK
I2C_DAT
33 OHMR138
33 OHM
R139
I2C_INT
I2C_RESET
USB+5V
I2C_CLK0
BT_SPI_MOSI
BT_SPI_CLK
BT_SPI_MISO
BT_SPI_CSB
AGND AGND
100k
R147
1uF
6.3V
C105
AGND
1
3
2
Q14
MMBT3904
Charge_in_EN
10K
R151
AGND
VCC_BT
AGND
AGND
NC
R1811: 3od 0:TCL
JBL_link_white_LED
HW_DET
5%
R108 3.3K
5%
R107
3.3K
BT_SPK_RP
BT_SPK_RN
BT_SPK_LP
BT_SPK_LN
AGND
Mic_BIAS_A
Aux_in_mic_com1
BT_VDD5
BT_VDD5
PWR_LED_white
Deep_Sleep
SYS_PWR_SHUTDOWN
VREG_EN
VREG_EN
AGND
BT_VDD_MEM
BT_1V8 VCC_switch_3V3
BT_VDD_MEM
Aux_in_mic_com2
Aux_in_mic_com2
1
2
3
AGND
1%
R128
3.32K OHM 0 OHM
1%
R129
6.8K OHM
1%
R113
AGND
1%R118
3.32K OHM
0 OHM
1%
R32
6.8K OHM 1%
R72
AGND
10V C120 10UF
10V C80 10UF
AUX_IN_R
AUX_IN_L
AUX_R_CH
AUX_L_CH
82nHL101
82nHL102
10V
C180
1.5NF
10V
C181
1.5NF
VBAT_1 USB+5V
HW_DET
AMP_MUTE
SW_POWER
AMP_SDZ
VBAT_DCIN_DETECT
Audio_Detect
1kR161
BT_blue_LED
AUX_in_mic_Ctr
33 OHMR162 CHARGE_in_STATU(/CHG)
LED015 UART_TX14 UART_RX13 UART_CTS#12 UART_RTS#11 RST#10 GND9 SPI_MOSI8 SPI_CS#7 SPI_MISO6 SPI_CLK5 GND4 PCM_IN3 PCM_OUT2 PCM_SYNC1
LED116
LED217
PIO018
PIO119
PIO220
PIO321
PIO422
PIO523
PI
O
8
24
PI
O
14
30
PI
O
15
31
G
N
D
32
PI
O
27
33
PI
O
25
34
PI
O
26
35
PI
O
23
36
PI
O
21
37
PIO28 38I2C_SCL 39I2C_SDA 40GND 41USB_D+ 42USB_D- 43GND 44
PI
O
13
29
PI
O
12
28
PI
O
11
27
PI
O
10
26
PI
O
9
25
VDD_PADS 45VDD_MEM 46VOUT1V8 47VBAT 48VBAT_SENSE 49CHG_EXT 50VDD5 51VREG_ENABLE 52PIO22 53PIO24 54GND 55MIC_RN 56MIC_RP 57MIC_LN 58MIC_LP 59MIC_BIAS_B 60
PC
M
_C
LK
74
G
N
D
68
G
N
D
67
SP
K
R
_R
P
66
SP
K
R
_R
N
65
SP
K
R
_L
P
64
SP
K
R
_L
N
63
G
N
D
62
M
IC
_B
IA
S_
A
61
A
N
T
69
G
N
D
70
A
IO
0
71
A
IO
1
72
G
N
D
73 U1
BM880F3
VBAT_DET
AUX_in_mic_Ctr
6.3V
C133
1uF
10 ohm
R163
TP27
TP28
TP29
TP30
TP31
TP32
TP33
USB_D-
USB_D+
DC_detect
VBAT_DET
I2C_DAT0
TP34
TP47
NCR781
R782
ESD0603V12C03
5%
R783
ESD0603V12C03
Mark
Main Board Circuit Diagram:
7-5
P12 15
P11 14
P10 13GND12 P0711 P0610 P059 P048 P037 P026 P015 P004 /RESET3 A12 /INT1
P13 16P14 17P15 18P16 19P17 20A0 21SCL 22SDA 23VCC 24
U2
TCA1116(PW)
VCC_switch_3V3
10
R136
AGND
AGND
AGND
AGND
I2C_INT
I2C_RESET
200 R600red_led_battery (5-15)%
200 ohmR601
200 R602
200 R603
200 R604
200 R605
white led battery(15-30%)
white led battery(30-45%)
white led battery(45-60%)
white led battery(60-75%)
white led battery(>75%)
33 R606 Vol-
33 R607 Vol+
33 R608
33 R609
Link key
Phone Key
BT Key
Vol-
Vol+
Phone Key
AGND
AGND
Link key
PW_KEY
PWR_LED_white
BT_blue_LED
white led battery(>75%)
white led battery(60-75%)
white led battery(45-60%)
white led battery(30-45%)
white led battery(15-30%)
red_led_battery (5-15)%
4.7K
R155
4.7K
R156
AGND
AGND
BT KeyR15433
BT_reset_in
1
2
3
4
5
6
7
8
9
10
11
12
13
J9
0.5S-CX-13PWB
C135
100NF
C151
100NF
C152
100NF
C1341NF
C136
1NF
C137
1NF
C138
1NF
C139
1NF
C140
1NF
C141
1NF
C142
1NF
C143
1NF
C144
1NF
C145
1NF
C147
1NF
C148
1NF
C149
1NF
C150
1NF
I2C_CLK
I2C_DAT
1
2
3
4
5
6
J10
0.5S-CX-6PWB
JBL_link_white_LED
C146
1NF
VCC_switch_3V3
10k
R610
VCC_IO_expander_3V3
VCC_IO_expander_3V3
10k
R611
10k
R612
10k
R613
1
2
3
4
5
6
J2
B 6B-PH-K-S
BT_SPI_MOSI
BT_SPI_CLK
BT_SPI_MISO
BT_SPI_CSB
AGND
VCC_BT
C191
100NF AGND
TP4
TP5
TP6
TP7
TP8
TP9
TP10
TP11
TP12
TP13
TP14
TP15
TP17
TP18
TP19
TP20
TP21
TP22
Main Board Circuit Diagram:
7-7
N
/C
1
C
H
G
2
B
O
O
ST
3
C
SP
4
B
A
TT
5
A
G
N
D
6
OLIM 7
ISET 8
NTC 9
FB 10
ACOK 11
REG 12
TM
R
13
PW
IN
14
IL
IM
15
V
C
C
16
V
B
17
EN
18
MODE19
VIN20
SYS21
SW22
PGND23
PGND24
U9
MP2637
BST1
SDR2
OUT3
EN4
MODE5
SENSE6
SW
7
SW
8
PG
N
D
9
PG
N
D
10
IN 11
VDD 12
COMP 13
FB 14
SS 15
AGND 16
PG
N
D
17
PG
N
D
18
SW
19
SW
20
SW
21
PG
N
D
22
U7
MP9428
USB+5V
charge_in_5V
charge_in_5V
AGND AGND
PWIN
PW
IN
AGND
C
ha
rg
e_
in
_E
N
AGND
charge_in_VCC
5%
0805
R407
0.02 ohm
NTC
NTC
AGND
charge2_sys_5V
AGND
NTC
charge2_sys_5V
AGND
AGND AGND
charge_sys_FB
/ACOK
/B
O
O
ST
R501 0.01ohm
R502 0.01ohm
R503 0.01ohm
R504 0.01ohm
C501
22uF 25V
AGND
C502
22uF 25V
C503
22uF 25V
VBAT_1
VBAT_1
2.2uF
C504
AGND
Boost_10V
AGND
SDR
VOUT1
V-2
VIN+3 VIN- 4
V+ 5
-+
U8
NC
USB+5V
AGND
AGNDAGND
USB_D+
1
3
2
Q4
NC
AGND
USB_D-
C414
22UF
C415
22UF
10V
C407
22UF
C406
22UF
25V
C508
22UF
25V
C509
22UF 25V
C510
22UF
3428_SW
3428_SW
different pair
same length
S1 F 2L501
1.5UH, 15A
2.2ohm
R516
1nF
C511
5%
0805
R441
NC
NC
C416
AGND
AGND
AGND
AGND
AGND
AGND
AGNDAGNDAGNDAGNDAGND
AGNDAGNDAGND
AGND
1
2
3
4
5
J401
C400
100NF
C426
100nF
C409
100NF
1K
R404
15K
R414
C404
100nF
C410
330nF
15K
1%
R400
5.1k
1%
R401
21.5K
1%
R410
5.1k
1%
R411
NC
R425
68K
1%
R421
51k
R420
NC
R431
C423
NC
R426
Nc
R427
nc
R429
NCNC
R428
NC
R437
TP400
TP401
100K
R432
1%
R423
5.36k
1%
R424
15k
100K
R506
0 OHM
R510
C507
100nF
220k
R512
34k
R509
51
R511
Boost_10V
Boost_EN
AGND
D6 D5 S4 G 3
D 2
D 1
Q2
MTP2603100K
R508
1K
R515
1
3
2
Q3
MMBT3904
AGND
47K
R505
100K
R514
AGND
24K
R513
1
32
Q5
MTP3401N3
VBAT_1
100k
1%
R433
1
3
2
Q7
MMBT3904
AGND
C427
100nF
100k
1%
R435
AGND
47k
1%
R434Deep_Sleep
2
3
1
D401
BAT54C
PW
_K
EY
100K
R436
VCC_switch_3V3
SW_POWER
C402
NC
Hand_Reset
4.7K
R442
AGND
USB+5V
AGND
AGND
10K
R419
AGND
10V
C420
10UF 10V
C412
10UF
5.1
R430
AGND
VCC_audio_3V3
VCC_switch_3V3
33k
R439
1
3
2
Q408
MMBT3904
100k
5%
R438
AGNDAGND
BT_reset_in
1k
5%
R440
AGND
1
3
2
Q407
MMBT3904
AGND
Hand_Reset
VCC_AMP_10V
G4 S3 S2 S1
D 5D 6D 7D 8
Q1 MTB04N03
10V
C428
4.7uF
OUT 5
BP/FB 4EN3 GND2 IN1
U5
SD35
AGND
C159
1.5nF
AGND
VCC_switch_3V3
100K
R173
10K
R172
VCC_switch_3V3
CHARGE_in_STATU(/CHG)
AGND
1
3
2
Q21
MMBT3904
C408
1uF
C421
1uF
C422
1uF
C424
1uF
C425
1uF
C403
100NF
C417
100NFC418
100NF
1uF
C405
C419
1NF
C506 2.2nF
C429
10NF
C505
33NF
charge2_sys_5V
C512
10NF
1 2L401
CKCD5D28-2.2 H/N
200 OHM
R517
1
3 2
Q6
MTP3401N3
SDR
L402
100 @ 100MHz
D403
1N4148WS
15k
R507
TP1
TP2
TP3
0603
5%
R443
10 ohm
TP48
TP49
6.3V
C401
22UF
6.3V
C430
22UF
USB Board Print-layout:
7-8
AGND
4
2
3
J301
PJ-321B
1
2
3
4
J12
B 4B-PH-K-S
C800
NC
C801
ESD0402V18C15
C802
ESD0402V18C15
VBUS 1
D- 2
D+ 3
ID 4
GND 5SH
IE
D
0
CON600
MICRO_USB_5P_UR1-069A
L205 100 @ 100MHz
1
2
3
J310
B 3B-PH-K-S
C803
ESD0402V18C15
C804
ESD0402V18C15
LED Board Print-layout:
8-1
KEY Board Print-layout:
8-2
USB Board Print-layout:
8-3
Main Board Print-layout:
8-4
Mechanical Exploded View:
Part Number List for the Exploded View
skrameRrebmuN traPnoitpircseD.oN
2 1.5” full range Speaker 42-015008-04001
10000-0950EN-45 rotaidaR evissaP5
AH0-1D3PLF-20yssa revoc yrettab6
7 Li-ion polymer Battery 3.7V 3000mAh 49-373000-BAT5-M
0YK-U207BW-80draoB YEK9
0EF-U207BW-80draoB DEL01
2BHU0-1H3PLF-55 n StandiaM31
2BHU0-1C3PLF-55revoC BSU41
16 56 FLP3H4 0HAB22BAH0-4H3PLF-6561
0NI-U207BW-80draoB BSU71
HU0-1I3PLF-55ydoB niaM91
0AM-U207BW-80draoB niaM12
22 MIC Φ4.0/2pin JST 1.5mm IP5X water resistant 02-MIC025-XX0
USB Bracket
9
For spare parts numbers for outer grille #1, please
refer to Spare Parts List below, page 29.
Packing Exploded View
10
Spare Parts List
Level Pos. No. Part Number Description QTY
01 5 54-NE0590-00001 Passive Radiator (Left) Flip3 TL 1
01 5 54-NE0590-00002 Passive Radiator (Right) Flip3 TL 1
01 6 02-FLP3D1-0HA Battery cover ass'y FLIP3 TL 1
01 22 02-MIC025-XX0 MIC D4.0/2pin JST 1.5mm FLIP3 TL 1
002 U1 07-BTM880-00A Bluetooth Module BM880F3 FLIP3 TL 1
01 10 08-WB702U-FE0 LED Board FLIP3 TL 1
01 17 08-WB702U-IN0 USB Board FLIP3 TL 1
01 9 08-WB702U-KY0 KEY Board FLIP3 TL 1
01 21 08-WB702U-MA0 Main Board FLIP3 TL 1
002 U10 13-BA4510-FVS2 IC BA4510FV SSOP-B8 operational amplifier FLIP3 TL 1
002 R782,R783 13-ESDV12-C033 ESD Suppressor ESD0603V12C03 FLIP3 TL 2
002 U9 13-MP2637-QFN3 IC MP2637 QFN-24 BATTERY CHARGER FLIP3 TL 1
002 U7 13-MP9428-QFN3 IC MP9428 QFN-22 BOOST FLIP3 TL 1
002 SW1 13-SD20TR-UTQ3 IC SD20/TR UTQFN-1.8×1.4-10L SWITCH FLIP3 TL 1
002 U5 13-SD35TR-0003 IC SD35/TR 3.3V SOT23-5 LDO FLIP3 TL 1
002 U2 13-TCA111-6TS3 TCA1116 TSSOP24 16-BIT I2C I/O EXPANDER FLIP3 TL 1
002 U6 13-TPA313-0D22 IC TPA3130D2(DAP) SOP32 AMP FLIP3 TL 1
01 cable 41-USB1000-UMC Cable 1M USB to Micro orange Type-C FLIP3 TL 1
01 2 42-015008-04001 Speaker Unit 1.5" full range FLIP3 TL 2
01 BT Antenna 47-ANT136-XX0 BT Antenna WA-F-LA-03-113 FLIP3 TL 1
01 7 49-373000-BAT5-M Li-ion polymer battery 3.7V 3000mAh FLIP3 TL 1
01 14 55-FLP3C1-0UHB1 USB cover Flip3 TL BLK 1
01 14 55-FLP3C1-0UHB2 USB cover Flip3 TL Gry 1
01 14 55-FLP3C1-0UHB3 USB cover Flip3 TL ORG 1
01 14 55-FLP3C1-0UHB4 USB cover Flip3 TL Red 1
01 14 55-FLP3C1-0UHB5 USB cover Flip3 TL Pink 1
01 14 55-FLP3C1-0UHB6 USB cover Flip3 TL BLU 1
01 14 55-FLP3C1-0UHB7 USB cover Flip3 TL Yel 1
01 14 55-FLP3C1-0UHB8 USB cover Flip3 TL Tea 1
01 13 55-FLP3H1-0UHB1 Main Stand Flip3 TL BLK 1
01 13 55-FLP3H1-0UHB2 Main Stand Flip3 TL Gry 1
01 13 55-FLP3H1-0UHB3 Main Stand Flip3 TL ORG 1
01 13 55-FLP3H1-0UHB4 Main Stand Flip3 TL Red 1
01 13 55-FLP3H1-0UHB5 Main Stand Flip3 TL Pink 1
01 13 55-FLP3H1-0UHB6 Main Stand Flip3 TL BLU 1
01 13 55-FLP3H1-0UHB7 Main Stand Flip3 TL Yel 1
01 13 55-FLP3H1-0UHB8 Main Stand Flip3 TL Tea 1
01 19 55-FLP3I1-0UH Main Body Flip3 TL 1
01 16 56-FLP3H4-0HAB1 USB Bracket Flip3 TL BLK 1
01 16 56-FLP3H4-0HAB2 USB Bracket Flip3 TL Gry 1
01 16 56-FLP3H4-0HAB3 USB Bracket Flip3 TL ORG 1
01 16 56-FLP3H4-0HAB4 USB Bracket Flip3 TL Red 1
01 16 56-FLP3H4-0HAB5 USB Bracket Flip3 TL Pink 1
01 16 56-FLP3H4-0HAB6 USB Bracket Flip3 TL BLU 1
01 16 56-FLP3H4-0HAB7 USB Bracket Flip3 TL Yel 1
01 16 56-FLP3H4-0HAB8 USB Bracket Flip3 TL Tea 1
01 gift box 76-195240-0ATC1 Gift Box Flip3 TL BLK 1
01 gift box 76-195240-0ATC2 Gift Box Flip3 TL Gry 1
01 gift box 76-195240-0ATC3 Gift Box Flip3 TL ORG 1
01 gift box 76-195240-0ATC4 Gift Box Flip3 TL Red 1
01 gift box 76-195240-0ATC5 Gift Box Flip3 TL Pink 1
01 gift box 76-195240-0ATC6 Gift Box Flip3 TL BLU 1
01 gift box 76-195240-0ATC7 Gift Box Flip3 TL Yel 1
01 gift box 76-195240-0ATC8 Gift Box Flip3 TL Tea 1
01 carton box 76-195250-0ATB1 Carton Box Flip3 TL 1
01 1 02-FLP3H2-XX2B1 Grille assy Flip3 TL BLK 1
01 1 02-FLP3H2-XX0B2 Grille assy Flip3 TL Gry 1
01 1 02-FLP3H2-XX0B3 Grille assy Flip3 TL ORG 1
01 1 02-FLP3H2-XX0B4 Grille assy Flip3 TL Red 1
01 1 02-FLP3H2-XX0B5 Grille assy Flip3 TL Pink 1
01 1 02-FLP3H2-XX0B6 Grille assy Flip3 TL BLU 1
01 1 02-FLP3H2-XX0B7 Grille assy Flip3 TL Yel 1
01 1 02-FLP3H2-XX0B8 Grille assy Flip3 TL Tea 1
11
Revision List
Version 1.0
12
Version 1.1
Initial Release for JBL FLIP3.
Add Grille Ass’y in Spare Part List.
