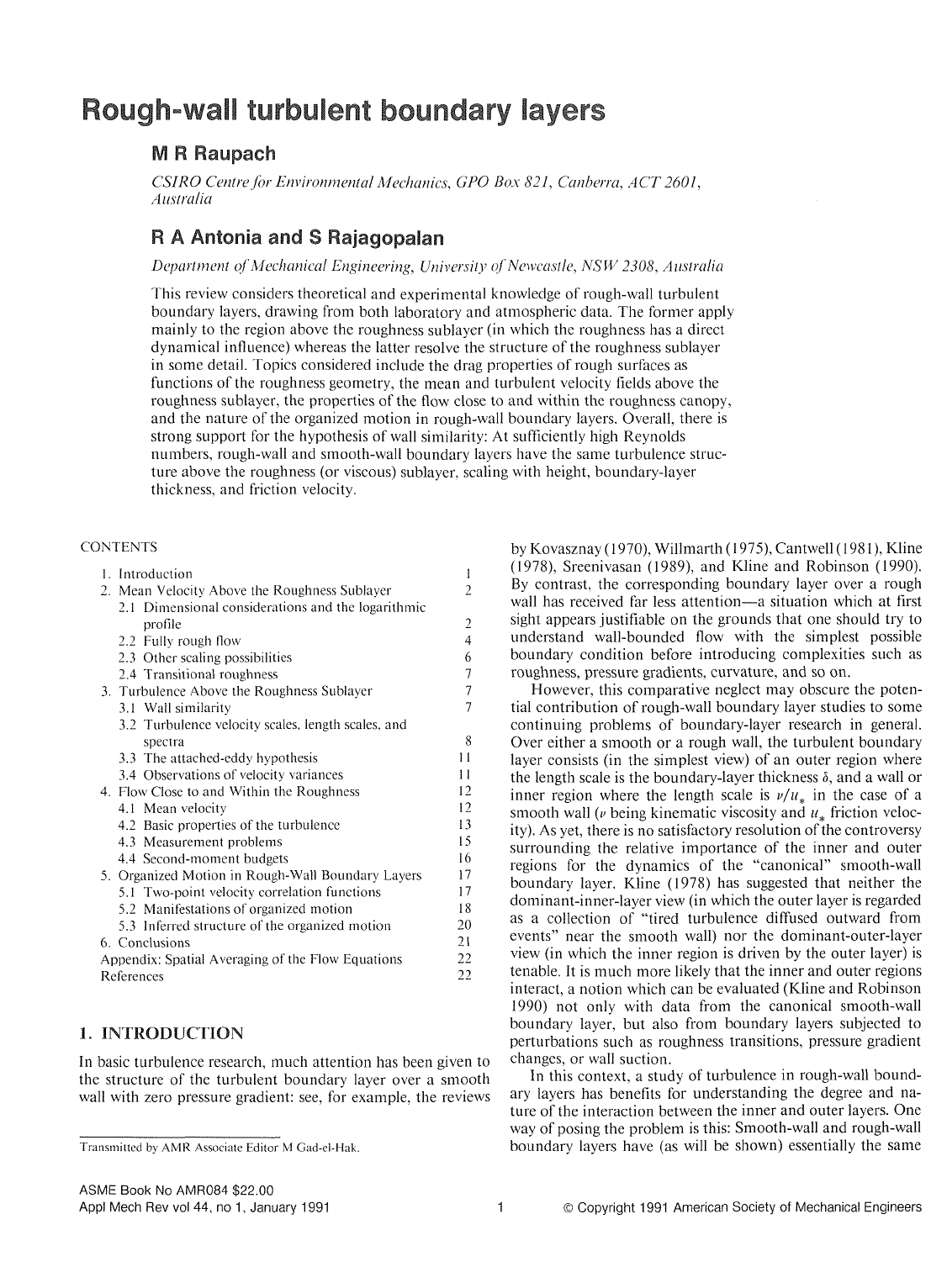

Rough-wall turbulent boundary layers
M R Raupach
CSIRO Centre for Environmental Mechanics, GPO Box 821, Canberra, ACT 2601,
Australia
R A Antonia and S Rajagopalan
Department of Mechanical Engineering, University of Newcastle, NSW 2308, Australia
This review considers theoretical and experimental knowledge of rough-wall turbulent
boundary layers, drawing from both laboratory and atmospheric data. The former apply
mainly to the region above the roughness sublayer (in which the roughness has a direct
dynamical influence) whereas the latter resolve the structure of the roughness sublayer
in some detail. Topics considered include the drag properties of rough surfaces as
functions of the roughness geometry, the mean and turbulent velocity fields above the
roughness sublayer, the properties of the flow close to and within the roughness canopy,
and the nature of the organized motion in rough-wall boundary layers. Overall, there is
strong support for the hypothesis of wall similarity: At sufficiently high Reynolds
numbers, rough-wall and smooth-wall boundary layers have the same turbulence struc­
ture above the roughness (or viscous) sublayer, scaling with height, boundary-layer
thickness, and friction velocity.
CONTENTS
1. Introduction 1
2. Mean Velocity Above the Roughness Sublayer 2
2.1 Dimensional considerations and the logarithmic
profile 2
2.2 Fully rough flow 4
2.3 Other scaling possibilities 6
2.4 Transitional roughness 7
3. Turbulence Above the Roughness Sublayer 7
3.1 Wall similarity 7
3.2 Turbulence velocity scales, length scales, and
spectra 8
3.3 The attached-eddy hypothesis 11
3.4 Observations of velocity variances 11
4. Flow Close to and Within the Roughness 12
4.1 Mean velocity 12
4.2 Basic properties of the turbulence 13
4.3 Measurement problems 15
4.4 Second-moment budgets 16
5. Organized Motion in Rough-Wall Boundary Layers 17
5.1 Two-point velocity correlation functions 17
5.2 Manifestations of organized motion 18
5.3 Inferred structure of the organized motion 20
6. Conclusions 21
Appendix: Spatial Averaging of the Flow Equations 22
References 22
1. INTRODUCTION
In basic turbulence research, much attention has been given to
the structure of the turbulent boundary layer over a smooth
wall with zero pressure gradient: see, for example, the reviews
Transmitted by AMR Associate Editor M Gad-el-Hak.
by Kovasznay (1970), Willmarth (1975), Cantwell (1981), Kline
(1978), Sreenivasan (1989), and Kline and Robinson (1990).
By contrast, the corresponding boundary layer over a rough
wall has received far less attention—a situation which at first
sight appears justifiable on the grounds that one should try to
understand wall-bounded flow with the simplest possible
boundary condition before introducing complexities such as
roughness, pressure gradients, curvature, and so on.
However, this comparative neglect may obscure the poten­
tial contribution of rough-wall boundary layer studies to some
continuing problems of boundary-layer research in general.
Over either a smooth or a rough wall, the turbulent boundary
layer consists (in the simplest view) of an outer region where
the length scale is the boundary-layer thicknessdU/dz
attenuating within the canopy at a rate depending on the
roughness density A and other geometrical properties. The
upper part of the within-canopy U(z) profile is fairly well
approximated by the empirical "exponential wind profile":
where the coefficient a tends overall to increase with \, but
with considerable scatter (see Table 3).
In the lower part of the canopy, some workers have reported
"bulges" in the profile of U(z)—see, for example, the data for
Uriarra Forest in Fig 8a. Such a bulge, if real, implies counter-
gradient momentum transfer in the region where dU/dz /(>
I
-
_,
-
\ VW
v.\%
';\\
3
-
1
-
_
. v~^—
i
-a '
OS
o
tu
oo
o u.
o
UH
4
T 1
a
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
Appl Mech Rev vol 44, no 1, January 1991 Raupach et al: Rough-wall turbulent boundary layers 15
TABLE 3. Physical and aerodynamic properties of seven canopies in Fig 8"
Sensors
Canopy /; A U(h)/ut Mean Turbulence
WT strips 60 mm 0.23 3.3 T T
WT wheat 47 mm 0.47 3.6 T T
WTrods 19 cm 1.00 5.0 X X
Shaw corn
225 cm 1.45 3.2 C, F F
Moga forest 12 m 0.5 2.9 C. S3 S3
Uriarra forest 16, 20 m Z0 Z5 C SI
* See Raupach (1988, 1989a) for primary references. WT denotes wind tunnel. Sensors: C, cup anemometer; X, X-wire probe; T, coplanar
triple-wire probe; SI, single-dimensional (vertical) sonic anemometer; S3, three-dimensional sonic anemometer. For Shaw corn, Wilson corn,
Moga forest, and Uriarra forest, A taken as LAI/2. [Note: in Raupach (1988, 1989a), values of A and U(h)/ut for "WT wheat" were slightly
wrong; present values are correct.]
gusts. This indication can be made precise by quadrant analysis
(section 5.2). Kurtoses for it and w, not shown here, reveal the
same trend towards very high intermittency in the canopy
(Maitani 1979).
The single-point Eulerian length scales L„ and L„ can be
estimated from the single-point it and w integral time scales by
applying Taylor's frozen-turbulence hypothesis:
L„. = — w(t)w(t + T) dr. (4.2)
07,. Jo
and similarly for Lu. Near z = /;, Lu is of order /; and L„ of
order h/3 (Figs 8g and 8h), so that the turbulence length scales
are comparable with h. It follows that the gusts inferred from
the skewness profiles are large structures, coherent over stream-
wise and vertical distances of order /;. The existence of such
motions can be verified visually by watching "honami," the
traveling wind waves seen on fields of grass, wheat, or barley
on windy days (Inoue 1955, Finnigan 1979a, b).
Figure 8 suggests that the dominant velocity and length
scales for the turbulence in the canopy are u„, and // (or the
closely related length scale h - d). These scales provide an
approximate collapse of turbulence data from experiments in
which h ranges over a factor of 400 and u^ over a factor of 10
or more. The scatter in the data indicates the influence on the
canopy turbulence of other length and velocity scales related to
canopy morphology, the fluttering of leaves and the waving of
whole plants, and viscous (Reynolds number) effects which
influence the drag on individual leaves (Thom 1968, 1971). In
the field, an additional important complication is buoyancy,
though its effects are absent from the data in Figure 8 which
pertain only to thermally neutral or slightly unstable daytime
conditions.
4.3. Measurement problems
We have referred several times to measurement problems in
the high-intensity turbulence near and within the roughness.
These have proved troublesome and (at times) confusing, es­
pecially in laboratory situations where X-wire probes have been
the main turbulence sensors.The most obvious symptom is a
decrease in the measured shear stress —TTTv just above z = /;,
seen in most laboratory measurements over rough walls with
X-wire probes. Examples are the X-wire TTvP profiles measured
by Antonia and Luxton (1971a, b, 1972), Mulhearn and Fin­
nigan (1978), and Raupach et al (1980) (see Fig 5). Such a
decrease, if real, would violate momentum conservation in the
constant-stress layer close to the surface, unless an extra mo­
mentum transfer mechanism exists in the roughness sublayer.
There has been speculation that such a mechanism could be
a systematic, time-averaged spatial variation in the mean veloc­
ity field imposed by the horizontal heterogeneity of the canopy,
leading to a horizontally averaged momentum flux (U"W").
Here, angle brackets denote a horizontal plane average and
double primes a departure of a time-averaged quantity from its
horizontal average. (Spatial averages are discussed in the Ap­
pendix.) Fluxes of the type {U" W") were identified by Wilson
and Shaw (1977) for vegetation canopies, and labeled "disper­
sive fluxes." An early estimate by Antonia (1969) indicated that
this type of momentum flux is unlikely to account for obser­
vations with X-wire probes of apparent stress decreases near
transverse bar roughness. Later, detailed measurements by
Mulhearn (1978) (bar roughness), Raupach et al (1980) (cylin­
der roughness), Raupach et al (1986) (model plant canopy),
and Perry et al (1987) (mesh roughness) demonstrated that the
magnitude of (U" W") is less than a few percent of;/;, at most.
This leaves no possible explanation for the apparent stress
decrease just above the roughness, other than the measurement
errors of X-wire probes.
Further evidence that measurement error is the problem is
provided by the 7JTP data in Fig 8b, which show convincingly
that no apparent stress decrease is found in field data measured
with omnidirectional sonic anemometers, and in laboratory
data obtained with coplanar triple-wire probes, which have far
better directional response than X-wire probes (Kawall et al
1983, Legg et al 1984). All of these sensors indicate a layer of
constant stress —liw within the expected limits of the constant-
stress layer (section 3.2).
Theoretical and empirical error analyses on X-wire probes
were made by Tutu and Chevray (1975), Raupach et al (1980),
Legg et al (1984), and Perry et al (1987). All these studies agree
that the main problem is the limited velocity-vector acceptance
angle of ±45° in a conventional X-wire probe, with secondary
problems being contamination of streamwise and vertical ve­
locity signals by the lateral velocity component, and finite wire
length (in order of decreasing significance). Recent measure­
ments of 1m have addressed some of these problems, and are
of better quality than the earlier data. Perry et al (1987) showed
that, by increasing the acceptance angle from the usual ±45° to
±60° and/or "flying" the probe in the streamwise direction to
reduce the turbulence intensity a„/U, acceptable liw measure­
ments can be made with X-wire probes. Acharya and Escudier
(1987) confirmed the improvement in TJTT' measurements re­
sulting from ±60° X-wire probes. Li and Perry's (1989) meas­
urements of mv over a rough-wall boundary layer, obtained
with either a ±60° stationary or a ±45° flying X-wire probe,
were in close agreement with an analytical expression of 77TP
obtained by integrating the mean streamwise momentum equa­
tion (3.3), using a logarithmic profile law and Coles wake
function to specify U(z).
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
16 Raupach et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
4.4. Second-moment budgets
The mechanisms maintaining the turbulence in the rough­
ness sublayer, both above and within the roughness, are partly
elucidated by the turbulent kinetic energy and shear stress
budgets. The budgets must be considered in a spatially (in
practice, horizontally) averaged form because a significant dy­
namical role is played by processes associated with spatial
heterogeneity at the length scales of individual roughness
elements.
Turbulent kinetic energy budget: For a steady flow over a
horizontal, immobile rough surface at high Reynolds number
(so that molecular transport terms are negligible), and with
negligible advection, thermal forcing, and mean pressure
gradient, the horizontally average turbulent kinetic energy
budget is
the rate of working of the mean flow against drag:
dt
= 0 = Ps + P,, + T, + T,i + T„ - (e) (4.3a)
with
P, = -(liw)
/ > „ • = -[UiUj
d(U)
dz
dur
dXj,
T, = -
dz 2
(4.3b)
T" = ~7Z
d jW"q2"
2
dz
Equation (4.3) is derived by methods outlined in the Appendix.
The terms denote shear production (Ps), wake production (/>„•),
turbulent, dispersive and pressure transport (7), Td, Tp, respec­
tively), and dissipation (—(«)). It is convenient to write the
wake production term in tensor notation, with x, = (x, y, z),
Ui = (U, V, W), H, = (u, v, w), and the summation convention
effective. Of these terms, Piy T,, Tp, and (t) are familiar as
spatial averages of the corresponding terms in the single-point
turbulent kinetic energy equation (3.4), whereas the less familiar
terms P„ and Ti arise from spatial heterogeneity at roughness-
element length scales. The dispersive transport term Td is the
vertica] gradient of a dispersive turbulent kinetic energy flux
{W"q2")/2, directly analogous to the dispersive momentum
flux {U" W"). Since the dispersive momentum flux is negligible
relative to the turbulent momentum flux (section 4.3), it is
likely that the dispersive turbulent kinetic energy flux is likewise
negligible, so that Td is negligible relative to T,.
The wake production term Pw is far ffom negligible (Wilson
and Shaw 1977). It is the production rate of turbulent kinetic
energy in the wakes of roughness elements by the interaction
of local turbulent stresses and time-averaged strains. Like Ps,
P„ represents a conversion of mean to turbulent kinetic energy,
but the two terms operate at different scales: Ps creates "shear
turbulence" with a length scale of order /; within and just above
the canopy (section 4.2), whereas P,t creates "wake turbulence"
with a length scale of the order of a typical roughness-element
wake width. In vegetation canopies, wake turbulence is usually
much smaller-scale than shear turbulence. It can be shown
(Raupach and Shaw 1982) that P„. is approximately equal to
P»- -(U)fx»-{U)
3{uw]
dz
(4.4)
where /v is the horizontally-averaged total force exerted by the
elements on the flow, a negative quantity. It is shown in the
Appendix that/v ~ 3(7w)/dz.
Figure 9a shows measurements, from Raupach et al (1986),
of the terms Ps, P„. [using (4.4)] and T, in the "WT strips"
wind-tunnel model plant canopy (Fig 8 and Table 3). The
curve D is the residual —Ps — P». - T„ equal to T„ - (c) if Td
is negligible as argued above. The main features are the peak
in shear production Px near z = h, the large wake production
P„ in the upper part of the canopy, and the major role of
turbulent transport T, in carrying turbulent kinetic energy from
the regions of strong production near z = h to lower levels in
the canopy. In the lower part of the canopy, the turbulent
kinetic energy budget reduces to an approximate balance be­
tween transport and dissipation. The importance of T, is related
to the dominant role of sweep motions, or gusts, in momentum
transfer (section 5.2).
Two aspects of the turbulent kinetic energy budget do not
emerge from Fig 9a. First, Tp (which could not be measured)
is probably significant. Maitani and Seo (1985) estimated ~wp
in a cereal canopy in the field from surface pressure measure­
ments, concluding that wp is downward within the canopy and
about half of wq2/2 (which is also downward);this suggests that
Tp is comparable with T, and likewise acts as a gain term in the
budget deep in the canopy. Second, PK converts not only mean
kinetic energy but also large-scale (shear) turbulent kinetic
energy into wake-scale turbulent kinetic energy. This conver­
sion is not evident in (4.3), which is spectrally integrated over
all turbulence scales. However, since the small-scale wake tur­
bulence is much more quickly dissipated than the larger-scale
shear turbulence, the effect is that the dissipation rate of the
shear turbulence within the canopy is much greater than would
occur for free turbulence with similar velocity and length scales.
The rapid dissipation rate of the wake turbulence also accounts
(Raupach and Shaw 1982) for the fact that, in velocity spectra
measured within canopies, little extra energy is seen at wave-
M1
Ml
ill 1
i!|
- l \
ps
- P w
- T t
i i i r i i i
- 6 - 4 - 2 0 2 4 6 - 6 - 4 - 2 0 2 4 6
h a?/2 h 3 (fw")
' (4.5a) 5 j _ Two-point velocity correlation functions
with
Pi = -
d(U)
dz
p, , „ am _, „ dU"
OXj OX,
a
dz
T'cl = --{W"uw"),
dz
T'p = -—(up),
(4.5b)
, Idll dvt
The terms in (4.5), distinguished by primes, correspond in
name and mnemonic to the terms in (4.3) except for the
pressure-strain term # ' , which is the main destruction term for
shear stress. The dispersive transport term 77/ is usually negli­
gible in practice, just as for Td in (4.3). However, in contrast to
P„, which plays a very important part in (4.3), the wake
production term P'„ in (4.5) is also usually negligible.
Figure 9b shows direct measurements of the terms P's and
77 in the shear stress budget (Raupach et al 1986). As for the
turbulent kinetic energy budget, shear production (P't) peaks
strongly near z = //, while turbulent transport (77) is a loss
near z = h and a gain lower down (noting that, because Tiw
is negative whereas q2/2 is positive, gain terms are on the
right of Fig 9a but the left of Fig 9b). The role of transport
in the shear stress budget is relatively much smaller than in
the turbulent kinetic energy budget, because the trans-
port term ratio | T',/T, | is of order | (uw2)/(wq2/2) |,
which is only about 0.2 in the canopy, whereas the two pro­
duction terms are comparable since \P'S/PS\ = | (w2)/(Uw) |
~ 1.5 near z = /;.
The main features of Figs 9a and 9b are confirmed by a
growing number of measurements from both wind-tunnel
models and field canopies. However, the discussion has been
restricted to vegetationlike roughness, for observational reasons
already outlined. The conceptual framework of (4.3), (4.4), and
(4.5) is valid for any roughness type, but the quantitative
behavior of the budgets is another matter; although the
main features of Fig 9 probably carry over at least to three-
dimensional roughness such as sandgrain roughness, separate
investigation is required for two-dimensional bar roughness,
either widely-spaced ("k-type") or narrow-cavity ("d-type").
5. O R G A N I Z E D M O T I O N IN R O U G H - W A L L
B O U N D A R Y L A Y E R S
It is now generally recognized that turbulent flows univer­
sally exhibit various forms of organized motion, sometimes
A traditional but useful starting point for an examination of
organized motion is the two-point, time-delayed velocity cor­
relation function
///(A, v, z, T zK) = — — — , (5.1)
luf(z)u2(z,t)}"2
where zR is the height of a reference sensor at (A, y) = (0, 0).
The correlation function depends explicitly on both the heights
z and Z/ 0, contour interval = 0.1; ( ) /•],» _
— • - _ „
T>ih/h
FIG 11. Vertically separated space-time correlations r„(0, 0, r,
T; ZR) in and above the "WT wheat" canopy (see Table 3), from
Raupach et al (1989), with zR = 2h.
with sonic anemometers offer an unambiguous resolution of
all three velocity components which is not achievable in labo­
ratory roughness sublayers, whereas laboratory measurements
(Fig 11) offer higher measurement density and reproducibility
than the field.
A striking feature of Figs 11 and 12 is the difference in the
correlation functions for it, u, w, and 0 . For u and 0 , and to a
lesser extent for u, the maximum correlation occurs at a time
delay r which increases as the height separation increases,
consistent with Fig 10 and the Brown and Thomas (1977)
result. It follows that the motions dominating the it, u, and 0
correlations are inclined structures leaning with the shear. For
vv, however, the maximum correlation occurs with zero time
delay, so that organized fluctuations in w are aligned vertically,
both within and above the roughness. The region of strong w
correlation is also more localized than for u, u, or 0 . As with
other features of rih these results agree well with smooth-wall
data: Antonia et al (1988) found that the maximum w corre­
lation over a smooth wall occurs at T = 0 for a wide range of
both zR and z, again implying a vertical alignment of organized
w fluctuations.
In summary, two-point correlation functions confirm wall
similarity above the roughness sublayer, and yield eddy length
scales, orientations, and convection velocities both above and
within the roughness sublayer. However, they are only weak
d. 8
A.
i
^2 + >4. (5.2)
Nakagawa and Nezu (1977), using an open-channel water flow
over glass-bead roughness, made several significant findings:
(1) Sweep events are more important than ejection events for
momentum transfer close to a rough wall, with the sweep-to-
ejection ratio(with / + j = 3) are the normalized
third moments or skewnesses. The constants in (5.3) are
experimental, derived from measurements throughout the
smooth-wall and rough-wall flows including the region within
the roughness, but very similar values emerge from the
cumulant-discard theory. Later unpublished measurements by
one of us (RAA) have confirmed that (5.3) also applies in a
smooth-wall boundary layer, but only if the Reynolds number
is sufficiently large.1 For vegetation, the early work of Finnigan
(1979a) (with a small data set) was followed by Shaw et al
(1983), who applied quadrant analysis to turbulence data from
a corn canopy, finding ((iiw))4/((uw))2 values of about 2
near z = /; and higher within the canopy, thus confirming that
sweeps dominate the momentum transfer close to and within
field canopies.
One dramatic visualization of the spatial structure of sweeps
in a rough-wall boundary layer is the phenomenon of
"honami," or traveling wind waves in cereal (wheat, barley,
rice, grass) canopies. For one engaged in research on boundary-
layer turbulence, watching these waves is time well spent. The
phenomenon of honami was named and first studied by Inoue
(1955), and has since been investigated in detail by Finnigan
(1979a, b). He found that the waves are initiated by gust fronts,
or sweeps, moving across the canopy at convection speeds
substantially greater than the local mean wind speed. Each gust,
as it advances, bends over a patch of stalks which undergoes
damped oscillation (typically for about two cycles) after the
gust has passed, thus creating the impression of a wave moving
through the canopy. By studying motion pictures of waving
canopies and by analyzing short-time, vertically separated,
space-time correlations, Finnigan found that the streamwise
separation between gusts was about 5/;-8/z, close to the value
8/; inferred by several spectral and correlation methods for the
typical streamwise separation between quasicoherent eddies
(Raupach et al 1989).
(c) Ramp-jump structures in signals: Chen and Blackwelder
(1978) observed correlated ramp-jump (sawtooth) patterns in
temperature signals throughout a smooth-wall boundary layer,
which they suggested to be a direct link between the wall region
and the outer layer. This suggestion should be equally true in
a rough-wall boundary layer. Indeed, such patterns were first
observed in the (definitely rough-wall) atmospheric surface
layer by Taylor (1958) and Priestley (1959), though the tem­
perature structure in many of these early observations was
largely determined by free convection rather than thermally
near-neutral shear turbulence. Nevertheless, for moderately
unstable conditions in the atmosphere, Antonia et al (1979)
concluded that the observed similarity between laboratory and
atmospheric ramp-jump temperature structures should be in­
terpreted as the signature of an organized large-scale shear-
driven motion, rather than as a consequence of the buoyancy
field (which, of course, also produces large-scale organized
motion). Wyngard (1988) reinforced the dominance of shear
turbulence close to the surface, even in strongly unstable
atmospheric boundary layers.
Many subsequent observations have confirmed that ramp-
jump structures are universally observed in both rough-wall
and smooth-wall boundary layers, in both the atmosphere (over
land and sea) and the laboratory, and also for velocity com­
ponents as well as temperature (for example, Antonia and
Chambers 1978, Antonia et al 1979, Phong-Anant et al 1980,
Antonia et al 1982). The velocity and temperature signals
yielding the two-point correlation functions in Figs 10-12 all
' This raises a significant point in the context of using laboratory data to
explore new ideas or theories about boundary-layer turbuience: asymptotic sim­
ilarity appears to be reached at moderate Reynolds numbers over a rough wail
by comparison with a smooth wall. The pipe-flow measurements of Perry and
Abell (1977) support this.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
20 Raupach et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
exhibited these structures, to the extent that they substantially
determine the shape of the correlation functions; Figs 10-12
therefore indicate that the ramp-jump structures extend into
the roughness itself. Further unpublished wind-tunnel meas­
urements by us, over a slightly heated gravel roughness, have
confirmed that temperature ramp-jumps are observed coher­
ently throughout the whole (rough-wall) boundary layer, from
zsmooth
wall (Kovasznay et al 1970) and widely spaced bar roughness
(Antonia 1972). The latter paper showed that the outer-layer
similarity between these two flows is also evident from profiles
of mean velocity and a wide range of velocity moments, further
supporting the wall similarity discussion in section 3.1.
2.5
2.0
1.5
•z i.o
0.5
0.0
^v- i J N - " ~ >budget, especially the role of
turbulent transport) tend to be more reminiscent of a mixing
layer than a boundary layer.
This proposed mechanism is fairly easy to visualize for
vegetation and similar roughness where the element (leaf)
length scales are small compared with h and horizontal
heterogeneity is relatively unimportant. For laboratory three-
dimensional and two-dimensional roughness with element di­
mensions comparable with /;, individual roughness elements
can generate strong wakes (for example, streamwise vortices in
the case of discrete three-dimensional roughness elements)
which may play a role in the transfer process. However, there
is almost always a strong vertical shear just above the elements,
so the effects of individual element wakes may well be consid­
ered as superposed upon some more general process such as
that just described.
6. CONCLUSIONS
We have attempted to place within a single framework two
bodies of research which have hitherto been largely separate:
laboratory and theoretical work on rough-wall turbulent bound­
ary layers, and micrometeorological studies in the atmospheric
surface layer. By combining insights from both fields, a fairly
complete picture of the rough-wall turbulent boundary layer
emerges. The hypothesis of wall similarity, that rough-wall and
smooth-wall boundary layers at sufficiently high Reynolds
numbers are structurally similar outside the roughness (or
viscous) sublayer, is well supported by many kinds of observa­
tion. The flow in the roughness sublayer is more difficult to
measure than that in the overlying boundary layer, not only
because of spatial heterogeneity but also because of high tur­
bulence intensities, which introduce unacceptable errors with
many laboratory velocity sensors, including X-wire probes.
However, careful measurement techniques in the laboratory,
using flying X-wire probes or coplanar triple-wire probes, have
eliminated some of these difficulties. For field vegetation, three-
dimensional sonic anemometers provide an unambiguous
measure of all three velocity components superior to anything
obtainable with current laboratory sensors. Together, these
techniques have facilitated the exploration of the main prop­
erties of the roughness sublayer, including its spatial heteroge­
neity, its turbulence structure in terms of velocity moments
and second-moment budgets, and the organized motion within
it. To a surprising extent, these properties are common across
a wide variety of roughness types.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
22 Raupaoh et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
An important fundamental role for the study of rough-wall
boundary layers is in tackling the general problem of boundary-
layer turbulence and its dominant forms of organized motion.
It is clear that conditions at the wall can be drastically altered
by roughness without changing the main boundary-layer
structure (outside the roughness or viscous sublayer) in any
fundamental way. This provides a strong clue about the self-
organizing properties of boundary-layer turbulence, which,
when properly understood, will offer much to the study of
turbulence in general.
A P P E N D I X : S P A T I A L AVERAGING
O F T H E F L O W E Q U A T I O N S
Steady flow about a rough surface is characterized by several
processes which are strongly spatially heterogeneous (even after
time-averaging) over roughness-element length scales. The most
important are (1) drag, (2) scalar transfer, (3) wake turbulence
production and decay, and (4) deviation of mean streamlines
from unidirectional, leading to "dispersive fluxes" (section 4.3).
In contrast, most applications are concerned only with spatially
averaged properties of the roughness. To link these two levels
of description, it is necessary to spatially average the flow
equations: As well as applying a time-averaging operator to the
Navier-Stokes equations to obtain the conventional turbulence
(Reynolds) equations, a second, spatial-averaging operation is
applied to obtain equations containing terms which represent
explicitly the critical processes dependent on heterogeneity.
Spatial averaging in this way was first introduced as a horizontal
plane average, for flow in vegetation canopies, by Wilson and
Shaw (1977) and Raupach and Shaw (1982); later, Finnigan
(1985) and Raupach et al (1986) discussed the more general
volume average, of which the horizontal plane average is a
special case when the averaging volume is a thin horizontal
slab.
The volume average of a scalar (or vector component) 4>,
denoted by angle brackets, is
W(A', /) =
J Jv J
4>(x + r, t) dr, (Al)
where the averaging volume V excludes the solid roughness
elements. The decomposition of ) + " (A2)
with (") = 0. The volume average operator does not commute
with spatial differentiation, or with temporal averaging if the
rough surface is moving relative to the fixed coordinate frame,
as in the case of a waving plant canopy. Instead, it can be
shown that (Finnigan 1985, Raupach et al 1986):
ax,
d4>
dl
d()
rlV,
aw
dl
(prii dS
V
U
(A3)
dS
where So is the outer or free part of the bounding surface S of
V; Si is the part of S coinciding with the rough surface (so that
S = So + Si); Hi is the unit normal vector pointing away from
5 into V; and i>, is the velocity of S. For static laboratory or
field roughness v, = 0, but u, is nonzero over £", for waving
vegetation canopies (Finnigan 1979a, b, 1985).
The volume-averaging operator (Al) can be applied to the
time-averaged mass and momentum conservation equations.
In tensor notation, with A, = (x, y, z), Ui = (U, V, W), and
it, = (u, v, w) and the summation convention effective,
the corresponding volume-averaged equations are
d{U.)
dx,
= 0, (A4)
dl
+for (77vT') (see section 4.4).
REFERENCES
Acharya M and Escudier M (1987), Turbulent flow over mesh roughness, in
Turbulent shear /lows 5, Durst F, Launder B E, Lumley J L, Schmidt F W.
and Whitclaw J H. Eds, Springer, Berlin, pp 176-185.
Allen L M (1968). Turbulence and wind speed spectra within a Japanese Larch
plantation. J Appl Meleoral 7, 73-78.
Andreopoulos J and Bradshaw P (1981), Measurements of turbulence structure
in the boundary layer on a rough surface. Boundary-Lover Meleorol 20,
201-213.
Antonia R A (1969). PhD thesis. University of Sydney.
Antonia R A (1972), Conditionally sampled measurements near the outer edge
of a turbulent boundary layer. J Fluid Mech 56, 1-18.
Antonia R A, (1977). Similarity of atmospheric Reynolds shear stress and heat
flux fluctuations over a rough surface, Boundary-Layer Meleorol 12, 351-364.
Antonia R A and Chambers A J (1978), Note on the temperature ramp structure
in the marine surface layer. Boundary-Layer Meteorol 15, 347-355.
Antonia R A and Lu.xton R E (1971a). The response of a turbulent boundary
laver to an upstanding step change in surface roughness. Trans ASME J Basic
Kng 93, 22-34.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
Appl Mech Rev vol 44, no 1, January 1991
Antonia R A and Luxton R E (197 lb). The response of a turbulent boundary
laver to a step change in surface roughness. Part I. Smooth to rough. J Fluid
Mech 48, 721-761.
Antonia R A and Luxton R E (1972), The response of a turbulent boundary
laver to a step change in surface roughness. Part 2. Rough to smooth. J Fluid
Mech 53, 736-757.
Antonia R A, Chambers A J, Friehe C A and Van Atta, C W (1979). Temperature
ramps in the atmospheric surface layer. J Atmos Sci 36, 1979, 99-108.
Antonia R A. Chambers A J, and Bradley E F (1982), Relationships between
structure functions and temperature ramps in the atmospheric surface layer.
Boundary-Layer Meteorol 23, 395-403.
Antonia R A. Browne L W B, and Bisset D K(1988), Effects of Reynolds number
on the organized motion in a turbulent boundary layer. Proe Zaric Memorial
International Seminar on Wall Turbulence, Dubrovnik, 16-20 May.
Bandyopadhyay P R (1987), Rough-wall turbulent boundary layers in the tran­
sition regime. .1 Fluid Mech 180, 231-266.
Bandyopadhyay P R and Watson R D (1988). Structure of rough-wall turbulent
boundary layers, Phys Fluids 31, 1877-1883.
Bayly B J, Orszag S A. and Herbert T (1988). Instability mechanisms in shear-
flow transition. Ann Rev Fluid Mech 20, 359-391.
Bessem J M and Stevens L J (1984), Cross-correlation measurements in a
turbulent boundary layer above a rough wall. Phys Fluids 27, 2365-2366.
Bcltermann D (1966), Contribution a I'ctude de la convection forcee turbulente
le long de plaques rugeuses, Int J Heat Mass Transfer 9, 153-164.
Bradshaw P (1967a), The turbulence structure of equilibrium boundary layers,
J Fluid Mech 29, 625-645.
Bradshaw P (1967b). Inactive motion and pressure fluctuations in turbulent
boundary layers,./ Fluid Mech 30, 241-258.
Brodkey R S, Wallace J M, and Eckelmann H (1974), Some properties of
truncated turbulence signals in bounded shear flows, J Fluid Mech 63,
209-224.
Brown G L and Thomas A S W (1977). Large structure in a turbulent boundary
layer, Phys Fluids 20, S243-S252.
Cantwell B G (1981), Organized motion in turbulent floyv, Ann Rev Fluid Mech
13,457-515.
Cebeci T and Smith A M O (1974). Analysis of turbulent boundary layers,
Academic, New York.
Cellier P (1984), Tentative de correction des relations flux-gradient au voisinage
de surfaces tres rugeuses, J Rech Almos 18, 253-262.
Cellier P (1986), On the validity of flux-gradient relationships above very rough
surfaces, Boundary-Layer Meteorol 36, 417-419.
Chen C-H P and Blackwelder R F (1978), Large-scale motion in a turbulent
boundary layer: a study using temperature contamination. J Fluid Mech 89,
1-31.
Chen F and Schwerdtfeger P (1989), Flux-gradient relationships for momentum
and heat over a rough natural surface. Quart J Rov Meteorol Soc 115,
335-352.
Colebrook C F and White C M (1937), Experiments with fluid motion in
roughened pipes, Pwc Roy Soc Lond A 161, 367-381.
Coppin P A and Taylor K J (1983), A three-component sonic anemometer-
thermometer system for general micrometeorological research, Boundary-
Layer Meteorol 27, 27-42.
Corrsin S and Kistler A L (1955). Free stream boundaries of turbulent shear
flows, Avl CA Rep 1244.
de Bruin H A R and Moore C J (1985), Zero-plane displacement and roughness
length for tall vegetation, derived from a simple mass conservation hypothesis,
Boundary-Layer Meteorol 31, 39-49.
DeardorfTJ W (1978). Closure of second- and third-moment rate equations for
diffusion in homogeneous turbulence. Phys Fluids 21, 525-530.
Denmead O T and Bradley E F (1985), Flux-gradient relationships in a forest
canopy, in The forest-atmosphere interaction, Hutchison B A and Hicks B B,
Eds, Reidel. Dordrecht, pp 421-442.
Denmead O T and Bradlev E F (1987), On scalar transport in plant canopies.
IrrigSciS, 131-149.
Dvorak F A (1969), Calculation of turbulent boundary layers on rough surfaces
in pressure gradient, AIAA J 7, 1752-1759.
Falco R E (1977). Coherent motion in the outer region of turbulent boundary
layers, Phys Fluids 20, S124-SI32.
Fiedler H (1987), Coherent structures, in Advances in turbulence. Comte-Bellot
G and Mathieu J, Eds, Springer. New York, pp 320-336.
Finnigan J J (1979a), Turbulence in waving wheat. I. Mean statistics and honami,
Boundary-Layer Meteorol 16, 181-211.
Finnigan J J (1979b), Turbulence in waving wheat. II. Structure of momentum
transfer, Boundary-Layer Meteorol 16, 213-236.
Finnigan J J (1985), Turbulent transport in flexible plant canopies, in The forest-
atmosphere interaction, Hutchison B A and Hicks B B, Eds, Reidel, Dordrecht,
pp 443-480.
Furuya Y, Miyata M, and Fujita H (1976), Turbulent boundary layer and flow
resistance on plates roughened by wires,./ Fluid Fng 98, 635-644.
Gao W, Shaw R H. and Paw U K T (1989), Observation of organized structure
in turbulent flow within and above a forest canopy, Boundary-Laver Meteorol
47, 349-377.
Garratt J R (1977). Aerodynamic roughness and mean monthly surface stress
over Australia, Div Atmos Phys Tech Pap 29, CSIRO, Australia.
Garratt J R (1978). Flux profile relations above tall vegetation, Quart J Rov
Meteorol Soc 104, 199-212.
Garratt J R (1980). Surface influence upon vertical profiles in the atmospheric
near surface layer. Quart J Roy Meteorol Soc 106, 803-819.
Raupach et al: Rough-wall turbulent boundary layers 23
Grass A J (1971), Structural features of turbulent How over smooth and rough
boundaries,./ Fluid Mech 50, 233-255.
Grass A J (1983). The influence of boundary-layer turbulence on the mechanics
of sediment transport, in Euromech 156: Mechanics of sediment transport,
Mutlu Sumer B and Muller A, Eds. Istanbul, 12-14 July 1982, Balkema,
Rotterdam, pp. 3-17.
Hama F R (1954), Boundary-layer characteristics for smooth and rough surfaces,
Trans Soc Naval Archil Marine Fng 62, 333-358.
Hama F R (1963), Progressive deformation of a perturbed line vortex filament,
Phys Fluids 6, 526-534.
Head M R and Bandyopadhyay P R (1981). New aspects of turbulent boundary-
layer structure,./ Fluid Mech 107, 297-338.
Hussain A K M F (1986), Coherent structures and turbulence../ Fluid Mech 173,
303-356.
Inoue E (1955). Studies of the phenomena of waving plants ("Honami") caused
by wind. Part I. Mechanism and characteristics of waving plants phenomena,
J Agric Mel Japan I I , 18-22.
Jackson P S (1981), On the displacement height in the logarithmic velocity
profile,./ Fluid Mech 111, 15-25.
Jarvis P G, James G B, and Landsberg J J (1976), Coniferous forest, in Vegetation
and the atmosphere, Vol 2, Montcith J L, Ed, Academic, London, pp 171-
240.
Kader B A (1977),Hydraulic resistance of surfaces covered by two-dimensional
roughness at high Reynolds numbers. Tear Osn Khim Tekhnol 11, 393-404.
Kageyama Y, Osaka H, and Nishino T (1982), Turbulence quantities of a
turbulent boundary layer over a d-type rough surface, Mem Fac Fng Yama-
guchi Univ 33, 17-24.
Kaimal J C (1973), Turbulence spectra, length scales and structure parameters
in the stable surface layer, Boundary-Layer Meteorol A, 289-309.
Kaimal J C, Wyngaard J C, Izunii Y, and Cote O R (1972), Spectral characteristics
of surface-layer turbulence. Quart .1 Roy Meteorol Soc 98, 563-589.
Kawall J G, Shokr M, and Keffer J F (1983), A digital technique for the
simultaneous measurement of streamwise and lateral velocities in turbulent
flows, J Fluid Mech 133, 83-112.
Kim H T, Kline S J, and Reynolds W C (1971), The production of turbulence
near a smooth wall in a turbulent boundary layer, J Fluid Mech 50, 133-160.
Kline S J (1978), The role of visualization in the study of the structure of the
turbulent boundary layer, Pwc Lehigh Workshop on Coherent Structure in the
Turbulent Boundary Layer, Smith C R and Abbott D E, Eds, pp 1-26.
Kline S J and Robinson S K (1990), Quasi-coherent structures in the turbulent
boundary layer. Part I: status report on a community-wide summary of the
data, in Near wall turbulence, Kline S J and Afgan N H, Eds, Hemisphere,
New York, pp 200-217.
Kline S J, Reynolds W C. Schraub F A. and Rundstadler P W (1967), The
structure of turbulent boundary layers,./ Fluid Mech 30, 741-773.
Koloseus H J and Davidian J (1966). Free-surface instability correlations, and
roughness-concentration effects on flow over hydrodvnamicallv-rough surfaces,
USGS Water Supply Paper 1592 C.
Kovasznav L S G (1970), The turbulent boundary laver, Ann Rev Fluid Mech 2,
95-112.
Kovasznav L S G, Kibens V. and Blackwelder R F (1970), Large scale motion in
the intermittent region of a turbulent boundary layer, J Fluid Mech 41, 283.
Kutzbach J E (1961), Investigations of the modification of yvind profiles by
artificially controlled surface roughness, in Studies of the three-dimensional
structure of the planetary boundary layer, Dept Meteorol Ann Rep, University
of Wisconsin. Madison, pp 71-113.
Legg B J, Coppin P A, and Raupach M R (1984), A three-hot-wire anemometer
for measuring two velocity' components in high-intensity turbulent boundary
layers,./ Phys F 17, 970-9'76.
Lettau H (1969). Note on aerodynamic roughness-parameter estimation on the
basis of roughness-element description../ Appl Meteorol 8, 828-832.
Li J D and Perry A E (1989), Shear-stress profiles in zero-pressure-gradient
turbulent boundary layers. Proe Tenth Australasian Fluid Mech Conf Mel­
bourne, pp 7.9-7.12.
Ligrani P M, and MotTat R J (1986), Structure of transitionally rough and fully
rough turbulent boundary layers, J Fluid Mech 162, 69-98.
Liu C K. Kline S J, and Johnston J (1966), An experimental study of turbulent
boundary layers on rough walls. Report MD-15, Department of Mechanical
Engineering, Stanford University.
Lu S S and Willmarth W W (1973), Measurements of the structure of the
Reynolds stress in a turbulent boundary layer, J Fluid Mech 60, 481 -571.
Maitani T (1979), A comparison of turbulence statistics in the surface layer over
plant canopies with those over several other surfaces, Boundarv-Laver Meteorol
17, 213-222.
Maitani T and Seo T (1985), Estimates of velocity-pressure and velocity-pressure-
gradient interactions in the surface layer over plant canopies, Boundarv-Laver
Meteorol 33, 51-60.
Marshall J K (1971), Drag measurements in roughness arrays of varying density
and distribution, Auric Meteorol 8, 269-292.
Meroney R N (1968). Characteristics of wind and turbulence in and above model
forests,./ Appl Meteorol 7, 780-788.
Meroney R N (1970). Wind tunnel studies of the air flow and gaseous plume
diffusion in the leading edge and downstream regions of a model forest, Almos
Environ 4, 597-614. .
Millikan C B (1938), A critical discussion of turbulent flows in channels and
circular pipes. Proe 5th Int Cong Appl Mech. Cambridge MA, Wiley. New-
York, pp 386-392.
Moin P and Kim J (1985), The structure of the vorticity field in turbulent channel
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
24 Raupach et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
flow. Part I. Analysis of instantaneous fields and statistical correlations,./ Fluid
Mech 155,441-464.
Moin P and Spalart P R (1987), Contributions of numerical simulation data
bases to the physics, modeling and measurement of turbulence, NASA TM
100022.
Molion L C B and Moore C J (1983), Estimating the zero-plane displacement for
tall vegetation using a mass conservation method. Boundary-Layer Meteorol
26, 115-125.
Monin A S and Yaglom A M (1971), Statistical fluid mechanics, MIT Press,
Cambridge MA (Eng trans: Lumley J L, Ed), vol 1, 769 pp.
Moore W L (1951), An experimental investigation of boundary-layer develop­
ment along a rough surface, PhD thesis, Iowa State University.
Mulhearn P J (1978), Turbulent flow over a periodic rough surface, Phvs Fluids
21, 1113-1115.
Mulhearn P J and Finnigan J J (1978). Turbulent How over a very rough random
surface, Boundary-Layer Meteorol 15, 109-132.
Nakagawa H and Nezu I (1977), Prediction of the contributions to the Reynolds
stress from bursting events in open-channel flows, J Fluid Mech 80, 99-128.
Nikuradse J (1933), Stromungsgcsetzc in rauhen Rohren, Forschungshefte, 361,
VDI; NACA Tech Mem 1292.
O'Loughlin E M (1965), Resistance to How over boundaries with small roughness
concentrations, PhD thesis. University of Iowa.
O'Loughlin E M and Annambhotla V S S (1969), Flow phenomena near rough
boundaries,./ Hydrant Res 7, 231 -250.
Osaka II and Mochizuki S (1987), Streamwise vortical structure associated with
the bursting phenomenon in the turbulent boundary layer over a d-type rough
surface at low Reynolds number. Tram Japan Soc Mech Fjig 53, 371-379.
Osaka H, Nishino T, Oyama S, and Kageyama Y (1982), Self-preservation for a
turbulent boundary layer over a d-type rough surface, Mem Fac Fng Yama-
gitchi Univ 33, 9-16.
Osaka H, Kageyama Y, and Oyama S (1984), Statistical characteristics of a
turbulent boundary layer over a d-tvpe rough surface, Trans Japan Soc Mech
Fng 50, 2571-2578.
Panofsky H A and Dutton J A (1984), Atmospheric turbulence: models and
methods for engineering applications, Wiley, New York, 397 pp.
Perry A E and Abell C J (1977), Asymptotic similarity of turbulence structures
in smooth- and rough-walled pipes, J Fluid Mech 79, 785-799.
Perrv A E and Chong M S (1982). On the mechanism of wall turbulence, J Fluid
Mech 119, 173-218.
Perry A E and Joubert P N (1963), Rough wall boundary layers in adverse
pressure gradients,./ Fluid Mech 17, 193-211.
Perrv A E. Schofield W H, and Joubert P N (1969), Rough-wall turbulent
boundary layers,./ Fluid Mech 37, 383-413.
Perry A E, Henbest S, and Chong M S (1986), A theoretical and experimental
study of wall turbulence,./ Fluid Mech 165, 163-199.
Perry A E, Lim K L, and Henbest S M (1987), An experimental study of
turbulence structure in smooth- and rough-wall turbulent boundary layers.
J Fluid Mech 177, 437-466.
Perry A E, Li J D, Henbest S M, and Marusic I (1988), The attached eddy
hypothesis in wall turbulence, Proc Zaric Memorial International Seminar on
Wall Turbulence, Dubrovnik, 16-20 May.
Phong-Anant D, Antonia R A, Chambers A J, and Rajagopalan S (1980), Features
of the organized motion in the atmospheric surface layer,,/ Geophvs Res 85,
424-432.
Pierrehumbert R T, and Widnall S E (1982), The two- and three-dimensional
instabilities of a spatially periodic shear layer,./ Fluid Mech 112, 467-474.
Pond S J, Smith S D, Hamblin P F, and Burling R W (1966), Spectra of velocity
and temperature fluctuationsin the atmospheric boundary layer over the sea,
JAtmosSci 23, 376-386.
Prandtl L and Schlichting H (1934). Das Wiederstandagesetz rouher Platten,
Weill Reederer Hafen 15, 1-4.
Priestley C H B (1959), Turbulent transfer in the lower atmosphere, University of
Chicago Press, Chicago, 130 pp.
Raupach M R (1979), Anomalies in flux-gradient relationships over forest,
Boundary-Layer Meteorol 16, 467-486.
Raupach M R (1981), Conditional statistics of Reynolds stress in rough-wall and
smooth-wall turbulent boundary layers,,/ Fluid Mech 108, 363-382.
Raupach M R (1987), A Lagrangian analysis of scalar transfer in vegetation
canopies, Quart J Roy Meteorol Soc 113, 107-120.
Raupach M R (1988), Canopy transport processes, in Flow and transport in the
natural environment: advances and applications, Steffen W L and Denmead
O T. Eds, Springer, Berlin, pp 95-127.
Raupach M R (1989a). Stand overstorev processes, Phil Trans Rov Soc Loud B
324, 175-190.
Raupach M R (1989b), A practical Lagrangian method for relating scalar con­
centrations to source distributions in vegetation canopies, Quart J Rov Meteorol
Soc 115, 609-632.
Raupach M R and Shaw R H (1982), Averaging procedures for flow within
vegetation canopies. Boundary-Layer Meteorol 22, 79-90.
Raupach M R. Thorn A S, and Edwards I (1980), A wind tunnel study of
turbulent (low close to regularly arrayed rough surfaces, Boundary-Layer
Meteorol 18, 373-397.
Raupach M R, Coppin PA, and Legg BJ (1986), Experiments on scalar dispersion
within a plant canopy. Part I: The turbulence structure, Boundary-Layer
Meteorol 35, 21-52.
Raupach M R, Finnigan J J, and Brunei Y (1989), Coherent eddies in vegeta­
tion canopies. Proc Fourth Australasian Conf on Heat and Mass Transfer,
Christchurch, New Zealand, 9-12 May. pp 75-90.
Robinson S K (1989), A review of vortex structures and associated coherent
motions in turbulent boundary layers, Proc 2nd 1UTAM Symposium on
Structure of Turbulence and Drag Reduction, Zurich.
Robinson S K, Kline S J, and Spalart P R (1989), A review of quasi-coherent
structures in a numerically simulated turbulent boundary layer, NASA TM
102191.
Rotta J C (1962), Turbulent boundary layers in incompressible flow, in Progress
in Aeronautical Science, Feric A, Kucheman D, and Stone L H G, Eds,
Pergamon, vol 2, pp 1-220.
Sadeh W Z, Cermak J E, and Kawatani T (1971), Flow over high roughness
elements, Boundary-Layer Meteorol 1, 321-344.
Savili A M (1987), Recent developments in rapid-distortion theory. Ann Rev
Fluid Mech 19, 531-575.
Schlichting H (1936), Experimentelle Untersuchungen zum Rauhigkeitsproblem,
lug-Arch 7, 1-34: NACA Tech Mem 823.
Schlichting H (1968), Boundary layer theory, 6th ed, McGraw-Hill, New York,
747 pp.
Seginer I (1974), Aerodynamic roughness of vegetated surfaces, Boundary-Layer
Meteorol 5, 383-393.'
Shaw R H (1977), Secondary wind speed maxima inside plant canopies, J Appl
Meteorol 16,514-521.
Shaw R H and Pereira A R (1982), Aerodynamic roughness of a plant canopy: a
numerical experiment, Agric Meteorol 26, 51-65.
Shaw R H, Kidd G, and Thurtell G W (1973), A miniature three-dimensional
anemometer for use within and above plant canopies, Boundary-Layer Mete­
orol 3, 359-380.
Shaw R H, Silversides R H, and Thurtell G W (1974), Some observations of
turbulence and turbulent transport within and above plant canopies, Boundary-
Layer Meteorol 5, 429-449.
Shaw R H, Tavangar J, and Ward D P (1983), Structure of the Reynolds stress
in a canopy layer,,/ Climate Appl Meteorol 22, 1922-1931.
Shaw R H, Paw U, K T, and Gao W (1989), Detection of temperature ramps
and flow structures at a deciduous forest site. Agric L'orest Meteorol 47,
123-138.
Shuttleworth W J (1989), Micrometeorologv of temperate and tropical forest.
Phil Trans Roy Soc Land B 324, 299-334.
Simpson R L (1973), A generalized correlation of roughness density effects on
the turbulent boundary layer, AIAA J 11, 242-244.
Sreenivasan K R (1989), The turbulent boundary layer, in Frontiers in experi­
mental fluid mechanics, Gad-el-Hak M, Ed, Springer, Berlin, pp 159-210.
Stanhill G (1969), A simple instrument for the field measurement of turbulent
diffusion flux, J Appl Meteorol 8, 509.
Stewart J B and Thorn A S (1973), Energv budgets in pine forest, Quart J Roy
Meteorol Soc 99, 154-170.
Tanner C B and Pelton W L (1960), Potential evapotranspiration estimates by
the approximate energy balance method of Penman, J Geophvs Res 65, 3391.
Taylor R J (1958), Thermal structures in the lowest layers of the atmosphere.
AustJ PhysU, 168-176.
Tennekes H and Lumley J L (1972), A first course in turbulence, MIT Press,
Cambridge MA, 300 pp.
Theodorsen T (1952), Mechanism of Turbulence, in Proc 2nd Midwestern Conf
of Fluid Mechanics, Ohio State University.
Thorn A S (1968), The exchange of momentum, mass and heat between an
artificial leaf and airflow in a wind tunnel. Quart J Roy Meteorol Soc 94,
44-55.
Thorn A S (1971), Momentum absorption bv vegetation, Quart J Roy Meteorol
Soc 97, 414-428.
Thorn A S (1975), Momentum, mass and heat exchange of plant communities,
in Vegetation and the atmosphere, Monteith J L, Ed, Academic, London, vol
1, pp 57-109.
Thorn A S, Stewart J B, Oliver H R, and Gash J H C (1975), Comparison of
aerodynamic and energv budget estimates of fluxes over a pine forest. Quart J
Roy Meteorol Soc 101, 93-105.
Townsend A A (1961). Equilibrium layers and wall turbulence, J Fluid Mech 11,
97-120.
Townsend A A (1976), The structure of turbulent shear flow, Cambridge Univer­
sity Press, Cambridge, 429 pp.
Tutu N K and Chevrav R (1975), Cross wire anemometrv in high-intensity
turbulence../ Fluid Mech 71, 785-800.
Uchijima Z and Wright J L (1964), An experimental study of air flow in a corn
plant-air layer, Bull Nat Inst Agric Sci Japan A 11, 19-65.
Wallace J M, Eckelmann H.andBrodkev RS (1972), The wall region in turbulent
flow,,/ Fluid Mech 54, 39-48.
Willmarth W W (1975), Structure of turbulence in boundary layers, Adv Appl
Mech 15, 159-254.
Wilson N R and Shaw R H (1977), A higher-order closure model for canopy
flow, J Appl Meteorol 16, 1198-1205.
Wood D H and Antonia R A (1975), Measurements in a turbulent boundary
layer over a d-type surface roughness, J Appl Mech 42, 591-597.
Wooding R A, Bradley E F, and Marshall J K (1973), Drag due to regular arrays
of roughness elements of varying geometry, Boundary-Layer Meteorol 5,
285-308.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
Appl Mech Rev vol 44, no 1, January 1991 Raupach et al: Rough-wall turbulent boundary layers 25
Wygnanski I and Fiedler H E (1970), The two-dimensional mixing region,
J Fillid Mech 41,327-36 L
Wyngaard J C (1988), Convective processes in the lower atmosphere, in FI(Ilr
IIl1d IIWI.IJ!or! ill the !w/lInl! elll'irollll1C1lt: adrallees alld applicatiolls, Stellen
W Land Denmead 0 T, Eds, Springer, Berlin, pp 240-260,
Michael R Raupach received
his BSc degree/imll the Univer­
sitv o(Adelaide in 1970 and his
PJiD'in 1976 limn the Flinders
Universitv o/South Australia,
where he'lwJrked with PI"!?fessor
Peter Schwerd(/eger, A/ier a
two-year post-doctoral position
in the Department ofMeteoro1­
ogy at the University (~(Edin­
burgh, he joined the CSIRO Di­
vision o(Environmental Me­
chanics in Canberra, Australia,
where he is currently a Principal Research Scientist, Dr
Raupach has held visiting positions at Reading and Cam­
bridge Universities, He has published over 50 scientific papers
on the physics qlturbulent/luid/low and the mechanisms (~l
turbulent tran,~/'er processes, Dr Raupach 's current research
interests inc/ude both experimental and theoretical aspects q(
turbulence: the transfer qlscalars and momentum in the lower
atmosphere, especial/y in the vegetation canopy environment;
evaporation; soil erosion by wind; planetary boundary layer
processes; andjlow in inhomogeneousare used interchangeably to denote the overall
rough surface, assumed to be horizontal on average with flow
above it. The streamwise, lateral and vertical coordinates are
(x, y, z), with the plane z = 0 being the substrate surface upon
which the roughness elements are located (the underlying
ground surface in the case of vegetation). The mean and
fluctuating velocity vectors will be denoted (U, V, W)
and (/(, v, M the fluid density).
Suppose also that the flow is in the state called "moving
equilibrium" by Yaglom (1979), in which /ut together
with the roughness height /; and all additional lengths L, needed
to completely characterize the roughness. Typically, L, includes
at least the roughness element dimensions in the x and y
directions (/v and /,., respectively), and the mean element sepa­
ration distance (D) [defined by D = (A/n)l/2, where /; is the
number of roughness elements in a horizontal area A]. Other
lengths may also be relevant in some circumstances.
Of course, U(z) also depends on z itself. However, care is
necessary in defining the origin of z for a rough surface, since
the roughness itself displaces the entire flow upwards. To ac­
count for this, we define the displaced height Z = z - d, where
c/is the fluid-dynamic height origin or zero-plane displacement,
dependent on both the flow and the roughness. Thorn (1971)
proposed, and Jackson (1981) verified theoretically, that d is
the mean height of momentum absorption by the surface; this
definition of d is adopted here. It follows that d automatically
satisfies the constraints 0 -- ' •
1 1
10 104
FIG 1. The relationship between At////, and the roughness
Reynolds number /;+ = ////,/>'.and hi//y terrain He is
a Fel/mv (}lthe Royal Meteorological Society,
S Rajagopalan obtained his B E
(Mech Eng) ji-om the Univer­
sity ofMadras and his ME
and PhD (Aero Eng) ji-om the
Indian Institute o(Science
(Bangalore), He worked as a
Scientist in the National Aero­
nautical Laboratory (India) and
as a Post-Doctoral Fellow at the
Universities o(Newcastle and
Adelaide. He'was a Lecturer at
the Universitv o( vVol/ongong
be.fiJre movin:f5 /0 the University
(}(Newcastle. His research areas are structure and control (~(
turbulent/lows and instrumentation.
Yaglom A tv! (1977), Comments on wind and temperature nux-prolile relation­
ships, BOlilldan'-Layer Mcteorolll, 89-102,
Yaglom A tv! (1979), Similarity laws I'lr constant-pressure and pressure-gradient
turhulent wall nows, .'11111 ReI' FllIid Mech II, 505-540,
Robert Anthony Antonia re­
ceived his BE (1963), Master o(
Eng Sc (1965) and PhD (1969)
ji-om the Universitv o(Swlnev
'in the Department' q/lv{ecJzaili­
cal Engineering. He was a
CSIRO Post-Doctoral Research
Fellow at ltnperial Col/ege,
Universitv o(London in 1970.
He was {IPP(Jinted to a lecture­
ship at the University olSydney
in 1972. He was appointed to
the Chair qlMechanical Engi­
neering at the University olNewcastle in 1976, His research
interests have included the structure o!'turbulence and the
transport (~(momentum and heat in (i number ()(d([!'erent
shear/lows, including smooth- and rough-wall boundary lay­
ers, He has also taken part injoint cooperative research on the
transport properties ()!'the atmospheric sur/ace layer. He is a
Fel/ow (?!'the Institution (J(Engineers, Australia.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/termsLaboratory data from survey by
Bandyopadhyay (1987): (•) wire screen roughness (Hama 1954);
(•) bar roughness (Moore 1951); (O) bar roughness, D/h = 4.0
(Perry and Joubert 1963); (•) bar roughness, D/h = 3.6 (Perry et al
1969); (O) bar roughness, D/h = 3.8 (Bandyopadhyay 1987);
(x) bar roughness, D/h = 4 (Liu et al 1966); (+) bar roughness,
D/h = 12 (Liu et al 1966); (A) sandgrain roughness (Colebrook and
White 1937); (A) sandgrain roughness (Bandyopadhyay 1987);
( - - ) sandgrain roughness (Prandtl and Schlichting 1934). Atmos­
pheric data from Table 1.
TABLE 1. Data used in Figs 1 and 3°
A
B
C
D
E
F
G
H
I
J
K
L
M
Surface
Trees (Ml)
Trees (M2)
Earlv wheat
Late wheat
Pines
Vinevard: rows
Vinevard: rows
Forest (Bergen)
Forest (Martin)
Forest (Oliver)
Forest (Kondo)
Forest (Kondo)
Forest (Landsbe
WT Strips
WT Wheat
ilong wind
icross wind
"g and Jarvis)
h(m)
9
9
0.4
1.0
13
0.9
0.4
10
22
15.5
4.5
23
11.5
0.060
0.047
A
0.06
0.21
0.10
0.25
2.3
0.04
0.22
2.8
3.1
4.3
0.8
1.7
9.6
0.23
0.47
z0(m)
0.45
0.8
0.015
0.05
0.4
0.023
0.12
0.50
0.66
0.93
0.45
1.15
0.35
0.0087
0.0040
d(m)
7.6
19.8
11.8
3.0
19.1
9.7
0.043
0.035
10"5//+
3.0
3.0
0.13
0.33
4.3
0.30
0.13
3.3
7.3
5.2
1.5
7.7
3.8
0.040
0.031
A/7///,
29.0
30.5
20.5
23.5
28.7
21.6
25.7
29.3
30.0
30.9
29.0
31.4
28.4
20.9
19.0
[/(/;)/;/,
3.8
2.9
3.3
2.9
3.1
3.4
3.3
3.6
"Surfaces A-G from Garratt (1977), and H-M from Jarvis et al (1976); see these papers for primary sources. In calculation of h+ and
AC'///, [using (2.12)], assumed values were //, = 0.5 m s~', v — 0.15 x 10~5 m2 s~', C0 = 5, K = 0.4. For surfaces A-G, A taken as A, in
Garratt (1977); for surfaces H-M, A taken as LAI/2.
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
4 Raupach et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
where 70. At intermediate values of /;+, the flow is
called transitional. In the fully rough state, the data for sand
roughness show that cm = 8.5, giving z0 ~ h/30 from (2.10).
It is also useful to define a Reynolds number based on z0 by
writing (consistent with previous notation) z0+ = z0ujv. (This
is sometimes called the roughness Reynolds number, but we
reserve that term for //+.) From (2.11), the minimum value of
Z(>+ is 0.14, on a smooth wall. The relation between the rough­
ness function AU/u* and the roughness length z0 is most easily
expressed in terms of z0+:
AU
u*
= Co + K 'In z0+ (2.12)
which permits simple conversion between the engineering and
meteorological measures of roughness.
Before leaving the dimensional analysis, it is necessary to
consider the zero-plane displacement d, which is required to
fix the origin of Z in (2.4)-(2.8). From the definition of d as
the mean level of momentum absorption by the (rough) surface,
it follows that d is a fluid-dynamic property of the surface which
obeys dimensional constraints similar to those on z0. Hence,
when 5 » ("/"*, /'. L,), the normalized displacement d/h is a
function only of the surface properties //+ and a,, independent
of/;+ as /;+ -^ oo, like zu/h from (2.9) and (2.10).
2.2. Fully rough flow
At Reynolds numbers large enough for the flow to obey Rey­
nolds number similarity, the problem of determining the mean
velocity profile in the logarithmic region devolves to finding
the functional dependence of z0//z (or AU/u*) and d/h upon
the roughness geometry as specified by a,. The question of
whether there are kinds of roughness which do not achieve a
fully rough state (even at very high Reynolds numbers) is
considered in the next section.
The earliest approach to the problem of characterizing z0/h
or AU/u.t was to define roughness by analogy with particular,
well-studied forms such as the sand roughness of Nikuradse
(1933), for which ev, = 8.5 and z0 ~ h/30. It is still common in
engineering to define roughness in terms of the "equivalent
sandgrain roughness height" hs = 32.6z0 introduced by Schlicht-
ing (1936). In micrometeorology, surveys of early data by
Tanner and Pelton (1960) and Stanhill (1969) gave z0/h = 0.13
(tv. = 5.10) and d/h = 0.64 for field crops and grass canopies,
which have proved to be good rules-of-thumb in many cases
and are still in widespread use. For forests, measurements
reviewed by Jarvis et al (1976) suggested the rather different
typical values z0/h ~ 0.06, d/h ~ 0.8.
The large differences between sandgrain, crop, and forest
values of z0/h and d/h reinforces the need for understanding
the influence of geometry. To do this, it is necessary to identify
and study experimentally the particular aspect ratios a, which
dominate the behavior of the roughness as a momentum ab­
sorber. The main ones studied hitherto are the element aspect
ratios ax = lx/h, Xmax (Wooding et al 1973). However, the
function [z«//i](X) and the location of Xmas depend on the type
of roughness, indicating that other aspect ratios besides X are
required for a complete specification.
At low roughnessdensities (X
(b)
FIG 2. Normalized roughness length z0/h as a function
of roughness density X. (a) For three-dimensional rough surfaces
with elements of several shapes: cylinders (with realistic values of
the zero-plane displacement d and also with the assumption d = 0)
(Raupach et al 1980); cubes (O'Loughlin 1965, Koloseus and
Davidian 1966); and spheres (Koloseus and Davidian 1966).
The solid line is the approximate best fit to cube data, (b) For two-
dimensional rough surfaces: the heavy solid line, square bar data
from Koloseus and Davidian (1966); light dashed line, prediction
(2.13) (Dvorak 1969); light solid lines, prediction (2.14) (Kader
1977).
eluded from data on flow over bushel baskets on a frozen lake
(Kutzbach 1961) that z0/h = 0.5X; however, he imposed no
restriction analogous to X
0.2, permanent separated vortices occupy the entire cavity
between adjacent square bars, whereas for Xbut // — d (which they called the error-in-origin).
This leads to a revised version of (2.10) in which h is replaced
by /; — d, so that (as h+ —* oo)
z0/(h-d) = D,,
AC/V = D2 + K~ 'ln(/; - d)+,
(2.15)
where A and D2 are constants related by A = exp[K(£>2 -
Co)], and dependent on the nature of the roughness elements.
Perry et al verified experimentally that (2.15) does indeed
S3 0 0 8 -
(a)
0.25
09
0 6
05 5
0 4
0 3
0.5
1
-
1
1 1 1
Zm"/h / / / '
^ / ^ / ^ / / 0 3 /
^^^-^S^>-Ox'0'2
. . 1 .. 1 1 ...
1 1 ^
—
1 1
(b)
FIG 4. Predictions from a second-order closure model (Shaw and Pereira 1982) of (a) normalized roughness length z0/h and (b) zero-
plane displacement d/h, for field vegetation. Upper abscissa is plant area index (PAI), related to roughness density A by A = PAI/2 if leaf and
stem orientations are isotropic. Plant area assumed to have a triangular distribution with height, peaking at ?,„»//;; plant element drag
coefficient Cd = 0.2, including influence of turbulence and interelement shelter as in (A9).
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
Appl Mech Rev vol 44, no 1, January 1991 Raupaoh et al: Rough-wall turbulent boundary layers 7
describe "d-type" narrow-cavity bar roughness and is also ap­
plicable to "k-type" sandgrain roughness, with constants Z)2 =
-0.4, D, =0.12. Thorn (1971) independently proposed (2.15)
for vegetation canopies, finding from experiments on a model
crop and a bean canopy that D, = 0.36.
The influence of roughness geometry appears in (2.15) in
two ways, the first being the dependence of D, and D2 upon
the nature of the roughness elements, illustrated by the differ­
ence between the D, values of Thom for vegetation and Perry
et al for laboratory roughness. Second, the normalized displace­
ment d/h is itself a function of the aspect ratios o-, (and also //+,
unless /;+ —» oo). Hence, to determine AU/ut or z0/h for an
arbitrary rough surface using (2.15), one must first determine
d/h, which is equally difficult in practice.
There are also difficulties with the division of roughness into
"k-type" and "d-type" classes. First, the division implies that
AU/u* is determined for each class by a single length scale, but
the evidence reviewed in the previous section shows that this is
never the case; a consideration of other aspect ratios, including
X, 70 (fully
rough). In dynamically smooth flow the surface shear stress is
entirely viscous whereas in fully rough flow the stress is domi­
nated by form drag on the roughness elements. In the transi­
tional range, both mechanisms are significant. The above
Reynolds number values come from studies of sand-grain
roughness by Nikuradse (1933), but different values are ob­
tained for different kinds of roughness as seen in Fig 1. For
instance, /z+(upper) and //+(lower), the upper and lower h+
limits of the transition range, depend on X (Dvorak 1969).
Bandyopadhyay (1987) showed experimentally that
/;+(upper) and /;+(lower) decrease as the aspect ratio ay in­
creases, and that curves of AU/u^ against /;+ for different
surfaces become similar when normalized by //+(upper) and
the value of AU/ut at //+(upper). This was verified by Ligrani
and Moffat (1986). Bandyopadhyay (1987) also correlated
//+(upper) and /;+(lower) with the Reynolds number associated
with the onset of, and development of irregularities in, the
vortex street shed from an isolated roughness element em­
bedded in a laminar boundary layer.
For vegetation, viscous drag can still be important despite
large values of /;+ (Table 1), because the drag-inducing rough­
ness elements have Reynolds numbers Ul/v orders of magni­
tude smaller than h+ (where / is an element dimension such as
a pine needle diameter or a leaf width, and U is the ambient
velocity about the element). For pine needles Ul/v is around
30-200; for wheat leaves, around 500-2000. Thom (1968)
estimated the ratio of form to viscous drag on a typical bean
leaf as 3:1. Thus, viscosity provides significant drag in many
canopies.
3. TURBULENCE ABOVE THE ROUGHNESS
SUBLAYER
Because dimensional arguments establish many properties of
the mean velocity field in a rough-wall boundary layer, it is
worth examining the extent to which dimensional reasoning
also determines properties of the turbulence, especially velocity
variances and turbulence length scales. It turns out that a more
physically based form of dimensional analysis is needed to
understand the turbulence statistics. This section examines
three complementary hypotheses about length and velocity
scales for the turbulence above the roughness (or viscous)
sublayer: the wall-similarity, equilibrium-layer, and attached-
eddy hypotheses. Together, they lead to a set of predictions for
turbulence length scales and velocity variances which are com­
parable with the logarithmic profile law for the mean velocity.
For this analysis, a sufficiently general turbulence statistic for
consideration is the two-point velocity covariance
H,-(Z)!(f;(Z + r) = iilR.AZ, r; 5, h, L„ v/ut), (3.1)
in which the displaced height Z = z - cl and the separation r
are primary arguments, the outer and surface length scales are
secondary arguments, and velocityscaling with u.t is assumed.
However, similar dimensional arguments apply to higher ve­
locity moments as well.
3.1. Wal l similarity
The first hypothesis is one of flow similarity over different
surface types:
Outside the roughness (or viscous) sublayer, the turbulent
motions in a boundary layer at high Reynolds number are
independent of the wall roughness and the viscosity, except
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
8 Raupach et al: Rough-wall turbulent boundary layers Appl Mech Rev vol 44, no 1, January 1991
for the role of the wall in setting the velocity scale u^, the
height Z = z — d and the boundary-layer thickness S.
This "wall similarity" hypothesis (our label) is an extension of
the usual postulate of Reynolds number similarity, which
Townsend (1976, p 53) expresses thus: "while geometrically
similar flows are expected to be dynamically similar if their
Reynolds numbers are the same, their structures are also very
nearly similar for all Reynolds numbers which are large enough
to allow (fully) turbulent flow." Provided that the Reynolds
number is sufficiently high, Reynolds number similarity implies
that, outside the viscous sublayer, the viscous length scale v/u:f
has no influence in (3.1); the wall similarity hypothesis makes
the further claim that, outside the roughness sublayer, the
roughness length scales h and L, are also irrelevant. It appears
that Perry and Abell (1977) were the first to advance this
hypothesis in essentially the form stated above; they called it
the "Townsend hypothesis," since it is implicit in the similarity
arguments of Townsend (1961, 1976). They supported the
hypothesis with an analysis of scaling laws for velocity spectra
in several overlapping spectral ranges, an idea extended later
by Perry et al (1986, 1987) (see section 3.2).
For the velocity covariance, the wall similarity hypothesis is
Ui(Z)iij(Z + r) = ulRij(Z, r; 5) (3.2)
for large Reynolds numbers and for both Z and Z + r above
the roughness sublayer. An a priori motivation for the hypoth­
esis (not a derivation) is that (3.2) is a dimensional statement
analogous to the outer-layer law (2.1) for the mean velocity
U(Z). The foregoing discussion of the mean velocity profile
shows that both dU/dZ and U(Z) itself, apart from a height-
independent but roughness-dependent translational velocity,
are independent of surface length scales (h, Lh v/u^) in the
outer layer, including the overlap region with the inner layer.
Therefore, wall similarity holds for relative mean motion at all
heights above the roughness sublayer. Since the turbulence
maintains and is maintained by the mean velocity profile, it is
unlikely that surface length scales which are irrelevant for the
mean velocity profile are important for the dominant turbulent
motions.
There is strong experimental support for the wall similarity
hypothesis, of at least three kinds. Two of these (stress-to-shear
relationships and measurements of single-point velocity mo­
ments) are reviewed now, while a third (two-point velocity
covariance measurements) is considered in section 5.1.
Stress-to-shear relationships: Strong, though indirect, evidence
that the turbulence structure is essentially independent of the
nature of the wall is provided by the universal value of the von
Karman constant K (the ratio of the turbulent velocity scale u^
to the normalized mean shear ZdU/dZ in the inertial sublayer).
It is found that K is independent of wall roughness to within
experimental accuracy in both the laboratory and in the at­
mospheric boundary layer [see Yaglom (1977) for a review of
atmospheric measurements]. Townsend (1976) pointed out the
support that this fact provides for Reynolds number similarity,
since the data span a Reynolds number range from 104 to 108.
The support for wall similarity is equally striking, since the data
also span surface types from smooth walls to natural vegetation.
Single-point measurements of velocity moments: A conse­
quence of (3.2) is that, provided that the Reynolds number is
sufficiently large, vertical profiles of single-point velocity mo­
ments («2, v2, vt'2, TTvT', and higher moments) should collapse to
common curves independent of wall roughness, when normal­
ized with ut and
(Fig 5a) and the standard deviationsAppl Mech Rev vol 44, no 1, January 1991 Raupaoh et al: Rough-wall turbulent boundary layers 9
a v / U *
z -d
6
1-2
1-0
0-8
0-6
0 4
0-2
o A
O
 O

ED

" E
• F
- ^
• s ^ * ,
fv.
^'
1
e
^*
°
0
o
9 - * '
-
z -d
6
-1-2 -1-0 "0-8 - 0 6 -0-4 -0-2
u w / u *
(a)
1-2
1-0
0-8
0-6
0-4
0-2
0
o '
o
- o
o
,
' ' ' I
\
°%.w
/dz = 0 as Z/5 = (z — d)/8 —» 0 (but without
going below the top of the roughness at z = //). Hence there is
a "constant-stress" layer near the surface in which liw(z) ~
—u\. In practice, the constant-stress layer is roughly the region
h — d mt{k), $uu(/c),
4>p, whereas in range AB, the u and u spectra are
proportional to k~x. Ranges A and AB do not exist in the w
spectrum since the inactive eddies have negligible vertical
motion.
Qualified support for the spectral scaling hypothesis (3.7) is
provided by spectral measurements in both laboratory bound­
ary layers and the atmospheric surface layer. Comprehensive
laboratory spectral measurements were obtained by Perry et al
(1987) over smooth and mesh-roughened walls. Figures 6 and
7 show their it spectra over both wall types, which collapse in
the outer (A, AB) and inner (AB, B, BC) spectral ranges when
normalized with outer-layer and inner-layer scales, respectively.
The Reynolds numberbroad spectra with
extensive Ar~' and k~*/3 behaviors in spectral ranges AB and
BC, respectively, a typical limitation in the laboratory. A further
problem is the spread of convection velocities at low wavenum-
bers, to which Perry et al attributed the less than satisfactory
k6
10- ! 10-' 10" 10'
I ! HUM—TTTTTini—TTT77n§
(b) Outer-flow scalin;
„(kz)
FIG 6. it spectra for varying values of Z/& in a smooth-wall
boundary layer: (a) inner-layer scaling; (b) outer-layer scaling. From
Perry et al (1987).
Downloaded From: http://appliedmechanicsreviews.asmedigitalcollection.asme.org/ on 06/13/2015 Terms of Use: http://asme.org/terms
Appl Mech Rev vol 44, no 1, January 1991 Raupach et al: Rough-wall turbulent boundary layers 11
k6
10-= 10-' 10° 10' 10" 10"
i—i i nimi—rrrmrn—t I uum—rrrrmii—I I mm
(b) Outer-flow scaling
*„„(Kz) +uu(kz>
FIG 7. (/ spectra for varying values of Z//ut «: Z '„, z„) is the center of a particular eddy and u0
is its velocity scale. The term "attached" implies that all eddies
are not only geometrically similar but have the same geomet­
rical relationship with the wall, scaling with the center height
z„. By ensemble-averaging an eddy field consisting of a random
superposition of eddies of the form (3.9), imposing a continuity
condition on f to account for the presence of the wall, and
requiring TTtt'(z) = u\ = const, Townsend derived the high
Reynolds-number limit of (3.8) without further specifying.//.
Perry and Chong (1982) were more specific about/, invok­
ing flow visualizations of hairpin vortices in a smooth-wall
boundary layer by Head and Bandyopadhyay (1981) to suggest
a model attached eddy consisting of a "A-vortex" inclined with
the shear and with legs trailing along the wall. Although this
structure leads to the spectral scaling laws (3.7), and to (3.8) for
the velocity variances, it is apparent that many other choices
for /,' lead to similar results. This suggests that observations of
spectra and variances alone are insufficient to specify details of
the eddy structure beyond those implied by the dimensional
arguments given above.
3.4. Observations of velocity variances
One test of the wall similarity, equilibrium-layer, and at­
tached-eddy hypotheses is a comparison of their predictions
with laboratory and atmospheric data on the velocity variances
ir = err,, v2 = al, and w2 = al. A small portion of the
vast quantity of available data is summarized in Table 2 in the
form of values of aju^, aL,/u.t, anddata. Later, Perry et al (1988)
reported reasonable agreement between slightly modified forms
of the third relation in (3.8) and carefully selected data for
Ow/u*; the data selection ensured that spatial resolution and
cone angle problems were minimized and that the X-wire
probes yielded values of Tm> consistent with Clauser-chart or
Preston-tube values.
In the atmosphere over grassland sites in flat terrain,
oju*, and //,
from (3.3) et seq, the reduced shear implies an enhanced
turbulent diffusivity K for momentum in the roughness sub­
layer, relative to the inertial-sublayer form K = KIIA[Z — d). An
approximate form for K is K = KH,.(Z„ — d), independent of
height for /;
