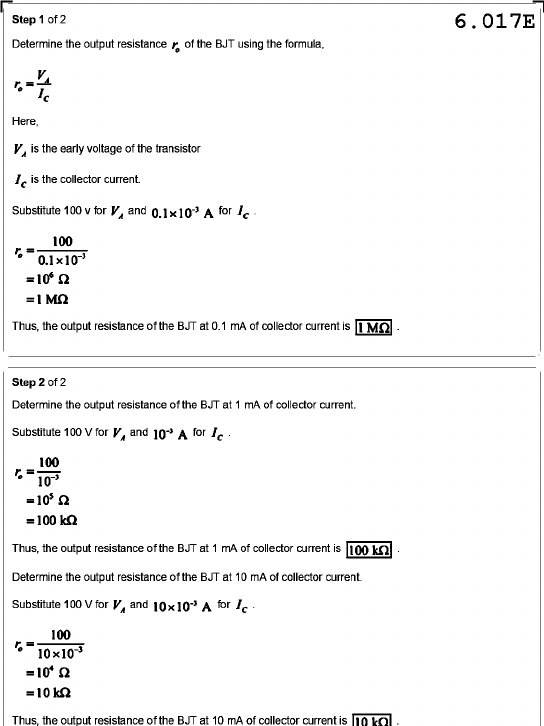

Step 1 of 2 6.017E Determine the output resistance of the BJT using the formula, Here, is the early voltage of the transistor is the collector current. Substitute 100 V for and 0.1x10⁻³ A for 100 = 10⁶ Ω = 1 MΩ Thus, the output resistance of the BJT at 0.1 mA of collector current is 1 MΩ Step 2 of 2 Determine the output resistance of the BJT at 1 mA of collector current. Substitute 100 V for and 10⁻³ A for 100 = 10⁻³ = 10⁵ Ω = 100 kΩ Thus, the output resistance of the BJT at 1 mA of collector current is 100 kΩ Determine the output resistance of the BJT at 10 mA of collector current. Substitute 100 V for and 10x10⁻³ A for = Ω = 10 kΩ Thus, the output resistance of the BJT at 10 mA of collector current is
