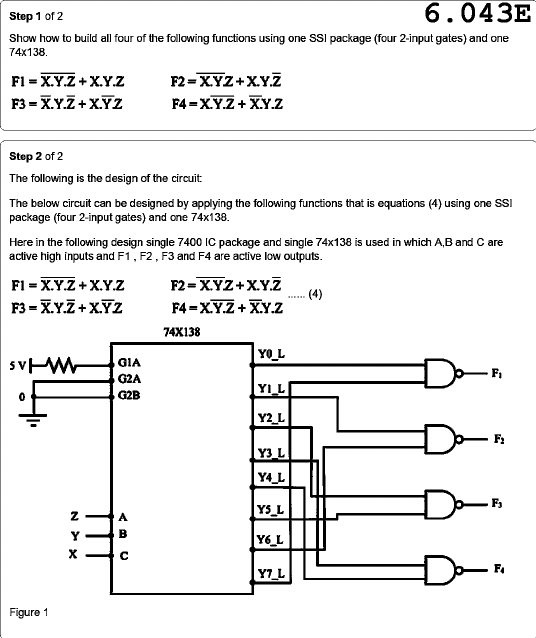

Step 1 of 2 6.043E Show how to build all four of the following functions using one SSI package (four 2-input gates) and one 74x138. Step 2 of 2 The following is the design of the circuit: The below circuit can be designed by applying the following functions that is equations (4) using one SSI package (four 2-input gates) and one 74x138. Here in the following design single 7400 IC package and single 74x138 is used in which A,B and C are active high inputs and F1, F2, F3 and F4 are active low outputs. (4) 74X138 5V GIA G2A G2B 0 Y2_L Y3_L Y4_L Y5_L A Y B Y6_L X Y7_L F4 Figure 1
