580 CHAPTER 16

product results when the regions of  and 
(highlighted) are aligned:

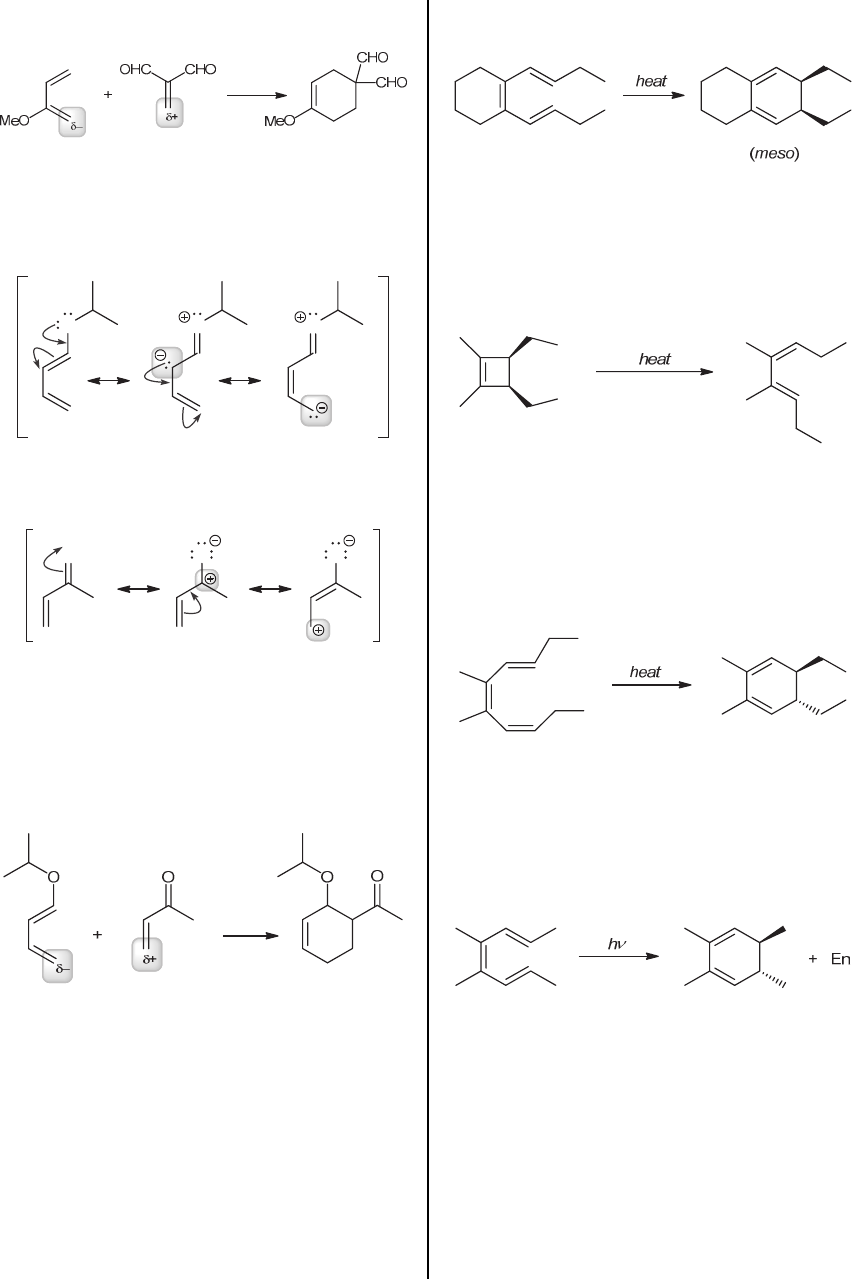

(e) Both the diene and the dienophile are unsymmetrical,
so there are two possible regiochemical outcomes. The
major product can be predicted by considering resonance
structures for the diene,

O
Diene
O O


and resonance structures for the dienophile:

O O O
Dienophile

Notice that the diene is electron-rich, because of the
electron-donating effect of the isopropoxy group; while
the dienophile is electron-poor, because of the electron-
withdrawing effect of the aldehyde group. The major
product results when the regions of  and 
(highlighted) are aligned:



16.19. We first consider the HOMO of one molecule of
butadiene and the LUMO of another molecule of
butadiene (see Figure 16.17 for the HOMO and LUMO
of butadiene). The phases of these MOs do not align, so
a thermal reaction is symmetry-forbidden. However, if
one molecule is photochemically excited, the HOMO
and LUMO of that molecule are redefined. The phases
of the frontier orbitals will align under these conditions,
so the reaction is expected to occur photochemically.
16.20.
(a) This system has six  electrons, so an electrocyclic
reaction is expected to occur under thermal conditions to
give disrotatory ring closure. The resulting product has
an internal plane of symmetry and is therefore a meso
compound.



(b) In this reaction, the four-membered ring is opening
(this is the reverse of an electrocyclic ring closure). If
we look at the product, we see that four electrons are
involved in the process. Under thermal conditions, this
electrocyclic process is expected be conrotatory, giving
the following product.



(c) This system has six  electrons, so an electrocyclic
reaction is expected to occur under thermal conditions to
give disrotatory ring closure. The resulting product is
chiral, and both enantiomers are expected (one ethyl
group rotates clockwise and the other rotates
counterclockwise, or vice versa, leading to both possible
enantiomers).



16.21.
(a) This system has six  electrons, so an electrocyclic
reaction is expected to occur under photochemical
conditions to give conrotatory ring closure. The
resulting product is chiral, and both enantiomers are
expected (either both methyl groups rotate clockwise or
both methyl groups rotate counterclockwise).



(b) In this reaction, the four-membered ring is opening
(this is the reverse of an electrocyclic ring closure). If
we look at the product, we see that four electrons are
involved in the process. Under photochemical
conditions, this electrocyclic process is expected be
disrotatory. In theory, two products can be produced
from disrotatory ring-opening (one methyl group rotates
clockwise and the other rotates counterclockwise, or vice
versa, leading to two possible products):
