CHAPTER 14 505




14.56. A signal at 2200 cm-1 signifies the presence of a
C≡C bond. There are only two possible constitutional
isomers: 1-butyne or 2-butyne. The latter is symmetrical
and would not produce a signal at 2200 cm-1. The
compound must be 1-butyne.

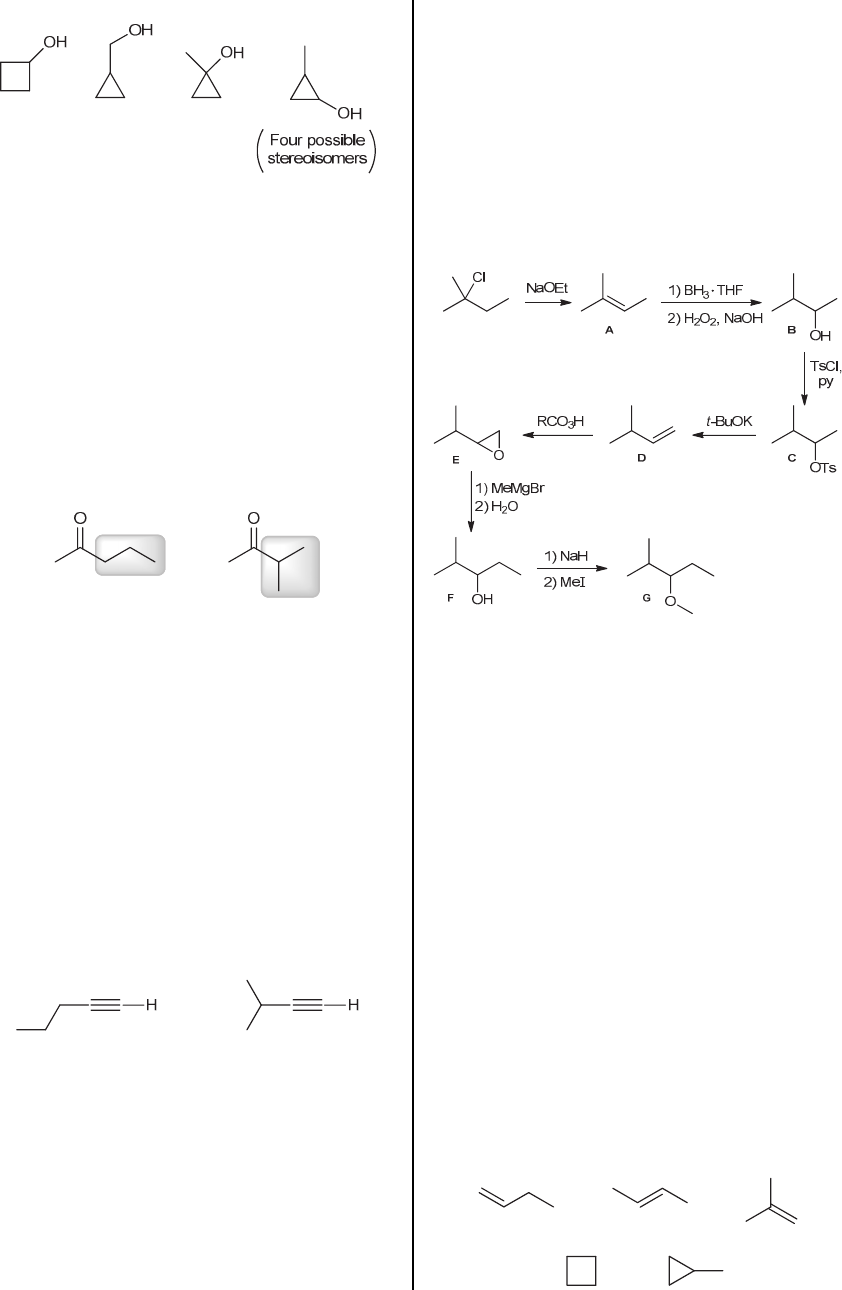

14.57. The IR spectrum has a strong signal just above
1700 cm-1, which indicates that the compound has a C=O
bond. The mass spectrum has a molecular ion peak at
m/z = 86, which indicates a molecular weight of 86. The
base peak is at M43, indicating the loss of a propyl
group. The compound likely has a three carbon chain
(either a propyl group or isopropyl group) as shown in
the following two structures.



14.58. The IR spectrum has a narrow signal near 2100
cm-1, which indicates the presence of a triple bond. In
addition, the signal at 3300 cm-1 is consistent with a
CspH bond, which indicates that the compound is a
terminal alkyne. The mass spectrum has a molecular ion
peak at m/z = 68, which indicates a molecular weight of
68 amu. So we are looking for terminal alkynes with a
molecular weight of 68 amu. Recall that each carbon
atom contributes 12 amu, so five carbon atoms
contribute 60 amu to the molecular weight, leaving just 8
amu left for hydrogen atoms (each hydrogen atom is 1
amu). That is, compounds with the molecular formula
C5H8 will have a molecular weight of 68 amu. This
molecular formula is consistent with two degrees of
unsaturation (a triple bond).
There are two terminal alkynes with the molecular
formula C5H8, shown here:



14.59. All of the reactions in the following sequence
were covered in previous chapters. The starting alkyl
chloride is a tertiary substrate and will undergo an E2
reaction when treated with a strong base. With a base
like ethoxide (which is not sterically hindered), the major
product is the more-substituted alkene (the Zaitsev
product), compound A. Hydroboration-oxidation of
compound A gives an anti-Markovnikov addition of H
and OH, affording alcohol B. When treated with tosyl
chloride and pyridine, the alcohol is turned into the
corresponding tosylate (compound C). Treatment of the
tosylate with a sterically hindered base gives another E2
reaction, this time giving the less substituted alkene (the
Hofmann product), compound D. Treating D with a
peroxy acid gives epoxide E. When the epoxide is
treated with a Grignard reagent (such as MeMgBr),
followed by an aqueous workup, a ring-opening reaction
occurs in which the Grignard reagent attacks the less
substituted side of the epoxide, to afford alcohol F. The
last step of the sequence is a Williamson ether synthesis,
in which a methyl group is installed to give compound
G.


(a) Compound F is an alcohol and its IR spectrum will
exhibit a broad signal between 3200 and 3600 cm-1.
Compound G is an ether and its IR spectrum will not
exhibit the same signal.
(b) Compound D is an alkene and its IR spectrum will
exhibit a signal near 1650 cm-1 (for the C=C bond), as
well as a signal near 3100 cm-1 (for the Csp2H bond).
Compound E is an epoxide, and its IR spectrum will not
have these two signals.
(c) IR spectroscopy would not be helpful to distinguish
these two compounds because they are both alcohols.
Mass spectrometry could be used to differentiate these
two compounds because they have different molecular
weights.
(d) No, they both have the same molecular formula,
although a trained expert might be able to distinguish
these compounds based on their fragmentation patterns.

14.60. The molecular formula C4H8 indicates an HDI of
1. As such, every constitutional isomer of C4H8 must
contain either one ring or one double bond. The
following structures are consistent with this description.
Each of the first three constitutional isomers (shown
here) exhibits a double bond, while each of the last two
constitutional isomers exhibits a ring.
