496 CHAPTER 14

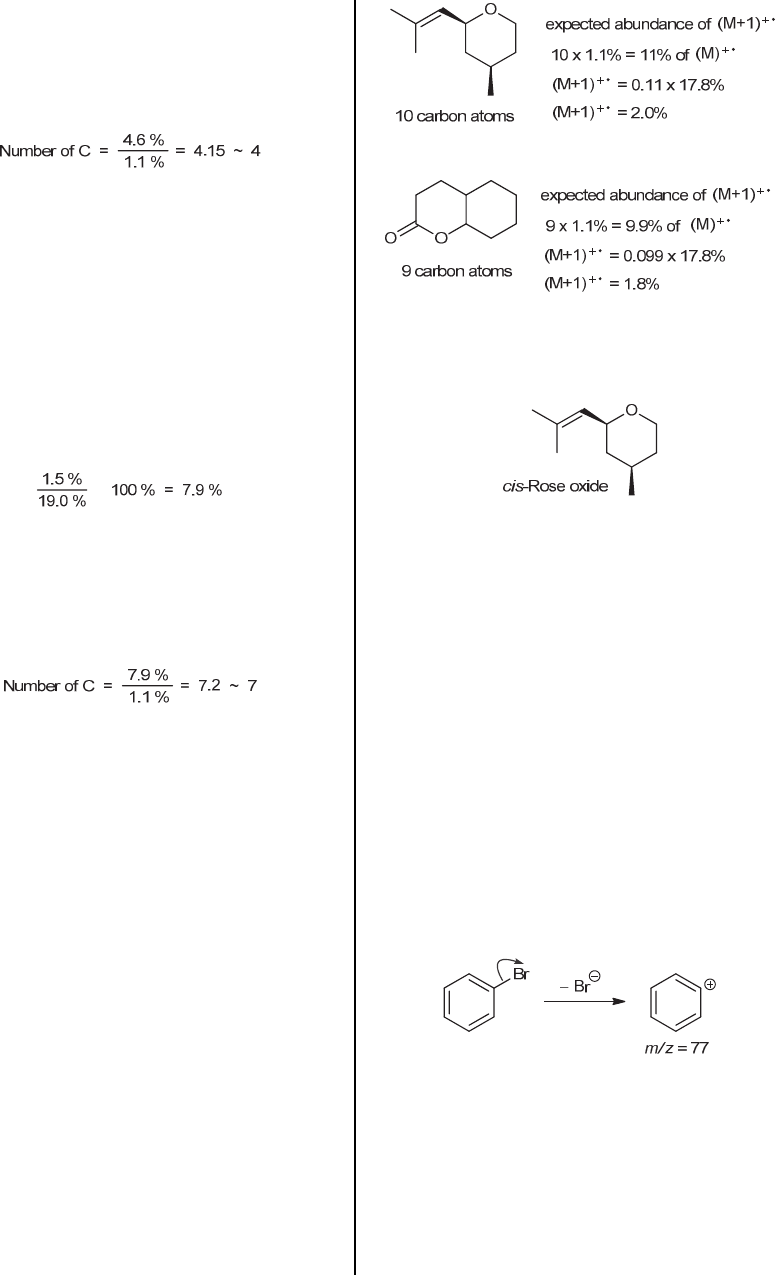

This means that the (M+1)+ peak is 4.6% as tall as the
(M)+ peak. Recall that each carbon atom in the
compound contributes 1.1% to the height of the (M+1)+
peak, so we must divide by 1.1% to determine the
number of carbon atoms in the compound:



The compound cannot have 4.15 carbon atoms. It must
be a whole number, so we round to the nearest whole
number, which is 4. That is, the compound contains four
carbon atoms, which account for 4  12 = 48 amu
(atomic mass units), but the molecular weight is 54 amu.
So we must account for the remaining 54 – 48 = 6 amu.
This indicates six hydrogen atoms, giving the following
proposed molecular formula: C4H6.

(d) In order to determine the number of carbon atoms in
the compound, we compare the relative heights of the
(M+1)+ peak and the (M)+ peak, like this:




This means that the (M+1)+ peak is 7.9% as tall as the
(M)+ peak. Recall that each carbon atom in the
compound contributes 1.1% to the height of the (M+1)+
peak, so we must divide by 1.1% to determine the
number of carbon atoms in the compound:



The compound cannot have 7.2 carbon atoms. It must be
a whole number, so we round to the nearest whole
number, which is 7. That is, the compound contains
seven carbon atoms, which account for 7  12 = 84 amu
(atomic mass units), but the molecular weight is 96 amu.
So we must account for the remaining 96 – 84 = 12 amu.
This indicates twelve hydrogen atoms, giving the
following proposed molecular formula: C7H12.


14.21. The molecular formula of the first structure is
C10H18O, while the molecular formula of the second
structure is C9H14O2. Each compound is expected to
exhibit a parent ion at m/z = 154, so the location of the
parent signal cannot be used to differentiate these
compounds. Instead, we can use the relative abundance
of the (M+1)+• peak. The following calculations show
that the observed data are more consistent with a
compound containing 10 carbon atoms, rather than 9.



The first structure is expected to give an (M+1)+• peak
with a relative abundance of 2.0%. Therefore, we
conclude that the first structure is cis-rose oxide:



When comparing the relative abundance of the (M+1)+•
peaks in this particular case, the expected difference is
quite small (1.8% vs. 2.0%), so other techniques will be
more useful for differentiating these compounds,
including high-resolution mass spectrometry (Section
14.13).
As a side note, these compounds can be easily
distinguished by their strong odors: cis-rose oxide
smells like roses, and the other compound
(bicyclononalactone) smells like coconuts!



14.22.
(a) This fragment is M – 79, which is formed by loss of
a Br. So the fragment does not contain Br. Also, the
fragment has a smaller mass than a single bromine atom
(77
