230 Solutions Manual for Analytical Chemistry 2.1
labeled “simplex” shows the three vertices that make up each simplex.
For each simplex, the vertex that we reject is shown in bold font; note
that on two occasions, the rejected vertex, shown in bold-italic font,
has the second-worst response (either because of a boundary condi-
tion or because the new vertex has the worst response)
vertex A B response simplex
1 0 0 3.264 —
2 1.0 0 4.651 —
3 0.5 0.87 4.442 1, 2, 3
4 1.5 0.87 5.627 2, 3, 4
5 2.0 0 5.736 2, 4, 5
6 2.5 0.87 6.512 4, 5, 6
7 3.0 0 6.521 5, 6, 7
8 3.5 0.87 7.096 6, 7, 8
9 4.0 0 7.004 7, 8, 9
10 4.5 0.87 7.378 8, 9, 10
11 4.0 1.74 7.504 8, 10, 11
12 5.0 1.74 7.586 10, 11, 12
13 4.5 2.61 7.745 11, 12, 13
14 5.5 2.61 7.626 12, 13, 14
15 5.0 3.48 7.820 13, 14, 15
16 4.0 3.48 7.839 13, 15, 16
17 4.5 4.35 7.947 15, 16, 17
18 3.5 4.35 7.866 16, 17, 18
19 4.0 5.22 8.008 17, 18, 19
20 5.0 5.22 7.888 17, 19, 20
21 4.5 6.09 7.983 19, 20, 21
22 3.5 6.09 8.002 19, 21, 22
23 3.0 5.22 7.826 19, 22, 23
24 3.5 4.35 7.866 19, 23, 24
25 4.5 4.35 7.947 19, 24, 25
 Figure SM14.4 shows the progress of the simplex optimization in
three dimensions and in two dimensions.
3. To help us in the derivation, we will use the diagram shown in Figure
SM14.5 where a and b are the coordinates of a vertex, and w, b, s, and
n identify the vertex with, respectively, the worst response, the best
response, the second-best response, and the new vertex. he red cir-
cle marks the midpoint between the best vertex and the second-best
vertex; its coordinates are
values of a va
lu
es
 o
f b
re
sp
o
n
se
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
values of a
v
a
lu
e
s
o
f
b
0 2 4 6 8 10
0
2
4
6
8
1
0

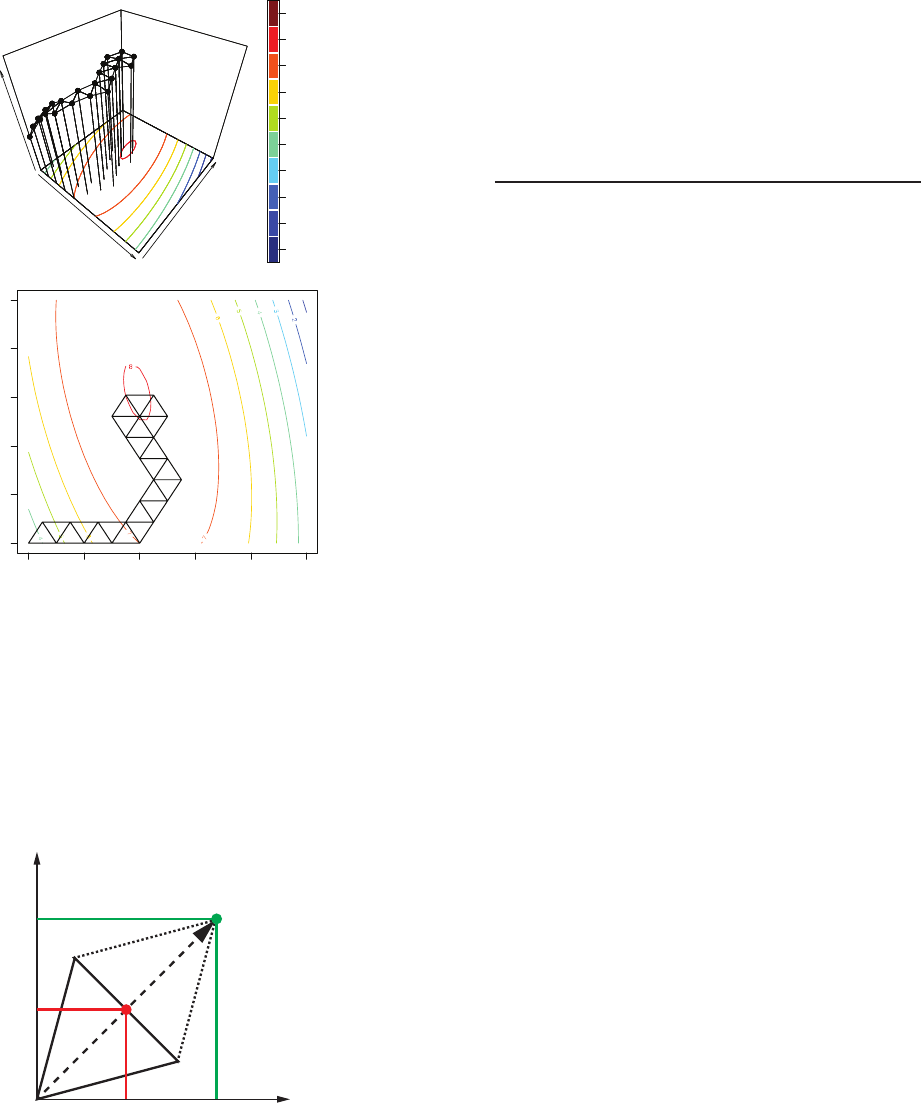

Figure SM14.4 Two views showing the
progress of a simplex optimization of the
equation in Problem 1c in (a) three dimen-
sions and in (b) two dimensions. he leg-
end shows the colors used for the individ-
ual contour lines. Figure SM14.3b shows
the full response surface for this problem.
(ab, bb)
(an, bn)
(as, bs)
(aw, bw)
a
b
Figure SM14.5 Diagram showing vertices
of original simplex and the relection of the
worst vertex across the midpoint (red cir-
cle) of the best and the next-best vertices to
give the new vertex (green circle). See text
for additional details.
