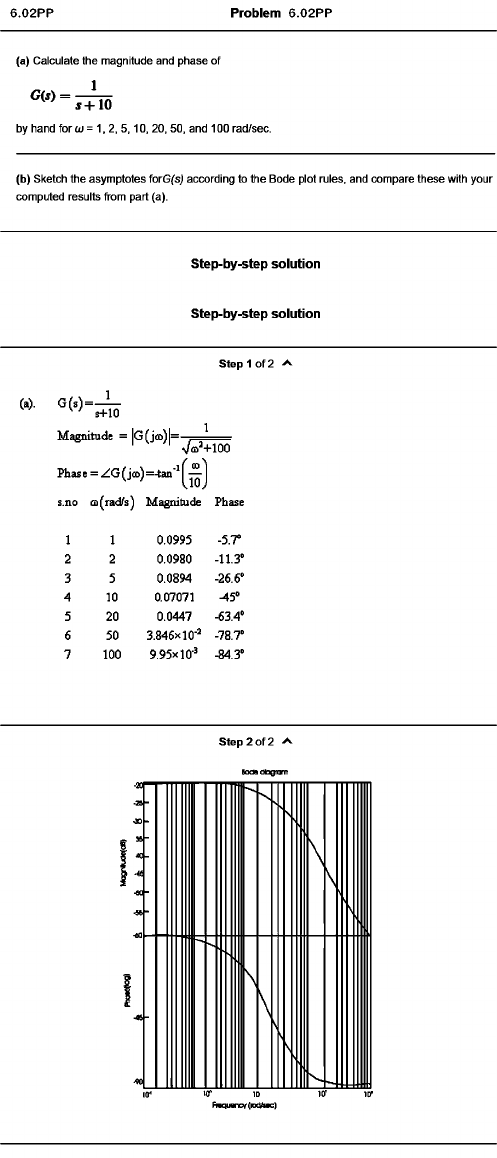

Problem 6.02PP
(a) Calculate the magnitude and phase of
1
Gis) = -
s + l O
by hand foroj = 1, 2, 5.10. 20, 50. and 100 rad/sec.
(b) Sketch the asymptotes forGfsj according to the Bode plot rules, and compare these with your
computed results from part (a).
S tep -b y -s te p so lu tion
S tep -b y -s te p so lu tion
step 1 of 2
(a). G (s )= —
 ̂ ̂ s+10
M i^ itu d e = |G(jo[))|=
Vffi^+ioO
Phas e = Z.G (joo) =-tan'^ j
s.no ai(rad/s) Magnitude Phase
1 1 0.0995 -5.7*
2 2 0.0980 -11.3"
3 5 0.0894 -26.6"
A 10 0.07071 -45"
5 20 0.0447 -63.4"
6 50 3.846x10-^ -78.7"
7 100 9.95X10-’ -84.3"
Step 2 of 2
