58 CHAPTER 2

connected to only one other atom, and the other oxygen
atom has bent geometry (see SkillBuilder 1.8).



2.66.

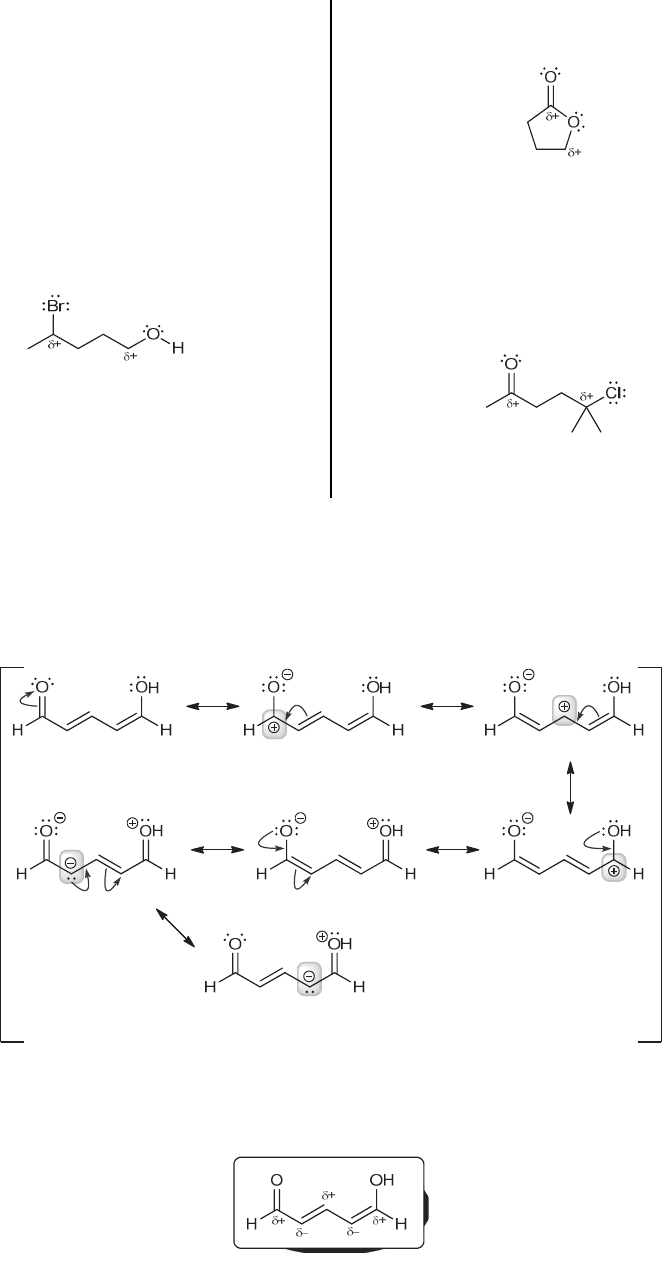

(a) In Section 1.5, we discussed inductive effects and we
learned how to identify polar covalent bonds. In this
case, there are two carbon atoms that participate in polar
covalent bonds (the C‒Br bond and the C‒O bond).
Each of these carbon atoms will be poor in electron
density (+) because oxygen and bromine are each more
electronegative than carbon:





(b) There are two carbon atoms that are adjacent to
oxygen atoms. These carbon atoms will be poor in
electron density (+), because oxygen is more
electronegative than carbon:



The carbon atom of the carbonyl (C=O) group is
especially electron deficient, as a result of resonance.

(c) There are two carbon atoms that are adjacent to
electronegative atoms. These carbon atoms will be poor
in electron density (+), because oxygen and chlorine are
each more electronegative than carbon:



The carbon atom of the carbonyl (C=O) group is
especially electron deficient, as a result of resonance.





2.67. We begin by drawing all significant resonance structures, and then considering the placement of the formal
charges in each of those resonance structures (highlighted below)



A position that bears a positive charge is expected to be electron deficient (+), while a position that bears a negative
charge is expected to be electron rich (). The following is a summary of the electron-deficient positions and the
electron-poor positions, as indicated by the resonance structures above.
