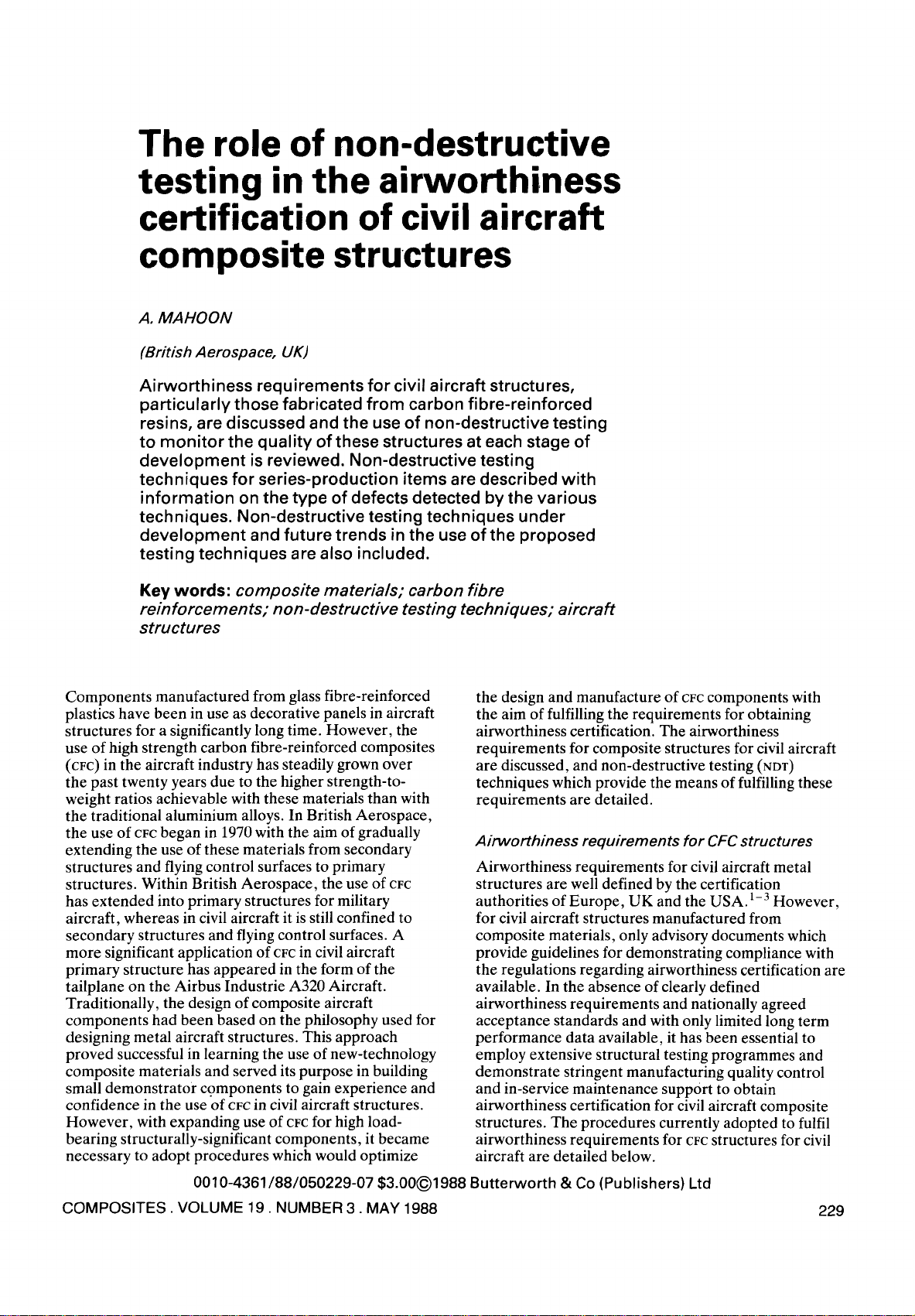

The role of non-destructive
testing in the airworthiness
certification of civil aircraft
composite structures
A, MAHOON
(British Aerospace, UK)
Airworthiness requirements for civil aircraft structures,
particularly those fabricated from carbon fibre-reinforced
resins, are discussed and the use of non-destructive testing
to monitor the quality of these structures at each stage of
development is reviewed. Non-destructive testing
techniques for series-production items are described with
information on the type of defects detected by the various
techniques. Non-destructive testing techniques under
development and future trends in the use of the proposed
testing techniques are also included.
Key words: composite materials; carbon fibre
reinforcements; non-destructive testing techniques; aircraft
structures
Components manufactured from glass fibre-reinforced
plastics have been in use as decorative panels in aircraft
structures for a significantly long time. However, the
use of high strength carbon fibre-reinforced composites
(CFC) in the aircraft industry has steadily grown over
the past twenty years due to the higher strength-to-
weight ratios achievable with these materials than with
the traditional aluminium alloys. In British Aerospace,
the use of CFC began in 1970 with the aim of gradually
extending the use of these materials from secondary
structures and flying control surfaces to primary
structures. Within British Aerospace, the use of cvc
has extended into primary structures for military
aircraft, whereas in civil aircraft it is still confined to
secondary structures and flying control surfaces. A
more significant application of cvc in civil aircraft
primary structure has appeared in the form of the
tailplane on the Airbus Industrie A320 Aircraft.
Traditionally, the design of composite aircraft
components had been based on the philosophy used for
designing metal aircraft structures. This approach
proved successful in learning the use of new-technology
composite materials and served its purpose in building
small demonstrator components to gain experience and
confidence in the use of CFC in civil aircraft structures.
However, with expanding use of cFc for high load-
bearing structurally-significant components, it became
necessary to adopt procedures which would optimize
the design and manufacture of CFC components with
the aim of fulfilling the requirements for obtaining
airworthiness certification. The airworthiness
requirements for composite structures for civil aircraft
are discussed, and non-destructive testing (NOT)
techniques which provide the means of fulfilling these
requirements are detailed.
Airworthiness requirements for CFC structures
Airworthiness requirements for civil aircraft metal
structures are well defined by the certification
authorities of Europe, UK and the USA. 1-3 However,
for civil aircraft structures manufactured from
composite materials, only advisory documents which
provide guidelines for demonstrating compliance with
the regulations regarding airworthiness certification are
available. In the absence of clearly defined
airworthiness requirements and nationally agreed
acceptance standards and with only limited long term
performance data available, it has been essential to
employ extensive structural testing programmes and
demonstrate stringent manufacturing quality control
and in-service maintenance support to obtain
airworthiness certification for civil aircraft composite
structures. The procedures currently adopted to fulfil
airworthiness requirements for c F c structures for civil
aircraft are detailed below.
0010-4361/88/050229-07 $3.00@1988 Butterworth & Co (Publishers) Ltd
COMPOSITES. VOLUME 19. NUMBER 3. MAY 1988 229
Design and development
At the inception stage of a particular structure, it is
important to involve engineers specializing in materials
knowledge, production manufacturing methods and
NDT techniques. Selection of the right material of
construction, such as the particular resin/fibre system,
is very important to ensure that the structure will be
able to perform the functions for which it is being
designed. A suitable method of manufacture has to be
developed that is economical and efficient. The
designed structural configuration has to be amenable to
inspection by NOT techniques commonly employed for
production quality control. To fulfil these
requirements, a research and development programme
is normally undertaken at the design stage for each and
every component. Out of this programme emerges the
appropriate material and design data, the optimum
method of manufacture and the suitable NDT
techniques, including the NDT calibration standards. As
the basic material design data and experience in the
design and manufacture build up, the extent of research
and development normally decreases for subsequently
designed aircraft components.
Structural testing
Structural testing is the most important step towards
obtaining a certificate of airworthiness for composite
structures. It involves the application of static and
cyclic loads equivalent to the level and frequency of
stresses expected during the service life of the
structure. Full life-size structures of the most important
elements of the structure are tested. Artificial
manufacturing defects such as delaminations and
foreign inclusions are introduced into the structure to
establish the effects of such defects on the structural
integrity and to help in selecting the acceptance criteria
for the manufacturing quality control. The structures
are also aged in a humid environment to acquire a
certain steady-state level of moisture and then
subjected to structural testing. Impact damage is
induced in various parts of the structure to establish the
damage tolerance of the structure. Deliberately
induced areas of impact damage are repaired and the
repaired structure is then subjected to structural testing
to ensure the integrity of the repaired area under the
expected loading conditions. During the structural
testing stage, various NOT techniques are employed to
detect the presence of defects and to select the most
appropriate technique for monitoring the structural
integrity. NOT technique development also takes place
at this stage to devise appropriate methods for
in-service monitoring. Structural testing not only
confirms the load-bearing capacity of the structure and
its resistance to the expected operating environment
but also provides data for obtaining the necessary
certificate of airworthiness for the structure.
Manufacturing quality control
During the manufacture of composite structures, two
processes occur simultaneously. The required shape is
produced along with the final stage of the manufacture
of the material, i.e. consolidation and cure of the resin.
Therefore, in addition to checking the shape and
dimensional accuracy, it is also important to ensure that
the material itself is of an acceptable quality and does
not contain discrete defects of a harmful nature. To
ensure material quality at the manufacturing stage, test
coupons are cured simultaneously with the respective
component and tested by a number of destructive
techniques. Recently, production quality control has
moved towards the use of instrumental analytical
techniques based on differential scanning calorimetry
(DSC) and dynamic mechanical analysis (DMA) to assess
the degree of cure in composites. Although the
destructive techniques play an important role in the
control of the manufacture of composite structures,
they cannot completely fill the quality control
requirements because complete consistency of the
material quality cannot be ensured in all areas of the
cured items, and coupon testing cannot reveal the
presence of discrete defects in the ready-to-use
components.
Due to these two limitations, there is a requirement to
employ NDT techniques for quality controlof the
manufacturing process. During assembly of composite
components into an aircraft structure, it is possible that
damage may be induced due to drilling, machining, or
rivetting. Accidental damage can also occur, either
during assembly or in subsequent transportation and
storage. Components containing such defects, if
amenable, may be recovered by making repairs. The
integrity of the repaired component is then confirmed
by NDT.
In-service monitoring
The structural testing stage is designed to ensure that
any aircraft structure put into service is safe and can
withstand the service loads and environments. The
manufacturing quality control procedures also
guarantee that no structure containing material of
unacceptable quality and/or discrete defects is allowed
to enter service. Despite the rigorous control of
structural testing and manufacturing processes,
degradation of composite structures does occur during
their service lives. In the case of cFc materials,
environmental degradation occurs due to increase of
moisture, chemical attack, thermal spiking, fatigue,
overloading, erosion, impact damage and lightning
strike. Accidental damage can also occur during
transportation, inspection and maintenance. Due to the
uncertainties of the service environment, there is
always a prevalent requirement to undertake regular
non-destructive inspections to detect any material
degradation and to ensure the continuing structural
integrity in service. To fulfil these requirements and to
satisfy the airworthiness authorities, NDT techniques
are developed and are often included either in the
aircraft maintenance manual or are compiled into a
separate NDT manual.
Repair and inspection
Regular in-service NDT detects the presence of damage
induced in a composite structure due to the
environmental effects. The extent of induced damage
could be within the design allowable limits; repair
230 COMPOSITES . MAY 1988
. . . .
- T t'r . . . . . . . . . 7r- r . . . . . . . . . . . . . . . . . . . ."','I
K~ ,vt ,v, " t ' , J l , l " i , ! ! , q ; i k \ \ o j t I \ ' , , , : , " , ' , . , , " . ' . , 0S m / ,~, t t ' , I ~ : l , , i l ~ ' ! i ' , "~ • , , , , , ' : , , ' , , , 1 1 ; ; ; ' , : : ' \ ~~_ 0 , 4 m I I I I I I I I I . I ~ . . . . . . . ~ _ L ~ . . . , , . . . . . . . . . . . . . . . . . . . . . I,t a~ ,,.,.,.. ~-,- L : . q - i ' r , ~ . i - - - g , \
. . . . . . . . . . . . .
I~ 3.1 m Im"l
I
Fig. 1 A schematic view of Airbus A320-- aileron made from composite material
action would not then be required but recording of the
position of the damage and its continued monitoring
would be essential. If the extent of the damage is
beyond the acceptable limit, then the structure could
either be recovered by undertaking necessary repairs or
could be withdrawn from service. In the case where the
integrity of the damaged structure could be restored by
repair, an appropriate scheme is devised. Although
quality control aspects are normally included in a repair
scheme, it is an additional requirement to employ NDT
techniques to ensure that the repair is sound and that
the structural integrity has been restored. The integrity
of the repair is then monitored during the routine
planned inspections of the aircraft structure.
ND T TECHNIQ UES FOR SERIES-PRODUC TION
ITEMS
Development of civil aircraft structures at the
Weybridge plant of British Aerospace began in the mid
1970s. Simple demonstrator components included
panels on VC-10 and BAC 1-11 aircraft. Between 1978
and 1981 the first series production item was
manufactured. Launch of the Airbus A300-600 aircraft
in 1981 lead to the development of a lightweight fixed
trailing edge structure followed by the manufacture of
A310-300 trailing edge and A320 aileron. These
structures are basically wedge-shaped, the largest being
4.5 m long and 1.5 m wide. The skin panels for trailing
edges are co-cured Nomex sandwich with two layers of
five harness satin weave carbon fibre fabric on each
face. The fabric is preimpregnated with a 120°C-curing
epoxy resin. These panels are then adhesively bonded
to premoulded CFC ribs and a pre-laminated cotton-
reinforced phenolic strip is used to build up the
required edge thickness. The aileron (shown
schematically in Fig. 1) is very similar in construction to
the trailing edges except that the skins are a mixture of
solid laminate and honeycomb sandwich and are
adhesively bonded to nine premoulded ribs, a leading
edge channel section spar and a pultruded trailing edge
strip. The resin system for aileron cures at 170°C.
Development of NDT techniques for cFc began with the
design of the demonstrator items. Many Nox
techniques were investigated for application to the
Airbus series production items. The techniques
currently employed for the manufacturing quality
control are based on ultrasonics, radiography and the
use of commercial bond testers. Acoustic emission has
been used in conjunction with these techniques to
monitor structual testing. Use of ultrasonics,
radiography and commercial bond testers has also been
extended to in-service inspection and examination of
repaired structures. A brief description of these
techniques with their application to various cFc
structures is given below.
Ultrasonics
Four techniques based on the principles of ultrasonic
measurements are:
• Water jet-probe through-transmissionscanning
• Immersion scanning with glass reflector plate
• Irrigated probes manual scanning
• Pulse-echocontact testing
A typical water jet-probe automatic scanning rig as
used for through-transmission examination of all skin
panels for A300, A310 and A320 structures is shown in
Fig. 2 and details of this technique are described in
Reference (5). The testing is carried out at 1 MHz
ultrasonic frequency with index steps of 0.2 mm to
2 mm. The test data are presented as C-scan traces of
five grey tones on electrosensitive paper. The
technique detects material quality variations,
delaminations in the skin, disbonds at the skin/
honeycomb interface and the presence of pre-preg
backing film. Discrete defects down to 3 mm × 3 mm
have been detected.
All solid laminated ribs and A320 aileron channel spars
are subjected to ultrasonic immersion scanning with
glass plate reflector. The glass plate is normally placed
parallel to and underneath the component at
25-50 mm. Special jigging is required to place the glass
plate under the spar flange due to the channel
Fig. 2 Water jet-probe ultrasonic scanning rig
COMPOSITES. MAY 1988 231
~ Rib section
Ultrasonic
, r a n s d u c o ,
N a r T \
Fig. 3 Plan-view of i rr igated-probe assembly for ultrasonic
examination of rib root radii (scale, 1:3)
configuration of spar. The examination is conducted on
an automatic scanning frame mounted on a water tank
with test data recorded on electrosensitive paper (as
with the C-scan trace). Webs of ribs and webs/flanges
of spars are inspected at 10 MHz ultrasonic frequency.
This technique has much higher sensitivity of defect
detection when compared with the water jet-probe
technique.
Roots of ribs and spars, flanges of ribs and trailing edge
wedges are inspected by hand-held irrigated probes.
The principle of irrigated probe is similar to that of a
water jet-probe. Transducers are mounted in special
housing devices with water just irrigating the area
between the transducer and the area of examination
(hence irrigated probe). A typical irrigated-probe
designed to inspect root radii of ribs is shown in Fig. 3.
The examination is based on through-transmission
using transducers operating at 1 or 5 MHz. Use of
irrigated probe has enabled the detection of porosity
and delaminations.
In the case of the A320 aileron, adhesive bonds
between the ribs, spar and trailing edge wedge to solid
laminate skins are examined by manual ultrasonic
pulse-echo using a 15 MHz probewith a 5 mm acrylic
stand-off shoe. Porosity and disbonds are detected by
this technique.
Radiography
Ultrasonic inspection is normally supplemented with
radiographic inspection for honeycomb sandwich
panels of A300/310 trailing edges and adhesive bonds at
the spar/skin joints of A320 aileron. Radiographs of
adequate density (1.5-2.5) and contrast are produced
at 15 kV and 20 mA min- using fine or medium grain
X-ray film. Radiographic examination is undertaken to
ensure that no water ingress has occurred during
ultrasonic testing. Water ingress was found to be a
common defect at the initial manufacturing stages of
A300 trailing edge skin panels. Radiographic
examination is capable of detecting core defects such as
splitting, crushing, distortion and displacement.
Presence of self-adhesive tape pieces (25 mm × 60 mm)
has also been detected by radiography. In the case of
adhesive bonds, radiographic examination reveals the
distribution of porosity at the bond lines. In some
cases, fine distributed porosity is difficult to detect by
ultrasonic examination.
Penetrant-enchanced radiography is employed for
detecting impact damage and disbonds. (A
comprehensive investigation on the use of radio-
opaque penetrants for inspection of composites is given
in Reference (6)). Bond testing technique, in some
cases, is unable to detect the extent of disbonds
between honeycomb skin and ribs in A300 and A310
trailing edges. Therefore, penetrant-enhanced
radiography is used, where possible, for determining
the extent of disbonds in these components. However,
it is essential that the disbond extends to the edge of the
rib flange so that the penetrant can impregnate into the
disbonded area.
Adhesive bond testing
Conventional ultrasonic techniques fail to detect
disbonds in honeycomb sandwich adhesively bonded to
solid laminates. Commercially available bond testers
are employed for the examination of these
constructions, in particular, and for the inspection of
adhesive bonds at an advanced assembly stage, in
general. Adhesive bonds between the honeycomb
sandwich skins and ribs in A300 and A310 trailing edge
structures are inspected by Shurtronic Harmonic Bond
Tester (Shurlock Corporation Inc, USA). The
equipment is capable of detecting disbonds equal to
and greater than 10 mm × 10 mm in the trailing edges.
Inspection of adhesive bonds between the solid
laminate skin and ribs/spar of A320 aileron was initially
undertaken with commercial bond testers but was
immediately replaced with ultrasonic pulse-echo
technique. This approach was adopted because the
bond testers that had been used were found to have
either poor sensitivity or to be unable to detect
disbonds and porosity in A320 aileron.
Acoustic emission testing
Acoustic emission testing is employed at the structural
testing stage and is complemented by ultrasonic,
radiographic and adhesive bond testing techniques. It
has been used as an on-line monitoring technique for
detecting failure during static and fatigue load testing of
A320 aileron sections." Disbonds generated during
loading have been detected by this technique and their
extent determined by conventional NOT. The presence
of deliberately induced impact damage and its
propagation is also detected by this technique.
Location of damage is achieved by using linear or
triangular arrays of acoustic emission sensors and
measuring the arrival times of emissions at these
sensors. It has been found essential to employ guard
transducers to eliminate the background noise
generated due to mechanical functions of loading jacks
and rams to enable detection of failure under fatigue
loading.
AID T TECHNIQUES UNDER RESEARCH AND
DEVELOPMENT
NDT techniques currently employed for series-
production items, although sensitive enough to detect
the majority of structurally significant defects, are not
capable of detecting all the defects in composites and,
232 COMPOSITES. MAY 1988
in some cases, do not provide detailed identification
and characterization of defects. Future composite
aircraft structures such as the cFc wing demonstrator
for BAe 125 aircraft will contain hybrid composites and
will be manufactured using automated lay-up, curing
and assembly techniques. The introduction of these
new manufacturing technologies will require a different
approach to NDT. Many new NDT techniques which are
being developed with the aim of coping with new
manufacturing technology (and improving the quality
and capabilities of NOT) are currently under research
and development.
Ultrasonic spectroscopy
Ultrasonic spectroscopy is based on the use of Fourier
transformations of the ultrasonic time domain signal to
display the frequency and phase content of the
ultrasonic energy. It offers the potential of detecting
subtle ultrasonic energy changes in the time domain
signal following interaction with materials and defects.
The suitability of the technique for detecting and
characterizing discrete defects and material property
variations has been investigated and it was found that
manufacturing variables and in-service defects such as
thickness, surface finish, void content, degree of cure,
preimpregnate backing film inclusions, delaminations,
impact damage and moisture ingress could be detected
and characterized. Ultrasonic spectroscopy offers
advantages over conventional ultrasonic techniques in
the detection of degree of cure variations and water
ingress and the inspection of thin honeycomb skins. In
the majority of cases, however, the conventional
techniques are equally effective. 8
Real-time radiography
With the increasing throughput and complexity of
composite structures, it is becoming important to adopt
automatic inspection techniques. Despite the high
operational costs of radiographic inspection, it is still
the most common complementary technique to
ultrasonic examination. Automation of radiographic
inspection by real-time imaging offers cost reductions
by eliminating the use of X-ray films and reducing the
time of inspection. By video recording the X-ray image,
data storage is possible. Many real-time imaging
systems are now commercially available. Most of these
consist of a basic X-ray tube, a fluorescent screen and a
video camera. The systems vary quite widely in
complexity, ranging from simple video screen
presentation of the X-ray image to digitization and
computer processing of the recorded data.
Computerized X-ray tomography, which is extensively
employed in medical examination, has also been
investigated for the testing of composite materials. In
this method, the X-ray image consists of a cross-
sectional through-the-thickness view in the form of a
slice. Digitization of the X-ray image and the
enhancement of the image quality by computer data
processing offer a.means for detecting certain defects
which are not amenable to detection by conventional
techniques. Evaluations of currently available real-time
imaging systems have revealed that the resolution
provided by these systems (10-20 lines mm -1) is not
equal to that achieved by the use of X-ray films
(100-200 lines mm-1). Research is in progress to
improve the resolution of image display systems.
Eddy-current testing
Eddy-current testing involves the use of a varying
magnetic field produced by a test coil to induce small
circulating currents, called eddy currents, in electrically
conducting materials. Certain material properties, e.g.
conductivity, have an effect on the eddy currents thus
induced. The eddy currents themselves set up a
magnetic field which interacts with the magnetic field of
the coil such that the impedance of the test coil is
changed. Thus, any change in the eddy currents is
reflected by a change in the impedance of the test coil.
Eddy-current testing is commonly used on metallic
materials for the detection of cracks and the monitoring
of material properties such as conductivity. Sincecarbon fibres are electrically conductive, eddy-current
testing can be used for the inspection of carbon fibre
composites. Using the impedance plane display of the
eddy-current response, defects which can be detected
include delaminations, translaminar cracks, barely
visible impact damage, the presence of film inclusions
and fibre volume fraction changes. 9
Most eddy-current test procedures are based on manual
testing with the test results being interpreted by visual
observation of the eddy-current response as indicated
on a meter or similar device. This approach is time
consuming and can present difficulties in the
interpretation and quantification of the test data.
Procedures for automatic scanning and quantification
of the eddy-current response, which have the capability
of producing a record of quantized eddy-current test
data on electrosensitive paper in the form of a facsimile
C-scan trace have been developed. (A typical eddy-
current C-scan trace is shown in Fig. 4.) Investigations
based on this approach have confirmed that the
majority of defects detected by other conventional NOT
techniques can also be detected by eddy-current
testing. The resolution of defect detection is influenced
by the eddy-current test parameters such as operating
frequency, amount of probe lift-off from the surface
under inspection and the speed of scanning. Eddy-
current C-scan presentation can identify areas of
variable resin/fibre ratio and detect translaminar cracks
better than the conventional ultrasonic scanning
techniques. Research is in progress to optimize
eddy-current test probes and to digitize the impedance
plane response so that the eddy-current test data can be
analysed on a computer and presented on a graphics
terminal such that defect detection is enhanced.
Thermography
The basic principle of thermography is to apply heat to
the test piece and measure the resulting variations in
heat dissipation. Temperature-indicating substances
such as sharp melting point chemicals, heat-sensitive
paints, heat-sensitive liquid crystals and infrared
heat-detection cameras have been employed for this
purpose. The use of heat-sensitive materials to detect
temperature changes is cumbersome in application and,
C O M P O S I T E S . M A Y 1988 233
An edge
delamination
i
Impact
damage
Variation in
resin/fibre
ratio
Fig. 4 Eddy current C-scan trace from an impact-damaged composite panel (scale, 1:2.75) (Eddy current test frequency, 2 MHz; 2 mm
thick material with unidirectional carbon fibres laid in (00/_+450/90 ° ) orientation)
in many cases, is not as sensitive in detecting low
temperature changes as are optical methods based on
infrared detection. In recent years, the development of
video compatible infrared imaging cameras has led to
the development of thermography as an efficient
method of detecting discrete defects in composite
materials. The method of applying the heat to the
composite material requires careful consideration to
avoid damage to the material during examination by
the thermographic method. Hot water bags, immersion
in hot water, hot-air blowers and transient heat
generated due to aircraft flying conditions are all
possible means of heating composite structures. In one
method, heat is applied to the test object using a
high-intensity photographic flash gun. 10 This technique
of thermal inspection using a flash gun as the heat
source in combination with a videq-compatible
infrared-imaging camera has been termed thermal-
pulse video-thermography. Detailed investigations
have shown that in composites, the technique can
detect the presence of delaminations, disbonds, impact
damage, lightning strike damage and elongated voids in
solid laminates and water ingress in honeycomb
sandwich constructions.
Acousto-ultrasonic techniques
Acousto-ultrasonic measurements are based on a
combination of fundamental ultrasonic testing with
fundamental acoustic emission testing. Artificial stress
waves are induced in the material using ultrasonic type
piezo-electric transducers. The stress waves, after
travelling through the material, are detected by an
acoustic emission recording transducer on the same
side of the specimen. Any change in the material
characteristics influences the nature of the transmitted
waves and is detected by the receiving acoustic-
emission transducer. The degree of attenuation of the
transmitted stress waves can be converted into a
numerical value, commonly known as the stress wave
factor (swF). The swF provides a means of rating the
efficiency of transfer of dynamic strain energy in a
given material. Higher values of swF indicate efficient
transmission of stress waves and are indicative of good
material quality and freedom from defects. A low swF
is an indication of high attenuation of stress waves in
the material, which could be indicative of either poor
material quality or the presence of defects.
Acousto-ultrasonic techniques can detect the majority
of the defects detectable by conventional ultrasonic
techniques and offer potential for predicting strength
variations in composite materials by a quick and
efficient means.
Optical fibres
In composite materials, the use of optical fibres is being
developed for detecting damage and internal strain.
For surface crack detection, the optical fibres can be
adhesively bonded to the surface. If the surface
immediately below the optical fibres suffers from
cracking, then the optical fibres will break and the light
transmitted along them will be attenuated. By bonding
fibres at predetermined distances, crack initiation and
propagation can be monitored in real time. For
detecting the onset of mechanical damage in
composites, the optical fibres can be incorporated into
the resin matrix along with the reinforcing fibres. The
234 COMPOSITES. MAY 1988
onset and presence of damage is indicated by
attenuation in the transmitted light. This particular
approach offers considerable potential for in-service
monitoring to detect damage invisible to the naked eye
and could eliminate periodic inspection by
conventional non-destructive means. Internal strain
measurements in composites have been demonstrated 1
by embedding optical fibres in the composite matrix
and illuminating the system with a H e - N e laser. Any
strain in the component matrix is transferred to the
optical fibres and since lasers are a sensitive means of
measuring minor displacements, the level of strain in
the composite matrix can be determined. A laser
operating at 633 nm is capable of detecting one
micro-strain. In the future, if reinforcing fibres could be
made capable of light transmission, damage detection
by fibre optics could be achieved along with fibre
reinforcement.
Commercial competition forces airline operators to
minimize the downtime of civil aircraft. Aircraft
structures, such as control surfaces, tailplanes and
wings, are quite large and their sheer size will mean
that any inspection is very time-consuming. In order to
survive in the very competitive world of the passenger
airline business, it is vital to economize on inspection
times and reduce aircraft downtimes. A need is
therefore emerging to devise N D T techniques capable of
inspecting large areas rapidly and effectively.
ACKNOWLEDGMENT
The author is grateful to British Aerospace for
permission to publish this article. It must be
emphasized that any opinions expressed are those of
the author and do not necessarily represent the view of
the Company.
CONCLUSIONS
Some of the composite-based civil aircraft components
manufactured by British Aerospace have now been in
service for over 15 years. Their satisfactory in-service
performance has led to the use of composites for
high-loaded applications such as flying control
surfaces. It is envisaged that the use of composites in
large civil aircraft primary structures such as wings will
follow as confidencein both manufacturing methods
and performance is built up. The projected expanding
use of composite civil aircraft structures will require full
exploitation of better design and advanced
manufacturing technologies. Although automated
tape-laying machines and enhanced control of the
curing process might reduce the requirements for NDX
due to the decreasing occurrence of defects, assembly
techniques such as adhesive bonding will place a
greater demand on NDT to ensure that bonds of
consistent quality and adequate strength are achieved.
In-service experience has revealed that mechanical
damage, moisture ingress, heat damage and lightning
strike damage are the most common factors which
cause deterioration of composite structures. State-of-
the-art NOT techniques can detect discrete defects
generated by mechanical damage and lightning strike
but are unable to detect heat damage and moisture
ingress. Recovery of damaged composite structures by
repair is feasible. Again, state-of-the-art techniques can
detect the presence of discrete flaws but will not
provide sufficient information on the strength of the
material produced during the repair. Either new NOT
techniques or the further development of existing
techniques will be needed to fulfil this requirement.
REFERENCES
1 British CivilAirworthiness Requirements (issued by the Civil
Aviation Authority, UK)
2 Joint Airworthiness Requirements (issued by the European
Airworthiness Authorities Steering Committee)
3 Federal Aviation Requirements (issued by the Federal
Aviation Administration, USA)
4 Federal Aviation Administration Advisory Circular A C No
20-107A (April 1984)
5 Mahoon, A., Brant, C. and Maher, A, 'Computer controlled
ultrasonic testing of aircraft structures' Brit J ofND T 24
(1982) p. 316
6 Mahoon, A. 'The use of radio-opaque penetrants for the study
of damage in composites' Proc 21st Annual British Conference
on NDT, September 1986
7 Mahoon, A., Brant, C.P. and Hayes, L. 'Acoustic emission
monitoring for structural integrity assessment of aircraft
composite structures' Proc 4th European Conference on NDT,
London, September 1987
8 Brant, C.P. and Mahoon, A. 'Development of ultrasonic
spectroscopy for the characterisation of carbon fibre
composites' British Aerospace, Aircraft Laboratories,
Weybridge, Report AL/MA T/3825 (November 1984)
9 Stewart, F. and Mahoon, A. 'Eddy current test techniques for
CFC' British Aerospace, Aircraft Laboratories, Weybridge,
Report AL/MA T/4002 (February 1987)
10 Milne, J.M. and Reynolds, W.N. 'Application of thermal
pulses and infrared thermal imagers for observing sub-surface
structures in metals and composites' Proc Soc Photo-Optical
Instrument Eng 590 (1985) pp. 293-302
11 Cuishaw, B. 'Optical fibres in NDT: a brief review of
applications' ND T International 18 No 5 (1985) pp. 265-268
A U THOR
Formerly with the Weybridge site of the Military
Aircraft Division, Dr Mahoon is now with Test and
Development at British Aerospace, Richmond Road,
Kingston-upon-Thames, Surrey, KT2 5QS, UK.
COMPOSITES . MAY 1988 235
