CLEAN OIL
BRIGHT IDEAS
www.cjc.dk © CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013

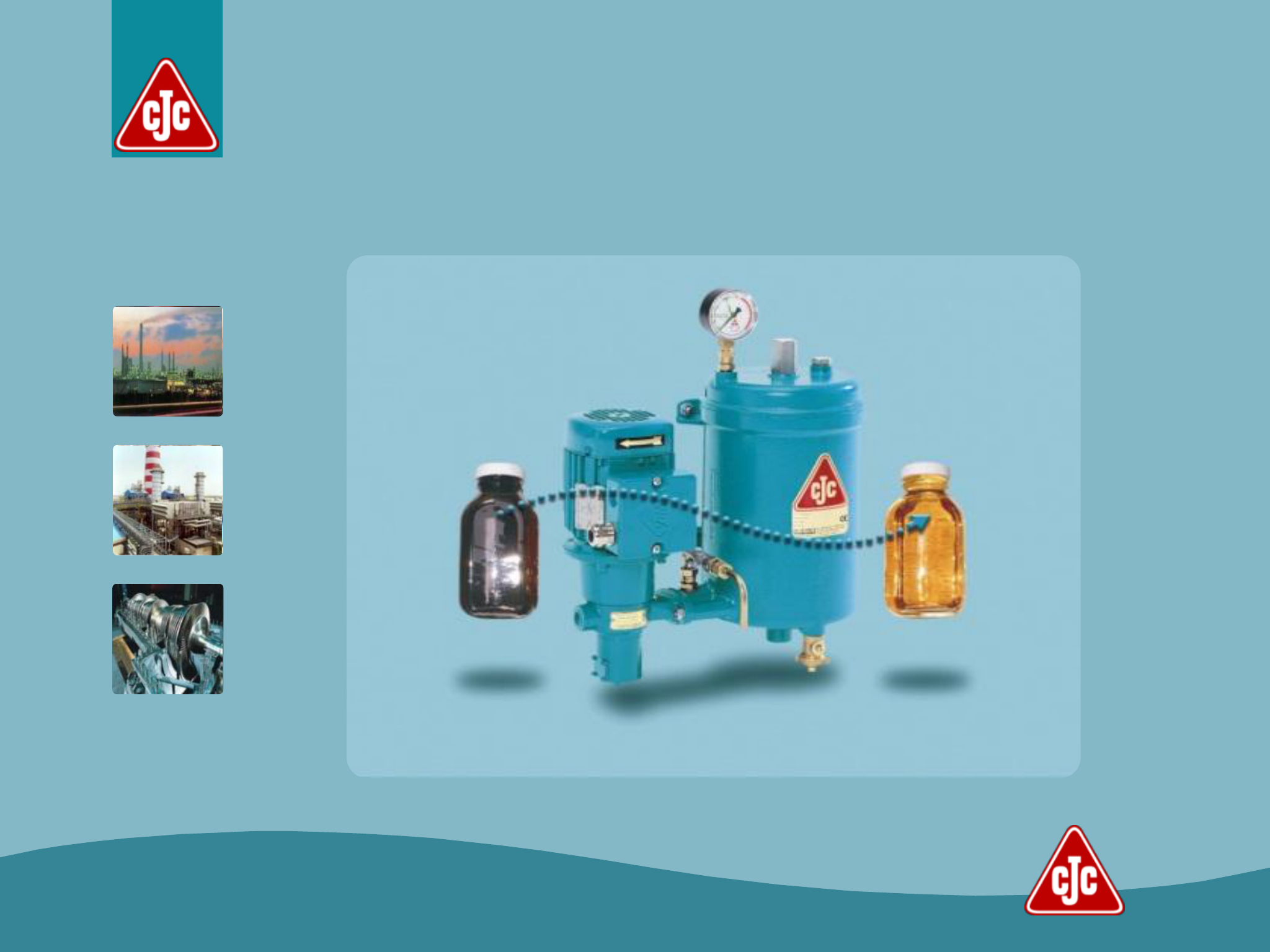

CJC Off-line Oil Filtration Systems
Power Industry
Carl Christian Jensen
1906-1972
Carl Aage Jensen

Henrik Søren Christian
CLEAN OIL
BRIGHT IDEAS C.C. Jensen A/S, a Danish family owned company
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
www.cjc.dk
CLEAN OIL
BRIGHT IDEAS
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
HDU Fine Filter w. BG, B or A filter inserts for particle, sludge
and limited water removal, 3 micron fine filtration
HDU 27/27
Flow: 120 – 250 l/h
Gear oil: 100 – 1000 l
Hydraulic: 500 – 3000 l

•Gears oil
•Compressor oil
•Hydraulic oil
•Turbine control oil
•Engine lube oil
•Generator lube oil
•Gas turbine lube oil
•Tap changer
•Cooling tower gears

Price: 3.000 – 6.000 €
HDU 27/54
Flow: 200 – 600 l/h
Gear oil: 300 – 2000 l
Hydraulic: 1000 – 6000 l

•Gears oil
•Compressor oil
•Hydraulic oil
•Engine lube oil
•Generator lube oil
•Gas turbine lube oil
•Coal mill gears

Price: 3.500 – 7.500 €
HDU 27/108
Flow: 400 – 1250 l/h
Gear oil: 600 – 4000 l
Hydraulic: 2000 – 10000 l

•Gears oil
•Compressor oil
•Hydraulic oil
•Engine lube oil
•Generator lube oil
•Gas turbine lube oil

Price: 4.500 – 10.500 €
HDU 2x27/108
Flow: 800 – 2600 l/h
Gear oil: 2000 – 8000 l
Hydraulic: 4000 – 20000 l

•Hydraulic oil
•Lubrication systems
•Gas turbine lube oil
•Heat transfer oil

Price: 13.000 – 25.000 €
HDU 427/108
Flow: 800 – 5200 l/h
Gear oil: 4000 – 15000 l
Hydraulic: 10000 – 40000 l

•Engine & Generator lube oil
•Gas turbine lube oil
•Quench oil
•Biodiesel (in comb. w. Desorber)
•Transfer diesel filtration

Price: 9.000 – 25.000 €
CLEAN OIL
BRIGHT IDEAS
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
PTU2 27/27
Flow: 120 – 250 l/h
Gear oil: 100 – 1000 l
Hydraulic oil: 500 – 3000l

•Thrusters
•Stern Tubes
•Gear oil
•Steam turbine lube oil
•Deck hydraulics of cranes
and winches
•Feed pumps

Price: 4.500 – 12.000 €
PTU3 27/108
Flow: 400 – 1250 l/h
Gear oil: 600 – 4000 l
Hydraulic oil: 2000 – 10000 l
Diesel: 1250 l/h

•Hydraulic oil
•Feed pumps
•Steam turbine lube oil
•Diesel filtration
•Marine MGO/MDO - PTU1

Price: 10.000 – 17.500 €
PTU3 2x27/108
Flow: 800 – 2600 l/h
Gear oil: 2000 – 8000 l
Hydraulic oil: 4000 – 20000 l
Diesel: 2600 l/h

•Hydraulic oil
•Steam turbine lube oil
•Single shaft ST+GT lube oil
•Diesel filtration (Storage tanks)

Price: 20.000 – 27.500 €
PTU3 4x27/108
Flow: 2600 – 7500 l/h
Gear oil: 4000 – 16000 l
Hydraulic oil: 20000 – 60000 l
Diesel: 7500 l/h

•Hydraulic oil
•Steam turbine lube oil
•Single shaft ST+GT lube oil
•Diesel filtration (Storage tanks)

Price: 32.500 - 47.500 €

CLEAN OIL
BRIGHT IDEAS PTU Filter Separators w. BLAT, BLA or F filter inserts for particle, sludge, bacteria
and water removal, 3 micron fine filtration and water removal
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
Desorbers to remove water from emulsions, synthetic ester
based oils, biodegradable oils and high viscosity oils .
Desorber D10

•Thrusters
•Stern Tubes
•Ester based synthetic fluids
•Biodegradable oil
•Smaller gears
•Hydraulic oil

Water removal: 0.2 L/h
Volume: < 2000 L

Price: 15.000€
Desorber D30

•Lube oil in Paper Mills
•Lube oil in Steel Mills
•Hydraulic applications
•Ester based synthetic fluids
•Waste Oil Applications
•Bio-diesel

Water removal: 2 L/h
Volume: < 5000 L

Price: 25.000€
Desorber D40

•Lube oil in Paper Mills
•Lube oil in Steel Mills
•Hydraulic applications
•Ester based synthetic fluids
•Waste Oil Applications
•Bio-diesel

Water removal: 8 L/h
Volume: < 25000 L

Price: 48.000€
Desorber D88

•Lube oil in Paper Mills
•Lube oil in Steel Mills
•Hydraulic applications
•Ester based synthetic fluids
•Waste Oil Applications
•Bio-diesel

Water removal: 15 L/h
Volume: < 50000 L

Price: 80.000€
CLEAN OIL
BRIGHT IDEAS
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
Special Filter units for specific applications
HPS 27/27
High Pressure HDU 15/12
Low volume
HD HDU 15/25
Heavy duty
HDU 15/25
by-pass
HTO 2x27/108
Heat transfer oil
VRU – Varnish Removal Unit
for gas and steam turbine oil
GFU – Gear Flushing
Unit for gear lube oil
CLEAN OIL
BRIGHT IDEAS
PRODUCTS APPLICATIONS WHY CJC COMPANY VARNISH VRU
Siemens Wind Energy – Brande

• Siemens Bonus 600 – HDU 15/25
• Siemens Bonus 1300 – HDU 27/27
• SWT 2.3 - HDU 27/27
• SWT 3.6 – HDU 27/54
CLEAN OIL
BRIGHT IDEAS
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
CJC HDU Off-line Fine Filter HDU on Siemens Wind turbines
Siemens Industrial Turbomachinery,
Finspång

• Siemens SST 500 – PTU3 27/108 GP – EPW
• Siemens SST 700 - PTU3 2 x 27/108 GP - EPW
• Siemens SST 800 - PTU3 2 x 27/108 GP - EPW
• Siemens SGT 500 - HDU 27/108
Siemens Industrial Turbomachinery, Finspång
CJC Filter Separator PTU3 2x27/27 GP-EPW on Siemens SST 800 at CSP – Extresol, Spain
12
Thermal Power Plants
CJC HDU 427/108 GP – EPT and PTU1 27/108 P - EPW
Flushing a Steam Turbine at EDP Aboño
C.C.JENSEN
IBÉRICA, S.L. -
14
Hydro Power Plants
CJC Fine Filter HDU 15/25 PV
on hydraulic control of hydro turbine
CJC Filter Separator PTU3 27/108 GP – EH1PW
on hydro turbine lubrication
Nuclear Power Plants
CJC Filter Separator PTU3 5x27/108 N - EPWT
on Steam Turbine at Nuclear Power Plant Vandellos
C.C.JENSEN
IBÉRICA, S.L. -
19
Combined Cycle Power Plants
CJC Desorber D30
on EHC – Electro hydraulic control with servo valves
for control of GE D11 steam turbine at Gas Natural
Aceca
CJC VRU – Varnish Removal Unit
on Siemens 501F Gas Turbine
at Calpine Delta Energy Center, Pittsburg, CA
www.cjc.dk
Oil contamination – the mayor bearing failure root cause
CLEAN OIL
BRIGHT IDEAS
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
www.cjc.dk
Premature bearing failure root cause – by SKF

16 % Improper fitting

36% Inadequate lubrication

14% Lubricant contamination

34% Abuse in service



No gearbox survives without an adequate lubrication system
in which it is essential to have the oil clean, dry and cold.

CLEAN OIL
BRIGHT IDEAS
Oil contamination – the mayor bearing failure root cause
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
Oil contamination – OEM specifications
 Double click on the MOOG manual, Pages 20.

– Use a 3 to 5 micron low pressure filter in an off-line
filtration loop.

– Recirculate oil in reservoir more than 5 times per hour.
This is justified on the bias that:

(ii) It is neither practical nor economical to try to clean
the oil with a small, relatively expensive, high pressure
element. The cheaper, low pressure element is many
times larger and has the potential to filter continually
and under more ideal conditions. (Steady flow and
lower velocities increase filtration efficiency.)
CLEAN OIL
BRIGHT IDEAS
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
 Double click on the MOOG recommendation
letter:

MOOG recommends CJC to ensure maximum
valve life time and to avoid down time due to oil
contamination


CLEAN OIL
BRIGHT IDEAS
Oil contamination– OEM recommendations
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
www.cjc.dk
Transmission (Convert energy)

Lubrication (Reduce friction)

Refrigeration (Transport heat)

Dispersion (Transport contamination)

Conservation (Prevent corrosion)
CLEAN OIL
BRIGHT IDEAS
Oil contamination – deterioration of oil functions
© CC JENSEN A/S – Power Presentation - 8th Feb 2013
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
www.cjc.dk
14
micron
6 micron
4
micron
Resins, sludge and varnish Humidity - Water
Solid particles
Temperature C º
CLEAN OIL
BRIGHT IDEAS
Oil contamination – Particles, Water, Varnish, etc.
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
www.cjc.dk
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
Oil degradation - Oxidation
www.cjc.dk
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
Oil degradation - Oxidation
www.cjc.dk
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
Oil degradation - Oxidation
C
H
H
H C
H
H
+ O2 1/2 C
H
H
H C
H
H
OH + O2 C
H
H
H C
H
O + H2O
C
H
H
H C
H
O + O2 1/2 C
H
H
H C
O
OH
+ C
H
H
H C
H
H
OH H2O +
C
H
H
H C
O
O C C
H
H
H
H
H
RESINE / SLUDGE / VARNISH
Catalysts
CLEAN OIL
BRIGHT IDEAS Oil degradation - Oxidation
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
www.cjc.dk
CLEAN OIL
BRIGHT IDEAS Oil oxidation – The anti oxidant mechanism
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
www.cjc.dk
CLEAN OIL
BRIGHT IDEAS
© CC JENSEN A/S – Power Presentation - 8th Feb 2013
Oil degradation process
Oxidation Polymerization Solubility Precipitation Agglomeration
Settling & Deposition of
Varnish on system surfaces
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
CLEAN OIL
BRIGHT IDEAS
Varnish
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
CLEAN OIL
BRIGHT IDEAS
Varnish
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
Varnish depositions on bearings and/or gears cause increase surface
roughness, lead to “Sandpaper Effect” and poor lubrication film
thickness / quality.

Varnish sticking to servo-valves diminish their operation accuracy, lead
to total failure and valve blockage.

Heat exchanger covered by Varnish lose efficiency and cooling capacity.
In-line oil filters are blocked and/or have to be changed very frequently.

The oil itself looses its properties, antioxidant additives are depleted.
Hydraulic control
Turbine bearing Plate heat exchanger
CLEAN OIL
BRIGHT IDEAS
Varnish
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
Consequences:
Wear of components, temperature
increase, efficiency loss, high risk of
failure of critical components such as
servo –valves, which may lead to
turbine trips and downtime.
CLEAN OIL
BRIGHT IDEAS
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
Oil degradation products – How to monitor ?
• Ultracentrifuge Test (UC)

• Membrane Patch Colorimetric
(MPC) /Varnish Rating (QSA)

• RULER (ASTM D6971)

• Gravimetric Analysis

• Infrared Spectroscopy (FT-IR)

• Rotating Pressure Vessel
Oxidation Test (RPVOT)

• Viscosity Test (indicator)

• Acid number (indicator)
VRU - Varnish Removal Unit
Development, installations & field experiences
CLEAN OIL
BRIGHT IDEAS
www.cjc.dk © CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
VRU prototype on GE 6B gas turbine
at Son Reus, Mallorca, Spain
VRU
HISTORY
www.cjc.dk
CLEAN OIL
BRIGHT IDEAS
VARNISH PRODUCTS APPLICATIONS WHY CJC VRU COMPANY
Oil degradation process
Oxidation Polymerization Solubility Precipitation Agglomeration
Settling & Deposition of
Varnish on system surfaces
Precipitation Agglomeration
Settling & Deposition of
Varnish on system surfaces
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
VRU on Siemens gas turbine at combined cycle
cogeneration power plant at Hillerød, Denmark
SIEMENS gas turbine V 64.3 (53.9 MW)

Oil type: Mobil DTE 832

Oil volume: 9.800 l, since 31/5-2005
Operational hours - 36.000 hrs.

Reservoir oil temperature : 62 ˚C
VRU on Siemens gas turbine at combined cycle
cogeneration power plant at Göteborg Energi, Sweden
VRU
TODAY
SIEMENS gas turbine SGT-800 (GTX100)
Oil type: Shell Turbo CC 46
Oil volume: 12.000 l
Reservoir oil temperature : 72 ˚C
Operation type: base load
Remote dP control for on time filter insert change.
The graph shows the increasing filter insert change
interval for the first three filter inserts changes.
55
Calpine Delta Energy Center, Pittsburg, CA

Siemens 501F Gas Turbine (185 MW)
Oil volumen: 21.000 l
Oil Type: Shell Turbo T 32
Operating Temperature
Reservoir oil temperature : 78 ˚C
Operation type: base load
Problem:
Varnish on bearings surfaces and on heat
exchanger, caused efficiency reduction of
the overall turbine operation.
Solution:
VRU – Varnish Removal Unit,
outdoor version
Results:
Immediate drop (inlet vs. outlet) from
UC 6 to 1
MPC 41 to 6
VRU - Varnish Removal Unit on
GE 9FA (250 MW) – 26.000 liters Shell Turbo CC 32 at
Iberdrola Tarragona Power, (BASF), Tarragona, Spain
The problem:
High risk of turbine trips due to varnish.
Oil analysis showed MPC of 62 ΔE indicating high
varnish level caused by oil degradation.
Conventional filter systems were not able to remove varnish as it is
dissolved in the oil at operating temperature. At Tarragona Power
several filters were used but none was able to remove varnish.
Another filter system
that did not work and
had been disposed
The Solution:
VRU - Varnish Removal Unit
Efficient varnish removal. The VRU first treats the oil, making the varnish precipitate
and come out of solution to be then adsorbed by the cellulose fibers of the
VRi - Varnish Removal insert
67
In one single pass the VRU removes 70% of the varnish in the oil.
The Result:
Within 3 month the MPC dropped from critically high
value of 64 down to safe value of 19 ΔE

VRi´s - after 5 days operation
New VRi´s before use
The Result:
Within 3 month the MPC dropped from critically high value of 64
ΔE down to a safe value of 19 ΔE
M0 vs. M5
after 1 month operating VRU
A happy CJC guy
An even happier
VRU - Varnish Removal Unit on
GE 6B (42MW) gas turbine – 6.500 litres Mobil DTE 832 at
Iberdrola Energyworks Cartagena, (SABIC) Spain
74
The oil is lubricating turbine bearings, reduction gear and
generator bearings. The same oil is also used for the hydraulic
control incorporating servo valves.
75
Oil operating temperatures:
Tank: 66ºC
Thrust bearing: 66ºC
Turbine bearing: 80ºC
Gearbox: 85ºC
Generator bearing: 64ºC
76
Plugged IGV inline filter
causing turbine trips
The Problem:
High oil operating temperatures caused
premature oil oxidation and formation of varnish
resulting in:
High MPC = 64 ∆E
77
The Solution:
VRU – Varnish Removal Unit
Outdoor version
78
VRU – Varnish Removal Unit
Installed at Energyworks Cartagena
79
VRU – Varnish Removal Unit in operationTotally PLC controlled with integrated
safety and alarm function
80
The result:
VRi – Varnish Removal inserts
after 5 days of VRU operation.
The result:

MPC membranes (0,45 μm)
of samples taken during first month of
VRU operation.

Starting MPC: 55 ∆E
After 1 month MPC: 15 ∆E
Oil samples taken at the VRU
inlet vs. outlet
82
The result:
IGV inline filter
before VRU operation vs. after 6 month VRU operation
VRU - Varnish Removal Unit on
GE 9FB (250 MW) – 17.000 liters Repsol Turbo CC 32 at
Iberdrola Arcos de la Frontera, Cadiz, Spain
At completion, this was the largest power plant ever built by
Iberdrola as well as the largest combined cycle power plant in
Spain. Block III was the launch plant for the GE 9001FB gas turbine.
85
The problem:
MOOG servo valve sticking and mal function due to varnish
The solution:
CJC VRU – Varnish Removal Unit
87
VRU – Varnish Removal Unit in operation
totally PLC controlled with integrated safety and alarm function
The results:
MPC reduction from 37 to 15 within 40 days
VRU - Varnish Removal Unit on
GE 6FA (75 MW) – 30.000 liters Repsol Turbo CC 32 at
Endesa Granadilla, Tenerife, Spain
Before installing the VRU -
Granadilla tried
unsuccessfully to remove
varnish from the lube oil of
TG3 using:
• Hydac IXU, ion exchange
filter (originally intended
to use on phosphate ester
oil of EHC - electro-
hydraulic control systems)
• Kleentek EOC,
electrostatic filter
Both systems failed and
were not able to reduce
and maintain the varnish
below critical level MPC 20
The CJC VRU does work !
92
VRi – Varnish Removal Inserts
The VRU works off-line
The suction line shall be installed at the lowest possible point of the oil reservoir (drain valve) and the return
line to the top of the reservoir on the opposite. The VRU is designed to work 24/7. For efficient varnish
removal, it is important to operate the VRU during turbine operation with hot oil in order to extract oil with
high concentration of dissolved varnish. The VRU shall also be operated when the turbine is off in order the
remove contamination the may have deposit on the bottom of the tank. Thus the turbine will be started up
on clean oil.
HOW DOES
VRU WORK
The VRU does a non chemical oil treatment to make dissolved contaminants precipitate and come out of
solution. It incorporates a 3 micron low flow multi-pass filtration, whereby the varnish is permanently
(definitely) removed (adsorbed) by the VRi – Varnish Removal Insert.

Simple and intelligent equipment control for totally safe and reliable operation.
HOW DOES
VRU WORK
The VRi insert is made of superabsorbent sub-micron cellulose fibers with extreme affinity for varnish.
Its design offers high filter media surface and volume.
The VRi filtration is a non chemical process, with no impact on additives or chemical oil properties.

Long term anti oxidative properties
HOW DOES
VRU WORK
HOW DOES
VRU WORK
CLEAN OIL
BRIGHT IDEAS
www.cjc.dk

Development, installations & field experiences
© CC JENSEN A/S – IPS, Cannes- 20 -22th Feb 2013
