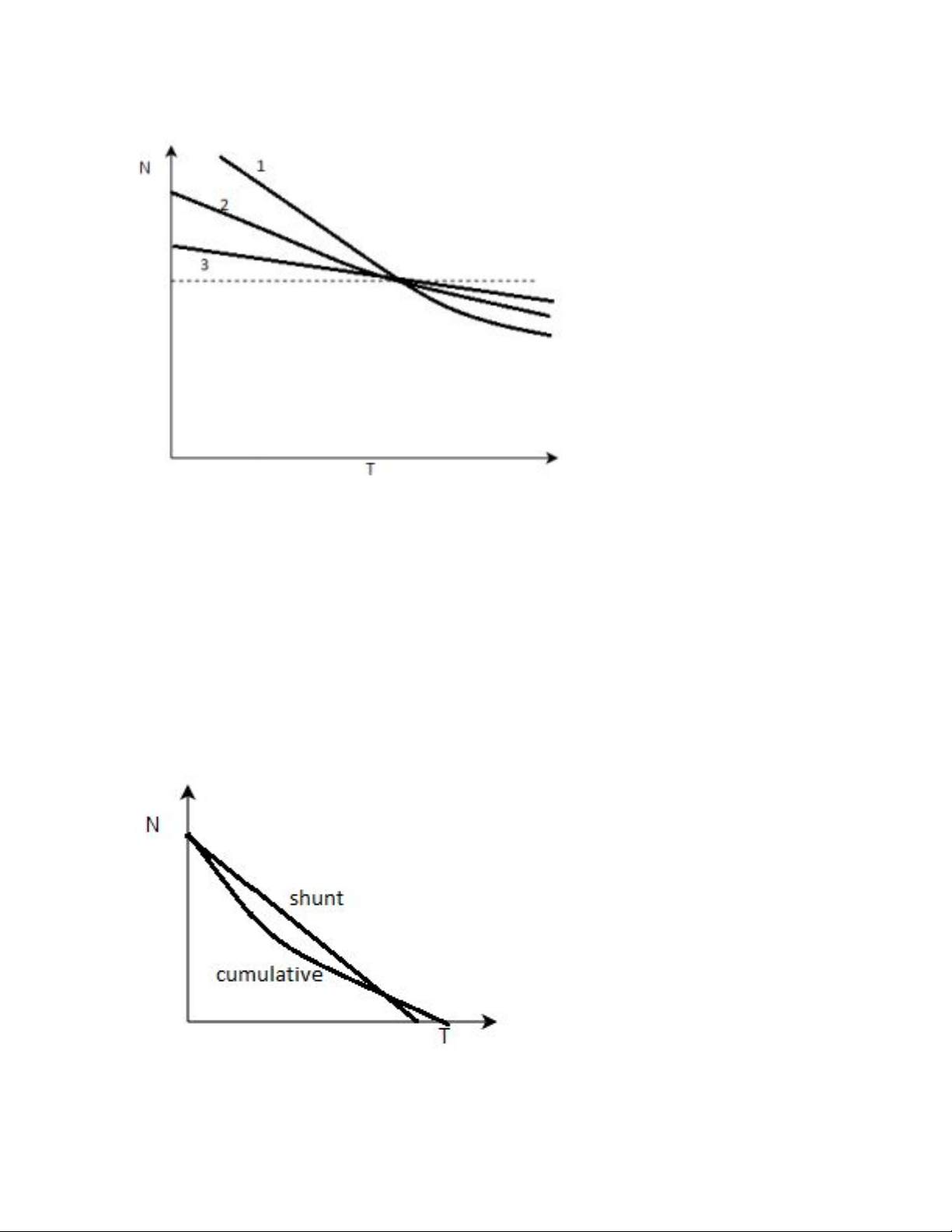

a) (1)series motor (2) Cumulative compound motor (3) Shunt motor
b) (1)Cumulative compound motor (2) series motor (3) Shunt motor
c) (1)Cumulative compound motor (2) Shunt motor (3) series motor
d) (1)Shunt motor (2) series motor (3) Cumulative compound motor
View Answer
Answer: a
Explanation: Shunt machine has almost constant speed while the series varies as inverse
relation with torque.
8. How will the speed torque characteristic of a dc shunt motor and cumulatively compound dc
motor perform at no load?
a)​
