12. For a 100 hp 250 V, compound dc motor with compensating winding has a field current of 5
A to produce a voltage of 250 V at 1200 rpm. What will be the shunt field current of this machine
at no load?
a) 5 A
b) 5.6 A
c) 4 A
d) 0 A
View Answer
Answer: a
Explanation: At no load, armature current is zero, so the internal generated voltage is 250 V. So
5 A will be the shunt field current at no load.

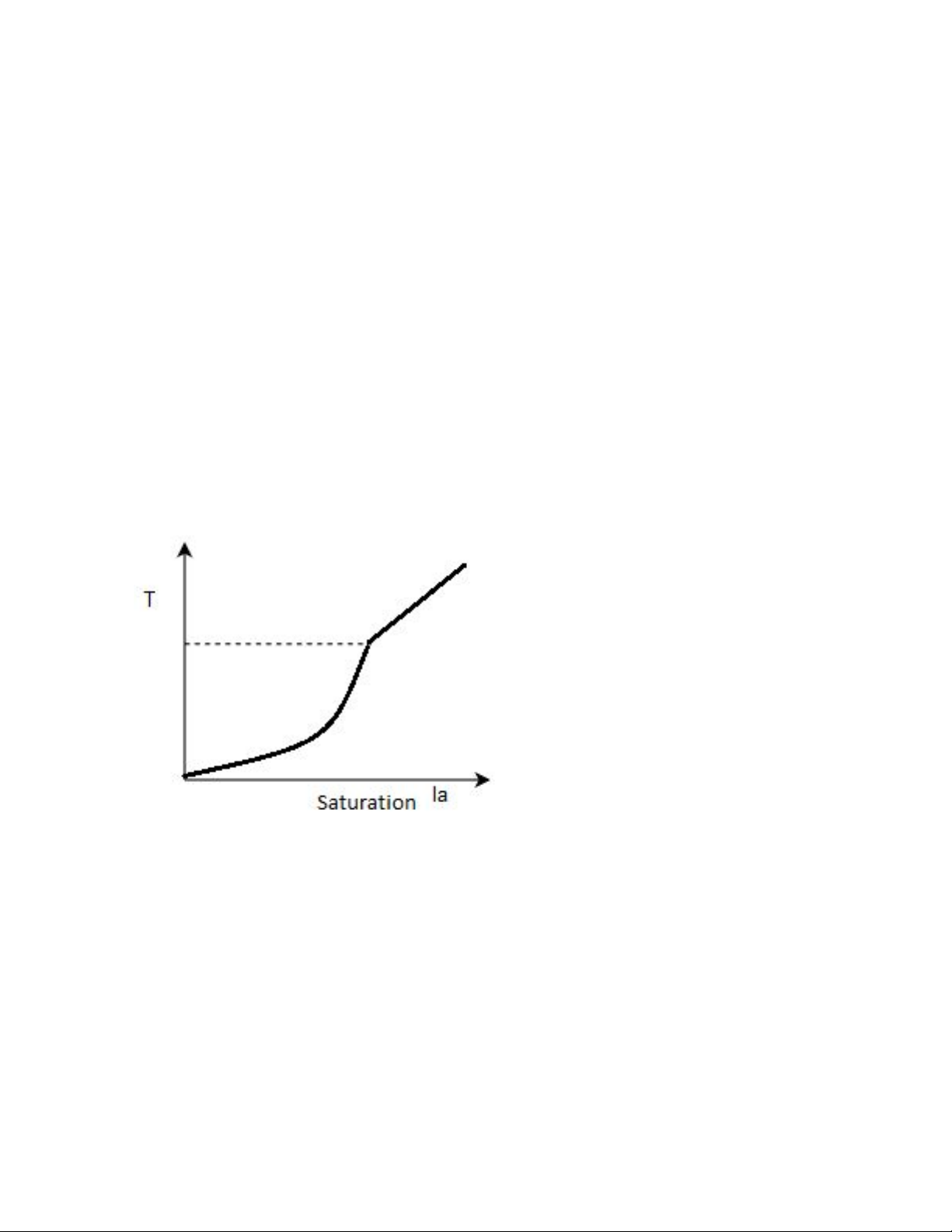

13. The torque characteristic is best described for a dc series motor with respect to armature
current is
a)​
