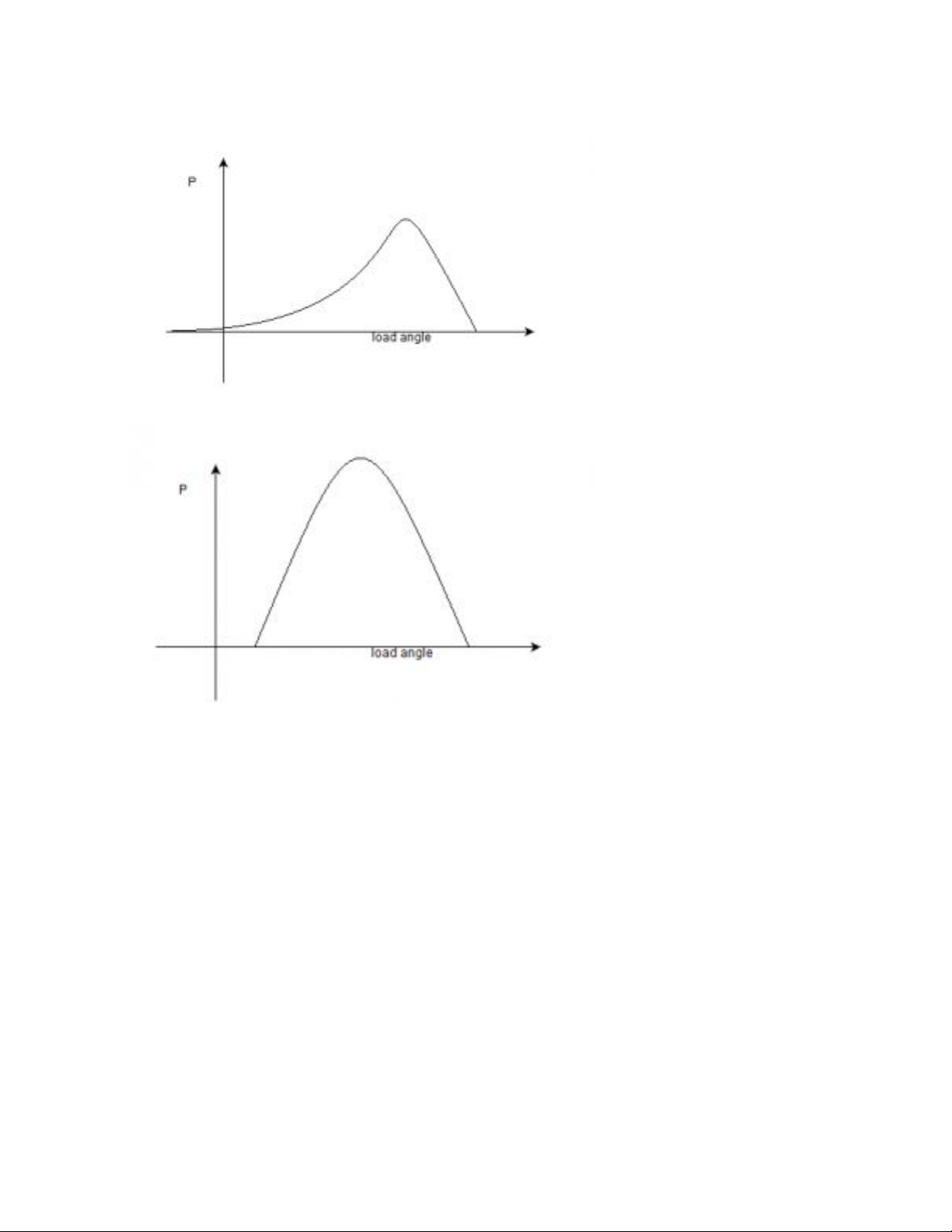

c)
d)
View Answer
Answer: a
Explanation: The power angle curve is not completely sinusoidal due to the salient nature of the
poles.
5. A 3 phase 400V salient pole alternator is running at no-load. Suddenly the excitation is
removed then the net power in the machine is proportional to
a) sin 2d
b) sin d
c) cos 2d
d) 0
View Answer
Answer: a
Explanation: The reluctance power generated will be proportional to sin(2δ).
6. A 3 phase 400V cylindrical rotor is running at 1500rpm. Suddenly the field excitation zero.
Then the net reluctance power is
a) 0
b) sin 2d
