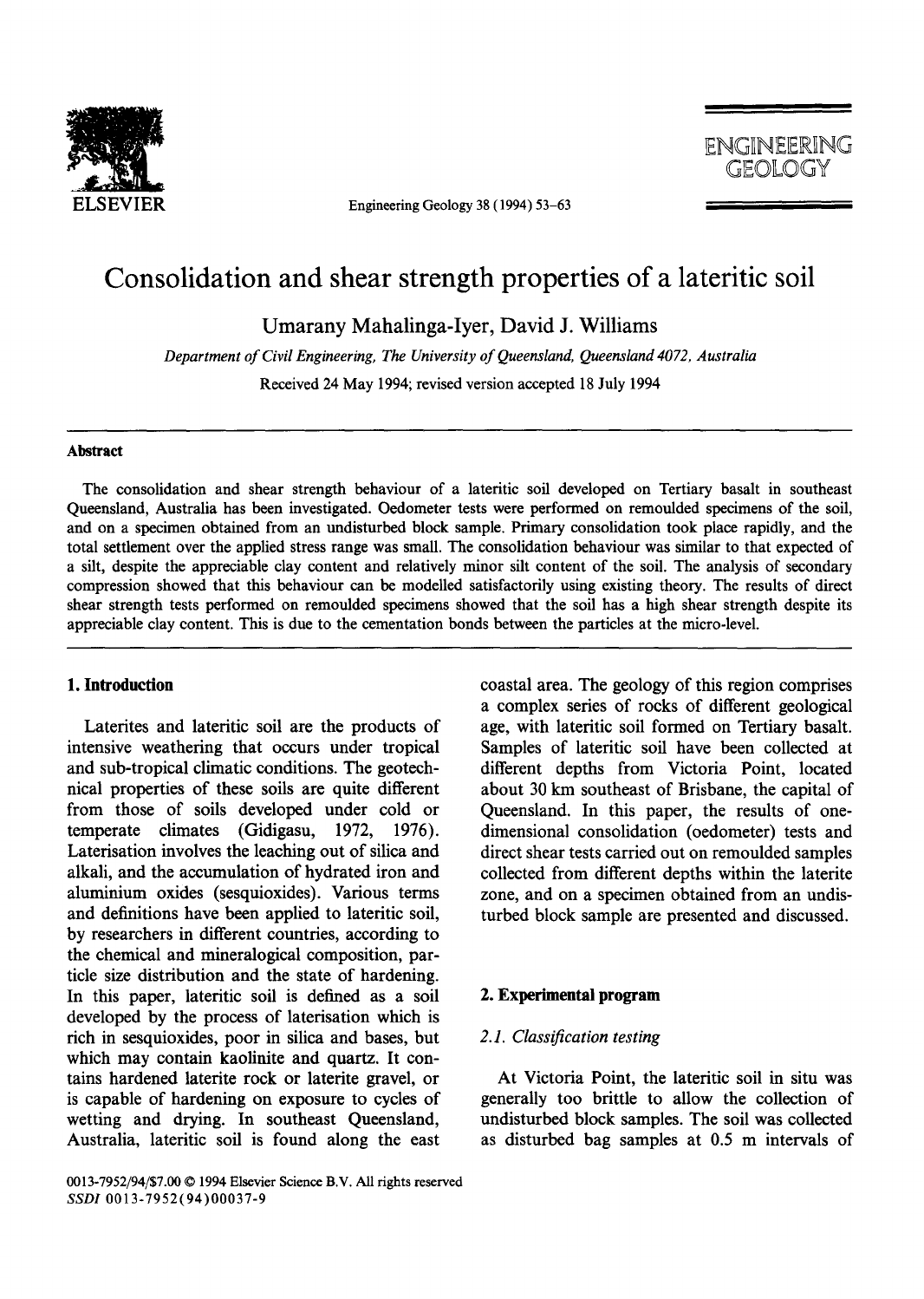

ELSEVIER Engineering Geology 38 (1994) 53-63
E G NEER G
GEOLOGY
Consolidation and shear strength properties of a lateritic soil
Umarany Mahalinga-Iyer, David J. Williams
Department of Civil Engineering, The University of Queensland, Queensland 4072, Australia
Received 24 May 1994; revised version accepted 18 July 1994
Abstract
The consolidation and shear strength behaviour of a lateritic soil developed on Tertiary basalt in southeast
Queensland, Australia has been investigated. Oedometer tests were performed on remoulded specimens of the soil,
and on a specimen obtained from an undisturbed block sample. Primary consolidation took place rapidly, and the
total settlement over the applied stress range was small. The consolidation behaviour was similar to that expected of
a silt, despite the appreciable clay content and relatively minor silt content of the soil. The analysis of secondary
compression showed that this behaviour can be modelled satisfactorily using existing theory. The results of direct
shear strength tests performed on remoulded specimens showed that the soil has a high shear strength despite its
appreciable clay content. This is due to the cementation bonds between the particles at the micro-level.
1. Introduction
Laterites and lateritic soil are the products of
intensive weathering that occurs under tropical
and sub-tropical climatic conditions. The geotech-
nical properties of these soils are quite different
from those of soils developed under cold or
temperate climates (Gidigasu, 1972, 1976).
Laterisation involves the leaching out of silica and
alkali, and the accumulation of hydrated iron and
aluminium oxides (sesquioxides). Various terms
and definitions have been applied to lateritic soil,
by researchers in different countries, according to
the chemical and mineralogical composition, par-
ticle size distribution and the state of hardening.
In this paper, lateritic soil is defined as a soil
developed by the process of laterisation which is
rich in sesquioxides, poor in silica and bases, but
which may contain kaolinite and quartz. It con-
tains hardened laterite rock or laterite gravel, or
is capable of hardening on exposure to cycles of
wetting and drying. In southeast Queensland,
Australia, lateritic soil is found along the east
0013-7952/94/$7.00 © 1994 Elsevier Science B.V. All rights reserved
SSDI 0013-7952(94)00037-9
coastal area. The geology of this region comprises
a complex series of rocks of different geological
age, with lateritic soil formed on Tertiary basalt.
Samples of lateritic soil have been collected at
different depths from Victoria Point, located
about 30 km southeast of Brisbane, the capital of
Queensland. In this paper, the results of one-
dimensional consolidation (oedometer) tests and
direct shear tests carried out on remoulded samples
collected from different depths within the laterite
zone, and on a specimen obtained from an undis-
turbed block sample are presented and discussed.
2. Experimental program
2.1. Classification testing
At Victoria Point, the lateritic soil in situ was
generally too brittle to allow the collection of
undisturbed block samples. The soil was collected
as disturbed bag samples at 0.5 m intervals of
54 U. Mahalinga-Iyer and D. J. Williams/Engineering Geology 38 (1994) 53 63
depth from 0.5 to 2.5 m depth. A single block
sample was collected from 0.5 m depth. X-ray
diffraction analysis of the soil revealed that it
comprises kaolinite, quartz, gibbsite and haematite
and chemical analysis showed that the soil has a
silica:sesquioxide ratio in the range from 0.59
to 0.66.
As the soil is sensitive to oven drying, classifica-
tion properties were obtained on air-dried samples,
in accordance with AS 1289 (1977) (This standard
is equivalent to ASTM standards Vol. 04.08 (1991)
in all but minor details). Over the depth of the
profile the soil comprised 23-58% clay sized par-
ticles, 6-12% silt sized particles, and 1-38% sand
and gravel sized particles. The in situ moisture
content was between 20% and 25%. This moisture
content corresponds to a degree of saturation in
the range from 72% to 87%. The liquid limit was
between 56.6% and 63.4% and the plastic limit
was between 41.6% and 46.3%, indicating a plastic-
ity index in the range from 15.0% to 17.1%.
Casagrande's classification was not used as it has
been found to be unsuitable for application to this
soil (Mahalinga-Iyer and Williams, 1991 ). An esti-
mate of the in situ density was determined by the
toluene displacement method using the soil clods
(Sibley and Williams, 1989). The in situ bulk
density was between 1.87 and 2.12 Mg/m 3. Details
of the soil profile, climate and geology of the area,
and classification properties of the soil are given
in Mahalinga-Iyer and Williams ( 1991 ).
2.2. Consolidation testing
Consolidation tests were carried out in accor-
dance with AS 1289 (1977) in standard fixed ring
type oedometers with a brass ring of 75 mm
internal diameter and 20 mm height. The side
friction between the ring and the soil was reduced
by lubricating the inside of the ring with silicone
grease. Specimens were taken from each of the
bag samples and remoulded in the ring, approxi-
mating the in situ density by tamping, at natural
moisture content. One undisturbed specimen was
taken from the block sample collected from 0.5 m
depth. Porous stones were placed on both ends of
each specimen to provide two-way vertical drain-
age, with filter papers placed between the specimen
and the porous stones to prevent fine particles
being forced into the pores of the stones. The
specimens were soaked for 24 h under a seating
stress of 6 kPa, and 100% saturation was achieved
during this period. The degree of saturation was
back-calculated from the moisture content of the
specimen at the end of the test, the volume of
water expelled during the test and the specific
gravity of the solids. The permeability of the
specimens was of the order of 10 -s m/s which
corresponds to that of a silt. This relatively high
permeability ensures that the specimens achieved
100% saturation within 24 h. After soaking under
a stress of 6 kPa, each specimen was loaded to
800 kPa in the sequence 12.5, 25, 50, 100, 200, 400
and 800 kPa. The duration of each stage was 24 h.
The resulting settlements were recorded both auto-
matically and manually. The tests were carried out
under controlled temperature conditions in the
range from 19 to 20°C. The settlement behaviour
due to long term soaking of the Victoria Point soil
was also investigated by testing a remoulded speci-
men from 1 m depth in the oedometer with each
stage of loading maintained for one week.
2.3. Strength testing
Direct shear strength tests were carried out on
remoulded specimens at in situ moisture content
and under saturated conditions, in a square direct
shear box of plan dimension 100 mm and depth
30 ram. All specimens were prepared in the box
by tamping, to approximate the in situ density at
natural moisture content. The specimen height of
30 mm was used to accommodate any gravel pass-
ing the 9.5 mm size sieve. Tests at natural moisture
content (that is partially saturated, with a degree
of saturation in the range from 72% to 87%) were
carried out at a strain rate of 0.5 mm/min normal
pressures of 24 kPa, 48 kPa, 100 kPa and at 150
kPa in order to estimate the in situ shear strength
parameters.
Tests were performed on specimens soaked for
24 h after preparation. The moisture content prior
to shearing was in the range from 29% to 30%
indicating that 100% saturation was achieved
during soaking. The tests were conducted at a
strain rate of 0.05 mm/min consolidated under
U. Mahalinga-Iyer and D. J. Williams/Engineering Geology 38 (1994) 53-63 55
normal pressures of 24 kPa, 48 kPa, 100 kPa and
200 kPa prior to shearing. The sample from 1 m
depth was also tested at normal pressuresof
300 kPa, 400 kPa, 480 kPa and 560 kPa. According
to Cheung et al. (1988), the effect of strain rate
on the direct shear strength parameters of lateritic
soils is not significant over the range of strain rates
from 0.6 to 0.0072 mm/min. Both series of direct
shear tests, those at natural moisture content and
those under saturated conditions, may be consid-
ered to be drained.
Suction measurements were carried out on soil
clods of about 30 mm diameter from each depth,
using the filter paper method (McQueen and
Miller, 1968).
The micro-structure of the soil in the undis-
turbed state and from the shear plane formed
during drained testing was obtained using Philips
SEM505 and JEOL 6400F scanning electron
microscopes, at the Electron Microscope Centre
at The University of Queensland, Australia.
3. Results
3.1. Consolidation testing
Fig. 1 shows a typical settlement versus square
root of time curve for the lateritic soil. This curve
was obtained for the specimen from 0.5 m depth,
consolidated to 100kPa. Similar curves were
obtained for the applied pressure range from
12.5 kPa to 800 kPa, and for specimens from other
depths. From Fig. 1, it is clear that the compression
of the lateritic soil specimen took place in three
distinct phases, which can be described as initial
compression, primary consolidation and secondary
compression. Primary consolidation took place
rapidly, with the time for 90% primary consolida-
tion t9o determined by Taylor's square-root time
method being 1.0 min.
Table 1 shows the range of t9o values, and the
range of the coefficient of consolidation cv over
the applied pressure range from 12.5 to 800 kPa,
and the values of preconsolidation pressure Pc' and
over consolidation ratio OCR for all depths. Fig. 2
shows the variation of void ratio with logarithm
of pressure for the remoulded and undisturbed
specimens from 0.5 m depth. The initial void ratio
of the oedometer specimens before soaking has
been included in Fig. 2, which shows that the
settlement due to soaking is not significant. The
undisturbed specimen was lightly fissured, leading
to a higher void ratio and lower bulk density (by
about 5%) than the remoulded specimen. However,
the values of preconsolidation pressure are approx-
imately the same for both undisturbed and
remoulded specimens.
Fig. 3 shows the variation of the compression
index with percentage clay. For temperate zone
soils the clay fraction has a great influence on the
geotechnical properties of the soil. Over the profile,
the clay fraction varies from 23% to 58%. However,
Fig. 3 does not show any systematic variation
between the parameters. Also, there is little change
in the shape of the settlement versus time curves,
and primary consolidation was essentially com-
plete within 2.0 min for all of the specimens,
despite their different clay contents. This indicates
0.00
~ 0.01
"~ 0.02
0.03
, , ,J
0.04
0.05
Square r o o t o f t ime _ 0 . (mLla .5)
0 1 2 3 4 5 6 7 8 9 10
P l I i I 1 i I t I
0 0 o
0 0 0
Table 1
Consolidation data
Depth Range of tgo Range of cv Pc' OCR
(m) (min) (m2/year) (kPa)
0.5* 0.25-1.04 37-200 300 32.70
0.5 0.13-1.44 30-368 325 35.70
1.0 0.09-1.25 38-578 195 10.35
1.5 0.25-1.69 30-216 150 5.08
2.0 0.04-1.10 41-1255 270 6.49
2.5 0.09-1.21 38-550 205 4.15
Fig. 1. Typical settlement versus time curve. *Undisturbed specimen.
56 U. Mahalinga-lyer and D. J. Williams~Engineering Geology 38 (1994) 53-63
o
1.08
1.04
1.00
0.96
0.92
0.88
0.84
0.80
• Initial
~ _ o Undtzturbed
I I
10 100
Prenare (kPa)
Fig. 2. One-dimensional consolidation curves.
I
1000
0.12
0.10
0.08
0.08
0.04
8
0.02
0
O
0.0 I t I I I i I I 4
20 25 30 35 40 45 50 55 60 65
Clay content (~)
Fig. 3. Variation of compression index with % clay.
that the clay fraction has little influence on consoli-
dation properties for this soil.
Fig. 4 shows the settlement versus logarithm of
time curves during secondary compression. Gibson
and Lo (1961) proposed a theory of secondary
consolidation and, based on this, Lo (1961) pro-
posed three different types of curves for secondary
consolidation. For the type 1 curve, the rate of
secondary compression gradually decreases with
time; for the type 2 curve, the rate is proportional
to the logarithm of time, for a considerable range
of time and then rapidly decreases, and for the
type 3 curve, the rate increases with time, then
gradually diminishes. From Fig. 4, it is clear that
for the lateritic soil tested the variation of the rate
of secondary compression with time is similar to
Lo's type 1 curve. According to Gibson and Lo
(1961) the settlement St at any time t after the
application of pressure increment Ap is given by:
St = HAp{a + b[ 1 - exp( - 2t/b)]} ( 1 )
where a, b and 2 are soil parameters and H is the
thickness of the soil specimen. Thurairajah and
Wijekulasuriya (1979) showed that:
log(ST--St) = -0.434(2/b)t+log(HApb) (2)
where is Sr the settlement at a large time T after
the application of Ap.
The graph of l o g ( S t - S 0 versus t should plot
as a straight line with gradient -0.434 2/b and
intercept log(H Apb) from which the soil param-
U. Mahalinga-Iyer and D. J. Williams~Engineering Geology38 (1994) 53-63 57
0.0
0.1,
.,-, 0.2,
0.3
0.4
0.5
10 100 1000
' , i M i
IO00O IOOOOO
i i
50 kPa
100 kPa
2 0 0 kPa
4 0 0 kPa
BOO kPa
Fig. 4. Settlement versus time curves highlighting secondary compression.
eters a, b, 2 can be obtained. Table 2 shows the
values of soil parameters a, b and 2 obtained using
this approach for the lateritic soil. In the estimation
of these parameters, the value for T was taken as
15,000 min. The values of b and 2 decrease with
increasing consolidation pressure. A similar trend
was observed for lateritic soil by Thurairajah and
Wijekularsuria (1979).
3.2. Strength testing
Table 3 shows the values of cohesion intercept
and angle of shearing resistance obtained from the
unsaturated (apparent parameters ca, ~ba) and the
saturated (effective stress parameters c', ~') direct
shear tests carried out on remoulded lateritic soil
specimens. Suction values {pF =log (kPa)+ 1 } at
the natural moisture content are also given in
Table 3. The variation in the values of soil para-
meters with depth shows that the soil is not homo-
geneous within the laterite zone.
Table 3 shows that both the cohesion intercept
and the angle of shearing resistance for specimens
from all depths are reduced by saturation. This is
Table 2
Parameters for Gibson and Lo theory
Pressure a b 2
(kPa) (kPa-~.10 -5) (kPa-l-10 -s) (kPa-Xmin-l-10 -9)
25 12.10 4.97 11.20
50 5.48 4.34 8.61
100 4.12 1.09 3.56
200 5.77 0.872 2.78
400 8.19 0.287 0.78
800 5.95 0.109 0.31
Table 3
Shear strength parameters
Natural moisture content Saturated
Depth c~ ~a Suction c' q~'
(m) (kPa) (°) (pF) (kPa) (o)
0.5 87 42 3.74 40 31
1.0 76 40 3.60 37 32
1.5 125 37 3.50 48 30
2.0 131 43 3.50 45 35
2.5 152 37 3.46 43 32
due mainly to the loss of soil suction. A similar
loss in shear strength for lateritic soil was observed
by Foss (1973).
4. Discussion
4.1. Consolidation testing
Although the specimens contain a substantial
amount of clay sized particles, the settlement
versus time curves, as shown in Fig. 1 were similar
to that expected for silt. Micro-aggregation and
micro-voids are responsible for this behaviour.
During laterisation, sesquioxide is precipitated on
the surfaces of the clay particles as an amorphous
gel. The kaolinite particles have a plate-shaped
micro-structure. The sesquioxide coating changes
the plate-shaped micro-structure into micro-
aggregation, resembling tiny balls, as shown in
Fig. 5. Several micro-voids can also be seen in this
figure. Drainage of water through pure kaolinite
is similar to drainage through a stack of plates,
58 U. Mahalinga-lyerand D. J. Williams/Engineering Geology 38 (1994) 53 63
Fig. 5. Microstructure of the lateritic soil.
whereas drainage through lateritic soil is similar
to flow through beads and voids. Consequently
primary consolidation of lateritic soil takes place
much more rapidly than that of kaolinitic clay.
The totalsettlement of the lateritic soil speci-
mens over the applied pressure range was between
1 mm and 1.3 mm. The compression index lies in
the range from 0.03 to 0.16, whereas that for
kaolinite lies in the range from 0.19 to 0.28
(Mitchell, 1976). This indicates that the lateritic
soil is relatively incompressible. Olson and Mesri
(1970) showed that the compressibility of pure
kaolinite subjected to low stress levels is mainly
due to particle bending, sliding and compression.
As the kaolinite particles are plate shaped, they
can slide over each other and can bend easily
under the application of stress. Terzaghi (1948)
also reported that compressibility increases greatly
with increasing percentages of scale-shaped par-
ticles such as mica. In lateritic soil, the sesquioxide
coating of the kaolinite plates changes their shape
to spheroidal, and forms bonds (bridges) between
the particles. The spheroidal shaped particles can
not bend as easily as plate shaped particles. Also,
the bonds between the particles restrict the move-
ment or sliding of particles. Consequently the
compressibility of lateritic soil comprising kaolinite
is much less than that of pure kaolinite.
The total settlement obtained during the ex-
tended duration test was approximately the same
as that obtained in the standard duration test.
This indicates that the bonds between the particles
are not affected by soaking for a longer time under
laboratory conditions.
The values of preconsolidation pressure Pc' given
in Table 1 are higher than the present effective
overburden pressure. There is no geomorphologi-
cal evidence to suggest that the area has been
eroded in the past (Beckman et al., 1987). Many
authors (Lipman and Waynic, 1916; Grant, 1974;
Allam and Sridharan, 1981 ) indicate that climatic
changes and repeated wetting and drying cause
bonds between particles. These bonds are due to
chemical compounds of iron, calcium, aluminium
and other elements. Lambe (1960) stated that
particle cementation is aided by drying as this
tends to precipitate soluble cementing materials
from the pore water. The effects of drying are
commonly attributed to capillary precompression,
but may actually be due to cementing. Kenny et al.
U. Mahalinga-lyer and D. J. Williams/Engineering Geology 38 (1994) 53-63 59
(1967) showed that chemical removal of iron
compounds from a clay caused a decrease in
the apparent preconsolidation pressure.
Therefore, the bonding within the lateritic soil
accounts for the high values of preconsolidation
pressure observed.
The values of preconsolidation pressure for
undisturbed and remoulded specimens are approxi-
mately the same (Fig. 2). Vargas (1953) performed
oedometer tests on undisturbed specimens and
remoulded specimens of a lateritic soil from Brazil.
He showed that the soil possessed a much higher
value for preconsolidation pressure in the undis-
turbed state than in the remoulded state. However,
for the Victoria Point soil, the preconsolidation
pressure values are approximately the same for
both the undisturbed and remoulded states indicat-
ing that the soil is not sensitive to the method of
reconstitution. Lumb (1962) also reported that the
lateritic soil found in Hong Kong was insensitive
to remoulding and no significant difference in
engineering properties was found between undis-
turbed and remoulded specimens. However, the
soil was susceptible to sampling disturbance.
Townsend et al. (1971) reported that remoulding
of the lateritic soil produced smaller micro-
aggregates and influenced the index properties, but
he observed little change in the strength character-
istics of the soil.
4.2. Strength testing
From the saturated drained shear tests it is
observed that the soil has an effective cohesion
intercept (Table 3). Cohesion can be due to edge
to face flocculation, to potassium ion bonding due
to drying or to cementation by naturally occurring
materials such as carbonates and iron compounds
(Lambe, 1960). The potassium ion bonding and
cementation permanently link adjacent clay crys-
tals. In the lateritic soil tested, the sesquioxide
coating and the bonds between particles give rise
to the effective cohesion intercept.
Despite the appreciable amount of clay present
in the soil tested, it has a high angle of shearing
resistance resulting in high shear strength. The
high angle of shearing resistance is attributable to
the grading of the soil which gives high density
and good interlocking at the macro-level. At the
micro-level the particles are aggregated and the
inter-particle bonds give increased resistance to
sliding.
The shearing resistance of soils is controlled by
the effective contact stress C gi,ben by (Sridharan
and Venkatappa-Rao, 1979):
C=~'+~r" (3)
where a' is the conventional effective stress and a"
is the intrinsic effective stress. An increase in
results in an increase in the shear strength of
the soil.
The intrinsic effective stress is caused by
London-Van der Waal's attraction and cementa-
tion bonds between the particles at the micro-level.
However the contribution from the London-Van
der Waal's attractive force to the strength may be
negligible for degrees of saturation greater than
40% (Sridharan, 1968, quoted in Krishnamoorthy
et al., 1987). Allam and Sridharan (1981) showed
that repeated wetting and drying of a lateritic soil
under laboratory conditions generated chemical
bonds between the clay particles. When consoli-
dated undrained triaxial tests were performed on
specimens after reaching a degree of saturation of
99.5%, an increase in shear strength was observed
with an increasing number of cycles of wetting
and drying. Allam and Sridharan attributed the
increase in shear strength to an increase in the
intrinsic effective stress caused by the cementation
bonds generated. This again confirms that the
lateritic soils possess high shear strengths despite
their appreciable clay content, because of their
cementation bonds.
Fig. 6 shows the shear stress versus horizontal
displacement curves for the lateritic soil specimen
taken from 1.0 m depth, for the range of normal
stresses applied for the saturated tests. At low
normal stress levels, the shear stress increases
rapidly to a peak, which occurs at a low displace-
ment level. With further straining, the shear stress
reduces rapidly before stabilising at a lower level.
At higher normal stress levels beyond the precon-
solidation pressure, the shear stress increases
rapidly at first but the peak is reached only at
relatively large displacement. Fig. 7 shows the
effective Mohr-Coulomb failure envelope for the
60 U. Mahalinga-lyer and D. J. Williams/Engineering Geology 38 (1994) 53-63
400
| 554 kPa
350 l ~
~" / ~ 480 kP~
~3°° l
~ 26°t ~ 3~7 ~
V ~ 24 k.Pet
o ~
0 1 2 3 4 5 6 ? 8 9 10 11 12
Horizonta l d i s p l a c e m e n t (mm)
Fig. 6. Stress versus displacement curves.
400
~-, 300
"~ 200
-N
=~ 100
l )
I I I 1 I I
100 200 300 400 500 B00
Normal stress (kPn)
Fig. 7. Effective Mohr~Coulomb envelope.
lateritic soil to be curved at low normal stress
levels and linear at high normal stress levels. This
type of stress-strain behaviour for lateritic soils
was observed by Raju and John (1975). They
suggested that at low confining pressure, the shear
stress has no effect on the cementation bonds, but
at high confining pressure cementation bonds are
destroyed during the application of the confining
pressure and the material behaves like uncemented
soil. Figs. 8a and 8b show the microstructure of
the soil from the shear planes of the specimenstested at normal stresses of 200 kPa and 480 kPa,
respectively. These figures show that intact bonds
between the grains remain after shearing. However,
hydrometer analysis showed that there was an
increase in the clay fraction (passing 2/~m) of
about 4% for the sample taken from the shear
plane. This indicates a small degree of breakdown
of micro-bonding. Townsend et al. (1971) showed
that chemical removal of sesquioxide from lateritic
soil changed the micro-structure form from sphe-
roidal to plate-like. Therefore, it may be concluded
that the latedtic soil would not behave like a
completely uncemented soil unless the sesquioxide
coating and cementation bonds are chemically
removed.
u. Mahalinga-lyer and D. J. Williams~Engineering Geology 38 (1994) 53-63 61
C a )
(b)
Fig. 8(a). Scanning electron micrograph from shear plane (Normal stress 200 kPa), 8(b) Scanning electron micrograph from shear
plane (Normal stress 480 kPa).
62 U. Mahalinga-lyer and D. J. Williams/Engineering Geology 38 (1994) 53 -63
5. Conclusions
The lateritic soil from southeast Queensland,
comprising kaolinite, quartz, gibbsite and haema-
tite, is relatively incompressible, with a compres-
sion index less than that of kaolinite. Primary
consolidation was complete within 2.0 min for
specimens sampled at different depths down the
profile. The consolidation behaviour was similar
to that expected of a silt, despite the appreci-
able clay content and relatively minor silt content
of the soil. The micro-structure, bonds due to
sesquioxide coating, and the micro-voids are
responsible for this behaviour. The high apparent
preconsolidation pressure is also due to the micro-
structural bonding. The engineering properties of
the soil are not sensitive to remoulding. The
amount of clay present does not influence the
compression index. This is in contrary to the
behaviour of temperate zone soils. The secondary
consolidation behaviour can satisfactorily be mod-
elled by the Gibson and Lo (1961) theory, the rate
of settlement decreasing with time similar to the
type 1 curve proposed in the theory. The soil has
a high angle of shearing resistance. This is due to
both the grading and the micro-structural bonding
between the particles. Only a few bonds break
down during the application of confining normal
stresses higher than the preconsolidation pressure
and shearing. The variation in the soil strength
and consolidation parameters with depth shows
that the soil is not homogeneous within the later-
ite zone.
Acknowledgements
The authors wish to express their gratitude to
Dr P.H. Morris, Department of Civil Engineering,
The University of Queensland, for his reading of
the draft paper and his helpful comments. The
electron micrograph was obtained with assistance
from staff of the Electron Microscope Centre at
The University of Queensland.
References
Alexander, L.T. and Cady, J.G., 1962. Genesis and hardening
of laterite in soils. U.S. Dep. Agric. Tech. Bull., 1282, 90 pp.
Allam, M.M. and Sridharan, A., 1981. Effect of repeated
wetting and drying on the shear strength of a natural soil.
Proc. Am. Soc. Civ. Eng., 107(GT4): 421 438.
Australian Standards, 1977. Methods of testing soils for
engineering purposes. AS 1289-1977.
Beckman, G.G., Hubble, G.D. and Thompson, C,H., 1987.
The soil landscapes of Brisbane and south-eastern environs.
CSIRO Soils and Land Use Series, 60, 80 pp.
Cheung, C.K., Greenway, D.R. and Massey, J.B., 1988. Direct
shear testing of a completely decomposed granite. Proc. 2nd
Int. Conf. Geomechanics in Tropical soils, Singapore,
Vol. 1: 109-118.
Foss, I., 1973. Red soil from Kenya as a foundation material.
Proc. 8th Int. Conf. Soil Mechanics and Foundation
Engineering, Moscow, Vol. 2: 73-80.
Gibson, R,E. and Lo, K.Y., 1961. A theory of consolidation
for soils exhibiting secondary compression. Acta Polytech.
Scand., 296( 1961 ).
Gidigasu, M.D., 1972. Mode of formation and geotechnical
characteristics of laterite materials of Ghana in relation to
soil forming factors. Eng. Geol., 6: 79-150.
Gidigasu, M.D., 1976. Laterite Soil Engineering. Elsevier,
Amsterdam, 554 pp.
Grant, K., 1974. The composition of some Australian laterites
and lateritic gravels. 2nd Int. Congr. Int. Assoc. Engineering
Geology, Brazil, IV-32.
Kenny, T.C., Moum, J. and Berre, T., 1967. An experimental
study of bonds in natural clay. Proc. Geotechnical Conf.,
Oslo, Vol. 1: 65-70.
Krishnamoorthy, M., Sridharan, A. and Nagaraj, T.S., 1987.
Shear behaviour of partly saturated soils. Ind. Geotech. J.,
17(2): 142-158.
Lambe, T.W., 1960. A mechanistic picture of shear strength in
clay. ASCE Res. Conf. Shear Strength of Cohesive Soils,
Boulder, Colo., pp 555-580.
Lumb, P., 1962. The properties of decomposed granite.
Geotechnique, 12(3): 226-243.
Lipman, C,B. and Waynic, D.D., 1916. A detailed study of
effects of climate on important properties of soils. Soil Sci.,
1(1): 5-48.
Lo, K.Y., 1961. Secondary compression of clays. Proc. Am.
Soc. Civ. Eng., 87(SM4): 61-87.
Mahalinga-Iyer, U. and Williams, D.J., 1991. Engineering
properties of a lateritic soil profile. Eng. Geol., 31: 45-58.
McQueen, I.S. and Miller, R.F., 1968. Calibration and
evaluation of a wide range gravimetric method for measuring
moisture stress. Soil Sci., 106: 225-231.
Mitchell, J.M., 1976. Fundamentals of Soil Behaviour. Wiley,
New York, N.Y., 422 pp.
Olson, R.E. and Mesri, G , 1970. Mechanisms controlling
compressibility of clays. Proc. Am. Soc. Civ. Eng., 96(SM6):
1863-1878.
Raju, V.S. and John, P.V., 1975. Vesicular laterites; stress-
strain characteristics. Proc. 5th Asian Reg. Conf. Soil
Mechanics and Foundation Engineering, Bangalore, Vol. 1:
7-10.
Sibley, J.W. and Williams, D.J., 1989. A procedure for
U. Mahalinga-lyer and D. J. Williams~Engineering Geology 38 (1994) 53-63 63
determining volumetric shrinkage of an unsaturated soil.
ASTM, Geotech. Test. J., 12(3): 181-187.
Sridharan, A. and Venkatappa-Rao, G., 1979. Shear strength
behaviour of saturated clays and the role of the effective
stress concept. Geotechnique 29(2): 177-193.
Terzaghi, K., 1948. Soil Mechanics in Engineering Practice.
Wiley, New York, N.Y., 567 pp.
Thurairajah, A. and Wijeyakulasuriya, C.V., 1979.
Consolidation characteristics of laterite. Proc. 6th Asian
Reg. Conf. Soil Mechanics and Foundation Engineering,
Singapore, Vol. 1: 91-94.
Townsend, F.C., Manke, P.G. and Parcher J.V., 1971. The
influence of sesquioxides on lateritic soil properties. Highway
Res. Rec., 374: 76-84.
Vargas, M., 1953. Some engineering properties of residual soils
occurring in southern Brazil. Proc. 3rd Int. Conf. Soil
Mechanics and Foundation Engineering, Zurich, Vol. 1:
67 75.
