Pergamon
PII: S09564)53X(96)00023-2
Waste Management, Vol. 15, No. 8, pp. 623-628, 1995
Copyright © 1996 Elsevier Science Ltd
Printed in the USA. All rights reserved
0956-053X/95 $9.50 + 0.00
ORIGINAL CONTRIBUTION

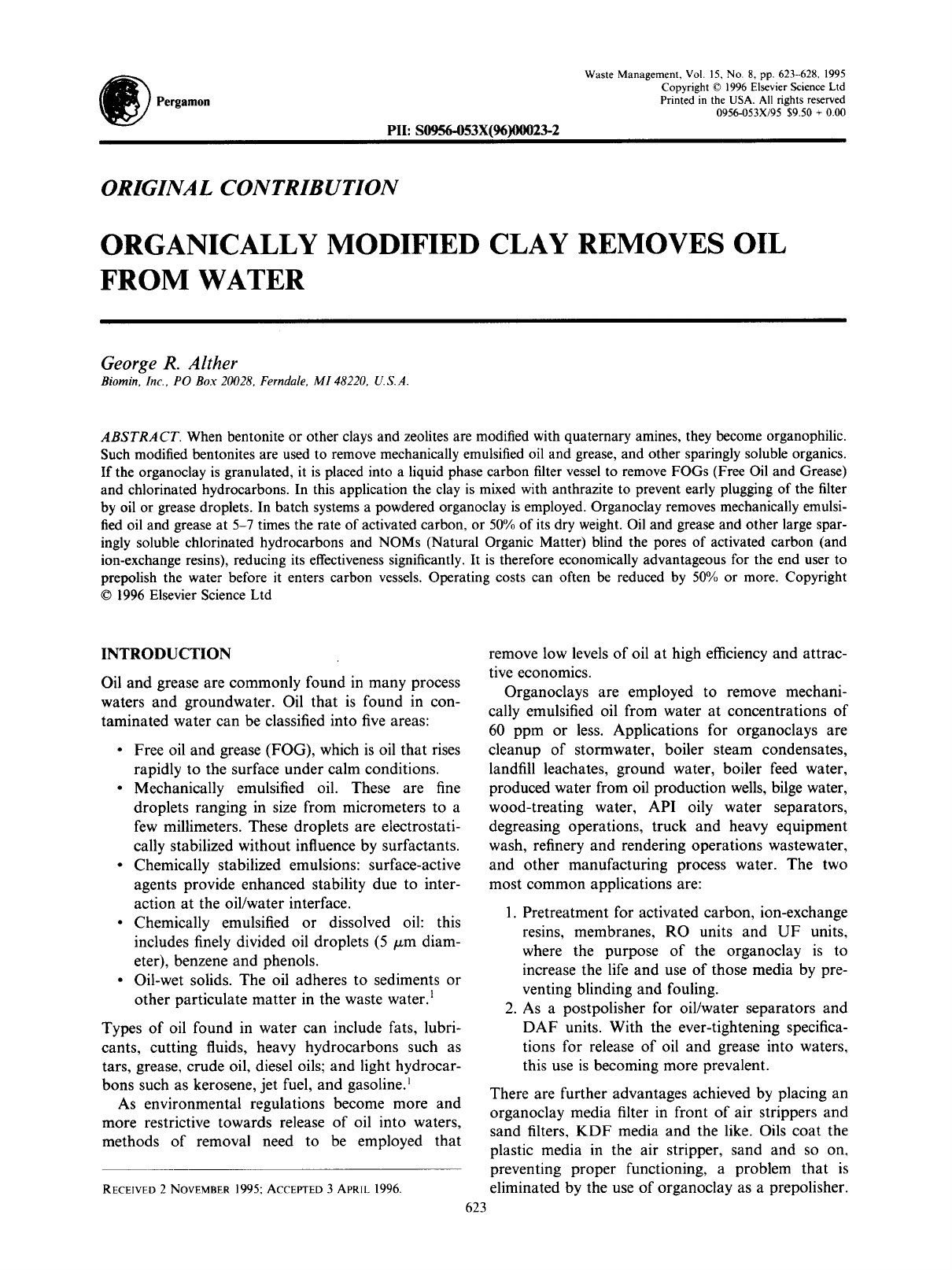

ORGANICALLY MODIFIED CLAY REMOVES OIL
FROM WATER
George R. Alther
Biomin, Inc., PO Box 20028, Ferndale, M148220, U.S.A.
ABSTRACT. When bentonite or other clays and zeolites are modified with quaternary amines, they become organophilic.
Such modified bentonites are used to remove mechanically emulsified oil and grease, and other sparingly soluble organics.
If the organoclay is granulated, it is placed into a liquid phase carbon filter vessel to remove FOGs (Free Oil and Grease)
and chlorinated hydrocarbons. In this application the clay is mixed with anthrazite to prevent early plugging of the filter
by oil or grease droplets. In batch systems a powdered organoclay is employed. Organoclay removes mechanically emulsi-
fied oil and grease at 5-7 times the rate of activated carbon, or 50% of its dry weight. Oil and grease and other large spar-
ingly soluble chlorinated hydrocarbons and NOMs (Natural Organic Matter) blind the pores of activated carbon (and
ion-exchange resins), reducing its effectiveness significantly. It is therefore economically advantageous for the end user to
prepolish the water before it enters carbon vessels. Operating costs can often be reduced by 50% or more. Copyright
© 1996 Elsevier Science Ltd
INTRODUCTION
Oil and grease are commonly found in many process
waters and groundwater. Oil that is found in con-
taminated water can be classified into five areas:
• Free oil and grease (FOG), which is oil that rises
rapidly to the surface under calm conditions.
• Mechanically emulsified oil. These are fine
droplets ranging in size from micrometers to a
few millimeters. These droplets are electrostati-
cally stabilized without influence by surfactants.
• Chemically stabilized emulsions: surface-active
agents provide enhanced stability due to inter-
action at the oil/water interface.
• Chemically emulsified or dissolved oil: this
includes finely divided oil droplets (5 p~m diam-
eter), benzene and phenols.
• Oil-wet solids. The oil adheres to sediments or
other particulate matter in the waste water.1
Types of oil found in water can include fats, lubri-
cants, cutting fluids, heavy hydrocarbons such as
tars, grease, crude oil, diesel oils; and light hydrocar-
bons such as kerosene, jet fuel, and gasoline. 1
As environmental regulations become more and
more restrictive towards release of oil into waters,
methods of removal need to be employed that
RECEIVED 2 NOVEMBER 1995; ACCEPTED 3 APRIL 1996.
remove low levels of oil at high efficiency and attrac-
tive economics.
Organoclays are employed to remove mechani-
cally emulsified oil from water at concentrations of
60 ppm or less. Applications for organoclays are
cleanup of stormwater, boiler steam condensates,
landfill leachates, ground water, boiler feed water,
produced water from oil production wells, bilge water,
wood-treating water, API oily water separators,
degreasing operations, truck and heavy equipment
wash, refinery and rendering operations wastewater,
and other manufacturing process water. The two
most common applications are:
1. Pretreatment for activated carbon, ion-exchange
resins, membranes, RO units and UF units,
where the purpose of the organoclay is to
increase the life and use of those media by pre-
venting blinding and fouling.
2. As a postpolisher for oil/water separators and
DAF units. With the ever-tightening specifica-
tions for release of oil and grease into waters,
this use is becoming more prevalent.
There are further advantages achieved by placing an
organoclay media filter in front of air strippers and
sand filters, K D F media and the like. Oils coat the
plastic media in the air stripper, sand and so on,
preventing proper functioning, a problem that is
eliminated by the use of organoclay as a prepolisher.
623
624 G.R. ALTHER
A coarser grained organoclay/anthrazite medium
can be employed to remove occasional spikes of oil
and other hydrocarbons.
ORGANOCLAYS: WHAT ARE THEY?
Bentonite consists primarily of the clay mineral mont-
morillonite. The montmorillonite has ion-exchange
capacity of 70-90 meq/g. By exchanging the nitrogen
end of a quaternary amine onto the surface of the clay
for sodium and calcium, the clay becomes organo-
philic, i.e. its swelling in water is minimized. By choosing
a long-chain quaternary amine, such as di-menthyl
(di-hydrogenated) tallow ammonium chloride (12-18
carbons) the clay will swell in organic fluids, such as
diesel and jet fuel, gasoline, kerosene and others. 2
This ability has resulted in their use in paints,
adhesives, drilling fluids (oil-based drilling muds),
oil-based foundry sands, printing inks, etc., where
they act as thickeners and binders due to their rheo-
logical properties. It has also been found that when
organoclays are placed into water containing mechan-
ically emulsified oil, greases, dioxenes, PCB, PCP,
and other large chlorinated hydrocarbons (also small
ones like vinyl and methyl chloride) the organophilic
clay will remove these compounds by a partitioning
process) The carbon chains from the quaternary
amine, in the presence of water, will stand up per-
pendicularly to the clay platelet (Fig. 1). 4 Smith
e t al. 5 showed that linear absorption isotherms are
similar to heptane-water partition coefficients in
their experiments. Clays substituted with smaller
cations such as tetramethyl ammonium chloride (TMA)
showed non-linear uptake of benzene and other small
aromatics from water, indicative of absorption onto
the TMA-treated surface. Since we found that
organoclays also remove chromate anions, a third
process, anion-exchange with the chlorine end of the
amine, seems to take place: Symons et al. 6 found
that anion-exchange resins are well suited for the
removal of TOC from water, and that they can be
regenerated with sodium hydroxide/sodium chloride
brine, further supporting this hypothesis.
We found some chromate removal ability with the
long-chain quaternary amines (C-18), but not to the
same extent as with shorter chains (C-12) reported in
the literature. Since commercial quats are a mixture
of C-12 - C-22 amines, we propose that this anion
exchange is due to the short-chain impurities.
The long amine chains will dissolve into the oil or
other hydrocarbon droplets, holding or fixing it due
to Coulombic (electrostatic, van der Waal) forces.
This activity takes place on the surface of the clay
platelet (Fig. 1). Activated carbon, on the other
hand, is a porous material where the organics are
adsorbed into the pores. Thus, if an oil droplet is
larger than the diameter of the pores, it will simply
sit on top of that pore, preventing any further
adsorption. Therefore, the capacity of the carbon is
used up much more quickly, resulting in frequent
changeout of the carbon at greatly increased cost to
the end user. This problem is greatly reduced by
placing the organoclay/anthrazite mix in front of the
activated carbon vessel, resulting in cost savings to
the end user of up to 55% (Fig. 2).
In batch systems, powdered organoclays are
employed. In filtration vessels, a granular organo-
clay mixed with anthrazite is used. The purpose
of the anthrazite is to help keep the pore spaces
between the granules open. The unblended organo-
clay would plug up as fast as carbon, negating its
advantage. The organoclay/anthrazite mix is gener-
ally applied when the concentration of emulsified oil
is less than 60 ppm. It can remove as much as 50%
of its weight in oil. Organoclay powder can remove
up to 70% of its weight in oil.
CASE HISTORIES
1. The largest application has been at Hill Air
Force Base in Utah (Fig. 3) where three organo-
clay/anthrazite mix tanks protect fourgranular
activated carbon columns. The water that is pro-
cessed is wash water from jet plane cleaning
OIL
OIL OIL
/oh /e\
r / /
Pores~
Activated carbon Granule -
Porespaces of activated carbon,
blinded by emulsified oil.
Clay Platelets, modified with
quaternary amine, remove emulsi-
fied oil on the clay surface.
Activated Carbon downstream of
Organoclay, ready to remove the
more soluble compounds.
FIGURE 1. Mechanism of oil droplet removal from water, and related problems, by activated carbon and organoclay.
ORGANICALLY MODIFIED CLAY REMOVES OIL FROM WATER 625
Millions Bed Cost/
Gallons Life 1000 Gallon
Treated Days Treated
I I I
15.
10-
5-
1
FIGURE 2. Waste stream contains 25 ppm oil, flows at 5 gpm, 10
hours/day. Removal efficiency for GAC is 10%, for organoclay/
anthrazite it is 50% of its dry weight. Cost reduction/gallon by
using clay/anthrazite is 55%.
.
.
operations and storm water runoff. Paint strip-
ping, degreasing and electroplating operations
generate hydrocarbons such as oil, grease, tetra-
chloroethane, 1,1,2-trichloroethene, chloroform,
methylene chloride, and heavy metals which are
also removed by use of organoclay and acti-
vated carbon. This system tends to last two
years until changeout.
Lead-containing rinse water: Trials showed that
neither organoclay, activated carbon, or an ion-
exchange resin were able to remove the lead
individually; a combination of the three was
successful and brought the waste water within
compliance. The lead was organically bound.
A foundry in Illinois had set up a water treat-
ment system consisting of various settling and
coagulation tanks, an oil/water separator, a
sand filter, and a granular activated carbon
filter. The purpose of the system is to remove
oil, grease, phenolics and some heavy metals
from the waste water. If the foundry used more
than 1500 glad water, they would be out of com-
pliance, resulting in fines, an occurrence that
happened frequently. The sand in the sand filter
was replaced with the organoclay/anthrazite mix;
for several months now there have been no vio-
lations of standards in spite of varying flow rates.
4. A large laboratory conducted a test using air
compressor condensate that contained auto-
matic transmission fluid (ATF) oil which
resisted all emulsion-breaking techniques,
including acidification, heat, dilution or poly-
mers. The material had a milky white appear-
ance and on settling for 72 h had a very faint
ring of free oil floating on top of the water and
a milky appearance. The inflow concentration
was 30,000 mg/l. After passing through an oil/
water separator, the sample contained 3300 mg/l;
after the first organoclay/anthrazite vessel it
retained 240 mg/l; after passing through the sec-
ond vessel, 1 mg/1 remained.
5. In another case in Alaska, ground water was
contaminated with diesel fuel. Three tanks of
activated carbon were set up in series. The car-
bon lasted for 2 days when breakthrough
occurred. After the carbon was replaced, three
tanks of organoclay/anthrazite were placed in
front of the carbon. This system lasted for 3
months, or until the cleanup was finished. (it
was not saturated at this point). The clay/
anthrazite removes the heavier chlorinated
hydrocarbons, the carbon removes the volatiles.
6. A laboratory trial showed powdered organoclay
to be very effective in the removal of pesticides
such as alachlor, diazinon, metolachlor, 2,4-D,
trifuralin, 2,4,5-T, and others. Scientific litera-
ture further supports these results, i.e. organo-
clays remove acidic herbicides and pesticides. 7
Influent
1
Air Flotation
Unit
Primary Collection
Sump
_
O:rgan~la~
Absorption /l ~ l .tt. Carbon CoLumns
Columns ~ 1
Discharge . ._l I I I
'°s~w°r -1 chch I
Back Wash Pump
FIGURE 3. Design at Hill Air Force Base, Utah. Operation: electroplating, degreasing and paint stripping. Contaminants: grease, chlorinated
hydrocarbons, oil: total: 10-50 ppm. Flow-through rate: 350 gpm. Cost reduction by using organoclay/anthrazite as prepolisher: 50%.
626 G . R . A L T H E R
7. A large national remediation contractor was
contracted to remove hydrocarbons and poly-
chlorinated biphenyls (PCBs) from the sediment
of a creek bed in western New York State as
part of a NYSDEC consent order. The contractor
proposed and designed a system that resembled
an environmental dewatering project with adsorp-
tion treatment of the effluent process stream.
The contractor designed a small wastewater
treatment system that included two 7000 gallon
• m u l t i - l a y e r media sand filters and two 7000 gal-
lon activated carbon bed adsorbers. The creek
bed sediment was contaminated with PCBs and
hydrocarbons. The sediment dredged from the
creek was lime stabilized and then passed
through an 80 cubic foot (~ 2.2 m 3) plate frame
filter press. The effluent from the filter press
was then processed through the multi-stage
adsorber system.
The first multi-layer adsorber vessel had three
layers. The layers were composed as follows: 1
foot (30 cm) of a pea gravel over a retaining
screen, then 4 feet (1.2 m) of grade 68 sand and
on top of that 1 foot (30 cm) of organo-modi-
fled clay. The organo-modified clay was used
primarily for removal of the hydrocarbons, and
secondarily to protect the activated carbon bed
by extending its bed-life, allowing the carbon
preferentially to adsorb the PCBs into its pore
structure. Periodically, the clay/anthrazite medium
is replaced as it becomes saturated with the
hydrocarbons. Because the organoclay is the
uppermost layer for the adsorber vessel, it was
easy to remove the flanges to gain access to the
system and remove the spent clay/anthrazite
from the adsorber vessel.
.
.
This procedure for using organoclay/anthra-
zite in connection with activated carbon is part
of the contractor's standard design manual for
use when hydrocarbons are present as part of
the constituent contaminants in the process
stream. Further, the use of organoclay/anthra-
zite in connection with activated carbon allows
the contractor to comply with NPDES per-
mit discharge limits and only change out the
clay/anthrazite media instead of all the carbon
beds.
A plating shop was out of regulatory compli-
ance with zinc by about 1 ppm. The tumble
water containing the zinc also contained vari-
ous oils. A drum of organoclay removes the
oil, a drum of natural clinoptilolite removes
the zinc, the customer has been in compli-
ance over 6 months with no changeout of the
media.
A refinery in Canada has a flow rate of 270
gpm and a temperature of 187°F for its boiler
feed water. Organoclay is removing 2 ppm of
oil in spite of fouling by iron.
COMMON DESIGNS
The organoclay filter media are designed to use in
downflow filter contactor vessels, very much the
same as other filter media. Therefore quite often
existing filter vessels may be used or changed out.
Flow rates and differential pressures are similar; i.e.
3~1 gpm per square foot (~ 0.1 m 2) of filter bed sur-
face area to establish the design flow and 3-6 feet
(1-2 m) of bed depth to design detention time (7-10
min). While no two water treatment systems are
identical, many similarities exist.
I I
u
®
EC-100 GAC
t...J
FIGURE 4. Typical downflow filter system (upflow is also possible).
ORGANICALLY MODIFIED CLAY REMOVES OIL FROM WATER 627
Influent
Steel Product
Recovery Tank
[ 0 ] Feed Reserve
Float Control
I ©
Duplex Pump
Stand. Panel
n n
I
Bag
Filter Absorption
( ~ O r ~ n T i t e Duplex
EFF GAC 8x30 Du flex
/
oc 0
i
Absorption
FIGURE 5. Oil/water separator, followed by organoclay/anthrazite and GAC for water heavily contaminated with free oil and grease,
plus volatile organics. A bottle with a dripping device, filled with sulfuric acid, can be installed at the oil/water separator if the pH needs
to be reduced to breakthe emulsion.
CONCLUSIONS AND RECOMMENDATIONS
Numerous case histories have shown that the use of
organoclay/anthrazite media as a prepolisher of acti-
vated carbon, ion-exchange resins, membranes and
other media can significantly reduce the operating
costs and inconvenience to the end user of water
cleanup systems. Postpolishing of water behind
DAF units and oil/water separators easily brings the
waste water into compliance with the most restric-
tive environmental standards for discharged water,
be that boiler steam condensate, ground water or
other process water. Disposal options of spent media
are cement kilns (spent organoclay/anthrazite media
has as much as 18,000 BTU), landfills, bioremedia-
tion through land farming, cement encapsulation or
incineration. Regeneration is possible if large vol-
umes of media are in use.
The experience over the past few years has shown
that even in cases where water is contaminated with
a large number of organic compounds, the life of
activated carbon can be extended by placing a vessel
of organoclay/anthrazite in front of it, regardless of
whether or not oil is present. The reason is that
organoclays exhibit selectivity for certain chlorinated
hydrocarbons, such as PCP. This ability allows car-
bon to remove VOCs at higher efficiency. The pres-
ence of NOMs can also degrade the loading capacity
of activated carbon. 8 They consist of polynuclear
aromatic compounds, which are efficiently removed
by organoclays, as recently shown in a soil stabiliza-
tion project (Lawson, EarthTech, Inc., written com-
munication). Organoclays also have some affinity for
ethylene glycol. An effective method for cleanup of
water would be a combination of organoclay, anion-
exchange resins and granular activated carbon,
where organoclay removes NOMs, FOGs, and other
sparingly soluble organics, the anion-exchange resin
removes lighter chlorinated hydrocarbons by anion
exchange, and carbon removes the VOCs. A side
benefit is that the organoclay will remove low
amounts (less than 3 ppm) of heavy metals.
REFERENCES
1. Braden, M. L. Demulsification of oily waste waters. WPCF
64th Annual Conf. & Exposition, Toronto. #AC91-061-005.
WPCF, 601 Wythe St, Alexandria, VA 22314-1994 (1991).
2. Alther, G. R., Evans, J. C. and Pancoski, S. E. Organically
modified clays for stabilization of organic hazardous waste.
HMCRI's 9th National Conference, Superfund 88, HMCRI,
9300 Columbia Blvd., Silver Spring, MD 20910, pp. 44ff445
(1988).
3. Mortland, M. M., Shaobai, S. and Boyd, S. A. Clay-organic
complexes as adsorbents for phenol and chlorophenols. Clay
and Clay Min., 34:581-585 (1986).
4. Lagaly, G. Clay-organic reactions, interaction. Phil Trans. R.
Soc. London, A-311:315-332 (1984).
5. Smith, J. A., Jaffe, P. R. and Chiou, C. T. Effect of yen qua-
ternary ammonium cations on tetrachloromethane sorption
628 G.R. ALTHER
to clay from water. Environ. Sci. Technol., 24:1167-1172
(1990).
Symons. J. M., Fu, P. L. K. and Kim, P. H. S. The use of
anion exchange resins for the removal of natural organic
matter from municipal water. Int. Water Conf. Proc.,
Pittsburgh, PA, October, pp. 92-120 (1992).
7. Hermosin, M. C. and Connejo, J. Binding mechanisms of 2,
4-dichlorophenoxy acetic acid by organo-clays. J. Environ.
Qual., 22:325-331 (1993).
8. Graham, J. R. Carbon removal of organic contaminants. In:
International Ground Water, pp. 13-18. National Trade
Publications, Latham, NY (1995).
O p e n for d i scuss ion un t i l 19 D e c e m b e r 1996
