Flexblue (DCNS, France)


1. Introduction
Flexblue is a transportable and immersed nuclear power system (TINPS), with an output
capacity of 160 MW(e). The system is designed to deliver electricity using a Transportable &
Immersed Nuclear Unit (TINU), later called “module” that is anchored with a positive
floatability on the sea bed, between 40 m and a maximum depth of 100 m. Each module has
the length of 146-meters and 14-meter diameter. Additional modules can be installed as
demand increases. The nuclear units are positioned close to the shore and must be within the
territorial waters. The reactor section is sealed in this configuration. A module encompasses a
reactor (PWR with fuel enrichment classically less than 5%) and a turbine generating the
electricity: it is manufactured in an assembly-line and assembled in a shipyard. System
control and connection to the power grid are grouped together in a land-based facility called
the “Shore Control Center” (SCC). They are connected to the immersed modules (or the farm
of modules) via underwater buried cables. Fuel unloading and reloading and major
maintenance operations are performed on a coastal base called the “Service Factory”
(Supporting Site), which may be located at significant distances from the Operating Site (in

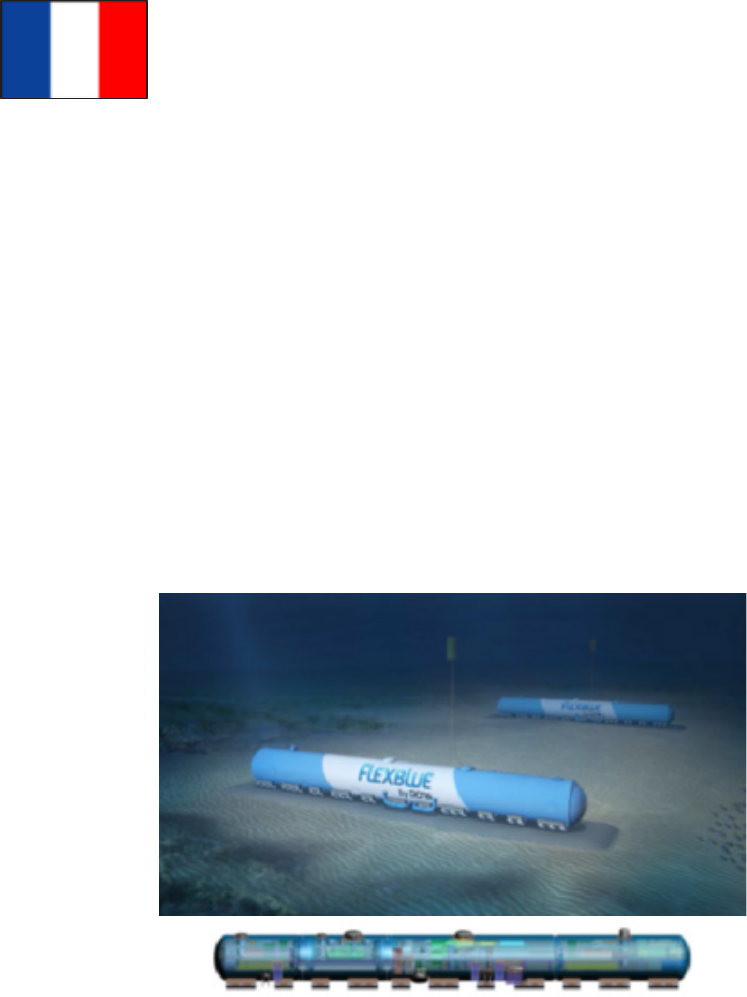

the same country or not). Figure 1 shows reactor system configuration.

Figure 1: Reactor system configuration of Flexblue (Reproduced courtesy of DCNS)

2. Target Applications
Flexblue is designed to supply electricity to coastal grids. Figure 2 shows the life cycle and
arrangement of Flexblue that comprises two sites for Operating Site and Service Factory. The
production cycle duration is equal to 3 years (in the Operating Site) and the theoretical
availability over the 60 years of life-time is equal to 91%. After each cycle, the module is
transported back to the Service Factory for major maintenance and refueling. Every ten years,
a detailed inspection is also performed on this site, according to the international
requirements. The Service Factory can be used and mutualized for many modules, whatever
their owner and Operating Site origin.
163



Figure 2: Flexblue Life Cycle and Arrangement (Reproduced courtesy of DCNS)

The following scenario is retained for the purpose of this document: these two installations
are each located on the territory of two distinct countries. The life-cycle steps follow as
shown in Figure 2; steps 4 – 5 – 6 – 7 – 8 are performed for the 60 years of the nuclear unit
life-time:
1 – The module is assembled within the shipyard. Preliminary testing is performed without
fuel.
2 – The module is transported to the Service Factory without any fuel.
3 – First fuelling and module trials are performed in the Service Factory. The first criticality
is committed at that time.
4 – Module transportation with fresh fuel is carried out toward the Operating Site, throughout
the international sea.
5 – Nautical operations are performed to position and to anchor the module on the sea-bed.
6 – The module delivers power to the grid via the Shore Control Centre. Minor maintenance
is performed for the production operations in the Operating Site.
7 – Module transportation with spent fuel is carried out toward the Service Factory,
throughout the international sea.
8 – It corresponds to the module’s outage. Irradiated fuel is put within a devoted spent fuel
pool in the Service Factory site and refuelling is carried out. Waste is removed from the
module and major maintenance operations are performed.

By design (except when testing), the modules reactivity is authorized only when it is
anchored and connected to the grid. Under all other circumstances, the reactor is shut down
and criticality made impossible.
Country of
Origin
Assembly Line
& Shipyard
Without Fuel Module
Transportation
Fuelled Module
Transportation
Service Factory
Operating Site
164



3. Development Milestones
2012 – 2016 The Project gathers international financial and operator stakeholders.

4. General Design Description
Design Philosophy
Flexblue design adopts proven technology that draw on DCNS’s experience in nuclear
propulsion and submarine power plants. The reactor design coupled with the concept of
mooring it 100 m below the sea surface is envisaged to ease some of the safety issues of land-
based nuclear power plants. The reactor is perceived to be resistant to natural disasters such
as earthquakes, tsunamis and floods. The reactor will have the advantages of the ocean as a
built-in coolant and ultimate heat sink.
Nuclear Steam Supply System
The module encompasses a 2-loop PWR with two horizontal steam generators. The Nuclear
Steam Supply System (NSSS) operation diagram is presented below, in relation with the
diverse configurations of the module.

Figure 3: Reactor Operation Diagram of the module’s NSSS
(Reproduced courtesy of DCNS)

Reactor Core
The reference core is made of 77 classical 17x17 fuel assemblies with an active length of
2.15 m. Enrichment is kept below 5% and reactivity is controlled without soluble boron.
This latter characteristic reduces the generation of radioactive wastes and simplifies the
chemical control system. Flexblue power production cycle lasts 38 months. At the end of
a production cycle, the module is taken back to its support facility. The reactor is then
refuelled and periodic maintenance is carried out. Major overhauls of the modules are
scheduled every 10 years.
165



MAJOR TECHNICAL PARAMETERS




Parameter Value
Technology developer DCNS
Country of origin France
Reactor type PWR
Electrical capacity (MW(e)) 160
Thermal capacity (MW(th)) 530
Expected capacity Factor (%) 91
Design life (years) 60
Plant footprint (m2) N/A for submerged modules
Coolant/moderator Light water
Primary circulation Forced circulation
System pressure (MPa) 15.5
Core inlet/exit temperatures (oC) 288/318
Main reactivity control mechanism Control rods and solid burnable poison
RPV height (m) 7.65
RPV diameter (m) 3.84
Module weight (metric ton) 25000
Configuration of reactor coolant system Loop type
Power conversion process Indirect Rankine Cycle
Fuel type/assembly array UO2 and Zircaloy cladding/17x17 rods in square assembly
Fuel assembly active length (m) 2.15
Number of fuel assemblies 77
Fuel enrichment (%) 4.95
Fuel burnup (GWd/ton) 38
Fuel cycle (months) 38
Cogeneration capability N/A
Approach to engineered safety systems Passive
Number of safety trains 2 hydraulic trains and 2 x 3 I&C channels
Refuelling outage (days) 30
Distinguishing features Transportable NPP, Submerged operation.
Modules per plant Up to 6 per onshore main control room
Target construction duration (months) 36
Seismic design Not comparable – subsea conditions
Predicted core damage frequency (per reactor year)coolant system (RCS) is designed to ensure adequate
cooling of reactor core under all operational states, and during and following all postulated
off normal conditions. Sea water provides a permanent cooling of the reactor core and acts as
the ultimate heat sink.
5. Safety Features
The aim of the design is to make impossible significant radioactive releasing on the
Operating Site when the nuclear unit is anchored on the sub-marine site. The nuclear unit
submersion during the electricity-production phase represents a clear advantage. The safety
level of the module is greater compared to most of land-based facilities, small or large:
• Passive systems associated with the infinite heat sink which the sea provides;
• Inherent protection against numerous external hazards above the sea (natural or
anthropic) due to the immersion and the water column (aircraft impacts, typhoons and
other meteorological effects, etc.);
• Reduced intensity of tsunami and earthquake under the sea, in comparison with Land
Based Reactors.
Furthermore, in case of implausible severe accident leading to core meltdown, the defense in
depth is based on the In-Vessel Corium retention (I-VCR). The reactor residual thermal
power (the heat decay) is smaller than any large reactors. It allows considering the external
vessel cooling is sufficient to avoid any vessel rupture.
Engineered Safety System Approach and Configuration
The reactor integrates diversity in safety systems and segregates the operating stations to
achieve a high level of safety. Water offers a natural protection against many of the possible
external events and guarantees a permanently available heat sink, and an additional barrier to
fission products in the case of an accident. The submerged Flexblue reactor has a minimal
environmental footprint. Only the systems required for residual heat removal, control and
monitoring are required in navigation conditions. At the end of its life, the power unit is
transported back to a dismantling facility, which results in a quick, easy and full recovery of
the natural site. The use of passive safety systems brings the reactor to a safe and stable state
without external intervention for an indefinite period of time. In particular, the positive
buoyancy of the submerged unit allows extremely efficient de-correlation from the seabed in
case of earthquakes. Furthermore, at the depth the unit is fixed, tsunami effects are not
critical. Still, even in postulated extreme situations like large early release of radioactivity in
the water, atmospheric release would be so reduced that it practically excludes any quick
health impact on populations: water quality would have to be watched over, but no
evacuation of population would be required. If a safety issue developed with the reactor, it
could be brought to the surface and taken to a shipyard for repair. It could be refuelled in the
same way, and at end of life it would be repatriated to the shipyards for decommissioning.
The emergency power sources (batteries) are sized to ensure the autonomy of the modules up
to 15 days without any external power. The safety of the plant is improved considerably with
167


four (4) operating areas in accident conditions: the main control room, the main remote
shutdown station, the local control room and the local remote shutdown station.
Decay Heat Removal System
Decay heat removal is performed by four cooling loops, each one able to remove 50% of
decay heat:
• Two primary chains are connected to the primary circuit: each one includes a heat
exchanger immersed in a large safety water tank which is cooled by the ocean through
the metallic hull.
• Two secondary chains are connected to the secondary circuit: each one includes an
emergency condenser directly immersed in seawater.
With the infinite heat sink – seawater – and to the elevation difference of the heat sink with
respect to the heat sources, the four chains operate passively by natural circulation. The long-
term safe state of the reactor is a shutdown state where continuous cooling of the reactor core
is achieved by natural circulation.
Emergency Core Cooling System
Protection against loss-of-coolant accidents is ensured by a passive safety injection system
including direct vessel injection lines, core makeup tanks, accumulators and large safety
tanks. All these injection sources inject passively into the vessel In addition, a two-train
automatic depressurization system is connected to the pressurizer. Once these systems have
actuated, a passive recirculation path is in place. Decay heat is removed through the metallic
hull (the containment). In case of an accident, active systems designed for normal/shutdown
core cooling or for controlling coolant inventory are used if alternating-current power is
available. If not, the passive safety systems described earlier are actuated automatically when
emergency set points are reached. In all accident scenarios, a safe shutdown state is achieved
and maintained for an indefinite period of time without the need for operator action.
Emergency battery power is only required for the opening valves and communication (data
transfer from the module to the remote Control Room). The fourteen (14) days of
autonomous monitoring ability can be extended by reloading the batteries. An emergency
communications system works via radio links in case of loss of cables. Also, an emergency
ultimate system can be run via an acoustic link, when losing both the submarine cables and
the microwave link. This enables to communicate with a ship/submarine and transmits the
module state and enables communications.
Containment System
The reactor containment is bounded by the reactor sector: hull on the sides and reactor sector
walls on the front and on the back. A large share of the metal containment walls are therefore
in direct contact with seawater, which provides very efficient cooling without the need for
containment spray or cooling heat exchanger. The containment system is also designed to
sustain severe accident with core meltdown, although the safety features are designed to
avoid core damage. In this case, the mitigation strategy consists in in-vessel corium retention
assisted by passive ex-vessel core cooling.

6. Plant safety and Operational Performances
The reactor is based on the PWR technology and significantly benefits from a large operating
experience in commercial power plants as well as in the naval environment. The concept
adopts a tele-operation which is a great multiple stakes issue that contributes to the
optimization of the life cycle cost, accident response and management, and ensure a good
availability factor. The module is accessible via a submarine vehicle that connects to access
168


hatches, so that maintenance, inspection and operation can be performed on-board while on
the seafloor. The refueling takes place approximately every 3 years. The module is removed
and transported back to a coastal facility, which hosts the spent fuel pool. Major overhaul
occurs every 10 years, i.e., every three fuel-cycles.
7. Instrumentation and Control Systems
The I&C and communications systems are based on different technologies, following the
safety levels in conformity with the IEC standards. Several possible solutions to allocate the
classes of functions to the controllers are considered with different technological and
functional diversification schemes. I&C system is robust and incorporates experience from
naval industry, especially from nuclear submarines. The I&C system adopts redundancies of
trains, different levels of defence especially on communication systems, technological
diversification and the principle of reactor unit I&C autonomy. The I&C system includes a
diversified operating station (DOS) enabling commands of safety functions in case of
technological failure on the nominal station. This diversified system works diversifiedsolutions from the instrumentation to the man-machine interface (MMI). The main principles
of I&C systems are based on module autonomy towards the shore control facility. The
module autonomy is ensured by the fact that: all the systems supporting the safety functions
are in the module; the reactor can be operated from two different places in the module during
accident conditions; the transition from the initial state to a safe shutdown state when losing
submarine cables is automatic; Local emergency power source. The concept also includes the
possibility of multi-units operations from a single control room in order to run a cluster of
modules. This aims to reduce the operating crew size considerably. Flexblue employs
redundant main and auxiliary submarine cables that transport electricity as well as
information between the modules and the onshore control centre.

8. Plant Arrangement
The module is composed of a turbine & alternator section, a reactor section, an aft section
and a fore section. These two latter sections accommodate: emergency batteries, a secondary
control room, process auxiliaries, I&C control panels, spares, living areas for a crew and
emergency rescue devices. Several units can operate on the same site and hence share the
same support systems.
9. Design and Licensing status
Presentations of the concept have been made to the French safety authority. Technical
discussions have been initiated with the French technical safety authority. Preliminary
conclusions have been drawn: these ones lead going ahead the project.


169
