Power Control in Isolated Microgrids with Renewable
Distributed Energy Sources and Battey Banks

José Gomes de Matos , Luiz Antonio de Souza Ribeiro
Institute of Electrical Energy
Federal University of Maranhão
São Luís, Brazil
gomes@dee.ufma.br, luiz_ribeiro@dee.ufma.br
Evandro de Carvalho Gomes
Federal Institute of Education, Science, and Technology of
Maranhão
São Luís, Brazil
evandrogomes@ifma.edu.br


Abstract—This paper presents a new strategy to control the
power generation from existing energy sources in autonomous
and isolated Microgrids. In this study, the Microgrid is composed
of a power electronic converter, supplied by a battery bank,
which is used to form the AC network (grid-forming power
converter), an energy source based on a wind turbine and its
respective power electronic converter (grid supplier converter),
and the loads. The primary subject of the proposed control
strategy is to keep the energy balance into the Microgrid, in
order to control the battery bank state of charge even when more
power can be generated than loads can consume. This goal is
achieved controlling the generated power into the Microgrid,
without using dump load or any physical communication with the
power electronic converters or individual energy source controls.
The electrical frequency of the Microgrid is used for dictating the
amount of power the energy sources need to generate in order to
maintain the battery-bank state of charge below its maximum
permissible value. A modified droop control to implement this
work is proposed.
Keywords—isolated microgrids; power control; state of charge;
battery banks; parallel inverters; renewable energy sources;
I. INTRODUCTION
Worldwide, a significant number of villages still have no
access to electricity due to its remoteness. Fortunately, in many
villages and other places, such as in oceanic islands, there are
renewable energy sources, especially solar radiation and wind.
These energy resources can be used to form isolated
Microgrids to meet local energy needs, as reported in [1]-[3].
The intermittent nature of renewable energy sources (RES), the
required operation availability, and the standalone operation of
these systems need some kind of energy storage system (SES).
Although there are several different SES, in practical
applications battery banks have been used mainly due to
economical reasons. A diesel generator set (DGS) is generally
necessary as a backup source to supply power when renewable
energy resources are limited and the battery bank state of
charge (SOC) is in a critical situation.
There are several types of topologies which have been used
to assemble these isolated Microgrids. The connection of all
energy sources with a concentrated DC bus, including the
battery banks, is one possibility. The resultant DC voltage
needs to be converted to AC voltage to form the local power
distributed network. In this configuration, an AC/DC converter
(controlled rectifier) is necessary as an interface between the
DGS and the DC bus if the DGS is required to supply the loads
and also charge the battery bank. This is a disadvantage of this
topology, since this AC/DC converter increases the system cost
and makes its operation and maintenance more complicated.
Another possibility of isolated Microgrid topology is
connecting all the existing power sources to a concentrated AC
bus, instead of a common DC bus. In that case, at least one
bidirectional power electronic converter, supplied by a battery
bank, is necessary to form the AC bus and the local power
distribution AC network. The DGS, when existing, can be
synchronized with the AC bus using a conventional power unit
control, not requiring an AC/DC converter. The topologies
with concentrated or centralized generation, previously
described, are not the most appropriate configurations for
communities with consumers or energy sources spatially
distributed. For these situations, an improvement can be
obtained if the AC bus is distributed rather than concentrated,
as illustrated in Fig. 1. The GFC is a grid-forming converter,
GSC is a grid supplier converter, that is, a converter connected
to a primary energy source, WT is a wind turbine, PV is a
photovoltaic panel, BB is a battery bank, and is the line
impedance between the and the buses. This topology allows
connecting the power sources to the grid anywhere next to the
generation area, reducing the costs with cabling to connect the
generators with a distant and centralized AC bus.

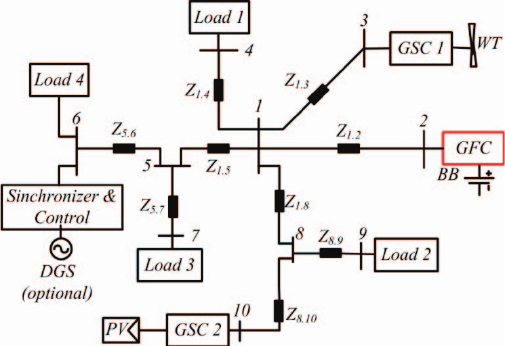

Figure 1. Microgrid with the power sources distributed along an AC bus.
978-1-4799-1464-7/13/$31.00 ©2013 IEEE
258
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 258
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
A crucial issue related to these autonomous and distributed
Microgrids is to control the power internally generated to
maintain the system energy balance in order to keep the
terminal voltage of the battery bank limited to a safe value and
consequently its state of charge (SOC) under control. This is
not a simple task if the system has distributed energy sources
located far from the battery bank. One possible solution to this
drawback consists of using centralized or distributed resistive
dump loads that burn the eventually excess power generated,
as presented in [4]-[5]. This solution has the disadvantage of
using additional components, generally with the same rated
power of the renewable energy sources, which increases the
system costs, reducing its useful lifetime, making its operation
and maintenance more complicated. Another possibility is to
use physical communication (wiring) among the converter
control systems in order to control the energy balance into the
Microgrid, and the amount of power that each of them must
generate to keep this energy balance under control. Despite its
simplicity, this solution has the disadvantage of reducing the
system reliability since it is dependent on the operation of a
physical system of communication.
This paper proposes an alternative strategy to control the
power generated from an isolated Microgrid with distributed
RES. The proposal is controlling the terminal voltage of the
existing battery banks below or equal to its maximum
permissible value. This is done limiting the amount of power
that each energy source can generate at each instant, using a
modified droop control strategy. The battery banks terminal
voltage control implies indirectly in their SOC control. This
solution does not use neither dump loads to dissipate the
excess power generated, nor wired communication with the
energy sources and the energy storage systems.
II. SYSTEM DESCRIPTION
Fig. 2 illustrates the simplified diagram of a standalone
Microgrid used to explain the control strategy proposed in this
paper. It is composed of a grid-forming converter (GFC), a
grid supplier converter (GSC), a battery bank, and the loads.
The renewable energy source, in this particular study, is a
variable speed wind turbine coupled to a permanent magnet
synchronous generator (PMSG) [6]. The simplicity of this
system is useful to show the feasibility of the proposed control
strategy without loss of generality.
The grid-forming converter is a bidirectional converter
composed of a PWM inverter, and a DC-DC converter that
works in a buck or boost mode. The grid supplier converter is
used to control the power that is generated from the renewable
energy source. In this particular example, the grid supplier
converter is composed of a grid side PWM inverter (GSI) and
a wind turbine side PWM inverter (TSI).
A. Grid Voltage and Frequency Controls
In the grid-forming converter, the PWM inverter controls
voltage and frequency of the Microgrid.The grid voltage
controller uses a traditional configuration implemented on a
synchronous reference frame, synchronized with the grid
voltage vector. The model of the LC filter in delta side of the
 transformer (see Fig. 2), implemented in the dq
synchronous reference frame, is used to design the control
loops of the grid-forming converter. The block diagram of this
model is presented in Fig. 3, where is equivalent series
resistance of the inductor. Based on this model, an inner
current loop and an outer voltage loop were designed, as
depicted in Fig. 4. In this figure is the frequency of the
local grid, the superscript “ ” denotes synchronous
reference frame, “^” denotes estimated quantity, is used
to decouple the disturbance caused by the load currents and
, and the cross coupling disturbance of and , which is
introduced by the model, is the per phase equivalent
filter capacitance which value is , and means “Zero

Figure 2. The simplified diagram of studied Microgrid.
259
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 259
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
Order Holder”. The current on the inductance is controlled
to regulate the voltage on the capacitance [7]. The current
and voltage controllers were tuned for 1 kHz and 200 Hz
bandwidths, respectively.

Figure 3. Block diagram of the LC filter in the synchronous reference frame.

Figure 4. Block diagram of the microgrid voltage controller (GFC voltage
controller).
The grid frequency reference value is calculated using the
power control strategy into the Microgrid and it will be
explained later.
The voltage reference value can be equal to the rated
Microgrid voltage or it can be calculated as a function of the
reactive power at the grid-forming converter terminals, as
reported in [7], [8]. The reference frame is aligned with
grid terminal voltage vector, thus the value of is imposed
to be zero, while is equal to the grid magnitude voltage
value previously explained.
B. Bidiretional DC-DC Converter Control
In the grid-forming converter, the DC-DC buck or boost
converter is used to control the voltage in capacitor . The
control action of the voltage controller in the DC-DC
converter can be equivalent to connect a controlled voltage
source, with average value , between the terminals of
the converter circuit, as shown in the Fig. 5(a) and Fig. 5(b). If
the losses in the converter are neglected, the voltage on
will only depends on the difference between the power on the
battery bank terminals ( ) and the power on the PWM
inverter terminals ( ), as shown in Fig. 5(c). So, the
dynamic equation of can be written as (1), where is a
state variable defined as
 (1)
From (1) and Fig. 5(c), the DC Bus voltage controller can
be designed using an inner loop to control the battery bank
current, and an outer loop to control the voltage level on the
capacitor , as depicted in Fig. 6. The bandwidths for the
inner and outer loop are 500 Hz and 50 Hz, respectively.

Figure. 5. The DC-DC converter: a) original circuit, b) equivalent average
circuit model, and c) DC bus average model.

Figure 6. Block diagram of the bus voltage controller in the DC-DC
converter.
The controller output voltage ( ) is the reference value
for the PWM block which is used to generate the control
signals to and switches, as shown in Fig.7 [4]. If
is positive, the battery bank will supply the load and the DC-
DC converter operates on boost mode using switch and
diode . On the other hand, the DC-DC converter operates on
buck mode using switch and diode .
C. Grid Supplier Converter Control
In the grid supplier converter, the GSI is used to control
the grid current and the DC link voltage (see Fig. 2). The
controller is implemented on a synchronous reference
frame, with an inner current loop to control the grid current,
and an outer voltage loop to control the voltage on the
capacitance [7]. This controller is designed and
implemented in a similar way as the controller depicted in Fig.
3. The inner and outer loop bandwidths were set to 500 Hz and
10 Hz, respectively.
260
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 260
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
The TSI controls the power generated, using an algorithm
to extract the maximum power from the wind turbine (MPPT)
[9]. The TSI controller is implemented on synchronous
reference frame aligned with the rotor of the turbine generator.
Based on the references adopted in this work, the d-axis
current of the generator ( is controlled to be zero. Thus, in
steady state, the generator torque is proportional to q-axis
current ( ) component, as shown in (2) [10], where is
given by (3), is the number of the generator poles, and
is the generator permanent magnet flux.

Figure 7. Block diagram of the voltage controller of DC bus in the grid
former converter.
 (2)
 (3)
When the wind turbine works on its maximum power
point, the mechanical torque ( ) is proportional to the square
of the rotational speed ( ), given by (4), where is a
constant that depends on the physical and operational
characteristics of the wind turbine, and the air density. The
value of may be obtained experimentally or by
computational simulations based on mathematical models
[11], [12]. From (3), (4), and , the reference value for
-axis current controller of the generator ( ) is given by (5).
The reference value for -axis current component ( ) is
imposed to zero. The current controller bandwidths for -
axes are equal to 10 Hz.
 (4)
 (5)
III. STRATEGY TO CONTROL THE GENERATED POWER AND
BATTERY STATE OF CHARGE
In standalone or isolated Microgrids there is no available
commercial grid. Therefore, the power generated from
distributed energy sources needs to be controlled when the
load demand is less than the amount of power that could be
generated from the energy sources. This control is necessary
to keep the energy balance in the Microgrid and to keep the
battery bank voltage less than or equal to its maximum
permissible value.
The proposed control strategy uses the grid frequency
value to characterize whether the battery bank SOC has the
tendency for its maximum permissible value or not. Based on
that information, the amount of power that can be generated
from the primary energy sources connected with the system
should be restricted. The grid frequency control is
implemented in the grid-forming converter.
When the battery bank SOC is not in its maximum limit,
the grid frequency is determined according to the conventional
droop control principle, described by line in Fig. 8 [7], [8].
In that case, there are no restrictions on the amount of power
that can be generated, and the existing renewable energy
sources operate on their maximum power point. Obviously,
this is true only if the battery bank has been designed with
sufficient capacity to absorb all power that the renewable
sources can produce in a particular instant. If the battery bank
SOC is in its maximum limit, the grid frequency is imposed to
be always greater than the value , and the droop control
will track the line shown in Fig. 10. In that case, restriction
on the amount of power that can be generated from the
renewable sources is necessary, otherwise the integrity of the
battery bank is at risk. The amount of power that must be
reduced from the maximum power that can be generated is
proportional to the difference between and (see Fig. 8).

Figure 8. Frequency versuspower in the grid-forming converter according to
proposed power control strategy.
The battery bank SOC is detected using battery voltage
( ). A PI controller is used to regulate the battery terminal
voltage less than or equal to its maximum value . The
output of this controller is the incremental frequency ( ) that
must be added to in order to get the new reference value
of the grid frequency. The value is proportional to the
amount of power that must be decreased from the power
generated in order to control the battery bank terminal voltage.
This is illustrated in Fig. 9, where is the slope of or
lines in Fig. 8.
The grid frequency is measured in the controller of grid
supplier converter. If its value is great than , the battery
bank SOC is close to its upper limit, the GSC controller
decreases the current reference that has been calculated on the
maximum power point tracker algorithm, reducing the power
that could be generated from wind turbine, and controlling the
261
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 261
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
SOC and the battery bank terminal voltage. This is illustrated
in Fig. 10, where is the amount of power that must be
reduced, is the generator rotational speed, is the
generator torque variation, and is the generated power.

Figure. 9. Block diagram of the frequency control in the grid former-forming
power converter

Figure. 10 Block diagram of the power control in the grid supplier converter
The tuning of the SOC controller in Fig. 9 needs to take
into account the dynamic of the battery bank. One possible
model for lead-acid battery is shown in Fig. 11, where is
the battery open circuit voltage, is the equivalent series
internal resistance, and model the overvoltage or
undervoltage arising from the battery charging or discharging,
 is the resistance due to natural losses, and models the
battery capacity to storage energy [13]. Normally, the natural
losses has a very high time constant, such that its effect can be
neglected for the purpose of this work. The experimental
voltage and current waveforms of a 30 Ah/12 V lead-acid
battery during the tests to estimate the parameters of the
battery equivalent circuit are presented in Fig.12. The
estimated values of the battery parameters at the end of the
charge cycle are 8.7 m , 430 m , 60 F, and
 44.000 F. From these data it can be seen that the lowest
time constant related to the battery dynamic behavior is
approximately 25 seconds ( ).

Figure 11. Battery equivalent circuit.

Figure 12. Experimental wave forms of voltage and current during the tests
with a 30 Ah 12 V lead-acid battery: a) Currente and b) Voltage.
The variation in the grid frequency, shown as the output
of the SOC controller in Fig. 9, means a decrease equal to
in the overall power generated in the microgrid, as depicted in
Fig. 10. Assuming that the load power does not change and the
variation in the system losses can be neglected during the
control action, can represent the amount of power that will
not be delivered to the battery bank in order to keep its terminal
voltage ( ) less than or equal to its maximum value ( ).
A variation equal to in the battery input power means a
variation equal to in battery current, which is
approximately given by (6).
 (6)
Thus, the block diagram for analyses and tuning of the SOC
controller can be depicted in Fig. 13, where is the
transfer function , and is the transfer
function that relates the current and voltage at the battery
terminals. Normally, is much faster than , so it
can be equivalent to . The relationship between and
 is given by (7).
 (7)

Figure 13. Block diagram for analyses and design of the controller of power
genareted and battery bank state of chage..
IV. SIMULATION RESULTS
Simulation results of the Microgrid shown in Fig. 1 are
presented in Fig.14. The system rated power is 15 kW. The
battery bank is compound of 60 lead-acid batteries of 12 V -
220 Ah, connected in 3 parallel lines, each line with 20
batteries in series. The maximum permissible terminal voltage
of the battery bank is 280 V. The wind speed is defined equal
to 11 m/s. The PI controller in Fig. 13 was tuned with a
bandwidth of 0.036 Hz. The grid frequency range is 59.4 Hz up
to 61.2 Hz and the SOC controller is activated when the
frequency is greater than 60.6 Hz. The simulation was
implemented using MATLAB/SIMULINK software. The
converters are modeled as ideal controlled voltage sources. In
262
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 262
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
the beginning of the simulation, the battery bank voltage is
equal to 275 V (see Fig. 14a). and the system is supplying a
load of 10.9 kW (see Fig. 14e and 14f). At the instant 100 s, the
wind turbine is turned on and produces 10.1 kW (see Fig. 14g).
Thus, the battery is still supplying the difference between the
power consumed by the load and the power produced from the
wind turbine. At the instant 210 s, the load is turned off and all
power produced from the wind turbine is used to charge the
battery bank (see Fig. 14a). The battery terminal voltage
increases quickly and gets 280 V at 310 s. At this time, the
power controller starts to operate and the battery bank terminal
voltage stops growing. The Fig. 14b presents a continuous
voltage at the bidirectional converter terminals showing that it
was perfectly controlled by the voltage controller depicted in
Fig. 6. The Fig. 14c presents the frequency variation. From 0 s
to 300 s, the frequency changes according to the conventional
droop control law, and after 300 s, it changes according to the
proposed control strategy.

Figure 14. Simulation results: (a) the battery bank voltage; (b) the DC bus
voltage of the GFC; (c) the grid frequency; (d) the generated power by the
turbine; (e) the output power of the GFC; and (f) the power at the battery bank
terminals.
V. CONCLUSIONS

This paper presented a strategy to control the power
generated in order to regulate the battery bank state of charge
in standalone Microgrids with distributed renewable energy
sources. Simulation results have demonstrated the effectiveness
of the strategy. This strategy need neither wired
communication with the distributed renewable sources nor
surplus power dissipation into dump loads. These technical
advantages make the proposed strategy a promising tool to
increase the viability and reliability of renewable power
generation system in isolated and remote communities.
Although a wind turbine has been used to demonstrate the
validity of the proposed strategy, it is also valid regardless the
type and number of power sources existing in the isolated
Microgrid. The proposed strategy calculates the amount of
power that must be generated from all sources, at each time, to
keep the balance of energy in the grid.
REFERENCES

[1] R. E. Foster, R. C. Orozco, and A. R. P, Rubio, “Lessons lLearned from
the Xcalak Hybrid System: a Seven Year Retrospective,” in Proc. of
1999 Solar World Conference, International Solar Energy Society, vol. I,
pp. 319-328, Jerusalem, Jul. 1999.
[2] L. A. S. Ribeiro, O. R. Saavedra, J. G. Matos, S. L. Lima and, G. Bonan,
and A. S. Martins, “Isolated Micro-Grid With Renewable Hybrid
Generation: The case of Lençóis Island,” IEEE Transactions on
Sustainable Energy, vol. 2, no. 1, pp. 1-11, Jan. 2010.
[3] L. A. S. Ribeiro, O. R. Saavedra, J. G. Matos, S. L. Lima and, and G.Bonan, “Making Isolated Renewable Energy System More Reliable,”
Renewable Energy, vol. 45, pp. 212-231, 2012.
[4] N. Mendis, K. M. Muttaqi, and S. Pereira, “A Novel Control Strategy for
Stand-alone Operation of a Wind Dominated RAPS System,” in IEEE
2011 Industry Applications Annual Meeting, pp. 1-8, 2011.
[5] M. Singh and A. Chandra, “Control of PMSG Based Speed Wind-
Battery Hybrid System in an Isolated Network,” in IEEE 2009 Power &
Energy Society General Meeting, pp. 1-6, 2009.
[6] H. Li and Z. Chen, “Overview of different wind generator systems and
their comparison,” IET Renewable Power Generation, vol. 2, no. 2, pp.
123 - 138, Jun. 2008.
[7] J. Rocabert, J. A. Luna, F. Blaabjerg, and P. Rodrígues, “Control of
Power Converters in AC Microgrids,” IEEE Transactions on Power
Electronics, vol. 27, no. 11, pp. 4734-4749, Nov. 2012.
[8] K. de Brabandere, B. Bolsens, J. Van Keybus, A. Woyte, J. Driesen and,
R. Belmans, “A Voltage and Frequency Droop Control Method for
Parallel Inverters,” IEEE Trans. on Power Electronics, vol. 22, no. 4,
pp. 1107–1115, July 2007.
[9] Z. Chen, J. M. Guerrero, and F. Blaabjerg, “A Review of the State of Art
of Power Electronics for Wind Turbines,” IEEE Transactions on Power
Electronics, vol. 24, no. 8, pp. 1859-1875, Aug. 2009.
[10] D. W. Novotny and T. A. Lipo, Vector Control and Dynamics of AC
Drives, Clarendon Press, Oxford, 1996.
[11] S. Morimoto, H. Nakayama, M. Sanada, and Y. Takeda, “Sensorless
Output Maximization Control for Variable-Speed Wind Generation
System Using IPMSG,” IEEE Transactions on Industry Applications,
vol. 41, no. 1, pp. 60-67, Jan./Feb. 2005.
[12] H. Siegfried Heier, Grid Integration of Wind Energy Conversion
Systems, John Wiley & Sons, Chichester, England, 2009.
[13] Z. M. Salameh, M. A. Casacca, and W. A. Lynch, “A Mathematical
Model for Lead-Acid Batteries Parallel”, IEEE Transaction on Energy
Conversion, vol. 7, no. 1, pp. 93-98, March 1992
263
International Conference on Renewable Energy Research and Applications Madrid, Spain, 20-23 October 2013
ICRERA 2013 263
Authorized licensed use limited to: Centro Federal de Educacao Tec do Rio de Janeiro. Downloaded on December 30,2024 at 14:10:53 UTC from IEEE Xplore. Restrictions apply.
>
 /ColorImageDict >
 /JPEG2000ColorACSImageDict >
 /JPEG2000ColorImageDict >
 /AntiAliasGrayImages false
 /CropGrayImages true
 /GrayImageMinResolution 200
 /GrayImageMinResolutionPolicy /OK
 /DownsampleGrayImages true
 /GrayImageDownsampleType /Bicubic
 /GrayImageResolution 300
 /GrayImageDepth -1
 /GrayImageMinDownsampleDepth 2
 /GrayImageDownsampleThreshold 1.50000
 /EncodeGrayImages true
 /GrayImageFilter /DCTEncode
 /AutoFilterGrayImages false
 /GrayImageAutoFilterStrategy /JPEG
 /GrayACSImageDict >
 /GrayImageDict >
 /JPEG2000GrayACSImageDict >
 /JPEG2000GrayImageDict >
 /AntiAliasMonoImages false
 /CropMonoImages true
 /MonoImageMinResolution 400
 /MonoImageMinResolutionPolicy /OK
 /DownsampleMonoImages true
 /MonoImageDownsampleType /Bicubic
 /MonoImageResolution 600
 /MonoImageDepth -1
 /MonoImageDownsampleThreshold 1.50000
 /EncodeMonoImages true
 /MonoImageFilter /CCITTFaxEncode
 /MonoImageDict >
 /AllowPSXObjects false
 /CheckCompliance [
 /None
 ]
 /PDFX1aCheck false
 /PDFX3Check false
 /PDFXCompliantPDFOnly false
 /PDFXNoTrimBoxError true
 /PDFXTrimBoxToMediaBoxOffset [
 0.00000
 0.00000
 0.00000
 0.00000
 ]
 /PDFXSetBleedBoxToMediaBox true
 /PDFXBleedBoxToTrimBoxOffset [
 0.00000
 0.00000
 0.00000
 0.00000
 ]
 /PDFXOutputIntentProfile (None)
 /PDFXOutputConditionIdentifier ()
 /PDFXOutputCondition ()
 /PDFXRegistryName ()
 /PDFXTrapped /False
 /CreateJDFFile false
 /Description
 /BGR
 /CHS
 /CHT/CZE
 /DAN
 /DEU
 /ESP
 /ETI
 /FRA
 /GRE
 /HEB
 /HRV
 /HUN
 /ITA (Utilizzare queste impostazioni per creare documenti Adobe PDF adatti per visualizzare e stampare documenti aziendali in modo affidabile. I documenti PDF creati possono essere aperti con Acrobat e Adobe Reader 6.0 e versioni successive.)
 /JPN
 /KOR
 /LTH
 /LVI
 /NLD (Gebruik deze instellingen om Adobe PDF-documenten te maken waarmee zakelijke documenten betrouwbaar kunnen worden weergegeven en afgedrukt. De gemaakte PDF-documenten kunnen worden geopend met Acrobat en Adobe Reader 6.0 en hoger.)
 /NOR
 /POL
 /PTB/RUM
 /RUS
 /SKY
 /SLV
 /SUO
 /SVE
 /TUR
 /UKR
 /ENU (Use these settings to create Adobe PDF documents suitable for reliable viewing and printing of business documents. Created PDF documents can be opened with Acrobat and Adobe Reader 6.0 and later.)
 >>
>> setdistillerparams
> setpagedevice
