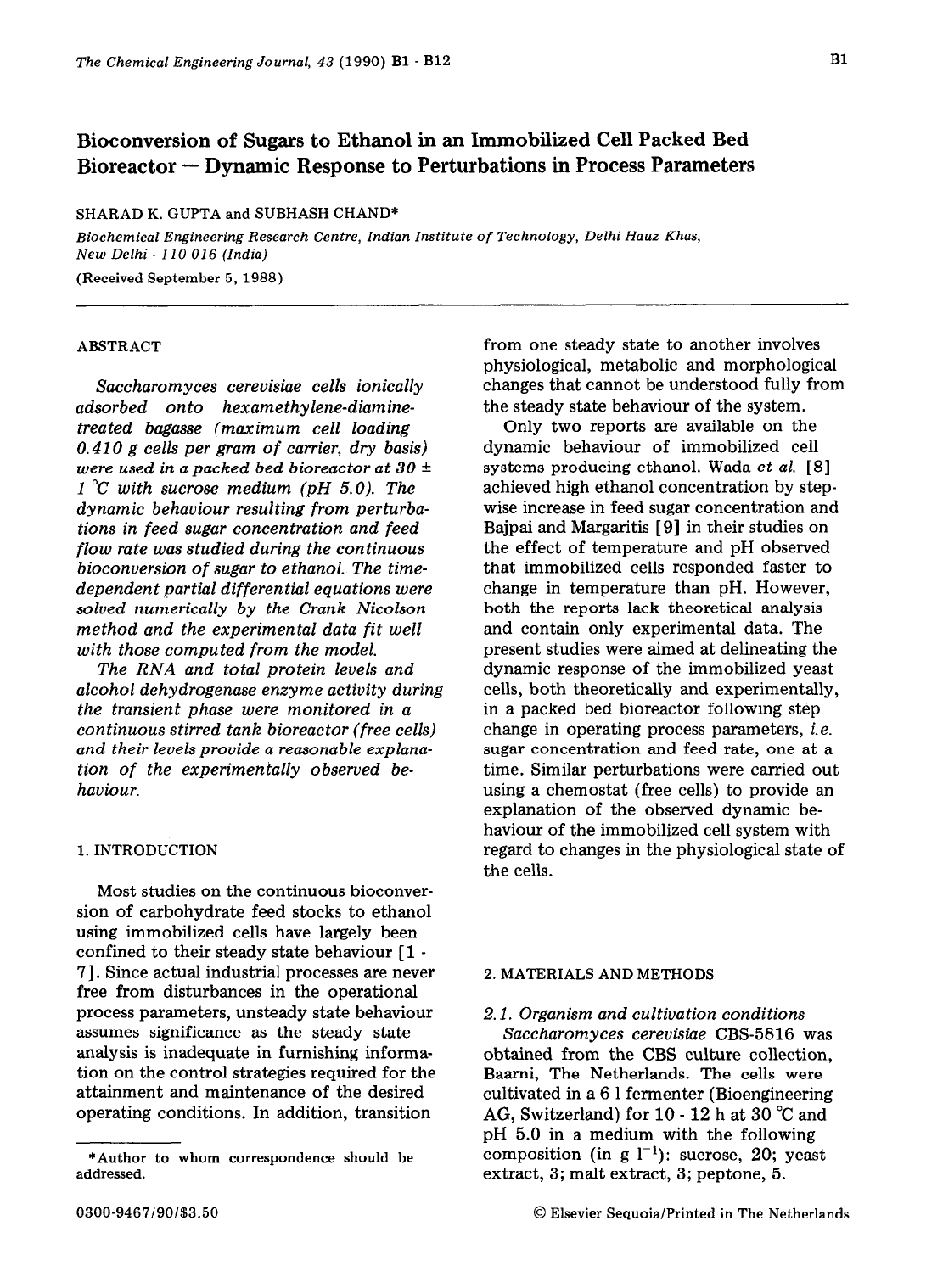

The Chemical Engineering Journal, 4.3 (1990) Bl - B12 Bl
Bioconversion of Sugars to Ethanol in an Immobilized Cell Packed Bed
Bioreactor - Dynamic Response to Perturbations in Process Parameters
SHARAD K. GUPTA and SUBHASH CHAND*
Biochemical Engineering Research Centre, Indian Institute of Technology, Delhi Hauz Khas,
New Delhi - 110 016 (India)
(Received September 5,1988)
ABSTRACT
Saccharomyces cerevisiae cells ionically
adsorbed onto hexamethylene-diamine-
treated bagasse (maximum cell loading
0.410 g cells per gram of carrier, dry basis)
were used in a packed bed bioreactor at 30 f
1 “C with sucrose medium (pH 5.0). The
dynamic behaviour resulting from perturba-
tions in feed sugar concentration and feed
flow rate was studied during the continuous
bioconversion of sugar to ethanol. The time-
dependent partial differential equations were
solved numerically by the Crank-Nicolson
method and the experimental data fit well
with those computed from the model.
The RNA and total protein levels and
alcohol dehydrogenase enzyme activity during
the transient phase were monitored in a
continuous stirred tank bioreactor (free cells)
and their levels provide a reasonable explana-
tion of the experimentally observed be-
haviour.
1. INTRODUCTION
Most studies on the continuous bioconver-
sion of carbohydrate feed stocks to ethanol
using immobilized cells have largely been
confined to their steady state behaviour [ 1 -
71. Since actual industrial processes are never
free from disturbances in the operational
process parameters, unsteady state behaviour
assumes significance as the steady state
analysis is inadequate in furnishing informa-
tion on the control strategies required for the
attainment and maintenance of the desired
operating conditions. In addition, transition
*Author to whom correspondence should be
addressed.
0300-9467/90/$3.50
from one steady state to another involves
physiological, metabolic and morphological
changes that cannot be understood fully from
the steady state behaviour of the system.
Only two reports are available on the
dynamic behaviour of immobilized cell
systems producing ethanol. Wada et al. [8]
achieved high ethanol concentration by step-
wise increase in feed sugar concentration and
Bajpai and Margaritis [9] in their studies on
the effect of temperature and pH observed
that immobilized cells responded faster to
change in temperature than pH. However,
both the reports lack theoretical analysis
and contain only experimental data. The
present studies were aimed at delineating the
dynamic response of the immobilized yeast
cells, both theoretically and experimentally,
in a packed bed bioreactor following step
change in operating process parameters, i.e.
sugar concentration and feed rate, one at a
time. Similar perturbations were carried out
using a chemostat (free cells) to provide an
explanation of the observed dynamic be-
haviour of the immobilized cell system with
regard to changes in the physiological state of
the cells.
2. MATERIALS AND METHODS
2.1. Organism and cultivation conditions
Saccharomyces cerevisiae CBS-5816 was
obtained from the CBS culture collection,
Baarni, The Netherlands. The cells were
cultivated in a 6 1 fermenter (Bioengineering
AG, Switzerland) for 10 - 12 h at 30 “C! and
pH 5.0 in a medium with the following
composition (in g 1-i): sucrose, 20; yeast
extract, 3; malt extract, 3; peptone, 5.
@ Elsevier Sequoia/Printed in The Netherlands
B2
2.2. Bioconversion medium
A sucrose medium of the following
composition was used: sucrose, varied; yeast
extract, 3.0 g 1-l; MgS04- 7H20, 0.5 g 1-l;
orthophosphoric acid, 0.3 ml 1-l; pH 5.0.
2.3. Carrier preparation
The cells were ionically adsorbed onto the
activated bagasse (pith portion, chipped to a
size of 1 - 1.5 cm), which was positively
charged with an aminohexyl group following
the method described by Porath and
Fornstedt [lo].
2.4. Immobilization
After harvesting, the yeast cells were
centrifuged and resuspended in a fresh sterile
medium to prepare a suspension with a con-
centration of the order of 50 g 1-l. Aliquots
(100 ml) of this suspension were transferred
into Earlenmeyer flasks (500 ml) containing
2.0 g dried and autoclaved carrier. The flasks
were then placed in an orbital shaker main-
tained at 30 “C for 80 min. The cell suspen-
sion was separated from the carrier by de-
cantation and the latter was washed with
sterile citrate buffer (0.05 mM, pH 5.0) to
remove loosely bound cells.
2.5. Analytical techniques
2.5.1. E than01 and sugar concentration
Formaldehyde solution (32%) (0.1 ml)
was added to experimental samples followed
by centrifugation at 3000 rev min-’ for 15
min. The supernatant was used subsequently
in the measurements. The ethanol concentra-
tion was determined in a dual column and
dual detector (Porapack, 120 mesh size;
outer diameter, 0.65 cm; length, 2 m) gas
liquid chromatograph (AIMIL - 5700, Nucon
Engineers Pvt. Ltd., India). The total sugars
(after hydrolysing with 2 N HCl solution in a
boiling water bath for 10 min and neutralizing
with 1 N NaOH solution) were measured
using the dinitrosalicylic acid (DNS) method
[111.
2.5.2. Total proteins
Total proteins were estimated by the
Lowry method [ 121.
2.5.3. Alcohol dehydrogenase activity
A known quantity of cells was disrupted
by sonication (Sonirep 150, MSE) and
centrifuged after washing twice with
phosphate buffer (0.01 M, pH 7.5). The
supernatant was used for the measurement of
enzyme activity, with the reaction velocity
determined by the method of Vallee and
Hoch [13].
2.5.4. RNA content
The RNA content was measured in super-
natant samples of the culture filtrate of
disrupted centrifuged cells by the method of
Webb [14].
2.6. Experimental se t-up
A glass jacketed column (500 ml, 6.2 cm X
16.5 cm) was used, with the temperature
maintained at 30 “C by circulating water
through the jacket; carbon dioxide was
released through a vent at the top. A
schematic diagram of the experimental set-up
is shown in Fig. 1. The steady state system
was perturbed by introducing disturbances,
i.e. a change in feed sugar concentration or
flow rate, one at a time. Media of different
feed concentrations were prepared and
connected to the system via an on/off valve.
Fermented
mash
collector
Fig. 1. Immobilized cell packed bed bioreactor.
B3
When the system was running at the steady
state with one feed sugar concentration it
was switched over to another feed by opening
the valve, while at the same time the previous
feed was turned off. The change in feed flow
rate was achieved by adjusting the peristaltic
pump (previously calibrated) and the actual
flow rate obtained was monitored.
3. THEORETICAL ANALYSIS
The following assumptions were made to
describe the system’s dynamic response:
(i) there was no influence of carrier packing
on the reaction except in its contribution to
the axial mixing; (ii) no temperature gradients
(radial or longitudinal) existed; (iii) a dynamic
equilibrium existed between growing and out-
going cells, i.e. the concentration of active
cells remained constant.
A steady state mass balance on the
substrate over a differential element (Fig. 2)
in a packed bed system can be written as
(1)
In the case of a packed bed bioreactor
employing immobilized cells producing
ethanol, a large fraction of the column
operates under low ethanol concentrations
and therefore experiences little product
inhibition. In addition, under the experi-
mental range of sugar concentrations used,
substrate inhibition of the bioconversion
process can be assumed to be insignificant.
Hence first-order kinetics offer a good
approximation for the rate of reaction and
r,’ = kS
where the kinetic parameter k accounts for
the complexity of the bioconversion process
and assumes different values depending on
the experimental conditions.Clearly, k is
a ‘lumped’ parameter and its values were
obtained experimentally by collecting samples
Fig. 2. An element of the immobilized cell bioreactor.
at different bed lengths under various oper-
ating conditions.
On substituting the reaction rate in eqn. (1)
(2)
Equation (2) is subject to the following condi-
tions.
Initial conditions
s = SO(z) att=OSzO (4)
X3
-=
a.2
0 atz=L, t>O (5)
So(z) represents the initial substrate con-
centration profile in the bioreactor.
Equation (2) can be made dimensionless by
using the following dimensionless variables
4 = SISF
q =zlL
ut (6)
.T= -
L
K,= kL
u
Thus eqn. (2) becomes
Dc a2@ a# - - -- - -K&z $
UL a7j2 a7j
Defining the Peclet number Pe as uL/D,
leads to
I a24 a4 --__-_
Pe aq2 a7
-K,@= 2
(7)
(8)
The Peclet number was obtained experi-
mentally at different flow rates using a tracer
input technique [ 161.
The initial and boundary conditions given
by eqns. (3) - (5) become
7 = 0, 4 = GO(n) for 0 0
WV
rl = 1, a4 0
‘arl=
for 7 > 0 (11)
B4
The most common method for the numerical solution of partial differential equations uses finite
difference procedures. However, due to numerical instability problems, finite difference methods
are not straightforward. This is especially true for the explicit difference method where very
small steps in the time direction must be used to reduce errors and to increase stability. In order
to avoid these difficulties, the implicit method given by Crank and Nicolson (see ref. 17) was
used.
The dimensionless bed length q and time 7 are divided into i and j equal increments respec-
tively, and the partial derivatives in eqn. (8) are replaced by the following Crank- Nicolson
differential operators
a24 J_
i
@i - + _ 1. j 24i, j + 4i - 1, j + 4i + 1, j I- + 1 2&, j + 1 + $i - 1, j + 1
a77* 2 Ar1* 1
34 @i+l,j-$i-1,j
_=-
ar, 2b
a4 4i,j+l-4i,j
.._ _ = -
a7 AT
(12)
(13)
(14)
Substituting eqns. (12) - (14) into eqn. (8), the following algebraic equation is obtained on
rearrangement
@i + 1, j + Oh, j + T$- 1. j + h@i + 1. j + 1 + Oh, j + 1 + 6th - 1. j + 1 = 0 (15)
where
a=&-- 1
2A7)
/3=6-K,+;
1
y=6+ -
2A77
&= 1
2PeAv*
1
a=-2F-z
The initial and boundary conditions
represented by eqns. (9) - (11) become
@i, 0 = @L O(V) for 04). After this
decrease, the productivity began to rise and
the exit sugar concentration declined. Similar
behaviour was obtained on disturbing the
system from SF = 165 to 197 g 1-l and then
197 to 232 g 1-l (Fig. 5). The final produc-
tivity obtained was 21.4 g 1-l h-’ at SF =
232 g 1-l. This productivity is about 26%
higher than the productivity obtained when
the system was directly operated with SF =
232 g 1-l (Fig. 4). This indicates that the same
magnitude of increase in sugar feed concen-
tration (up to 232 g 1-l) does not yield the
same level of productivity as stepwise in-
creases. This phenomenon is attributed to
the slow adaptation of immobilized cells to
increasing levels of sugar concentration. A
similar increase in ethanol concentration by
stepwise increase in feed sugar concentration
has also been observed by Wada et al. [ 81.
B7
60-
I
- 70-
SF=232 &,I-' r------------- -----------
;
G
I
I
; I
z 60 I 25
2 I
VI
e SF =197gr'
~5O-___------------ 23f
AT
01 I I I I I I I I I I I 113
88 96 1OL 112 120 126 136 144 152 160 168 176 184
Time I h)
Fig. 5. Transient response to stepwise increase in feed sugar concentration from 197 to 232 g 1-r at flow rate of
98 ml h-l: 0, sugar concentration (experimental); -, model; A, productivity; - - -, step change in SF.
4.2. Feed flow rate (step change)
A change in feed flow rate imposes a
change in growth rate on the organism due to
a change in substrate concentration. By
changing the feed flow rate (space velocity),
varying magnitudes of disturbance were
introduced and the responses were followed
during the transient phase until the attain-
ment of the steady state. The original feed
condition was reintroduced after reaching
the steady state. At the steady state at a
feed flow rate of 98 ml h-’ (space velocity =
0.376 h-i, calculated on the basis of void
volume excluding carbon dioxide holdup
volume) with SF = 160 g I-‘, the system was
disturbed by raising the feed flow rate to 112
ml h-l (space velocity = 0.469 h-l). The same
magnitude of perturbation in space velocity
(0.093 h-l) was imposed on the system when
operated at a higher feed flow rate (147 -
171 ml h-l). In the first case, the behaviour
of the system remained almost unaltered
(Fig. 6), whereas in the second case the
system showed a gradual increase in exit sugar
concentration following a lag period (Fig. 7),
resulting in a corresponding decrease in
ethanol concentration. On reintroducing the
original feed flow rate, an undershoot in exit
sugar concentration was noticed and produc-
llZmlh-' :__...__-_‘__-_______~
12
0 6 * 10 12 IL 16
Time I h I
Fig. 6. Dynamic response to step change in feed flow
rate (98 to 112 ml h-r) (SF= 160 g 1-l): 0, sugar
concentration (experimental); - theoretical; 0,
ethanol concentration; A, productivky; - - -, step
change in SF.
tivity increased slightly. When returned to the
original feed flow rate, the steady state was
restored after passing nearly seven working
volumes through the bioreactor.
0 L 12 16 20 32
ime , h 1
Fig. 7. Dynamic response to step change in feed flow
rate (147 to 171 ml h-l) (SF = 160 g 1-l): symbols as
in Fig. 6.
Further experiments were conducted
employing a feed sugar concentration of
150 g 1-r and larger increments in feed flow
rate were introduced. The system was
disturbed by raising the feed flow rate from
52 to 98 and 152 ml h-l (thus increments of
46 and 100 ml h-l respectively were
introduced). Following perturbation an over-
shoot in exit feed sugar concentration was
observed in both cases before a new steady
state was attained (Figs. 8 and 9). The
observed overshoot indicates that the cells
could not adapt to an increased metabolic
activity immediately following a sudden
increase in flow rate. For AF = 46 ml h-l the
overshoot was maintained for about 14 h
before exhibiting a gradual decrease to the
steady state sugar concentration (Fig. 8). In
the other case (Fig. 9), the exit sugar con-
centration remained at the increased level for
about 24 h before decreasing rapidly.
It can be inferred from the above studies
that the response time increases with a larger
increment in the space velocity. The new
steady state was achieved in 48 h for AF =
46 ml h-’ (Fig. 8) and 80 h for AF = 100
ml h-’ (Fig. 9). Table 1 gives the values of the
parameters used in predicting the time course
of the.perturbations theoretically.
4.3. Dynamics of the cell physiological
behaviour
To explain the results obtained following
perturbation, the dynamics of the physiol-
6
4
0 a 16 2L 32 LO LB 56
Time I hi
Fig. 8. Dynamic response to step change in feed flow
rate (52 to 98 ml h-l) (SF = 150 g 1-l): symbols as in
Fig. 6.
ogical behaviour of the cells were studied.
Due to the practical problems associated with
the measurement of the biochemical content
of the immobilized cells during the transition
phase, the physiological studies were carried
out in a continuous stirred tank bioreactor
(CSTB) (free cells) with similar perturbations.
The changes which occur at the cellular level
in the immobilized cells can be expected to be
qualitatively similar to those of free cells.
However, the response times could be dif-
ferent due to different micro-environmental
conditions. The CSTB (free cells) running at
steady state and at a dilution rate D of 0.05
h-’ was disturbed by a step increase (75 to
160 g 1-i) in SF. RNA, protein and alcohol
dehydrogenase levels were measured following
the perturbation. A sudden increase in sugar
level causes synthesis of more RNA, protein
and enzymes to enhance the capability of the
organism for growth and ethanol formation.
Following the perturbation time lags of about
12 h and 2’7 h were observed in stimulating
RNA and protein synthesis respectively
(Fig. 10). This time lag is due to the fact that
when a culture is shifted to an environment
which will allow an increase in the specific
growth rate, its immediate response will be
limited by the RNA level attained during
B9
68
Time ( h I
Fig. 9. Dynamic response to step change in feed flow rate (52 to 152 ml h-l) (SF = 150 g 1-l): symbols as in
Fig. 6.
Fig. 10. Dynamics of cell physiology following step
change in feed sugar concentration in CSTB (free
cells) (D = 0.05 h-l). Step increase in SF (75 to
160 g 1-l): 0, RNA; A, protein; 0, alcohol dehy-
drogenase. Step decrease in SF (160 to 75 g 1-l):
0, RNA; A, protein; m, alcohol dehydrogenase.
growth in the previous environment. With
time, however, the RNA level of the culture
will change and approach a value charac-
teristic of growth in the new environment,
thereby allowing the specific growth rate and
product formation rate of the culture to
change as well. These observations are the
basis of RNA-limiting theory [18] which is
supported by Waldron and Lacroute [19] and
Koplove and Cooney [20]. However, over-
shoots in RNA, protein and alcohol de-
hydrogenase were noticed at various times.
This suggests that the organism generates
more active material than is needed for the
final steady state because of the high level of
available sugar. This explains the overshoots
and undershoots observed following a step
change in the feed sugar concentration (Figs.
3, 4 and 5). The shift-down response from
SF = 160 to 75 g 1-l was observed to be faster
(Fig. 10). No lag time was noticed as the cells
were not required to synthesize additional
amounts of the various macromolecules.
The RNA and protein levels responded soon
after the perturbation and reached the new
steady state in 42 h as compared with 54 h in
the shift-up experiment. Excessive synthesis
of proteins and enzyme(s) at high sugar
concentration explains the undershoots
observed following shift-down in feed sugar
concentration in Figs. 3, 4 and 5.
The change at the molecular level following
a step change in dilution rate was studied
BlO
01 0:
01 2 3 G
NRV
Fig. 11. Dynamics of cell physiology for the same increase in dilution rate (II = 0.02 h-l) at different dilution
rates in CSTB (free cells) (SF = 140 g 1-l). D = 0.02 to 0.04 h-‘: 0, RNA; *, protein; 0, alcohol dehydrogenase;
D = 0.08 to 0.10 h-l: 0, RNA; *, protein; n , alcohol dehydrogenase.
NRV
Fig. 12. Effect of a large increase in dilution rate on cell physiology in CSTB (free cells) (SF = 140 g 1-l). D =
0.02 to 0.06 h-r: 0, RNA; A, protein; 0, alcohol dehydrogenase; D = 0.08 to 0.12 h-l: 0, RNA; A, protein; n ,
alcohol dehydrogenase.
to substantiate the observed phenomena
further and the results are presented in Figs.
11,12 and 13. As can be seen in Fig. 11 there
was no significant change in the cellular
components when D was increased from 0.02
to 0.04 h-l (AD = 0.02 h-l). However, a 6%
increase in alcohol dehydrogenase activity was
observed for the same magnitude of shift
(AD = 0.02 h-l) but at a higher level of dilu-
tion rate (D = 0.08 h-l). A slight elevation
in RNA and protein contents was also
observed. It can be inferred that the molecu-
lar composition of yeast cells is not affected
at the lower dilution rate; therefore the
steady state is achieved faster at the lower
dilution rate than at the higher dilution rate
for the same magnitude of change. This
explains the results of Figs. 6 and ‘7. Larger
increments in dilution rate caused a greater
change in intracellular contents (Fig. 12),
Bll
0 I
O 0
I I I I
1 2 3 4
NW
Fig. 13. Effect of a decrease in dilution rate from D = 0.12 to 0.08 h-l on cell physiology in CSTB (free cells)
(SF’ 140 g 1-l): 0, RNA; A, protein; 0, alcohol dehydrogenase.
with cells showing a prolonged lag period in
responding to the change. On changing the
dilution rate from D = 0.02 to 0.06 h-l
and D = 0.08 to 0.12 h-l, the levels of RNA,
protein and alcohol dehydrogenase increased
following a lag period. The prolonged lag
period, the longer time required to reach the
steady state and the increased productivity
(Figs. 8 and 9) are substantiated by these
results. While observing the change in cellular
components following a reduction in dilution
rate (Fig. 13), no lag period was found in
RNA, protein or alcohol dehydrogenase
levels, but substantial time was taken for the
cells to reach the steady state level. This
confirms the observations made in Figs. 6 - 9.
5. CONCLUSIONS
Step changes in the feed sugar concentra-
tion or the feed flow rate of a continuous
immobilized cell reactor showed overshoots
and undershoots in exit sugar concentration
and productivity. The system behaviour was
observed to be dependent on the magnitude
of the change and on the operating conditions
at which the perturbation was introduced.
The shift-down response was noted to be
faster than the shift-up response. A stepwise
increase in feed sugar concentration (120 to
232 g 1-l) resulted in a 26% increase in
productivity compared with the system used
directly at the high feed sugar concentration.
Moreover, increased productivity was ob-
served during the transient phase and this
suggests that if the system was operated
permanently in a disturbed mode, it could
yield better productivity. However, overall
the system was stable as the disturbance
disappeared after a finite time period.
The present studies indicate that the
levels of the molecular components show an
overshoot (following a step increase in feed
sugar concentration) and then assume a
physiological state appropriate to the new
operating condition; RNA limiting theory is
confirmed.
The model proposed adequately describes
the dynamic response and the results obtained
could be used as a basis for controlling the
reactor operation at a desired level.
ACKNOWLEDGMENTS
One of the authors (S.K.G.) is grateful to
the Council of Scientific and Industrial
Research for the grant of an associateship
during this investigation. Thanks are also due
B12
to the Head, Biochemical Engineering
Research Centre, Indian Institute of Tech-
nology, Delhi for providing the facilities for
the work.
REFERENCES
7
8
9
10
11
12
13
14
15
16
17
18
R. D. Tyagi and T. K. Ghose, Biotechnol. Bioeng.,
24 (1982) 781.
T. K. Ghose and K. K. Bandyopadhyay, Biotech-
nol. Bioeng., 21 (1980) 1401.
C. Sola, C. Casas, F. Godia, M. Poch and A. Serra,
Biotechnol. Bioeng. Symp., I7 (1986) 519.
F. Godia, C. Casas and C. Sola, Biotechnol.
Bioeng., 30 (1987) 836.
V. K. Jain, I. Toran-Diaz and J. Baratti, Biotech-
nol. Bioeng., 27 (1985) 613.
M. Nagashima, M. Azuma, S. Noguchi, K. Inuzuka
and H. Samejima, BiotechnoZ. Bioeng., 26 (1984)
992.
C. W. Lee and H. N. Chang, Enzyme Microb.
Z’echnol., 7 (1985) 561.
M. Wada, J. Kato and I: Chibata, Eur. J. Appl.
Microbial. Biotechnol, 11 (1981) 67.
P. K. Bajpai and A. Margaritis, Biotechnoi.
Bioeng., 28 (1986) 824.
J. Porath and N. Fornstedt, J. Chromatogr., 51
(1970) 479.
J. B. Sumner and G. F. Somer, Laboratory
Experiments in Biological Chemistry, Academic
Press, 1954, p. 34.
0. H. Lowry, N. J. Rossenbrough, A. L. Farr and
R. J. Randall, J. Biol. Chem., 193 (1951) 265.
J. L. Vallee and F. L. Hoch, Proc. Natl. Acod.
Sci., U.S.A., 41 (1955) 327.
J. Webb, J. Biol. Chem., 221 (1956) 635.
P. V. Danckwerts, Chem. Eng. Sci., 2 (1953) 1.
0. Levenspiel, Chemical Reaction Engineering,
Wiley, New York, 1st edn., 1969, p. 501.
C. F. Gerald, Applied Numerical Analysis,
Addison Wesley, Philippines, 1970, p. 224.
R. Y. Stainer, N. J. Palleroni and M. Dondorff,
J. Gen. Microbial., 43 (1966) 159.
19 C. Waldron and F. Lacroute, J. Bacterial., 122
(1975) 855.
20 H. M. Koplove and C. L. Cooney, in T. K. Ghose,
A. Fiechter and N. Blakebrough (eds.), Advances
in Biotechnology, Vol. 5, Springer-Verlag, New
York, 1977, p. 2.
APPENDIX A: NOMENCLATURE
DC
F
AF
k
&
L
NRV
P
rs
se
SF
AS
t
U
Y P/s
z
dispersion coefficient (cm2 h-l)
volumetric flow rate (ml h-l)
magnitude of perturbation in feed flow
rate (ml h-l)
a ‘lumped’ parameter (h-l)
dimensionless kinetic parameter
total length of the bioreactor (cm)
number of reactor volumes passed
through in a continuous stirred tank
bioreactor
product (ethanol) concentration (g 1-i)
rate of substrate consumption (g 1-l)
h-l)
exit feed sugar concentration (g 1-l)
feed sugar concentration (g 1-l)
magnitude of perturbation in feed
sugar concentration (g 1-l)
time
linear velocity of the medium (cm h-i)
product yield coefficient (g g-l)
differential length of the immobilized
cell bioreactor (cm)
Greek symbols
1) dimensionless length variable (z/L)
dimensionless time variable (u t/L)
dimensionless substrate variable (S/SF)
