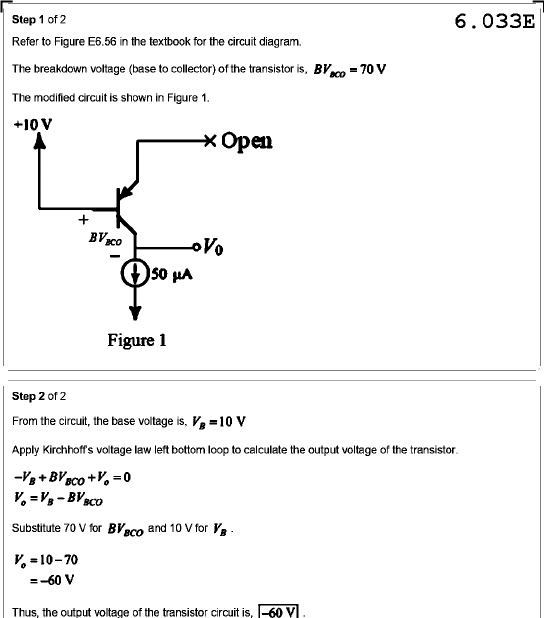

Step 1 of 2 6.033E Refer to Figure E6.56 in the textbook for the circuit diagram. The breakdown voltage (base to collector) of the transistor is, The modified circuit is shown in Figure 1. +10V Open + V₀ - 50 Figure 1 Step 2 of 2 From the circuit, the base voltage is, Apply Kirchhoff's voltage law left bottom loop to calculate the output voltage of the transistor. Substitute 70 V for and 10 V for V Thus, the output voltage of the transistor circuit is,
