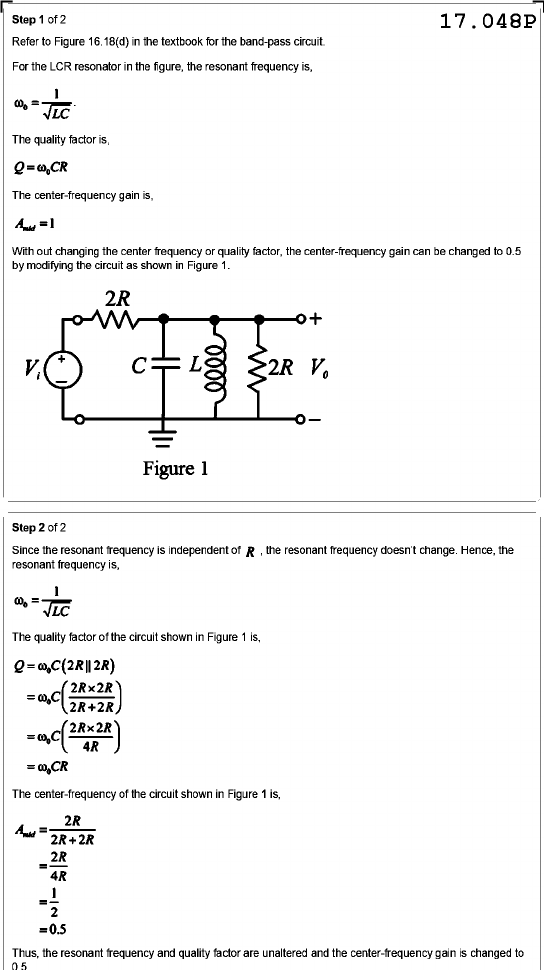

Step 1 of 2 17.048P Refer to Figure 16.18(d) in the textbook for the band-pass circuit. For the LCR resonator in the figure, the resonant frequency is, The quality factor is, The center-frequency gain is, = With out changing the center frequency or quality factor, the center-frequency gain can be changed to 0.5 by modifying the circuit as shown in Figure 1. 2R o+ + V₁ C L 2R V₀ Figure 1 Step 2 of 2 Since the resonant frequency is independent of the resonant frequency doesn't change. Hence, the resonant frequency is, The quality factor of the circuit shown in Figure 1 is, = The center-frequency of the circuit shown in Figure 1 is, = 0.5 Thus, the resonant frequency and quality factor are unaltered and the center-frequency gain is changed to
