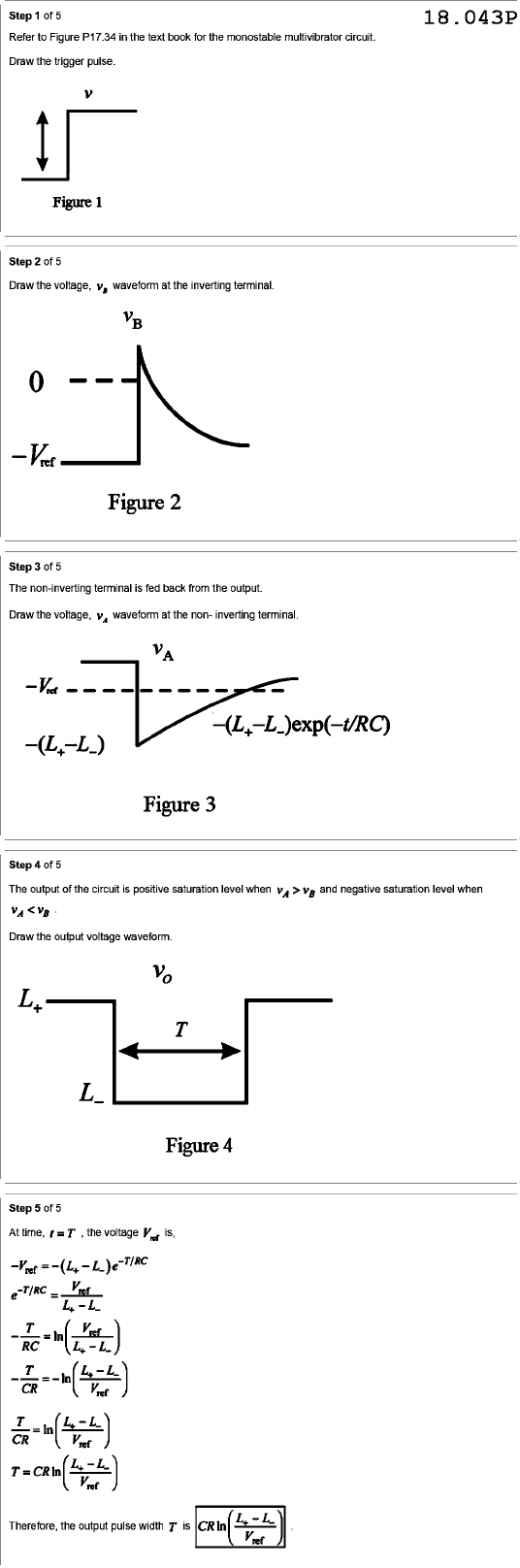

Step of 5 18.043P Refer to Figure P17.34 in the text book for the monostable multivibrator circuit. Draw the trigger pulse. Figure 1 Step of 5 Draw the voltage, waveform at the inverting terminal. VB Figure 2 Step of 5 The non-inverting terminal is fed back from the output. Draw the voltage, VA waveform at the non-inverting terminal. Figure 3 Step of 5 The output of the circuit is positive saturation level when and negative saturation level when
