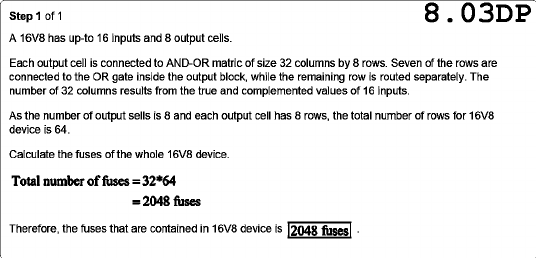

Step 1 of 1 8.03DP A 16V8 has up-to 16 inputs and 8 output cells. Each output cell is connected to AND-OR matric of size 32 columns by 8 rows. Seven of the rows are connected to the OR gate inside the output block, while the remaining row is routed separately. The number of 32 columns results from the true and complemented values of 16 inputs. As the number of output sells is 8 and each output cell has 8 rows, the total number of rows for 16V8 device is 64. Calculate the fuses of the whole 16V8 device. Total number of fuses =32*64 = 2048 fuses Therefore, the fuses that are contained in 16V8 device is 2048 fuses
