CHAPTER 16 585

of the two double bonds, and the stereodescriptor (Z)
indicates the configuration of the C=C bond between C3
and C4.


(d) The parent (“hept”) indicates a seven-carbon chain,
and the suffix (“diene”) indicates the presence of two
C=C bonds. The locants (2 and 4) indicate the positions
of the two double bonds, and the stereodescriptors
indicate the configurations of the double bonds.



(e) The parent (“but”) indicates a four-carbon chain, and
the suffix (“diene”) indicates the presence of two C=C
bonds. The locants (1 and 3) indicate the positions of the
two double bonds. There are two methyl substituents, at
positions C2 and C3.

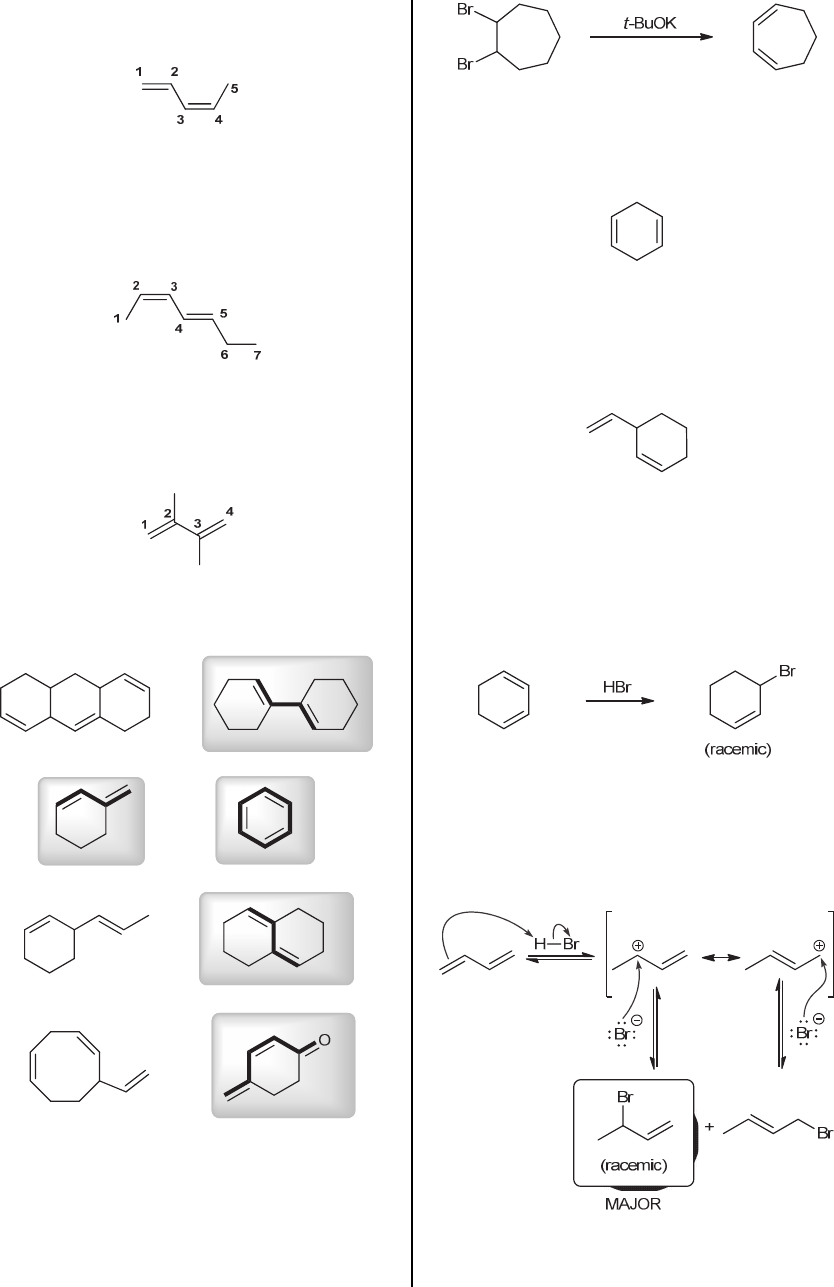

16.31. Each of the highlighted compounds possesses a
conjugated  system, which is shown with darker bonds.




16.32. Potassium tert-butoxide is a strong, sterically
hindered base, and the starting material will react with
two equivalents of this base to undergo two successive
elimination (E2) reactions, producing a conjugated,
homoannular diene, as shown.




16.33.
(a) The non-conjugated isomer (shown below) will be
higher in energy than the conjugated isomer.



As a result, this compound will liberate more heat upon
hydrogenation.

(b) The non-conjugated isomer (shown below) will be
higher in energy than the conjugated isomer.



As a result, this compound will liberate more heat upon
hydrogenation.


16.34. Treatment of 1,3-cyclohexadiene with HBr
produces only one product (because 1,2 addition and 1,4
addition give the same product).



16.35. The diene is protonated to give a resonance
stabilized cation, which can then be attacked in one of
two locations, leading to the 1,2-adduct and the 1,4-
adduct. At low temperature, the kinetic product (the 1,2-
adduct) dominates.



16.36. The diene is protonated to give a resonance
stabilized cation, which can then be attacked in one of
