Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 1


Resumo

Este boletim técnico abrange a release de software versão
C6XXV1.2.3.set para a OLT ZTE modelo C600 e C650.

A release implementa o suporte para atender a solução de GPON.


Melhorias e Correções
CHAMADO Descrição
FEATURE REQUEST AUMENTO PARA 3000 CARACTERES NO BANNER
FEATURE REQUEST AUMENTO DE 256 PARA 512 LINHAS NAS ACLS DE TRÁFEGO
CI20220610844600 AUMENTO DA QUANTIDADE DE VPORT POR PLACA PON, DE 2000 PARA 8000
FEATURE REQUEST AUMENTO DA TABELA ARP PARA 92 MIL ENTRADAS
Recomendações:

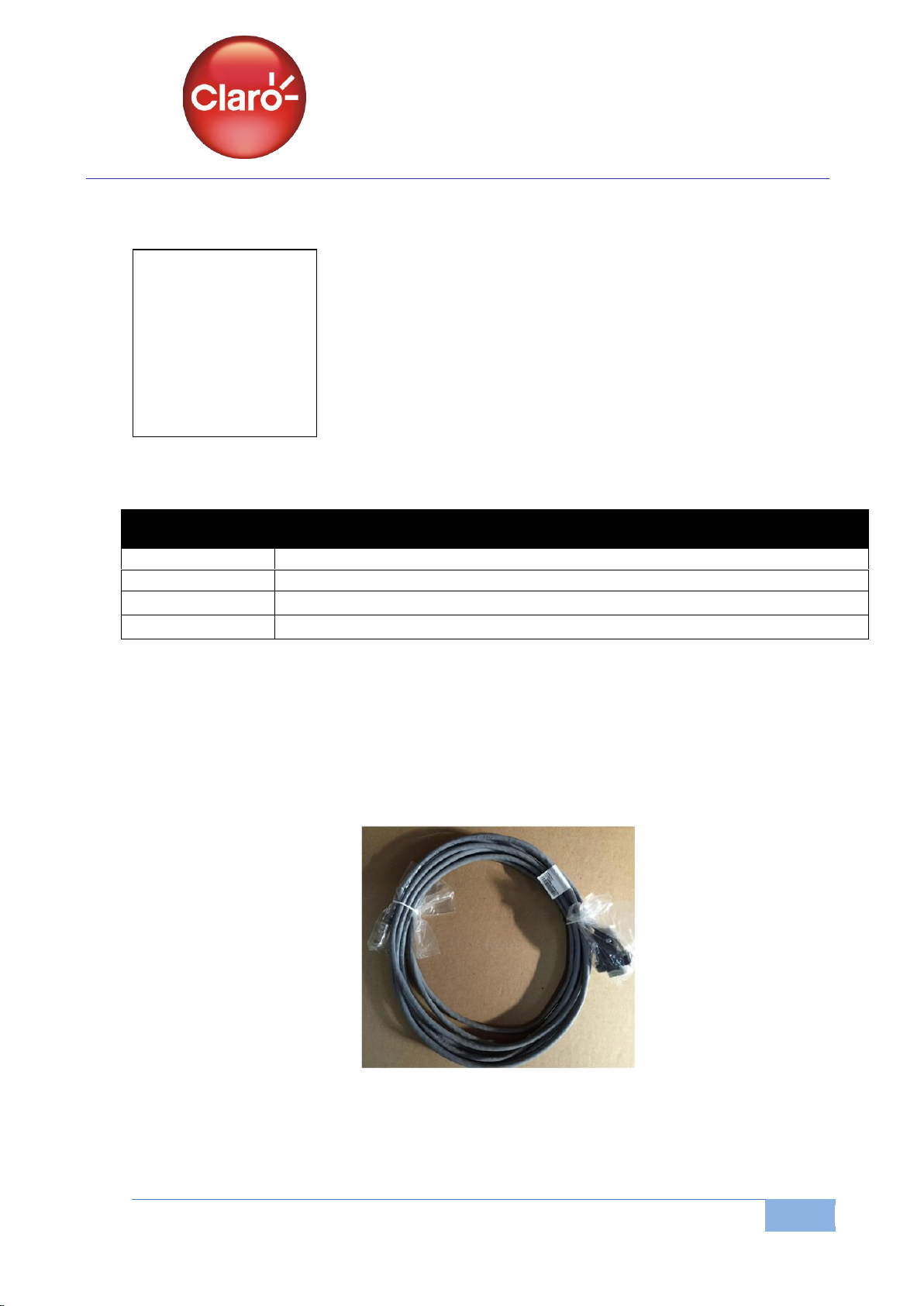

• Dispor de um computador com acesso console a processadora SFUH ou SFUQ do chassi.
• Dispor de um servidor FTP com os arquivos do IOS.
• Testar previamente o acesso ao servidor FTP e acesso via console ao chassi (cabo console
proprietário da ZTE)



• Registrar em log, todo o procedimento realizado no upgrade e quantidade de terminais GPON
sincronizados.
• Executar o procedimento sem interrupções e na mesma sequência listada.
• A OLT ZTE possui 2 modelos de placas controladoras homologadas: SFUH e SFUQ.

Tema:
Atualização de IOS
OLT ZTE Serie TITAN
(C600/C650)
C6XXV1.2.3.set
Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 2


Procedimento de atualização:
Etapa 1: Preparação
Salvar configuração atual:
#write

Realizar backup da configuração atual no log:
#terminal length 0
#show running-config
Etapa 2: Verificar a versão atual
Comando:
#show software

#show software
ZXA10 C650
ZTE ZXA10 Software, Version: V1.1.2_BC, Release software
Copyright (c) 2021 by ZTE Corporation
Build on 2021/03/19 02:15:37
System image file is , file size is
686,465,818 Bytes
System image is loaded from local
System uptime is 96 day(s), 12 hour(s), 7 minute(s)

[GFGH, shelf 1, slot 2]:
 Active Packages on Node PFU-1/2/0:
 Base-1.1.2:
 Package: Base
 Version: V1.1.2_BC

[SFUH, shelf 1, slot 5]:
 Active Packages on Node MPU-1/5/0:
 Base-1.1.2:
 Package: Base
 Version: V1.1.2_BC

[SFUH, shelf 1, slot 6]:
 Active Packages on Node MPU-1/6/0:
 Base-1.1.2:
 Package: Base
 Version: V1.1.2_BC
Etapa 3: Verificar status das placas
Comando:
#show card

#show card
Shelf Slot CfgType CardName Port HardVer Status
---------------------------------------------------
1 2 GFGH GFGH 16 V1.0.0 INSERVICE
1 5 SFUH SFUH 4 V1.0.0 INSERVICE
1 6 SFUH SFUH 4 V1.0.0 STANDBY
1 10 PRVR PRVR 0 V1.0.0 INSERVICE
1 12 PRVR PRVR 0 V1.0.0 INSERVICE
1 13 FCRD FCRD 0 V1.0.0 INSERVICE




Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 3


Etapa 4: Copiar novo Software para a OLT
 Copiar software base do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp //:@/C6XXV1.2.3.set

(config-pm)#install add ftp //C650:C650@191.186.112.246/C6XXV1.2.3.set
..........8% Downloaded
..........16% Downloaded
..........24% Downloaded
..........32% Downloaded
..........41% Downloaded
..........49% Downloaded
..........57% Downloaded
..........66% Downloaded
..........74% Downloaded
..........83% Downloaded
..........91% Downloaded
..........99% Downloaded
100% Downloaded
Begin Unpack
......%Info 40362: Success.

Copiar pacote FPGA do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp
//:@/C6XXV1.2.3_FPGA.pkg

(config-pm)#install add ftp //C650:C650@191.186.112.246/C6XXV1.2.3_FPGA.pkg
.........100% Downloaded
Begin Unpack
..%Info 40362: Success.

Copiar pacote BOOT do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp
//:@/C6XXV1.2.3_BOOT.pkg

(config-pm)#install add ftp //C650:C650@191.186.112.246/C6XXV1.2.3_BOOT.pkg
..........53% Downloaded
.........100% Downloaded
Begin Unpack
.......%Info 40362: Success.

Copiar pacote EPLD do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp
//:@/C6XXV1.2.3_EPLD.pkg

(config-pm)#install add ftp //C650:C650@191.186.112.246/C6XXV1.2.3_EPLD.pkg
.........100% Downloaded
Begin Unpack
..%Info 40362: Success.

Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 4


Copiar pacote MCU do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp //:@/C6XXV1.2.3_MCU.pkg

(config-pm)#install add ftp //C650:C650@191.186.112.246/C6XXV1.2.3_MCU.pkg
.........100% Downloaded
Begin Unpack
..%Info 40362: Success.

Etapa 5: Ativar os pacotes pkg
Instalação dos pacotes:
#configure terminal
#product manage
#install activate C6XXV1.2.3_MCU.pkg

(config-pm)#install activate C6XXV1.2.3_MCU.pkg
.%Info 40362: Success.

#install activate C6XXV1.2.3_FPGA.pkg

(config-pm)#install activate C6XXV1.2.3_FPGA.pkg
.%Info 40362: Success.

#install activate C6XXV1.2.3_BOOT.pkg

(config-pm)#install activate C6XXV1.2.3_BOOT.pkg
.%Info 40362: Success.

#install activate C6XXV1.2.3_EPLD.pkg

(config-pm)#install activate C6XXV1.2.3_EPLD.pkg
.%Info 40362: Success.

Etapa 6: Instalar pacotes pkg nas placas
Verificar quais as placas instaladas na OLT:
#show card

#show card
Shelf Slot CfgType CardName Port HardVer Status
---------------------------------------------------
1 2 GFGH GFGH 16 V1.0.0 INSERVICE
1 5 SFUH SFUH 4 V1.0.0 INSERVICE
1 6 SFUH SFUH 4 V1.0.0 STANDBY
1 10 PRVR PRVR 0 V1.0.0 INSERVICE
1 12 PRVR PRVR 0 V1.0.0 INSERVICE
1 13 FCRD FCRD 0 V1.0.0 INSERVICE

*Atenção! Os próximos passos dependem do campo CfgType da saída acima.




Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 5



Load MCU (NÃO APLICAR NAS CFGTYPE SFUH e SFUQ, NAS DEMAIS CFGTYPE SIM)
#configure terminal
#product manage
#load mcu-firmware shelf 1 slot 2
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes


(config-pm)#load mcu-firmware shelf 1 slot 2
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes
................................................
Note: Need to restart if executes successfully
============================================================
Cpudes : CPU description
Board : Board type
Result : The results of load firmware
Successful : Load firmware successfully
Unsuccessful: Load firmware unsuccessfully
============================================================
Cpudes Board Result
============================================================
PFU-1/2/0 GFGH Successful
------------------------------------------------------------


Load BOOT (NÃO APLICAR NAS CFGTYPE PRVR E FCRD/FCVD, NAS DEMAIS CFGTYPE SIM)
#configure terminal
#product manage
#load boot-firmware shelf 1 slot 2
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes


(config-pm)#load boot-firmware shelf 1 slot 2
Loading onlinewill fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes
.............
Note: Need to restart if executes successfully
============================================================
Cpudes : CPU description
Board : Board type
Result : The results of load bootrom
Successful : Load bootrom successfully
Unsuccessful: Load bootrom unsuccessfully
============================================================
Cpudes Board Result
============================================================
PFU-1/2/0 GFGH Successful
------------------------------------------------------------








Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 6



Load EPLD (NÃO APLICAR NAS CFGTYPE PRVR E FCRD/FCVD, NAS DEMAIS CFGTYPE SIM)
#configure terminal
#product manage
# load epld-firmware shelf 1 slot 5
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes


(config-pm)#load epld-firmware shelf 1 slot 5
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes
...
Note: Need to restart if executes successfully
============================================================
Cpudes : CPU description
Board : Board type
Result : The results of load firmware
Successful : Load firmware successfully
Unsuccessful: Load firmware unsuccessfully
============================================================
Cpudes Board Result
============================================================
MPU-1/5/0 SFUH Successful
------------------------------------------------------------
* As placas SFUH e SFUQ somente uma delas terá o resultado com Successful no EPLD, a
outra será atualizada automaticamente no sincronismo entre as processadoras.
* Os pacotes do FPGA serão atualizados no reload.

Status ONU:
#show gpon onu state

#show gpon onu state
OnuIndex Admin state OMCC state Phase state Speed mode
---------------------------------------------------------------
1/2/15:1 enable enable working GPON
1/2/16:2 enable enable working GPON
ONU Number: 2/2

Etapa 7: Ativar novo software base e reiniciar a OLT
Ativar software base e reload:
#configure terminal
#product manage
#install activate C6XXV1.2.3.set parallel-reload
The command needs to reload system,
proceed with reloading system? [yes/no]:yes

(config-pm)#install activate C6XXV1.2.3.set parallel-reload
The command needs to reload system,
proceed with reloading system? [yes/no]:yes
.........................System will restart after 0 minute(s).
%Info 40362: Success.

*Após o reload da OLT (pode levar até 15 minutos), necessário aplicar comando “install
commit”, caso não seja aplicado, em 2 horas a OLT automaticamente faz o rollback para o
software base anterior. Porém é necessário aguardar o sincronismo das placas com a OLT
para aplicar o comando.
Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 7



Sincronismo de módulos e placas:
#show synchronization detail

#show synchronization detail
======================================================================
======================================================================
Module : the name of module
LE : the name of logic entity
Sync-type : the type of synchronization
Sync-state : the state of synchronization
======================================================================
======================================================================

Module LE Sync-type Sync-state
======================================================================
BASE T_SC GR Synchronized
----------------------------------------------------------------------
BASE T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
BGP T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
MULTICAST T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
MPLSTE T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
LDP T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
RIP T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
OSPF T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
ISIS T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
OSPFV3 T_RP_ROUTER GR Synchronized
----------------------------------------------------------------------
======================================================================
DB sync-state : Synchronized
System file sync-state : Synchronized
======================================================================
FTM : Synchronized
TDM : Synchronized
IAP : Synchronized
XPON : Synchronized

Install Commit:
#configure terminal
#product manage
# install commit

(config-pm)#install commit




Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 8


Etapa 8: Validações da atualização
Pacotes pkgs ativos:
#show install active

# show install active
Base-1.2.3:
 Package: Base
 Version: V1.2.3

Mcu-1.2.3:
 Package: Mcu
 Version: V1.2.3

Boot-1.2.3:
 Package: Boot
 Version: V1.2.3

Epld-1.2.3:
 Package: Epld
 Version: V1.2.3

Fpga-1.2.3:
 Package: Fpga
 Version: V1.2.3

Pacotes pkgs committed:
#show install committed

# show install committed
Base-1.2.3:
 Package: Base
 Version: V1.2.3

Mcu-1.2.3:
 Package: Mcu
 Version: V1.2.3

Boot-1.2.3:
 Package: Boot
 Version: V1.2.3

Epld-1.2.3:
 Package: Epld
 Version: V1.2.3

Fpga-1.2.3:
 Package: Fpga
 Version: V1.2.3

Status ONU:
#show gpon onu state

#show gpon onu state
OnuIndex Admin state OMCC state Phase state Speed mode
---------------------------------------------------------------
1/2/15:1 enable enable working GPON
1/2/16:2 enable enable working GPON
ONU Number: 2/2
Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 9


Status das placas:
#show card

#show card
Shelf Slot CfgType CardName Port HardVer Status
---------------------------------------------------
1 2 GFGH GFGH 16 V1.0.0 INSERVICE
1 5 SFUH SFUH 4 V1.0.0 INSERVICE
1 6 SFUH SFUH 4 V1.0.0 STANDBY
1 10 PRVR PRVR 0 V1.0.0 INSERVICE
1 12 PRVR PRVR 0 V1.0.0 INSERVICE
1 13 FCRD FCRD 0 V1.0.0 INSERVICE
Etapa 9: Desativar patchs da versão V1.1.2_BC e remover da OLT
Copiar patch do servidor ftp para a OLT:#configure terminal
#product manage
# install deactivate V112DHP9001.pat
#install delete V112DHP9001.pat
#yes

(config-pm)#install deactivate V112DHP9001.pat
%Info 40362: Success.
(config-pm)#install delete V112DHP9001.pat
The file will be deleted permanently,
proceed with deleting? [yes/no]:yes
%Info 40362: Success.

Patchs ativos:
#show patch
(config)#show patch
Name Type Version Status Matched BelongTo BuildTime
Etapa 10: Aplicar o patch V123DHP0002.pat
Copiar patch do servidor ftp para a OLT:
#configure terminal
#product manage
#install add ftp //:@/V123DHP0002.pat

(config-pm)#install add ftp //C650:C650@191.186.112.246/V123DHP0002.pat
.........100% Downloaded
Begin Unpack
..%Info 40362: Success.

 Instalação dos pacotes:
#configure terminal
#product manage
#install activate V123DHP0002.pat

(config-pm)#install activate V123DHP0002.pat
%Info 40362: Success.

Patchs ativos:
#show patch
#show patch
Name Type Version Status Matched BelongTo BuildTime
DH0002-V1.2.3 hot V1.2.3 committed TRUE V123DHP0002.pat 2022-07...
Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 10


Etapa 11: Validar versão EPLD das placas Controladoras
Versões das placas CfgType SFUH ou SFUQ:
#show equipment

#show equipment
Slot CfgType RealType HardVer McuVer BootVer EpldVer FpgaVer M-Code SN
-----------------------------------------------------------------------------
---
2 GFGH GFGH V1.0.0 V1.1.1 V1.0.36 V2.8.0 N/A 000200
720302700047
5 SFUH SFUH V1.0.0 N/A V1.0.60 V2.4.0 V1.0.6 000101
721997900011
6 SFUH SFUH V1.0.0 N/A V1.0.60 V2.6.0 V1.0.6 000101
721997900017
10 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
718309500381
12 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
718309500124
13 FCRD FCRD V1.0.0 V1.0.9 N/A N/A N/A 000100
219184567615

*Sendo diferentes, será necessário forçar a sua atualização.

Verificar qual a placa controladora ATIVA:
#show card

#show card
Shelf Slot CfgType CardName Port HardVer Status
---------------------------------------------------
1 2 GFGH GFGH 16 V1.0.0 INSERVICE
1 5 SFUH SFUH 4 V1.0.0 INSERVICE
1 6 SFUH SFUH 4 V1.0.0 STANDBY
1 10 PRVR PRVR 0 V1.0.0 INSERVICE
1 12 PRVR PRVR 0 V1.0.0 INSERVICE
1 13 FCRD FCRD 0 V1.0.0 INSERVICE

* Caso a placa com versão inferior for a standby, ir para o passo de forçar upgrade.

Nesse caso será necessário comutar a controladora pois a ativa consta com versão inferior:
#redundancy switch sc force
Proceed with redundancying switch SC? [yes/no]:yes

#redundancy switch sc force
Proceed with redundancying switch SC? [yes/no]:yes

*A conexão SSH irá cair, necessário abrir nova sessão.

Verificar qual a placa controladora ATIVA:
#show card

#show card
Shelf Slot CfgType CardName Port HardVer Status
---------------------------------------------------
1 2 GFGH GFGH 16 V1.0.0 INSERVICE
1 5 SFUH 4 HWONLINE
1 6 SFUH SFUH 4 V1.0.0 INSERVICE
1 10 PRVR PRVR 0 V1.0.0 INSERVICE
1 12 PRVR PRVR 0 V1.0.0 INSERVICE
1 13 FCRD FCRD 0 V1.0.0 INSERVICE
Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 11



Forçar upgrade da placa controladora:
#configure terminal
#product manage
#load epld-firmware shelf 1 slot
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes

(config-pm)#load epld-firmware shelf 1 slot 5
Loading online will fail from now on if the card is pulled out
or powered off, proceed with it? [yes/no]:yes
...
Note: Need to restart if executes successfully
============================================================
Cpudes : CPU description
Board : Board type
Result : The results of load firmware
Successful : Load firmware successfully
Unsuccessful: Load firmware unsuccessfully
============================================================
Cpudes Board Result
============================================================
MPU-1/5/0 SFUH Successful
------------------------------------------------------------

Reload da placa controladora desatualizada:
#reload slot 1 force
Proceed with reloading the slot of slave SC? [yes/no]:yes

#reload slot 1 5 force
Proceed with reloading the slot of slave SC? [yes/no]:yes
%Info 40409: Reload slot successfully.

Versões das placas CfgType SFUH ou SFUQ:
#show equipment

#show equipment
Slot CfgType RealType HardVer McuVer BootVer EpldVer FpgaVer M-Code SN
-----------------------------------------------------------------------------
2 GFGH GFGH V1.0.0 V1.1.1 V1.0.36 V2.8.0 N/A 000200
720302700047
5 SFUH SFUH V1.0.0 N/A V1.0.60 V2.6.0 V1.0.6 000101
721997900011
6 SFUH SFUH V1.0.0 N/A V1.0.60 V2.6.0 V1.0.6 000101
721997900017
10 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
718309500381
12 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
718309500124
13 FCRD FCRD V1.0.0 V1.0.9 N/A N/A N/A 000100
219184567615











Datacenter – Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 12




#show equipment
Slot CfgType RealType HardVer McuVer BootVer EpldVer FpgaVer M-Code SN
-----------------------------------------------------------------------------
1 GFGH GFGH V1.0.0 V1.1.1 V1.0.36 V2.8.0 N/A 000200
715986200037
5 SFUQ SFUQ V1.0.0 N/A V1.0.25 V1.3.0 N/A 000100
737419500009
6 SFUQ SFUQ V1.0.0 N/A V1.0.25 V1.3.0 N/A 000100
737419500537
10 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
715204500259
12 PRVR PRVR V1.0.0 V1.1.1 N/A N/A N/A 000001
715204500096
13 FCRD FCRD V1.0.0 V1.0.9 N/A N/A N/A 000100
712542100017
Etapa 12: Verificar a versão atual
Comando:
#show software

#show software
ZXA10 C650
ZTE ZXA10 Software, Version: V1.2.3, Release software
Copyright (c) 2022 by ZTE Corporation
Built on 2022/03/19 07:41:56
System image file is , file size is
716,489,869 Bytes
System image is loaded from local
System uptime is 3 day(s), 7 hour(s), 12 minute(s)

[GFGH, shelf 1, slot 2]:
 Active Packages on Node PFU-1/2/0:
 Base-1.2.3:
 Package: Base
 Version: V1.2.3

[SFUH, shelf 1, slot 5]:
 Active Packages on Node MPU-1/5/0:
 Base-1.2.3:
 Package: Base
 Version: V1.2.3

[SFUH, shelf 1, slot 6]:
 Active Packages on Node MPU-1/6/0:
 Base-1.2.3:
 Package: Base
 Version: V1.2.3

Etapa 13: Ajustes de configuração da OLT

Ajuste das ifDescr para a monitoração do Nágios e GRB:
(config)#ifdescr unbind enable

Validar se a configuração foi aplicada corretamente:
#show ifdescr unbind

#show ifdescr unbind
 ifDescr unbind: enable
Datacenter– Boletim Técnico
Documento confidencial
D. Schulz | Engenharia Banda Larga | 45/2022 | Atualização OLT ZTE C600/C650 - V1.2.3 13


Ajuste do banner em Português e Inglês:

banner incoming @
************************************ AVISO *************************************
AVISO: Este e um sistema privado para uso exclusivo da NET Servicos de
Comunicacao S. A.. Acessos nao autorizados ou tentativas de acesso nao
autorizado, sao considerados atos ilicitos e estes incidentes sao monitorados,
bem como suas evidencias sao armazenadas em local seguro e de acesso restrito
para uso posterior conforme previsto em lei. Individuos que executem tal
acesso, utilizam ou modificam este sistema sem previa autorizacao estao
sujeitos a procedimentos disciplinares e sancoes penais civis com base em leis
brasileiras e estrangeiras aplicaveis para tanto. O uso ou modificacao deste
sistema sao autorizados apenas a equipe tecnica competente a epoca do acesso.

************************************ NOTICE ************************************
NOTICE: This is a private system for exclusive use by NET Servicos de
Comunicacao S. A.. Unauthorized access or attempted unauthorized access, are
considered illegal acts and these incidents are monitored, and their evidence
are stored in a secure and restricted access location for later use as provided
by law. Individuals that perform such access, use or modify this system without
prior authorization are subject to disciplinary proceedings and criminal
penalties under Brazilian and foreing laws applicable to both. The use or
modification of this system are allowed only by technically competent team of
the season access.
@

Ajuste nos anúncios do BGP das redes ponto a ponto da OLT (vlans 3250, 3252 e 3254):

(config)#ip prefix-list VIRTUA-IPV4-OUT seq permit 30
(config)#ip prefix-list NETFONE-OUT seq permit 30
(config)#ipv6 prefix-list VIRTUA-IPV6-OUT seq permit
/126

(config)#router bgp
(config-bgp-)#network 255.255.255.252
(config-bgp-)#network 255.255.255.252
(config-bgp-)#address-family ipv6
(config-bgp-)#network /126

Salvar configuração atual:
#write
Documentação:

Para download da IOS, acessar URL abaixo:
• https://repositorio.virtua.com.br/gpon/ZTE_C600/ Current_Version/
