Prévia do material em texto

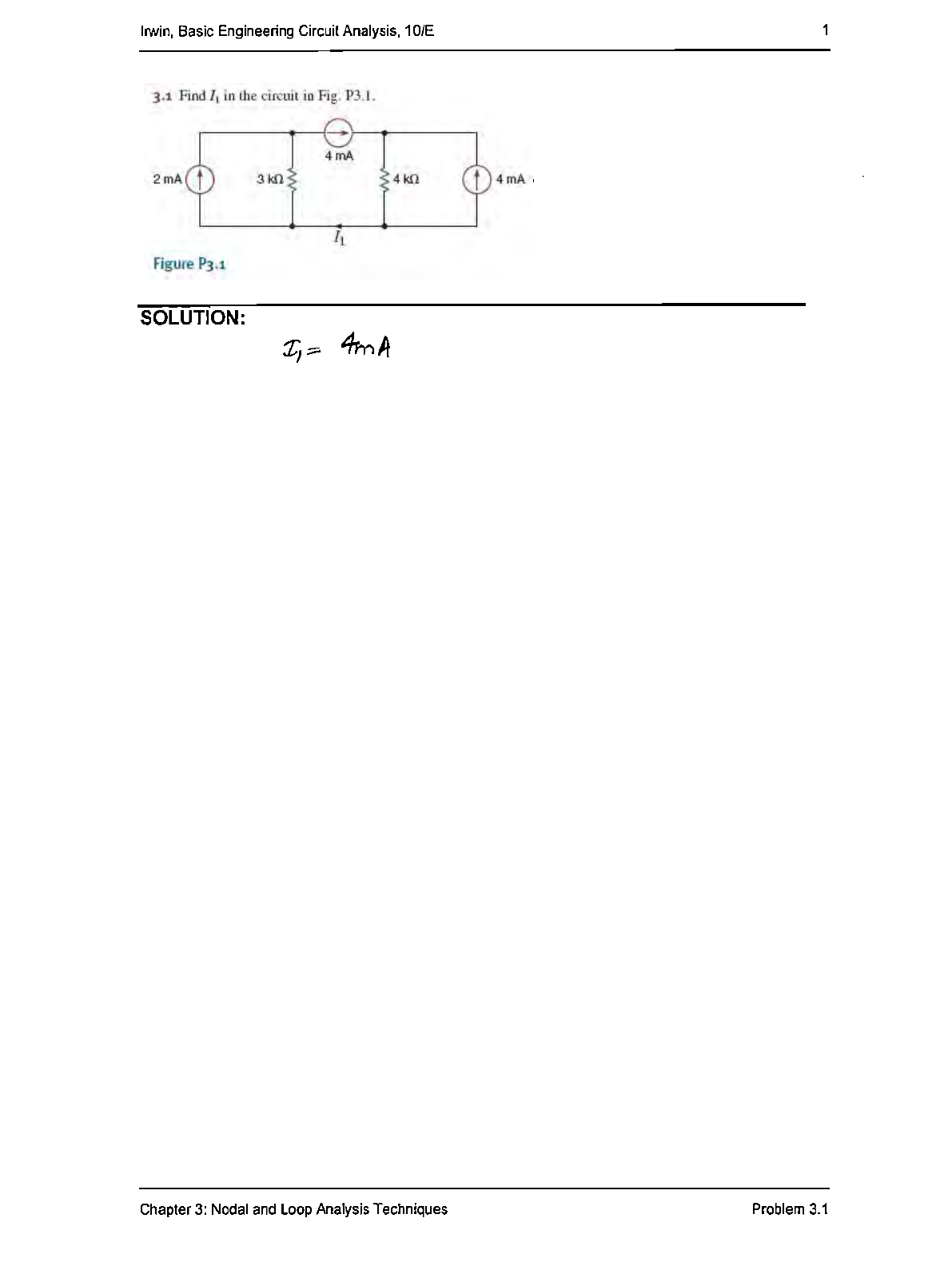

Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.4
Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:

Chapter 3: Nodal and Loop Analysis Techniques Problem 3.5
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.5 Chapter 3: Nodal and Loop Analysis Techniques



Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:

Chapter 3: Nodal and Loop Analysis Techniques Problem 3.6
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.6 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.10
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.10 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.11
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.11 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.12
Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.14
Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.28
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.28 Chapter 3: Nodal and Loop Analysis Techniques







Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.29
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.29 Chapter 3: Nodal and Loop Analysis Techniques







Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.30
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.30 Chapter 3: Nodal and Loop Analysis Techniques








Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:










Chapter 3: Nodal and Loop Analysis Techniques Problem 3.31
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.45
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.45 Chapter 3: Nodal and Loop Analysis Techniques







Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.46
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.47
2 Irwin, Basic Engineering Circuit Analysis, 10/E





Problem 3.47 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.47

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:











Chapter 3: Nodal and Loop Analysis Techniques Problem 3.48
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.48 Chapter 3: Nodal and Loop Analysis Techniques

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.49
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.49 Chapter 3: Nodal and Loop Analysis Techniques








Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:






Chapter 3: Nodal and Loop Analysis Techniques Problem 3.53
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.53 Chapter 3: Nodal and Loop Analysis Techniques






Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:






Chapter 3: Nodal and Loop Analysis Techniques Problem 3.54
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.55
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.56
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.58
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.59
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.60Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.67
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.67 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.68
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.68 Chapter 3: Nodal and Loop Analysis Techniques



Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.69
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.69 Chapter 3: Nodal and Loop Analysis Techniques



Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.70
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.71
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.71 Chapter 3: Nodal and Loop Analysis Techniques

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:






Chapter 3: Nodal and Loop Analysis Techniques Problem 3.72
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.72 Chapter 3: Nodal and Loop Analysis Techniques

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:





Chapter 3: Nodal and Loop Analysis Techniques Problem 3.76
2 Irwin, Basic Engineering Circuit Analysis, 10/E








Problem 3.76 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.76

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:






Chapter 3: Nodal and Loop Analysis Techniques Problem 3.77
2 Irwin, Basic Engineering Circuit Analysis, 10/E



Problem 3.77 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.77
4 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.77 Chapter 3: Nodal and Loop Analysis Techniques

Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:









Chapter 3: Nodal and Loop Analysis Techniques Problem 3.78
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:









Chapter 3: Nodal and Loop Analysis Techniques Problem 3.79
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:









Chapter 3: Nodal and Loop Analysis Techniques Problem 3.80
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.81
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.81 Chapter 3: Nodal and Loop Analysis Techniques







Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:











Chapter 3: Nodal and Loop Analysis Techniques Problem 3.82
Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:






Chapter 3: Nodal and Loop Analysis Techniques Problem 3.83
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.83 Chapter 3: Nodal and Loop Analysis Techniques





Irwin, Basic Engineering Circuit Analysis, 10/E 1

SOLUTION:




Chapter 3: Nodal and Loop Analysis Techniques Problem 3.84
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.84 Chapter 3: Nodal and Loop Analysis Techniques







Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.86
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.86 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.87
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.87 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.88
2 Irwin, Basic Engineering Circuit Analysis, 10/E



Problem 3.88 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.88

Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.89
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.89 Chapter 3: Nodal and Loop Analysis Techniques




Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.90
2 Irwin, Basic Engineering CircuitAnalysis, 10/E
Problem 3.90 Chapter 3: Nodal and Loop Analysis Techniques




Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.91
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.91 Chapter 3: Nodal and Loop Analysis Techniques




Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.92
2 Irwin, Basic Engineering Circuit Analysis, 10/E




Problem 3.92 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.92


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.93
2 Irwin, Basic Engineering Circuit Analysis, 10/E




Problem 3.93 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.93


-
-
-
-
Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.101
2 Irwin, Basic Engineering Circuit Analysis, 10/E





Problem 3.101 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.101

Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.102
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.102 Chapter 3: Nodal and Loop Analysis Techniques






Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.103
2 Irwin, Basic Engineering Circuit Analysis, 10/E



Problem 3.103 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3
Chapter 3: Nodal and Loop Analysis Techniques Problem 3.103




Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.104
2 Irwin, Basic Engineering Circuit Analysis, 10/E



Problem 3.104 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3


Chapter 3: Nodal and Loop Analysis Techniques Problem 3.104
4 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.104 Chapter 3: Nodal and Loop Analysis Techniques



Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.105
2 Irwin, Basic Engineering Circuit Analysis, 10/E







Problem 3.105 Chapter 3: Nodal and Loop Analysis Techniques
Irwin, Basic Engineering Circuit Analysis, 10/E 3



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.105
4 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.105 Chapter 3: Nodal and Loop Analysis Techniques


Irwin, Basic Engineering Circuit Analysis, 10/E 1


SOLUTION:



Chapter 3: Nodal and Loop Analysis Techniques Problem 3.106
2 Irwin, Basic Engineering Circuit Analysis, 10/E
Problem 3.106 Chapter 3: Nodal and Loop Analysis Techniques

Mais conteúdos dessa disciplina
