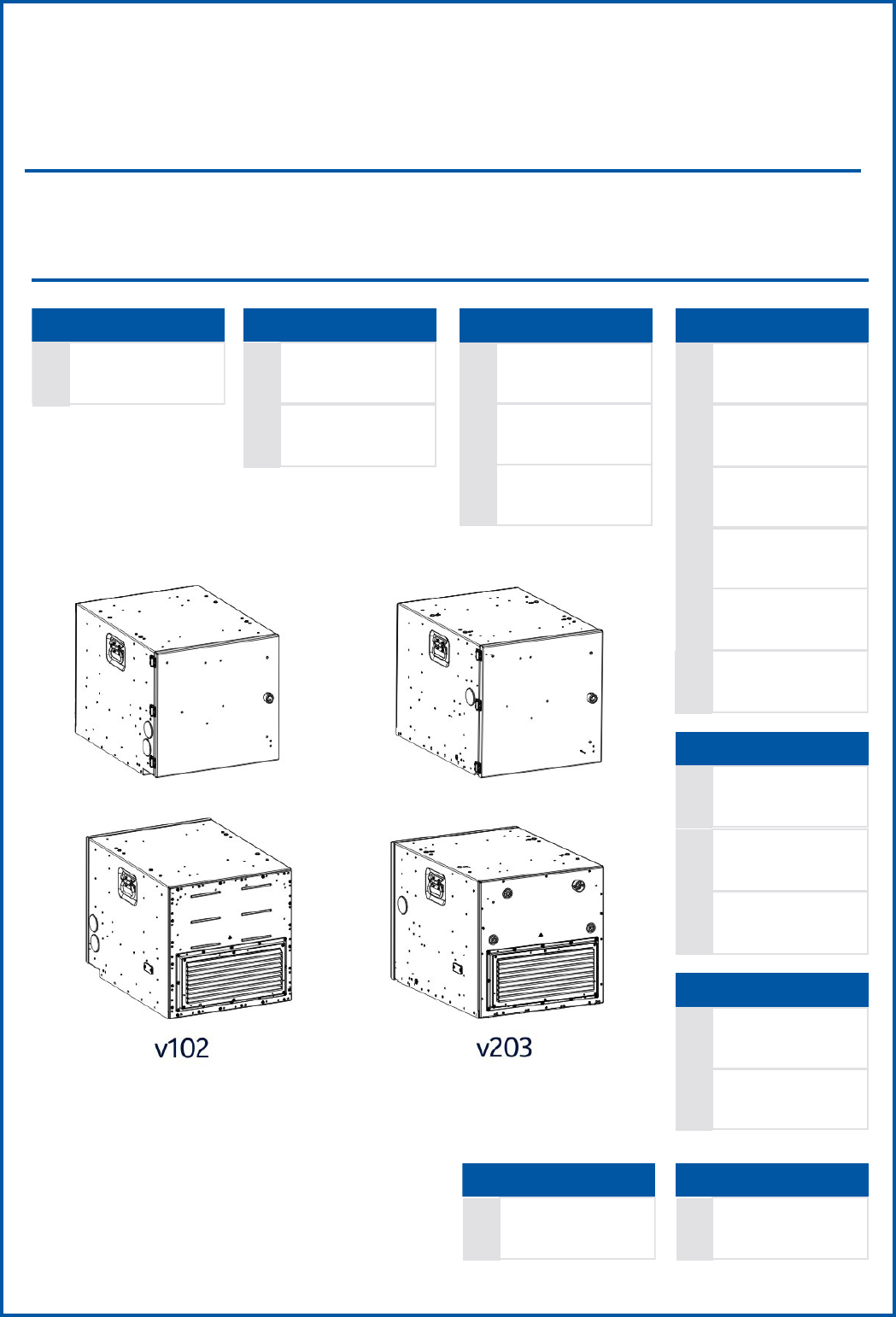

Nokia AirScale System Module — AMOD Installing and
Cabling Manual
This guide is a quick reference for the Nokia AirScale Outdoor Subrack installation.
The Nokia AirScale Outdoor Subrack can be stacked on the floor, mounted on a wall or pole.
InstallationBefore installation
Safety
 precautions1
Safety precautions
Contents of delivery2
Tools and equipment3
Dimensions and weight4
Prepare the installation
Minimum clearances5
Lifting6
Installing AMOD on a
pole7
Installing AMOD on a
wall8
Installing AMOD on the
floor9
Installing AMOD
inside FCOA10
Installing AMOD
optional items11
Preparing for
cabling13
Cabling
Cabling15
Sealing AMOD16
After installation
Installation checklist18
Check the installation
Maintenance17
Installing plug-in units
in AMOD12
Routing cables14
Cable cleaningA1
Appendix
-2-
The information in this document applies solely to the hardware/software product (“Product”) specified herein, and only as specified herein.

This document is intended for use by Nokia’s customers (“You”) only, and it might not be used except for the purposes defined in the agreement between You
and Nokia (“Agreement”) under which this document is distributed. No part of this document might be used, copied, reproduced, modified or transmitted in
any form or means without the prior written permission of Nokia. If you have not entered into an Agreement applicable to the Product, or if that Agreement
has expired or has been terminated, You might not use this document in any manner and You are obliged to return it to Nokia and destroy or delete any copies
thereof.
The document has been prepared to be used by professional and properly trained personnel, and You assume full responsibility when using it. Nokia welcome
Your comments as part of the process of continuous development and improvement of the documentation.
This document and its contents are provided as a convenience to You. Any information or statements concerning the suitability, capacity, fitness for purpose
or performance of the Product are given solely on an “as is” and “as available” basis in this document, and Nokia reserves the right to change any such infor-
mation and statements without notice. Nokia has made all reasonable efforts to ensure that the content of this document is adequate and free of material
errors and omissions, and Nokia will correct errors that You identify in this document. But, Nokia’s total liability for any errors in the document is strictly limited
to the correction of such error(s). Nokia does not warrant that the use of the software in the Product will be uninterrupted or error-free.
NO WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF AVAILABILITY, ACCURACY, RELIABILITY, TITLE,
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RELATION TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT
WILL NOKIA BE LIABLE FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO SPECIAL, DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL OR ANY LOSSES,
SUCH AS BUT NOT LIMITED TO LOSS OF PROFIT, REVENUE, BUSINESS INTERRUPTION, BUSINESS OPPORTUNITY OR DATA THAT MAY ARISE FROM THE USE OF
THIS DOCUMENT OR THE INFORMATION IN IT, EVEN IN THE CASE OF ERRORS IN OR OMISSIONS FROM THIS DOCUMENT OR ITS CONTENT.
This document is Nokia proprietary and confidential information, which might not be distributed or disclosed to any third parties without the prior written
consent of Nokia.
Nokia is a registered trademark of Nokia Corporation. Other product names mentioned in this document might be trademarks of their respective owners, and
they are mentioned for identification purposes only.
Copyright © 2020 Nokia. All rights reserved.
Important Notice on Product Safety
This product might present safety risks due to laser, electricity, heat, and other sources of danger.
Only trained and qualified personnel might install, operate, maintain or otherwise handle this product and only after having carefully read the safety informa-
tion applicable to this product.
The safety information is provided in the “Safety precautions” section in this document and in the “Legal, Safety and Environmental Information” part of
documentation set.

Nokia is continually striving to reduce the adverse environmental effects of its products and services. We would like to encourage you as our customers and
users to join us in working towards a cleaner, safer environment. Please recycle product packaging and follow the recommendations for power use and proper
disposal of our products and their components.
If you should have questions regarding our Environmental Policy or any of the environmental services we offer, please contact us at Nokia for any additional
information.
DN187329643, Issue 10, Approval date: 2020-10-28
Notice:
This device has not been authorized in accordance with the requirements of the radio telecommu-
nications terminal equipment directive and might not be put into service until it has been made to
comply.
This device complies with Part 15 of the Federal Communications Commission (FCC) rules. Opera-
tion is subject to the following two conditions: (1) this device might not cause harmful interference,
and (2) this device must accept any interference received, including interference that might cause
undesired operation.
The unit should be located out of direct sun exposure and away from areas of potential salt spray.
For indoor installations, comply with the indoor installation recommendations.
!
Product Releases
NOTE:
For more information on installation and maintenance, see “Best Practices for Improving Equipment Protec-
tion and Longevity” document.
Long Term Evolution FDD-LTE19, FDD-LTE19A, FDD-LTE19B
TD LTE TD-LTE19, TD-LTE19A, TD-LTE19B
Single RAN SRAN19, SRAN19A, SRAN19B, SRAN20A, SRAN20B, SRAN20C
5G 5G19A, 5G19B, 5G20A, 5G20B
-3-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
! Notice:Nokia AirScale Outdoor Subrack (AMOD) is intended for installation in outside locations or the equivalent.
 Disconnecting devices
For details about choosing an installation site for Nokia AirScale Outdoor Subrack, see Nokia AirScale BTS Installation Site
Requirements.
 Choosing installation site for Nokia AirScale Outdoor Subrack AMOD
! Notice:
Electrostatic Discharge (ESD) might damage the plug-in units. Wear an ESD wrist strap or use a corresponding
method when handling the plug-in units. The ESD wrist strap does not work before a subrack is earthed (grounded).
NOTE:
For NEBS requirements, see Nokia AirScale BTS Installation Site Requirements.
WARNING! Risk of power supply failure and, in rare cases, of short circuit.
Make sure to connect the polarity of power supply correctly according to the markings on the connectors.
2 Contents of delivery
 AMOD delivery
Delivery Contents Product code
Nokia AirScale Outdoor
 Subrack
1 x AMOD Subrack
1 x AMOD site bag
474930A
 AMOD site bag delivery
Delivery Contents Product code
Site bag
1 x GND lug with 2 x M5 holes
1 x power connector
091111A
1 Safety precautions
2 x DC connector lug
10 x M5 rubber plug
14 x M4 rubber plug
5 x M8 rubber plug
1 x 8 mm triangle Bellcore key
2 x M5x12 torx (T25) screw
2 x M5 nut
30 x cable tie
2 x Velcro tie
2 x GND cable
P476074
P476302
833694
835587
834705
P492713
P300057
P345283
P504289
P317154
996433
2 x M5 GND washer P330440
GO TO
FIRST PAGE
4 x connection pin 821513
-4-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
Item Description Product code
AMFV
AMFY
AMFF
AMFX
FPKA
AMHB
3U plinth kit for AMOD
FYGM
Wall/pole mount kit for
AMOD
Mufflers kit for AMOD
Blind panel Assy
Flexi Pole Mounting
Kit (30-120 mm)
GPS bracket assembly
GNSS Outdoor Receiver
Delivery Content
475047A
475049A
474416A
471649A
475066A
473394A
475048A
1 x FPKA Flexi pole mounting kit
2 x aluminum casing
2 x M10x120 hex (8 mm) screw
6 x M8x20 socket (13 mm) screw2 x bolt restrainer
1 x GPS mount bracket
1 x muffler
12 x M4x6 torx (T20) screw
1 x wall/pole mount bracket
1 x top support bracket
22 x M8x15 socket (13 mm) screw
1 x FYGM
4 x M3x8 torx (T10) screw
2 x M5x12 torx (T25) screw (GND)
1 x blank panel for ASIA
5 x blank panel for ABIA
2 x 3U plinth bracket
1 x front screen
1 x rear bracket
18 x M4x10 torx (T20) screw
4 x connection pin
12 x M5x12 torx (T25) screw
2 x M5x6 torx (T25) screw
2 x fixing bracket
2 x M8x20 socket (13 mm) screw
FPKC Flexi Pole Mounting
Kit (60-300 mm)
472821A1 x FPKC bracket 1
1 x FPKC bracket 2
1 x FMFA rodent block plate
2 x M10x315 hex (8 mm) screw
5 x M8x30 socket (13 mm) screw
5 x M8x20 socket (13 mm) screw
5 x M8 nut
8 x M5x12 torx (T25) screw
4 x connection pin
GO TO
FIRST PAGE
AMGT
Cable gland kit for AMOD -
optional 475291A1 x M50 gland
AMGU Wall/pole mount kit for
AMOD (standard)
475293A1 x wall/pole mount bracket
1 x top support bracket
22 x M8x15 socket (13 mm) screw
AMGS 8U plinth kit for AMOD 475290A1 x 8U plinth
6 x M5x12 torx (T25) screw
4 x M8x15 socket (13 mm) screw
 AMOD optional items depended on the configuration
AMFW FCOA installation kit for
AMOD - optional
475576A1 x FCOA plinth
1 x air guide bracket
1 x louver cover
1 x air block bracket
1 x left bracket
1 x right bracket
1 x top right bracket
25 x M5x10 torx (T25) screw
2 x connection pin
AYGM GNSS Indoor Receiver 475705A1 x AYGM
1 x 0.8m HDMI-HDMI interface cable
4 x M3x8 torx (T10) screw
2 x M5x12 torx (T25) screw (GND)
-5-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
3 Tools and equipment
Torque
screwdriver
Torque
wrench
Square drive
extension 100 mm
Socket
10 mm, 13 mm
Hex key (Allen)
7 mm, 8 mm
Side
cutters
Tape
measure
Level M8 Eye bolts (thread
length <15mm)
Drill Lifting
bag/bucket
GO TO
FIRST PAGE
Torx bit:
T10, T20, T25
Cable clamping tool
(Anderson 1368 or
KOMDA KMD-70)
Cleaning tools for
optical cables
Open end crowfoot
wrench:
8 mm, 55 mm
4 Dimensions and weight
 AMOD dimensions and weight
Property Value
Height
Width
Depth
Weight
Volume
488 mm (19.21 in.)
487 mm (19.17 in.)
665 mm (26.18 in.)*
37.5 kg (82.67 lb)
158 L
* When using a muffler, depth of the subrack is increased by
110 mm (4.33 in.)
NOTE:
Dimensions and weight for both cabinets versions (v102 and
v203) are the same. AMOD v203 has increased door height.
Heat gun
-6-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
5 Minimum clearances
 AMOD clearance requirements
Top minimum clearances: 0 mm (0 in.) for stack installation.
Bottom minimum clearances: 133.35 mm (5.25 in.) (3U) for floor and stack installation.
GO TO
FIRST PAGE
6 Lifting
! Notice:
The AMOD subrack is heavy. Additional personnel or lifting equip-
ment might be needed when the subrack is moved, unpacked,
or lined up. In addition, follow any local regulations applicable to
the installation.
!
! Notice:
The AMOD handles can be used only for hand carrying the sub-
rack. Do not lift AMOD using the handles.
Notice:
The AMOD subrack can be lifted using four M8 eye bolts and
hoisting belt or rope attached to the lifting points. Make sure that
the distance between belt or rope lifting point and subrack’s eye
bolts is minimum 400 mm (15.7 in.). The AMOD subrack can be
lifted when fully equipped with plug-in units.
 Lifting AMOD
-7-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
7 Installing AMOD on a pole
 Tools and items required for installation
Item Description Product code
AMGU/AMFX
FPKA/FPKC
Wall/pole mount kit for AMOD
Flexi Pole Mounting
Kit (30-120 mm)/(60-300 mm)
Quantity
471649A/472821A
475293A/475048A1
3
Torque wrench - -1
Socket 13 mm -1
Hex key (Allen) 8 mm -1
GO TO
FIRST PAGE
! Notice:
The AMGU/AMFX mount kit is heavy. Additional personnel or lift-
ing equipment might be needed when the wall/pole mount kit is
moved, unpacked, or lined up. In addition, follow any local regula-
tions applicable to the installation.
! Notice:
The AMGU/AMFX mount kit can be lifted using two eye bolts
and hoisting a belt or rope attached to the lifting points. The
AMGU/AMFX mount kit can only be lifted without AMOD subrack
installed.
 Lifting AMGU/AMFX
NOTE:
The AMGU wall/pole mount kit is a standard pole bracket. The AMFX wall/pole mounting kit can be used in narrow spaces in order to
facilitate maintenance access to AMOD rear. For narrow installation use-case see the “Rotating AMFX mounting kit” section.
-8-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
1. Fix the upper FPKA on the pole.
2. Tighten two M10 screws to the 30 Nm (22.13 ft-lb).
3. Fix two M8x15 screws (AMGU/AMFX delivery).
4. Fix and tighten to 20 Nm (14.75 ft-lb) the middle and the lower FPKA bracket with AMGU/AMFX using eight M8x15 screws.
5. Hang the AMGU/AMFX mount kit on the upper FPKA pole mounting kit.
6. Tighten four M8x15 screws to 20 Nm (14.75 ft-lb).
7. Tighten four M10 screws to the 30 Nm (22.13 ft-lb) on the middle and lower FPKA bracket.
8. Lift and mount AMOD on the AMGU/AMFX mount kit. Make sure that marks on AMOD are aligned with AMGU/AMFX bracket arms.
9. Tighten AMOD with AMGU/AMFX mount kit to 20 Nm (14.75 ft-lb) using six M8x15 screws.
10. Tighten the top support bracket to 20 Nm (14.75 ft-lb) using four M8x15 screws.
GO TO
FIRST PAGE
 AMGU/AMFX mount kit on pole installation using FPKA
-9-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
1. Insert two M10 screws and fix FPKC on the pole.
2. Tighten two M10 screws to the 30 Nm (22.13 ft-lb).
3. Fix two M8x15 screws (AMGU/AMFX delivery).
4. Fix and tighten to 20 Nm (14.75 ft-lb) the middle and the lower FPKC bracket with AMGU/AMFX
using eight M8x15 screws.
5. Hang the AMGU/AMFX mount kit on the upper FPKC pole mounting kit.
6. Tighten four M8x15 screws to 20 Nm (14.75 ft-lb).
7. Tighten four M10 screws to the 30 Nm (22.13 ft-lb) on the middle and lower FPKC bracket.
8. Lift and mount AMOD on the AMGU/AMFX mount kit. Make sure that marks on AMOD are
aligned with AMGU/AMFX bracket arms.
9. Tighten AMOD with AMGU/AMFX mount kit to 20 Nm (14.75 ft-lb) using six M8x15 screws.
10. Tighten the top support bracket to 20 Nm (14.75 ft-lb) using four M8x15 screws.
GO TO
FIRST PAGE
Cut Location Slot 1 Slot 2 Slot 3 Slot 4
Cut 1 60-100 mm 101-140 mm N/A N/A
Cut 2 141-180 mm 181-220 mm 221-260 mm N/A
No cut N/A N/A N/A 261-300 mm
 AMGU/AMFX mount kit on pole installation using FPKC
There are four different lengths of the screw available and four places for the
screw in the FPKC. When attaching the FPKC to the pole, use the shortest
possible bolts and the holes which distance is the closest to the pole diam-
eter.
-10-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
1. Mark the mounting screw locations on the wall and drill the holes.
2. Install the anchoring bolts in all holes (instructions can vary depending on anchoring
bolts used):
a) Slightly fasten the expansion bolt and insert the bolt vertically into the hole.
b) Hit the expansion bolt with a rubber hammer until the expansion sleeve is fully embed-
ded.
c) Fasten the expansion bolt clockwise until the expansion sleeve is fixed securely into the
floor.
d) Loosen the bolt counter-clockwise, and successively remove the M8 nut, the spring
washer, the plastic sleeve, and the flat washer. Discard the plastic sleeve.
3. Lift the AMGU/AMFX mounting kit on the wall and hang it on the anchoring bolts.
4. Tighten twelve M8 nuts to the torque value specified by wall mounting hardware man-
ufacturer.
5. Lift and mount AMOD on the AMGU/AMFX mount kit. Make sure that marks on AMOD
are aligned with AMGU/AMFX bracket arms.
 AMGU/AMFX mount kit on wall installation
GO TO
FIRST PAGE
8 Installing AMOD on a wall
 Tools and items required for installation
Item Description Product code
AMGU/AMFX Wall/pole mount kit for AMOD
Quantity475048A/475293A1
Torque wrench - -1
Socket 13 mm -1
Drill - -1
Wall mounting HW Proper for wall material (M8) -8
Level - -1
Tape measure - -1
NOTE:
The AMGU wall/pole mount kit is a standard wall bracket. The AMFX wall/pole mounting kit can be used in narrow spaces in order to
facilitate maintenance access to AMOD rear. For narrow installation use-case see the “Rotating AMFX mounting kit” section.
NOTE:
Torque values and tools for wall mounting hardware need to be specified by wall mounting hardware manufacturer. Tool and screw
type for wall mounting hardware showed in this procedure serve as an example only.
-11-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
1. Remove two top M8x15 screws.
2. Remove two side M8x15 screws.
3. Remove two bottom M8x15 screws.
4. Lift the AMFX bracket up and rotate
the AMFX bracket until it stops. Make
sure that AMFX bracket is locked and not
moving.
NOTE:
If AMFX mounting bracket needs to be
closed, locking bracket needs to be lifted
while closing the AMFX bracket.
 Rotating AMFX mounting kit
NOTE:
The AMFX wall/pole mounting kit allows to rotate AMOD horizontally by 25 degrees. AMFX can be used in narrow installation cases
when an obstacle is shallower than 300 mm (11.81 in.) and the distance between the obstacle and the AMFX bracket is larger than 300
mm (11.81 in.).
6. Tighten AMOD with AMGU/AMFX mount kit
to 20 Nm (14.75 ft-lb) using six M8x15 screws.
7. Tighten the top support bracket to 20 Nm
(14.75 ft-lb) using four M8x15 screws.
-12-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
 AMGS 8U plinth installation
NOTE:
AMGS plinth can be used in floor instal-
lation cases only when higher plinth is
required. Standard plinth for floor in-
stallation cases is AMFV 3U plinth.
1. Fix 8U plinth using six M5x12 screws.
2. Tighten six M5 screws to 4.3 Nm
(38.05 in-lb).
 AMFV 3U plinth installation
NOTE:
AMFV plinth can be used in floor and stack installation cases.
1. Fix 3U side brackets using six M5x12 screws.
2. Tighten six M5 screws to 4.3 Nm (38.05 in-lb).
3. Fix and tighten the front screen and rear bracket to 2.2 Nm (19.47
in-lb) using twelve M4x10 screws.
TIP:
A long screwdriver or screwdriver with an extension is recom-
mended for tightening M5 screws. Insert a T25 screwdriver
through the six M12 holes on the bottom of the AMFV plinth
and tighten the M5 screws.
NOTE:
Plinth is mandatory in floor (AMFV/AMGS) and stack (AMFV) installation cases. Standard plinth for floor installation is AMFV 3U plinth.
NOTE:
Torque values and tools for floor mounting hardware need to be specified by floor mounting hardware manufacturer. Tools and
screw type for floor mounting hardware showed in this procedure serve as an example only.
NOTE:
When using AMFV 3U plinth it is recommended to mount 3U plinth on pedestal (higher than 5U) to avoid dust in-drawing.
9 Installing AMOD on the floor
 Tools and items required for installation
Item Description Product code
AMFV/AMGS 3U/8U plinth kit for AMOD
Quantity
475047A/475290A1
Torque wrench - -1
Torque screwdriver - -1
Torx bit T25, T20 -2
Floor mounting HW * Proper for floor material (M12) -6
Level * - -1
Tape measure * - -1
Drill * Percussion drill bit -1
 * Needed only when AMOD is installed directly on the floor.
-13-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Stacking units on the AMOD
NOTE:
AMOD can be installed on a floor in a stack up to maximum height of 29U (1U-44,45
mm). Maximum allowed configuration with AMOD subrack (1 x AMFV 3U plinth, 1 x AMOD
and 5 x 3U modules) meet Earthquake Zone 2 requirements. To meet the earthquake
requirement for Zone 4 maximum stack height is 23U (1 x AMFV 3U plinth, 1 x AMOD and
up to 3 x 3U modules).
1. Fix and tighten four M5 connection pins to 4.3 Nm (38.05 in-lb).
2. Align the holes on the bottom side of the module with the four connection pins on
the AMOD.
3. Push the module back until it stops.
4. Tighten the module to 4.3 Nm (38.05 in-lb) using two M5 screws.
NOTE:
Installation of empty EMHH or EMHA 3U casing is not allowed in floor assembly.
NOTE:
3U modules installed on top of the AMOD subrack need to comply with the standard
ETSI EN 300 019-2-4 Class 4M5.
GO TO
FIRST PAGE
 AMFV/AMGS floor installation
1. Mark the mounting holes location on the floor and drill holes for anchoring bolts.
2. Install the anchoring bolts (instructions can vary depending on anchoring bolts used):
a) Slightly fasten the expansion bolt and insert the bolt vertically into the hole.
b) Hit the expansion bolt with a rubber hammer until the expansion sleeve is fully embedded.
c) Fasten the expansion bolt clockwise until the expansion sleeve is fixed securely into the floor.
d) Loosen the bolt counter-clockwise, and successively remove the M8 nut, the spring washer, the plastic sleeve, and the flat
washer. Discard the plastic sleeve.
3. Tighten the M12 anchoring bolts to the value specified by floor mounting hardware manufacturer..
NOTE:
AMFV/AMGS plinth needs to be installed to the AMOD subrack before floor installation.
-14-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
 Stacking AMOD on the units
NOTE:
AMOD can be installed on a floor in a stack up to maximum height of 30U (1U-44,45 mm). Maximum allowed configuration with
AMOD subrack (1 x 1U plinth, 1 x AMFV 3U plinth, 1 x AMOD and 5 x 3U modules) meet Earthquake Zone 2 requirements. To meet
the earthquake requirement for Zone 4 maximum stack height is 24U (1 x 1U plinth, 1 x AMFV 3U plinth, 1 x AMOD and up to 3 x 3U
modules).
NOTE:
Installation of empty EMHH or EMHA 3U casing is not allowed in floor assembly.
NOTE:
3U modules installed under the AMOD subrack need to comply with the standard
ETSI EN 300 019-2-4 Class 4M5.
1. Fix and tighten four M5 connection pins to 4.3 Nm (38.05 in-lb).
2. Align the holes on the bottom side of the AMFV 3U plinth with the four connection
pins on the AMOD.
3. Push the second AMOD back until it stops.
4. Tighten second AMOD to 4.3 Nm (38.05 in-lb) using two M5x6 screws.
 Stacking AMOD on another AMOD
NOTE:
AMOD can be installed on a floor in a stack with a second AMOD subrack. Two
AMODs stack configuration meets Earthquake Zone 4 requirements.
NOTE:
AMOD subrack stacked on top of another AMOD requires AMFV 3U plinth
preinstalled.
-15-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
1. Align the holes on the AMOD plinth with the four connection pins on the module.
2. Push AMOD back until it stops.
3. Tighten AMOD to 4.3 Nm (38.05 in-lb) using two M5x6 screws.
4. Fix the 3U plinth fixing bracket using the three M4x10 and three M5x12 screws on both sides.
5. Tighten the three M4x10 fixing plate screws to 2.2 Nm (19.47 in-lb).
6. Tighten the three M5x12 fixing plate screws to 4.3 Nm (38.05 in-lb).
10 Installing AMOD inside FCOA
 Tools and items required for installation
Item Description Product code
AMFW FCOA installation kit for
AMOD
Quantity
475576A1
Torque screwdriver - -1
Torque wrench - -1
GO TO
FIRST PAGE
Torx bit T25, T20 -2
Drill - -1
Metal drill bit 6 mm -1
-16-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
 Preparing FCOA cabinet for AMOD installation
NOTE:
Before removing the four FCOA parts make sure that modules already installed inside the cabinet do not block access to the M5
screws. Remove all the modules which block access to the screws or might fall down when the four FCOA parts are removed.
1. Remove six M5 screws.
2. Remove two M5 screws.
3. Remove two M5 screws.
4. Remove four FCOA parts.
5. Remove one M5 screw.
6. Remove bottom FCOA bracket.
7. Remove four rivets from FCOA front door using a drill with 6 mm metal drill bit.
8. Remove FCOA front door panel.
-17-
Nokia AirScale System Module — AMOD Installing and Cabling ManualGO TO
FIRST PAGE
 Preparing AMOD for installation inside FCOA
1. Remove six M4 screws.
2. Remove the louver cover.
3. Fix the louver cover from AMFW delivery using six M4 screws.
4. Tighten six M4 screws to 2.2 Nm (19.47 in-lb).
5. Fix and tighten the right bracket to 4.3 Nm (38.05 in-lb) using two M5 screws.
6. Fix and tighten the air guide bracket to 2.2 Nm (19.47 in-lb) using 12 M4 screws.
 Installing AMOD inside FCOA
NOTE:
Before AMOD installation inside FCOA cabinet, both AMOD and FCOA need to be prepared for the installation. For instructions on
preparing, see “Preparing FCOA cabinet for AMOD installation” and “Preparing AMOD for installation inside FCOA” sections.
1. Fix and tighten two M5 connection pins to 4.3 Nm (38.05 in-lb).
2. Fix the six cage nuts from FCOA delivery on the right side of the cabinet.
TIP:
Fix the cage nuts so that the nut brackets point upwards and downwards instead of
left and right. Use the plinth and right bracket as a template to make sure that cage
nuts are installed in proper places.
3. Align the holes on the plinth with two connection pins in the FCOA.
4. Push the plinth back until it stops. Make sure that the right bracket of the plinth is
inserted into the FCOA slot.
-18-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
11 Installing AMOD optional items
 AMFY muffler kit tools and items required for installation
Item Description Product code
AMFY Muffler kit for AMOD
Quantity
475049A1
Torque screwdriver - -1
Torx bit T20 -1
 AMFY muffler kit installation
NOTE:
AMFY muffler kit needs to be used in acoustic sensitive installation cases. AMFY need to be used when ETSI (ETS 300753, Annex B, class
4.1E) rural sound power limit and Japan acoustic requirements need to be met.
GO TO
FIRST PAGE
5. Fix and tighten M5x10 screw to 4.3 Nm (38.05 in-lb).
6. Tighten the plinth to 4.3 Nm (38.05 in-lb) with three M5x10 screws.
NOTE:
Make sure that cage nuts are installed inside FCOA cabinet in proper places for fixing the screws.
7. Insert AMOD inside the FCOA cabinet.
8. Fix and tighten the left bracket to 4.3 Nm (38.05 in-lb) using six M5x10 screws.
9. Fix and tighten the top right bracket to 4.3 Nm (38.05 in-lb) using two M5x10 screws.
10. Fix and tighten the air block bracket to 4.3 Nm (38.05 in-lb) using five M5x10 screws.
-19-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
1. Remove the louver cover.
2. Fix the muffler kit hook to the AMOD back cover.
3. Fix and tighten muffler to 2.2 Nm (19.47 in-lb) using twelve M4x6.
 FYGM/AYGM tools and items required for installation
Item Description Product code
FYGM/AYGM GNSS Outdoor/Indoor Receiver
Quantity
473394A/475705A1
AMHB GPS bracket 475066A1
Torque screwdriver - -1
Torx bit T10 -1
Tie - -2
Side cutters - -1
GO TO
FIRST PAGE
NOTE:
AMOD can be used with two acoustic modes:
- Mode 1 is a standard mode for all regions (by default AMOD meets ETSI acoustic requirements).
- Mode 2 is for Japan-specific acoustic requirements (do not use in other regions).
Mode 3 and 4 are not used.
NOTE:
A FYGM or AYGM needs to be installed when Global Navigation Satellite System signal from an external RF GNSS antenna is required for
providing synchronization input to Nokia AirScale System Module.
NOTE:
Before you install FYGM inside AMOD, remove the factory-installed bracket by untightening four M3x8 (T10) screws.
-20-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 FYGM/AYGM GNSS receiver installation
1. Insert a triangle Bellcore key and turn it counterclockwise.
2. Open the AMOD door.
3. Fix the FYGM/AYGM to the AMHB bracket using four M3x8 screws and tighten the screws to 0.8 Nm (7.08 in-lb).
4. Fix the GNSS receiver with a bracket inside AMOD.
5. Tighten two M4 screws to 2.2 Nm (19.47 in-lb).
12 Installing plug-in units in AMOD
 Tools and items required for installation
Item Description Product code
Common plug-in unit
Quantity
-2*
- Capacity plug-in unit -6*
AMFF Blind panel 474416A1
Torque screwdriver - -1
* Plug-in units quantity and type depend on the configuration.
Torx bit T10 -1
GO TO
FIRST PAGE
-
NOTE:
For information on AirScale common and capacity plug-in units, see the “Nokia AirScale System Module Product Description” document.
-21-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Plug-in units installation
NOTE:
ASIAA, ASIBA and ASIKA are customer-specific variants of common plug-in units.
ASIAA, ASIBA and ASIKA follow the same installation rules as ASIA, ASIB and ASIK
except for the DC connector, for more information see “Connecting the power ca-
bles”.
! Notice:Be careful while handling the plug-in units. A proper way of holding common
and capacity plug-in units is presented on the graphic.
NOTE:
Graphics serve as an example only. The plug-in units need to be inserted after
AMOD subrack is already installed and fixed on the site.
! Notice:
Electrostatic Discharge (ESD) might damage the plug-in units. Wear an ESD
wrist strap or use a corresponding method when handling the plug-in units.
Minimum configuration of AMOD subrack is one common plug-in unit and one capacity plug-in unit. Maximum configuration of
AMOD subrack is two common plug-in units and six capacity plug-in units.
1. Insert a triangle Bellcore key and turn it counterclockwise.
2. Open the AMOD door.
3. Open the common plug-in unit extractors.
4. Carefully insert the common plug-in unit into the AMOD subrack and close the
extractors on both sides.
5. Tighten the two screws by hand, then tighten to 1 Nm (8.9 in-lb).
GO TO
FIRST PAGE
! Notice:When laying the plug-in units down, place them with the protection cover
facing upwards. Do not stack the plug-in units without a packaging.
! Notice:Be careful while handling plug-in
units. Avoid any mechanical impact to
the visible components. Insert plug-in
units slowly to their slots.
NOTE:
When using a torque screwdriver tighten
the grounding cable to the plug-in unit be-
fore the common plug-in unit installation.
For more information on grounding cable
installation, see ‘Preparing for cabling’ sec-
tion.
-22-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
6. Carefully insert the capacity plug-in unit
into AMOD subrack.
7. Tighten the two screws by hand, then
tighten to 1 Nm (8.9 in-lb).
8. For each consecutive common plug-in
unit repeat steps 3 to 5. For capacity plug-
in unit repeat steps 6 and 7.
NOTE:
The slots C1 and C2 are dedicated for com-
mon plug-in units, the slots B1 to B6 are
dedicated for capacity plug-in units.
B3
B2
B6
B5
B1
C1
B4
C2
NOTE:
Capacity plug-in units should be inserted in the lower slots first and then in the higher
slots.
NOTE:
AMOD is delivered without dummy panels. Install the dummy panels (AMFF 474416A)
in the slots which are not used for the installation. Tighten the screws on the dummy
panels to 1 Nm (8.9 in-lb). The remaining dummy panels should be stored in case they
need to be installed to AMOD if any plug-in units are removed at any point from AMOD.
Make sure that no slots remain empty.
NOTE:
It is possible to have two separate logical BTSs, one in each half-subrack. In such case ensure that you install the respective common
and capacity plug-in units on the same side (left or right) of the subrack.
Dummy panel
Dummy panel
Dummy panel
Dummy panel
ABIA/ABIC
(LTE)
ASIA (LTE)
ABIL (5G)
ASIK (5G)
Example:
5G-LTE subrack sharing in the minimum configuration
Result:
The common and capacity plug-in units installed inside AMOD (Single RAT).
GO TO
FIRST PAGE
-23-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
13 Preparing for cabling
 Tools and items required
Item Description Product code
GND cable Common plug-in unit grounding
Quantity
996433A2*
GND lug GND lug with 2 x M5 hole P4760742* (only 1 in AMOD site bag)
M5x12 torx (T25) screw AMOD and plinth grounding P3000574*M5 nut P3452832*
Torx bit T25 -1
Torque wrench - -1
Socket 10 mm -1
* Needed quantity depends on installation and configuration variant. Quantity in the table covers maximum configuration and a
plinth installed.
 Connecting the main grounding cable
NOTE:
When AMOD is installed with AMFV 3U plinth, both plinth and
subrack need to be grounded to the main grounding point.
1. Strip the ending of the main GND cable exposing 22 mm (7/8
in.).
2. Crimp the lug onto GND wire.
NOTE:
When AMOD is installed on the AMFV 3U plinth, second GND lug is
required. 3U plinth support lug with 2 x M5 holes (distance
between holes is 16 mm (5/8 in.) or one M8 hole. GND lug for
AMFV plinth is not part of the delivery.
3. Slide the heat shrink over the lug barrel.
NOTE:
Use a heat gun to evenly apply heat over the length and around
the tubing beginning from one end to the other until it is uniform-
ly shrunken. Allow the tubing to cool down slowly before applying
physical stress to it.
4. Fix and tighten the grounding cable to the 4.3 Nm (38 in-lb)
when using two M5 screws or to the 8-10 Nm (5.9-7.4 ft-lb) when
using M8 screw.
NOTE:
Grounding points for the main grounding cable are on the both
sides of AMOD and AMFV 3U plinth. Connect the grounding cable
to the preferred side.
Cable clamping tool - -1
GO TO
FIRST PAGE
M5 washer ASIB GND washer P3304402*
Common plug-in unit grounding
-24-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Grounding common plug-in unit
1. Unscrew the screws from each grounding point of common plug-in unit using the
TX25 screwdriver.
2. Place the grounding cable (AMOD site bag: 996433A) lug above the thread of the
outside grounding point hole and insert one M5x12 screw for each common plug-in
unit. Tighten screw to 4.3 Nm (38.05 in-lb) using the TX25 screwdriver.
NOTE:
If your common plug-in unit variant is ASIB/ASIBA (473764A/474408A), place an M5
washer (P330440) between the M5x12 screw and the GND lug. Without the washer the
QSFP optical transceiver will hit the grounding screw.

3. Connect the other end of the grounding cable to the grounding point on the AMOD
subrack. Tighten M5 nut (AMOD site bag: P345283) to 4.3 Nm (38.05 in-lb) using 10
mm socket.
 Grounding GNSS receiver (FYGM/AYGM)
1. Fix and tighten the grounding cable to
4.3 Nm (38 in-lb) when using two M5 screws
(AYGM/FYGM) or to the 8-10 Nm (5.9-7.4 ft-
lb) when using M8 screw (FYGM only).
2. Connect the other end of the grounding
cable to the grounding point on the AMOD
subrack. Tighten M5 nut to 4.3 Nm (38.1 in-
lb) using 10 mm socket.
14 Routing cables
 Tools and items required
Item Description Product code
Torque screwdriver -
Quantity
-1
Torx bit T25 -1
GO TO
FIRST PAGE
AMGT* Cable gland kit for AMOD 475291A1
* Optional item for PDU DC cabling.
Torque wrench* - -1
Socket* 10 mm -1
Open end crowfoot
wrench*
55 mm -1
NOTE:
Common plug-in unit installed on the right
side of the AMOD subrack needs to be
grounded to the same GND point on the
right side of AMOD.
-25-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Routing DC cables using bottom cables entries
 Routing DC cables using AMGT cable gland (optional item)
1. Unscrew two M5 screws on the press bar and disassemble the plugs, press bar and sealing rubber.
2. Route the cables through the cable entry from the bottom and put the cables through the sealing rubber holes.
3. Insert the sealing rubber into the cable entry and tighten the press bar to 4.3 Nm (38.05 in-lb). Insert the plugs to all unused cable
entry holes.
NOTE:
Tighten the press bar after all cables are connected as instructed in the “Cabling” section.
NOTE:
The press bar needs to be assembled starting from the left side and then the right side.
NOTE:
If all of the cable entry slots have been used, store away plugs for future use.
GO TO
FIRST PAGE
1. Remove the plug on the bottom right
side.
NOTE:
In AMOD v203 there is only one hole for the
cable gland on each cabinet side.
2. Put the gland through the side hole in
AMOD.
3. Tighten the lock nut on the gland inside
AMOD by hand.
4. Route the DC cables through the top nut.
5. Push the cables into the split grommet.
NOTE:
AMGT cable gland supports up to three DC cables. Supported DC cable diameter size is 15.5 - 16.5 mm (0.61 - 0.64 in.).
NOTE:
AMOD lightning surge protection is only provided by PDU. If AMOD is powered by three routes, all routes except the PDU-route should
be equipped with an OVP box to protect against lightning surge.
NOTE:
DC cable entries are located on both sides of AMOD. Choose the left cable entry for connecting the left half of the AMOD and the
right cable entry for connecting the right half of AMOD.
-26-
 Cables routing
NOTE:
Cable entries are located on both sides of the AMOD subrack. Choose the left cable entry for connecting the left half of the AMOD
subrack and the right cable entry for connecting the right half of the AMOD subrack.
1. Unscrew two M5 screws on the press bar and disassemble the plugs, press bar and sealing rubber.
2. Route the cables through the cable entry from the bottom and put the cables in the sealing rubber holes one by one.
NOTE:
Start routing the cables from the upper cable entry slots.
3. Insert the sealing rubber into the cable entry and tighten the press
bar to 4.3 Nm (38.05 in-lb). For all unused holes in the cable entry insert
the plugs.
NOTE:
The press bar needs to be assembled starting from the left side and
then the right side.
NOTE:
The press bar should be tightened after all cables are connected as
instructed in the “Cabling” section.
Nokia AirScale System Module — AMOD Installing and Cabling Manual
6. Adjust the length of the cables past the grommet, if needed, by pulling the cables
while holding the grommet firmly.
7. Push the grommet into the gland.
8. Tighten the top nut to 8 Nm - 12 Nm (5.90 ft-lb - 8.85 ft-lb).
9. Tighten the lock nut to 8 Nm - 12 Nm (5.90 ft-lb - 8.85 ft-lb).
NOTE:
All unused holes in a grommet need to be covered with rubber plugs.
NOTE:
If all cable entry slots are used, store away the plugs for future use.
The DC cables plugs can be stored on the right and left side of the
DC cables entries. Other cables entries plugs can be stored in the
middle.
GO TO
FIRST PAGE
-27-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
15 Cabling
 Tools and items required
Item Description Product code
Torque screwdriver -
Quantity
-1
Torx bit T25 -1
Cable clamping tool - -1
Power connector AMOD site bag P4763021
DC connector lug AMOD site bag -2
 Connecting the main power cable to the AMOD PDU unit
1. Strip each 4 AWG (21 mm²) cable exposing 18 mm (0.7 in.) of bare wire.
2. Put the DC connector lug on each cable.
3. Crimp the lugs onto each wire.
4. Insert each wire into the DC power connector (P476302).
5. Connect the main power cable to the AMOD PDU power unit.
6. Secure power cable connector using a cable tie (P504289).
WARNING! Risk of short circuit.
Make sure that power is not applied to the system before you connect the DC power cable.
WARNING! Risk of power supply failure and, in rare cases, of short circuit.
Make sure to connect the polarity of power supply correctly according to the markings on the connectors.
GO TO
FIRST PAGE
Heat gun - -1
Open end crowfoot
wrench
8 mm
(for GPS module only)
-1
-28-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
NOTE:
Make sure no strands comes out from the DC power cable input.
GO TO
FIRST PAGE
 Connecting the power cable (common plug-in unit with clamped DC input)
1. Strip the ending of the DC power cable(s).
Select from the available options:
1a. For a single-sheathed DC cable, strip 4 cm (1.6 in.) of the DC power
cable braiding and 18 ± 1 mm (0.7 in.) of the wires' insulation using the
cable stripper.
1b. For two individual DC cables, strip 18 ± 1 mm (0.7 in.) ofthe wires'
insulation using the cable stripper.
NOTE:
Do not add a ferrule on the cable end.
NOTE:
Stripping DC power cables is mandatory when common plug-in unit,
installed in the right half of the AMOD subrack, is powered separately
for load-balancing between the two inputs through a DC bridge in the
subrack’s rear.
4. If independent DC feeding is used for second common plug-in unit, repeat steps 1 - 3 with the second DC power cable.
NOTE:
For the DC power cable input with white latch add additional insulation tape around the cables.
2. Lift the latch of the DC power cable input.
3. Insert PDU DC power cables into the DC power cable input of the common plug-in unit. Push the
DC power cables until they stop in the DC terminal. Make sure there are no stray conductor strands.
Close the latch of the DC power input so that the DC power cables are firmly secured. Make sure the
latch is fully closed by pushing it downwards.
NOTE:
Do not twist cable conductor strands helically.
- correct (cable conductor strands are straight and not intertwined)
- incorrect (cable conductor strands are helically twisted)
-29-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Connecting the power cable (common plug-in unit with lug DC input)
1. Strip each DC cable exposing 22 mm (7/8 in.) of bare wire.
NOTE:
Striping the DC power cables is mandatory when common plug-in unit, installed in the
right half of AMOD subrack, is powered separately for load balancing between the two
inputs through a DC bridge in the subrack’s rear.
2. Crimp the lug onto each wire.
3. Slide the heat shrink over the lug barrel.
NOTE:
Use a heat gun to evenly apply heat over the length and around the tubing beginning
from one end to the other until it is uniformly shrunken. Allow the tubing to cool down
slowly before applying physical stress to it.
4. Lift the latch of the DC power cable input.
5. Install the RTN (0 V) cable with the lug onto the terminal Block labeled RTN (+) on the
left side of the terminal block. Mount the lug to the terminal using the captive screw
provided with the common plug-in unit and torque the screw to 4.3 Nm (38.05 in-lb).
6. Install the Supply (-48 V) cable with the lug onto the terminal Block labeled ‘PWR’ (-)
on the right side of the terminal block. Mount the lug to the terminal using the captive
screw provided with the common plug-in unit and torque the screw to 4.3 Nm (38.05
in-lb).
7. Close the latch of the DC power input.
8. If independent DC feeding is used repeat steps 1-7 for the second common plug-in
unit.
NOTE:
The power cable pair must be strain-relieved (using tie wraps or wax cord) to protect
from mechanical stress.
GO TO
FIRST PAGE
 Common plug-in units interfaces
NOTE:
For more information on interfaces, see the “Nokia AirScale System Module Product Description” document.
NOTE:
SFP, QSFP, EAC, synchronization, transmission, LMP, optical and system module extension cables are not part of the delivery.
Before starting the cabling, get familiar with the common plug-in units interfaces.
NOTE:
Connect only the cables that are required for your configuration. Do not remove dust plugs from unused ports.
-30-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Connecting the EAC and synchronization cables
1. Insert the HDMI cables into the EAC, Sin, and Sout ports of the common plug-in unit.
2. Repeat for the second common plug-in unit, if used.
 Connecting the transmission cables (LTE only)
1. Insert the RJ-45 into the RJ-45 input of the common plug-in unit and make sure it clicks into place.
2. Repeat for the second common plug-in unit, if used.
GO TO
FIRST PAGE
 Connecting the LMP cables
1. Insert the RJ-45 cable into the RJ-45 input of the common plug-in unit and make sure RJ-45 cable clicks into place.
2. Repeat for the second common plug-in unit, if used.
 Connecting the system extension cables in ASIA
1. Insert the Mini SAS cable into the SEI1, and SEI2 ports of the ASIA plug-in unit and make sure Mini SAS cable clicks into place.
2. Repeat for the second ASIA, if used.
NOTE:
System Module Extension Interfaces in ASIA Common plug-in unit have MiniSAS-HD connectors. In other types of common plug-
in units this interface has QSFP+ connectors.
-31-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
 Preparing optical interfaces
NOTE:
The SFPs and QSFPs are to be inserted after the AMOD subrack
is installed on the floor, pole or wall.
TIP:
Make sure that there is no dust or other obstacles inside the
SFP/QSFP port before inserting SFP/QSFP.
NOTE:
Do not remove the dust caps from the unused SFP/QSFP ports.
1. Locate all optical interfaces on common and capacity plug-in
units.
2. Insert the SFP/QSFP to each optical interface and push in
until it clicks.
3. Repeat for all required ports.
GO TO
FIRST PAGE
NOTE:
When using an AOQA or AOQB QSFP adapter, make sure to insert it into the QSFP interface on the capacity plug-in unit before
inserting the SFP into the adapter. This method guarantees the proper connection and the correct electrical and optical signals.
 Connecting the optical cables
NOTE:
Some optical cables are pre-bent, make sure to route them in the respective direction.
! Notice:
Optical cables are fragile. Overbending the optical cables damages the cables and can detach or damage
the connectors. Do not bend optical cables beyond the minimum radius of:
- 70 mm (2.7 in.), when cable diameter is 7 mm (0.3 in.).
- 50 mm (2.0 in.), when cable diameter is 5 mm (0.2 in.).
WARNING! Danger of eye damage caused by invisible laser beam.
Make sure that the laser beam is switched off during optical fiber installation.
! Notice:
Make sure that the optical cable connectors are clean. For more information, see the appendix ‘Cable cleaning’. If
detailed optical cables cleaning method is impossible to perform on site, clean the optical cable end using a cable
cleaning tool.
-32-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
 Cabling FYGM
1. Connect the synchronization cable into
the FYGM GNSS Outdoor Receiver.
NOTE:
FYGM connector guide pin and synchro-
nization cable connector slot must be
aligned carefully. Turn the cable connector
tightening gland until there is resistance.
The gland must not be loosened.
2. Connect the RF cable into the FYGM and
tighten it to 0.8 Nm (7 in-lb).
 Cabling AYGM
1. Connect the synchronization cable into
the AYGM GNSS Indoor Receiver.
2. Connect the RF cable into the AYGM and
tighten it to 0.8 Nm (7 in-lb).
1. Insert the optical cable into the respective SFP/QSFP on the common or the capacity plug-in unit.
2. Repeat for all required ports.
SFP
QSFP
-33-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
 Manage cables AMOD v102
TIP:
All cables for one plug-in unit can be tied together with a cable tie, so each plug-in unit has an independent cable group. Necessary
cables and plug-in units can be easily replaced or removed using this method. Fix each plug-in unit cable group to the fixing plate
on the top right or left side of the AMOD subrack.
Cables routed outside the AMOD subrack can be tied together in groups. Ca-
ble groups can be tied to the plinth on the left or the right side of the AMOD
subrack.
NOTICE:
Attaching cables to the front inlet is forbidden. Attaching cables to the
front inlet may block or reduce airflow.
NOTE:
Make sure that static bending radius of fiber cables is no less than 10D
(D - bending area outer diameter).
!
NOTE:
The blower can be pulled out without disconnecting other cables.
-34-
 Manage cables AMOD v203
TIP:
All cables for one plug-in unit can be tied together with a cable tie, so each plug-in unit has an independent cable group. Necessary
cables and plug-in units can be easily replaced or removed using this method. Fixeach plug-in unit cable group to the fixing plate
on the top right or left side of the AMOD subrack.
Cables routed outside the AMOD subrack can be tied together in groups. Ca-
ble groups can be tied to the plinth on the left or the right side of the AMOD
subrack.
NOTICE:
Attaching cables to the front inlet is forbidden. Attaching cables to the
front inlet may block or reduce airflow.
NOTE:
Make sure that static bending radius of fiber cables is no less than 10D
(D - bending area outer diameter).
!
NOTE:
The blower can be pulled out without disconnecting other cables.
GO TO
FIRST PAGE
-35-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
17 Maintenance
GO TO
FIRST PAGE
The air filter life span depends on air quality and the cumulative airflow through the filter. Cleaner air and colder temperatures (lower
flow rates) promote longer life span, which for preventive maintenance purposes is estimated to two to six years for a typical environ-
ment. Some markets and localized environments may be better or worse, for example the life span will be reduced if AMOD is located
near a diesel generator exhaust or fast food restaurant exhaust. Visual inspection can wrongly lead to premature filter exchange and
for this reason filter does not need to be replaced until an alarm is indicated. Remember that the AMOD air inlet path needs to be
checked and maintained periodically depending on the characteristics of each individual site.
For the detailed AMOD filter replacing procedure see the “Replacing System Module Units” document.
16 Sealing AMOD
 Tools and items required
Item Description Product code
M5 rubber plug AMOD site bag
Quantity
833694*
M4 rubber plug AMOD site bag 833693*
M8 rubber plug AMOD site bag 834705*
* Quantity needed depends on installation variant.
Rubber plugs need to be inserted in all unused holes in AMOD subrack to ensure proper IP protection. The number of holes depends
on the installation variant.
NOTE:
Graphics show all holes where rubber plugs can be inserted.
 Rubber plugs installation
NOTE:
Push the door and rotate the key to lock the door.
-36-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
18 Installation checklist
Perform these checks to make sure that the installation is complete:
Delivery is complete and undamaged.
Minimum clearances are met.
All mounting screws are tightened to the specified torque.
Cables do not violate specified bending radius.
AMOD subrack is securely fixed to the pole, wall or floor.
AMOD subrack is installed according to instructions.
AMOD subrack is stacked according to instructions.
Common plug-in unit(s) is/are installed in a desired configuration according to instructions.
Capacity plug-in unit(s) is/are installed in a desired configuration according to instructions.
Common plug-in unit(s) is/are grounded to the AMOD subrack.
All slots on AMOD subrack have either a plug-in unit or a dummy panel installed and there are no empty slots.
SFPs/QSFPs are inserted into optical ports (amount depends on the need).
DC power cable is connected.
GND cables are connected.
Transmission cables are connected.
Optical cables are connected to common plug-in unit(s).
EAC and synchronization cables are connected.
Cables are tied properly according to instructions.
Optical cables are connected to capacity plug-in unit(s).
Rubber plugs are installed according to instructions and there are no empty holes.
Site is clean and installation is complete.
-37-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
Appendix 1: Cable cleaning
Optical cable ends are susceptible to dirt during transportation, storage, or handling and as a result can stop functioning
correctly. Dirty optical cable ends can have a big impact on the service quality of Nokia products and therefore it is very
important to maintain them properly.
Nokia optical cable ends are always pre-cleaned and protected with dust caps to minimize any risks. It is highly recommended
that optical cables be always cleaned prior to inserting and reinserting.
TIP: Keep optical cable end dust caps in place during installation and only remove those just prior to cleaning and connecting.
TIP: It is highly recommended that cable ends not contact anything else besides cleaning equipment before they are connected.
For more information, see “Dry and wet cleaning” section.
Visible light source tool
Used to check the end-to-end fiber conti-
nuity.
 Preparation
 Fault detection
The condition of optical cables can be determined in many ways, including a visual inspection or by analyzing the cable loss. In
order to complete fiber testing, it is required that condition of the cable be determined and the cable cleaned. The following
tools can be used for this purpose.
Fiber scope
Used to inspect fiber cleanliness.
Light source and power meter
Used to measure the fiber
insertion
! WARNING! Risk of eye damage!
Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and
fiber-optic cables connected to transceivers emit laser light that can damage your eyes.
! Notice:
Do not bend fiber-optic cables beyond their minimum bend radius. Bending the cables beyond their minimum bend radius
can damage the cables and cause problems that are difficult to diagnose.
NOTE:
If a cable does not work at the first try, inspect the cable using a light source and a power meter.
-38-
Nokia AirScale System Module — AMOD Installing and Cabling Manual
GO TO
FIRST PAGE
There are two cleaning methods: dry and wet cleaning. There are the following types of equipment for both types of cleaning:
NOTE:
It is recommended that dry cleaning be used for regular cleaning. Wet cleaning should only be considered if multiple dry cleaning
attempts failed to clear the issue.
! Notice:
After using any wet cleaning equipment, ferrule ends need to be re-cleaned immediately with dry cleaning equipment.
NOTE:
Do not wipe the cable in any other
direction than the one indicated by the
tool. Always use a fresh piece of tape.
Do not use a dirty or used tape as this
damages the optical cable.
NOTE:
Never use the same stick, wipe, or surface
area twice. Never apply more than one
squirt of cleaning agent.
 Dry and wet cleaning
 Optical cable cleaning
Dry cleaning equipment Wet cleaning equipment
Reel-based cassette cleaners
Pen-style optical cable cleaners
Cleaning wipes
Cleaning sticks
Cleaning agent
Inspect the cable to determine if there is dirt on the fiber end face or in-
creased insertion loss.
The acceptable insertion loss limits are:
for Multimode (MM): <1.5 dB, wavelength 850 nm
for Singlemode (SM): <1.0 dB, wavelengths 1310 nm and 1550 nm.
Is the insertion loss or dirt on fiber end face detected?
Clean the cable using one of the following methods:
a) When using a pen-style cleaner, fit the connector over the end of the
optical cable, press down until the cleaner clicks and then remove the con-
nector.
b) When using a reel-based cartridge cleaning tool, take the end of the op-
tical cable and wipe the cable in the direction indicated on the tool.
Has the cleaning eliminated the cable loss?
Cable is clean and can
be inserted.
Cable is clean and can be inserted. Have you already tried dry cleaning the cable five times?
Take the dirty cable and clean it using one of the following wet cleaning meth-
ods:
a) When using a cleaning stick, wet the tip of the stick with a cleaning agent and
then apply to the optical cable by rotating the stick from six to eight times in
the same direction.
b) When using wipes, apply one squirt of cleaning agent to the wipe, take the
end of the cable and gently wipe the cable from wet to dry. Repeat dry cleaning
immediately after wet cleaning to make sure no residue is left on the fiber end
face.
Is insertion loss still present?
Replacethe cable.
NO
NO
NO
NO
YES
YES
YES
YES
	Bookmark 1
	1
	Bookmark 2
	R1
	1
	2
	3
	Bookmark 23
	4
	5
	6
	7
	8
	10
	11
	12
	13
	14
	Wall installation
	Floor installation
	Checklist
	Tools and equipment
	Installing AMOD optional items
	Routing cables
	Instaling AMOD inside FCOA
	Cable cleaning
	Main sealing
