Schematic Symbols
and Definitions page

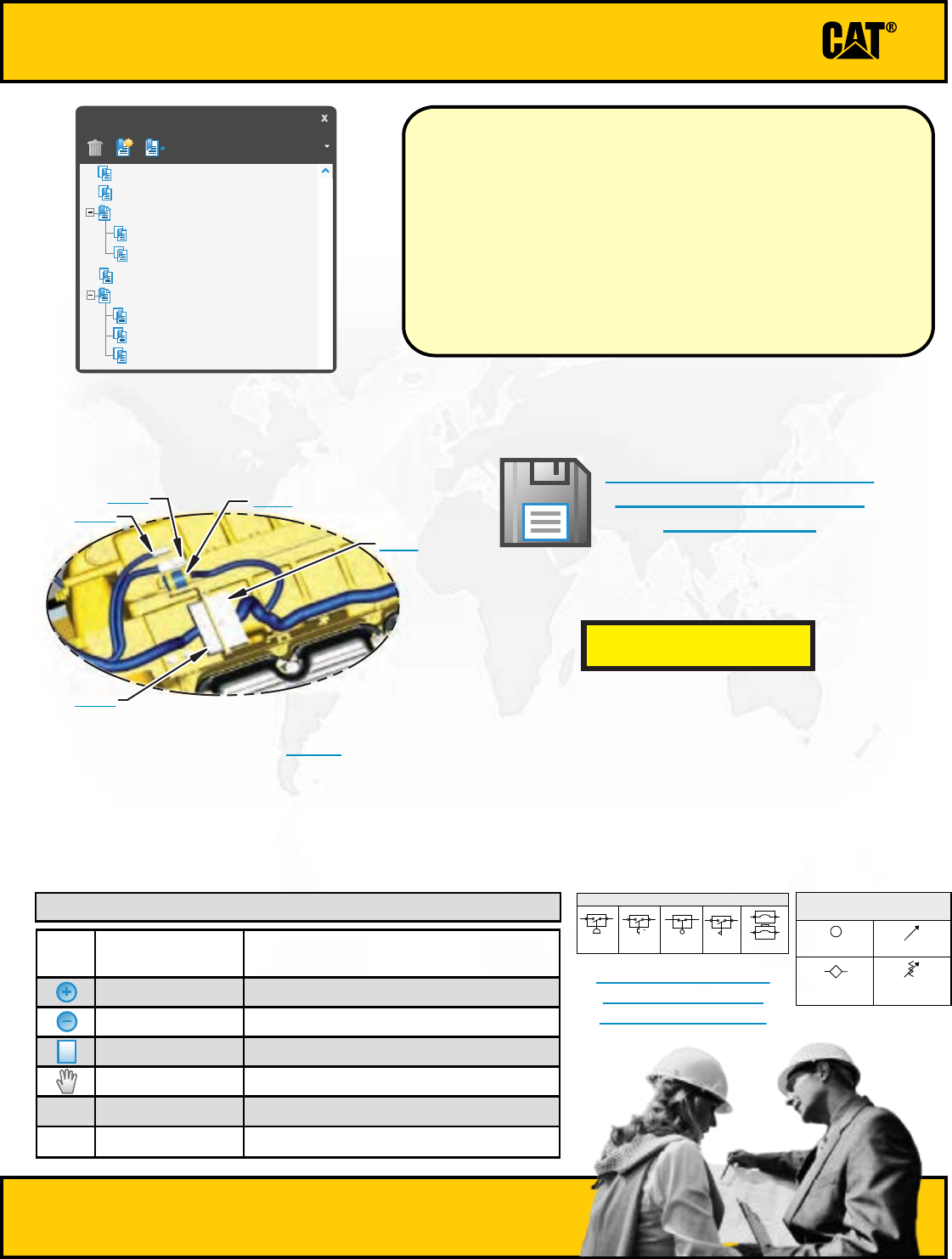

INTERACTIVE SCHEMATIC
The Bookmarks panel will allow you to
quickly navigate to points of interest.
Click on any text that is BLUE and
underlined. These are hyperlinks
that can be used to navigate the
schematic and machine views.
When only one callout is showing on a
machine view, clicking on this button will
make all of the callouts visible. This
button is located in the top right corner
of every machine view page.
VIEW ALL CALLOUTS
Cover Page
Tables
Schematic
Machine Views
Component
Connector
Chassis View
Cab View
Engine View
Features
Options
Bookmarks X
EC-C3
EC-C2 E-C60
EC-C1
E-C61
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
*This document is best viewed at a
screen resolution of 1024 X 768.
*Due to different monitor sizes and PDF reader preferences
there may be some variance in linked schematic locations
FUNCTION
Zoom In
HOTKEYS (Keyboard Shortcuts)
Zoom Out
Fit to Page
Hand Tool
“CTRL” / “+”
KEYS
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
Find “CTRL” / “F”
Pressure
Switch
Temperature
Switch
Level
Switch
Flow
Switch Circuit Breaker
T
ELECTRICAL SYMBOLS
Spring
(Adjustable)
Variability
Fluid
Conditioner
Pump
or Motor
BASIC HYDRAULIC
COMPONENT SYMBOLS
Click here to save a copy of
this interactive schematic
to your desktop
Search “CTRL” / “SHIFT” / “F”
SCHEMATIC SYMBOLS AND DEFINITIONS
HYDRAULIC SYMBOLS - ELECTRICAL
Transducer
(Fluid)
Transducer
(Gas / Air)
G
Generator Electrical
Wire
Pressure
Switch
M
Electric
Motor
Pressure Switch
(Adjustable)
Temperature
Switch
Pressure
Switch
Temperature
Switch
Level
Switch
Flow
Switch Circuit Breaker
T
ELECTRICAL SYMBOLS
Spring
Control
Valves
Restriction Line Restriction
(Fixed)
2-Section
Pump
MAIN AUX.
Spring
(Adjustable)
Variability
Line Restriction
(Variable)
Pressure
Compensation
Pump: Variable and
Pressure Compensated
Hydraulic Pneumatic
Energy Triangles
Fluid
Conditioner
Attachment
Pump
or Motor
BASIC HYDRAULIC
COMPONENT SYMBOLS
Line Restriction
Variable and Pressure
Compensated
Vented Pressurized Return Above Fluid Level Return Below Fluid Level
FLUID STORAGE RESERVOIRS
Pressure Temperature Flow
MEASUREMENT
Unidirectional Bidirectional
ROTATING SHAFTS
One Position Two Position Three Position
Two-way Three-Way Four-Way
ENVELOPES
PORTS
CONTROL
Basic
Symbol
Spring
Loaded
Normal Position
A B
P T
A B
P T
Shifted Position Infinite Position
Shuttle Pilot
Controlled
VALVES
CHECK
Solenoid
or Manual
Solenoid
and Pilot
Solenoid and
Pilot or Manual
Solenoid Servo Thermal Detent
COMBINATION CONTROLS
T
Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it.
Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates
that the component has screw terminals and a wire can be disconnected from it.
Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.).
No circle indicates that the wire cannot be disconnected from the component.
Ground (Wired): This indicates that the component is connected to a grounded wire.
The grounded wire is fastened to the machine.

Ground (Case): This indicates that the component does not have a wire connected to ground.
It is grounded by being fastened to the machine.
Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of
a normally open reed switch; it opens the contacts of a normally closed reed switch.
Sender:

A component that is used with a temperature or pressure gauge.
The sender measures the temperature or pressure.
Its resistance changes to give an indication to the gauge of the temperature or pressure.
Relay (Magnetic Switch):

A relay is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close the switch part of the relay.
Solenoid:

A solenoid is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close a valve or move a piece of metal that can do work.
Magnetic Latch Solenoid: An electrical component that is activated by electricity and held latched by a
permanent magnet. It has two coils (latch and unlatch) that make electromagnet
when current flows through them. It also has an internal switch that places
the latch coil circuit open at the time the coil latches.
BASIC ELECTRICAL COMPONENT SYMBOLS
Push-pull Lever PedalGeneral Manual Push Button SpringManual Shutoff
MANUAL CONTROL
External Return Internal Return
Simplified Complete
Internal
Supply Pressure
RELEASED PRESSURE
REMOTE SUPPLY PRESSURE
PILOT CONTROL
Spring Loaded Gas Charged
ACCUMULATORS
Crossing Joining
LINES
Double ActingSingle Acting
CYLINDERS
Unidirectional
Bidirectional
FIXED DISPLACEMENT
VARIABLE DISPLACEMENT
NON- COMPENSATED
PUMPS
Unidirectional
Bidirectional
Unidirectional
Bidirectional
FIXED DISPLACEMENT
VARIABLE DISPLACEMENT
NON- COMPENSATED
MOTORS
Unidirectional
Bidirectional
Two
Position
Infinite
Positioning
FLOW IN ONE
DIRECTION
FLOW ALLOWED IN
EITHER DIRECTION
Three
Position
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
1
2
AG-C4
111-7898
L-C12
3E-5179
9X-1123 ComponentPart Number
Pin or Socket Number
Part Number: for
Connector Plug
Harness Identification Letter(s): (A, B, C, AA, AB, AC, ...)
Plug
325-AG135 PK-14
Wire Color
Wire Gauge
Receptacle
1
1
2
2
Sure-Seal connector: Typical representation
of a Sure-Seal connector. The plug and receptacle
contain both pins and sockets.
Deutsch connector: Typical representation
of a Deutsch connector. The plug contains all
sockets and the receptacle contains all pins.
Fuse (5 Amps)
5A
Harness identification code:
This example indicates wire group 325,
wire 135 in harness "AG".
L-C12
3E-5179
Wire, Cable, or Harness Assembly Identification:
Includes Harness Identification Letters and Harness
Connector Serialization Codes (see sample).
Harness Connector Serialization Code: The "C" stands for
"Connector" and the number indicates which connector in the
harness (C1, C2, C3, ...)
HARNESS AND WIRE SYMBOLS
Electrical System
Motor Grader
12K, 120K, 140K, and 160K
12K: 140K: 160K:
JBP1-153
SZM490-695
SZL1869-3569
JPA3140-4956
120K:
SZN1486-2408
JAP3120-7216SZP360-670
JJA3012-3566
© 2019 Caterpillar
All Rights Reserved
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow”, and the POWER EDGE trade dress as well as
corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
UENR5014-04
April 2019
COMPONENT LOCATION
Component Schematic Location
Machine
Location Component
Schematic
Location
Machine
Location
Air Dryer Sender - Coolant Temperature
Alarm - Action Sender - Fuel Level
Alarm - Backup Sensor - Atmospheric Pressure
Alternator Sensor - Engine Oil Pressure
Arc Suppressor - A/C Sensor - Engine Speed
Arc Suppressor - Differential Lock Sensor - Fuel Pressure
Battery 1 Sensor - Inching Pedal Position
Battery 2 Sensor - Intake Manifold Air Pressure
Breaker - Alternator Sensor - Rail Pressure
Breaker - Main Sensor - Secondary Engine Speed
Control - Engine Sensor - Throttle Position
Control - Radio Embedded Gateway Sensor - Transmission Input Speed
Control - Transmission Sensor - Transmission Output Speed
Converter - 24 to 12 Volt 1 Sensor - Transmission Output Speed 1
Converter - 24 to 12 Volt 2 Sensor - Transmission Output Speed 2
Flasher Sensor - Transmission Temperature
Gauge - LH Air Pressure Sensor - Turbo Inlet Pressure
Gauge - RH Air Pressure Shifter- Transmission
Gauge Cluster Solenoid - A/C Clutch
Ground - Cab 1 (Lower Right Rear) Solenoid - Blade Cushion 1
Ground - Cab 2 (Cab Front) Solenoid - Blade Cushion 2
Ground - Frame Boss (RH Side) Solenoid - Centershift Pin
Ground - Frame Boss 2 (RH Side Rear) Solenoid - Differential Lock
Ground - Front Frame 1 (Articulation Joint) Solenoid - Ether Start Aid
Ground - Front Frame 2 (LH Side) Solenoid - Park Brake
Ground - Front Frame 3 (LH Side) Solenoid - Transmission 1 (Forward High)
Ground - Front Frame 4 (LH Side) Solenoid - Transmission 2 (Forward Low)
Ground - Platform (Left Rear Cab) Solenoid - Transmission 3 (Reverse)
Ground - Rear Frame 1 (Articulation Joint) Solenoid - Transmission 4 (2nd)
Ground - Rear Frame 2 (RH Side) Solenoid - Transmission 5 (3rd)
Ground - Rear Frame 3 (LH Side) Solenoid - Transmission 6 (1st)
Ground - Rear Frame 4 (LH Side) Solenoid - Transmission 7 (Low Range)
Ground Strap - Engine Control Solenoid - Transmission 8 (High Range)
Ground Strap - Transmission Control Speedometer
Ground Strap As 1 Strap As
Ground Strap As 2 Switch - A/C High Pressure
Horn Switch - A/C Low Pressure
Horn Gp Switch - Autoshift
Injector - Cylinder #1 Switch - Blade Cushion
Injector - Cylinder #2 Switch - Blower
Injector - Cylinder #3 Switch - Brake Pedal Limit
Injector - Cylinder #4 Switch - Centershift Indicator
Injector - Cylinder #5 Switch - Centershift Pin
Injector - Cylinder #6 Switch - Differential Lock
Meter - Service Hour Switch - Engine Coolant Temperature
Module - Gauge Interface Switch - Floodlamp
Motor - Blower Switch - Front Defrost
Motor - Front Defrost Fan Switch - Front Lower Wiper 1
Motor - Front Lower Washer Switch - Front Lower Wiper 2
Motor - Front Lower Wiper Switch - Front Upper Wiper 1
Motor - Front Upper Washer Switch - Front Upper Wiper 2
Motor - Front Upper Wiper Switch - Fuel Pressure
Motor - Rear Defrost Fan Switch - Ground Level Shutdown
Motor - Rear Washer Switch - Headlamp
Motor - Rear Wiper Switch - Headlamp Dimmer
Motor - Starting Switch - Inching Pedal Limit
Port - 12V Power Switch - Intake Manifold Air Temperature
Pump - Fuel Priming Switch - Key
Relay - Backup Alarm Switch - LH Brake System Pressure
Relay - Cranking Switch - Lightbar Lamp
Relay - Floodlamps Switch - Master Disconnect
Relay - Fuel Priming Switch - Park Brake Pressure
Relay - Headlamp Switch - Rear Defrost
Relay - Horn Switch - Rear Wiper
Relay - Key Switch Enable Switch - RH Brake System Pressure
Relay - Main Switch - Snow Wing Lamp
Relay - Start Aid Switch - Stop Lamp
Relay - Tail Panel Lamps Switch - Tail Lamp
Resistor - CAN 1 Switch - Thermostat
Resistor - CAN 2 Switch - Throttle Hold Mode
Resistor - Front Defrost Switch - Throttle Speed Set
Resistor - HVAC 1 Switch - Transmission Filter Bypass
Resistor - HVAC 2 Switch - Turn Signal
Resistor - Pull Up Tachometer
Sender - Articulation Angle Valve - Injector Actuation
* - NOT SHOWN
Check Part Numbers in the Parts Manuals for your Specific Machine.
G-13 1 D-13 74
A-14 2 D-13 75
L-18 3 H-17 76
I-13 4 H-17 77
E-13 44 G-17 78
J-16 5 H-14 79
I-13 6 F-7 80
I-13 7 H-17 82
H-13 8 H-17 21
H-13 9 G-17 83
I-18 10 K-9 84
B-4 111 B-18 85
H-14 11 A-18 81*
L-11 12 B-18 86
K-9 13 B-18 87
K-7 15 B-18 88
G-2 16 G-13 89
G-2 17 A-12 90
G-2 18 E-13 91
J-11 19 H-6 92
B-7 20 H-5 93
J-14 22 E-7 94
I-13 23 J-16 95
J-10 24 K-13 97
I-10 25 D-7 96
E-9 26 D-18 98
E-9 26 C-18 99
J-11 27 D-18 100
J-11 28 C-18 101
H-12 29 C-18 102
J-16 30 C-18 103
J-16 31 B-18 104
D-18 34 C-18 105
D-14 35 I-1 106
J-11 32 H-13 107
J-11 33 F-13 108
F-5 36 F-13 109
J-8 37 C-12 110
J-16 38 C-13 112
J-16 39 C-16 113
J-16 40 F-7 114
J-16 41 E-7 115
I-16 42 B-13 116
I-16 43 J-5 117
K-6 45 G-17 119
H-2 47 K-5 120
B-16 48 A-11 121
B-3 49 A-10 122
K-11 50 A-9 123
F-5 51 B-10 124
K-11 52 B-9 125
D-4 53 H-14 126
C-11 54 D-17 127
K-11 55 K-4 128
C-11 56 J-4 129
J-14 57 F-7 131
C-4 58 G-17 132
I-14 59 A-15 133
L-18 60 E-7 134
G-13 61 J-4 135
L-8 14 J-13 118
I-14 62 E-9 137
L-8 14 A-11 138
K-8 63 A-10 139
A-15 64 E-7 140
H-13 65 B-8 141
K-13 66 E-7 142
K-8 67 K-4 143
J-18 68 C-16 144
H-2 69 B-12 145
C-3 70 B-12 146
B-16 71 J-14 147
B-11 72 K-8 148
F-13 46 I-1 149
H-12 73 G-17 150
CONNECTOR LOCATION
Connector Number Schematic Location
CONN 1 A-17
CONN 2 A-17
CONN 3 A-17
CONN 4 B-17
CONN 5 B-18
CONN 6 D-17
CONN 7 H-17
CONN 8 I-17
CONN 9 K-16
CONN 10 C-17
CONN 11 A-7
CONN 12 A-7
CONN 13 A-7
CONN 14 C-14
CONN 15 H-15
CONN 16 J-15
CONN 17 L-14
CONN 18 A-7
CONN 19 C-14
CONN 20 C-14
CONN 21 C-12
CONN 22 D-12
CONN 23 D-12
CONN 24 F-12
CONN 25 G-12
CONN 26 G-12
CONN 27 K-12
CONN 28 I-12
CONN 29 I-12
CONN 30 H-12
CONN 31 A-11
CONN 32 D-11
CONN 33 D-11
CONN 34 E-11
CONN 35 C-10
CONN 36 C-10
CONN 37 C-10
CONN 38 C-9
CONN 39 C-9
CONN 40 H-7
CONN 41 H-7
CONN 42 H-7
CONN 43 H-7
CONN 44 H-7
CONN 45 G-7
CONN 46 G-7
CONN 47 G-7
CONN 48 G-5
CONN 49 G-4
CONN 50 E-5
CONN 51 B-16
CONN 53 E-4
CONN 54 G-4
CONN 55 G-3
The connectors shown in this chart are for harness to harness
connectors. Connectors that join a harness to a component are
generally located at or near the component. See the
Component Location Chart.
Page 1 of 2
CID / MID / FMI
CID Component
0001 Cylinder #1 Injector
0002 Cylinder #2 Injector
0003 Cylinder #3 Injector
0004 Cylinder #4 Injector
0005 Cylinder #5 Injector
0006 Cylinder #6 Injector
0041 8 Volt DC Supply
0042 Injector Actuation Valve
0091 Throttle Position Sensor
0094 Fuel Delivery Pressure Sensor
0100 Engine Oil Pressure Sensor
0164 Injector Actuation Pressure
0168 Electrical System Voltage
0172 Intake Manifold Air Temperature Sensor
0190 Engine Speed Sensor
0253 Personality Module
0261 Engine Timing Calibration
0262 5 Volt Sensor DC Power Supply
0267 Remote Shutdown Input
0268 Programmed Parameter Fault
0269 Sensor Power Supply
0271 Action Alarm
0274 Atmospheric Pressure Sensor
0286 EMS Oil Lamp
0296 Transmission Control
0324 Warning Lamp
0342 Secondary Engine Speed Sensor
0548 Throttle Lock Lamp
0549 Throttle Lock Switch
1589 Turbocharger Inlet Air Pressure Sensor
1627 Fuel Pump Relay
1627 Fuel Pump Relay
1785 Intake Manifold Pressure Sensor
2417 Ether Injection Control Solenoid
2756 Engine System Warning Indicator
2757 Transmission System Warning Indicator
2770 Throttle Lock Resume/Decel Switch
2771 Throttle Lock Set/Accel Switch
2869 System Air Pressure Indicator
Component Identifiers (CID¹)
Module Identifier (MID²)
Engine Control
(MID No. 036)
Event Code Condition
E049 Coasting in Neutral Warning
E627 Parking Brake Applied with Machine In Motion
E762 Machine Driven with Cold Transmission
E861 Clock Manual Alignment Required
Event Codes
Transmission Control
Event Code Condition
E096 High Fuel Pressure
E172 High Air Filter Restriction
E194 High Exhaust Temperature
E198 Low Fuel Pressure
E265 User Defined Shutdown
E360 Low Engine Oil Pressure
E361 High Engine Coolant Temperature
E362 Engine Overspeed
E390 Fuel Filter Restriction
E441 Idle Elevated to Increase Battery Voltage
E539 High Intake Manifold Air Temperature
Event Codes
Engine Control
Page 2 of 2
CID / MID / FMI
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
¹The FMI is a diagnostic code that indicates what type of failure has occurred.
Failure Mode Identifiers (FMI)¹
CID Component
0168 Electrical System Voltage
0177 Temperature Sensor (Transmission Oil)
0268 ProgrammableParameter
0444 Magnetic Switch (Start Relay)
0520 Configuration (Transmission)
0585 Speed Sensor (Transmission Output) (No. 1)
0637 Backup Alarm
0668 Transmission Control (Shift Lever)
0669 Speed Sensor (Transmission Input)
0673 Speed Sensor (Transmission Output) (No. 2)
0868 Indicator Lamp (Automatic shift)
1401 Solenoid Valve (Forward High)
1402 Solenoid Valve (Forward Low)
1403 Solenoid Valve (Reverse)
1404 Solenoid Valve (Speed Clutch) (No. 2)
1405 Solenoid Valve (Speed Clutch) (No. 3)
1406 Solenoid Valve (Speed Clutch) (No. 1)
1407 Solenoid Valve (Low Range)
1408 Solenoid Valve (High Range)
1484 Limit Switch (Inching Pedal)
1580 Indicator Lamp (Transmission Filter Bypass )
Transmission Control
(MID No. 081)
Component Identifiers (CID¹)
Module Identifier (MID²)
Page 1 of 2
WIRE DESCRIPTION
Description Description
Battery + Snow Wing Lamp
Headlamps LH/RH Lightbar High Beam Headlamps
Tail/Panel Lamps Auxiliary Circuit
Key Switch Auxiliary Circuit
Battery 1 to Battery 2 Auxiliary Circuit
Dome Lamp Auxiliary Circuit
HmaeBwoLrabthgiLHR/HL+tuptuOrotanretlA
spmalkroWrabthgiLHR/HLtuptuOyaleRniaM
spmaLdraobdloMHR/HLrotinoM
tiucriCyrailixuAnroHgninraWdrawroF
spmaldoolFedalBHR/HLsrabthgiL
Rear Floods
eR(3dioneloSnoissimsnarT1daoL
oF(1dioneloSnoissimsnarTrepiWreppUtnorF
oF(2dioneloSnoissimsnarTrepiWraeR
giH(8dioneloSnoissimsnarTreyrDriA
-kniLataDtaCCAVH
+kniLataDtaC)lortnoCnoissimsnarT(+yrettaB
n2(4dioneloSnoissimsnarTekarBkraP
s1(6dioneloSnoissimsnarTrethgiLragiC
dr3(5dioneloSnoissimsnarThctiwSpmaLpotS
oL(7dioneloSnoissimsnarTtroPrewoPV21
giH(8dioneloSnoissimsnarTtsorfeDtnorF
6/5/4dioneloSnoissimsnarTnocaeB
hctiwStfihsotuAtroPrewoPyrailixuA
rosneSerusserPliOenignEpmaLgniWwonS
erutarepmeTtnalooCenignEdoolFedalB
+rotcejnI1#rednilyC)enignE(+yrettaB
+rotcejnI2#rednilyCtsorfeDraeR
+rotcejnI3#rednilyCedarGuccA
+rotcejnI4#rednilyCdiAtratS
+rotcejnI5#rednilyCsrorriMdetaeH
+rotcejnI6#rednilyC2daoL
rosneSerutarepmeTleuFkcoLlaitnereffiD
hctiwSteSdeepSelttorhTniPtfihsretneC/noihsuCedalB
PleuFotpmuPgnimirPleuFSPG/kniLtcudorP
hctiwSteSdeepSelttorhTsdrazaH/slangiSnruT
M(hctiwSedoMdloHelttorhToidaRsnoitacinummoC
ngiSrosneSnoitisoPelttorhTtuptuOrekaerBniaM
turearepmeTriAdlofinaMekatnIoidaRtnemniatretnE
Throttle Speed Set Switch (Auto)
Main Chassis Inching Pedal Limit Switch
Speedometer/Tachometer Throttle Speed Set Switch
Battery - (Transmission Control) Throttle Speed Set Switch (Resume)
Instrument Panel Inlet Air Heater
Battery 1 - to Disconnect Switch Fuel Pressure Sensor Signal
24 to 12V Converter 2 Transmission Output Speed Sensor 1 +
Front Frame Ground 4 Transmission Output Speed Sensor 1 -
Battery - (Engine Control) Auxiliary Circuit
Auxiliary Circuit
Cranking Relay Output Auxiliary Circuit
Cranking Relay Auxiliary Circuit
Key Switch Start Transmission Output Speed Sensor 2 +
Key Switch Run Transmission Output Speed Sensor 2 -
Backup Lamps Transmission Input Speed Sensor +
Horn Relay Transmission Input Speed Sensor -
Backup Alarm Relay Transmission Shifter Redundant Neutral
Fuel Priming Relay Transmission Shifter First
Key Switch Input Transmission Shifter Second
Horn Relay to Forward Warning Horn Transmission Shifter Third
Lighting Circuits (Continued)Power Circuits
Ground Circuits
Basic Machine Circuits
Control Circuits
Wire
Number
101
102
103
105
106
108
109
112
113
114
115
116
117
118
119
122
124
126
127
129
130
135
141
144
147
148
149
150
151
152
153
160
162
165
169
170
173
176
177
179
200
201
202
205
206
210
229
A287
304
306
307
308
321
322
331
365
390
A305
Wire
Color
RD
BU
YL
BR
WH
BU
RD
PU
OR
GN
PK
BR
YL
GY
PK
BU
GN
PK
OR
BU
GN
BU
PK
GN
PU
WH
PU
OR
GN
BU
WH
PU
YL
YL
PK
YL
YL
OR
OR
BU
BK
BK
BK
BK
BK
BK
BK
BK
WH
GN
OR
YL
BR
GY
OR
YL
YL
YL
Wire
Color
YL
PU
GY
PU
BR
YL
GN
PK
BU
GN
BR
GN
YL
BU
OR
BR
GN
PU
WH
BR
GY
WH
BR
YL
GY
BU
GY
PU
BR
GN
BU
GY
YL
PK
OR
BR
BU
GN
BU
WH
BU
BR
OR
RD
PK
WH
GN
PU
YL
BR
BU
OR
GY
BR
WH
PU
OR
WH
BU
609
611
612
614
617
618
619
629
633
647
685
751
752
754
755
892
893
900
901
902
903
921
922
977
994
995
A701
A702
A703
A704
A705
A706
A751
A755
A893
A982
A983
C912
C967
C975
C977
C978
C979
C987
C991
E900
E901
E902
E903
E904
E905
E906
E907
E908
E909
E937
E938
E939
E940
Wire
Number
Page 2 of 2
WIRE DESCRIPTION
Description Description
Transmission Shifter Fourth
Alternator (R) Terminal Transmission Shifter Fifth
Low Engine Oil Pressure Lamp Transmission Shifter Sixth
RH Brake System Pressure Switch Transmission Shifter Seventh
Action Alarm Transmission Shifter Eighth
Park Brake Pressure Switch Transmission Shifter Forward
Transmission Filter Bypass Switch Transmission Shifter Reverse
Brake Pedal Limit Switch Transmission Shifter Park
Centershift Indicator Switch Transmission Shifter Neutral
Coolant Temperature Gauge Engine Speed Sensor -
Fuel Level Gauge Engine Speed Sensor +
LH/RH Brake System Pressure Switches Secondary Engine Speed Sensor -
Check Transmission Lamp Secondary Engine Speed Sensor +
Differential Lock Switch and Indicator Lamp Inching Pedal Limit Switch
Articulation Gauge Turbo Inlet Pressure Sensor Signal
Transmission Filter Bypass Indicator Ground Level Shutdown Switch
Brake Air Pressure Lamp Ground Level Shutdown Switch
Action Lamp Start Aid Relay
Transmission Temperature Sensor Signal Centershift Pin Solenoid
Check Engine Lamp Inching Pedal Position Sensor Signal
Engine Oil Pressure Sensor +5V Supply
Front Upper Wiper (Park) Fuel Pressure Sensor Return
Front Upper Wiper (Low) Atmospheric Press Sensor +5V Supply
Front Upper Wiper (High) Atmospheric Press Sensor Return
Rear Wiper (Park) Intake Manifold Air Temperature Switch
Rear Wiper (Low) Injector Actuation Press Sensor Signal
Rear Wiper (High) Inlet Air Heater Return
Front Upper Wiper (Wash) Injector Actuation Valve +
Rear Wiper (Wash) Injector Actuation Valve -
LH Speaker + TDC Service Probe +
LH Speaker - TDC Service Probe -
RH Speaker + Throttle Lock Indicator Lamp
RH Speaker - Start Aid Relay
Accessory Circuits
Monitoring Circuits
Blower Switch (High) China GPS to Key Switch Enable Relay
Blower Switch (Medium) Transmission Filter Bypass Switch
Blower Switch (Low) Transmission Temp Sensor Return
Blower Switch to A/C Protection Module AccuGrade Blade Control CAN +
A/C High Pressure Switch to Thermostat AccuGrade Blade Control CAN -
Turn Signal Switch To Flasher Cylinder #1/#2 Injector Return
Differential Lock Switch Cylinder #3/#4 Injector Return
Front Defrost Switch Cylinder #5/#6 Injector Return
Rear Defrost Switch Autoshift Indicator Lamp
Blade Cushion Solenoid 1/2 Fuel Pressure Switch Return
Front Lower Wiper (Park) Intake Manifold Air Press Sensor Signal
Front Lower Wiper (Low) Atmospheric Pressure Sensor Signal
Front Lower Wiper (High) Throttle Position Sensor +8V Supply
Front Lower Wiper (Wash) Speedometer/Tachometer RS485A
24 to 12V Converter +12V Switched Speedometer/Tachometer RS485B
A/C High Press Switch to A/C Low Press Switch Turbo Inlet Pressure Sensor 5V Return
Front Defroster (Low) Turbo Inlet Pressure Sensor +5V Supply
Rear Defroster (Low) Throttle Position Sensor 8V Return
Front Defroster (High) Fuel Pressure Switch
Rear Defroster (High) Cylinder Injector #1/#2 High Side
24 to 12V Converter +12V Unswitched Cylinder Injector #3/#4 High Side
A/C Low Pressure Switch Cylinder Injector #5/#6 High Side
Auxiliary Circuit Throttle Hold Mode Switch (Off)
A/C Clutch Solenoid to A/C Protection Module Cylinder #1 Injector Return
Cylinder #2 Injector Return
Dash Lamps Cylinder #3 Injector Return
Beacon Lamp Cylinder #4 Injector Return
Stop Lamp Switch Cylinder #5 Injector Return
LH Lightbar Turn Lamp Cylinder #6 Injector Return
RH Lightbar Turn Lamp CAN Data Link +
Wire
Number
403
405
408
410
419
426
432
439
441
447
488
490
498
A429
C436
E458
F420
G460
G479
500
501
502
503
504
505
506
507
508
509
511
512
515
516
517
521
522
537
556
567
569
570
575
576
577
578
592
597
A503
A504
A506
A507
A513
A572
C542
E554
601
603
604
605
606
608
Wire
Color
GN
GY
WH
WH
YL
BR
PK
YL
OR
PK
WH
GN
WH
YL
BU
YL
GN
GN
WH
BR
GN
OR
BR
YL
BU
PU
WH
PU
WH
BR
GN
GY
GN
BU
YL
WHGN
WH
WH
PK
BU
YL
PK
PU
BU
BU
PU
PK
GN
OR
YL
PK
PK
GN
PK
GY
PK
OR
YL
GY
GN LH/RH Rear Floodlamps
Wire
Color
YL
GN
BR
GY
PU
OR
WH
BU
YL
BK
BU
BU
YL
GN
OR
PU
WH
GY
BU
YL
BR
BU
WH
GN
PK
BR
BU
PK
PU
WH
YL
OR
YL
PK
BR
BU
YL
GN
WH
OR
YL
OR
PU
PK
GY
OR
WH
BU
BR
OR
BR
WH
GY
WH
OR
OR
PU
YL
BR
BU
GN
WH
PK
YL CAN Data Link -
Lighting Circuits
E941
E942
E943
E944
E945
E946
E947
E948
E949
E963
E965
E965
E966
E974
F713
F715
F716
F762
F775
F843
G826
G827
G828
G829
G833
G849
G850
G854
G855
G856
G857
G946
H807
J703
J764
J765
L854
L855
L983
L984
L985
M998
N707
R746
R747
R800
R939
R940
R993
R997
R998
T725
T858
T859
T860
T914
T957
T958
T959
T960
T961
T962
Y792
Y793
Wire
Number
U
E
N
R
5
0
1
4
-0
4
4
2
 P
a
g
e
,
(D
im
e
n
s
io
n
s
:
5
6
 i
n
c
h
e
s
 x
 3
5
 i
n
c
h
e
s
)
Components are shown installed on a fully operable machine with the key and engine off, transmission shifter
in neutral and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
SCHEMATIC PART NUMBER: 415-7660, CHANGE: 00, VERSION: CS
THIS SCHEMATIC IS FOR THE 12K, 120K, 140K, AND 160K MOTOR GRADER
ELECTRICAL SYSTEM
MEDIA NUMBER: UENR5014-04
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
ABBREV
RD
WH
OR
YL
PK
BK
GY
PU
BR
GN
BU
COLOR
RED
WHITE
ORANGE
YELLOW
PINK
BLACK
GRAY
PURPLE
BROWN
GREEN
BLUE
SYMBOL DESCRIPTION
BLADE, SPADE, RING OR SCREW
TERMINAL
CIRCUIT CONNECTED
CIRCUIT NOT CONNECTED
ELECTRICAL CONNECTION TO
MACHINE STRUCTURE
INTERNAL ELECTRICAL CONNECTION
TO SURFACE OF COMPONENT
CONNECTOR
ATCH WIRE, CABLE, COMPONENT
SPLICE
CIRCUIT GROUPING DESIGNATIONH#
Do not operate or work on this product unless you have
read and understood the instruction and warnings in the
relevant Operation and Maintenance Manuals and
relevant service literature. Failure to follow the instruc-
tions or heed the warnings could result in injury or
death. Proper care is your responsibility.
WIRE GROUP COLOR DESCRIPTIONS
GROUND CIRCUIT
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF
WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON
VOLTAGE CONVERTER OUTPUT CIRCUIT
STARTING CIRCUIT
START AID CIRCUIT
TRANSMISSION / ENGINE PUMP CONTROL CIRCUIT
ENGINE CONTROL CIRCUIT
HEATER AND AIR CONDITIONER CIRCUIT
TURN SIGNAL / WIPER WASHER CIRCUIT
CAT DATA LINK
CAN DATA LINK
OTHER COLOR DESCRIPTIONS
HIGHWAYS
 186-3223
 7G-1060
(33) STRAP
(107) STRAP AS.
(126) FUEL PRESS SW
(79) FUEL PRES SENSOR
(56) REAR WIPER
(72) RESISTOR 2
(90) XMSN SHIFTER
(53) FRONT UPPER WIPER MOTOR
(58) 12V POWER PORT
(49) FRONT DEFROST FAN
(3) BACKUP ALARM
(94) CENTERSHIFT PIN SOL
(115) CENTERSHIFT INDICATOR SW
(96) PARK BRAKE SOL
(51) FRONT LOWER WIPER
(142) STOP LAMP SWITCH
(134) LH BRAKE SYSTEM PRESS SW
(140) RH BRAKE SYSTEM PRESS SW
(13) 24 TO 12 VOLT CONVERTER
ENTERTAINMENT RADIO
(12) 24 TO 12 VOLT CONVERTER 2
(5) DIFF LOCK ARC SUPPRESSOR
(37) HORN GP
(133) KEY SWITCH
(4) 115A ALTERNATOR
(61) CRANKING RELAY
(65) MAIN RELAY
(118) MASTER DISCON SWITCH
(29) REAR FRAME GROUND BOSS 2
(9) MAIN BREAKER
(22) FRAME GND BOSS
(52) FRONT UPPER WASHER MOTOR
(55) REAR WASHER MOTOR
(50) FRONT LOWER WASHER MOTOR
(100) XMSN SOL 3 (REVERSE)
(98) XMSN SOL 1 (FWD HIGH)
(99) XMSN SOL 2 (FWD LOW)
(105) XMSN SOL 8 (HIGH RANGE)
(101) XMSN SOL 4 (2ND)
(103) XMSN SOL 6 (1ST)
(102) XMSN SOL 5 (3RD)
CONN 5
CONN 1
CONN 2
CONN 3
CONN 4
CONN 10
CONN 51
CONN 31
CONN 11
CONN 12
CONN 13
CONN 18
CONN 32
CONN 33
CONN 35
CONN 36
CONN 37 CONN 38
CONN 39
CONN 14 CONN 19 CONN 20
CONN 23
CONN 22
CONN 21
CONN 6
CONN 7
CONN 15
CONN 16
CONN 17
CONN 8
CONN 9
(85) XMSN INPUT SPEED SENSOR
(86) XMSN INT SPEED SENSOR 1
(88) XMSN TEMP SENSOR
(54) REAR DEFROST FAN
(113) BLOWER SWITCH
(48) BLOWER
(71) RESISTOR
(70) FRT DEFROST RES
(129) HEADLAMP DIMMER SW
(148) TURN SIGNAL SW
(15) FLASHER
(2) ACTION ALARM
(25) FRONT FRAME GND BOSS 2
(75) FUEL LEVEL SENDER
(73) ARTICULATION ANGLE SENDER
(97) START AID SOL
(84) THROTTLE POS SENSOR
(16) LH AIR PRESS GAUGE (17) RH AIR PRESS GAUGE
(20) CAB GND BOSS 2
(30) REAR FRAME GND BOSS 3
(27) PLATFORM GND BOSS 1 (19) CAB GND BOSS 1
(24) FRONT FRAME GND BOSS 1(29) REAR FRAME GND BOSS 1
(31) REAR FRAME GND BOSS 4
(147) XMSN FILTER BYPASS SW
(131) INCHING PEDAL LIMIT SW
(114) BRAKE PEDAL LIMIT SW
(67) TAIL PANEL LAMPS RELAY
(66) START AID RELAY
(26) FRONT FRAME GND BOSS 3
CONN 27
CONN 28
CONN 46
CONN 45
CONN 44
CONN 43
CONN 42
CONN 41
CONN 40CONN 29
CONN 30
CONN 26
CONN 25
CONN 24
(6) 12V BATTERY 1
(26) FRONT FRAME GND BOSS4
(127) GROUND LEVEL SHUTDOWN SW
(63) HORN RELAY
(64) KEY SW ENABLE RELAY
(36) HORN
(45) SERVICE HOUR METER
(18) GAUGE CLUSTER
(7) 12V BATTERY 2
(93) BLADE CUSHION SOL2(92) BLADE CUSHION SOL1
(125) FRONT UPPER WIPER SW
(123) FRONT LOWER WIPER SW
(139) REAR WIPER SWITCH
(122) FRONT LOWER WIPER SWITCH
(124) FRONT UPPER WIPER SWITCH
(47) GUAGE INTERFACE MOD
(68) CAN RESISTOR
(69) CAN RESISTOR 2
(60) BACKUP ALARM RELAY
(1) AIR DRYER
(23) FRAME GND BOSS 2
(106) SPEEDOMETER
(149) TACHOMETER
(137) PARK BRAKE PRESS SW(91) A/C CLUTCH SOL
(109) A/C LOW PRESS SW
(108) A/C HI PRESS SW
(89) TURBO INLET PRESSURE SENSOR
(38) CYLINDER #1 INJECTOR
(39) CYLINDER #2 INJECTOR
(40) CYLINDER #3 INJECTOR
(41) CYLINDER #4 INJECTOR
(42) CYLINDER #5 INJECTOR
(43) CYLINDER #6 INJECTOR
(83) SEC ENGINE SPEED SENSOR
(78) ENGINE SPEED SENSOR
(132) INTAKE MANIFOLD AIR TEMP SW
(76) ATMOSHPERIC PRES SENSOR
(21) RAIL PRES SENSOR
(82) INTAKE MAN AIR PRES SENSOR
(77) ENGINE OIL PRES SENSOR
(119) ENGINE COOLANT TEMP SW
(150) INJECTION ACTUATION VALVE SW
(59) FUEL PRIMING PUMP
(62) FUEL PRIMING PUMP RLY
(10) ENGINE ECM
(34) ENGINE BLOCK (74) COOLANT TEMP SENDER
(11) XMSN ECM
(35) PLATFORM
(44) ARC SUPPRESOR
(95) DIFF LOCK SOLENOID
(46) PULL UP RESISTOR
(87) XMSN INT SPEED SENSOR 2
(14) FLOODLAMPS RELAY
(14) HEADLAMP RELAY
(144) THERMOSTAT SW
(80) INCHING PEDAL POS SENSOR
(120) FLOODLAMP SW
(117) DIFF LOCK SW
(135) LIGHTBAR LAMP SW
(128) HEADLAMP SW
(143) TAIL LAMP SW
(138) REAR DEFROST SW
(121) FRONT DEFROST SW
(141) SNOW WING LAMP SW
(146) THROTTLE SPEED SET SW
(145) THROTTLE HOLD MODE SW
(112) BLADE CUSHION SW
(116) CENTERSHIFT PIN SW
(110) AUTOSHIFT SW
(8) ALTERNATOR BREAKER
(111) RADIO EMBEDDED GATEWAY ECM
(104) XMSN SOL 7 (LOW RANGE)
CONN 50
CONN 48
CONN 49 CONN 54 CONN 55
CONN 53
CONN 53
(32) STRAP
CONN 34
(57) STARTING MOTOR
HARNESS & CABLE CHART K SERIES MOTOR GRADER
ID PART# CHG ATCH LOC NOTE(S) DESCRIPTION
HARNESS AS.
C 256-6804 01 ATCH SH 1 A-5 PRODUCT LINK
CB 373-6939 02 SH 1 J-6 STEERING CONSOLE
E 257-9363 00 ATCH SH 1 A-7 PRODUCT LINK
F 334-0578 00 SH 1 K-15 NOT RM777 REAR FRAME LH
F 336-9085 01 SH 1 K-15 RM777 ONLY REAR FRAME LH
G 421-1522 00 SH 1 H-3 GAUGE CONSOLE
H 417-6161 00 ATCH SH 1 B-16 HVAC
J 167-7505 03 SH 1 C-11 REAR CAB
K 168-8248 05 SH 1 C-7 FRONT CAB
L 382-5906 00 SH 1 C-10 CAB SWITCH PANEL
L 382-5908 00 ATCH SH 1 C-10 CAB SWITCH PANEL
M 336-4099 00 ATCH SH 1 D-6 SNOW WING LAMP
P 373-6941 02 SH 1 G-10 PLATFORM
R 373-6946 02 SH 1 G-13 FUEL TANK
T 379-4984 02 SH 1 C-17 TRANSMISSION SOL
U 388-2518 01 SH 1 F-15 RM777 ONLY TRANSMISSION LH FRAME
U 373-6943 02 SH 1 F-15 NOT RM777 TRANSMISSION LH FRAME
Y 382-5905 00 SH 1 B-14 TRANS SW CONSOLE
W 386-5926 01 SH 1 A-12 SHIFT LEVER CONSOLE
AG 334-7633 01 SH 1 K-18 RADIATOR GRILL
AJ 336-0960 00 ATCH SH 1 E-3 LIGHTBAR WORKLAMPS
AK 336-0961 00 ATCH SH 1 E-2 LIGHTBAR WORKLAMPS
AL 222-5917 06 SH 1 J-16 INJECTORS
AM 336-0959 00 ATCH SH 1 E-4 LIGHTBAR WORKLAMPS
AN 304-5880 02 SH 1 K-14 REAR FLOODLAMPS
AP 169-3264 04 ATCH SH 1 C-4 12V AUX POWER PORT
AT 335-8402 00 ATCH SH 1 H-5 MOLDBOARD LAMPS
AU 300-1377 00 ATCH SH 1 F-13 NOT RM777 AIR DRYER JUMPER
AW 388-2519 01 SH 1 H-12 RM777 ONLY REAR FRAME RH
AW 373-6944 02 SH 1 H-12 NOT RM777REAR FRAME RH
AY 334-6872 01 ATCH SH 1 K-13 EITHER START AID
CA 373-6948 02 ATCH SH 1 F-12 AC COMPRESSOR
EN 381-2499 00 SH 1 F-17 ENGINE CORE
GA 335-8961 00 SH 1 H-1 SPEEDO TACH
UA 334-0577 00 SH 1 H-14 NOT RM777 FUEL PUMP
UA 337-6814 00 SH 1 H-14 RM777 ONLY FUEL PUMP
VX 308-0291 01 SH 1 B-18 TRANS INPUT SPEED
WIRE AS.
KK 169-3145 SH 1 J-8 HORN SW
CABLE AS.
AA 300-6152 02 SH 1 I-13 BATTERY + TO BATTERY -
AA 300-6496 02 ATCH SH 1 I-13 BATTERY + TO BATTERY -
CC 317-3166 SH 1 I-13 NOT RM777 BATTERY + TO STARTER MOTOR
CC 310-7256 SH 1 I-13 RM777 ONLY BATTERY + TO STARTER MOTOR
CC 302-4398 ATCH SH 1 I-13 BATTERY + TO B+ JUNCTION BLOCK
EE 317-3168 SH 1 J-14 NOT RM777 STARTER MTR TO REAR FRAME
EE 310-7252 SH 1 J-14 RM777 ONLY STARTER MTR TO REAR FRAME
FF 318-2063 SH 1 J-13 NOT RM777 BATTERY - TO DISC SW
FF 310-7253 SH 1 J-13 RM777 ONLY BATTERY - TO DISC SW
FF 305-0038 ATCH SH 1 J-13 BATTERY - TO DISC SW
GG 318-2064 SH 1 J-13 DISC SW TO FRAME
HH 317-3164 SH 1 G-13 STARTER RLY TO START MTR
MM380-6215 01 SH 1 I-13 ALTERNATOR TO FRAME
TT 289-9355 SH 1 G-13 ALT BKR TO STARTER RLY
UU 345-0637 SH 1 H-13 STARTER MTR TO MAIN BKR
WW289-9354 SH 1 H-13 MAIN BKR TO MAIN RLY
YY 380-6214 01 SH 1 I-13 ALT BKR TO ALTERNATOR
A507-J10 YL - 16
A507-J2 YL - 16
A5
07
-J
2
YL
-
16
A504-J3 GN- 16
A5
04
-J
3
G
N-
16
603-J4 PK- 16
60
3-
J4
PK
-
16
504-J6 YL - 16
50
4-
J6
YL
-
16
11
9-
J5
PK
-
16
119-J5 PK- 16
503-J7 BR- 16
50
3-
J7
BR
-
16
50
5-
J8
BU
-
16
505-J8 BU- 16
605-AK5 YL - 18
605-AK5 YL - 18
605-AK5 YL - 18
606-AK13 GY- 18
606-AK13 GY- 18
20
0-
AT
6
BK
-1
8
20
0-
AT
4
BK
-1
8
57
0-
AT
5
BU
-1
8
57
0-
AT
1
BU
-
16
57
0-
AT
3
BU
-1
8
20
2-
W
3
BK
-1
6
202-W3 BK-16
202-W3 BK-16
E9
47
-W
7
W
H
-1
8
E947-W7 WH-18
E947-W7 WH-18
E9
48
-W
8
BU
-1
8
E948-W8 BU-18
E948-W8 BU-18
E9
49
-W
9
YL
-1
8
E949-W9 YL-18
E949-W9 YL-18
E9
46
-W
19
O
R
-1
8
E946-W19 OR-18
E946-W19 OR-18
E945-W18 PU-18
E945-W18 PU-18
E9
45
-W
18
PU
-1
8
E9
44
-W
17
G
Y-
18
E944-W17 GY-18
E944-W17 GY-18
E943-W16 BR-18
E943-W16 BR-18
E9
43
-W
16
BR
-1
8
E9
42
-W
15
G
N
-1
8
E942-W15 GN-18
E942-W15 GN-18
E941-W14 YL-18
E941-W14 YL-18
E9
41
-W
14
YL
-1
8
E9
40
-W
13
BU
-1
8
E940-W13 BU-18
E940-W13 BU-18
E939-W12 WH-18
E939-W12 WH-18
E9
39
-W
12
W
H
-1
8
E9
38
-W
11
O
R
-1
8
E938-W11 OR-18
E938-W11 OR-18
E937-W10 PU-18
E937-W10 PU-18 E9
37
-W
10
PU
-1
8
511-K43 BR- 18
511-K43 BR- 18
511-K43 BR- 18
511-K43 BR- 18
512-K42 GN- 18
512-K42 GN- 18
512-K42 GN- 18
512-K42 GN- 18
508-K48 PU- 18
508-K48 PU- 18
508-K48 PU- 18
508-K48 PU- 18
509-K49 WH- 18
509-K49 WH- 18
509-K49 WH- 18
509-K49 WH- 18
507-K7 WH- 16
507-K7 WH- 16
50
7-
K7
W
H-
16
50
7-
K7
W
H-
16
578-K6 BU- 16
578-K6 BU- 16
57
8-
K6
BU
-
16
57
8-
K6
BU
-
16
50
6-
K5
PU
-
16
50
6-
K5
PU
-
16
506-K5 PU- 16
506-K5 PU- 16
577-K9 PU- 16
577-K9 PU- 16
57
7-
K9
PU
-
16
57
7-
K9
PU
-
16
57
5-
K8
YL
-
16
57
5-
K8
YL
-
16
575-K8 YL - 16
575-K8 YL - 16
576-K10 PK- 16
576-K10 PK- 16
57
6-
K1
0
PK
-
16
57
6-
K1
0
PK
-
16
501-K24 GN- 16
501-K24 GN- 16
50
1-
K2
4
G
N-
16
50
1-
K2
4
G
N-
16
50
0-
K2
5
BR
-
16
50
0-
K2
5
BR
-
16
500-K25 BR- 16
500-K25 BR- 16
502-K26 OR- 16
502-K26 OR- 16
50
2-
K2
6
O
R-
16
50
2-
K2
6
O
R-
16
A503-K21 PK- 16
A503-K21 PK- 16A503-K21 PK- 16
A5
03
-K
21
PK
-
16
A5
03
-K
21
PK
-
16
A5
06
-K
22
O
R-
16
A5
06
-K
22
O
R-
16
A506-K22 OR- 16
A513-K3 PK- 18
A513-K3 PK- 18
A513-K3 PK- 18
A513-K3 PK- 18
A513-K3 PK- 18
119-K1 PK- 16
119-K1 PK- 16
119-K1 PK- 16
11
9-
K1
PK
-
16
11
9-
K1
PK
-
16
14
1-
K1
2
PK
-
16
14
1-
K1
2
PK
-
16
141-K12 PK- 16
141-K12 PK- 16
141-K12 PK- 16
15
1-
K2
0
G
N-
16
15
1-
K2
0
G
N-
16
151-K20 GN- 16
151-K20 GN- 16
151-K20 GN- 16
11
8-
K2
3
G
Y-
16
118-K23 GY- 16
118-K55 GY- 16
118-K55 GY- 16
118-K56 GY- 16
118-K58 GY- 16
118-K58 GY- 16
118-K58 GY- 16
108-K61 RD- 16
144-K62 GN- 16
144-K62 GN- 16
14
4-
K6
2
G
N-
16
14
4-
K6
2
G
N-
16
502-K26 OR- 16
500-K25 BR- 16
501-K24 GN- 16
151-K20 GN- 16
141-K12 PK- 16
119-K1 PK- 16
118-K56 GY- 16
118-K55 GY- 16
A506-K22 OR- 16
A503-K21 PK- 16
A513-K3 PK- 18
11
8-
K2
3
G
Y-
16
118-K23 GY- 16
118-K58 GY- 16
108-K61 RD- 16
A506-K50 OR- 16
A506-K50 OR- 16
A506-K22 OR- 16
A506-K22 OR- 16
11
7-
K1
4
YL
-
14
11
7-
K1
4
YL
-
14
117-K14 YL - 14
117-K14 YL - 14
117-K14 YL - 14
117-K14 YL - 14
32
1-
K1
5
BR
-
18
32
1-
K1
5
BR
-
18
321-K15 BR- 18
321-K15 BR- 18
612-K17 GY- 14
612-K17 GY- 14
61
2-
K1
7
G
Y-
14
61
2-
K1
7
G
Y-
14
14
8-
K1
8
W
H-
16
14
8-
K1
8
W
H-
16
148-K18 WH- 16
148-K18 WH- 16
148-K18 WH- 16
148-K18 WH- 16
SNOW WING LAMP
60
9-
M
1
YL
-
16
609-M1 YL - 16
200-M2 BK- 16
20
0-
M
2
BK
-
16
611-AK1 PU- 14
611-AK1 PU- 14
611-AK1 PU- 14
611-AK2 PU- 14
611-AK2 PU- 14611-AK2 PU- 14
619-AK3 GN- 14 619-AK3 GN- 14
619-AK3 GN- 14
619-AK4 GN- 14
619-AK4 GN- 14
619-AK4 GN- 14
619-K28 GN- 14
619-K28 GN- 14619-K28 GN- 14
619-K29 GN- 14
619-K29 GN- 14
619-K29 GN- 14
611-K27 PU- 14
611-K27 PU- 14
611-K27 PU- 14
611-K30 PU- 14
611-K30 PU- 14
611-K30 PU- 14
12
6-
W
20
PK
-1
6
126-W20 PK-16
126-W20 PK-16
605-K31 YL - 18
605-K31 YL - 18
605-K31 YL - 18
605-K31 YL - 18
605-K31 YL - 18
605-K31 YL - 18
606-K32 GY- 18
606-K32 GY- 18
606-K32 GY- 18
606-K32 GY- 18
606-K32 GY- 18
606-K32 GY- 18
113-W2 OR-16
113-W2 OR-16
113-W2 OR-16
C975-W24 WH-18
C975-W24 WH-18
C975-W24 WH-18
A983-W25 BU-18
A983-W25 BU-18
A983-W25 BU-18
C979-W26 OR-18
C979-W26 OR-18
C979-W26 OR-18
C978-W28 BR-18
C978-W28 BR-18
C978-W28 BR-18
502-K26 OR- 16
500-K25 BR- 16
118-K56 GY- 16
501-K24 GN- 16
308-K34 YL - 16
308-K34 YL - 16
308-K34 YL - 16
308-K34 YL - 16
308-K34 YL - 16
308-K34 YL - 16
20
5-
K2
BK
-
18
20
5-
K2
BK
-
18
205-K2 BK- 18
205-K2 BK- 18
601-K33 GY- 18
601-K33 GY- 18
60
1-
K3
3
G
Y-
18
60
1-
K3
3
G
Y-
18
176-K67 RD- 14
176-K67 RD- 14
176-K67 RD- 14
176-K67 RD- 14
176-K67 RD- 14
176-K67 RD- 14
135-K35 BU- 16
135-K35 BU- 16
135-K35 BU- 16
135-K35 BU- 16
135-K35 BU- 16
135-K35 BU- 16
592-K37 BU- 18
592-K37 BU- 18
592-K37 BU- 18
592-K37 BU- 18
592-K37 BU- 18
592-K37 BU- 18
210-K36 BK- 18
210-K36 BK- 18
210-K36 BK- 18
210-K36 BK- 18
210-K36 BK- 18
210-K36 BK- 18 112-K40 PU- 6
112-K40 PU- 6
112-K40 PU- 6
112-K40 PU- 6
112-K40 PU- 6
112-K40 PU- 6
201-W1 BK-18
201-W1 BK-18
201-W1 BK-18
200-AK8 BK- 14
200-AK8 BK- 14
200-AK7 BK- 14
200-AK7 BK- 14
200-AK6 BK- 18
200-AK6 BK- 18
200-AK9 BK- 18
200-AK9 BK- 18
200-AK10 BK- 14
200-AK10 BK- 14
200-AK11 BK- 14
200-AK11 BK- 14
200-AK12 BK- 14
200-AK12 BK- 14
119-J5 PK- 16
504-J6 YL - 16
505-J8 BU- 16
A507-J2 YL - 16
503-J7 BR- 16
A504-J3 GN- 16
603-J4 PK- 16
200-J12 BK- 16
200-J12 BK- 16
200-J11 BK- 16
200-J11 BK- 16
200-J1 BK- 16
200-J1 BK- 16 200-J9 BK- 16
20
0-
J9
BK
-
16
20
0-
K5
4
BK
-
14
20
0-
K5
4
BK
-
14
200-K54 BK- 14
20
0-
K5
4
BK
-
14
200-K52 BK- 16
200-K52 BK- 16
200-K52 BK- 16
200-K52 BK- 16
200-K52 BK- 16
20
0-
K5
2
BK
-
16
200-K53 BK- 16
200-K53 BK- 16
200-K53 BK- 16
200-K4 BK- 14
200-K4 BK- 14
200-K4 BK- 14
200-K13 BK- 14
200-K13 BK- 14
200-K13 BK- 14
200-K19 BK- 14
200-K19 BK- 14
200-K19 BK- 14
200-K16 BK- 14
200-K16 BK- 14
200-K16 BK- 14
200-K41 BK- 18
200-K41 BK- 18
200-K41 BK- 18
200-K44 BK- 18
200-K44 BK- 18
200-K44 BK- 18
200-K39 BK- 16
200-K39 BK- 16
200-K39 BK- 16
200-K45 BK- 16
200-K45 BK- 16
200-K45 BK- 16200-K51 BK- 16
200-K51 BK- 16
200-K51 BK- 16
20
0-
K5
1
BK
-
16
200-K46 BK- 14
200-K46 BK- 14
200-K46 BK- 14
20
0-
K4
7
BK
-
14
200-K47 BK- 14
200-K47 BK- 14
200-K47 BK- 14
611-K57 PU- 14
611-K57 PU- 14
611-K57 PU- 14
611-K57 PU- 14
619-K59 GN- 14
619-K59 GN- 14
619-K59 GN- 14
619-K59 GN- 14
A755-W35 PK-18
A755-W35 PK-18
A755-W35 PK-18
606-AK13 GY- 18
160-K11PU- 16
160-K11 PU- 16
160-K11 PU- 16
160-K11 PU- 16
16
0-
K1
1
PU
-
16
16
0-
K1
1
PU
-
16
16
2-
K6
4
YL
-
14
16
2-
K6
4
YL
-
14
162-K64 YL - 14
162-K64 YL - 14
162-K64 YL - 14
162-K64 YL - 14
C542-K68 GN- 16
C542-K68 GN- 16
C542-K66 GN- 16
C542-K66 GN- 16
633-K63 BU- 14
63
3-
K6
3
BU
-
14
63
3-
K6
3
BU
-
14
C
54
2-
K6
0
G
N-
16
C
54
2-
K6
0
G
N-
16
C542-K60 GN- 16
C542-K60 GN- 16
200-K65 BK- 16
200-K65 BK- 16
200-K65 BK- 16
20
0-
K6
5
BK
-
16
200-K69 BK- 16
200-K69 BK- 16 200-K71 BK- 16
200-K71 BK- 16
200-K70 BK- 16
200-K70 BK- 16
200-K70 BK- 16
108-K61 RD- 16
108-K61 RD- 16
108-K61 RD- 16
108-K61 RD- 16
20
0-
AT
2
BK
-
14
20
0-
AT
8
BK
-1
4
20
0-
AT
10
BK
-1
4
63
3-
AT
11
BU
-
14
63
3-
AT
7
BU
-1
4
63
3-
AT
9
BU
-1
4
C542-K66 GN- 16
C542-K68 GN- 16
200-K70 BK- 16
200-K71 BK- 16
200-K71 BK- 16
C542-K66 GN- 16
C542-K68 GN- 16
633-K63 BU- 14
T914-W37 OR-18
T914-W37 OR-18
T914-W37 OR-18
200-AM1 BK- 14
605-AM2 YL - 18
606-AM3 GY- 18
629-AM4 PK- 14
611-AM5 PU- 14
611-AM7 PU- 14
619-AM9 GN- 14
619-AM11 GN- 14
200-AM1 BK- 14
605-AM2 YL - 18
606-AM3 GY- 18
629-AM4 PK- 14
611-AM5 PU- 14
611-AM7 PU- 14
619-AM9 GN- 14
619-AM11 GN- 14
H22
H21
H1
H
4
H3
H1
H3
H1
H4
H3
H4
H7
H6
H7
H6
T914-W37 OR-18
C979-W26 OR-18
A755-W35 PK-18
C978-W28 BR-18
C975-W24 WH-18
A983-W25 BU-18
202-W3 BK-16
201-W1 BK-18
126-W20 PK-16
113-W2 OR-16
E949-W9 YL-18
E948-W8 BU-18
E947-W7 WH-18
E946-W19 OR-18
E945-W18 PU-18
E944-W17 GY-18
E943-W16 BR-18
E942-W15 GN-18
E941-W14 YL-18
E940-W13 BU-18
E939-W12 WH-18
E938-W11 OR-18
E937-W10 PU-18
892-W5 BR-18
892-W5 BR-18
892-W5 BR-18
893-W6 GN-18
893-W6 GN-18
893-W6 GN-18
892-W39 BR-18
892-W39 BR-18
893-W40 GN-18
893-W40 GN-18
892-W38 BR-18
892-W38 BR-18
893-W41 GN-18
893-W41 GN-18
308-W44 YL-16
308-W44 YL-16
ACCUGRADE
570-Y19 BU-16
57
0-
Y1
9
BU
-1
6
57
0-
Y1
9
BU
-1
6
F7
75
-Y
17
BU
-1
8
F7
75
-Y
17
BU
-1
8
F775-Y17 BU-18
41
0-
Y2
8
W
H
-1
8
601-AG7 GY- 18
601-AG8 GY- 18
135-AP1 BU-16
200-AP2 BK-16
30
8-
Y5
2
YL
-1
6
308-Y52 YL-16
55
6-
F1
W
H-
18
556-F1 WH- 18
556-F2 WH- 18
55
6-
F2
W
H-
18
556-F3 WH- 18
55
6-
F3
W
H-
18
556-F3 WH- 18
556-CB1 WH- 18
556-CB1 WH- 18
556-CB1 WH- 18
165-CB13 YL - 18
165-CB13 YL - 18
498-CB4 WH- 18
498-CB4 WH- 18
498-CB4 WH- 18
129-CB5 RD- 18
129-CB5 RD- 18
CIGAR LIGHTER
DIFF LOCK
114-CB6 RD- 18
114-CB6 RD- 18
HORN
A305-CB7 YL - 16
A305-CB7 YL - 16
A305-CB7 YL - 16
390-Y9 YL-16
390-Y9 YL-16
01Y-501
R
D
-1
8
10
5-
Y1
0
R
D
-18
105-Y10 RD-18
498-G1 WH- 18
49
8-
G
1
W
H-
18
308-R2 YL - 16
308-R2 YL - 16
109-TT1 RD-8
306-R6 GN- 16
306-R6 GN- 16
105-CB16 RD- 18
105-CB16 RD- 18
KEY SWITCH
106-AA1 RD-00
20
6-
FF
1
BK
-0
0
200-GG1 BK-00
10
1-
C
C
1
R
D
-0
0
177-WW1 RD-4
177-WW1 RD-4
109-TT1 RD-8
101-UU1 RD-4
10
1-
U
U
1
R
D
-4
921-T2 WH-16
921-T2 WH- 16
921-T4 WH-16
921-T4 WH- 16
921-T6 WH-16 921-T6 WH- 16
921-T8 WH-16
921-T8 WH- 16
921-T29 WH- 16
921-T29 WH-16
922-T10 BR-16
922-T10 BR- 16
922-T12 BR-16
922-T12 BR- 16
922-T14 BR-16
922-T14 BR- 16
922-T16 BR-16
922-T16 BR- 16
922-T28 BR- 16
922-T28 BR-16
751-T1 GN-16
751-T1 GN-16
751-T1 GN-16
752-T3 YL-16
752-T3 YL-16
752-T3 YL-16
754-T5 BU-16 754-T5 BU-16
754-T5 BU-16
755-T7 OR-16
755-T7 OR-16
755-T7 OR-16
900-T9 PU-16
900-T9 PU-16
900-T9 PU-16
901-T11 WH-16
901-T11 WH-16
901-T11 WH-16
902-T13 BR-16
902-T13 BR-16
902-T13 BR-16
903-T15 GY-16
903-T15 GY-16
903-T15 GY-16
903-U10 GY-16
903-U10 GY-16
903-U10 GY-16
902-U9 BR-16
902-U9 BR-16
902-U9 BR-16
901-U8 WH-16
901-U8 WH-16
901-U8 WH-16
900-U7 PU-16
900-U7 PU-16
900-U7 PU-16
751-U1 GN-16
751-U1 GN-16
751-U1 GN-16
752-U2 YL-16
752-U2 YL-16
752-U2 YL-16
754-U5 BU-16
754-U5 BU-16
754-U5 BU-16
755-U6 OR-16
755-U6 OR-16
755-U6 OR-16
922-U4 BR-16
922-U4 BR-16
E908-T18 BR-18
E902-T20 PU-18
E909-T17 WH-18
E903-T19 YL-18
E902-U13 PU-18
E902-U13 PU-18
E902-U13 PU-18
E909-U20 WH-18
E909-U20 WH-18
E909-U20 WH-18
E908-U21 BR-18
E908-U21 BR-18
E908-U21 BR-18
E903-U14 YL-18
E903-U14 YL-18
E903-U14 YL-18
J765-U29 BU-18
J765-U29 BU-18
J764-U27 BR-18
J764-U27 BR-18
180-U30 RD-14
180-U30 RD-14
180-U31 RD-14
180-U31 RD-14
922-U4 BR-16
902-U9 BR-16
903-U10 GY-16
901-U8 WH-16
900-U7 PU-16
755-U6 OR-16
754-U5 BU-16
751-U1 GN-16
752-U2 YL-16
E902-U13 PU-18
E903-U14 YL-18
E908-U21 BR-18
E909-U20 WH-18
E937-U33 PU-18
E937-U33 PU-18
E937-U33 PU-18
E937-U33 PU-18
E938-U34 OR-18
E938-U34 OR-18
E938-U34 OR-18
E938-U34 OR-18
E939-U35 WH-18
E939-U35 WH-18
E939-U35 WH-18
E939-U35 WH-18
E940-U36 BU-18
E940-U36 BU-18
E940-U36 BU-18
E940-U36 BU-18
E941-U37 YL-18
E941-U37 YL-18
E941-U37 YL-18
E941-U37 YL-18
E942-U38 GN-18
E942-U38 GN-18
E942-U38 GN-18
E942-U38 GN-18
E943-U39 BR-18
E943-U39 BR-18
E943-U39 BR-18
E943-U39 BR-18
E944-U40 GY-18
E944-U40 GY-18
E944-U40 GY-18
E944-U40 GY-18
E945-U41 PU-18
E945-U41 PU-18
E945-U41 PU-18
E945-U41 PU-18
E946-U42 OR-18
E946-U42 OR-18
E946-U42 OR-18
E946-U42 OR-18
E947-U43 WH-18
E947-U43 WH-18
E947-U43 WH-18
E947-U43 WH-18
E948-U44 BU-18
E948-U44 BU-18
E948-U44 BU-18
E948-U44 BU-18
E949-U45 YL-18
E949-U45 YL-18
E949-U45 YL-18
E949-U45 YL-18
41
0-
Y2
8
W
H
-1
8
126-U47 PK-14
126-U47 PK-14
126-U47 PK-14
126-CB20 PK- 14
126-CB20 PK- 14
126-CB20 PK- 14
J765-U53 BU-18
J765-U53 BU-18
J765-U53 BU-18
F843-U54 YL-18
F843-U54 YL-18
F843-U54 YL-18
F843-U54 YL-18
307-U57 OR-16
307-U57 OR-16
307-U57 OR-16
601-AG7 GY- 18
HVAC
522-Y25 WH-16
52
2-
Y2
5
W
H
-1
6
52
2-
Y2
5
W
H
-1
6
521-Y26 YL-16
52
1-
Y2
6
YL
-1
6
52
1-
Y2
6
YL
-1
6
893-U58 GN-18
893-U58 GN-18
892-U59 BR-18
892-U59 BR-18
126-U47 PK-14
307-U57 OR-16
J765-U53 BU-18
F843-U54 YL-18
893-U67 GN-18
893-U67 GN-18
893-U67 GN-18
893-U67 GN-18
893-U67 GN-18
892-U68 BR-18
892-U68 BR-18
892-U68 BR-18
892-U68 BR-18
892-U68 BR-18
893-U74 GN-18
893-U74 GN-18
893-U74 GN-18
893-U74 GN-18
893-U72 GN-18
893-U72 GN-18
893-U72 GN-18
892-U71 BR-18
892-U71 BR-18
892-U71 BR-18
10
5-
Y1
0
R
D
-1
8
30
8-
Y5
2
YL
-1
6
52
1-
Y2
6
YL
-1
6
52
2-
Y2
5
W
H
-1
6
F7
75
-Y
17
BU
-1
8
57
0-
Y1
9
BU
-1
6
892-U73 BR-18
892-U73 BR-18
892-U73 BR-18
892-U73 BR-18
202-U77 BK-16
202-U77 BK-16
202-U77 BK-16
202-U77 BK-16
202-U76 BK-16
202-U76 BK-16
202-U76 BK-16
20
2-
U
76
BK
-1
6
202-U75 BK-16
202-U75 BK-16
202-U75 BK-16
122-CB12 BU- 16
122-CB12 BU- 16
122-CB12 BU- 16
AIR DRYER
308-AW1 YL - 16
403-AW11 GN- 18
112-AW8 PU- 6
177-AW3 RD- 6
G798-CB22 PU- 14
G798-CB22 PU- 14
G798-CB22 PU- 14 GXL
116-CB25 BR- 18
116-CB25 BR- 18
608-CB26 GN- 18
608-CB26 GN- 18
608-CB26 GN- 18
608-F7 GN- 18
60
8-
F7
G
N-
18
608-F7 GN- 18
200-AN4 BK- 14
200-AN5 BK- 14
200-AN6 BK- 14
608-AN1 GN- 14
608-AN2 GN- 14
608-AN3 GN- 14
124-Y1 GN-14
12
4-
Y1
G
N
-1
4
12
4-
Y1
G
N
-1
4
12
4-
Y1
G
N
-1
4
124-CB27 GN- 14
124-CB27 GN- 14
124-CB27 GN- 14
HVAC
604-F10 OR- 18
604-F10 OR- 18
01F-406
O
R-
18
604-F10 OR- 18
604-F11 OR- 18
60
4-
F1
1
O
R-
18
604-F11 OR- 18
604-F11 OR- 18
604-AG3 OR- 18
611-G10 PU- 18
61
1-
G
10
PU
-
18
130-CB8 RD- 18
130-CB8 RD- 18
STOP LAMP SW
122-CB12 BU- 16
129-CB5 RD- 18
114-CB6 RD- 18
105-CB16 RD- 18
556-CB1 WH- 18
498-CB4 WH- 18
124-CB27 GN- 14
126-CB20 PK- 14
608-CB26 GN- 18
130-CB8 RD- 18
601-CB28 GY- 18
601-CB28 GY- 18
601-CB28 GY- 18
601-CB28 GY- 18
103-CB34 RD- 18
103-CB34 RD- 18
103-CB34 RD- 18
103-CB34 RD- 18
619-CB37 GN- 16
619-CB37 GN- 16
619-CB37 GN- 16
619-CB37 GN- 16
619-CB38 GN- 16
619-CB38 GN- 16
611-CB39 PU- 16
611-CB39 PU- 16
611-CB39 PU- 16
611-CB39 PU- 16
611-CB39 PU- 16
103-CB42 RD- 18
103-CB42 RD- 18
103-CB42 RD- 18
TAIL LAMPS/
PANEL LAMPS
601-F12 GY- 18
601-F12 GY- 18
60
1-
F1
2
G
Y-
18
601-F12 GY- 18
601-CB44 GY- 18
601-CB44 GY- 18
608-CB26 GN- 18
G798-CB22PU- 14
116-CB25 BR- 18
498-CB4 WH- 18
165-CB13 YL - 18
556-CB1 WH- 18
126-U79 PK-16
126-U79 PK-16
606-G11 GY- 18
60
6-
G
11
G
Y-
18
60
5-
G
12
YL
-
18
605-G12 YL - 18
606-AG6 GY- 18
606-AG6 GY- 18
606-F14 GY- 18
606-F14 GY- 18
60
6-
F1
4
G
Y-
18
606-F14 GY- 18
605-F13 YL - 18
60
5-
F1
3
YL
-
18605-F13 YL - 18
605-F13 YL - 18
606-CB45 GY- 18
606-CB45 GY- 18
606-CB45 GY- 18
606-CB45 GY- 18
605-CB46 YL - 18
605-CB46 YL - 18
605-CB46 YL - 18
605-CB46 YL - 18
605-CB46 YL - 18
606-CB45 GY- 18
A305-CB7 YL - 16
130-CB8 RD- 18
129-CB5 RD- 18
105-CB16 RD- 18
G798-CB48 PU- 18
G798-CB48 PU- 18
G798-CB48 PU- 18
G798-CB48 PU- 18
537-CB50 GN- 18 173-CB49 RD- 18
173-CB49 RD- 18
173-CB49 RD- 18
103-CB51 RD- 18
103-CB51 RD- 18
103-CB51 RD- 18
103-CB51 RD- 18
601-CB52 GY- 18
601-CB52 GY- 18
601-CB52 GY- 18
601-CB52 GY- 18
126-U79 PK-16
202-U75 BK-16
J811-R10 BK- 16
J811-R10 BK- 16
498-G1 WH- 18
611-G10 PU- 18
606-G11 GY- 18
605-G12 YL - 18
113-G17 OR- 18
113-G17 OR- 18
201-G18 BK- 18
201-G18 BK- 18
20
1-
G
35
BK
-
16
201-G35 BK- 16
113-U46 OR-16
113-U46 OR-16
113-U46 OR-16
113-U46 OR-16
113-U46 OR-16
113-CB53 OR- 16
113-CB53 OR- 16
113-CB53 OR- 16
MONITOR
201-U81 BK-18
201-U81 BK-18
201-U81 BK-18
201-U81 BK-18
A429-G45 YL - 18
A429-G45 YL - 18
A4
29
-G
45
YL
-
18
41
9-
G
46
YL
-
18
419-G46 YL - 18
419-G46 YL - 18
447-G44 PK- 18
447-G44 PK- 18
44
7-
G
44
PK
-
18
E4
58
-G
47
YL
-
18
E458-G47 YL - 18
E458-G47 YL - 18
J8
47
-G
49
G
N-
18
J847-G49 GN- 18
169-CB54 PK- 18
169-CB54 PK- 18
169-CB54 PK- 18
169-CB54 PK- 18
BLADE CUSHION /
CENTERSHIFT PIN
127-CB55 OR- 16
127-CB55 OR- 16
127-CB55 OR- 16
127-CB55 OR- 16
PARK BRAKE
439-G60 YL - 18
439-G60 YL - 18
43
9-
G
60
YL
-
18
STEERING CONSOLE
STEERING CONSOLE
GAGE CONSOLE
LAMP CLUSTER
RIGHT CAB HEADLINER
SHIFT CONSOLE
SHIFT CONSOLE
C979-U87 OR-18
C979-U87 OR-18
C979-U87 OR-18
C979-U87 OR-18
C979-U87 OR-18
C979-U87 OR-18
G946-G51 OR- 18
G946-G51 OR- 18
G
94
6-
G
51
O
R-
18
G946-U89 OR-18
G946-U89 OR-18
G946-U89 OR-18
308-U91 YL-16
308-U91 YL-16
308-U91 YL-16
307-AY1 OR- 16
307-AY1 OR- 16
432-U101 PK-18
432-U101 PK-18
432-U101 PK-18
C912-U102 GN-18
C912-U102 GN-18
C912-U102 GN-18
R800-U104 OR-18
R800-U104 OR-18
R800-U104 OR-18
R998-U103 BR-18
R998-U103 BR-18
R998-U103 BR-18
C
43
6-G
55
BU
-
18
C436-G55 BU- 18
C436-G55 BU- 18
C436-U106 BU-18
C436-U106 BU-18
C436-U106 BU-18
C436-U106 BU-18
C436-U106 BU-18
601-CB60 GY- 18
601-CB60 GY- 18
601-CB60 GY- 18
601-CB60 GY- 18
601-CB67 GY- 18
601-CB67 GY- 18
601-CB67 GY- 18
601-CB67 GY- 18
601-CB71 GY- 18
601-CB71 GY- 18
601-CB71 GY- 18
601-CB71 GY- 18
205-CB70 BK- 18
205-CB70 BK- 18
205-CB70 BK- 18
205-CB70 BK- 18
205-CB72 BK- 18
205-CB72 BK- 18
205-CB72 BK- 18
205-CB72 BK- 18
205-CB63 BK- 18
205-CB63 BK- 18
205-CB63 BK- 18
205-CB63 BK- 18
205-Y22 BK-18
20
5-
Y2
2
BK
-1
8
20
5-
Y2
2
BK
-18
81Y-502
BK
-1
8
20
5-
Y1
8
BK
-1
8
205-Y18 BK-18
601-Y15 GY-18
60
1-
Y1
5
G
Y-
18
60
1-
Y1
5
G
Y-
18
601-Y21 GY-18
60
1-
Y2
1
G
Y-
18
60
1-
Y2
1
G
Y-
18
601-Y41 GY-18
60
1-
Y4
1
G
Y-
18
60
1-
Y4
1
G
Y-
18
20
5-
Y4
2
BK
-1
8
20
5-
Y4
2
BK
-1
8
205-Y42 BK-18
205-U109 BK-18
205-U109 BK-18
205-U109 BK-18
205-U109 BK-18
205-U109 BK-18
601-U110 GY-18
601-U110 GY-18
601-U110 GY-18
601-U110 GY-18
601-U110 GY-18
60
1-
Y4
4
G
Y-
18
60
1-
Y4
4
G
Y-
18
20
5-
Y3
4
BK
-1
8
20
5-
Y3
4
BK
-1
8
205-G65 BK- 18
20
5-
G
65
BK
-
18
601-G66 GY- 18
60
1-
G
66
G
Y-
18
601-G67 GY- 18
601-G67 GY- 18
601-G69 GY- 18
601-G69 GY- 18
205-G68 BK- 18
205-G68 BK- 18
205-G70 BK- 18
205-G70 BK- 18
205-CB75 BK- 18
205-CB75 BK- 18
601-CB76 GY- 18
601-CB76 GY- 18
ENTERTAINMENT
 RADIO
TURN SIGNALS/
 HAZARDS
147-CB78 RD- 16
147-CB78 RD- 16
147-CB78 RD- 16
147-CB78 RD- 16
AUX PWR PORT
179-CB80 RD- 18
179-CB80 RD- 18
179-CB80 RD- 18
179-CB80 RD- 18
XMSN CONTROL
REAR FLOOD
BLADE FLOOD
177-CB82 RD- 6
177-CB82 RD- 6
177-CB82 RD- 6
177-CB82 RD- 6
112-CB83 PU- 6
112-CB83 PU- 6
112-CB83 PU- 6 112-CB83 PU- 6
200-AG11 BK- 18
200-AG11 BK- 18
200-AG12 BK- 18
200-AG12 BK- 18
200-AG9 BK- 18
200-AG9 BK- 18
200-AG10 BK- 18
200-AG10 BK- 18
601-AG8 GY- 18
200-F20 BK- 16
20
0-
F2
0
BK
-
16
20
0-
F1
9
BK
-
16
200-F19 BK- 16
200-F16 BK- 16
20
0-
F2
1
BK
-
18
200-F21 BK- 18
200-F21 BK- 18
200-G74 BK- 18
200-G74 BK- 18
200-G75 BK- 18200-G75 BK- 18
200-G76 BK- 18
200-G76 BK- 18
200-G73 BK- 18
200-G73 BK- 18
200-G72 BK- 18
200-G72 BK- 18
200-G71 BK- 18
20
0-
G
71
BK
-
18
74Y-002
BK
-1
4
74Y-002
BK
-1
4
200-R1 BK- 16
200-R1 BK- 16
200-Y51 BK-14
20
0-
Y5
1
BK
-1
4
20
0-
Y5
1
BK
-1
4
20
0-
Y5
1
BK
-1
4
165-CB13 YL - 18
169-CB54 PK- 18
130-CB8 RD- 18
129-CB5 RD- 18
114-CB6 RD- 18
105-CB16 RD- 18
103-CB42 RD- 18
E974-U82 GN-18
E974-U82 GN-18
E974-U82 GN-18
E974-U82 GN-18
E974-U82 GN-18
20
0-
F1
6
BK
-
16
20
0-
F2
1
BK
-
18
20
0-
F1
6
BK
-
16
200-F18 BK- 14
F762-AY2 GY- 18
200-AY6 BK- 16
200-R11 BK- 16
200-R11 BK- 16
F762-R4 GY- 18
20
0-
F1
6
BK
-
16
20
0-
F1
8
BK
-
14
20
0-
F2
1
BK
-
18 200-R11 BK- 16
20
0-
EE
1
BK
-0
0
308-AW1 YL - 16
177-AW3 RD- 6
112-AW8 PU- 6
200-AW2 BK- 16
403-AW11 GN- 18
308-AW1 YL - 16
177-AW3 RD- 6
112-AW8 PU- 6
200-AW2 BK- 16
403-AW11 GN- 18
200-MM1 BK-4
200-MM1 BK-4
304-HH1 WH-8
30
4-
H
H
1
W
H
-8
109-YY1 RD-4
109-YY1 RD-4
4 AWG
(LEFT REAR CAB) (LOWER LEFT REAR)
1S-2342
4 AWG
(LH SIDE)
E907-T23 GY-18
E906-T24 OR-18
G946-U89 OR-18
C979-U87 OR-18
893-U67 GN-18
892-U68 BR-18
R998-U103 BR-18
R800-U104 OR-18
432-U101 PK-18
C912-U102 GN-18
F762-R4 GY- 18
A287-U111 BK-14
A287-U111 BK-14
20
2-
U
77
BK
-1
6
202-U76 BK-16
20
2-
U
75
BK
-1
6
202-U75 BK-16
202-U77 BK-16
202-U76 BK-16
306-U56 GN-16
306-U56 GN-16
306-U56 GN-16
306-U56 GN-16
306-U56 GN-16
306-U56 GN-16
426-U12 BR-18
426-U12 BR-18
426-U12 BR-18
426-U12 BR-18
426-U12 BR-18
426-U12 BR-18
J764-U11 BR-18
J764-U11 BR-18
J764-U11 BR-18
J764-U11 BR-18
J764-U11 BR-18
E906-U70 OR-18
E906-U70 OR-18
E906-U70 OR-18
E906-U70 OR-18
E907-U119 GY-18
E907-U119 GY-18
E907-U119 GY-18
E907-U119 GY-18
20
0-
F1
8
BK
-
14
144-CB90 GN- 16
144-CB90 GN- 16
144-CB90 GN- 16
144-CB90 GN- 16
BEACON
201-AW5 BK- 18
201-AW5 BK- 18
A429-AW4 YL - 18
A429-AW4 YL - 18
447-U115 PK-18
447-U115 PK-18
447-U115 PK-18
201-U84 BK-18
201-U84 BK-18
201-U83 BK-18
E974-CB91 GN- 18
J765-CB92 BU- 18
E974-CB91 GN- 18
J765-CB92 BU- 18
432-CB95 PK- 18
432-CB95 PK- 18
A287-CB93 BK- 18
A287-CB93 BK- 18
C977-CB96 BU- 18
C977-CB96 BU- 18
C977-U69 BU-18
C977-U69 BU-18
C977-U69 BU-18
C977-U69 BU-18
C977-U69 BU-18
322-KK1 GY-16
J847-G49 GN- 18
XCXC
XF XF
601-Y4 GY-18
60
1-
Y4
G
Y-
18
60
1-
Y4
G
Y-
18
108-CB56 RD- 18
108-CB56 RD- 18
108-CB56 RD- 18
108-CB56 RD- 18
108-CB56 RD- 18
DOME LAMP
507-P32 WH- 16
50
7-
P3
2
W
H-
16
50
7-
P3
2
W
H-
16
507-P32 WH- 16
507-P32 WH- 16
506-P24 PU- 16
506-P24 PU- 16
506-P24 PU- 16
50
6-
P2
4
PU
-
16
50
6-
P2
4
PU
-
16
506-P24 PU- 16
576-P74 PK- 16
576-P74 PK- 16
576-P74 PK- 16
576-P74 PK- 16
576-P74 PK- 16
118-P76 GY- 16
118-P76 GY- 16
118-P76 GY- 16
118-P76 GY- 16
118-P76 GY- 16
118-P76 GY- 16
575-P77 YL - 16
575-P77 YL - 16
575-P77 YL - 16
575-P77 YL - 16
575-P77 YL - 16
577-P75 PU- 16
577-P75 PU- 16
577-P75 PU- 16
577-P75 PU-16
577-P75 PU- 16
577-P75 PU- 16
577-P75 PU- 16
57
0-
P1
20
BU
-
16
57
0-
P1
20
BU
-
16
570-P120 BU- 16
570-P120 BU- 16
570-P120 BU- 16
570-P120 BU- 16
57
0-
P1
20
BU
-
16
F775-P51 BU-18
F775-P51 BU- 18
F775-P51 BU- 18
F7
75
-P
51
BU
-
18
F7
75
-P
51
BU
-
18
488-P44 WH-18
488-P44 WH-18
A513-P40 PK- 18
A513-P40 PK- 18
A513-P40 PK- 18
A5
13
-P
40
PK
-
18
A5
13
-P
40
PK
-
18
A513-P40 PK- 18
307-P17 OR- 16
307-P17 OR- 16
30
7-
P1
7O
R-
16
30
7-
P1
7
O
R-
16
10
5-
P6
2
R
D
-
18
10
5-
P6
2
R
D
-
18
105-P62 RD- 18
105-P62 RD- 18
105-P62 RD- 18
105-P62 RD- 18
556-P94 WH- 18
556-P94 WH- 18
556-P94 WH- 18
556-P94 WH- 18
498-P100 WH- 18
498-P100 WH- 18
498-P100 WH- 18
498-P100 WH- 18
49
8-
P1
00
W
H-
18
14
4-
P1
01
G
N-
16
14
4-
P1
01
G
N-
16
12
9-
P1
02
R
D
-
18
12
9-
P1
02
R
D
-
18
129-P102 RD- 18
129-P102 RD- 18
129-P102 RD- 18
129-P102 RD- 18
403-P59 GN-18
403-P59 GN- 18
403-P59 GN- 18
308-P65 YL - 16
308-P65 YL - 16
126-P1 PK-14
126-P1 PK- 14
126-P1 PK- 14
126-P114 PK-14
126-P114 PK- 14
126-P114 PK- 14
J765-P111 BU-18
J765-P111 BU- 18
F843-P112 YL - 18
F843-P112 YL - 18
F843-P112 YL-18
578-P31 BU- 16
57
8-
P3
1
BU
-
16
57
8-
P3
1
BU
-
16
578-P31 BU- 16
578-P31 BU- 16
122-P81 BU- 16
122-P81 BU- 16
122-P81 BU- 16
122-P81 BU- 16
403-P59 GN- 18
575-P77 YL - 16
576-P74 PK- 16
118-P76 GY-16
570-P120 BU-16
F775-P51 BU- 18
118-P76 GY- 16
F843-P112 YL - 18
J765-P111 BU- 18
576-P74 PK-16
575-P77 YL-16
577-P75 PU- 16
570-P120 BU- 16
F775-P51 BU-18
105-P62 RD- 18
122-P81 BU- 16
556-P94 WH- 18
129-P102 RD- 18
126-P114 PK- 14
126-P114 PK-14
556-P94 WH-18
122-P81 BU-16
105-P62 RD-18
129-P102 RD-18
556-P94 WH- 18
122-P81 BU- 16
308-P65 YL - 16
126-P1 PK- 14
J765-P111 BU- 18
F843-P112 YL - 18
576-P74 PK- 16
575-P77 YL - 16
507-P32 WH- 16
578-P31 BU- 16
144-P101 GN- 16
126-P1 PK- 14
J765-P111 BU- 18
F843-P112 YL - 18
685-P22 BR-18
685-P22 BR-18
685-P22 BR- 18
685-P21 BR-18
685-P21 BR-18
685-P21 BR- 18
685-P21 BR- 18
685-P21 BR- 18
685-P21 BR- 18
685-P23 BR- 14
685-P23 BR- 14
685-P23 BR- 14
685-P23 BR-14
685-P23 BR-14
608-P20 GN- 18
608-P20 GN- 18
608-P20 GN- 18
608-P20 GN-18
608-P20 GN- 18
608-P20 GN- 18
608-P20 GN- 18
12
4-
P2
9
G
N-
14
12
4-
P2
9
G
N-
14
124-P29 GN- 14
124-P29 GN- 14
124-P29 GN-14
124-P29 GN- 14
124-P29 GN- 14
124-P29 GN- 14
611-P33 PU-16
611-P33 PU-16
611-P33 PU- 16
611-P33 PU- 16
611-P33 PU- 16
611-P33 PU- 16
611-P30 PU- 16
611-P30 PU- 16
611-P30 PU- 16
611-P30 PU- 16
611-P30 PU-16
611-P30 PU-16
619-P38 GN-16
619-P38 GN-16
619-P38 GN- 16
619-P38 GN- 16
619-P38 GN- 16
619-P38 GN- 16
619-P37 GN- 16
619-P37 GN- 16
619-P37 GN- 16
619-P37 GN- 16
619-P37 GN-16
619-P37 GN-16
604-P41 OR- 18
604-P41 OR- 18
604-P41 OR- 18
604-P41 OR-18
604-P45 OR-18
604-P45 OR- 18
604-P45 OR- 18
604-P45 OR- 18
619-P49 GN- 16
619-P49 GN- 16
619-P49 GN- 16
619-P49 GN-16
611-P52 PU- 16
611-P52 PU- 16
611-P52 PU- 16
611-P52 PU-16
61
1-
P3
9
PU
-
16
611-P39 PU- 16
611-P39 PU- 16
611-P39 PU- 16
611-P39 PU-16
611-P39 PU-16
130-P54 RD-18
130-P54 RD- 18
130-P54 RD- 18
130-P54 RD- 18
130-P54 RD- 18
604-P68 OR-18
604-P68 OR- 18
604-P68 OR-18
604-P68 OR-18
619-P70 GN-16
619-P70 GN-16
619-P70 GN- 16
619-P70 GN- 16
619-P70 GN- 16
611-P69 PU-16
611-P69 PU-16
611-P69 PU- 16
611-P69 PU- 16
611-P69 PU- 16
605-P78 YL-18
605-P78 YL-18
605-P78 YL - 18
605-P78 YL - 18
605-P78 YL - 18
605-P78 YL - 18
606-P79 GY- 18
606-P79 GY- 18
606-P79 GY- 18
606-P79 GY- 18
606-P79 GY-18
606-P79 GY-18
60
5-
P8
3
YL
-
18
605-P83 YL - 18
605-P83 YL - 18
605-P83 YL - 18
605-P83 YL-18
605-P83 YL-18
606-P80 GY-18
606-P80 GY-18
606-P80 GY- 18
606-P80 GY- 18
606-P80 GY- 18
60
6-
P8
0
G
Y-
18
606-P89 GY- 18
606-P89 GY- 18
606-P89 GY- 18
606-P89 GY-18
605-P88 YL-18
605-P88 YL - 18
605-P88 YL - 18
605-P88 YL - 18
605-P84 YL - 18
605-P84 YL - 18
605-P84 YL - 18
605-P84 YL-18
606-P85 GY-18
606-P85 GY- 18
606-P85 GY- 18
606-P85 GY- 18
606-P87 GY- 18
606-P87 GY- 18
606-P87 GY- 18
606-P87 GY-18
606-P87 GY-18
605-P86 YL-18
605-P86 YL-18
605-P86 YL - 18
605-P86 YL - 18
605-P86 YL - 18
201-P53 BK-16
201-P53 BK-16
201-P53 BK- 16
201-P53 BK- 16
201-P53 BK- 16
20
1-
P5
3
BK
-
16
11
3-
P9
2
O
R-
18
113-P92 OR- 18
113-P92 OR- 18
113-P92 OR- 18
113-P92 OR-18
113-P92 OR-18
113-P91 OR-16
113-P91 OR- 16
113-P91 OR- 16
113-P91 OR- 16
113-P91 OR- 16
113-P93 OR-16
113-P93 OR-16
113-P93 OR- 16
113-P93 OR- 16
113-P93 OR- 16
201-P107 BK-18
201-P107 BK- 18
201-P107 BK- 18
201-P107 BK- 18
201-P107 BK- 18
E458-P119 YL - 18
E458-P119 YL-18
E458-P119 YL - 18
E458-P119 YL - 18
E458-P119 YL - 18
E4
58
-P
11
9
YL
-
18
419-P121 YL-18
419-P121 YL - 18
419-P121 YL - 18
41
9-
P1
21
YL
-
18
201-P140 BK-18
201-P126 BK-16
201-P126 BK-16
20
1-
P1
26
BK
-1
6
20
1-
P1
22
BK
-1
6
201-P122 BK-16
201-P122 BK- 16
201-P126 BK-16
44
7-
P1
28
PK
-
18
447-P128 PK- 18
447-P128 PK- 18
447-P128 PK- 18
447-P128 PK-18
447-P128 PK- 18
447-P128 PK- 18
447-P128 PK- 18
201-P129 BK- 16
20
1-
P1
29
BK
-1
6
A429-P130 YL - 18
A429-P130 YL-18
A429-P130 YL - 18
A429-P130 YL - 18
A4
29
-P
13
0
YL
-
18
201-P140 BK- 18
419-P121 YL - 18
J847-P6 GN-18
J847-P6 GN- 18
J847-P6 GN- 18
J847-P6 GN- 18
J8
47
-P
6
G
N-
18
16
9-
P5
5
PK
-
18
16
9-
P5
5
PK
-
18
169-P55 PK- 18
169-P55 PK- 18
169-P55 PK-18
169-P134 PK-18
169-P134 PK- 18
169-P134 PK-18
169-P134 PK-18
169-P139 PK- 18
169-P139 PK- 18
169-P139 PK- 18
169-P139 PK-18
169-P139 PK-18
127-P141 OR- 16
127-P141 OR- 16
127-P141 OR- 16
127-P141 OR- 16
127-P141 OR-16
439-P142 YL-18
439-P142 YL - 18
439-P142 YL - 18
439-P142 YL - 18
439-P142 YL - 18
43
9-
P1
42
YL
-
18
201-P140 BK- 18
419-P121 YL - 18
201-P140 BK-18
419-P121 YL - 18
419-P121 YL-18
G
94
6-
P1
46
O
R-
18
G946-P146 OR- 18
G946-P146 OR- 18
G946-P146 OR- 18
G946-P146 OR-18
G946-P146 OR- 18
G946-P146 OR- 18
G946-P146 OR- 18
G946-P146 OR- 18
30
8-
P1
50
YL
-
16
30
8-
P1
50
YL
-
16
308-P150 YL - 16
R800-P159 OR- 18
R800-P159 OR- 18
R800-P159 OR- 18
R800-P159 OR- 18
R
80
0-
P1
59
O
R-
18
R
80
0-
P1
59
O
R-
18
R800-P159 OR- 18
R998-P160 BR- 18
R998-P160 BR- 18
R998-P160 BR- 18
R998-P160 BR- 18
R
99
8-
P1
60
BR
-
18
R
99
8-
P1
60
BR
-
18
R998-P160 BR- 18
C912-P161 GN- 18
C912-P161 GN- 18
C912-P161 GN- 18
C912-P161 GN- 18
C
91
2-
P1
61
G
N-
18
C
91
2-
P1
61
G
N-
18
C912-P161 GN- 18
C436-P164 BU- 18
C436-P164 BU- 18
C436-P164 BU- 18
C436-P164 BU- 18
C436-P164 BU-18
C436-P164 BU- 18
C436-P164 BU- 18
C436-P164 BU- 18
C
43
6-
P1
64
BU
-
18
20
5-
P1
68
BK
-1
8
205-P168 BK- 18
205-P168 BK- 18
205-P168 BK- 18
601-P167 GY-18
601-P167 GY- 18
601-P167 GY- 18
601-P167 GY- 18
601-P167 GY- 18
20
5-
P1
69
BK
-1
8
205-P169 BK-18
205-P169 BK-18
205-P171 BK- 18
205-P171 BK- 18
205-P171 BK- 18
205-P171 BK-18
601-P173 GY-18
601-P173 GY- 18
601-P173 GY- 18
601-P173 GY- 18
601-P172 GY-18
601-P172 GY- 18
601-P172 GY- 18
60
1-
P1
72
G
Y-
18
60
1-
P1
72
G
Y-
18
20
5-
P1
70
BK
-
18
20
5-
P1
70
BK
-
18
205-P170 BK- 18
205-P170 BK- 18
205-P170 BK-18
205-P169 BK-18
601-P154 GY-18
601-P154 GY-18
601-P154 GY- 18
601-P154 GY- 18
601-P154 GY- 18
60
1-
P1
54
G
Y-
18
20
5-
P1
38
BK
-
18
205-P138 BK- 18
205-P138 BK- 18
205-P138 BK- 18
205-P138 BK-18
205-P138 BK-18
205-P174 BK- 18
205-P174 BK- 18
205-P174 BK- 18
205-P174 BK-18
205-P174 BK-18
601-P156 GY-18
601-P156 GY-18
601-P156 GY- 18
601-P156 GY- 18
601-P156 GY- 18
135-P155 BU- 16
13
5-
P1
55
BU
-
16
13
5-
P1
55
BU
-
16
135-P155 BU- 16
135-P155 BU- 16
135-P155 BU- 16
147-P153 RD- 16
14
7-
P1
53
R
D
-
16
14
7-
P1
53
R
D
-
16
147-P153 RD- 16
147-P153 RD- 16
147-P153 RD-16
147-P153 RD- 16
147-P153 RD- 16
147-P153 RD- 16
592-P152 BU- 18
592-P152 BU- 18
592-P152 BU- 18
59
2-
P1
52
BU
-
18
59
2-
P1
52
BU
-
18
592-P152 BU- 18
210-P151 BK- 18
210-P151 BK- 18
210-P151 BK- 18
21
0-
P1
51
BK
-
18
21
0-
P1
51
BK
-
18
210-P151 BK- 18
179-P148 RD- 18
179-P148 RD- 18
179-P148 RD- 18
179-P148 RD-18
179-P148 RD- 18
179-P148 RD- 18
17
9-
P1
48
R
D
-
18
17
9-
P1
48
R
D
-
18
179-P148 RD- 18
112-P145 PU- 6
112-P145 PU- 6
112-P145 PU- 6
112-P145 PU-6
112-P145 PU- 6
112-P145PU- 6
112-P145 PU- 6
112-P144 PU- 6
112-P144 PU- 6
112-P144 PU- 6
112-P144 PU-6
112-P144 PU- 6
112-P144 PU- 6
112-P144 PU- 6
177-P143 RD- 6
177-P143 RD- 6
177-P143 RD- 6
177-P143 RD-6
177-P143 RD- 6
177-P143 RD- 6
177-P143 RD- 6
147-P163 RD- 16
147-P166 RD- 16
205-P168 BK- 18
20
5-
P1
69
BK
-1
8
20
5-
P1
68
BK
-1
8
20
1-
P1
29
BK
-1
6
20
1-
P1
26
BK
-1
6
20
1-
P1
22
BK
-1
6
200-P136 BK-12
200-P136 BK-12
200-P136 BK-12
20
0-
P1
36
BK
-1
2
20
0-
P1
36
BK
-1
2
200-P66 BK-12
200-P66 BK-12
200-P66 BK-12
20
0-
P6
6
BK
-1
2
20
0-
P6
6
BK
-1
2
200-P60 BK- 16
200-P60 BK- 16
200-P60 BK- 16
200-P60 BK- 16
200-P60 BK-16
200-P60 BK-16
200-P61 BK-14
200-P61 BK-14
200-P61 BK- 14
200-P61 BK- 14
200-P61 BK- 14
20
0-
P6
1
BK
-
14
20
0-
P6
3
BK
-
18
200-P63 BK- 18
200-P63 BK- 18
200-P63 BK- 18
200-P63 BK-18200-P63 BK-18
200-P13 BK-18
200-P13 BK-18
200-P13 BK- 18
200-P13 BK- 18
200-P13 BK- 18
200-P36 BK- 14
200-P36 BK- 14
200-P36 BK- 14
200-P36 BK- 14
200-P36 BK-14
200-P36 BK-14
200-P8 BK- 16
20
0-
P8
BK
-
16
20
0-
P8
BK
-
16
200-P8 BK- 16
200-P8 BK- 16
200-P8 BK-16
200-P16 BK-16
200-P16 BK- 16
200-P16 BK- 16
20
0-
P1
6
BK
-
16
20
0-
P1
6
BK
-
16
200-P16 BK- 16
200-P14 BK- 16
200-P14 BK- 16
200-P14 BK- 16
200-P14 BK- 16
200-P14 BK-16
200-P14 BK-16
200-P26 BK-16
200-P26 BK- 16
200-P26 BK- 16
20
0-
P2
6
BK
-
16
20
0-
P2
6
BK
-
16
200-P26 BK- 16
200-P131 BK- 16
20
0-
P1
31
BK
-
16
20
0-
P1
31
BK
-
16
200-P131 BK- 16
200-P131 BK- 16
200-P131 BK-16
200-P123 BK-16
200-P123 BK- 16
200-P123 BK- 16
20
0-
P1
23
BK
-
16
20
0-
P1
23
BK
-
16
200-P123 BK- 16
200-P72 BK-18
200-P72 BK- 18
200-P72 BK-18
200-P72 BK-18
200-P67 BK-18
200-P67 BK-18
200-P67 BK- 18
200-P67 BK-18
200-P106 BK-14
200-P106 BK- 14
200-P106 BK- 14
200-P106 BK- 14
200-P104 BK- 14
200-P104 BK- 14
200-P104 BK- 14
200-P104 BK-14
200-P105 BK-14
200-P105 BK- 14
200-P105 BK- 14
200-P105 BK- 14
20
0-
P1
03
BK
-
14
20
0-
P1
03
BK
-
14
200-P103 BK- 14
200-P103 BK- 14
200-P103 BK- 14
200-P103 BK- 14
20
0-
P9
8
BK
-
14
20
0-
P9
8
BK
-
14
200-P98 BK- 14
200-P98 BK- 14
200-P98 BK- 14
200-P98 BK- 14
200-P10 BK- 14
200-P10 BK- 14
200-P10 BK-14
200-P10 BK- 14
200-P103 BK- 14
200-P98 BK- 14
308-P65 YL-16
308-P150 YL-16
308-P150 YL - 16
308-P115 YL - 16
30
8-
P1
15
YL
-
16
30
8-
P1
15
YL
-
16
308-P115 YL - 16
308-P115 YL - 16
308-P115 YL-16
308-P137 YL-16
308-P137 YL - 16
308-P137 YL - 16
308-P137 YL - 16
308-P137 YL - 16
J847-P6 GN-18
J765-P43 BU-18
J765-P43 BU-18
J765-P43 BU- 18
A429-P130 YL - 18
A429-P130 YL - 18
201-P129 BK- 16201-P129 BK- 16
A429-P130 YL - 18
144-P101 GN- 16
144-P101 GN-16
144-P73 GN-16
144-P73 GN- 16
144-P73 GN- 16
144-P73 GN- 16
144-P124 GN- 16
144-P124 GN- 16
144-P124 GN- 16
144-P124 GN-16
144-P124 GN-16
447-P128 PK- 18
201-P122 BK-16
F843-P112 YL-18
J765-P43 BU-18
J765-P27 BU-18
J765-P27 BU-18
J765-P27 BU- 18
J765-P27 BU- 18
J765-P27 BU- 18
E974-P149 GN- 18
E974-P149 GN- 18
E974-P149 GN- 18
E974-P149 GN-18
E974-P149 GN- 18
E974-P149 GN- 18
E974-P149 GN- 18
E974-P149 GN- 18
432-P162 PK- 18
432-P162 PK- 18
432-P162 PK- 18
432-P162 PK-18
432-P162 PK- 18
432-P162 PK- 18
432-P162 PK- 18
432-P162 PK- 18
A287-P50 BK- 18
A287-P50 BK- 18
A287-P50 BK- 18
A287-P50 BK-18
A287-P50 BK- 18
A287-P50 BK- 18
A287-P50 BK- 18
A287-P50 BK- 18
C977-P125 BU- 18
C977-P125 BU- 18
C977-P125 BU- 18
C977-P125 BU-18
C977-P125 BU- 18
C977-P125 BU- 18
C977-P125 BU- 18
C977-P125 BU- 18
685-P22 BR- 18
200-P10 BK- 14
685-P22 BR- 18
200-P10 BK- 14
685-P22 BR- 18
601-P12 GY-18
601-P12 GY- 18
601-P12 GY- 18
601-P12 GY- 18
108-P127 RD- 18
108-P127 RD- 18
108-P127 RD- 18
108-P127 RD-18
108-P127 RD- 18
108-P127 RD- 18
108-P127 RD- 18
601-P12 GY- 18
601-P12 GY- 18
601-P12 GY- 18
H9
604-AG3 OR- 18
604-AG2 OR- 18
604-AG2 OR- 18
604-AG2 OR- 18
604-AG3 OR- 18
606-AG6 GY- 18
605-AG4 YL - 18
605-AG4 YL - 18
605-AG4 YL - 18
601-AG5 GY- 18
601-AG5 GY- 18
200-AG1 BK- 18
200-AG1 BK- 18
601-AG8 GY- 18
200-AG9 BK- 18
200-AG10 BK- 18
604-AG3 OR- 18
606-AG6 GY- 18
170-CB81 RD- 16
170-CB81 RD- 16
170-CB81 RD- 16
170-CB81 RD- 16
PRODUCT LINK/GPS
170-P176 RD- 16
170-P176 RD- 16
170-P176 RD- 16
170-P176 RD-16
170-P176 RD-16
892-P177 BR- 18
893-P179 GN- 18
229-P181 BK- 16
229-P181 BK- 16
229-P181 BK- 16
229-P181 BK- 16
229-P181 BK- 16
403-P183 GN- 18
403-P183 GN- 18
403-P183 GN- 18
403-P183 GN- 18
403-P183 GN-18
308-P182 YL-18
308-P182 YL - 18
308-P182 YL - 18
308-P182 YL - 18
308-P182 YL - 18
(19) 10A FUSES
 9W-1442
 (6) 15A FUSES
 9W-1441
 (1) 20A FUSES
 9W-1446
ETHER START AID
HEADLAMPACCUGRADE
COMMUNICATIONS
RADIO
F715-U127 PU-18
F715-U127 PU-18
F715-U127 PU-18
F715-U127 PU-18
F715-U127 PU-18
F715-U127 PU-18
F716-U126 WH-18
F716-U126 WH-18
F716-U126 WH-18
F716-U126 WH-18
F716-U126 WH-18
F716-U126 WH-18
20
6-
FF
1
BK
-
00
H27
H16
H16
H
15
H10
H11
H10
H11
H
15
H26
H25
H23
H27
H25
H
24
H23
H24
H28
H26
H
28
H
29
H25
H29
H10
H9
H
13
H14
H14 H
13
308-U124 YL-18
308-U124 YL-18
308-U123 YL-16
308-U123 YL-16
308-U123 YL-16
308-U123 YL-16
308-U123 YL-16
A287-U100 BK-14
A287-U100 BK-14
153-AY3 RD- 16
A287-U100 BK-14
A287-U100 BK-14
A287-U100 BK-14
A287-U96 BK-14
A287-U96 BK-14
A287-U96 BK-14
A287-U96 BK-14
A2
87
-U
96
BK
-1
4
150-U50 RD-14
150-U50 RD-14
150-U52 RD-14
150-U52 RD-14
150-U60 RD-14
150-U60 RD-14
150-U61 RD-14
150-U61 RD-14
F762-U108 GY-18
F762-U108 GY-18
F762-U108 GY-18
F762-U108 GY-18
A305-P165 YL - 16
A305-P165 YL - 16
A305-P165 YL - 16
A305-P165 YL - 16
A305-P165 YL - 16
ENGINE
150-CB57 RD- 14
150-CB57 RD- 14
150-CB57 RD- 14
150-CB57 RD- 14
150-P99 RD- 14
150-P99 RD- 14
153-CB15 RD- 16
153-CB15 RD- 16
153-CB15 RD- 16
153-CB15 RD- 16 153-P158 RD- 16
153-P158 RD- 16
153-P158 RD- 16
153-P158 RD-16
153-P158 RD- 16
153-P158 RD- 16
153-P158 RD- 16153-AW22 RD- 16
153-AW22 RD- 16
153-AW22 RD- 16
153-R25 RD- 16
153-R25 RD- 16
153-R25 RD- 16
150-U120 RD-14
150-U120 RD-14
150-U120 RD-14
150-P99 RD- 14
150-P99 RD- 14
A287-U105 BK-18
A287-U105 BK-18
307-U57 OR-16
J847-P133 GN- 18
J847-P133 GN- 18
J847-P133 GN- 18
J847-P133 GN- 18
114-CB14 RD- 18
114-CB14 RD- 18
114-CB14 RD- 18
114-CB14 RD- 18
114-CB10 RD- 18
114-CB10 RD- 18
114-CB10 RD- 18
114-CB10 RD- 18
322-CB9 GY- 16
170-P132 RD-16
170-P132 RD- 16
170-P132 RD- 16170-P132 RD- 16
170-P132 RD- 16
30
7-
Y3
O
R
-1
6
30
7-
Y3
O
R
-1
6
J703-Y7 PK-18
30
7-
Y3
O
R
-1
6
307-Y3 OR-16
64Y-002
BK
-1
6
20
0-
Y4
6
BK
-1
6
200-Y46 BK-16
200-P118 BK-16 200-P118 BK-16
200-P118 BK- 16
200-P118 BK- 16
200-P118 BK- 16
200-P118 BK- 16
152-CB17 RD- 12
152-CB17 RD- 12
152-CB17 RD- 12
152-CB17 RD- 12
E909-VX1 WH-18
E909-VX1 WH-18
E908-VX2 BR-18
E908-VX2 BR-18
41
0-
P1
13
W
H-
18
41
0-
P1
13
W
H-
18
410-P113 WH- 18
410-P113 WH- 18410-U88 WH-18
410-U88 WH-18
410-U88 WH-18
11
3-
G
77
O
R-
18
113-G77 OR- 18
A287-U105 BK-18
A287-U105 BK-18
410-U88 WH-18
150-P99 RD-14
150-P99 RD- 14
150-P99 RD- 14
150-P99 RD- 14
113-G64 OR- 18
113-G64 OR- 18
201-G63 BK- 18
201-G63 BK- 18
403-P157 GN-18
403-P157 GN-18
403-P157 GN- 18
403-P157 GN- 18
403-CB94 GN- 18
601-G54 GY- 18
601-G54 GY- 18
403-CB94 GN- 18
403-CB94 GN- 18
403-CB94 GN- 18
A305-CB7 YL - 16
403-P157 GN- 18
113-CB88 OR- 16
113-CB88 OR- 16
113-CB87 OR- 16
113-CB87 OR- 16
113-CB87 OR- 16
205-CB86 BK- 18
205-CB86 BK- 18
205-CB86 BK- 18
A983-U118 BU-18
A983-U118 BU-18
A983-U118 BU-18
A983-U118 BU-18
A983-U118 BU-18
A983-U118 BU-18
A983-U118 BU-18
C975-U117 WH-18
C975-U117 WH-18
C975-U117 WH-18
C975-U117 WH-18
C975-U117 WH-18
C975-U117 WH-18
C975-U117 WH-18
C978-U121 BR-18
C978-U121 BR-18
C978-U121 BR-18
C978-U121 BR-18
C978-U121 BR-18
C978-U121 BR-18
C978-U121 BR-18
A755-U129 PK-18A755-U129 PK-18
A755-U129 PK-18
A755-U129 PK-18
A755-U129 PK-18
A755-U129 PK-18
A755-U129 PK-18
T914-U131 OR-18
T914-U131 OR-18
T914-U131 OR-18
T914-U131 OR-18
T914-U131 OR-18
T914-U131 OR-18
T914-U131 OR-18
490-G50 GN- 18
490-G50 GN- 18
49
0-
G
50
G
N-
18
G
47
9-
G
42
W
H-
18
G479-G42 WH- 18
G479-G42 WH- 18
113-G4 OR- 18
113-G4 OR- 18
113-G3 OR- 18
113-G3 OR- 18
113-G59 OR- 18
113-G59 OR- 18
200-G56 BK- 18
200-G56 BK- 18
113-G2 OR- 18
113-G2 OR- 18
629-AJ3 PK- 14
629-AJ5 PK- 14
629-AJ1 PK- 14 200-AJ4 BK- 14
200-AJ2 BK- 14
200-AJ6 BK- 14
H807-AY4 YL - 18H807-R5 YL - 18
H807-R5 YL - 18H807-U86 YL-18
H807-U86 YL-18
H807-U86 YL-18
H807-U86 YL-18
H26
151-L15 GN- 16
15
1-
L1
5
G
N-
16
15
1-
L1
5
G
N-
16
A504-L3 GN- 16
A5
04
-L
3
G
N-
16
A5
04
-L
3
G
N-
16
A507-L2 YL - 16
A5
07
-L
2
YL
-
16
A5
07
-L
2
YL
-
16
141-L9 PK- 16
14
1-
L9
PK
-
16
14
1-
L9
PK
-
16
A503-L12 PK- 16
A5
03
-L
12
PK
-
16
A5
03
-L1
2
PK
-
16
A506-L11 OR- 16
A5
06
-L
11
O
R-
16
A5
06
-L
11
O
R-
16
50
2-
L3
6
O
R-
16
50
2-
L3
6
O
R-
16
502-L36 OR- 16
501-L37 GN- 16
50
1-
L3
7
G
N-
16
50
1-
L3
7
G
N-
16
50
0-
L3
4
BR
-
16
50
0-
L3
4
BR
-
16
500-L34 BR- 16
506-L35 PU- 16
50
6-
L3
5
PU
-
16
50
6-
L3
5
PU
-
16
118-L31 GY- 16
11
8-
L3
1
G
Y-
16
577-L30 PU- 16
57
7-
L3
0
PU
-
16
57
7-
L3
0
PU
-
16
57
6-
L2
9
PK
-
16
57
6-
L2
9
PK
-
16
576-L29 PK- 16
575-L33 YL - 16
57
5-
L3
3
YL
-
16
57
5-
L3
3
YL
-
16
57
8-
L2
8
BU
-
16
57
8-
L2
8
BU
-
16
578-L28 BU- 16
119-L26 PK- 16
11
9-
L2
6
PK
-
16
11
9-
L2
5
PK
-
16
119-L25 PK- 16
505-L6 BU- 16
50
5-
L6
BU
-
16
50
5-
L6
BU
-
16
50
4-
L8
YL
-
16
50
4-
L8
YL
-
16
504-L8 YL - 16
503-L7 BR- 16
50
3-
L7
BR
-
16
50
3-
L7
BR
-
16
50
7-
L2
7
W
H-
16
50
7-
L2
7
W
H-
16
507-L27 WH- 16
11
9-
L5
PK
-
16
11
9-
L5
PK
-
16
11
9-
L2
4
PK
-
16
11
9-
L2
4
PK
-
16
11
8-
L4
1
G
Y-
16
11
8-
L4
1
G
Y-
16
11
8-
L3
8
G
Y-
16
118-L38 GY- 16
118-L39 GY- 16
11
8-
L3
9
G
Y-
16
148-L22 WH- 16
14
8-
L2
2
W
H-
16
14
8-
L2
2
W
H-
16
609-L40 YL - 16
60
9-
L4
0
YL
-
16
60
9-
L4
0
YL
-
16
14
8-
L2
2
W
H-
16
11
8-
L3
1
G
Y-
16
11
8-
L3
8
G
Y-
16
11
8-
L3
9
G
Y-
16
60
9-
L4
0
YL
-
16
15
1-
L1
5
G
N-
16
14
1-
L9
PK
-
16
A5
07
-L
2
YL
-
16
A5
06
-L
11
O
R-
16
A5
04
-L
3
G
N-
16
A5
03
-L
12
PK
-
16
11
9-
L2
5
PK
-
16
11
9-
L2
6
PK
-
16
50
0-
L3
4
BR
-
16
50
1-
L3
7
G
N-
16
50
2-
L3
6
O
R-
16
50
3-
L7
BR
-
16
50
4-
L8
YL
-
16
50
5-
L6
BU
-
16
50
6-
L3
5
PU
-
16
50
7-
L2
7
W
H-
16
57
5-
L3
3
YL
-
16
57
6-
L2
9
PK
-
16
57
7-
L3
0
PU
-
16
57
8-
L2
8
BU
-
16
205-L49 BK- 18
20
5-
L4
9
BK
-
18
20
5-
L4
9
BK
-
18
601-L48 GY- 18
60
1-
L4
8
G
Y-
18
60
1-
L4
8
G
Y-
18
20
5-
L5
1
BK
-
18
20
5-
L5
1
BK
-
18
205-L51 BK- 18
205-L52 BK- 18
20
5-
L5
2
BK
-
18
20
5-
L5
2
BK
-
18
601-L53 GY- 18
60
1-
L5
3
G
Y-
18
60
1-
L5
3
G
Y-
18
60
1-
L5
4
G
Y-
18
60
1-
L5
4
G
Y-
18
601-L54 GY- 18
20
5-
L5
6
BK
-
18
20
5-
L5
6
BK
-
18
60
1-
L5
7
G
Y-
18
60
1-
L5
7
G
Y-
18
20
0-
L6
0
BK
-
16
20
0-
L6
0
BK
-
16
20
0-
L5
9
BK
-
16
20
0-
L5
9
BK
-
16
20
0-
L6
1
BK
-
14
20
0-
L6
1
BK
-
14
200-L42 BK- 16
20
0-
L4
2
BK
-
16
20
0-
L4
2
BK
-
16
20
0-
L2
0
BK
-
16
20
0-
L2
0
BK
-
16
200-L20 BK- 16
200-L1 BK- 16
20
0-
L1
BK
-
16
20
0-
L1
BK
-
16
118-L23 GY- 16
11
8-
L2
3
G
Y-
16
11
8-
L2
3
G
Y-
16
LOWER CAB SWITCH PANEL UPPER CAB SWITCH PANEL
321-AG15 BR- 18
321-AG16 BR- 18
321-AG16 BR- 18
321-AG17 BR- 18
321-AG17 BR- 18
321-AG17 BR- 18
200-AG19 BK- 18
200-AG19 BK- 18
200-AG18 BK- 18
200-AG18 BK- 18
200-AG18 BK- 18
49
0-
P2
G
N-
18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
490-P2 GN- 18
G
47
9-
P3
W
H-
18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
G479-P3 WH- 18
490-U85 GN- 18 GXL
490-U85 GN- 18 GXL
490-U85 GN- 18 GXL
490-U85 GN- 18 GXL
G479-U93 WH- 18 GXL
G479-U93 WH- 18 GXL
G479-U93 WH- 18 GXL
G479-U93 WH- 18 GXL
J811-R10 BK- 16
306-R6 GN- 16
J811-R10 BK- 16
306-R6 GN- 16
F711-U64 WH- 18
F711-U64 WH- 18
F712-U65 PU - 18
F712-U65 PU- 18 F712-P5 GN- 18
F712-P5 GN- 18 F712-P5 GN- 18
F712-P5 GN- 18
F712-P5 GN- 18
F712-P5 GN- 18
F712-P5 GN- 18
F712-P5 GN- 18
F7
12
-P
5
G
N-
18
F711-P4 YL - 18
F711-P4 YL - 18 F711-P4 YL - 18
F711-P4 YL - 18
F711-P4 YL - 18
F711-P4 YL - 18
F711-P4 YL - 18
F711-P4 YL - 18
F7
11
-P
4
YL
-
18
F711-G5 YL - 18
F711-G5 YL - 18
F7
11
-G
8
YL
-
18
F712-G6 GN- 18
F712-G6 GN- 18
F7
12
-G
7
G
N-
18
F711-U64 WH- 18
F712-U65 PU- 18
F711-G8 YL - 18
F712-G7 GN- 18
F712-G13 GN- 18
F712-G13 GN- 18
F711-G14 YL - 18
F711-G14 YL - 18
R997-U51 OR- 18 GXL
R997-U51 OR- 18 GXL
R997-U51 OR- 18 GXL
R997-U51 OR- 18 GXL
F713-U66 OR- 18 GXL
F713-U66 OR- 18 GXL
F713-U66 OR- 18 GXL
F713-U66 OR- 18 GXL
R993-U55 BR- 18 GXL
R993-U55 BR- 18 GXL
R993-U55 BR- 18 GXL
R993-U55 BR- 18 GXL
R997-R13 OR- 18
R997-R13 OR- 18
R997-R13 OR- 18
R997-R13 OR- 18
R993-R14 BR- 18
R993-R14 BR- 18
R993-R14 BR- 18
R993-R14 BR- 18
F713-R15 OR- 18
F713-R15 OR- 18
F713-R15 OR- 18
F713-R15 OR- 18
200-G15 BK- 18
200-G15 BK- 18
F4
20
-G
16
G
N-
18
F420-G16 GN- 18
F420-G16 GN- 18
F420-U78 GN- 18 GXL
F420-U78 GN - 18 GXL
F420-U78 GN- 18 GXL
F420-U78 GN- 18 GXL
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F420-P9 GN- 18
F4
20
-P
9
G
N-
18
893-P179 GN- 18
892-P177 BR- 18
126-P11 PK- 18
126-P11 PK- 18
126-P11 PK- 18
126-P11 PK- 18
321-AG20 BR- 18
126-F4 PK- 18
12
6-
F4
PK
-
18
126-F4 PK- 18
J847-P133 GN- 18
J847-P7 GN- 18
J847-P7 GN- 18
J847-P7 GN- 18
J847-P7 GN- 18922-F5 BR- 18
92
2-
F5
BR
-
18
922-F5 BR- 18
52
1-
P1
16
YL
-
16
52
1-
P1
16
YL
-
16
521-P116 YL - 16
521-P116 YL - 16521-AW12 YL - 16
521-AW12 YL - 16
521-AW12 YL - 16
52
2-
P9
7
W
H-
16
52
2-
P9
7
W
H-
16
522-P97 WH- 16
522-P97 WH- 16522-AW13 WH- 16
522-AW13 WH- 16
522-AW13 WH- 16
F712-U95 PU- 18
F712-U95 PU- 18
F712-U98 PU- 18
F711-U99 WH- 18
F711-U94 WH- 18
F711-U94 WH- 18
331-U92 OR- 18
331-U92 OR- 18
331-U92 OR- 18
331-U92 OR- 18
331-U92 OR- 18 331-P15 OR- 18
331-P15 OR- 18
331-P15 OR- 18
331-P15 OR- 18
331-P15 OR- 18331-F17 OR- 18
33
1-
F1
7
O
R-
18
331-F17 OR- 18
122-AW14 BU- 16
122-AW14 BU- 16
122-AW14 BU- 16
200-AW7 BK- 16
200-AW7 BK- 16
200-AW7 BK- 16 200-P28 BK- 16
200-P28 BK- 16 200-P28 BK- 16
20
0-
P2
8
BK
-
16
20
0-
P2
8
BK
-
16
200-R3 BK- 16
200-R3 BK- 16
112-AW8 PU- 6
177-AW3 RD- 6
68
5-
P4
2
BR
-
14
685-P42 BR- 14
685-P42 BR- 14
685-P42 BR- 14
685-P42 BR- 14
685-P42 BR- 14
M998-U107 OR- 18
M998-U107 OR- 18
M998-U107 OR- 18
M998-U107 OR- 18
M998-U107 OR- 18
441-U122 OR- 16
441-U122 OR- 16
441-U122 OR- 16 441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
441-P18 OR- 16
44
1-
P1
8
O
R-
16
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
405-P19 GY- 18
40
5-
P1
9
G
Y-
18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M998-P35 OR- 18
M
99
8-
P3
5
O
R-
18
308-P46 YL - 16
308-P46 YL - 16
308-P46 YL - 16
308-P46 YL - 16
176-P47 RD- 14
176-P47 RD- 14
176-P47 RD- 14
176-P47 RD- 14
176-P47 RD- 14
176-P47 RD- 14
176-P47 RD- 14176-CB18 RD- 14176-CB18 RD- 14
176-CB18 RD- 14
176-CB18 RD- 14
176-CB18 RD- 14
44
1-
G
9
O
R-
16
441-G9 OR- 16
441-G9 OR- 16
40
5-
G
19
G
Y-
18
405-G19 GY- 18
405-G19 GY- 18
200-G20 BK- 18
200-G20 BK- 18
113-G21 OR- 18
113-G21OR- 18
M
99
8-
G
22
O
R-
18
M998-G22 OR- 18
M998-G22 OR- 18
200-G23 BK- 18
ACCUGRADE
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
405-U116 GY- 18 GXL
405-U116 GY- 18 GXL
405-U116 GY- 18 GXL
405-U116 GY- 18 GXL
977-U128 YL - 18
977-U128 YL - 18
977-U128 YL - 18
977-U128 YL - 18
977-U128 YL - 18
J764-U132 BR- 18
J764-U132 BR- 18
J764-U132 BR- 18
J764-U132 BR- 18
977-P48 YL - 18
977-P48 YL - 18
977-P48 YL - 18
97
7-
P4
8
YL
-
18
97
7-
P4
8
YL
-
18
977-P48 YL - 18
J764-P56 BR- 18
J764-P56 BR- 18
J764-P56 BR- 18
J7
64
-P
56
BR
-
18
J7
64
-P
56
BR
-
18
J764-P56 BR- 18
1Y-467J
4
BR
-
18
41Y-467J
BR
-
18
J7
64
-Y
14
BR
-
18
J764-Y14 BR- 18
J764-Y14 BR- 18
61Y-779
YL
-
18
97
7-
Y1
6
YL
-
18
97
7-
Y1
6
YL
-
18
977-Y16 YL - 18
977-Y16 YL - 18
60
1-
Y2
3
G
Y-
18
60
1-
Y2
3
G
Y-
18
601-Y23 GY- 18
601-Y23 GY- 18
42Y-502
BK
-
18
20
5-
Y2
4
BK
-
18
205-Y24 BK- 18
205-Y24 BK- 18
E458-P119 YL - 18
E458-P119 YL - 18
E458-P119 YL - 18
408-P57 WH- 18
408-P57 WH- 18
408-P57 WH- 18
408-P57 WH- 18
408-P57 WH- 18
408-P57 WH- 18
408-P57 WH- 18
E458-U62 YL - 18 GXL
E458-U62 YL - 18 GXL
E458-U62 YL - 18 GXL
E458-U62 YL - 18 GXL
408-U63 WH- 18 GXL
408-U63 WH- 18 GXL
408-U63 WH- 18 GXL
408-U63 WH- 18 GXL
HEAT MIRRORS
115-CB29 RD- 16
115-CB29 RD- 16
115-CB29 RD- 16
115-CB29 RD- 16
629-CB30 PK- 16
629-CB30 PK- 16
629-CB30 PK- 16
629-CB30 PK- 16
629-CB30 PK- 16
205-CB31 BK- 18
205-CB31 BK- 18
205-CB31 BK- 18
205-CB31 BK- 18
601-CB32 GY- 18
601-CB32 GY- 18
601-CB32 GY- 18
601-CB32 GY- 18
LIGHTBAR
R939-GA1 WH- 18
R939-GA11 WH- 18
R939-GA9 WH- 18
R939-GA9 WH- 18
R940-GA2 BU- 18
R940-GA12 BU- 18
R940-GA10 BU- 18
R940-GA10 BU- 18
201-GA3 BK- 18
201-GA13 BK- 18
201-GA13 BK- 18
113-GA4 OR- 18
113-GA14 OR- 18
113-GA14 OR- 18
113-GA18 OR- 18
200-AU2 BK- 16
122-AU1 BU- 16
A/C
521-P116 YL - 16
522-P97 WH- 16
200-P10 BK- 14
200-P10 BK- 14
200-G23 BK- 18
F712-U98 PU- 18
F711-U99 WH- 18
153-R25 RD- 16
403-AW11 GN- 18
200-AW10 BK- 16
200-AW10 BK- 16
321-AG20 BR- 18
321-AG15 BR- 18
601-CB33 GY- 18
601-CB33 GY- 18
112-CB21 PU- 6
112-CB21 PU- 6
112-CB21 PU- 6
112-CB21 PU- 6
126-F4 PK- 18
922-F5 BR- 18
331-F17 OR- 18
200-AG14 BK- 18
200-AG14 BK- 18
126-AG21 PK- 18
126-AG21 PK- 18
126-AG21 PK- 18
331-AG13 OR- 18
331-AG13 OR- 18
331-AG13 OR- 18
922-AG22 BR- 18
922-AG22 BR- 18
922-AG22 BR- 18
522-CA1 WH- 16
522-CA1 WH- 16
522-CA1 WH- 16
200-CA4 BK- 16
200-CA4 BK- 16
597-CA5 PU- 16
597-CA5 PU- 16
A287-U130 BK- 18
A287-U130 BK- 18
A287-U130 BK- 18
G828-EN11 WH- 18 GXL
G828-EN11 WH- 18 GXL
G828-EN36 WH- 18 GXL
G828-EN36 WH- 18 GXL
T920-EN101 YL - 18
T920-EN101 YL - 18 GXL
G828-EN38 WH- 18 GXL
G828-EN38 WH- 18 GXL
G856-EN22 WH- 18 GXL
G856-EN22 WH- 18 GXL
G856-EN22 WH- 18 GXL
T725-EN31 WH- 18 GXL
T725-EN31 WH- 18 GXL
T725-EN31 WH- 18 GXL
T859-EN18 WH- 18 XLPE
T859-EN18 WH- 18 XLPE
T962-EN3 WH- 18 XLPE
T962-EN3 WH- 18 XLPE
T962-EN3 WH- 18 XLPE
994-EN20 GY- 18 GXL
994-EN20 GY- 18 GXL
994-EN20 GY- 18 GXL
R747-EN14 GN- 18 GXL
R747-EN14 GN- 18 GXL
R747-EN14 GN- 18 GXL
995-EN12 BU- 18 GXL
995-EN12 BU- 18 GXL
995-EN12 BU- 18 GXL
C967-EN25 BU- 18 GXL
C967-EN25 BU- 18 GXL
C967-EN25 BU- 18 GXL
E965-EN15 BU- 18 GXL
E965-EN15 BU- 18 GXL
E965-EN15 BU- 18 GXL
T960-EN9 BU- 18 XLPE
T960-EN9 BU- 18 XLPE
T960-EN9 BU- 18 XLPE
A751-EN13 YL - 18 GXL
A751-EN13 YL - 18 GXL
A751-EN13 YL - 18 GXL
E966-EN32 YL - 18 GXL
E966-EN32 YL - 18 GXL
E966-EN32 YL - 18 GXL
G857-EN102 YL - 18 GXL
G857-EN102 YL - 18 GXL
G857-EN102 YL - 18 GXL
T958-EN5 PU- 18 XLPE
T958-EN5 PU- 18 XLPE
T958-EN5 PU- 18 XLPE
G829-EN1 GN- 18 GXL
G829-EN1 GN- 18 GXL
C991-EN33 PK- 18 GXL
C991-EN33 PK- 18 GXL
C991-EN33 PK- 18 GXL
R746-EN26 PK- 18 GXL
R746-EN26 PK- 18 GXL
G833-EN43 PK- 18 GXL
G833-EN43 PK- 18 GXL
G829-EN44 GN- 18 GXL
E963-EN30 BK- 18 GXL
E963-EN30 BK- 18 GXL
E963-EN30 BK- 18 GXLE964-EN29 WH- 18 GXL
E964-EN29 WH- 18 GXL
E964-EN29 WH- 18 GXL
G833-EN17 PK- 18 GXL
G833-EN17 PK- 18 GXL
G829-EN37 GN- 18 GXL
G829-EN37 GN- 18 GXL
G829-EN35 GN- 18 GXL
G829-EN35 GN- 18 GXL
G833-EN4 PK- 18 GXL
G833-EN4 PK- 18 GXL
T858-EN27 GY- 18 XLPE
T858-EN27 GY- 18 XLPE
T961-EN10 GN- 18 XLPE
T961-EN10 GN- 18 XLPE
T961-EN10 GN- 18 XLPE
N707-EN6 PU- 18 GXL
N707-EN6 PU- 18 GXL
N707-EN6 PU- 18 GXL
T957-EN2 PU- 18 XLPE
T957-EN2 PU- 18 XLPE
T957-EN2 PU- 18 XLPE
T860-EN46 OR- 18 XLPE T860-EN46 OR- 18 XLPE
T959-EN8 BR- 18 XLPE T959-EN8 BR- 18 XLPE
T959-EN8 BR- 18 XLPE
A706-AL11 GY- 16
A706-AL11 GY- 16
A705-AL9 BU- 16
A705-AL9 BU- 16
A701-AL1 GY- 16
A701-AL1 GY- 16
A702-AL3 PU- 16
A702-AL3 PU- 16
A703-AL5 BR- 16
A703-AL5 BR- 16
A704-AL7 GN- 16
A704-AL7 GN- 16
TDC SERVICE PROBE
G826-EN7 BR- 18 GXL
G826-EN7 BR- 18 GXL
G827-EN103 BU- 18 GXL
G827-EN103 BU- 18 GXL
G828-EN95 WH- 18 GXL
G828-EN95 WH- 18 GXL
G829-EN94 GN- 18 GXL
G829-EN94 GN- 18 GXL
G849-EN96 BR- 18 GXL
G849-EN96 BR- 18 GXL
G849-EN96 BR- 18 GXL
G854-EN100 PK- 18 GXL
G854-EN100 PK- 18 GXL
T860-EN89 OR- 18 XLPE
T860-EN89 OR- 18 XLPE
T860-EN90 OR- 18 XLPE
T860-EN90 OR- 18 XLPE
T859-EN88 WH- 18 XLPE
T859-EN88 WH- 18 XLPE
T859-EN87 WH- 18 XLPE
T859-EN87 WH- 18 XLPE
T858-EN85 GY- 18 XLPE
T858-EN85 GY- 18 XLPE
T858-EN86 GY- 18 XLPE
T858-EN86 GY- 18 XLPE L983-AL2 WH- 16
L983-AL2 WH- 16
L983-AL4 WH- 16
L983-AL4 WH- 16
L984-AL6 OR- 16
L984-AL6 OR- 16
L984-AL8 OR- 16
L984-AL8 OR- 16
L985-AL10 YL - 16
L985-AL10 YL - 16
L985-AL12 YL - 16
L985-AL12 YL - 16
R746-EN26 PK- 18 GXL
G855-EN91 PU- 18 GXL
G855-EN91 PU- 18 GXL
G855-EN91 PU- 18 GXL
92Y-002
BK
-
18
20
0-
Y2
9
BK
-
18
82Y-014
W
H
-
18
893-U67 GN- 18
892-U68 BR- 18
490-U85 GN- 18 GXL
432-U101 PK- 18
410-U88 WH- 18
408-U63 WH- 18 GXL
405-U116 GY- 18 GXL
308-U91 YL - 16
A755-U129 PK- 18
A983-U118 BU- 18
C912-U102 GN- 18
F420-U78 GN- 18 GXL
C978-U121 BR- 18
C979-U87 OR- 18
E458-U62 YL - 18 GXL
C975-U117 WH- 18
F713-U66 OR- 18 GXL
F762-U108 GY- 18
G479-U93 WH- 18 GXL
G946-U89 OR- 18
H807-U86 YL - 18
R800-U104 OR- 18
R993-U55 BR- 18 GXL
R997-U51 OR- 18 GXL
R998-U103 BR- 18
T914-U131 OR- 18
F711-U64 WH- 18
F712-U65 PU- 18
202-U75 BK- 16
202-U76 BK- 16
202-U77 BK- 16
306-U56 GN- 16
426-U12 BR- 18
A287-U96 BK- 14
J764-U11 BR- 18
150-U120 RD- 14
A893-UA5 OR- 14
A287-U97 BK- 16
A287-U97 BK- 16
A287-U97 BK- 16
A287-U97 BK- 16
150-U134 RD- 14
150-U134 RD- 14
365-U133 YL - 16
365-U133 YL - 16
365-U133 YL - 16
308-U123 YL - 16
A982-U114 BR- 18 GXL
A287-U111 BK- 14
A287-U111 BK- 14
A287-U111 BK- 14
A287-U112 BK- 14
A287-U112 BK- 14
A287-U112 BK- 14
A287-U112 BK- 14
A287-U112 BK- 14
A287-U90 BK- 14
A287-U90 BK- 14
A287-U90 BK- 14
A287-U90 BK- 14
A287-U90 BK- 14
A287-U125 BK- 18
A287-U125 BK- 18
A287-U125 BK- 18
202-U49 BK- 14
202-U49 BK- 14
202-U49 BK- 14
20
2-
U
49
BK
-
14
150-UA1 RD- 14
150-UA1 RD- 14
365-UA2 YL - 16
365-UA2 YL - 16
A287-UA3 BK- 16
A287-UA3 BK- 16
202-UA4 BK- 14
202-UA4 BK- 14
T725-U137 WH- 18
T725-U137 WH- 18
N707-U138 PU- 18
N707-U138 PU- 18
G826-U139 BR- 18
G826-U139 BR- 18
G827-U140 BU- 18
G827-U140 BU- 18
C991-U141 PK- 18
C991-U141 PK- 18
A751-U135 YL-18
A751-U135 YL-18
G833-U136 PK-18
G833-U136 PK-18
275-1253
274-6719
FUEL TEMP SENSOR
C991-U141 PK- 18
G827-U140 BU- 18
G826-U139 BR- 18
N707-U138 PU- 18
T725-U137 WH- 18
G833-U136 PK- 18
A751-U135 YL - 18 A751-UA6 YL - 18
G833-UA7 PK- 18
T725-UA8 WH- 18
N707-UA9 PU- 18
G826-UA10 BR- 18
G827-UA11 BU- 18
C991-UA12 PK- 18
A751-UA6 YL - 18
G833-UA7 PK- 18
T725-UA8 WH- 18
N707-UA9 PU- 18
G826-UA10 BR- 18
G827-UA11 BU- 18
C991-UA12 PK- 18
150-U142 RD- 14
A2
87
-U
14
4
BK
-
14
A287-U144 BK- 14
A287-U144 BK- 14
A287-U144 BK- 14
A287-U144 BK- 14
A287-U144 BK- 14
201-U83 BK- 18
AIR DRYER-ATCH
R939-GA11 WH- 18
R940-GA12 BU- 18
201-GA17 BK- 18
113-GA18 OR- 18
201-GA17 BK- 18
170-P135 RD- 16
170-P135RD- 16
170-P135 RD- 16170-P135 RD- 16
170-P135 RD- 16
308-P71 YL - 18
308-P71 YL - 18
308-P71 YL - 18
308-P71 YL - 18
308-P71 YL - 18
403-P82 GN- 18
403-P82 GN- 18
403-P82 GN- 18
403-P82 GN- 18
403-P82 GN- 18
229-P64 BK- 16
229-P64 BK- 16
229-P64 BK- 16
229-P64 BK- 16
229-P64 BK- 16
J7
03
-Y
7
PK
-
18
J7
03
-Y
7
PK
-
18
J7
03
-Y
7
PK
-
18
J7
03
-P
90
PK
-
18
J7
03
-P
90
PK
-
18
J703-P90 PK- 18
J703-P90 PK- 18
25Y-803
YL
-
16
CHINA GPS
CONNECTOR
153-R25 RD- 16
A982-U114 BR- 18 GXL
A982-U114 BR- 18 GXL
308-U123 YL - 16
202-U75 BK- 16
FRONT UPPER WIPER
REAR WIPER
REAR DEFROST
FRONT DEFROST
601-AG23 GY- 18
601-AG23 GY- 18
200-AG24 BK- 18
200-AG24 BK- 18
LOAD1
LOAD2
20
0-
K4
6
BK
-
14
C987-EN99 RD- 18 GXL
C987-EN99 RD- 18 GXL
G850-EN98 BU- 18 GXL
G850-EN98 BU- 18 GXL
C987-EN99 RD- 18 GXL
G850-EN98 BU- 18 GXL TO INTAKE AIR HEATER
NOT USED
403-P184 GN- 18
403-P184 GN- 18
403-P184 GN- 18
403-P184 GN- 18
403-P184 GN- 18
403-U146 GN- 18
403-U146 GN- 18
403-U146 GN- 18
403-U146 GN- 18
403-U146 GN- 18
126-U145 PK- 16
126-U145 PK- 16
921-U3 WH- 16
921-U3 WH- 16
921-U3 WH- 16
921-U3 WH- 16
J847-U48 GN- 18
J847-U48 GN- 18
J847-U48 GN- 18
J847-U48 GN- 18
J847-U48 GN- 18
20
2-
U
26
BK
-
16
202-U26 BK- 16
202-U26 BK- 16
202-U26 BK- 16
202-U26 BK- 16
202-U26 BK- 16
202-U26 BK- 16
20
2-
U
28
BK
-
16
202-U28 BK- 16
202-U28 BK- 16
202-U28 BK- 16
202-U28 BK- 16
202-U28 BK- 16
202-U28 BK- 16
F711-U147 WH- 18
F711-U147 WH- 18
F711-U147 WH- 18
F711-U147 WH- 18
F711-U147 WH- 18
F712-U148 PU- 18
F712-U148 PU- 18
F712-U148 PU- 18
F712-U148 PU- 18
F712-U148 PU- 18
521-R26 YL - 16
521-R26 YL - 16
521-R26 YL - 16
521-R26 YL - 16
A572-CA2 PK- 16
A572-CA2 PK- 16
E554-CA3 PK- 16
E554-CA3 PK- 16
A572-AW20 PK- 16
E554-AW21 PK- 16
A572-AW20 PK- 16
E554-AW21 PK- 16
A572-R20 PK- 16
A572-R20 PK- 16
A572-R20 PK- 16
A572-R20 PK- 16
E554-R21 PK- 16
E554-R21 PK- 16
E554-R21 PK- 16
E554-R21 PK-16
A572-U149 PK- 16
A572-U149 PK- 16
A572-U149 PK- 16
A572-U149 PK- 16
A572-U149 PK- 16
A572-U149 PK- 16
A572-U149 PK- 16
521-U151 YL - 16
521-U151 YL - 16
521-U151 YL - 16
521-U151 YL - 16
521-U151 YL - 16
521-U151 YL - 16
521-U151 YL - 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-U150 PK- 16
E554-CA6 PK- 16
200-CA7 BK- 16
E554-CA8 PK- 16
200-CA9 BK- 16
E554-CA8 PK- 16
E554-CA6 PK- 16
200-CA9 BK- 16
200-CA7 BK- 16
200-CA4 BK- 16
E554-CA3 PK- 16
A572-CA10 PK- 16
A572-CA11 PK- 16
A572-CA11 PK- 16
A572-CA10 PK- 16
A572-CA11 PK- 16
A572-CA10 PK- 16
E905-T21 BU- 18
E904-T22 BR- 18
E904-U16 BR- 18
E904-U16 BR- 18
E904-U16 BR- 18
E904-U16 BR- 18
E905-U15 BU- 18
E905-U15 BU- 18
E905-U15 BU- 18
E905-U15 BU- 18
180-CB127 RD- 14
180-CB127 RD- 14
180-CB127 RD- 14
180-CB127 RD- 14
XMSN POWER
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-P185 RD- 14
180-U143 RD- 14
180-U143 RD- 14
180-U143 RD- 14
180-U143 RD- 14
J811-U80 BK- 16
J811-U80 BK- 16
J811-U80 BK- 16
J811-U80 BK- 16
J811-U80 BK- 16
J811-U80 BK- 16
J811-U80 BK- 16
922-U4 BR- 16
J765-T26 BU- 18
G460-T27 GN- 18
J765-U154 BU- 18
J765-U154 BU- 18
J765-U154 BU- 18
G460-U155 GN- 18
G460-U155 GN- 18
202-U75 BK- 16
E902-T20 PU- 18
E903-T19 YL - 18
E904-T22 BR- 18
E905-T21 BU- 18
E908-T18 BR- 18
E909-T17 WH- 18
E907-T23 GY- 18
E906-T24 OR- 18
J765-T26 BU- 18
G460-T27 GN- 18
G460-U155 GN- 18
149-CB101 PU- 14
149-CB101 PU- 14
149-CB101 PU- 14
149-CB101 PU- 14149-CB100 PU- 14
149-CB100 PU- 14
149-CB100 PU- 14
149-CB100 PU- 14
149-CB102 PU- 14
149-CB102 PU- 14
149-CB102 PU- 14
200-CB99 BK- 18
200-CB110 BK- 18
200-CB98 BK- 18
200-CB99 BK- 18
200-CB98 BK- 18
200-CB98 BK- 18
200-CB99 BK- 18
200-CB99 BK- 18
200-CB98 BK- 18
200-CB110 BK- 18
200-CB84 BK- 18
200-CB84 BK- 18
200-CB84 BK- 18
200-CB84 BK- 18
102-CB105 RD- 14
102-CB105 RD- 14102-CB105 RD- 14
102-CB105 RD- 14
102-CB104 RD- 14
102-CB104 RD- 14
102-CB104 RD- 14
102-CB103 RD- 14
102-CB103 RD- 14
102-CB103 RD- 14
102-CB103 RD- 14
G797-CB106 BU- 18
G797-CB106 BU- 18
G797-CB106 BU- 18
G797-CB106 BU- 18
G797-CB106 BU- 18
G797-CB106 BU- 18
619-CB107 GN- 14
619-CB107 GN- 14
619-CB107 GN- 14
619-CB107 GN- 14
G798-CB97 PU- 18
G798-CB97 PU- 18
G798-CB97 PU- 18
G798-CB97 PU- 18
685-CB109 BR- 14
685-CB109 BR- 14
685-CB109 BR- 14
685-CB109 BR- 14
685-CB109 BR- 14
322-CB9 GY- 16
G829-EN44 GN- 18 GXL
G854-EN100 PK- 18 GXL
149-CB102 PU- 14
F711-U157 WH- 18
F712-U158 PU- 18
F712-U158 PU- 18
F711-U157 WH- 18
F712-U158 PU- 18
F711-U157 WH- 18
F711-U157 WH- 18
F711-U157 WH- 18
F712-U158 PU- 18
F712-U158 PU- 18
F711-W46 YL - 18
F711-W48 YL - 18
F711-W50 YL - 18
F712-W47 GN- 18
F712-W49 GN- 18
F712-W51 GN- 18
F712-W47 GN- 18
F711-W46 YL - 18
F711-W48 YL - 18
F712-W49 GN- 18
F711-W50 YL - 18
F712-W51 GN- 18
F711-W50 YL - 18
F712-W51 GN- 18
515-H4 GY- 14
515-H1 GY- 14
516-H2 GN- 14
517-H3 BU- 14
521-H9 YL - 16
521-H9 YL - 16
522-H10 WH- 14
522-H10 WH- 14
601-H11 GY- 18
601-H11 GY- 18
200-H6 BK- 18
200-H12 BK- 14
200-H12 BK- 14
T800-U152 OR- 16
T800-U152 OR- 16
T800-U152 OR- 16
T800-U152 OR- 16
308-U123 YL - 16
G460-U155 GN- 18
T800-U152 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
T800-P250 OR- 16
200-H7 BK- 14
200-H5 BK- 14
R997-AW23 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-U156 OR- 16
R997-AW23 OR- 16
200-H5 BK- 14
601-CB115 GY- 18
601-CB115 GY- 18
601-CB115 GY- 18
601-CB115 GY- 18
205-CB112 BK- 18
205-CB112 BK- 18
205-CB112 BK- 18
205-CB112 BK- 18
G798-CB114 PU- 14
G798-CB114 PU- 14
G798-CB114 PU- 14
G798-CB114 PU- 14
601-CB118 GY- 18
601-CB118 GY- 18
601-CB118 GY- 18
601-CB118 GY- 18
205-CB111 BK- 18
205-CB111 BK- 18
205-CB111 BK- 18
205-CB111 BK- 18
601-CB116 GY- 18
601-CB116 GY- 18
601-CB116 GY- 18
601-CB116 GY- 18
601-CB117 GY- 18
601-CB117 GY- 18
601-CB117 GY- 18
601-CB117 GY- 18
205-CB113 BK- 18
205-CB113 BK- 18
205-CB113 BK- 18
205-CB113 BK- 18
601-CB121 GY- 18
601-CB121 GY- 18
601-CB121 GY- 18
601-CB121 GY- 18
205-CB120 BK- 18
205-CB120 BK- 18
205-CB120 BK- 18
205-CB120 BK- 18
103-CB124 RD- 18
103-CB124 RD- 18
103-CB124 RD- 18
103-CB124 RD- 18
601-CB123 GY- 18
601-CB123 GY- 18
601-CB123 GY- 18
601-CB123 GY- 18
205-CB119 BK- 18
601-CB122 GY- 18
569-L10 PK- 16
567-L16 WH- 16
601-W150 GY- 18
601-W150 GY- 18601-W150 GY- 18
205-W154 BK- 18
205-W154 BK- 18
205-W154 BK- 18
A287-W148 BK- 18
A287-W148 BK- 18
A287-W148 BK- 18
A287-W147 BK- 18
A287-W147 BK- 18
A287-W147 BK- 18
205-W157 BK- 18
205-W157 BK- 18
205-W157 BK- 18
601-W151 GY- 18
601-W151 GY- 18
601-W151 GY- 18
601-W152 GY- 18
601-W152 GY- 18
601-W152 GY- 18
205-W156 BK- 18
205-W156 BK- 18
205-W156 BK- 18
A287-W149 BK- 18
A287-W149 BK- 18
A287-W149 BK- 18
A982-W45 BR- 18
A982-W45 BR- 18
A982-W45 BR- 18
A982-W45 BR- 18
A287-W146 BK- 18
A287-W146 BK- 18
A287-W146 BK- 18
205-W155 BK- 18
205-W155 BK- 18
205-W155 BK- 18
601-W153 GY- 18
601-W153 GY- 18
601-W153 GY- 18
205-W4 BK- 18
205-W4 BK- 18
601-W21 GY- 18
601-W21 GY- 18
A287-W145 BK- 18
A287-W145 BK- 18
55Y-961
PK
-
18
16
9-
Y5
5
PK
-
18
169-Y54 PK- 18
16
9-
Y5
4
PK
-
18
16
9-
Y5
4
PK
-
18
169-Y53 PK- 18
16
9-
Y5
3
PK
-
18
16
9-
Y5
3
PK
-
18
125-C17 OR- 18
125-C18 OR- 18
125-C10 OR- 18
200-C19 BK- 18
200-C20 BK- 18
308-C21 YL - 18
308-C22 YL - 18
308-C16 YL - 18
403-C24 GN- 18
403-C23 GN- 18
403-C11 GN- 18
N970-C5 YL - 18
N973-C6 BR- 18
944-C1 OR- 18
945-C2 BR- 18
944-C1 OR- 18
945-C2 BR- 18
125-C10 OR- 18
200-C15 BK- 18
N970-C5 YL - 18
308-C16 YL - 18
403-C11 GN- 18
125-E1 OR- 18
200-E2 BK- 18
308-E3 YL - 18
403-E4 GN- 18
944-E5 OR- 18
945-E6 BR- 18
Y794-C9 OR- 18Y795-C8 GN- 18
N981-C14 GN- 18
N963-C12 OR- 18
N959-C13 PK- 18
N979-C7 GN- 18
N960-C4 OR- 18
N957-C3 PK- 18
125-C17 OR- 18
200-C19 BK- 18
308-C21 YL - 18
403-C23 GN- 18
N979-C7 GN- 18
N960-C4 OR- 18
125-C18 OR- 18
200-C20 BK- 18
308-C22 YL - 18
N957-C3 PK- 18
N973-C6 BR- 18
403-C24 GN- 18
Y795-C8 GN- 18
Y794-C9 OR- 18
N981-C14 GN- 18
N963-C12 OR- 18
N959-C13 PK- 18
N957-C3 PK- 18
N973-C6 BR- 18
N960-C4 OR- 18
N970-C5 YL - 18
N979-C7 GN- 18
Y795-C8 GN- 18
944-C1 OR- 18
945-C2 BR- 18
Y794-C9 OR- 18
N963-C12 OR- 18
N959-C13 PK- 18
200-C15 BK- 18
N981-C14 GN- 18
N979-E7 GN- 18
N960-E8 OR- 18
N957-E9 PK- 18
PRODUCT LINK ATCH
R997-R27 OR- 16
R997-R27 OR- 16
R997-R27 OR- 16
R800-CA12 OR- 16
R800-CA12 OR- 16
R800-CA12 OR- 16
152-CB17 RD- 12
TO AM-C2
C580-EN69 YL - 18 GXL
C580-EN69 YL - 18 GXL
C580-EN69 YL - 18 GXL
G826-EN7 BR- 18 GXL
G827-EN103 BU- 18 GXL
T920-EN101 YL - 18 GXL
614-AM6 PU- 18 614-AM6 PU- 18
617-AM8 BR- 18 617-AM8 BR- 18
618-AM10 YL - 18 618-AM10 YL - 18
629-P25 PK- 16
629-P25 PK- 16
629-P25 PK- 16
629-P25 PK- 16
629-P25 PK- 16
567-L16 WH- 16
569-L10 PK- 16
TWISTED PAIR WIRES MUST BE AT LEAST 1 TURN PER 25mm
H30
H30
H31
H31
H32
H32
H33
H33
H34
H34
H35
H35
H36
H
36
H37
H37
H
38
H
39
H39
H40
H40
H
40
H41
H41
H42 H43
H
42
H
43
H44
H44
H45
H45
H46
H
46
H47
H47
H48
H
48
H49
H49
H50
H
50
H51 H51
H52
H
52
H
34
124-H8 GN- 14
124-H8 GN- 14
E909-T17 WH- 18
E902-T20 PU- 18
E908-T18 BR- 18
E906-T24 OR- 18
E903-T19 YL - 18
E907-T23 GY- 18
E905-T21 BU- 18
E904-T22 BR- 18
K-C16
3E3364
1
2
3
4
5
6
7
8
9
10
11
12
K-C3
3E5179
K-C7
3E3364
1
2
K-C12
1552269
1
2
K-C14
1552269
K-C11
1552269
2
1
K-C8
1552273
4
6
3
5
K-C1
1552252
K-C13
1552267
A
B
C
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
W-C1
7X6222
A
B
W-C2
9W1951
C
D
E
F
G
H
J
SERVICE TOOL
CONNECTOR
W-C3
3E5179
W-C4
1552252
AT-C2
1552269
AT-C3
1552269
J-C1
1552269
J-C2
1552273
J-C4
3E3388
J-C3
1552269
J-C8
6T6505
J-C9
6T6505
K-C23
6T6505
K-C24
6T6505
1 2
M-C1
3E3364
1
2
M-C2
1552269
1
2
AK-C4
1552269
1
2
AK-C5
1552269
1
2
AK-C6
1552269
1
2
AK-C7
1552269
K-C25
1552269
K-C26
1552269
K-C27
1552269
K-C28
1552269
AK-C2
1552267
A
B
C
AK-C3
1552267
A
B
C
K-C9
1552267
K-C10
1552267
K-C2
3E5179
K-C15
1552264
K-C17
6T6505
K-C18
6T8047
K-C29
6T6505
K-C30
6T8047
K-C31
1747566
OVERHEAD FUSE
BLOCK
BUSS
POINT 1
BUSS
POINT 2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17
18
1
2
K-C32
1552252
3
4
5
6
7
8
9
10
11
12
AK-C1
3E5179
1
2
3
4
5
6
7
8
K-C4
3E3388
1
2
K-C6
3E3364
1
2
K-C19
3E3364
1
2
K-C20
3E3364
1
2
K-C21
3E3364
K-C22
3E3370
A
B
C
K-C33
3E3370
A
B
C
1
2
K-C34
3E3364
1
2
J-C5
3E3364
1
2
J-C6
3E3382
3
4
5
6
1
2
J-C7
3E3364
K-C35
1552272
K-C39
1552269
1
2
K-C40
3E3364
K-C41
1552269
1
2
K-C42
3E3364
AT-C1
3E3370
AT-C4
1552269
AT-C5
1552269
1
K-C5
1275484
1 2
AT-C6
3E3364
1 2
AT-C7
3E3364
1 2
AT-C8
3E3364
1 2
AT-C9
3E3364
1
2
3
4
5
6
7
8
9
10
11
12
AM-C1
3E5179
1
2
AM-C2
1552252
3
4
5
6
7
8
9
10
11
12
W-C9
1552273
1
2
3
4
5
6
W-C10
3E3382
GN-16
GY-16
BR-16
OR-16
H
L
MOTOR BK-16
P B+
GND
135-0611
T
7T4003
10
253-4019
R
ED
 N
EU
T
G
R
O
U
N
D
FI
R
ST
SE
C
O
N
D
TH
IR
D
FO
U
R
TH
FI
FT
H
SI
XT
H
SE
VE
N
YH
EI
G
H
TH
FO
R
W
AR
D
R
EV
ER
SE
PA
R
K
N
EU
TR
AL
BA
TT
ER
Y(
+)
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
N
O
T
U
SE
D
SHIFT LEVER PNL LAMP
7N-5876
GN-16
GY-16
BR-16
OR-16
H
L
MOTOR
T
BK-16
PB+
GND
135-0611
117-2311
-
+ LH SPEAKER
6T-7695
-
+ RH SPEAKER
6T-7695
MOTOR
170-5334
BK/RD-16
BK-16
B+ MEMORY 12V
GROUND
NC
LH REAR SPKR -
LH FRONT SPKR -
ANTENNA
LH FRONT SPKR +
LH REAR SPKR +
AM/FM RADIO
173-6530
AM/FM CASSETTE
173-6532
ANTENNA
9W-3072
CABLE AS.
293-7533
B+ 12V
RH FRONT SPKR -
RH REAR SPKR -
RH FRONT SPKR +
RH REAR SPKR +
WH/BK-18
GN/BK-18
WH-18
GN-18
BK-18
YL-18
YL-18
RD-18
GY/BK-18
PU/BK-18
GY-18
PU-18
BK-18
BK-18
213-9100
RD-18S
G
T
BK-18
WH-18
LH STOP TAIL LAMP
135-0426
RD-18S
G
T
BK-18
WH-18
RH STOP TAIL LAMP
135-0426
152-8346GN-18
GN-18
3
2
4
1
WH-18
WH-18
WH-18
WH-18
3E-3636
185-0008
GN-16
GN-16
GN-16
GY-16
BR-16
OR-16
H
L
MOTOR
T
BK-16
PB+
GND
135-0611
BK-18
BK-18
3E-2026
BK-18
BK-18
114-9281
BK-18
BK-18
114-9281
+24V UNSWITCHED
+24V SWITCHED
GROUND
+12V SWITCHED
GROUND
+12V UNSWITCHED
205-4285
+24V UNSWITCHED
+24V SWITCHED
GROUND
+12V SWITCHED
GROUND
+12V UNSWITCHED
(AUX POWER PORT)
205-4285
106-8704
HORN SWITCH
295-4371
WIRE ASSY
169-3145
BR-16
OR-16
PU-16
YL-16
ST
ON
OFF
B
S
C
R
110-7887
DIFF LOCK INDICATOR LAMP
107-1983
ALT
+R
366-2756
-
STANDARD
BK-18
BK-18
118-3534
BK-18
BK-18
167-0138
7N-0718
(RH SIDE)
105A
171-2212
(RH SIDE)
MOTOR
7T-8891
+ -
MOTOR
7T-8891
+ -
MOTOR
7T-8891
+ -
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
GN-16
GN-16
365-3169
1
2
T-C10
1552269
1
2
T-C11
1552269
193-2550
BK-18
WH-18
191-8304
BK-18
WH-18
BK-16
GROUND
SIGNAL
WH-16
264-4297
G-C17
1071984
G-C4
1552252 G-C5
3E5179
1
2
AG-C8
1552269
AG-C3
1552267
A
B
C
AG-C4
1552267
A
B
C
1
2
T-C2
1552269
1
2
T-C3
1552269
1
2
T-C4
1552269
1
2
T-C5
1552269
1
2
T-C6
1552269
1
2
T-C7
1552269
1
2
T-C8
1552269
1
2
T-C9
1552269
1
2
R-C2
3E3364
1
2
Y-C17
1552272
3
4
Y-C4
3E5179
Y-C14
3T3158
Y-C6
1552252
1
2
U-C5
1552252
3
4
5
6
7
8
9
10
11
12
1
2
U-C6
3E5179
3
4
5
6
7
8
9
10
11
12
F-C6
1552269
F-C1
1552252
1
2
AP-C1
3E3364
AP-C2
74-3952
CB-C14
1552269
MOTOR
170-4820
BK/RD-16
 BK-16
3
4
5
2
1
6P-3236
MOTOR
174-1494
WH/RD-14
 BK-14
9G-1950
2
7T-4003
BK-18
WH-18
RD-18 DOME LAMP
3E-6389
1
2
AN-C1
3E3364
SNOW WING LAMP
234-4323
LH BLADE FLOODLAMP
234-4323
RH BLADE FLOODLAMP
234-4323
1
2
AN-C2
1552269
1
2
AN-C3
1552269
LH REAR FLOODLAMP
234-4323
RH REAR FLOODLAMP
234-4323
LH HIGH BEAM HEADLAMP
234-4324
LH LOW BEAM HEADLAMP
234-4323
RH HIGH BEAM HEADLAMP
234-4324
RH LOW BEAM HEADLAMP
234-4323
LH CAB LO BEAM HDLAMP
234-4325
LH CAB HI BEAM HDLAMP
2344326
RH CAB HI BEAM HDLAMP
234-4326
RH CAB LO BEAM HDLAMP
234-4325
G-C6
1071984
HI BEAM INDICATOR LAMP
107-1983
2
1
103-5678
SERVICE TOOL CONN CAP
8C-6354
LH LIGHTBAR TURN LAMP
135-0427
RD-18
BK-18
WH-18
RH LIGHTBAR TURN LAMP
135-0427
RD-18
BK-18
WH-18
G-C7
1071984
G-C11
1071984
LH TURN INDICATOR LAMP
107-1983
RH TURN INDICATOR LAMP
107-1983
LH CAB TURN LAMP
135-0427
RD-18
BK-18
WH-18
RH CAB TURN LAMP
135-0427
RD-18
BK-18
WH-18
5
6
2
3
1
173-3064
4
RD-18
BK-18
LH REAR TURN LAMP
162-2073
RD-18
BK-18
RH REAR TURN LAMP
334-5410
108-0358
G-C22
1071984
BRAKE AIR PRESSURE LAMP
107-1983
3E-6328
R
D
-1
6
BK
-1
6
332-7657
PK-18
BK-18
G-C25
1071984
CENTERSHIFT PIN IND LAMP
107-1983
PK-18
BK-18
187-1008
10 - 185
G-C27
1071984
THROTTLE LOCK IND LAMP
107-1983
1
2
AY-C2
1552269
30
86
85
87
87A
AY-C1
9X1054
3E-6332
WH-18
BK-18
6
WH-18
BK-18
RD-18 BATTERY +
GROUND
SIGNAL
266-1467
G-C28
1071984
XMSN FILTER BYPASS IND
107-1983
G-C29
3T3158
G-C30
3T3158
304-6958
LAMP
7N-5876
304-6958
LAMP
7N-5876
CB-C18
1747566
UNSWITCHED POWER
FUSE BLOCK
BUSS
POINT 1
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17
CB-C19
1747566
SWITCHED POWER
FUSE BLOCK
BUSS
POINT 1
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17
(CAB FRONT)
Y-C1
1552273
AG-C1
3E5179
4
1
2
F-C8
1552252
3
5
6
7
8
9
10
11
12
(LH SIDE)
3
1
2
4
AY-C3
3E3376
R-C8
1552272
3
1
2
4
R-C12
3E3376
AW-C4
1275483
(ARTICULATION JOINT) (ARTICULATION JOINT)
1
2
T-C13
1552269
U-C14
1552252
1
2
3
4
5
6
7
8
9
10
11
12
R-C9
3E5179
(LH SIDE)
(81) XMSN OUTPUT SPEED SENSOR
191-8303
BK-18
WH-18
U-C13
9X0141
1
2
AW-C8
1552269
CB-C11
3E5179
CB-C20
1552252
CB-C51552252
1
2
U-C9
1552269
BK-18
BK-18
164-7577
F-C5
1552269
1
2
U-C10
1552269
CB-C21
3E5179
COM
NC 112-6175
NO
COM
NC 112-6175
NO
1
2
KK-C1
3E3364
87a
87
85
86
30
3E-647787a
87
85
86
30
3E-5239
(LH SIDE)
AW-C5
1275483
CB-C15
1275484
F-C7
1552269
1
2
F-C9
3E3364
1
2
Y-C12
3E3382
3
4
5
6
Y-C3
1552273
1
2
P-C22
7T5957
1
2
P-C47
7T5957
1
2
P-C48
7T5957
1
2
3
4
5
6
7
8
9
10
11
12
P-C24
CONN 47
3E5179
P-C20
1552252
P-C50
1552267
A
B
C
1
2
P-C27
1552269
1
2
P-C28
1552269
1
2
P-C29
1552269
1
2
P-C8
1552269
1
2
P-C9
1552269
1
2
P-C10
1552272
3
4
1
2
P-C11
1552269
1
2
P-C41
1552269
1
2
P-C19
1552273
3
4
5
6
1 2 3 4 5 6 7 8 9 10 11 12
P-C4
3E5179
1 2
P-C5
1552252
3 4 5 6 7 8 9 10 11 12
1 2
P-C12
1552252
3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12
P-C13
3E5179
1
2
P-C15
1552269
P-C43
1552273
P-C44
1552273
1
P-C21
1275484
P-C17
1552252
1
2
3
4
5
6
7
8
9
10
11
12
P-C37
3E5179
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
P-C34
9X1343
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
P-C39
3E5179
1
2
P-C38
1552252
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
P-C1
3E5179
1
2
P-C35
1552252
3
4
5
6
7
8
9
10
11
12
1
P-C26
1275484
1
P-C31
1275483
1
2
3
4
5
6
P-C42
3E3382
P-C18
1552267
A
B
C
1
2
P-C3
3E3382
3
4
5
6
P-C7
3E5179
P-C16
1552267
P-C25
1275483
1 2 3 4 5 6
P-C14
3E3382
NEG POS
3T-5760 (STD)
153-5710 (EXTREME DUTY)
G S
MTR
BATTERY
MOTOR
111-4275
BK
-6
P-C52
3E3382
PRODUCT
LINK
CONNECTOR
1
2
P-C53
1552273
3
4
5
6
(LH SIDE)
1
2
R-C1
1552269
10A
10A
10A 10A
10A
10A
10A
15A
15A
10A 15A
10A 10A
10A 10A
10A
10A 10A
10A 10A
15A
10A
15A
10A
10A
AW-C2
1552252
1
2
3
4
5
6
7
8
9
10
11
12
P-C32
3E5179
139-2116
BK-18
WH-18
RD-18
U-C20
1552267
A
B
C
AG-C2
1552269
1
2
AG-C6
3E3364
AG-C14
3E3364
AG-C5
1552269
1
2
AG-C7
3E3364
87a
87
85
86
30
3E-6477
10A
15A
1
2
P-C30
1552269
87a
87
85
86
30
3E-5239
BK-16
BK-16
163-1201
20A
G-C26
1071984
CHECK XMSN LAMP
107-1983
G-C24
1071984
PARKING BRAKE ENGAGED LAMP
107-1983
G-C20
1071984
CHECK ENGINE LAMP
107-1983
1
2
VX-C1
1552269
1
2
VX-C2
3E3364
- +
285-9075
SIG
IGN
SEND
GRD
IGN
SEND
GRD
IGN
SEND
GRD
IGN
SEND
GRD
383-8496
BATTERY FUEL LEVEL
ARTICULATIONCOOLANT TEMP
BK-18
WH-18
PU-18
PK-18
OR-18
GY-18
NEG POS
3T-5760 (STD)
153-5710 (EXTREME DUTY)
1
2
AJ-C2
1552269
1
2
AJ-C3
1552269
LH LIGHTBAR WORKLAMP
234-4323
RH LIGHTBAR WORKLAMP
234-4323
1
2
3
4
5
6
7
8
9
10
11
12
AJ-C1
3E5179
G
N
G
N
112-2240
G
N
G
N
112-2240
LH MOLDBOARD LAMP
234-4323
RH MOLDBOARD LAMP
234-4323
G-C21
1071984
LO ENGINE OIL PRESS LAMP
107-1983
G-C23
1071984
ACTION LAMP
107-1983
LH HEATED MIRROR
192-1994
WH-16
BK-16
RH HEATED MIRROR
192-1994
WH-16
BK-16
1 234 567 8 910 11 12 L-C3
3E5179
RD-14
RD-18
BK-18
WH-14
YL-14
BU-14
BR-18
UNUSED
WASH
PARK
LOW
HIGH
GROUND
WASHER B+
WIPER B+
275-7741
(NOTE C)
RD-14
RD-18
BK-18
WH-14
YL-14
BU-14
BR-18
UNUSED
WASH
PARK
LOW
HIGH
GROUND
WASHER B+
WIPER B+
275-7741
(NOTE C)
RD-14
RD-18
BK-18
WH-14
YL-14
BU-14
BR-18
UNUSED
WASH
PARK
LOW
HIGH
GROUND
WASHER B+
WIPER B+
275-7741
1 2
L-C1
1552264
3 4 5 6 7 8
1
2
L-C7
1552264
3
4
5
6
7
8
1
2
L-C8
1552264
3
4
5
6
7
8
L-C9
1552264
BR-16
BU-16
YL-16
WH-16
B
WP
L
H B
RD-16
RD-16
112-6174
(NOTE B)
BR-16
BU-16
YL-16
WH-16
B
WP
L
H B
RD-16
RD-16
112-6174
(NOTE B)
L-C13
1552269
1 2
L-C14
3E3364
1 2
L-C2
1552252
3 4 5 6 7 8 9 10 11 12
1
2
3
4
5
6
7
8
L-C16
3E3388
1 2 3 4 K-C36
3E3376
LH BACKUP LAMP
261-1502
RH BACKUP LAMP
261-1502
1
2
AG-C10
1552269
1
2
AG-C9
1552269
POWER
CAN HIGH
CAN LOW
CAN SHLD
DIMMER
GROUND
274-8068
NC
RS485A
RS485B
GAGE GRD
GAGE +V
NC
G-C8
1552273
134-2540
U-C4
1552267
A
B
C
G-C1
1552267
A
B
C
134-2540
87a
87
85
86
30
3E-5239
BK-18
BK-18
215-3005 AW-C10
1552269
P-C49
3E3370
A B C
RH SIDE REAR
P-C2
1552264
1 2 3 4 5 6 7 8
G-C10
3E3388
15A
1
2
P-C6
1552252
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
P-C45
3E5179
1
P-C36
1275484
15A
1
2
G-C3
1552273
3
4
5
6
G-C2
1071984
AUTOSHIFT IND LAMP
107-1983
1
2
3
4
5
6
G-C9
3E3382
30
86
85
87
87A
AG-C11
9X1054
CB-C3
1297163
1
CB-C4
1297164
287-3259
NC
RS485A
RS485B
GAGE GRD
GAGE +V
NC
288-5736
NC
RS485A
RS485B
GAGE GRD
GAGE +V
NC
1
2
GA-C1
1552273
3
4
5
6
30
86
85
87
87A
CB-C7
7T6365
30
86
85
87
87A
CB-C28
7T6365
BK-18
BK-18
297-1140
10A
1
2
GA-C3
1552273
3
4
5
6
1
2
GA-C4
1552273
3
4
5
6
1
2
AU-C2
3E3364
1
2
AU-C1
1018108
GN-14
GN-14
163-0872
149-6371
BK-18
BK-18
1
2 3
BK-18
BK-18
114-5333
1
2
CA-C3
1552269
1
2
CA-C4
1552269
1
2
CA-C5
1552269
R-C7
2304013
+5 VOLTS
GROUND
SIGNAL
274-6717
OR-18
BK-18
YL-18
A
B
C
P-C23
1275483
P-C33
1275484
1
CB-C16
1275483
1
CB-C13
1275484
1
2
AW-C9
3E3364
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
U-C3
1607689
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
EN-C1
2274002
J2
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
EN-C200
2304013
1
2
EN-C103
2304011
1
2
EN-C100
2304011
EN-C10
1552269
EN-C600
1552264
1
2
EN-C14
3E3364
1
2
AL-C2
1539693
1
2
AL-C3
1539693
1
2
AL-C4
1539693
1
2
AL-C5
1539693
1
2
AL-C6
1539693
1
2
AL-C7
1539693
293-4072
293-4072
293-4072
293-4072
244-7711
293-4072
EN-C13
2370227
1
2
EN-C105
1552269
EN-C203
2370227
EN-C202
2370227
A
B
EN-C402
1112416
A
B
EN-C401
1003320
BK-18
BK-18
245-4630
BK-18
BK-18
245-4630
BK-18
BK-18
T
234-5013
161-1703
1
2
3
+5 VOLTS
GROUND
SIGNAL
OR-18
BK-18
WH-18
267-1402
A
B
C
+5 VOLTS
GROUND
SIGNAL
OR-18
BK-18
YL-18
266-8650
1
2
3
+5 VOLTS
GROUND
SIGNAL
OR-18
BK-18
WH-18
276-9067
1
2
3
+5 VOLTS
GROUND
SIGNAL
OR-18
BK-18
WH-18
BK-18
BK-18
T
234-5012
319-0607
1 2
Y-C5
1552269
MOTOR
235-8723
87a
87
85
86
30
3E-5239
1
5
2
4
3
UA-C2
9X1054
1
2
UA-C3
1552269
+5v SUPPLY
CAT DATA LINK HIGH
THROTTLE SET SWITCH (NC)
THROTTLE RESUME SW (NO)
THROTTLE LOCK SW (MAN)
THROTTLE LOCK SW (OFF)
BATTERY (+)
GROUND LEVEL SHUTDOWN (NC)
KEYSWITCH RUN
INLET AIR HEATER RELAY
INJ ACTUATION VALVE (-)
5v RETURN #1
INJ ACTUATION VALVE (+)
ENGINE SPEED SNSR (-)
TDC SERVICE PROBE (+)
ENGINE OIL PRESS SNSR
TEMPERATURE SNSR RETURN
ENGINE SPEED SENSOR (+)
SECNDRY ENGINE SP SNS (+)
SECNDRY ENGINE SP SNS (-)
5V RETURN #2
INTAKE MANIFOLD AIR TEMP
ATMOSPHERIC PRESS SNSR
FUEL SUPPLY TEMPERATURE
FUEL PRESSURE SWITCH
262-2878
5v RETURN
+8v SUPPLY
8v RETURN
CAT DATA LINK LOW
TURBO INLET PRESSURE
ETHER SOLENOID RETURN
PRIMING PUMP RELAY
ETHER SOLENOID DRIVER
THROTTLE SET SWITCH (NO)
J1939 LOW
THROTTLE LOCK SW (AUTO)
J1939 HIGH
GROUND LEVEL SHUTDOWN (NO)
THROTTLE RESUME SW (NC)
THROTTLE POSITION SNSR
BATTERY (-)
ENGINE COOLANT TEMP
INTAKE MANIFOLD PRESS SNS
TDC SERVICE PROBE (-)
FUEL PRESSURE SENSOR
STRAP 7X-6315
14 AWG
+5v SUPPLY #2
CYLNR #5 & #6 INJ HIGHSIDE
CYLNR #1 & #2 INJ HIGHSIDE
CYLINDER #6 INJ RETURN
CYLNR #3 & #4 INJ HIGHSIDE
CYLINDER #1 INJ RETURN
CYLINDER #2 INJ RETURN
+5v SUPPLY #1
ON/OFF DRIVER RETURN
FUEL PRESS SWITCH RETURN
INJ ACTUATION PRESS SNSR
CYLINDER #3 INJ RETURN
CYLINDER #5 INJ RETURN
CYLINDER #4 INJ RETURN
J1
J2
ACTION ALARM
ACTION LAMP
LOW OIL PRESSURE LAMP
LOW AIR PRESSURE LAMP
BATTERY (-)
BATTERY (-)
BATTERY (-)
SERVICE BRAKE SW (NO)
BRAKE AIR PRESS SW (NC)
THROTTLE LOCK LAMP
CHECK TRANSMISSION LAMP
CHECK ENGINE LAMP
BATTERY (+)
BATTERY (+)
BATTERY (+)
+5v SUPPLY #3
ANALOG RETURN
1
2
3
4
5
6
7
8
U-C15
3E3388U-C7
1552252
1
2
3
4
5
6
7
8
9
10
11
12
UA-C1
3E5179
UA-C6
2370227
A
B
C
+V
GROUND
SIGNAL
1
2
UA-C4
2304011
1
2
UA-C5
2304012
7W-9943
PK-18
BK-18
T
P-C51
1552273
1
2
P-C54
3E3382
3
4
5
6
15A
AG-C15
1552269
1
2
AG-C16
3E3364
10A
10A
1
2
EN-C104
1552269
KEY SWITCH ON
CAT DATA LINK LOW
+BATT 1
AUTOSHIFT SWITCH
INCHING PEDAL LIMIT SW N/C
INCHING PEDAL LIMIT SW N/O
304-5691
+TRANS INPUT SPEED SNSR
-TRANS INPUT SPEED SNSR
+TRANS INT SPEED SNSR 1
-TRANS INT SPEED SNSR 1
+TRANS OUTPUT SPEED SNSR
-TRANS OUTPUT SPEED SNSR
FORWARD
REVERSE
TRANS SOL 1
TRANS SOL 2
TRANS SOL 4
SOL RETURN 2
TRANS SOL 7
TRANS SOL 8
PARK
NEUTRAL REDUNDANT
CAT DATA LINK HIGH
-BATT 1
SWITCH/SENSOR RETURN
LOCATION CODE 1
LOCATION CODE 2
LOCATION CODE 0
-BATT 2
LOCATION CODE ENABLE
FIFTH
SIXTH
SEVENTH
+BATT 2
EIGHTH
INCHING PEDAL POS SNSR
SECOND
THIRD
R TERMINAL
FOURTH
TRANS FILTER BYPASS SW
A/C CLUTCH SOL
TRANS FILTER BYPASS IND
BACKUP ALARM
START RELAY SOL
TRANS TEMPERATURE SNSR
FIRST
NEUTRAL
SWITCH/SENSOR RETURN
SOL RETURN 1
TRANS SOL 3
TRANS SOL 5
TRANS SOL 6
LOAD RETURN 2
KEY START
J1
14 AWG
STRAP 7X-6315
J2
LOAD RETURN 1
J1939 HIGH
J1939 LOW
A/C OPERATOR SWITCH INPUT
A/C REFRIGERANT MONITORING
AUTOSHIFT IND(SINK)
8V SENSOR POWER SUPPLY
+TRANS INT SPEED SNSR 2
-TRANS INT SPEED SNSR 2
+5V POWER SUPPLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
U-C11
1471445
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
U-C12
1471446
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
189-3158
1
2
CA-C2
1552269
1 2 F-C3
3E3364
G
N
-1
8
G
N
-1
8
174-3705
1 2 F-C4
3E3364
238-9397
1
2
CA-C6
1552269
1
2
CA-C1
1552273
3
4
5
6
AW-C7
1552273
1
2
3
4
5
6
AW-C6
3E3382
1
2
T-C12
1552269
191-8304
BK-18
WH-18
15A
1
2
T-C14
1552269
87a
87
85
86
30
3E-6477
87a
87
85
86
30
3E-6477
30
86
85
87
87A
CB-C30
7T6365
30
86
85
87
87A
CB-C29
7T6365
H-C4
6T6505
H-C5
6T6505
H-C3
6T6505
H-C6
6T6505
H-C7
6T6505
H-C2
3T3158
1
2
H-C8
3E3382
3
4
5
6
T
3E-5464
HVAC PANEL LAMP
8D-1429
WH-18
BK-18
RD-18 BATTERY +
GROUND
SIGNAL
266-1467
T-C16
1552252
1
2
3
4
5
6
7
8
9
10
11
12
U-C2
3E5179
T-C1
3E5179
1
2
U-C1
1552252
3
4
5
6
7
8
9
10
11
12
1
2
H-C1
1552269
EN-C9
3E5179
1
2
AL-C1
1552252
3
4
5
6
7
8
9
10
11
12
T-C15
2743774
6
4
3
1
5
2
249-5488- F
R
O
N
T
&
R
EA
R
- O
FF
- F
R
O
N
T
O
N
LY
7
9
CB-C10
2234778
4
5
6
1
2
3
8
10
7
9
CB-C17
2234778
4
5
6
1
2
3
8
10
7
9
CB-C2
2234778
4
5
6
1
2
3
8
10
7
9
CB-C25
2234778
4
5
6
1
2
3
8
10
368-4541
7
9
2
5
1
3
4
68
10
251-5850
7
9
2
5
1
3
4
68
10
6
4
3
1
5
2
249-5486
TA
IL
LA
M
PS
O
FF
H
EA
D
LA
M
PS
368-4542
7
9
2
5
1
3
4
68
10
7
9
CB-C31
2234778
4
5
6
1
2
3
8
10
7
9
L-C5
2234778
1
2
3
4
5
6
8
1O
7
9
L-C6
2234778
1
2
3
4
5
6
8
10
6
4
3
1
5
2
368-4544
7
9
6
4
3
1
5
2
368-4544
7
9
222-7885
7
9
2
5
1
3
4
68
10
7
9
1
2
3
4
5
6
8
10
L-C12
2234778
7
9
1
2
3
4
5
6
8
10
W-C7
2234778
7
9
1
2
3
4
5
6
8
10
W-C8
2234778
6
3
2
1
5
4
249-5481
9
7
10
8
6
3
2
1
5
4
249-5493
9
7
10
8
30
86
85
87
87A
Y-C9
9X1054
7
9
1
2
3
4
5
6
8
10
Y-C7
2234778
369-4102
7
9
2
5
1
3
4
68
10
7
9
1
2
3
4
5
6
8
10
Y-C8
2234778
280-4244
7
9
2
5
1
3
4
68
10
7
9
1
2
3
4
5
6
8
10
Y-C15
2234778
368-4543
7
9
2
5
1
3
4
68
10
135A
171-2213
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
C-C1
1607690
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
351-8490
CDL HIGH
CDL LOW
CAN LOW
CAN HIGH
BATTERY+
R-TERM
RS232 PORT3-TXD
RS232 PORT3-RXD
RS232 PORT3-GND
BATTERY-
KEYSWITCH ON
ANTENNA
1
1
G
P
S
G
S
M
GPS ANTENNA
GSM ANTENNA
1
2
C-C2
1552252
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
E-C2
3E3382
1
2
C-C3
1552269
E-C1
1552252
1
2
3
4
5
6
7
8
9
10
11
12
C-C4
3E5179
E-C3
9X4813
A
B
C
AW-C1
3E5179
1
2
R-C3
1552252
3
4
5
6
7
8
9
10
11
12
W-C5
1907613
1
2
U-C8
1552252
3
4
5
6
7
8
9
10
11
12
GN-16
GN-16
365-3169
CAB HARNESSES
OVERHEAD FUSE BLOCK
141
139
138
125
124
123
122
121
72
70
58
56
54
53
49
20
CONN 32
CONN 33
CONN 34
CONN 35
CONN 36
CONN 37
CONN 38
CONN 39
CAB PLATFORM HARNESSES
A
A
A
VIEW OF AREA “A”
142
140
137
134
115
111
96
94
93
92
84
80
55 52
51
50
36
32
27
26
25
19
13 12
CONN 11
CONN 12
CONN 13
CONN 18
CONN 21
CONN 22
CONN 27
CONN 41
CONN 42
CONN 43
CONN 44
CONN 45CONN 46
CONN 47
CONN 48
CONN 50
CONN 53
CHASSIS
REAR VIEW OF
RELAY PANEL
150
147
132
127
126
119
118
109
108
107
97
95
91
89
88
87
86
85
83
82
79
78
77
76
75
74
73
68
66
65
62
61
60
59
57
46
44
43
42
41
40
39
38
35
34
33
31
30
29 28 24
23
22
21
11
10
9
8
7
65
4
3
1
CONN 5
CONN 6
CONN 7CONN 8
CONN 9
CONN 15
CONN 16
CONN 17
CONN 23
CONN 24
CONN 25
CONN 26
CONN 28
CONN 29
CONN 30
HVAC
144
71
48
SHIFT CONSOLE
146 145
133
116
113
112
110
90
64
2
CONN 1
CONN 2
CONN 3
CONN 4
CONN 14
CONN 19
CONN 20
CONN 31
CONN 51
STEERING AND GUAGE CONSOLES
SWITCHED POWER
FUSE BLOCK
UNSWITCHED POWER
FUSE BLOCK
FRONT VIEW OF
GUAGE CONSOLE
149
148
143
135
131
129
128
120
117
114
106
69
67
63
47
45
37
18
17
16
15
14
CONN 40
CONN 49
CONN 54
CONN 55
TRANSMISSION CONTROL VALVE
105
104
103
102
101
100
99
98
CONN 10
