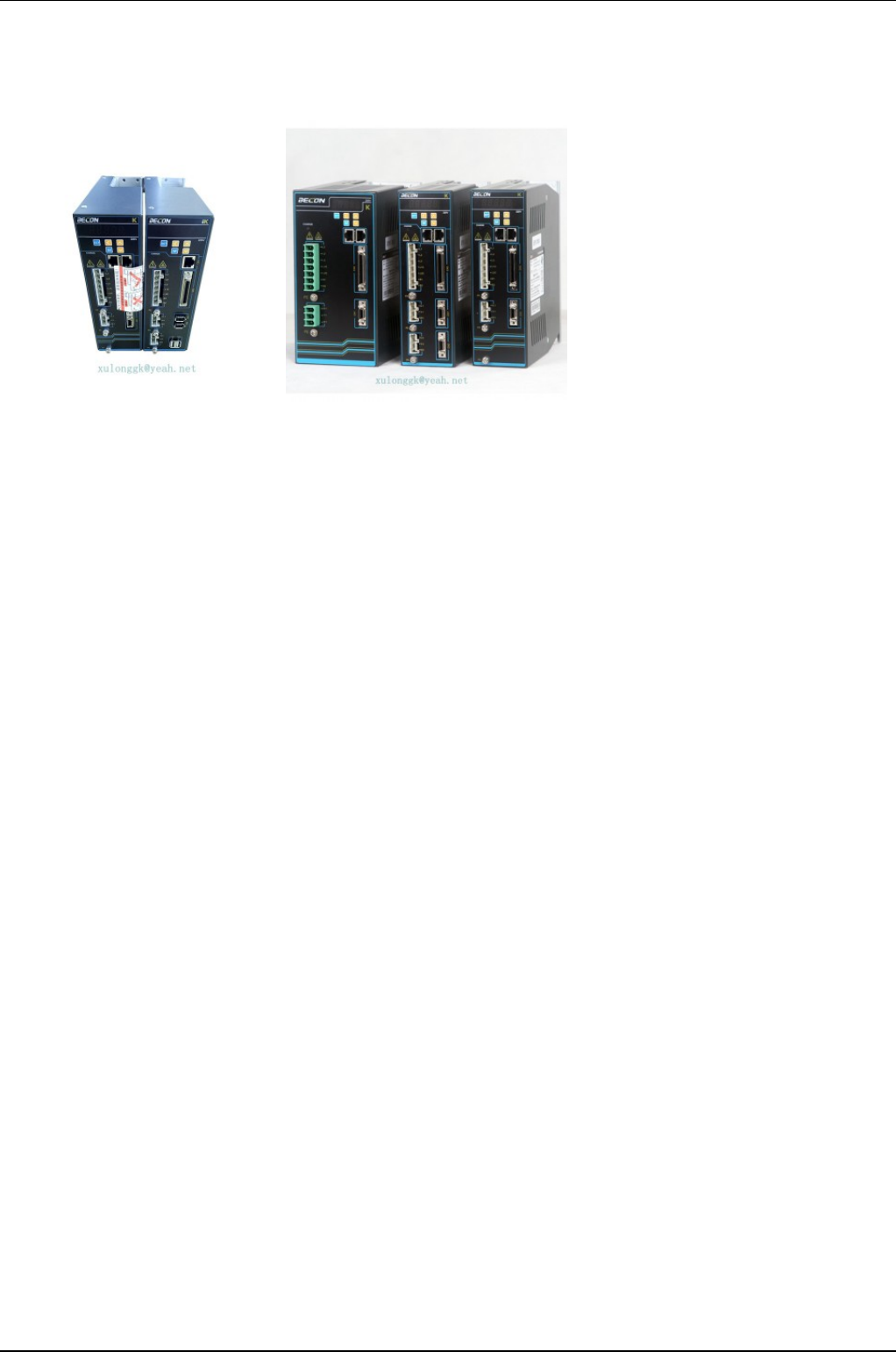

B-1-2 200-220v Absolute servo driver
I. General pulse type K series servo drive
1. Servo drive model:
K Series servo drive
200-220v Absolute servo driver
ZSD-KAS20AB
ZSD-KAS35AB
ZSD-KAS50AB
ZSD-KAS75AB
2. Technical indexes :
Power supply voltage: single-phase or three-phase 220VAC & 380V (- 15 ~ + 10%), 50 ~ 60Hz
Output power: 220V (2kW, 2.8KW, 3.5kw, 5kW), 380V (2kW, 3.5kw, 5kW, 7.5kW)
Encoder: 2500 C/T incremental / provincial encoder, 17bit / 20bit / 23bit absolute encoder
Digital IO signal: 8-channel input and 6-channel output can be set
Analog signal: 2 inputs
Communication mode: RS232, standard Modbus protocol, CANopen bus, among which IK series
supports MII protocol
Monitoring function: provide 16 kinds of status monitoring such as position, speed, current, voltage,
input and output
3. Product advantages
 page 1 / 6

1. Powerful internal position mode can plan multi-path continuous operation to achieve rich motion
control functions; at most 32 groups of data planning can be supported, and each group of data can
be set with pulse number or angle according to demand, and speed, acceleration, deceleration and
emergency deceleration of internal position mode can be set.
2. Automatically measure the mechanical characteristics of load inertia, set the optimal gain, and
shorten the system commissioning time
3. Mechanical resonance frequency analysis, equipped with two sets of notch filters, which can adjust
the frequency (50 ~ 5000Hz) and notch depth, effectively overcome the low frequency resonance and
vibration at the mechanical end, and can set the vibration frequency (1 ~ 100Hz) and vibration
damping.
4. Friction torque compensation function can reduce the influence of static friction during mechanical
reversing and improve the command following performance of low-speed operation.
5. Debugging software support, mechanical characteristics analysis, parameter setting, monitoring
and other functions, intuitive and simple operation.
 page 2 / 6
https://www.xulonggk.com/uploads/6c1e1c05.jpg

 page 3 / 6
https://www.xulonggk.com/uploads/c2287f4c.jpg
https://www.xulonggk.com/uploads/7a2bd939.jpg
https://www.xulonggk.com/uploads/9fe4f47e.jpg

 page 4 / 6
https://www.xulonggk.com/uploads/956d1bc5.jpg


 page 5 / 6
https://www.xulonggk.com/uploads/85c71a9f.jpg
https://www.xulonggk.com/uploads/c7ce3f92.jpg
https://www.xulonggk.com/uploads/489bc4e2.jpg
