Science of the Total Environment 930 (2024) 172660
Available online 20 April 2024
0048-9697/© 2024 Published by Elsevier B.V.
Wetland technology for the treatment of HCH-contaminated water – Case
study at Hajek site
Miroslav Černík a,*, Jan Němeček a, Martina Štrojsová a,b, Pavla Švermová c, Tereza Sázavská a,
Petr Brůček d
a Institute for Nanomaterials, Advanced Technologies and Innovation, Technical University of Liberec, Studentská 2, 461 17 Liberec, Czech Republic
b Faculty of Science, Humanities and Education, Technical University of Liberec, Studentská 2, 461 17 Liberec, Czech Republic
c Faculty of Economics; Technical University of Liberec, Studentská 2, 461 17 Liberec, Czech Republic
d DIAMO s.p., Správa uranových ložisek, 28. října 184, 261 01 Příbram, Czech Republic
H I G H L I G H T S G R A P H I C A L A B S T R A C T
• The HCH removal efficiency of
Wetland+ ranged from 53.5 % to 96.9
%.
• Variation of the removal efficiency was
mainly related to variation in flow rate.
• Removal efficiency for individual HCH
isomers exhibited trend: α = γ = δ > β
= ε.
• Improved quality of the recipient resul-
ted in increase in biodiversity of
Diatoms.
• Sustainability assessment showed that
Wetland+ outranked conventional
WWTPs.
A R T I C L E I N F O
Keywords:
Hexachlorocyclohexane
Lindane
Biodegradation
Constructed wetland
Natural remediation, phytobenthos
Diatoms
Bioindicators
A B S T R A C T
Hexachlorocyclohexanes (HCH) isomers and their transformation products, such as chlorobenzenes (ClB),
generate severe and persistent environmental problems at many sites worldwide. The Wetland technology
employing oxidation-reduction, biosorption, biodegradation and phytoremediation methods can sufficiently
treat HCH-contaminated water. The treatment process is inherently natural and requires no supplementary
chemicals or energy. The prototype with a capacity of 3 L/s was installed at Hajek quarry spoil heap (CZ), to
optimize the technology on a full scale. The system is fed by drainage water with an average concentration of
HCH 129 μg/L, ClB 640 μg/L and chlorophenols (ClPh) of 16 μg/L. The system was tested in two years of
operation, regularly monitored for HCH, ClB and ClPh, and maintained to improve its efficiency. The assessment
was not only for environmental effects but also for socio and economic indicators. During the operation, the
removal efficiency of HCH ranged from 53.5 % to 96.9 % (83.9 % on average) depending on the flow rate.
Removal efficiency was not uniform for individual HCH isomers but exhibited the trend: α = γ = δ > β = ε. The
improved water quality was reflected in a biodiversity increase expressed by a number of phytobenthos (diatoms)
species, a common biomarker of aquatic environment quality. The Wetland outranked the conventional WWTP
* Corresponding author at: Technical University of Liberec, Studentská 2, 461 17 Liberec, Czech Republic.
E-mail address: miroslav.cernik@tul.cz (M. Černík).
Contents lists available at ScienceDirect
Science of the Total Environment
journal homepage: www.elsevier.com/locate/scitotenv
https://doi.org/10.1016/j.scitotenv.2024.172660
Received 15 January 2024; Received in revised form 10 April 2024; Accepted 19 April 2024
mailto:miroslav.cernik@tul.cz
www.sciencedirect.com/science/journal/00489697
https://www.elsevier.com/locate/scitotenv
https://doi.org/10.1016/j.scitotenv.2024.172660
https://doi.org/10.1016/j.scitotenv.2024.172660
https://doi.org/10.1016/j.scitotenv.2024.172660
http://crossmark.crossref.org/dialog/?doi=10.1016/j.scitotenv.2024.172660&domain=pdf
Science of the Total Environment 930 (2024) 172660
2
in 10 out of the 15 general categories, and it is the most relevant scenario from the socio, environmental, and
economic aspects.
1. Introduction
HCH isomers (α, β, γ, δ, ε) and their transformation products, such as
ClB generate severe and persistent environmental problems at many
sites worldwide. α, β and γ-HCH are listed under the Stockholm
Convention on persistent organic pollutants (POPs), and the use of
γ-HCH (lindane) was banned in Europe from the end of 2007 under EC
Regulation No.850/2004. Many studies suggest that HCH production
across Europe has led to >40 megasites, with the total HCH waste
exceeding 250 thousand tons (Vijgen and International HCH and Pes-
ticides Association, 2006; Vijgen et al., 2019). In recent decades,
research has therefore focused on the study of biological, chemical and
physical methods for treating HCH-contaminated water and soil.
Among chemical agents, ZVI is recognized for its ability to chemi-
cally decompose HCH. Recently, there has been significant interest in
utilizing ZVI for HCH remediation, whether in its nano-scale (nZVI;
Elliott et al., 2008; Soukupova et al., 2015), micro-scale (μZVI; Elliott
et al., 2009), or macro-scale (mZVI; Lacinová et al., 2013) forms.
Lacinová et al. (2013) demonstrated that various HCH isomers were
degraded by nZVI at different efficiencies (α = γ > β > δ > ε). Benzene
and chlorobenzene are the end products of γ -HCH degradation under
both anaerobic and aerobic conditions using stabilized nZVI (Wang
et al., 2009).
Regarding biological degradation, HCH can be degraded by anaer-
obic bacteria belonging to Clostridium sp., Citrobacter sp., Desulfovibrio
sp., Desulfococcus sp., and Dehalobacter sp. The primary responsibility for
aerobic degradation of HCH isomers to less chlorinated benzenes and
benzene lies with aerobic bacteria, including genera Bacillus, Escherichia,
Pseudomonas, Rhodanobacter, Sphingobium, Sphingomonas, and Strepto-
myces. Some species, such as Sphingobium, are capable of complete HCH
mineralization (Badea et al., 2011; Boyle et al., 1999; Lal et al., 2010;
Qiao et al., 2020; Semerád et al., 2023).
Organic matter in soil and sediment has a relatively high sorption
capacity for adsorption of HCH isomers, which reduces their mobility in
the environment. This capability, expressed as the octanol/water
partition coefficient (Kow) values, decreases from δ > α = β > γ (Xiao
et al., 2004).
Constructed wetlands are designed ecosystems where phytor-
emediation processes are promoted. Phytoremediation utilizes plants
and root microbiomes to degrade, immobilize, or accumulate contami-
nants (Pilon-Smits, 2005; Vaněk et al., 2017; Vangronsveld et al., 2009).
The mechanisms are rhizofiltration, rhizodegradation, phytofiltration
and extraction, phytoimmobilization, phytostabilization, phytode-
gradation, and phytovolatilization (Arthur et al., 2005; Pilon-Smits,
2005; Vaněk et al., 2017; Košková et al., 2022). The choice of plant
species for a constructed wetland depends on several factors, including
the type of water to be treated, the local climate, and the specific
treatment goals (Shelef et al., 2013). The most common plants used in
constructed wetlands include genera Typha, Scirpus (Schoenoplectus),
Phragmites, Juncus and Eleocharis (Vymazal, 2013).
The proposed Wetland system comprises three sequential steps: 1)
permeable reactive modules filled with macro-scale zero-valent iron
(ZVI), 2) a biosorption/biodegradation module and 3) an aerobic
wetland module. The treatment process is inherently natural and re-
quires no supplementary chemicals or energy. The system was previ-
ously tested on-site at a small scale, with a flow rate of 90 %.
This paper thoroughly examines the Wetland technology, a novel
integrated approach designed to tackle HCH contamination through
remediation mechanisms, including chemical decomposition, sorption,
biodegradation, and phytoremediation. These mechanismsare stimu-
lated within a three-stage system, including a permeable reactive barrier
with ZVI filling, a biosorption/ biodegradation module, and an aerobic
wetland, as detailed in Section 2.1.
Traditionally, the efficiency of a treatment technology is evaluated
based on the relative removal of contaminants. Additionally, long-term
monitoring of changes in the composition of benthic diatom commu-
nities, among others, can be a suitable tool to assess the impact of
treatment technology on restoring the environmental functions of water
bodies. Benthic diatoms, microscopic unicellular algae (Bacillar-
iophyceae), are common in almost all types of water. Because they are
sensitive to and affected by various environmental factors, they are
common indicators of water quality.
It has also been suggested that diatoms can be used as good in-
dicators of pesticide pollution in water (Morin et al., 2009; Rimet and
Bouchez, 2011). Several authors have studied how pesticides affect di-
atoms (Goldsborough and Robinson, 1986; Pérès et al., 1996; Berard
et al., 2004; Schmitt-Jansen and Altenburger, 2005; Debenest et al.,
2008; Rimet and Bouchez, 2011). The effect of pesticides on diatoms can
be different, e.g. maleic hydrazide caused an increase in deformed
diatom frustules (Debenest et al., 2008), and diuron, azoxystrobin, and
tebuconazole affected diatom life forms (Rimet and Bouchez, 2011).
There is only a little information in the literature about the effect of HCH
on diatoms, but it is known that diatoms can accumulate HCH
(Łukowski and Ligowski, 1987; Bystrzejewska et al., 1993; Lukowski
et al., 1997).
2. Materials and methods
2.1. The site
The project’s pilot site is the former uranium mine and its spoil heap
in Hajek, located in the western part of the Czech Republic (50◦17′31.5″
N 12◦53′35.2″ E). In the 1960s (until 1971), uranium was mined on the
site. The overlying soil was dumped in a nearby spoil heap. Between
1966 and 1968, the state authorities decided to dispose of about
3000–5000 t of the ballast HCH isomers and waste ClB from the
chemical production of lindane (γ-HCH) there. These substances were
placed in various parts of the spoil heap in drums, paper packaging, or
bulk.
Later, the spoil heap was dewatered by the construction of a drainage
system consisting of subhorizontal wells. Since January 1989, HCH
isomers and ClB have been monitored and documented at the drainage
system outlet and its recipient - the Ostrovský Creek. Nowadays, the
long-term average concentrations of HCH, ClB and ClPh at the drainage
system outlet are 129 μg/L, 640 μg/L, and 16 μg/L, respectively.
2.2. The wetland technology
Based on the pilot project results, a full-scale system was designed
and installed within the EU LIFE project LIFEPOPWAT in 2021. The

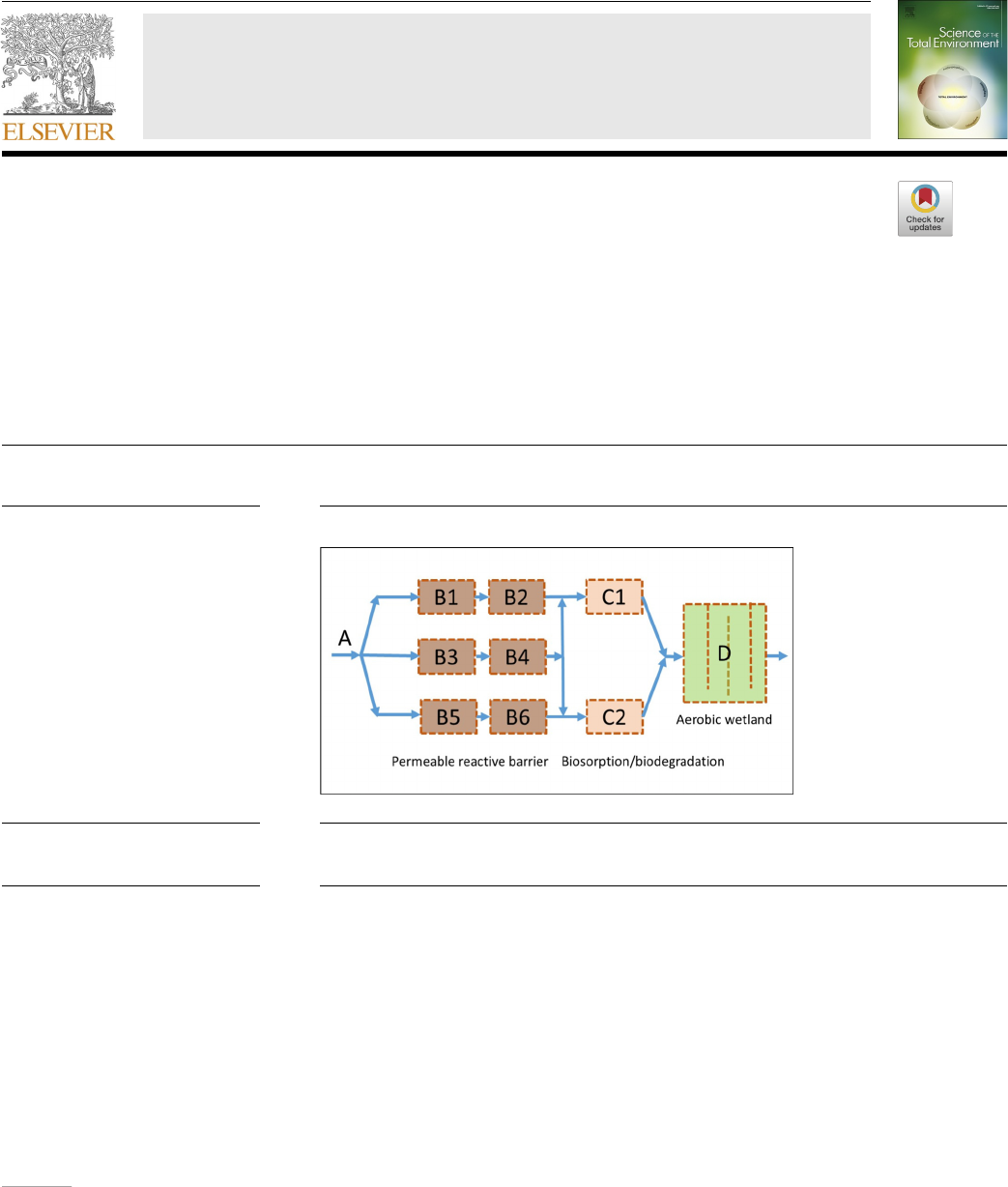

system (Fig. 1) has four sections. The inlet section (section A) collects
water from individual subhorizontal wells of the Hajek spoil heap and
feeds the subsequent reactive compartments. Three parallel branches
form the permeable reactive barrier (module B), each comprising two
basins in series. The basins were filled with ZVI. Here, the treated water
loses dissolved oxygen and gains a low redox potential (ORP) necessary
for HCH dechlorination. In this step, the most persistent β- and ε-HCH
M. Černík et al.
Science of the Total Environment 930 (2024) 172660
3
isomers (among other isomers) are decomposed. The total area of
module B is 540 m2 and the total volume is 360 m3. The iron chips have a
relatively high porosity of 45 %; therefore, the total volume of water is
approximately 160 m3. The residence time of water in module B is
approximately 15 h in case of all three parallel branches operation and
10 h in case of two (for the flow rate of 3 L/s).
The treated water continues to the two parallel compartments – the
biosorption modules (modules C), filled with a mixture of peat (40 %),
crashed stones (30 %), loamy soil (20 %) and wooden chips (10 %). Reed
canary grass (Phalaris arundinacea) and common reed (Phragmites aus-
tralis) were planted there. The total area of the tanks is 650 m2, and the
total water volume is 115 m3. The residence time of water in this
compartment is approximately 10 h (for the flow rate of 3 L/s). Massive
precipitation of Fe oxyhydroxides occurs on the substrate surface in
modules C, resulting from the change in redox conditions from module B
to C.
The aerobic wetland system (module D) is the final treatment step.
The wetland is characterized by a high biodiversity of plants partly
reintroduced from the surrounding wetland reserves and adjacent na-
ture. The most represented species in module D are the macroscopic alga
Chara sp. and wetland plants Glyceria fluitans, Juncus articulatus, J.
effusus, Scirpus sylvaticus, Spargamium erectum, and Typha latifolia.
The aerobic wetland system consists of one compartment with a total
area of 2700 m2 and a water volume of 700 m3. The water level is limited
to a maximum of 25 cm. The bottom of the wetland was filled with
loamy soil (50 %), crashed stones (30 %), compost (10 %), and wooden
chips (10 %). This module serves for the final removal of organic sub-
stances, suspended substances, and decomposition products of HCH,
especially chlorobenzenes. The residence time of water in this
compartment is approximately 65 h (for a flow rate of 3 L/s).
2.3. Sampling
The water samples for chemical analyses were collected at outflows
of each Wetland module. The physical-chemical parameters of water
were measured directly on-site by temperature, pH, electrical conduc-
tivity, redox potential, and dissolved oxygen concentration WTW probes
connected to the Multi 3430 SET C (WTW, Weilheim, Germany). All
samples were transported to the laboratory in a cooled box. Water
samples for dissolved metals were filtered through a 0.45 μm membrane
filter and fixed by HCl in the field.
Diatom samples were collected along the Ostrovský Creek, the
recipient of the system outflow (Fig. 2), in August 2021 (before the
Wetland prototype commissioning), in August 2022 and August 2023 (i.
e., approximately a year and two years after commissioning) as well as in
the modules of the Wetland treatment system in August 2022 and
August 2023. An uncontaminated tributary of the Ostrovský Creek was
chosen as a reference point (the Reference Creek in Fig. 2) and sampled
in August 2021 and August 2023 (in August 2022, the creek was dry).
Diatom samples were taken from submerged stones, from various sur-
faces (submerged plants, leaves, and branches of trees and shrubs), and
from the mud surface layer with fine detritus when no stones or plants
were present. Samples were taken in 100 mL plastic bottles and trans-
ported to the laboratory in cool and dark conditions. Once in the labo-
ratory, a microscopic analysis of live samples was performed, and
permanent slides of diatoms were prepared. The remaining samples
were preserved with formaldehyde solution to a final concentration of 3
% and archived.
2.4. Chemical analyses
The concentration of HCH isomers, ClB and ClPh, in water was
determined using two GC–MS assemblies according to Wacławek et al.
(2019) method. HCH, ClB and ClPh were measured by the RSH/Trace
1310/TSQ 8000 Evo GC–MS array (ThermoFisher Scientific, USA) with
a Scion-5MS column for HCH and ClB (Scion Instruments, Goes, The
Netherlands) and benzene and monochlorobenzene by the CombiPal/
CP3800/Saturn2200 RSH/Trace 1310/TSQ 8000 GC–MS array (PAL,
Zwingen, Switzerland; Varian, Palo Alto, ThermoFisher Scientific USA)
using a DB-624 Rxi-624Sil Ms. (Restek, USA) column (Agilent, Santa
Clara, USA). Samples were extracted using the headspace SPME tech-
nique, either with a PDMS/DVB fibrewith a coating thickness of 100 μm
(Supelco, Bellefonte, USA) or via direct injection of the sample in static
headspace mode. Before extraction, samples were derivatized to form
acetylated chlorophenols (following EN 12673). Isotopically labelled
compounds (γ-HCH D6, pentachlorophenol 13C6, 1,3,5-trichloroben-
zene D3, toluene D8) were used as internal GC–MS/MS analysis
standards.
Concentrations of dissolved calcium (Ca), magnesium (Mg), sodium
(Na), potassium (K), iron (Fe) and manganese (Mn) were measured by
an Optima 2100 inductively coupled plasma optical emission spec-
trometer (ICP-OES; Perkin Elmer, USA), according to standard proced-
ure ČSN EN ISO 11885 (2007); chloride (Cl− ), nitrate (NO3
− ) and
sulphate (SO4
2− ) by ion chromatography (type Dionex ICS-2100, Thermo
Fisher Scientific, USA) according to ČSN EN ISO 10304-1 (2007); and
bicarbonate (HCO3
− ) and carbonate (CO3
2− ) by titration according to ČSN
EN ISO 9963-1 (1994). Quality control procedures for the chemical
analyses followed requirements for the laboratory accredited according
to norm ČSN EN ISO/IEC 17025:2018.
2.5. Diversity of benthic diatoms
The diatom species’ determination and diatom valves’ counts were
processed by permanent slides using a light microscope (Optika, B-
383PL, Italy) equipped with a camera (Optika, C–B1, Italy) at a
magnification of 1000. Diatom taxa were identified using standard
literature (Lange-Bertalot et al., 2017). The relative abundance of di-
atoms (the proportional representation of different diatom taxa within
the community) was evaluated by enumeration of frustules. The number
of given species was obtained by calculating individuals in a random
sample in the ocular fields of a microscope. A minimum of 300 diatom
valves were counted in each sample. In samples of a few individuals
(〈300), all frustules on two permanent slides were counted. The relative
abundance data were assigned to seven abundance classes as follows: 0
= 0 % (absent), 1 ≥ 0 toof individual modules of the
Wetland prototype are shown in Supplementary Fig. S1. Modules B3 +
B4 have been in operation for a shorter period (since April 2023) and
were fed by an individual subhorizontal well with a low flow rate, i.e.
there is a significantly longer water residence time in these modules.
Therefore, their removal efficiency cannot be compared to one of the
other B modules and thus is not displayed in the graph. Modules B1 + B2
and B5 + B6 exhibited similar HCH removal efficiencies of 46 % and 45
%, respectively. The highest efficiency of 52 % was observed in module
D, with an increasing trend over time due to the gradual growth of
wetland plants. Biosorption modules C1 and C2 showed the lowest
removal rates of 34 % and 25 %, respectively. However, these modules
are significantly smaller than module D, where the residence time is
approximately six times longer. It is also essential to notice that the ef-
ficiencies of downgradient modules are affected by the performance of
upgradient ones.
The removal efficiency was not uniform for individual HCH isomers
but exhibited the trend: α = γ = δ > β = ε as shown in Fig. 4a. This trend
changed the isomer profile of HCH. While δ-HCH isomer dominated the
inflow, ε-HCH prevailed in the outflow from the Wetland system.
However, the trend is not the same in the individual modules of the
Wetland. In modules B (permeable reactive barrier), there is a small
difference in the removal of HCH isomers (e.g. in modules B5 + B6 from
34 % for ε-HCH to 47 % for δ-HCH). On the contrary, in biosorption
modules C1 and C2 and also in module D, lower removal efficiencies
were observed for β-HCH and ε-HCH isomers in comparison to other
α-HCH, γ-HCH and δ-HCH, as shown in Fig. 4b. These results support the
irreplaceable role of HCH chemical reduction in module B for the
removal of the persistent β-HCH and ε-HCH.
Fig. 3. HCH total removal efficiency (%) and the flow rate (L/s) as a function of time during the test period.
Fig. 4. a) Overall removal efficiency of HCH isomers. The mean standard de-
viation for all isomers was 18 %; b) Average removal efficiency of individual
HCH isomers in modules of the Wetland prototype. The mean standard devia-
tion for all isomers and modules was 24 %. B1 + B2 are the B1 and B2 reactive
permeable modules in series, similarly for B5 + B6. C1 and C2 are biosorption
modules in parallel. Module D is an aerobic wetland.
M. Černík et al.
Science of the Total Environment 930 (2024) 172660
6
The results can be compared with those of other authors to a limited
extent, as a similar full-scale system has not yet been installed. Chen
et al. (Chen et al., 2021) investigated β-HCH removal using vertical-flow
constructed wetlands with different vegetation plantations (Acorus
calamus, Canna indica, Thalia dealbata, and Pontederia cordata). Their
efficiency in a small laboratory and full-controlled system was between
90.86 and 98.17 % but for the much lower β-HCH concentration of 10
μg/L. Yang et al. (Yang et al., 2022) investigated the fate of HCH and
dichlorodiphenyltrichloroethane (DDT) in laboratory-scale constructed
wetlands. The results showed that substrate adsorption (50.55 %–72.74
%) and microbial degradation (20.38 %–27.89 %) were the main ways
to remove OCPs.
3.4. Mass of eliminated pollutants
The cumulative eliminated mass of HCH and its co-contaminants ClB
and ClPh were calculated. In 27 months of test operation, the Wetland
prototype removed approximately 12.8 kg of HCH, 68.5 kg of ClB, 1.2 kg
of ClPh, and about 2.0 tons of Fe and 212 kg of Mn.
3.5. HCH mass discharge into the Ostrovský Creek
The recipient of the dump leachate – the Ostrovský Creek, is a sen-
sitive watercourse as it feeds the Horní and Dolní ̌Stít ponds used for carp
fish breeding. Before the test operation, HCH mass discharge to
Ostrovský Creek was between 23 and 25 g/day based on two monitoring
campaigns performed in April and August 2021. During the whole test
operation, the HCH mass discharge dropped to 0.3–11.3 g/day (a
decrease of 51–99 %); see Fig. 5.
3.6. Diatom diversity
As depicted in Fig. 6, before the Wetland commissioning (2021), 0 to
35 species were identified in individual profiles of the Ostrovský Creek.
Shannon diversity index (H) ranged from 0 to 4.72. There was a general
increase in the number of species and the Shannon diversity index in the
direction of surface water flow, obviously due to dilution and attenua-
tion processes that resulted in a gradual decrease in HCH concentration
from 86.53 μg/L (in profile 1) to 6.91 μg/L (in profile 4).
In the years 2022 and 2023, significant increases in number of spe-
cies and the Shannon diversity index were observed in profiles 1 and 2 of
the Ostrovský Creek. In profile 1, the most affected by a discharge of
HCH containing dump leachate, the number of diatom species increased
from 0 to 25 and the Shannon diversity index from 0 to 3.62 within two
years of Wetland operation. As the HCH mass flux into the Ostrovsky
Creek decreased from the initial value of 23 to 25 g/day to 3.3 g/day on
average, the increase in diatom biodiversity is an obvious consequence
of improved surface water quality.
In downgradient profiles 3 and 4, the number of diatom species and
the Shannon diversity index showed no noticeable increase. Due to
natural attenuation processes and sorption, the HCH concentration was
decreasing along the flow of the Ostrovský Creek even before the
Wetland operation, and diatom diversity in profiles 3 and 4 was
comparable.
The most frequently occurring diatom species in the Ostrovský Creek
in all three monitoring campaigns were Gomphonema parvulum, Cymbella
lange-bertalotii, Navicula lanceolata and Nitzschia linearis. The species
with the highest relative abundance in the reference creek were Eunotia
arcus, E. botuliformis and Gomphonema parvulum. Both Eunotia arcus and
E. botuliformis in the reference creek prefer undisturbed, oligotrophic
and electrolyte-poor freshwater habitats. These species never dominated
in the Ostrovský Creek.
Regarding the diatoms in the Wetland prototype, 34 species were
found in August 2022. The highest number of species (18) was detected
in section D3 of module D, and no diatoms were observed in the inlet
sections C1/1 and C2/1 of parallel modules C. Similarly, the Shannon
diversity index (H) exhibited an increasing trend along the direction of
water flow from 0 in sections C1/1 and C2/1 to 3.55 in section D4
(Fig. 7).
In August 2023, most profiles observed a noticeably higher number
of diatom species and values of the Shannon diversity index (H). The
number of diatom species ranged from 5 (section C2/1) to 26 (section
D4). Correspondingly, the Shannon diversity index increased to a level
ranging from 0.49 (section C2/1) to 2.66 (section D4). The most
frequently occurring species in the Wetland prototype were Cymbella
lange-bertalotii, Achnanthidium minutissimum, Rhopalodia parallela and
Fig. 5. HCH mass discharge into the Ostrovský Creek (g/day) as a function of time before and during the test.
M. Černík et al.
Science of the Total Environment 930 (2024) 172660
7
Nitzschia linearis. Cymbella lange-bertalotii was the most resistant species,
dominating sections C, with the highest HCH concentrations.
3.7. Sustainability of remediation
The three alternative water treatment scenarios regarding con-
struction and operation were compared comprehensively for the
selected relevant environmental,economic, and social criteria. The
ranked answers were plotted as radar graphs in Fig. 8. In this qualitative
assessment, Wetland outranked the use of conventional WWTP for 10
out of 15 general categories, and where it did not outrank, the ranking
was very similar. In only one category, uncertainty and evidence, did it
rank behind WWTP, which was entirely predictable for an emerging
technology compared to an established one. Another result is that while
the experts in the team mostly agreed in their assessment of the sce-
narios, the external assessors often had very conflicting views,
depending on their professional interests. The more comprehensive
consultation provides useful validation for supporting an approach to
environmental restoration projects.
4. Conclusions
The Wetland demonstration prototype has treated drainage water
heavily contaminated by HCH since its commissioning for 809 days
(~27 months). During this test operation, the average removal effi-
ciency of HCH, ClB and ClPh was 83.9 %, 95.4 % and 79.4 %, respec-
tively. The efficiency of the HCH removal was lower than expected due
to higher water flows (over the design capacity of 3 L/s). This efficiency
will increase in future with the growth of the wetlandś plants. Removal
for individual HCH isomers exhibited a higher efficiency for α, γ and δ
than for β and ε. Consequently, while δ-HCH isomer dominated the
inflow, ε-HCH prevailed in the outflow from the Wetland prototype.
Regarding removal efficiencies of individual Wetland modules, the
highest efficiency of 52 % was observed for module D (aerobic wetland),
which has an increasing trend, most likely due to the gradual growth of
wetland plants.
Consequently, the HCH mass discharge to the Ostrovsky Creek
decreased from about 24 g/day to 0.3–11.3 g/day, marking an
approximate 51 % to 99 % decrease, depending on the flow rate. Within
the test operation period, the Wetland prototype treated approximately
130,800 m3 of contaminated water and removed about 12.8 kg of HCH,
68.5 kg of ClB, 1.2 kg of ClPh, 2.0 tons of Fe and 212 kg of Mn. The water
quality in Ostrovsky Creek was improved, reflected in increased biodi-
versity determined by phytobenthos (diatoms).
The sustainability assessment showed that Wetland technology is the
most suitable solution, both environmentally, socially, and
economically.
Funding
This work was supported by the EU Life Programme under the
project LIFEPOPWAT (No. LIFE18 ENV/CZ/000374).
Fig. 6. Number of diatom species and the Shannon diversity index (H) in the Ostrovský Creek and the reference creek.
Fig. 7. Number of diatom species and the Shannon diversity index (H) in the
modules C and D of Wetland.
M. Černík et al.
Science of the Total Environment 930 (2024) 172660
8
CRediT authorship contribution statement
Miroslav Černík: Writing – review & editing, Supervision,
Conceptualization. Jan Němeček: Writing – original draft, Conceptu-
alization. Martina Štrojsová: Writing – original draft, Methodology.
Pavla Švermová: Investigation, Data curation. Tereza Sázavská:
Formal analysis. Petr Brůček: Investigation.
Declaration of competing interest
The authors declare no conflict of interest. The funders played no
role in the design of the study; in the collection, analysis, or interpre-
tation of data; in the writing of the manuscript, or in the decision to
publish the results.
Data availability
Data will be made available on request.
Appendix A. Supplementary data
Supplementary data to this article can be found online at https://doi.
org/10.1016/j.scitotenv.2024.172660.
References
Arthur, E.L., Rice, P.J., Rice, P.J., Anderson, T.A., Baladi, S.M., Henderson, K.L.D.,
Coats, J.R., 2005. Phytoremediation—an overview. Crit. Rev. Plant Sci. 24 (2),
109–122. https://doi.org/10.1080/07352680590952496.
Badea, S.-L., Vogt, C., Gehre, M., Fischer, A., Danet, A.-F., Richnow, H.-H., 2011.
Development of an enantiomer-specific stable carbon isotope analysis (ESIA) method
for assessing the fate of α-hexachlorocyclo-hexane in the environment. Rapid
Commun. Mass Spectrom. 25, 1363–1372. https://doi.org/10.1002/rcm.4987.
Bardos, P., Bone, B.D., Boyle, R., Evans, F., Harries, N., Howard, T., Smith, J.W.N., 2016.
The rationale for simple approaches for sustainability assessment and management
in contaminated land practice. Sci. Total Environ. 563-564, 755–768. https://doi.
org/10.1016/j.scitotenv.2015.12.001.
Berard, A., et al., 2004. Procedures for determining the pesticide sensitivity of indigenous
soil algae: a possible bioindicator of soil contamination? Arch. Environ. Contam.
Toxicol. 46 (1), 24–31.
Boyle, A.W., Häggblom, M.M., Young, L.Y., 1999. Dehalogenation of lindane
(γ-hexachlorocyclohexane) by anaerobic bacteria from marine sediments and by
sulfate-reducing bacteria. FEMS Microbiol. Ecol. 29, 379–387. https://doi.org/
10.1111/j.1574-6941.1999.tb00628.x.
Bystrzejewska, G., Łukowski, A., Ligowski, R., 1993. Changes in dynamics of 14C
incorporation and releaseby Antarctic marine diatoms in the presence of lindane
during subsequent light/dark periods. Polish Polar Res. 3-8-3-8.
Chen, Q., Zeng, H.H., Liang, Y.P., Qui, L.T., Peng, G.S., Huang, L.L., Song, X.H., 2021.
Purification effects on β-HCH removal and bacterial community differences of
vertical-flow constructed wetlands with different vegetation plantations.
Sustainability 13 (23). https://doi.org/10.3390/su132313244.
CL:AIRE, 2020a. Supplementary report 1 of the SuRF-UK framework: a general approach
to sustainability assessment for use in achieving sustainable remediation (SR1).
https://www.claire.co.uk/projects-and-initiatives/surf-uk.
CL:AIRE, 2020b. Supplementary report 2 of the SuRF-UK framework: selection of
indicators/criteria for use in sustainability assessment for achieving sustainable
remediation (SR2). https://www.claire.co.uk/projects-and-initiatives/surf-uk.
Debenest, T., et al., 2008. Herbicide effects on freshwater benthic diatoms: induction of
nucleus alterations and silica cell wall abnormalities. Aquat. Toxicol. 88 (1), 88–94.
Elliott, D.W., Lien, H.-L., Zhang, W., 2008. Zero-valent iron nanoparticles for treatment
of ground water contaminated by hexachlorocyclohexanes. J. Environ. Qual. 37,
2192–2201. https://doi.org/10.2134/jeq2007.0545.
Elliott, D.W., Lien, H.-L., Zhang, W.-X., 2009. Degradation of lindane by zero-valent iron
nanoparticles. J. Environ. Eng. 135, 317–324. https://doi.org/10.1061/(asce)0733-
9372(2009)135:5(317).
Goldsborough, L.G., Robinson, G.G.C., 1986. Changes in periphytic algal community
structure as a consequence of short herbicide exposures. Hydrobiologia 139 (2),
177–192.
Košková, S., Štochlová, P., Novotná, K., Amirbekov, A., 2022. Influence of Delta-
hexachlorocyclohexane (δ-HCH) to Phytophthora ×alni resistant Alnus glutinosa
genotypes - evaluation of physiological parameters and remediation potential.
Ecotox. Env. Safety. https://doi.org/10.1016/j.ecoenv.2022.114235.
Lacinová, L., Černík, M., Šourková, H., 2013. Degradation of chlorinated cyclohexanes
(lindane) by zero-valent iron nanoparticles (NZVI). Presented at the NANOCON
2013. In: 5th International Conference. Brno, CZ.
Lal, R., Pandey, G., Sharma, P., Kumari, K., Malhotra, S., Pandey, R., Raina, V.,
Kohler, H.-P.E., Holliger, C., Jackson, C., Oakeshott, J.G., 2010. Biochemistry of
microbial degradation of hexachlorocyclohexane and prospects for bioremediation.
Microbiol. Mol. Biol. Rev. 74, 58. https://doi.org/10.1128/MMBR.00029-09.
Lange-Bertalot, H., Hofmann, G.M., Werum, M., Cantonati, M., 2017. Freshwater benthic
diatoms of Central Europe. Over 800 common species used in ecological assessment.
In: English Edition WithUpdated Taxonomy and Added Species, Koeltz Botanical
Books, Schmitten-Oberreifenberg, p. 942.
Lecointe, C., Coste, M., Prygiel, J., 1993. “Omnidia”: software for taxonomy, calculation
of diatom indices and inventories management. Hydrobiologia 269 (1), 509–513.
Łukowski, A.B., Ligowski, R., 1987. Cumulation of chloroorganic insecticides by
Antarctic marine diatoms. Polish. Polar Res. 167–177.
Lukowski, A.B., Bystrzejewska, G., Ligowski, R., 1997. The influence of chlorinated
hydrocarbons (Aroclor 1254, pp’DDE, lindane) on photosynthetic assimilation of 1 4
C by diatoms Fragilariopsis curta and Fragilariopsis cylindrus. Oceanogr. Lit. Rev. 11
(44), 1375.
Morin, S., Bottin, M., Mazzella, N., et al., 2009. Linking diatom community structure to
pesticide input as evaluated through a spatial contamination potential (Phytopixal):
a case study in the Neste river system (South-West France). Aquat. Toxicol. 94 (1),
28–39.
Pérès, F., Florin, D., Grollier, T., et al., 1996. Effects of the phenylurea herbicide
isoproturon on periphytic diatom communities in freshwater indoor microcosms.
Environ. Pollut. 94 (2), 141–152.
Pilon-Smits, E., 2005. Phytoremediation. Annu. Rev. Plant Biol. 56, 15–39. https://doi.
org/10.1146/annurev.arplant.56.032604.144214.
Qiao, W., Puentes Jácome, L.A., Tang, X., Lomheim, L., Yang, M.I., Gaspard, S., Avanzi, I.
R., Wu, J., Ye, S., Edwards, E.A., 2020. Microbial communities associated with
sustained anaerobic reductive dechlorination of α-, β-, γ-, and
δ-hexachlorocyclohexane isomers to monochlorobenzene and benzene. Environ. Sci.
Technol. 54, 255–265. https://doi.org/10.1021/acs.est.9b05558.
Rimet, F., Bouchez, A., 2011. Use of diatom life-forms and ecological guilds to assess
pesticide contamination in rivers: lotic mesocosm approaches. Ecol. Indic. 11,
489–499.
Schmitt-Jansen, M., Altenburger, R., 2005. Toxic effects of isoproturon on periphyton
communities–a microcosm study. Estuar. Coast. Shelf Sci. 62 (3), 539–545.
Semerád, J., Lhotský, O., Filipová, A., Urban, O., Šírová, K., Boháčková, J., Komárek, M.,
Cajthaml, T., 2023. Remedial trial of sequential anoxic/oxic chemico-biological
Fig. 8. Comparison of Wetland technology (green), WWTP (red) and no-change (blue) in category of environmental (left), economic (middle) and social (right)
benefits. The smaller the area the better the score of the technology.
M. Černík et al.
https://doi.org/10.1016/j.scitotenv.2024.172660
https://doi.org/10.1016/j.scitotenv.2024.172660
https://doi.org/10.1080/07352680590952496
https://doi.org/10.1002/rcm.4987
https://doi.org/10.1016/j.scitotenv.2015.12.001
https://doi.org/10.1016/j.scitotenv.2015.12.001
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0020
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0020
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0020
https://doi.org/10.1111/j.1574-6941.1999.tb00628.x
https://doi.org/10.1111/j.1574-6941.1999.tb00628.x
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0030
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0030
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0030
https://doi.org/10.3390/su132313244
https://www.claire.co.uk/projects-and-initiatives/surf-uk
https://www.claire.co.uk/projects-and-initiatives/surf-uk
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0050
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0050
https://doi.org/10.2134/jeq2007.0545
https://doi.org/10.1061/(asce)0733-9372(2009)135:5(317)
https://doi.org/10.1061/(asce)0733-9372(2009)135:5(317)
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0065
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0065
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0065
https://doi.org/10.1016/j.ecoenv.2022.114235
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0075
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0075
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0075
https://doi.org/10.1128/MMBR.00029-09
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0085
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0085
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0085
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0085
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0090
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0090
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0095
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0095
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0100
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0100
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0100
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0100
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0105
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0105
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0105
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0105
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0110
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0110
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0110
https://doi.org/10.1146/annurev.arplant.56.032604.144214
https://doi.org/10.1146/annurev.arplant.56.032604.144214
https://doi.org/10.1021/acs.est.9b05558
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0125
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0125
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0125
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0130
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0130
Science of the Total Environment 930 (2024) 172660
9
treatment for decontamination of extreme hexachlorocyclohexane concentrations in
polluted soil. J. Hazard. Mater. 443, 130199 https://doi.org/10.1016/j.
jhazmat.2022.130199.
Shelef, O., Gross, A., Rachmilevitch, S., 2013. Role of plants in a constructed wetland:
current and new perspectives. Water 5, 405–419.
Soukupova, J., Zboril, R., Medrik, I., Filip, J., Safarova, K., Ledl, R., Mashlan, M.,
Nosek, J., Cernik, M., 2015. Highly concentrated, reactive and stable dispersion of
zero-valent iron nanoparticles: direct surface modification and site application.
Chem. Eng. J. 262, 813–822. https://doi.org/10.1016/j.cej.2014.10.024.
Vaněk, T., Soudek, P., Podlipná, R., Petrová, Š., Landa, P., 2017. Fytoremediace a
možnosti její aplikace. [Phytoremediation and the possibilities of its application].
The Centre of Administration and Operations of the Czech Academy of Science.
Prague 1–23 ([in Czech]).
Vangronsveld, J., Herzig, R., Weyens, N., Boulet, J., Adriaensen, K., Ruttens, A.,
Thewys, T., Vassilev, A., Meers, E., Nehnevajova, E., van der Lelie, D., Mench, M.,
2009. Phytoremediation of contaminated soils and groundwater: lessons from the
field. Environ. Sci. Pollut. Res. 16, 765–794. https://doi.org/10.1007/s11356-009-
0213-6.
Vijgen, J., International HCH and Pesticides Association, 2006. The Legacy of Lindane
HCH Isomer Production: A Global Overview of Residue Management, Formulation
and Disposal. The Netherlands, International HCH and Pesticides Association.
Vijgen, J., de Borst, B., Weber, R., Stobiecki, T., Forter, M., 2019. HCH and lindane
contaminated sites: European and global need for a permanent solution for a long-
time neglected issue. Environ. Pollut. 248, 696–705.
Vymazal, J., 2013. Emergent plants used in free water surface constructed wetlands: a
review. Ecol. Eng. 61, B, 582–592. https://doi.org/10.1016/j.ecoleng.2013.06.023.
Wacławek, S., Silvestri, D., Hrabák, P., Padil, V.V.T., Torres-Mendieta, R., Wacławek, M.,
Černík, M., Dionysiou, D.D., 2019. Chemical oxidation and reduction of
hexachlorocyclohexanes: a review. Water Res. 162, 302–319. https://doi.org/
10.1016/j.watres.2019.06.072.
Wang, Z., Peng, P., Huang, W., 2009. Dechlorination of γ-hexachlorocyclohexane by
zero-valent metalliciron. J. Hazard. Mater. 166, 992–997. https://doi.org/10.1016/
j.jhazmat.2008.11.106.
Xiao, H., Li, N., Wania, F., 2004. Compilation, evaluation, and selection of
physicalchemical property data for a-, b-, and g-hexachlorocyclohexane. J. Chem.
Eng. Data 49, 173e185. https://doi.org/10.1021/je034214i.
Yang, C., Wang, B., Wang, H., He, Z., Pi, Y.F., Zhou, J.J., Liang, T.C., Chen, M., He, T.B.,
Fu, T.L., 2022. Removal of organochlorine pesticides and metagenomic analysis by
multi-stage constructed wetland treating landfill leachate. Chemosphere 301.
https://doi.org/10.1016/j.chemosphere.2022.134761.
M. Černík et al.
https://doi.org/10.1016/j.jhazmat.2022.130199
https://doi.org/10.1016/j.jhazmat.2022.130199
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0140
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0140
https://doi.org/10.1016/j.cej.2014.10.024
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0150
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0150
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0150
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0150
https://doi.org/10.1007/s11356-009-0213-6
https://doi.org/10.1007/s11356-009-0213-6
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0160
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0160
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0160
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0165
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0165
http://refhub.elsevier.com/S0048-9697(24)02807-9/rf0165
https://doi.org/10.1016/j.ecoleng.2013.06.023
https://doi.org/10.1016/j.watres.2019.06.072
https://doi.org/10.1016/j.watres.2019.06.072
https://doi.org/10.1016/j.jhazmat.2008.11.106
https://doi.org/10.1016/j.jhazmat.2008.11.106
https://doi.org/10.1021/je034214i
https://doi.org/10.1016/j.chemosphere.2022.134761
	Wetland technology for the treatment of HCH-contaminated water – Case study at Hajek site
	1 Introduction
	2 Materials and methods
	2.1 The site
	2.2 The wetland technology
	2.3 Sampling
	2.4 Chemical analyses
	2.5 Diversity of benthic diatoms
	2.6 Removal efficiency
	2.7 Sustainability of remediation
	3 Results
	3.1 Physicochemical parameters and chemical composition of inlet water
	3.2 Flow rate, amount of treated water
	3.3 Pollutant removal efficiency
	3.4 Mass of eliminated pollutants
	3.5 HCH mass discharge into the Ostrovský Creek
	3.6 Diatom diversity
	3.7 Sustainability of remediation
	4 Conclusions
	Funding
	CRediT authorship contribution statement
	Declaration of competing interest
	Data availability
	Appendix A Supplementary data
	References
