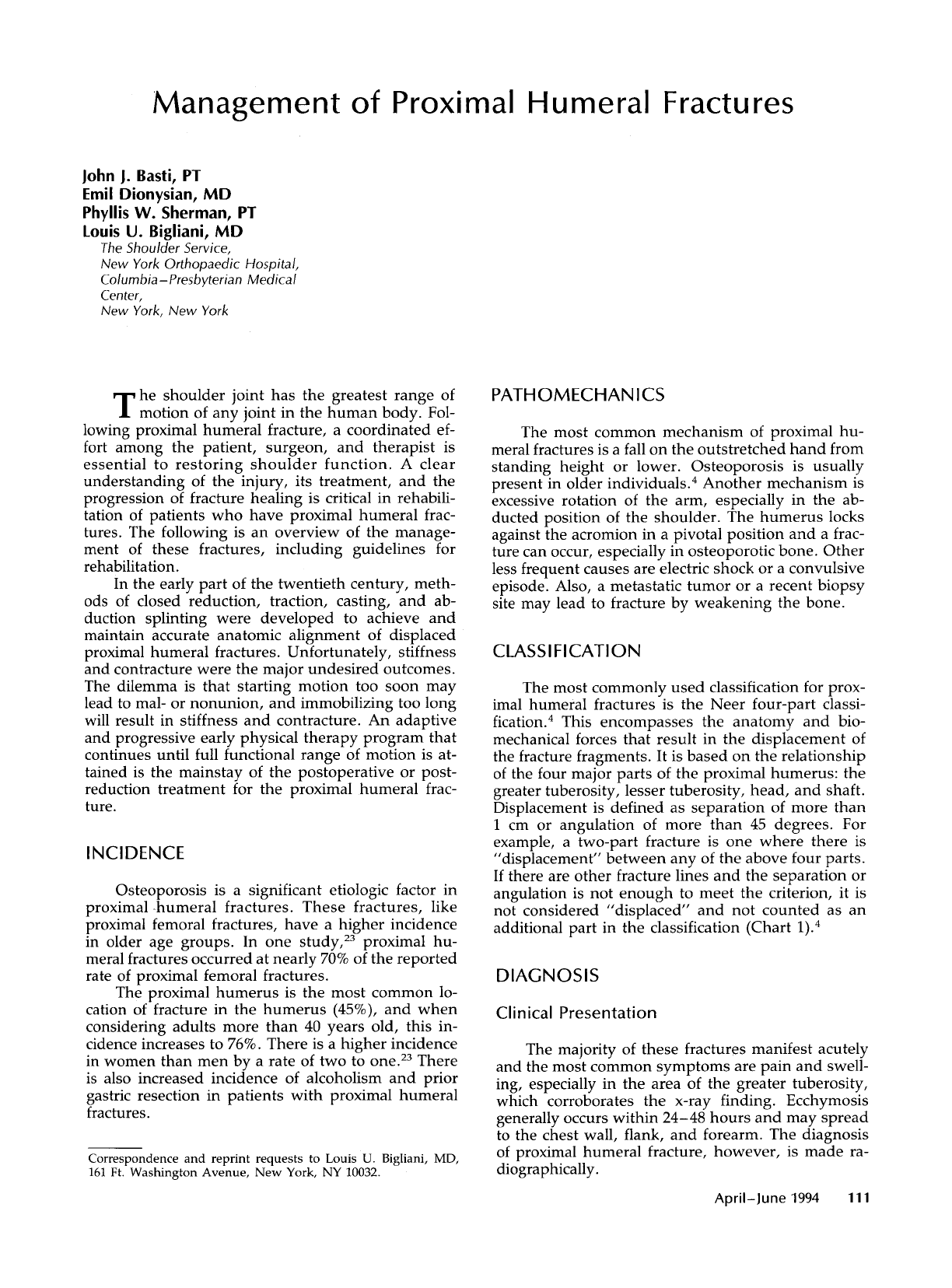

Management of Proximal Humeral Fractures
John J. Basti, PT
Emil Dionysian, MD
Phyllis W. Sherman, PT
louis U. Bigliani, MD
The Shoulder Service,
New York Orthopaedic Hospital,
Columbia-Presbyterian Medica l
Center,
New York, New York
T he shoulder joint has the greatest range of
motion of any joint in the human body. Fol­
lowing proximal humeral fracture, a coordinated ef­
fort among the patient, surgeon, and therapist is
essential to restoring shoulder function . A clear
understanding of the injury, its treatment, and the
progression of fracture healing is critical in rehabili­
tation of patients who have proximal humeral frac­
tures. The following is an overview of the manage­
ment of these fractures, including guidelines for
rehabilitation.
In the early part of the twentieth century, meth­
ods of closed reduction, traction, casting, and ab­
duction splinting were developed to achieve and
maintain accurate anatomic alignment of displaced
proximal humeral fractures. Unfortunately, stiffness
and contracture were the major undesired outcomes.
The dilemma is that starting motion too soon may
lead to mal- or nonunion, and immobilizing too long
will result in stiffness and contracture. An adaptive
and progressive early physical therapy program that
continues until full functional range of motion is at­
tained is the mainstay of the postoperative or post­
reduction treatment for the proximal humeral frac­
ture.
INCIDENCE
Osteoporosis is a significant etiologic factor in
proximal -humeral fractures . These fractures, like
proximal femoral fractures, have a higher incidence
in older age groups. In one study,23 proximal hu­
meral fractures occurred at nearly 70% of the reported
rate of proximal femoral fractures.
The proximal humerus is the most common lo­
cation of fracture in the humerus (45%), and when
considering adults more than 40 years old, this in­
cidence increases to 76%. There is a higher incidence
in women than men by a rate of two to one. 23 There
is also increased incidence of alcoholism and prior
gastric resection in patients with proximal humeral
fractures.
Correspondence and reprint requests to Louis U. Bigliani, MD,
161 Ft. Washington Avenue, New York, NY 10032.
PATHOMECHANICS
The most common mechanism of proximal hu­
meral fractures is a fall on the outstretched hand from
standing height or lower. Osteoporosis is usually
present in older individuals. 4 Another mechanism is
excessive rotation of the arm, especially in the ab­
ducted position of the shoulder. The humerus locks
against the acromion in a pivotal position and a frac­
ture can occur, especially in osteoporotic bone. Other
less frequent causes are electric shock or a convulsive
episode. Also, a metastatic tumor or a recent biopsy
site may lead to fracture by weakening the bone .
CLASSIFICATION
The most commonly used classification for prox­
imal humeral fractures is the Neer four-part classi­
fication. 4 This encompasses the anatomy and bio­
mechanical forces that result in the displacement of
the fracture fragments. It is based on the relationship
of the four major parts of the proximal humerus: the
greater tuberosity, lesser tuberosity, head, and shaft.
Displacement is defined as separation of more than
1 cm or angulation of more than 45 degrees. For
example, a two-part fracture is one where there is
"displacement" between any of the above four parts.
If there are other fracture lines and the separation or
angulation is not enough to meet the criterion, it is
not considered "displaced" and not counted as an
additional part in the classification (Chart 1).4
DIAGNOSIS
Clinical Presentation
The majority of these fractures manifest acutely
and the most common symptoms are pain and swell­
ing, especially in the area of the greater tuberosity,
which corroborates the x-ray finding. Ecchymosis
generally occurs within 24-48 hours and may spread
to the chest wall, flank, and forearm. The diagnosis
of proximal humeral fracture, however, is made ra­
diographically.
April-June 1994 111
CHART 1. The Neer Classification System for Proximal
Humeral Fractures
Anatomical
Neck
Surgical
Neck
Greater
Tuberosity
Lesser
Tuberosity
Fracture­
Dislocation
Head­
Splitting
Displaced Fractures
2-part 3-part Articular
Surface
Reproduced with permission from: Bigliani LV: Fractures of
the proximal humerus. In Rockwood CA Jr, Matsen FA II (eds):
The Shoulder, vol. 1. Philadelphia, W. B. Saunders, 1990, pp.
278-334.
Neurovascular injuries are not uncommon. The
most common nerve injured in fractures about the
shoulder is the axillary nerve. This nerve supplies
the deltoid muscle and skin overlying it. Occasion­
ally, in the postfracture or postoperative period there
may be inferior subluxation of the humerus. In the
majority of cases this is due to deltoid fatigue or
atrophy rather than an injury to the axillary nerve.
Gentle isometric exercises help recover the deltoid
tone while the arm is in a sling. If the subluxation is
severe and lasts for more than four weeks, an axillary
nerve palsy must be considered. Brachial plexus in­
juries also can occur, with a reported incidence of
6%.25
Fracture dislocations of the proximal humerus
are difficult to diagnose, particularly in the posterior
direction where more than 50% of these injuries are
missed by the initial treating physician. 4 Axillary and
112 JOURNAL OF HAND THERAPY
scapular radiographic views, or computed tomogra­
phy (CT) scans, are important in diagnosing fracture
dislocations.
Radiographic Evaluation
The trauma series is the best initial method for
diagnosing proximal humeral fractures. This consists
of anteroposterior and lateral (Y view) radiographs
in the scapular plane and, if possible, an axillary
view. The axillary view is essential for evaluating the
glenoid surface and very helpful in making the di­
agnosis of anterior or posterior fracture dislocation.
The Velpeau axillary technique allows an axillary view
to be obtained without removing the patient's arm
from the sling. 4 Other diagnostic tests that are useful
include tomography and CT. Tomograms are espe­
cially useful in evaluating a proximal humeral frac­
ture for nonunion or articular surface involvement.
A CT scan is helpful in judging the amount of dis­
placement of tuberosity fractures, impression frac­
tures, and chronic fracture-dislocations.
MANAGEMENT
Fortunately, the majority of proximal humeral
fractures are minimally displaced and can be satis­
factorily managed with a sling and early range of
motion exercises. For significantly displaced frac­
tures, various methods of treatment have been pro­
posed, including closed reduction, casts, splints, per­
cutaneous pinning, 8, 13 external fixation,10 open
reduction and internal fixation,6,9 and humeral head
replacement. 17,25 Each method can have its useful
role in fracture management. Some of the factors
involved in the decision-making process are the frac­
ture type, quality of the bone, and compliance of the
patient. The two major options are conservative or
nonoperative and operative approaches.
Conservative
This method is ideally suited for patients who
have minimally displaced fractures, those who are
less than ideal surgical candidates, or those with lim­
ited functional goals. On occasion, closed reduction
can improve alignment and function. In the case of
two-part surgical neck fracture this is done, by flexing
and adducting the arm to counteract the deforming
forces of the pectoralis major muscle. Greater tub­
erosity fractures are less amenable to closed reduc­
tion, because they are pulled superior and posterior
by the rotator cuff. Three-part fractures are quite un­
stable and difficult to manage optimally by closed
reduction, and open reduction is required for accu­
rate reduction and optimal function. In the event of
a closed reduction of a displaced fracture, testing the
stability of thefracture under fluoroscopy can help
with decisions of timing and intensity of physical
therapy during the recovery period.
Reduced or minimally displaced fractures are im-
mobilized in a sling with the patient's arm at the side
or in the Velpeau position. A swath may enhance
immobilization and comfort. An axillary pad is useful
to prevent skin excoriation secondary to sweating.
Gentle range of motion exercises can be started seven
to ten days following the fracture, when the pain has
diminished and the patient is less apprehensive. Ad­
vancement of the intensity and duration of therapy
is based upon the fracture configuration, its apparent
or tested stability, signs of fracture healing by ra­
diography, and the patient's tolerance. 16
Intermittent radiographs taken in two perpen­
dicular planes are essential in ruling out progressive
displacement. Overly aggressive exercises may dis­
tract a minimally displaced fracture and result in mal­
union or nonunion. The greatest amount of improve­
ment in range of motion occurs between the third
and eighth weeks following injury. An organized and
supervised physical therapy program is essential dur­
ing this period. The outline of the rehabilitation pro­
tocols is provided below.
Operative
Once the decision is made that conservative
TABLE 1. Closed Reduction: Nondisplaced or Minimally
Displaced Fracture of the Surgical Neck and the Anatomical
Neck, and Less Than 1 cm Displaced Tuberosity Fracture
Time
Postfracture
7-10 days
10 days to 3 weeks
(when pain has
diminished and
the patient is
less apprehen­
sive)
3-6 weeks
4 weeks
6-8 weeks
8 weeks
Phase Exercise Program'
Early passive Pendulum
motion Passive FE
Passive ER
Phase I
Isometrics
Phase II
Phase III
Pendulum
AAFR
AA ER to 40 degrees
Pendulum
AAFE
AA ER
AA HEt
IR
ER
Anterior deltoid
Posterior deltoid
Middle deltoid
Active FE, supine
Active FE with weights,
supine
FE, erect, with stick
Eccentric pulleys
Resistive exercises
Stretching
Special stretching
*FE = forward elevation; ER = external rotation; IR = in­
ternal rotation; HE = hyperextension; and AA = active assistive.
tAt six weeks.
TABLE 2. Open Reduction/Internal Fixation and Humeral
Head Replacement for Four-part Fracture
Time
Postoperative
3-5 days
7-10 days
3 weeks
4-6 weeks
12 weeks
Phase Exercise Program'
Early passive Supine ER to 40 degrees
motion Supine FE
Phase I Pendulum
ER with stick
FE IRt HEt
Phase I Pulleys
Isometrics IR
Phase II
Phase III
ER
Anterior deltoid
Posterior deltoid
Lateral deltoid
Active FE, supine
Active FE with weights,
supine
FE, erect, with stick
Eccentric pulleys
Resisted exercises
Stretching
Special stretching
*ER = external rotation; FE = forward elevation; IR = in­
ternal rotation; and HE = hyperextension.
tNot to be done with tuberosity fracture.
treatment including closed reduction is not adequate,
the following methods can be utilized for reduction
and fixation of proximal humeral fractures.
Open Reduction and Internal Fixation. Open re­
duction and internal fixation has been popular since
the early part of this century. Various techniques and
devices have been proposed to treat patients who
have these fractures. This approach, in most cases,
provides sufficient stability to allow careful controlled
early range of motion exercises and helps to avoid
stiffness and contracture.23 It is the treatment of choice
for displaced three-part and two-part greater tuber­
osity fractures of the humerus. 4,1l,12,21-24 The stan­
dard exposure is through the deltopectoral approach.
At times, insertion of the deltoid or the pectoralis
major may be elevated for more exposure. This may
affect the postoperative rehabilitation course by de­
laying the initiation of the active phase. The current
trend is toward limited dissection of the soft tissue
about the fracture fragments and using the minimal
amount of hardware required for stable fixation. 6 After
the open reduction and internal fixation, postoper­
ative rehabilitation should be adjusted to the stability
of the fixation, the quality of the bone and soft tis­
sues, and the type of surgical approach and soft­
tissue repair. Some of the common postoperative
protocols are detailed in the rehabilitation section.
Following are some of the more commonly used op­
erative techniques.
Wire or Sutures. Heavy sutures (or wires) allow
utilization of the tension band principle to gain rel-
April-June 1994 113
FIGURE 1. Passive forward elevation in the plane of the
scapula is performed by the therapist with the patient either
erect (top) or supine (bottom).
atively stable fixation. This technique is especially
useful in reattaching the greater or lesser tuberosity
onto the shaft. This is done using transosseous suture
in patients with strong bone or with suture through
the rotator cuff in the elderly. The preferred suture
is no. 5 nonabsorbable or 18-gauge wire in figure-of­
eight configuration. This method can be used alone
or in conjunction with other types of hardware (rods
or prostheses).
Rods. Flexible intramedullary rods have been
popular with many authors,l5,24,26 especially for in­
ternal fixation of two-part surgical neck fractures. The
most commonly utilized devices are Enders nails and
Rush rods. These also can be used in conjunction
with wires or sutures through the standard open
approach or through a very limited incision that splits
the deltoid and rotator cuff. Frequent complications
of this technique have been the inability to achieve
stable fixation and impingement of the device against
the acromion during shoulder elevation, necessitat­
ing removal of the hardware.
Plate and Screws, The use of a buttress plate and
screws has been associated with good results, es­
pecially with two-part surgical neck fractures. The
best results have been in cases where bone quality
has been good and soft-tissue dissection has been
limited. Malposition of the plate can cause impinge-
114 JOURNAL OF HAND THERAPY
FIGURE 2. Passive external rotation is performed by the ther­
apist with the patient's arm comfortably abducted in neutral
with the patient in the sitting position (left) or supine (right)
with the elbow supported. Verbal cues for relaxation should
accompany motion .
FIGURES 1 and 2. Early passive motion.
ment, necessitating later removal. As with rods, the
plate or screws can be an anchoring point for addi­
tional wires or sutures.
Humeral Head Replacement. Humeral head re­
placement for the management of proximal humeral
fracture dislocation was first reported by Neer in 1953.
Currently, the humeral head replacement prosthesis
is used in the treatment for four-part, selected os­
teoporotic three-part and head-splitting fractures.
Important considerations regarding this technique are
the restoration of humeral length, humeral head ver­
sion, and secure fixation of the tuberosities in their
correct positions to prevent impingement. Passive
range of motion can usually be started on the third
day.
COMPLICATIONS
Many complications have been reported follow­
ing both closed and open treatments for displaced
fractures. These can be categorized as early or late.
Possible early problems include rupture of the rotator
cuff or the biceps tendon, 3 neurovascular injuries,2.27
and thoracic injuries. These problems, especially
brachial plexus injuries, are usually the result of the
initial trauma and in mild cases may become evident
only during the rehabilitation period.
Other complications may arise later during the
rehabilitative period. The most common of these in­
clude avascular necrosis, nonunion, malunion, hard­
ware failure, frozen shoulder, and infection.
Nonunion
Nonunion of the proximal humerus is rare and,
even if present, may not be debilitating. Treatment
may be difficult because this complication often oc­
curs in older patients withosteoporotic bone. Some
of the causes include soft-tissue interposition, sys­
temic disease, preexisting stiffness of the glenohu­
meral joint, uncooperativeness on the part of the
patient, and overly aggressive physical therapy. In
surgically managed cases it may be secondary to in­
adequate fixation, poor bone quality, or infection.
There is typically a characteristic cavitation of the
head fragment due to resorption of the bone beneath
Osteonecrosis
Even though osteonecrosis has been reported in
relation to some two-part fractures, it is most com­
mon in three- and especially four-part fractures, oc­
curring in up to 34% of cases. The result usually is
a stiff, painful joint. The treatment of choice for
symptomatic osteonecrosis of the humeral head is
humeral head or total shoulder arthroplasty.
FIGURE 3. Passive as­
sisted exercises are started
with the pendulum: small
clockwise and counter­
clockwise motion with the
patient bent at the waist with
the back supported.
fiGURES 3-7. Phase I, pendulum and
passive assisted exercises.
FIGURE 4. Supine for­
ward elevation with the
noninvolved extremity as­
sisting the involved extrem­
ity. The elbow should be bent
and gradually extended
through the range of motion.
fiGURE 6. Extension with
the stick. The uninvolved
extremity helps the involved
extremity move into exten­
sion.
FIGURE 5. Supine exter­
nal rotation with a stick. The
arm is supported comforta­
bly at the side to prevent ex­
tension. The non involved
side pushes the relaxed in­
volved extremity outward,
with the elbow flexed at 90
degrees.
FIGURE 7. The use of
pulleys, with the uninvolved
extremity supplying power
to raise the involved extrem­
ity.
April-June 1994 115
FIGURE 8. Supine resistive internal rotation. FIGURE 9. Supine resistive external rotation.
FIGURE 10. Erect resis­
tive anterior deltoid.
FIGURE 11. Erect resis­
tive middle deltoid.
FIGURE 12. Erect resis­
tive posterior deltoid.
FIGURES 8-12. Isometrics, which can be initiated with the patient supine and then progressed with the patient standing.
the head. Open reduction and internal fixation, with
the addition of bone graft, is the preferred treatment.
In most cases a spica cast is necessary for six to eight
weeks. Occasionally, humeral head replacement may
be preferable.
Malunion
Healing of the fracture after inadequate reduc­
tion or failure of fixation leads to malunion. This
problem can significantly contribute to loss of range
of motion, weakness, and pain with active elevation.
Greater tuberosity malunions lead to impingement
against the acromion. 4,17,21 These are best managed
by mobilization and reattachment of the tuberosity
fragment. In cases with moderate displacement,
anterior acromioplasty may also be helpful. In more
complex cases, multiple osteotomies or prosthetic re­
placement may be indicated .
Adhesive Capsulitis
Adhesive capsulitis may result if rehabilitation
following a fracture or its operative repair has not
been adequate. A progressive organized exercise pro­
gram should be started following diagnosis. If the
116 JOURNAL OF HAND THERAPY
fracture is healed without significant malunion, ma­
nipulation with the patient under anesthesia and
possible arthroscopic or open debridement of the jOint
and the subacromial space may be the next step.
Also, any possible mechanical cause, such as im­
pinging hardware, must . be addressed.
REHABILITATION
Appropriate rehabilitation following proximal
humeral fracture is essential for maximum recovery
of function. Management of these patients can be
complicated and sometimes prolonged,
Close communication between the surgeon,
therapist, and patient is essential. It is important for
therapists to understand that fracture management
can be a lengthy process, with maximum recovery
taking place anywhere from six postinjury months
to a year. 20,25 A number of factors influence recovery:
the complexity of the fracture, the type of reduction,
and the extent of soft-tissue involvement, as well as
the patient's age and compliance. Degenerative joint
disease, concomitant rotator cuff tear, and gleno­
humeral dislocation must be considered during the
rehabilitation process. More rigid motion restrictions
apply to those patients who had dislocations or re­
quired rotator cuff repair. The fracture fixation must
be secure, as determined by the surgeon prior to
initiation of the exercise program. Range of motion
should be discontinued if the therapist notes crepitus
at the fracture site, and the surgeon should be no­
tified immediately. Overly aggressive range of mo­
tion may distract a minimally displaced fracture and
result in malunion or nonunion. 4 Posttraumatic pain,
postoperative pain, muscle spasm, and prior stiffness
due to arthritis can limit the patients' ability to achieve
early motion.
Applications of electrical stimulation, heat, and
cold are useful for decreasing edema, spasm, and
pain. Massage for relief of spasm can facilitate range
of motion.
Obtaining a detailed history and performing an
appropriate physical examination direct the estab­
lishment of realistic goals during rehabilitation. The
FIGURE 13. Supine forward elevation with a
stick is initiated with the elbows bent.
success of the program relies heavily on patient ed­
ucation, compliance, and ability to participate in a
home exercise program. Written instructions are given
to provide a clear understanding of the home pro­
gram. The rate of exercise progression with all frac­
ture patients is coordinated by the surgeon and de­
pends on the severity of the fracture, the stability of
the reduction, and the formation of callus. Consid­
eration of these elements will contribute to an optimal
final result.
Early passive motion,18 followed by a three-phase
progressive exercise protocol,1O is a working model
that addresses the principal requirements of fracture
rehabilitation. Several authors4.18.2o believe that early
passive motion tailored to the stability of the fracture
is the keystone to successful fracture management,
provided that the fracture be stable and that adequate
pain control be achieved. A preliminary study of early
passive motion with electromyographic analySis sug-
FIGURE 14. A one-to-two­
pound weight is added as
strength improves.
FIGURE 15. Active supine
forward elevation is per­
formed.
FIGURE 16. Activation of the anterior del­
toid is accomplished by sliding the hand across
a smooth surface and elevating it simultane­
ously.
FIGURES 13-18. Phase II, active and early resis­
tive exercises. Active assisted concentric and eccen­
tric exercises are initiated with the patient supine and
are progressed to an erect position as tolerated.
FIGURE 17. Exercise with
the patient erect is then pro­
gressed to concentric and
eccentric forward elevation
with the stick.
FIGURE 18. Pulley exer­
cises can be performed with
eccentric lowering of the in­
volved extremity.
April-June 1994 117
FIGURE 19. As healing permits, forward elevation and ab­
duction are combined, with the uninvolved arm assisting.
FIGURE 20. Internal ro­
tation with the assistance of
the other hand.
FIGURE 22. Combined abduction and exter­
nal rotation stretching is accomplished by put­
ting the forearms on the doorjamb and leaning
into the doorway.
FIGURE 21. Forward ele­
vation with the patient at­
tempting to press the upper
body and axilla close to the
wall.
FIGURES 19-23. Phase III, stretching.
FIGURE 23. Over-the-door
stretching with both hands
helps eliminate substitution.
Gradual body weight should
be applied by bending the
knees as comfort permits.
Remember that these exer­
cises should be done gently
at first, and the patient should
be progressed as tolerated.
gested that adequate relaxation of the muscles and
having a knowledgeable therapist supervision in­
cluding verbal cues for relaxation are effective in ac­
complishing safeearly passive motion. 19 Motion may
be restricted completely or partially during the early
healing phase, depending on the type of fracture and
its method of treatment. Motion of the proximal and
distal joints should always be incorporated into the
program.
Tables 1 and 2 and Figures 1 through 33 dem­
onstrate our protocol for fracture management. It
consists of early passive motion followed by a three­
phase program: phase I, pendulum and passive as­
sisted exercises; phase II, active and early resistive
exercises; and phase III, advanced stretching and
118 JOURNAL OF HAND THERAPY
strengthening. Isometric exercises are begun follow­
ing phase I.
Patients are instructed to perform their range of
motion exercises three to four times daily and to use
pain medication and home application of heat or ice
as needed. 10 Phase III strengthening exercises should
be limited to one or two times daily. Later in the
rehabilitation process, strengthening may be done
three to four times per week as the intensity of the
workout increases. Functional strength is the ulti­
mate goal. The requisite demands of the upper ex­
tremity vary with the patient's occupation, lifestyle,
age, and leisure participation in athletics. Exercise is
tailored to achieve the maximal requirement of each
individual. Unfortunately, not all patients progress
through the protocol predictably. Excessive stiffness
or severe weakness may be present.
Patients who exhibit prolonged weakness may
have had extensive soft-tissue damage with resultant
rotator cuff and deltoid insufficiency. In these in­
stances, when patients are unable to actively elevate
the arm against gravity, the rehabilitation focuses on
supine forward elevation, eccentric supine elevation,
and graded manual resistive exercise by the thera­
pist.
In cases of excessive stiffness, the rehabilitation
must be focused on achieving normal range of motion
instead of strengthening, although gentle strength­
ening may continue with a greater emphasis on
stretching.
In progressing these patients, it is important that
full end range strength be attained, and this can
sometimes lag in the recovery process. In resistive
exercises, particularly in elevation of the arm, the
therapist must be aware of arthrokinematics. Ade­
quate humeral head depression is necessary to avoid
impingement during the strengthening process. In
the presence of a weak rotator cuff, strengthening
supine and below the horizontal should be empha­
sized. In addition to deltoid and rotator cuff strength­
ening, periscapular strengthening exercises, partic­
ularly for the rhomboids, trapezius, and serratus
anterior, should be incorporated into the program.
The scapula must rotate and set adequately so that
the glenoid provides a fulcrum for the head of the
humerus as the arm is elevated; therefore, it is in­
cumbent upon the therapist to address these muscle
groups in the total rehabilitation regimen following
shoulder fracture.
FIGURE 24. Advanced internal rotation stretching is accom­
plished with the use of a towel over the shoulder (left) or by
holding a door and bending the knees (right).
FIGURE 25. The patient
reaches the top of the door­
jamb and walks through the
doorway.
FIGURES 24-27. Phase III, special stretching.
FIGURE 26. External ro­
tation with the arm held to
the side by the uninvolved
extremity and the body ro­
tating away from the hand.
FIGURE 27. Cross-body or
horizontal adduction for
posterior capsular stretch,
with the help of the unin­
volved extremity applying
pressure to the elbow while
the patient reaches over the
opposite shoulder with the
involved extremity.
April-June 1994 119
FIGURE 28. Standing press
with the weight. FIGURE 29. Anterior del­
toid strengthening with an
upper cut using Theraband.
Motion in forward elevation
should be 90 degrees.
FIGURE 30. External ro­
tator strengthening with the
elbow held at the side. The
patient externally rotates
against the Theraband.
FIGURE 31. Middle del­
toid strengthening and cuff
strengthening are accom­
plished by abducting with
resistance supplied by the
Theraband.
FIGURES 28-33. Phase III, strengthening.
SUMMARY
The understanding of early controlled range of
motion adapted to the stability of the fracture is cru­
cial in postfracture shoulder therapy. The diagnosis
and management of proximal humeral fractures have
been reviewed.
120 JOURNAL OF HAND THERAPY
FIGURE 32. The internal rotator is strength­
ened by attaching the Theraband to a doorknob
and internally rotating.
FIGURE 33. The posterior deltoid is strength­
ened by hyperextending the shoulder with a
bent elbow. Progressive resistance continues
until functional strength is attained.
In addition, the aspects of therapy and the per­
tinent rehabilitation protocols are outlined. Although
this article outlines standard treatment approaches,
the specific therapy should be individualized to the
patient's goals and abilities, and continuous com­
munication between all persons involved in the pa­
tient's care is essential for achieving the best possible
outcome.
BIBLIOGRAPHY
1. Ahlgren 0, Appell H: Proximal humeral fractures. Acta Or­
thop Scand 44:124-125, 1973.
2. Austin MD: Fracture hazards, reporting 3 uncommon fracture
cases, with use of original crucifixion splint in fracture of
surgical neck of humerus. J Indiana Med Assoc 16:129, 1923.
3. Bardenheruer FH, cited by Lorenz H: Deut Zeit Chir 58:593,
1900-1901, 1949.
4. Bigliani LV: Fractures of the proximal humerus. In Rockwood
CA Jr, Matsen FA II (eds): The Shoulder, vol. 1. Philadelphia,
W. B. Saunders, 1990, pp . 278-334.
5. Bigliani LV: Treatment of 2- and 3-part fractures of the prox­
imal humerus. Chicago, American Academy of Orthopaedic
Surgeons, Instructional Course Lectures, 38:231-244, 1989.
6. Cofield RH: Comminuted fractures of the proximal humerus.
Clin Orthop 230:49-57, 1988.
7. Cuomo FA, Flatow EL, Maday MG, Miller SA, McIlveen S},
Bigliani LV: Open reduction and internal fixation of 2- and
3Cpart displaced surgical neck fractures of the proximal hu­
merus. J Shoulder Elbow Surg 1(6):287-295, 1992.
8. Hagg 0, Lundberg B: Aspects of prognostic factors in com­
minuted and dislocated proximal humeral fractures. In Bate­
man JE, Welsh RD (eds): Surgery of the Shoulder. Philadel­
phia,B. C. Decker, 1984.
9. Hawkins RJ, Bell RH, Gurr K: The three-part fracture of the
proximal part of the humerus. Operative treatment. J Bone
Joint Surg 68A:141O-1414, 1986.
10. Hughes M, . Neer CS: Glenohumeral joint replacement and
post~operative rehabilitation . Phys Ther 55:850-858, 1975.
11. Jaberg H, Warner JP, Jakob R: Percutaneous stabilization of
unstable fractures of the humerus. J Bone Joint Surg 74A:508-
551, 1992.
12. Jakob RP, Kristiansen T, Mayo K, Ganz R, Muller ME: Clas­
sification and aspects of treatment of fractures of the proximal
humerus. In Bateman JE, Welsh RP. Surgery of the Shoulder.
Philadelphia, B. C. Decker, 1984, pp. 330-343.
13. Kristiansen B, Christiansen SW: Plate fixation of proximal hu-
meral fractures . Acta Orthop Scand 57:320-323, 1986.
14. Kristiansen B, Kofoed H: External fixation of displaced frac­
tures of the proximal humerus. J Bone Joint Surg [Br] 69B:643-
646, 1987.
15. Lentz W, Meuser P: The treatment of fracture of the proximal
humerus. Arch Orthop Trauma Surg 96:283-285, 1980.
16. Lundberg BJ, Svenungren-Hartwig E, Witmarck R: Indepen­
dent exercises versus physiotherapy in non-displaced proximal
humerus fractures . Scand J Rehabil Med 11:133-136, 1979.
17. Neer CS II: Displaced proximal humeral fractures, part II.
Treatment of 3-part and 4-part displacement. J Bone Joint Surg
52A: 1090-1103, 1970.
18. Neer CS II: Shoulder Reconstruction. Philadelphia, W. B.
Saunders, 1990, pp. 143-271.
19. Neer CS II, McCann PD, MacFarlane EA, Padilla N: Earlier
passive motion follOWing shoulder arthroplasty and rotator
cuff repair.A prospective study . Orthop Trans 11 :231, 1987.
20. Norris RT: Fractures of the proximal humerus and dislocation
of the shoulder. In Brown BD, Jupiter JB, Levine AM, Trafton
PG (eds): Skeletal Trauma, vol. 2. Philadelphia, W. B. Saun­
ders, 1992, pp. 1201-1290.
21. Paavolainen P, Bjorkenheim JM, Slatis P, Paukka P: Operative
treatment of severe proximal humeral fractures. Acta Orthop
Scand 54:374-379, 1983.
22. Rose SH, Melton LF, Morrey BF, et al: Epidemiologic feature
of humeral fracture. Clin Orthop 168:24-30, 1982.
23. Rosen H: Tension band wiring for fracture dislocation of the
shoulder. Proceedings of the 12th Congress of the Interna­
tional Society of Orthopaedic Surgery and Traumatology, Tel
Aviv, Oct 1972, pp. 939-941.
24. Rush LV: Atlas of Rush pin techniques . Meridian, Michigan,
Beviron, 1959.
25. Stable forth PG: Four-part fractures of the neck of the humerus.
J Bone Joint Surg [Br] 66B:104-108, 1984.
26. Thompson FE, Winant EM: Comminuted fracture of the hu­
meral head with subluxation. Clin Orthop 20:94-97, 1961.
27. Zuckerman JD, Flugrted DL, Teitz CC, et al: Axillary artery
injury as a complication of proximal humerus fractures. Clin
Orthop 189:234-237, 1984.
o CLINICAL SPECIALTY EDUCATION 0
Focus on Splinting
Hands-On Workshop
Instructor: Patricia K. Roholt PT, CHT
Dayton, OH· July 9-10
Dallas, TX· Oct. 29-30
Boston, MA • Nov. 10-11
Presents
Upper Extremity Rehab: An Integrated Approach
Instructor: Joseph DiGiovanna, PT, OCS
Kansas City, MO· Aug. 20-21
Dallas, TX· Sept. 24-25
Dayton, OH· Oct. 15-16
Washington, DC· Nov. 19-20
Fundamentals of Burn Rehabilitation
Instructors: Reg Richard MS, PT - Marlys Staley, MS, PT
Boston, MA • July 28-29
Las Vegas, NY • Oct. 27-28
Introduction to Hand Therapy
Fundamentals of Hand Rehabilitation
Instructors: Patricia K. Roholt, PT, CHT -
*Brad Kirkes, OTR
Dayton, OH· July 7-8
* Los Angeles, CA • July 22-23
Chicago, II.. • Aug 4-5
Washington, DC· Sept. 1-2
Detroit, MI· Sept. 15-16
* Portland, OR· Sept. 23-24
Charlotte, NC· Sept. 29-30
Las Vegas, NV· Oct. 13-14
Dallas, TX· Oct. 27-28
Minneapolis, MN· Nov. 17-18
* San Jose, CA· Nov. 18-19
Miami, FL· Dec. 1-2
For more infonnanon call: 513-341-5329
April-June 1994 121
