CHAPTER 23 985

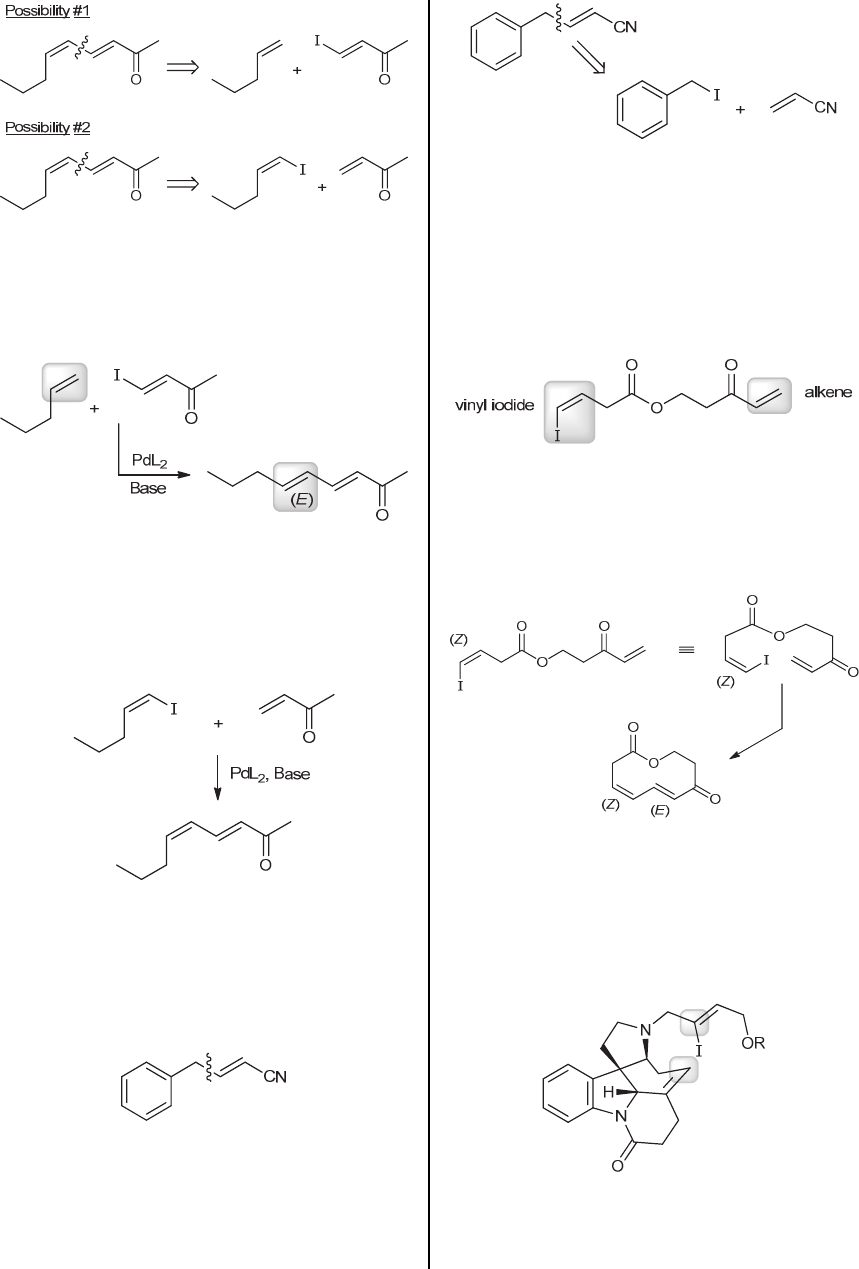

The first possibility is not viable because Heck reactions
are stereoselective with respect to the starting alkene,
and the E isomer (rather than the Z isomer) would be
expected:



This is not the desired stereochemical outcome, so we
turn our attention to the second possibility. This
possibility works, and it has the added advantage that the
starting alkene is monosubstituted, with an electron-
withdrawing substituent (so we expect the reaction to be
very effective).



(f) Analyze the structure of the product and determine
which bond(s) can be made via a Heck reaction. Recall
that a Heck reaction forms a bond between a vinyl
position and either an aryl, vinyl or benzyl position. In
the desired compound, there is only one bond that fits
this criterion:



This bond, indicated with a wavy line, is between a
benzyl group and a vinyl group. To make this bond via a
Heck reaction, we must start with an organohalide and an
alkene. Since one of the coupling partners must be an
alkene, the other partner (in this case) must be a benzyl
halide, as shown:


Notice that the alkene is monosubstituted, with an
electron-withdrawing substituent, so we expect the
reaction to be very effective.



23.25. In a Heck reaction, an alkene is coupled with an
organohalide. In this case, the two coupling partners are
tethered together in the same compound:



Upon treatment with a base and a suitable palladium
catalyst, an intramolecular Heck reaction can occur.
Notice that the Z configuration of the vinyl iodide is
preserved. The new C-C bond is formed regioselectively
and stereoselectively, with the E configuration being
formed:



23.26. Begin by identifying the carbon atoms that will
be joined. The carbon atom connected to the iodide will
be joined directly to the proximal carbon of the alkene (a
bond will be formed between the two highlighted
positions):


Next, consider the intermediate that forms when the
palladium catalyst interacts with compound 1.
