CHAPTER 22 931

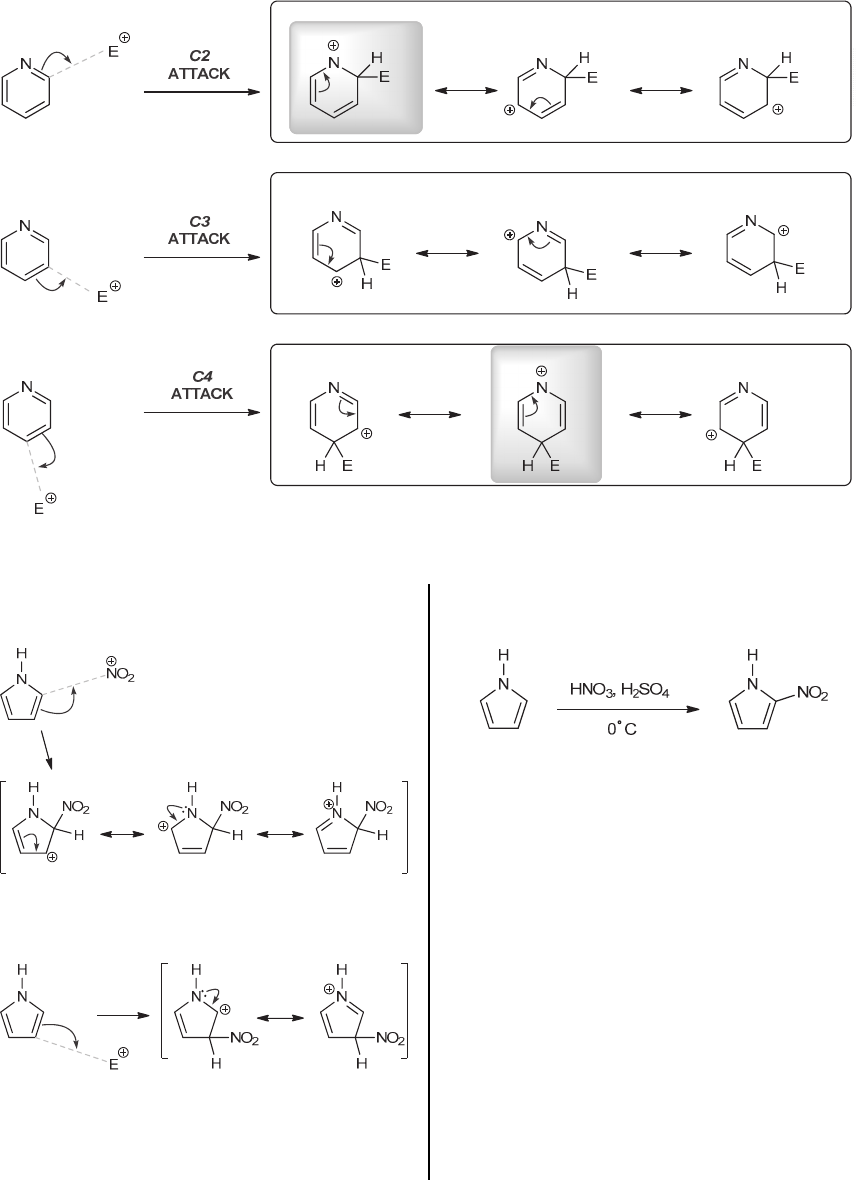

22.29. Attack at either C2 or C4 generates an intermediate that exhibits a resonance structure with a nitrogen atom that
bears a positive charge and lacks an octet (highlighted below). Attack at C3 generates a more stable intermediate
(carbon is more electropositive than nitrogen so a carbon atom can better stabilize a positive charge associated with an
unfilled octet):





22.30. Attack at the C2 position proceeds via an
intermediate with three resonance structures:



In contrast, attack at the C3 position proceeds via an
intermediate with only two resonance structures:



The intermediate for C2 attack is lower in energy than
the intermediate for C3 attack. The transition state
leading to the intermediate of C2 attack will therefore be
lower in energy than the transition state leading to the
intermediate of C3 attack. As a result, C2 attack occurs
more rapidly, giving the following product:



22.31.
(a) The second compound will have an N-H stretching
signal between 3300 and 3500 cm-1. The first compound
will not have such a signal.
(b) When treated with HCl, the first compound will be
protonated to form an ammonium salt that will produce
an IR signal between 2200 and 3000 cm-1. The second
compound is not an amine and will not exhibit the same
behavior.

22.32.
(a) The 1H NMR spectrum of the first compound will
have a singlet resulting from the N-methyl group. The
1H NMR spectrum of the second compound is not
expected to exhibit any singlets.
(b) The 1H NMR spectrum of the first compound will
have six signals, while the 1H NMR spectrum of the
second compound will have only three signals.
22.33. The designation “primary” indicates that two
hydrogen atoms are attached to the nitrogen atom, while
