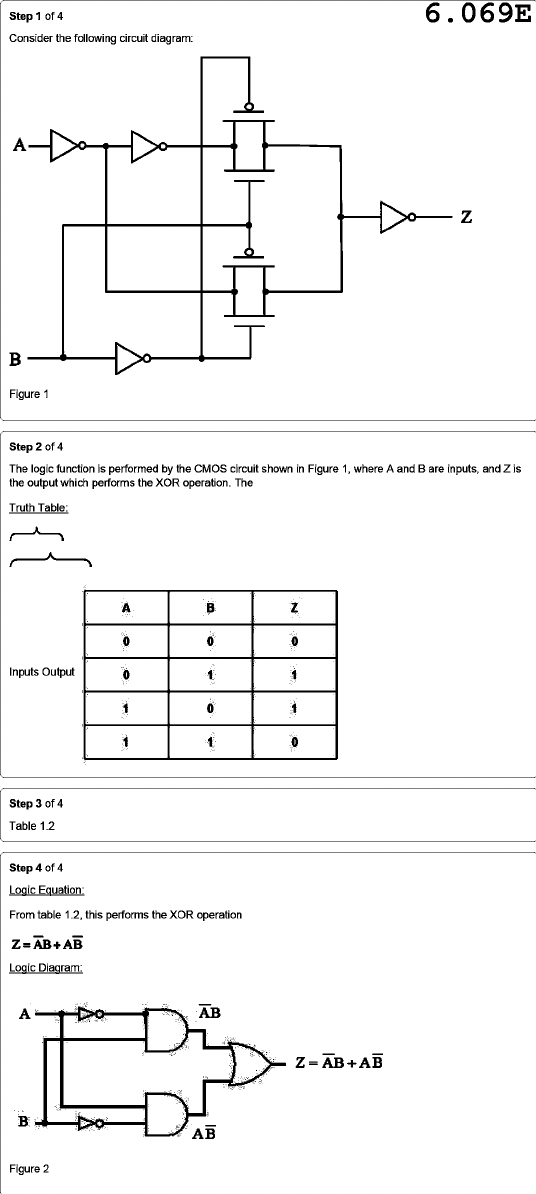

Step 1 of 4 6.069E Consider the following circuit diagram: A Z B Figure 1 Step 2 of 4 The logic function is performed by the CMOS circuit shown in Figure 1, where A and B are inputs, and Z is the output which performs the XOR operation. The Truth Table: A B Z 0 0 0 Inputs Output 0 1 1 1 0 1 1 1 0 Step 3 of 4 Table 1.2 Step 4 of 4 Logic Equation: From table 1.2, this performs the XOR operation Z=AB+AB Logic Diagram: A AB Z = AB + AB B AB Figure 2
