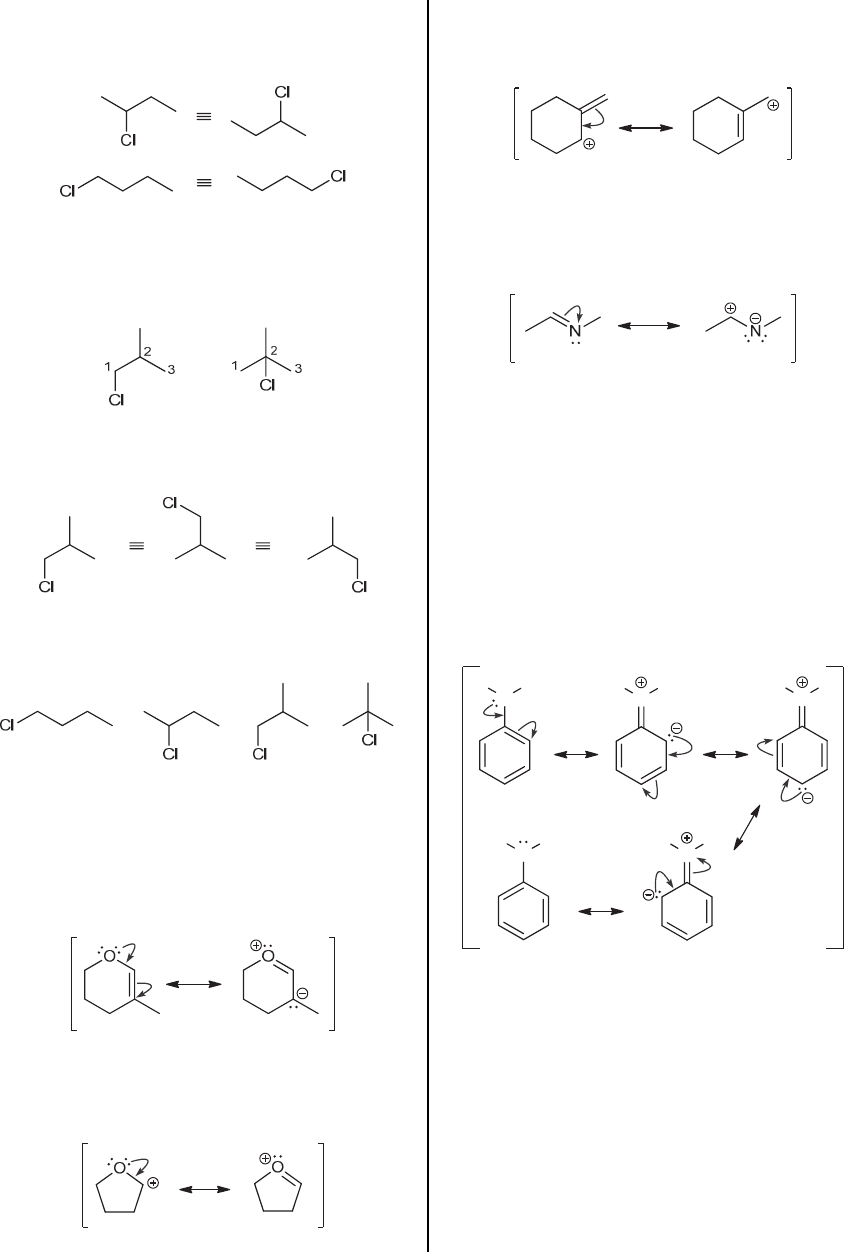

Placing the chlorine atom at position 3 would be the
same as placing it at position 2; and placing the chlorine
atom at position 4 would be the same as it as position 1:



Next, we move on to the other carbon skeleton,
containing a branch. Once again, there are two distinctly
different locations where a chlorine atom can be placed:
either at position 1 or position 2, shown here.



Placing the chlorine atom on any of the peripheral
carbon atoms will lead to the same compound:



In summary, there are a total of four constitutional
isomers with the molecular formula C4H9Cl:



2.52.
(a) This compound exhibits a lone pair next to a  bond,
so we draw the two curved arrows associated with that
pattern. The first curved arrow is drawn showing a lone
pair becoming a  bond, while the second curved arrow
shows a  bond becoming a lone pair:



(b) This structure exhibits a lone pair that is adjacent to a
positive charge, so we draw one curved arrow, showing a
lone pair becoming a  bond:



(c) This structure exhibits an allylic positive charge, so
we draw one curved arrow showing the  bond being
pushed over.



(d) This compound exhibits a C=N bond (a  bond
between two atoms of differing electronegativity), so we
draw one curved arrow showing the  bond becoming a
lone pair.



(e) This compound exhibits a lone pair next to a  bond,
so we draw two curved arrows. The first curved arrow is
drawn showing a lone pair becoming a  bond, while the
second curved arrow shows a  bond becoming a lone
pair. We then draw the resulting resonance structure and
assess whether it exhibits one of the five patterns. In this
case, the lone pair is now next to another  bond, so once
again, we draw the two curved arrows associated with
that pattern. The resulting resonance structure again
exhibits a lone pair next to a  bond. This pattern
continues again, thereby spreading a negative charge
over many locations, as shown here:

N
H
N
H
N
H
N
H
N
H
H H H
HH


(f) This structure exhibits a lone pair next to a  bond,
so we draw two curved arrows. The first curved arrow is
drawn showing a lone pair becoming a  bond, while the
second curved arrow shows a  bond becoming a lone
pair. We then draw the resulting resonance structure and
assess whether it exhibits one of the five patterns. In this
case, the lone pair is now next to another  bond, so once
again, we draw the two curved arrows associated with
that pattern. The resulting resonance structure again
exhibits a lone pair next to a  bond, so we draw one
more resonance structure, as shown here:
