312 CHAPTER 9

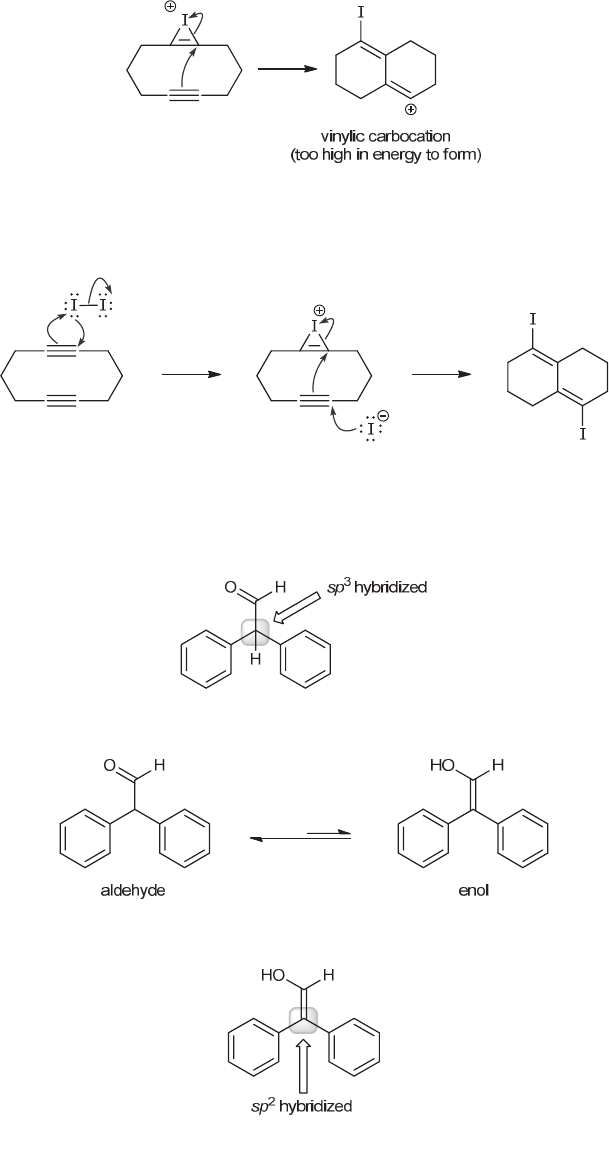

(b) As shown, the resulting carbocation would be vinylic, and we have seen that vinylic carbocations are generally too
high in energy to form:


(c) The problem statement describes the following two-step mechanism, which avoids the formation of a vinylic
carbocation intermediate. After the initial formation of the iodonium ion, the iodide anion can attack the second alkyne
group, causing the -electrons to attack the iodonium ion, giving the final product.




9.71.
(a) The highlighted carbon atom has four  bonds, and is therefore sp3 hybridized. As a result, the geometry around
this carbon atom is expected to be tetrahedral, with approximate bond angles of 109.5°.



(a) Compound 1 is an aldehyde, and its enol is shown here:


If we explore the same carbon atom that we analyzed in part (a), we find that this carbon atom (highlighted below) is
sp2 hybridized, with approximate bond angles of 120°.



(c) As we noted in the solutions to parts (a) and (b), we expect the bond angles to change when compound 1 is
converted into its enol form. Specifically, there is an increase in the bond angles from 109.5° to 120°, as shown:
