CHAPTER 17 609

17.7.
(a) According to Figure 17.1, the conversion from
cyclohexane to cyclohexene is uphill in energy (ΔH has a
positive value).
(b) According to Figure 17.1, the conversion from
cyclohexene to benzene is uphill in energy (ΔH has a
positive value).
(c) According to Figure 17.1, the conversion from
cyclohexadiene to benzene is downhill in energy (ΔH
has a negative value).

17.8.
(a) This compound has six  bonds, for a total of twelve
 electrons. Twelve is not a Hückel number, so the
compound is not expected to be aromatic.
(b) This compound has seven  bonds, for a total of
fourteen  electrons. Fourteen is a Hückel number. In
Section 17.5, we saw that [14]annulene is somewhat
destabilized by a steric interaction between the hydrogen
atoms positioned inside the ring. Although [14]annulene
is nonplanar, it does indeed exhibit aromatic
stabilization, because the deviation from planarity is not
too great.
(c) This compound has eight  bonds, for a total of
sixteen  electrons. Sixteen is not a Hückel number, so
the compound is not expected to be aromatic.

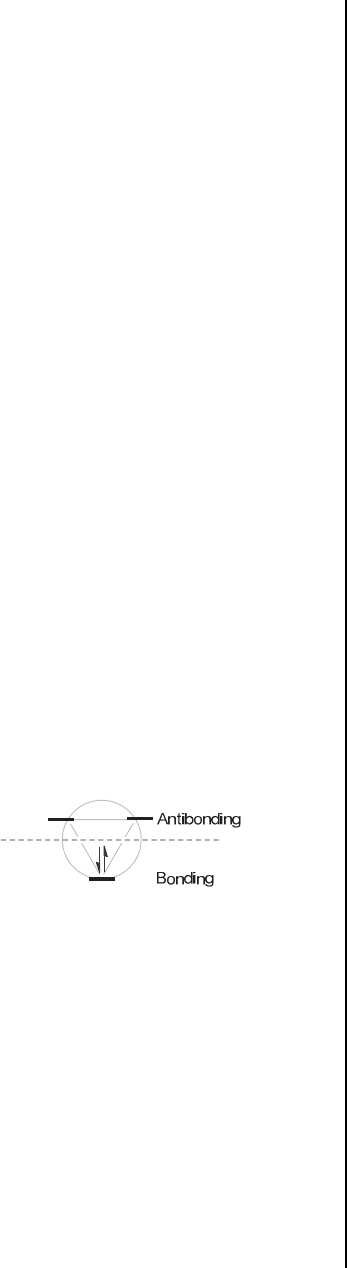

17.9. We draw a circle and inscribe a triangle inside the
circle, with one of the points of the triangle at the bottom
of the circle. Each location where the triangle touches
the circle represents an energy level. The energy level
on the bottom of the circle is a bonding MO, and the two
energy levels on top are antibonding MOs. The structure
has two  electrons, which both occupy the bonding MO.
This Frost circle indicates that there is only one bonding
MO and it is filled, while the antibonding MOs are
empty. This structure is expected to exhibit aromatic
stabilization.


17.10. This structure exhibits a ring of continuously
overlapping p orbitals, and there are 22 π electrons (a
Hückel number). Therefore, the compound is expected
to exhibit aromatic stabilization.

17.11.
(a) This structure exhibits a ring of continuously
overlapping p orbitals, but there are four  electrons,
rendering the structure antiaromatic. This anion is
expected to be very high in energy (very unstable).
(b) This structure exhibits a ring of continuously
overlapping p orbitals (C+ represents a carbon atom with
an empty p orbital), and there are two  electrons,
rendering the structure aromatic.
(c) This structure exhibits a ring of continuously
overlapping p orbitals, but there are four  electrons,
rendering the structure antiaromatic.
(d) This structure exhibits a ring of continuously
overlapping p orbitals (the lone pair occupies a p orbital
because it is resonance stabilized). There are ten 
electrons, rendering the structure aromatic.

17.12. In order to predict whether this dianion is
aromatic, we must determine if the following two criteria
have been met:
1. Does the compound contain a ring comprised of
continuously overlapping p orbitals?
2. Is there a Hückel number of  electrons in the ring?

The lone pairs can occupy p orbitals providing for
continuous overlap of p orbitals around the ring, so the
first criterion has been met. To determine if the second
criterion has been met, we must count the number of 
electrons. Each  bond counts as two electrons, and each
lone pair counts as two electrons, for a total of 10 
electrons. Ten is a Hückel number, so the dianion is
aromatic. All ten  electrons are thus completely
delocalized around the eight-membered ring.

17.13.
(a) One of the lone pairs occupies a p orbital, thereby
rendering the compound aromatic (six  electrons). The
other lone pair will occupy an sp2 hybridized orbital, in
the plane of the ring, extending away from the ring.
(b) One of the lone pairs occupies a p orbital, thereby
rendering the compound aromatic (six  electrons). The
other lone pair will occupy an sp2 hybridized orbital, in
the plane of the ring, extending away from the ring.
(c) If the lone pair were to occupy a p orbital, there
would be a continuous system of overlapping p orbitals
with eight  electrons (antiaromatic). To avoid the
instability associated with antiaromaticity, the lone pair
is expected to occupy an sp3 hybridized orbital.
(d) One of the lone pairs on the sulfur atom occupies a p
orbital, thereby rendering the compound aromatic (six 
electrons). The lone pair on the nitrogen atom occupies
an sp2 hybridized orbital that is in the plane of the ring
(because the nitrogen atom is already using a p orbital to
establish aromaticity).
(e) There is only one lone pair (on oxygen) and it is not
participating in aromaticity. That oxygen atom is already
using a p orbital to establish aromaticity.
(f) Each nitrogen atom has one lone pair, and neither is
participating in aromaticity. In each case, the nitrogen
atom is already using a p orbital to establish aromaticity.
(g) The compound is not aromatic. In order to achieve a
continuous system of overlapping p orbitals, each
oxygen atom would need to contribute a lone pair in a p
orbital, and that would give 8 π electrons (not a Hückel
number).
(h) One of the lone pairs on the oxygen atom occupies a
p orbital, thereby rendering the compound aromatic (six
 electrons). The lone pair on the nitrogen atom
occupies an sp2 hybridized orbital that is in the plane of
the ring (because the nitrogen atom is already using a p
orbital to establish aromaticity).
