608 CHAPTER 17

17.5.

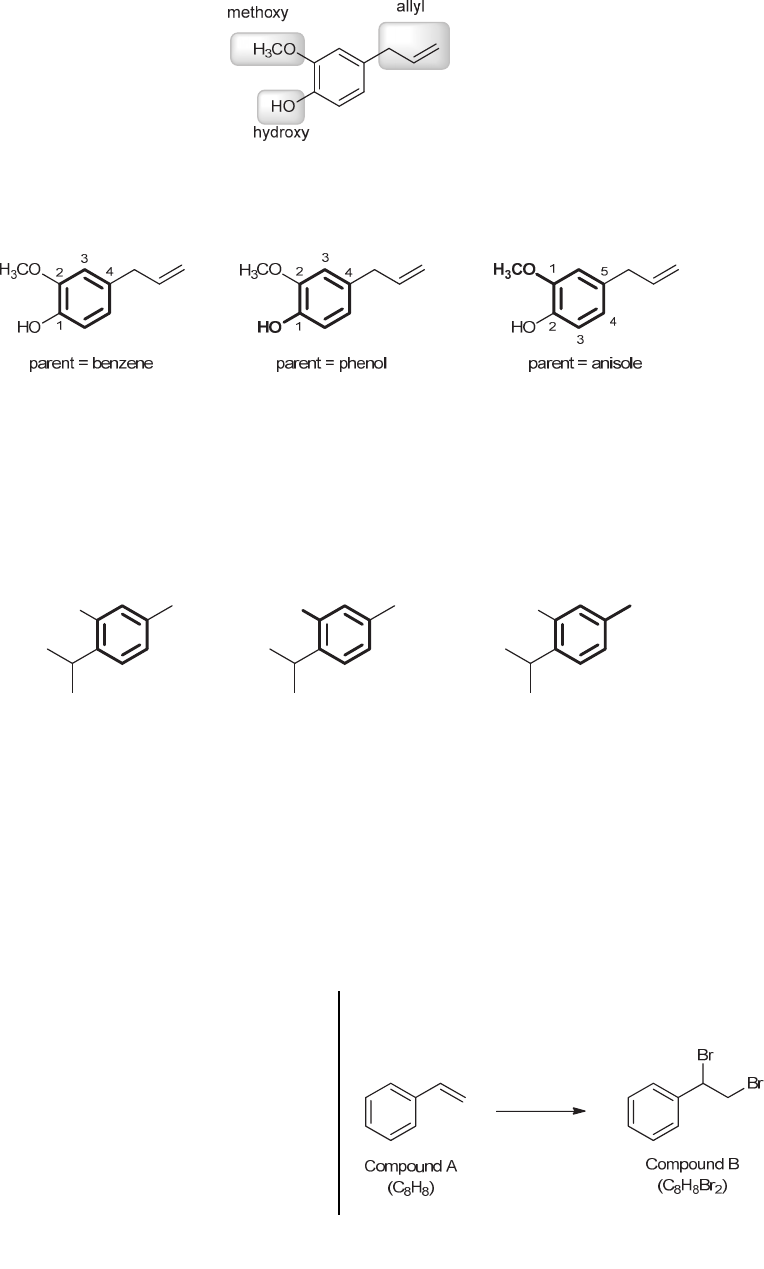

(a) Eugenol contains three substituents: an allyl group, a hydroxy group, and a methoxy group.



All benzene derivatives can be named with benzene as the parent. In this case, the parent could also be either phenol
(hydroxybenzene) or anisole (methoxybenzene). So there are three choices for the parent. For each possibility, the
assignment of locants is shown by numbering to give the lowest possible number to each consecutive substituent:



The last step is to arrange the substituents alphabetically so the three names for eugenol are as follows:
As a benzene derivative: 4-allyl-1-hydroxy-2-methoxybenzene
As a phenol derivative: 4-allyl-2-methoxyphenol
As an anisole derivative: 5-allyl-2-hydroxyanisole

Thymol contains three substituents as well: a methyl group, a hydroxy group, and an isopropyl group. Each can be
named based on benzene, phenol, or toluene as the parent. These possibilities are shown below, with the corresponding
locants shown:

HO
1
2
3
4 HO 1
2
3
4
5
HO 1
2
3
4
parent = benzene parent = phenol parent = toluene

Arranging the substituents we obtain the following three possible IUPAC names:
As a benzene derivative: 2-hydroxy-1-isopropyl-4-methylbenzene
As a phenol derivative: 2-isopropyl-5-hydroxyphenol
As a toluene derivative: 3-hydroxy-4-isopropyltoluene

(b) This name violates two of the rules for naming polysubstituted aromatic compounds. First, the substituents are not
listed alphabetically. Second, if named with benzene as the parent, the methyl group needs to have the first locant in
order to minimize the number of the third locant. Thus, a correct name would be 2-hydroxy-4-isopropyl-1-
methylbenzene.



17.6. The molecular formula (C8H8) indicates five
degrees of unsaturation (see Section 14.16), four of
which are accounted for by the aromatic ring, so the
structure must also contain either a ring or a double bond
(in addition to the aromatic ring). If compound A
undergoes bromination to produce a dibromide, then it
must contain a C=C double bond (outside of the aromatic
ring, which does not react with Br2). This C=C double
bond accounts for the last degree of unsaturation,
described above. The structure of compound A, as well
as the structure of the resulting dibromide (compound B)
are shown here:
